Lexus GS450h 2014 Owner's Manual

660
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

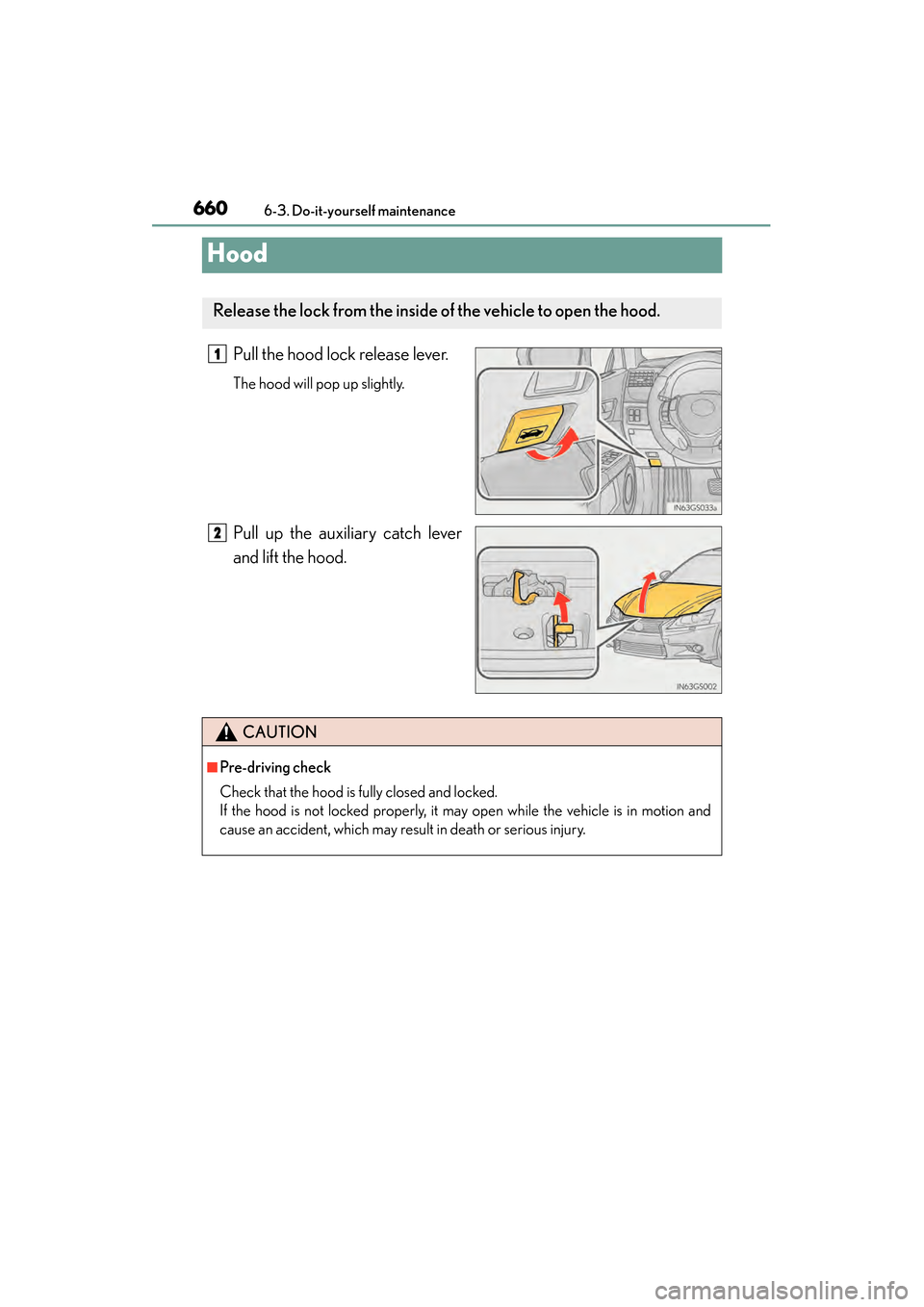

Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Release the lock from the inside of the vehicle to open the hood.
1
2
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
GS450h_OM_OM30D52U_(U).book Page 660 Monday, July 29, 2013 12:07 PM

661
GS450h_OM_OM30D52U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

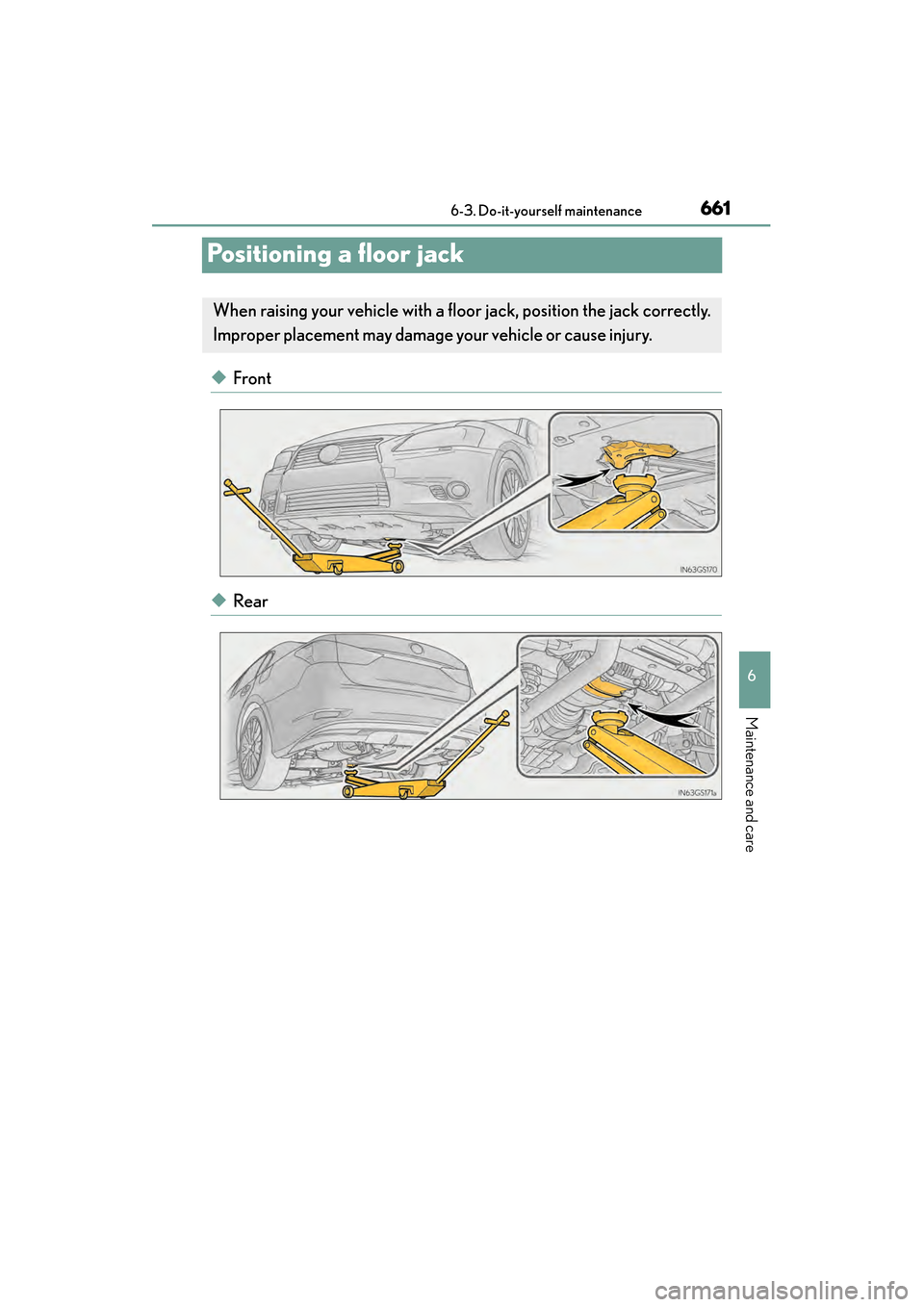

Positioning a floor jack
◆Front
◆Rear
When raising your vehicle with a fl oor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
GS450h_OM_OM30D52U_(U).book Page 661 Monday, July 29, 2013 12:07 PM

662
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

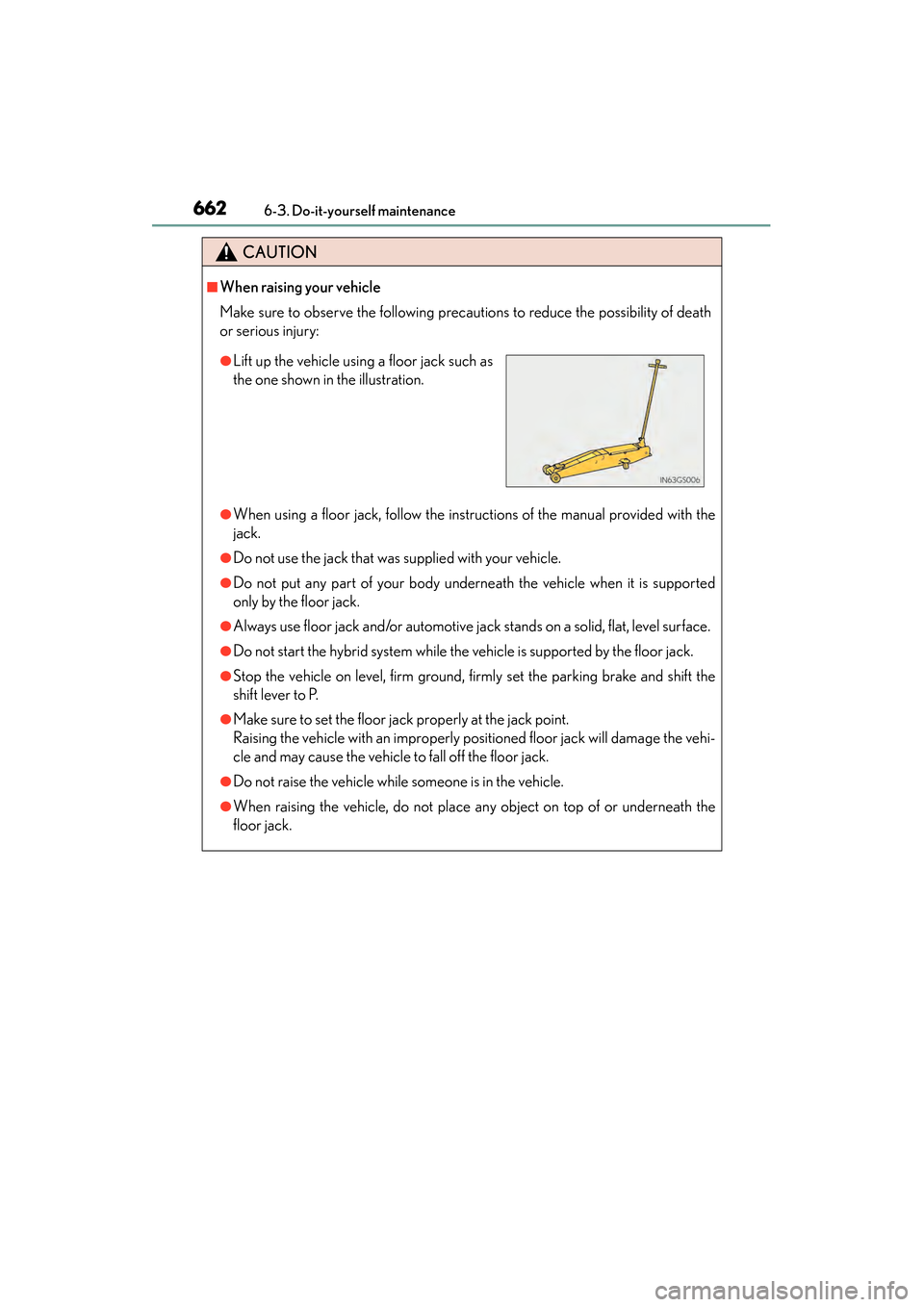

CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of death
or serious injury:
●When using a floor jack, follow the instructions of the manual provided with the
jack.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body underneath the vehicle when it is supported
only by the floor jack.
●Always use floor jack and/or automotive jack stands on a solid, flat, level surface.
●Do not start the hybrid system while the vehicle is supported by the floor jack.
●Stop the vehicle on level, firm ground, firmly set the parking brake and shift the
shift lever to P.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any object on top of or underneath the
floor jack.
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.
GS450h_OM_OM30D52U_(U).book Page 662 Monday, July 29, 2013 12:07 PM

663
GS450h_OM_OM30D52U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

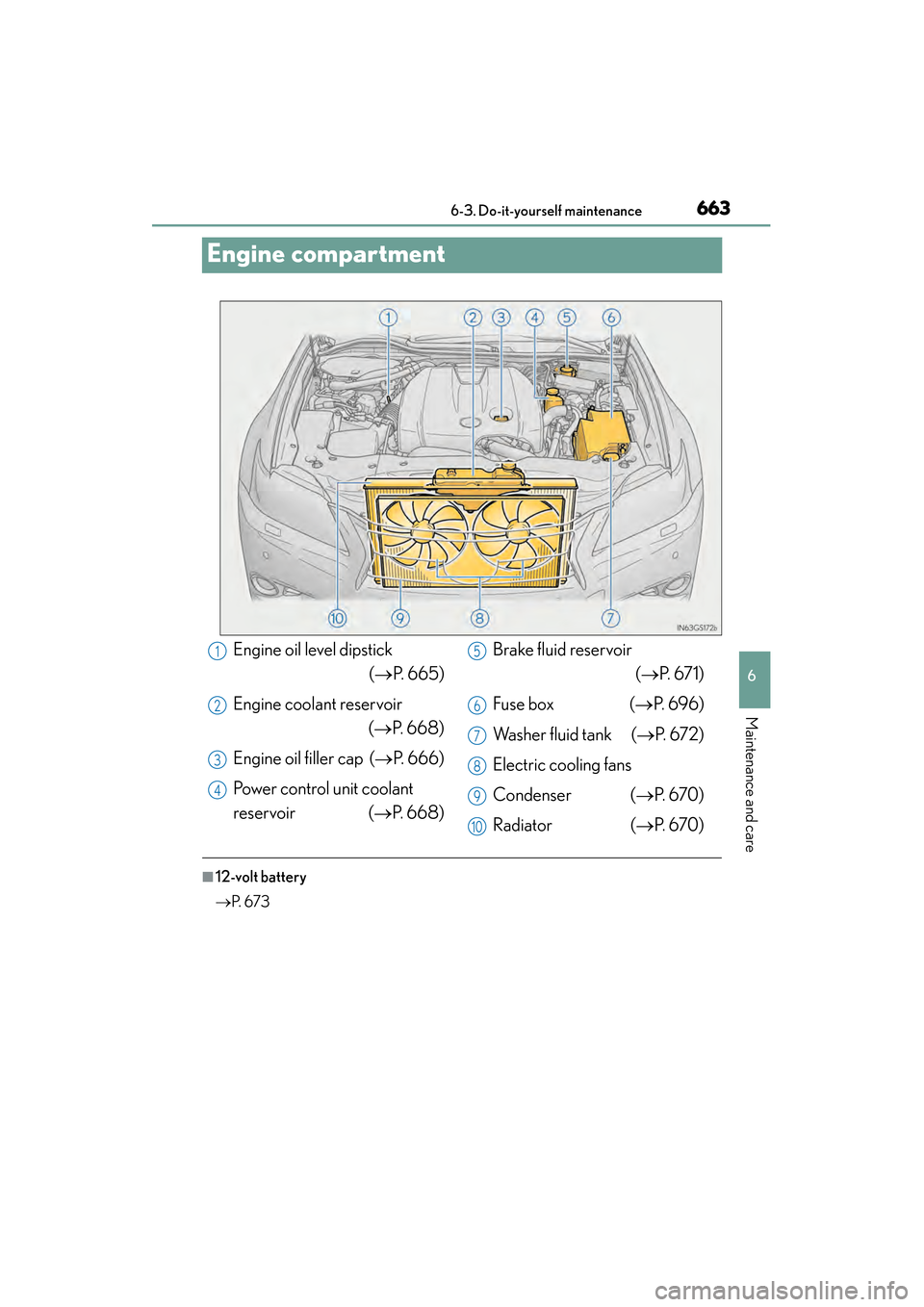

Engine compartment
■12-volt battery
→ P. 6 7 3
Engine oil level dipstick
(→P. 665)
Engine coolant reservoir (→P. 668)
Engine oil filler cap ( →P. 666)
Power control unit coolant
reservoir ( →P. 668) Brake fluid reservoir
(→P. 671)
Fuse box ( →P. 6 9 6 )
Washer fluid tank ( →P. 6 7 2 )
Electric cooling fans
Condenser ( →P. 6 7 0 )
Radiator ( →P. 6 7 0 )1
2
3
4
5
6
7
8
9
10
GS450h_OM_OM30D52U_(U).book Page 663 Monday, July 29, 2013 12:07 PM

664
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

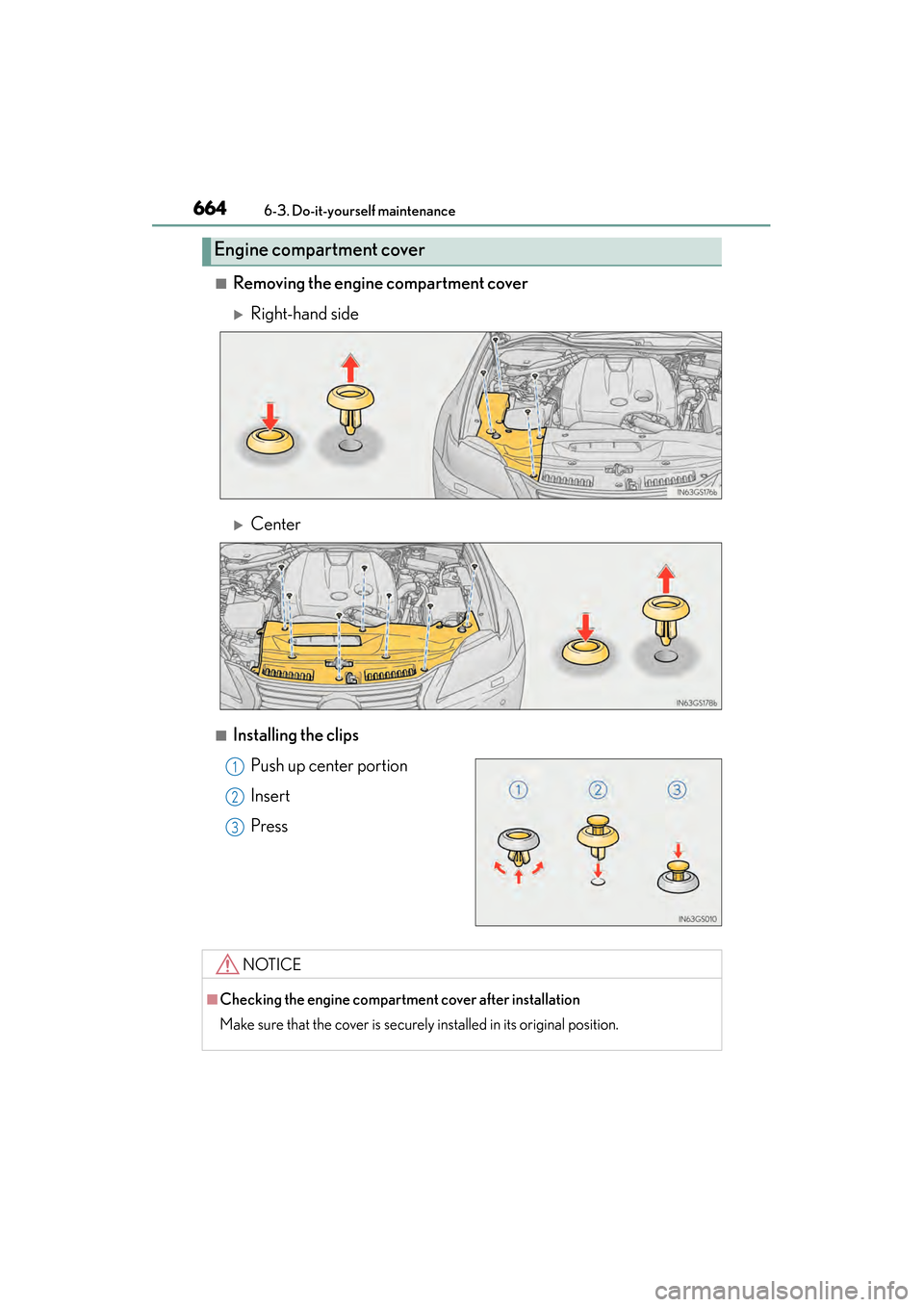

■Removing the engine compartment cover
XRight-hand side
XCenter
■Installing the clipsPush up center portion
Insert
Press
Engine compartment cover
1
2
3
NOTICE
■Checking the engine compartment cover after installation
Make sure that the cover is securely installed in its original position.
GS450h_OM_OM30D52U_(U).book Page 664 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
6656-3. Do-it-yourself maintenance
6
Maintenance and care

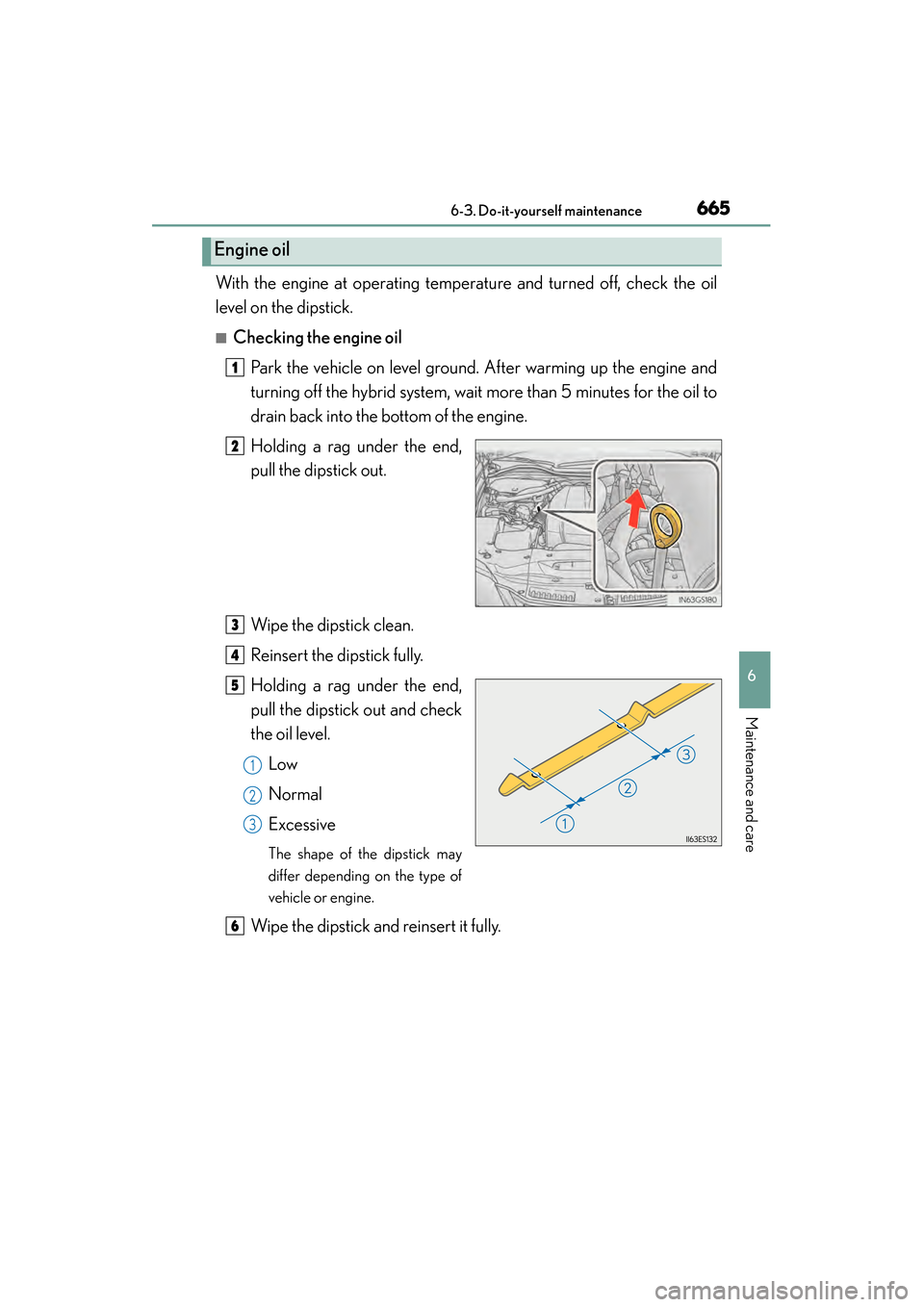

With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oilPark the vehicle on level ground. After warming up the engine and
turning off the hybrid system, wait more than 5 minutes for the oil to
drain back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end,
pull the dipstick out and check
the oil level. Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6
GS450h_OM_OM30D52U_(U).book Page 665 Monday, July 29, 2013 12:07 PM

666
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

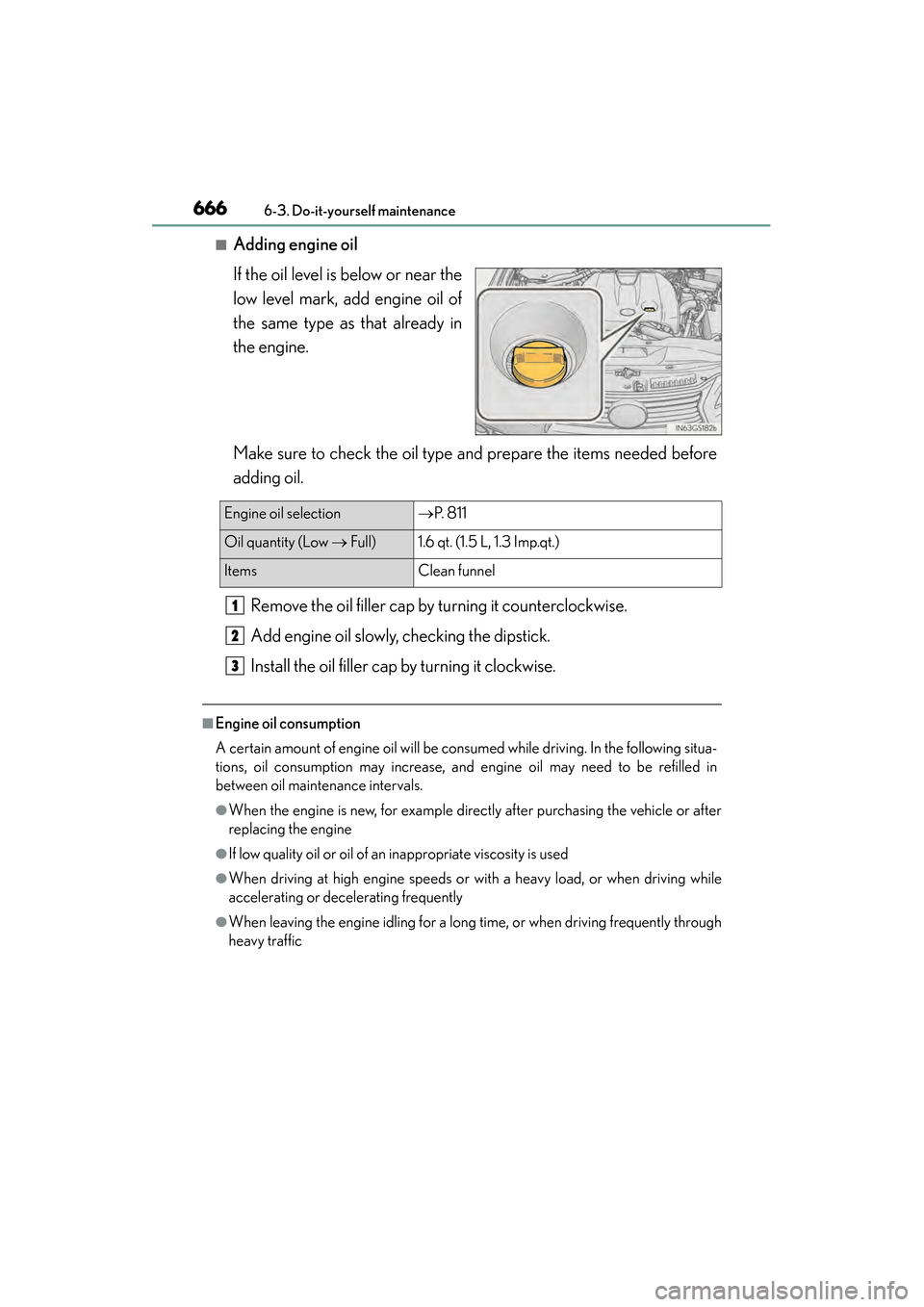

■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as that already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following situa-
tions, oil consumption may increase, and engine oil may need to be refilled in
between oil maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, or when driving while
accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
Engine oil selection →P. 8 1 1
Oil quantity (Low → Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel
1
2
3
GS450h_OM_OM30D52U_(U).book Page 666 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
6676-3. Do-it-yourself maintenance
6
Maintenance and care

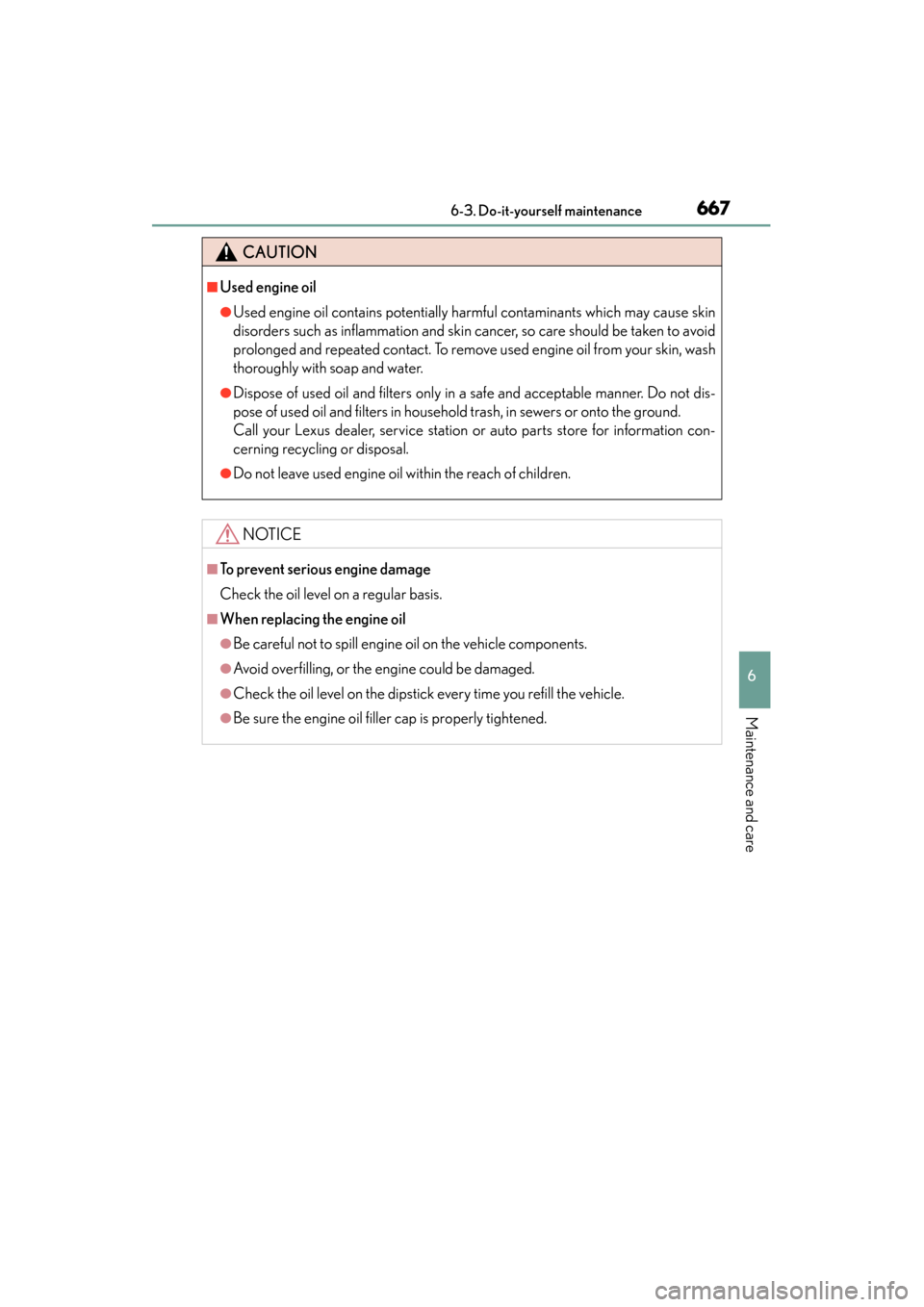

CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation and skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in household trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
GS450h_OM_OM30D52U_(U).book Page 667 Monday, July 29, 2013 12:07 PM

668
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

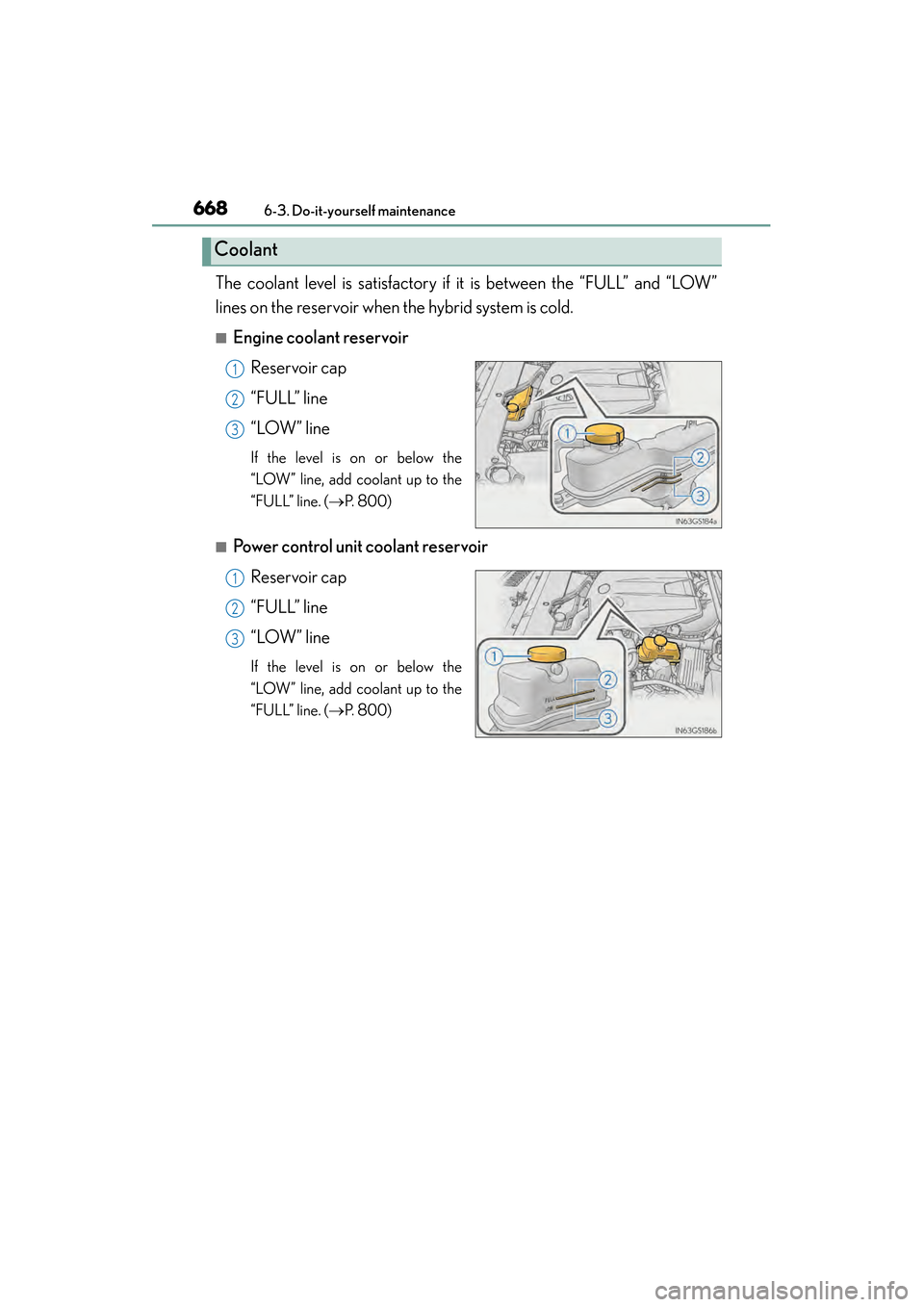

The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the hybrid system is cold.
■Engine coolant reservoirReservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. ( →P. 800)
■Power control unit coolant reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. ( →P. 800)
Coolant
1
2
3
1
2
3
GS450h_OM_OM30D52U_(U).book Page 668 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
6696-3. Do-it-yourself maintenance
6
Maintenance and care

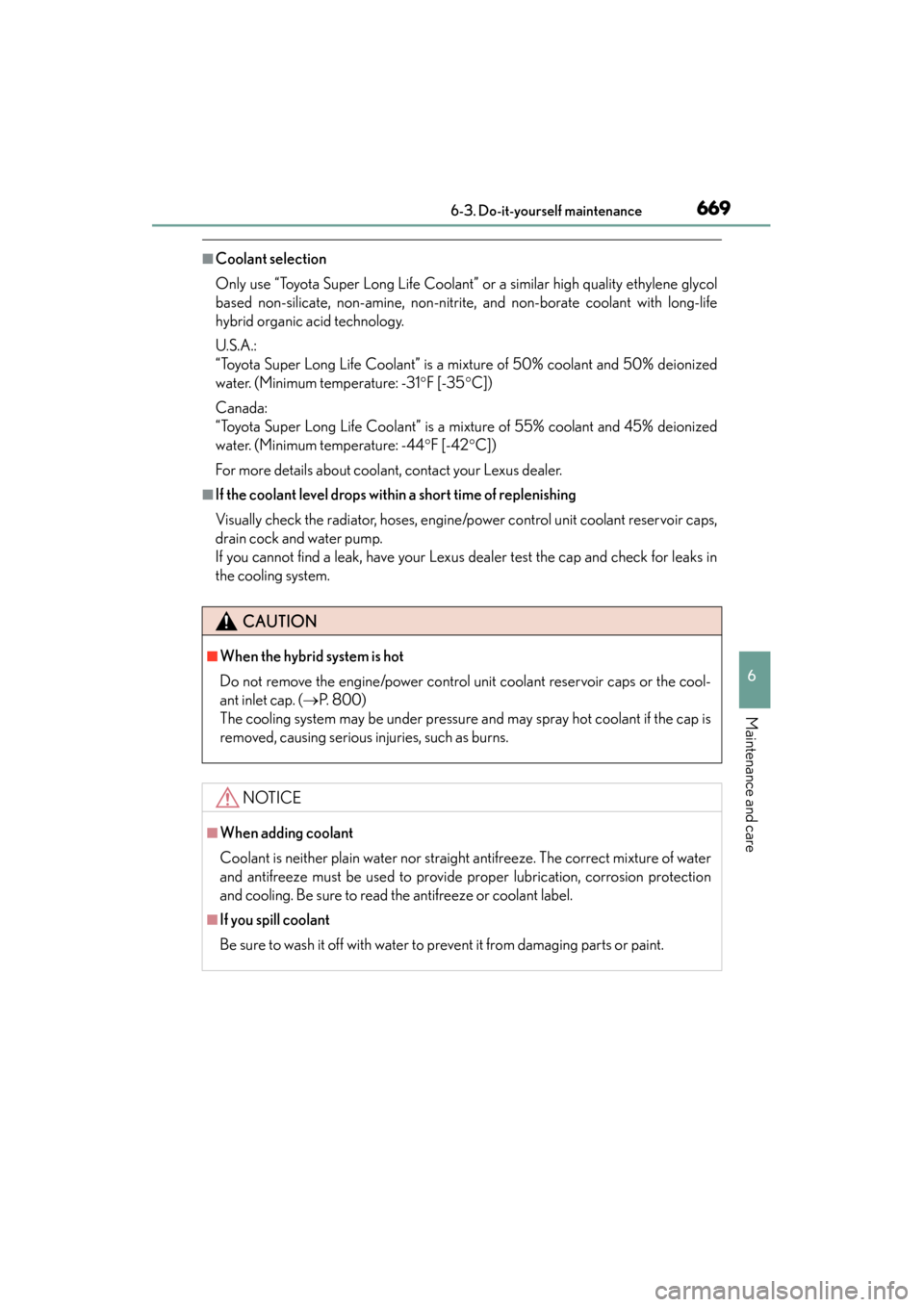

■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized
water. (Minimum temperature: -31 °F [-35 °C])
Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized
water. (Minimum temperature: -44 °F [-42 °C])
For more details about coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit coolant reservoir caps,
drain cock and water pump.
If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in
the cooling system.
CAUTION
■When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps or the cool-
ant inlet cap. ( →P. 800)
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
GS450h_OM_OM30D52U_(U).book Page 669 Monday, July 29, 2013 12:07 PM
