Lexus GS450h 2014 Owner's Manual

700
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

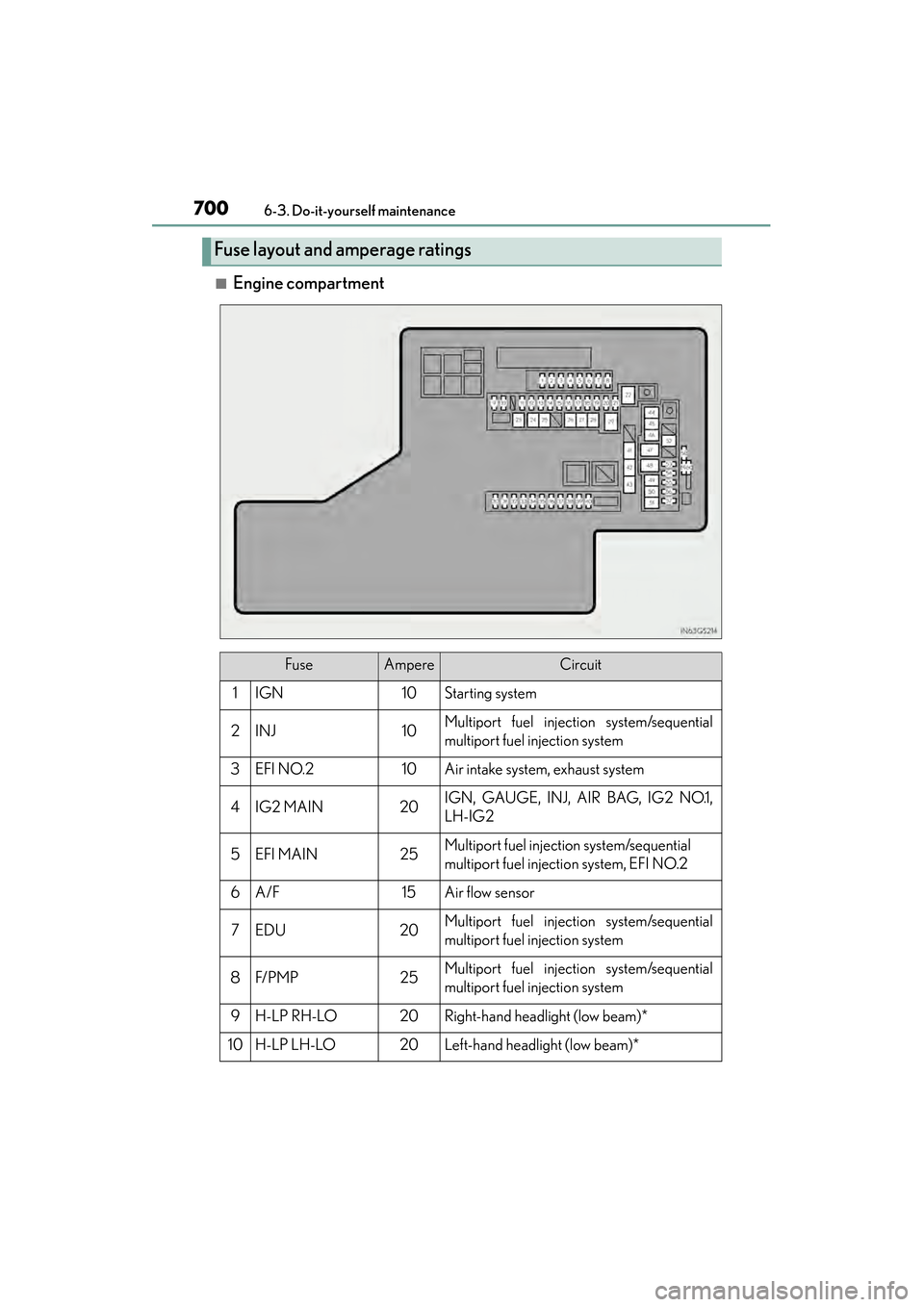

■Engine compartment
Fuse layout and amperage ratings
FuseAmpereCircuit
1IGN10Starting system
2INJ10Multiport fuel injection system/sequential
multiport fuel injection system
3EFI NO.210Air intake system, exhaust system
4IG2 MAIN20IGN, GAUGE, INJ, AIR BAG, IG2 NO.1,
LH-IG2
5EFI MAIN25Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.2
6A/F15Air flow sensor
7EDU20Multiport fuel injection system/sequential
multiport fuel injection system
8F/ P M P25Multiport fuel injection system/sequential
multiport fuel injection system
9H-LP RH-LO20Right-hand headlight (low beam)*
10H-LP LH-LO20Left-hand headlight (low beam)*
GS450h_OM_OM30D52U_(U).book Page 700 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
7016-3. Do-it-yourself maintenance
6
Maintenance and care
11ABS MAIN 210Brake system
12ABS MAIN 110Brake system
13IGCT NO.130IGCT NO.2, IGCT NO.3, IGCT NO.4,
IGCT NO.5
14ECU-B7. 5Smart access system with push-button start
15INV W/P10Hybrid system
16ETCS10Multiport fuel injection system/sequential
multiport fuel injection system
17EPS-B10Electric power steering system
18D/C CUT30DOME, MPX-B
19HORN10Horn
20ODS5Occupant classification system
21TV7. 5Remote Touch screen
22P/ I - B N O. 280IG2 MAIN, EFI MAIN, EDU, F/PMP, A/F
23ABS NO.230Motor relay
24P/ I - B N O.150H-LP HI RH, H-LP HI LH, DRL
25H-LP LO30H-LP LO RH, H-LP LO LH
26LH J/B-B40Left-hand junction block
27RH J/B-B40Right-hand junction block
28VGRS40No circuit
29OIL PMP60Oil pump
30IGCT NO.57. 5Power management system, shift position
sensor
31WIP-S7. 5Windshield wipers, driver support system
32WA S H - S5Windshield washer, driver support system
33COMB SW5Windshield wipers
FuseAmpereCircuit
GS450h_OM_OM30D52U_(U).book Page 701 Monday, July 29, 2013 12:07 PM

702
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

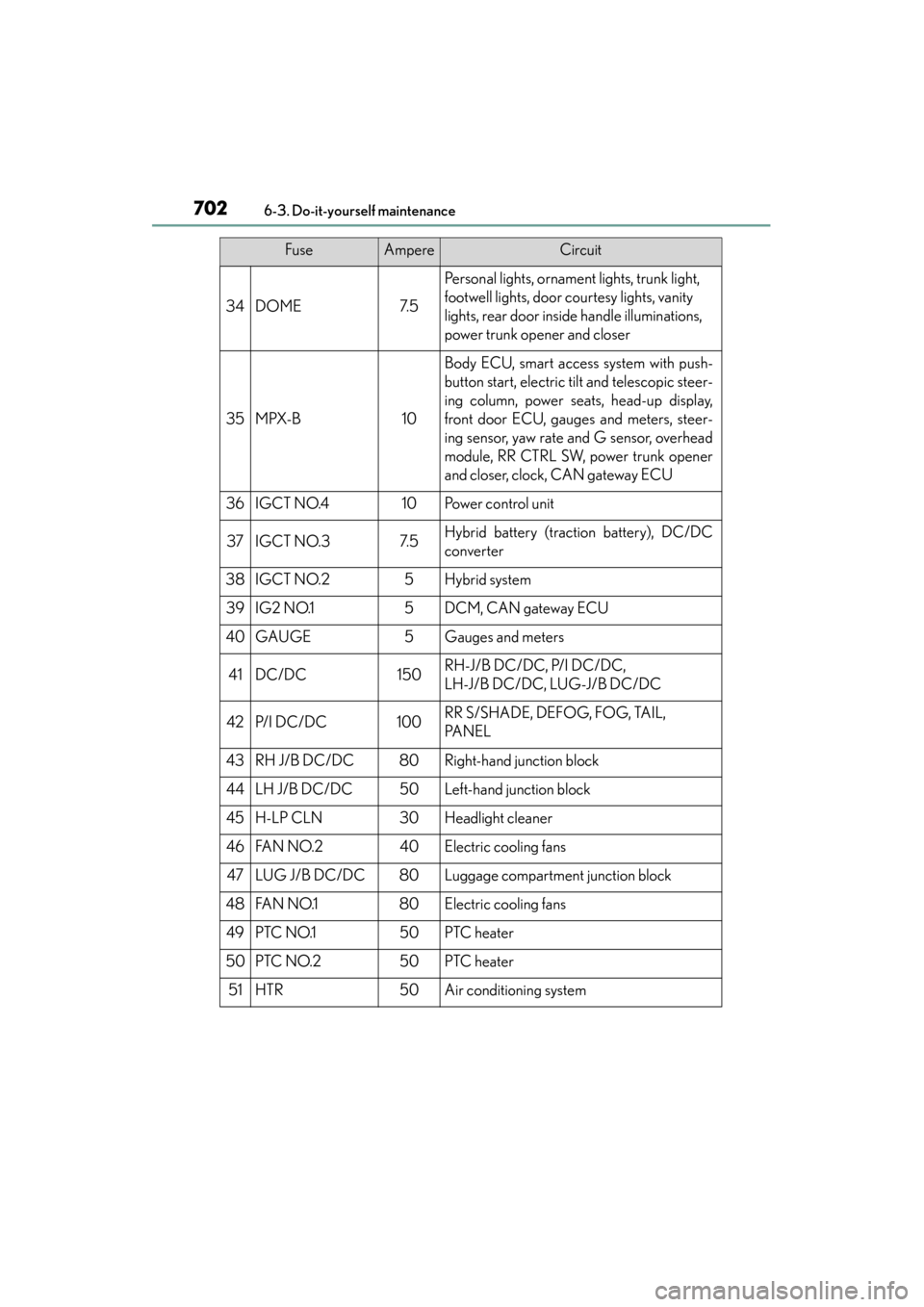

34DOME7. 5
Personal lights, ornament lights, trunk light,
footwell lights, door courtesy lights, vanity
lights, rear door inside handle illuminations,
power trunk opener and closer
35MPX-B10
Body ECU, smart access system with push-
button start, electric tilt and telescopic steer-
ing column, power seats, head-up display,
front door ECU, gauges and meters, steer-
ing sensor, yaw rate and G sensor, overhead
module, RR CTRL SW, power trunk opener
and closer, clock, CAN gateway ECU
36IGCT NO.410Power control unit
37IGCT NO.37. 5Hybrid battery (traction battery), DC/DC
converter
38IGCT NO.25Hybrid system
39IG2 NO.15DCM, CAN gateway ECU
40GAUGE5Gauges and meters
41DC/DC150RH-J/B DC/DC, P/I DC/DC,
LH-J/B DC/DC, LUG-J/B DC/DC
42P/ I D C / D C100RR S/SHADE, DEFOG, FOG, TAIL,
PA N E L
43RH J/B DC/DC80Right-hand junction block
44LH J/B DC/DC50Left-hand junction block
45H-LP CLN30Headlight cleaner
46FA N N O. 240Electric cooling fans
47LUG J/B DC/DC80Luggage compartment junction block
48FA N N O.180Electric cooling fans
49PTC NO.150PTC heater
50PTC NO.250PTC heater
51HTR50Air conditioning system
FuseAmpereCircuit
GS450h_OM_OM30D52U_(U).book Page 702 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
7036-3. Do-it-yourself maintenance
6
Maintenance and care
*: Low beam and high beam are the same bulb. (vehicles with discharge headlights)
52ABS NO.130Motor relay
53ECU-B NO.27. 5No circuit
54DEICER25Windshield wiper de-icer
55ABS MAIN 310Brake system
56FILTER10Condenser
57A/C W/P7. 5Air conditioning system
58SPARE10Spare fuse
59SPARE30Spare fuse
60SPARE20Spare fuse
FuseAmpereCircuit
GS450h_OM_OM30D52U_(U).book Page 703 Monday, July 29, 2013 12:07 PM

704
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

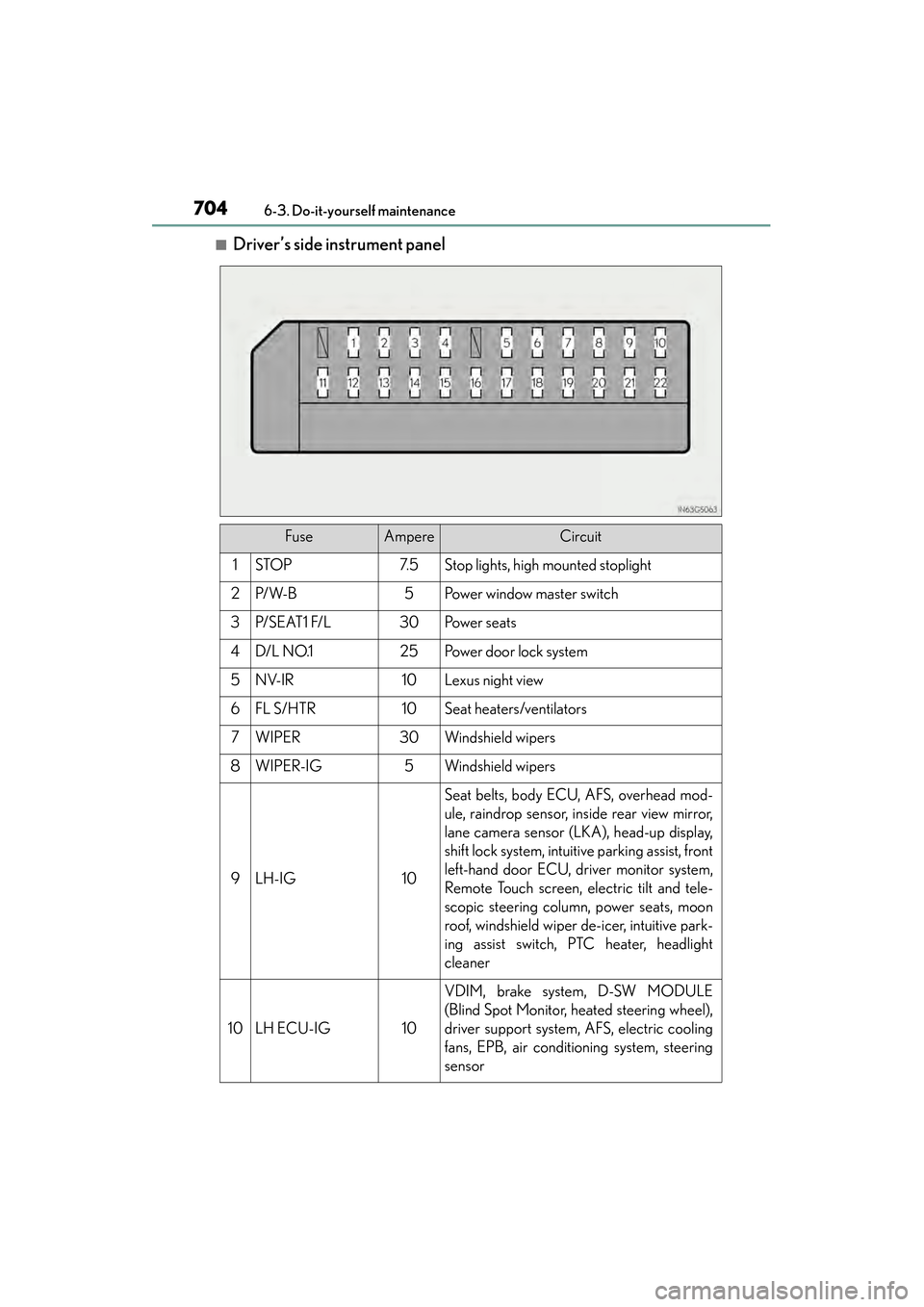

■Driver’s side instrument panel
FuseAmpereCircuit
1STOP7. 5Stop lights, high mounted stoplight
2P/ W- B5Power window master switch
3P/ S E AT 1 F/ L30Po w e r s e a t s
4D/L NO.125Po w e r d o o r l o c k s y s t e m
5NV-IR10Lexus night view
6FL S/HTR10Seat heaters/ventilators
7WIPER30Windshield wipers
8WIPER-IG5Windshield wipers
9LH-IG10
Seat belts, body ECU, AFS, overhead mod-
ule, raindrop sensor, inside rear view mirror,
lane camera sensor (LKA), head-up display,
shift lock system, intuitive parking assist, front
left-hand door ECU, driver monitor system,
Remote Touch screen, electric tilt and tele-
scopic steering column, power seats, moon
roof, windshield wiper de-icer, intuitive park-
ing assist switch, PTC heater, headlight
cleaner
10LH ECU-IG10
VDIM, brake system, D-SW MODULE
(Blind Spot Monitor, heated steering wheel),
driver support system, AFS, electric cooling
fans, EPB, air conditioning system, steering
sensor
GS450h_OM_OM30D52U_(U).book Page 704 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
7056-3. Do-it-yourself maintenance
6
Maintenance and care

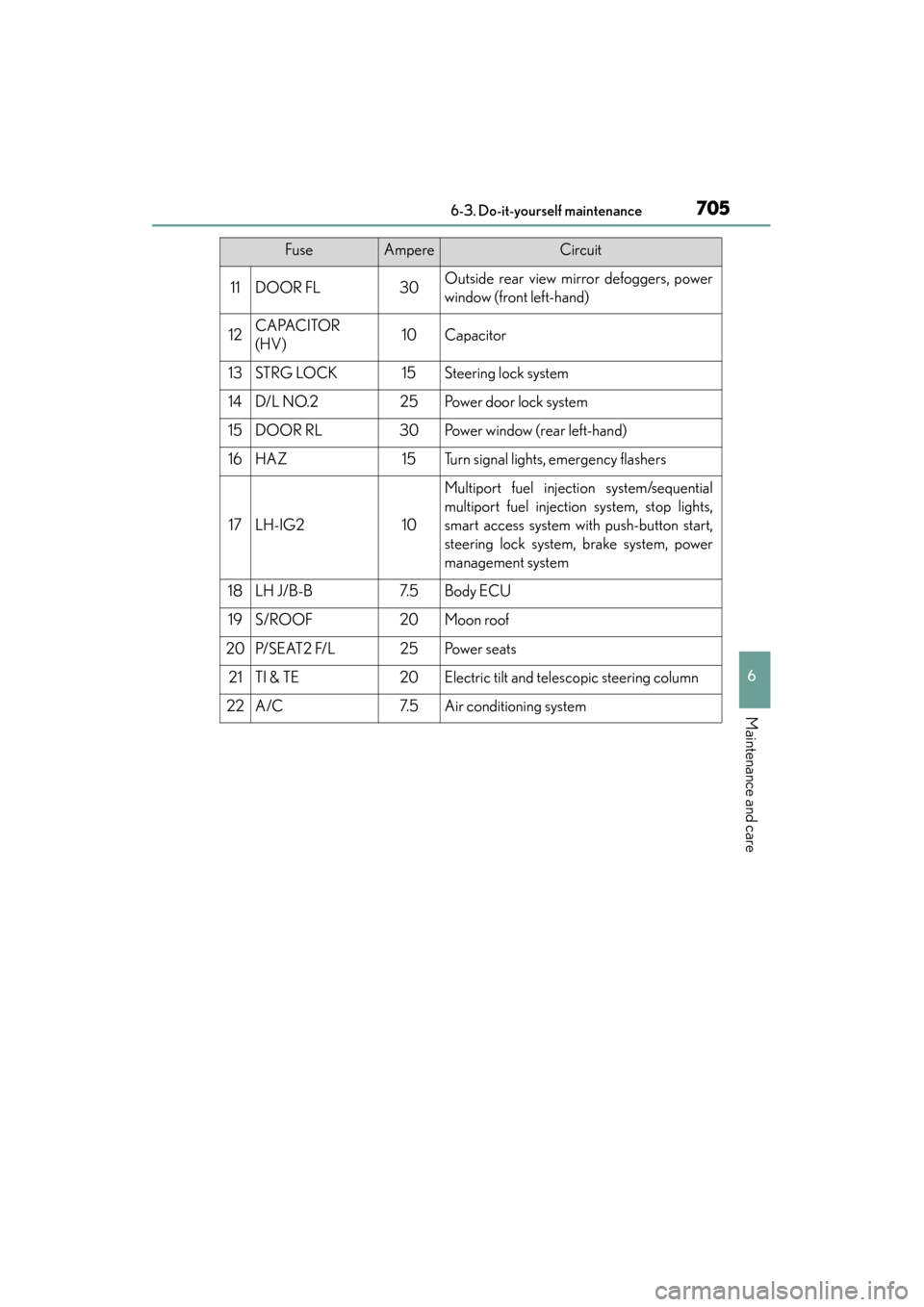

11DOOR FL30Outside rear view mirror defoggers, power
window (front left-hand)
12CAPACITOR
(HV)10Capacitor
13STRG LOCK15Steering lock system
14D/L NO.225Po w e r d o o r l o c k s y s t e m
15DOOR RL30Power window (rear left-hand)
16HAZ15Turn signal lights, emergency flashers
17LH-IG210
Multiport fuel injection system/sequential
multiport fuel injection system, stop lights,
smart access system with push-button start,
steering lock system, brake system, power
management system
18LH J/B-B7. 5Body ECU
19S/ROOF20Moon roof
20P/ S E AT 2 F/ L25Po w e r s e a t s
21TI & TE20Electric tilt and telescopic steering column
22A/C7. 5Air conditioning system
FuseAmpereCircuit
GS450h_OM_OM30D52U_(U).book Page 705 Monday, July 29, 2013 12:07 PM

706
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

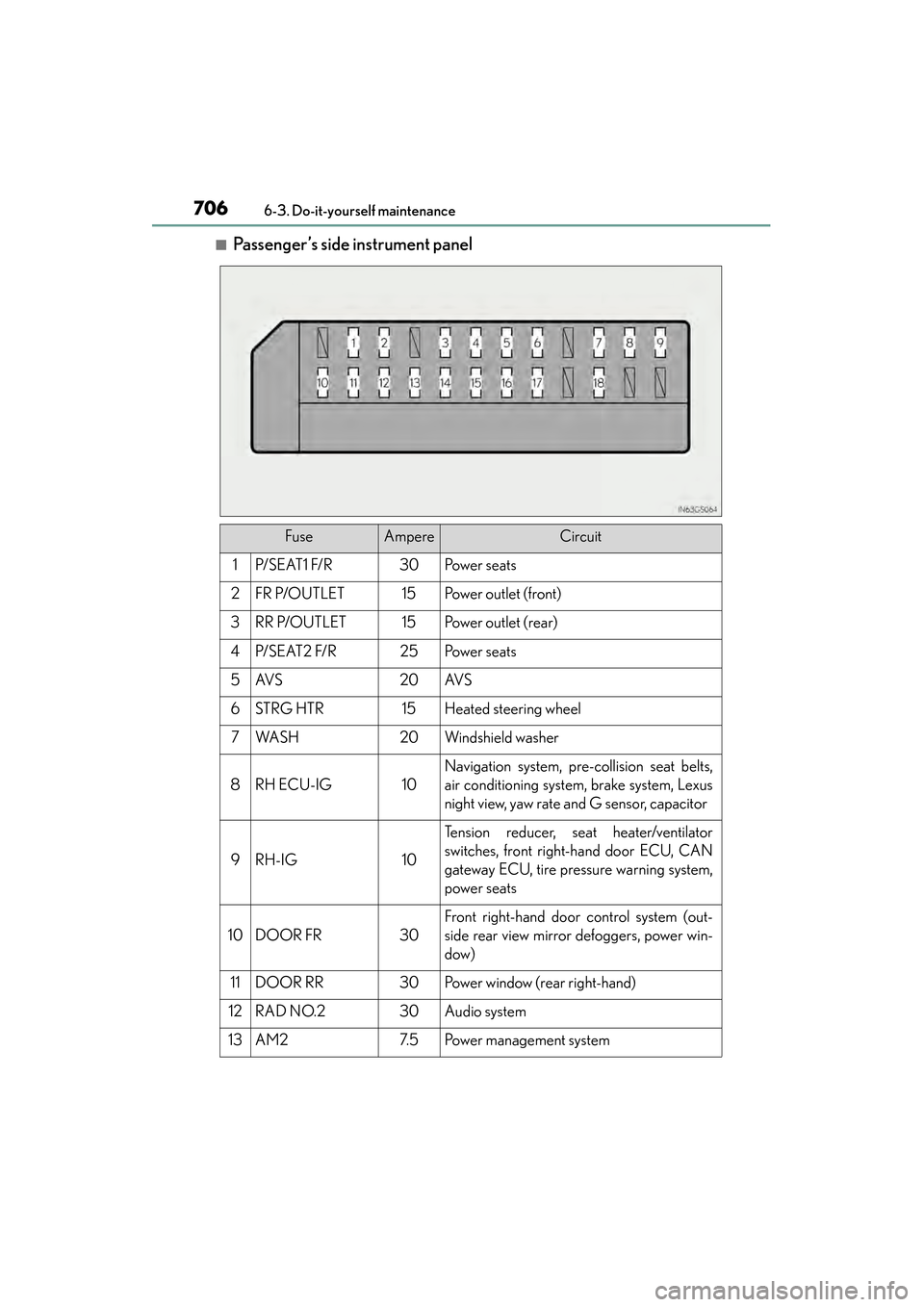

■Passenger’s side instrument panel
FuseAmpereCircuit
1P/ S E AT 1 F/ R30Po w e r s e a t s
2FR P/OUTLET15Po w e r o u t l e t ( f r o n t )
3RR P/OUTLET15Po w e r o u t l e t ( r e a r )
4P/ S E AT 2 F/ R25Po w e r s e a t s
5AV S20AV S
6STRG HTR15Heated steering wheel
7WA S H20Windshield washer
8RH ECU-IG10
Navigation system, pre-collision seat belts,
air conditioning system, brake system, Lexus
night view, yaw rate and G sensor, capacitor
9RH-IG10
Tension reducer, seat heater/ventilator
switches, front right-hand door ECU, CAN
gateway ECU, tire pressure warning system,
power seats
10DOOR FR30
Front right-hand door control system (out-
side rear view mirror defoggers, power win-
dow)
11DOOR RR30Power window (rear right-hand)
12RAD NO.230Audio system
13AM27. 5Po w e r m a n a g e m e n t s y s t e m
GS450h_OM_OM30D52U_(U).book Page 706 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
7076-3. Do-it-yourself maintenance
6
Maintenance and care

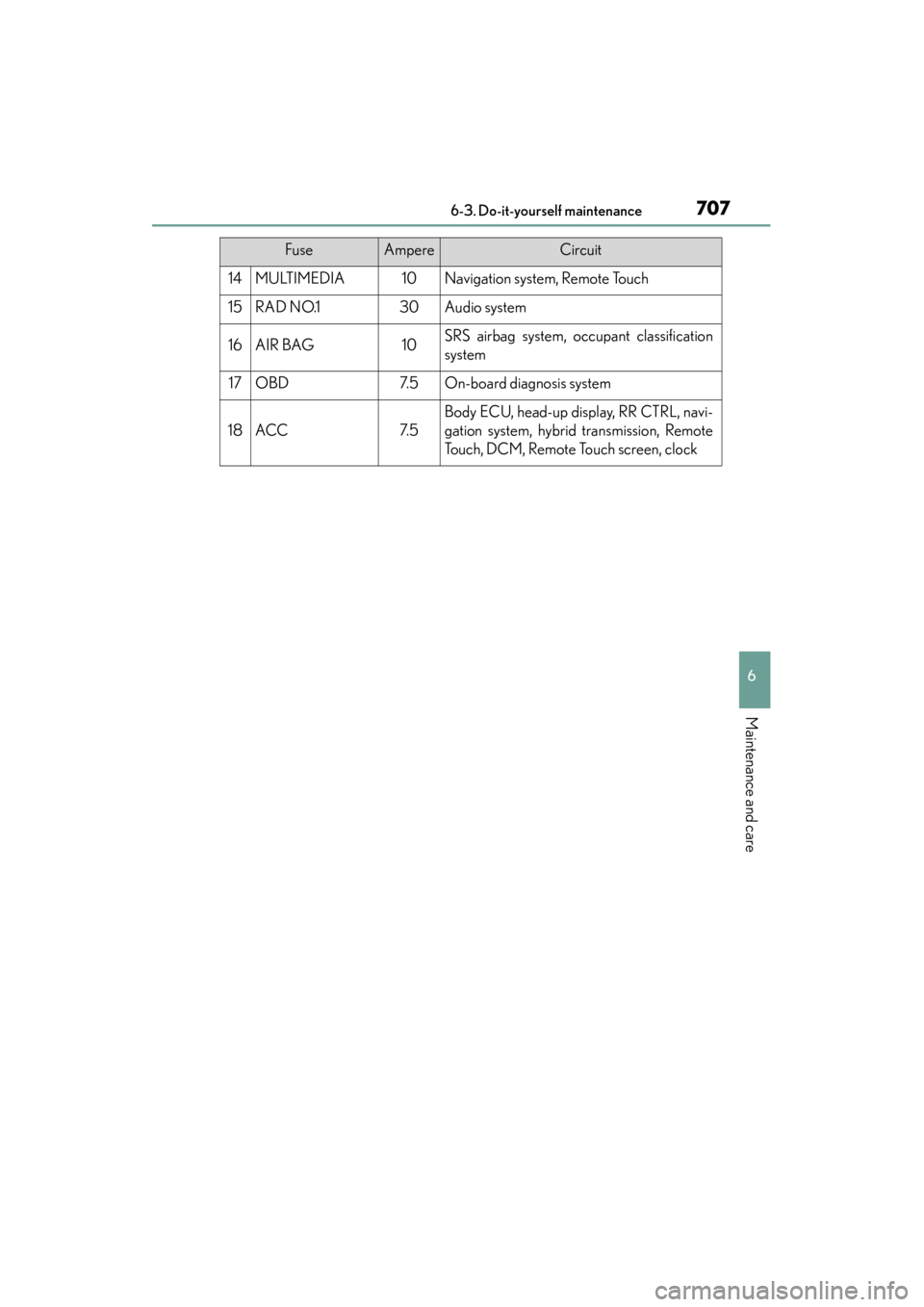

14MULTIMEDIA10Navigation system, Remote Touch
15RAD NO.130Audio system
16AIR BAG10SRS airbag system, occupant classification
system
17OBD7. 5On-board diagnosis system
18ACC7. 5
Body ECU, head-up display, RR CTRL, navi-
gation system, hybrid transmission, Remote
Touch, DCM, Remote Touch screen, clock
FuseAmpereCircuit
GS450h_OM_OM30D52U_(U).book Page 707 Monday, July 29, 2013 12:07 PM

708
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

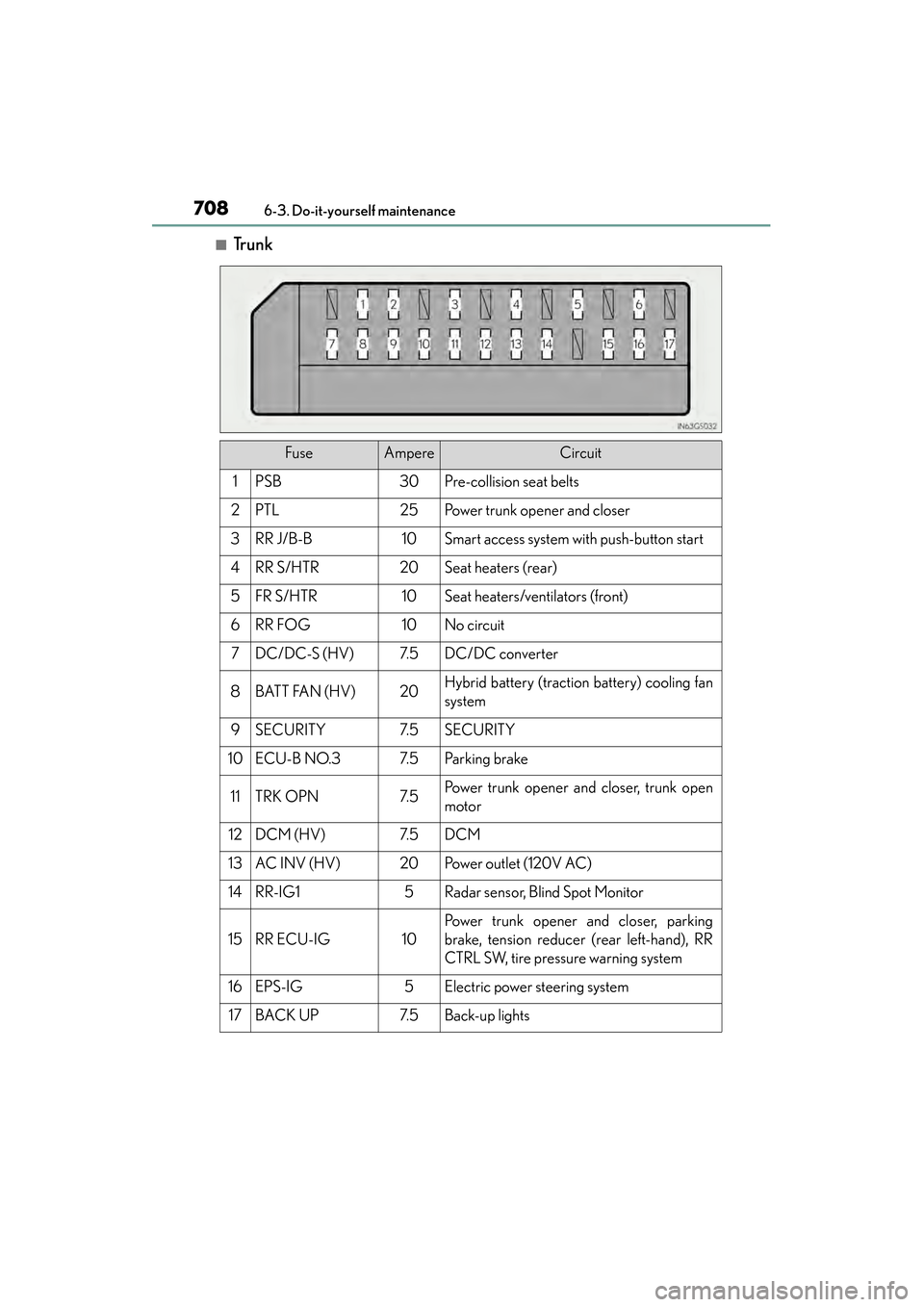

■Tr u n k
FuseAmpereCircuit
1PSB30Pre-collision seat belts
2PTL25Power trunk opener and closer
3RR J/B-B10Smart access system with push-button start
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10No circuit
7DC/DC-S (HV)7. 5DC/DC converter
8BATT FAN (HV)20Hybrid battery (traction battery) cooling fan
system
9SECURITY7. 5SECURITY
10ECU-B NO.37. 5Pa r k i n g b r a ke
11TRK OPN7. 5Power trunk opener and closer, trunk open
motor
12DCM (HV)7. 5DCM
13AC INV (HV)20Po w e r o u t l e t ( 1 2 0 V AC )
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk opener and closer, parking
brake, tension reducer (rear left-hand), RR
CTRL SW, tire pressure warning system
16EPS-IG5Electric power steering system
17BACK UP7. 5Back-up lights
GS450h_OM_OM30D52U_(U).book Page 708 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
7096-3. Do-it-yourself maintenance
6
Maintenance and care

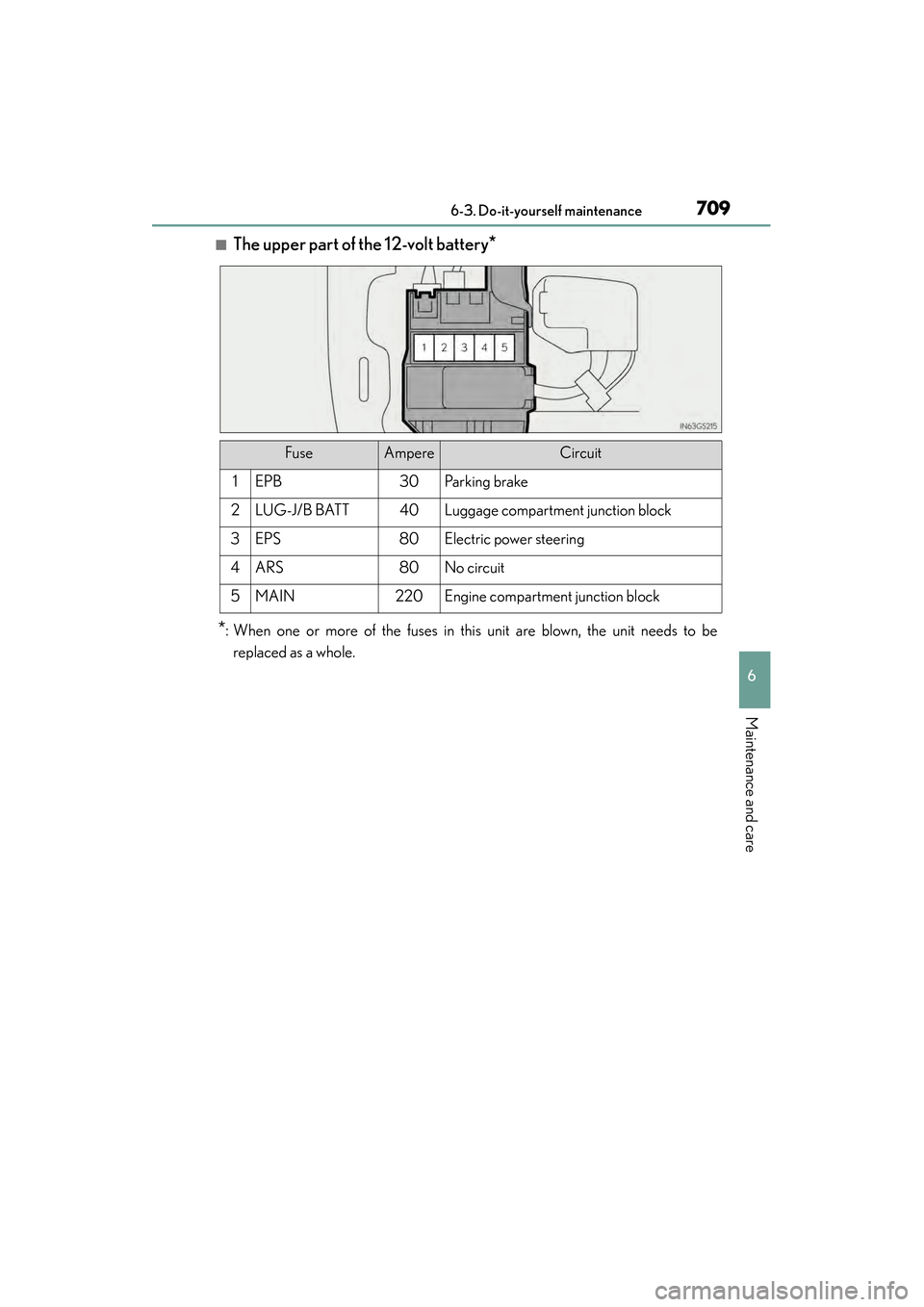

■The upper part of the 12-volt battery*
*
: When one or more of the fuses in this unit are blown, the unit needs to be replaced as a whole.
FuseAmpereCircuit
1EPB30Pa r k i n g b r a ke
2LUG-J/B BATT40Luggage compartment junction block
3EPS80Electric power steering
4ARS80No circuit
5MAIN220Engine compartment junction block
GS450h_OM_OM30D52U_(U).book Page 709 Monday, July 29, 2013 12:07 PM
