Lexus GS450h 2014 Owner's Manual

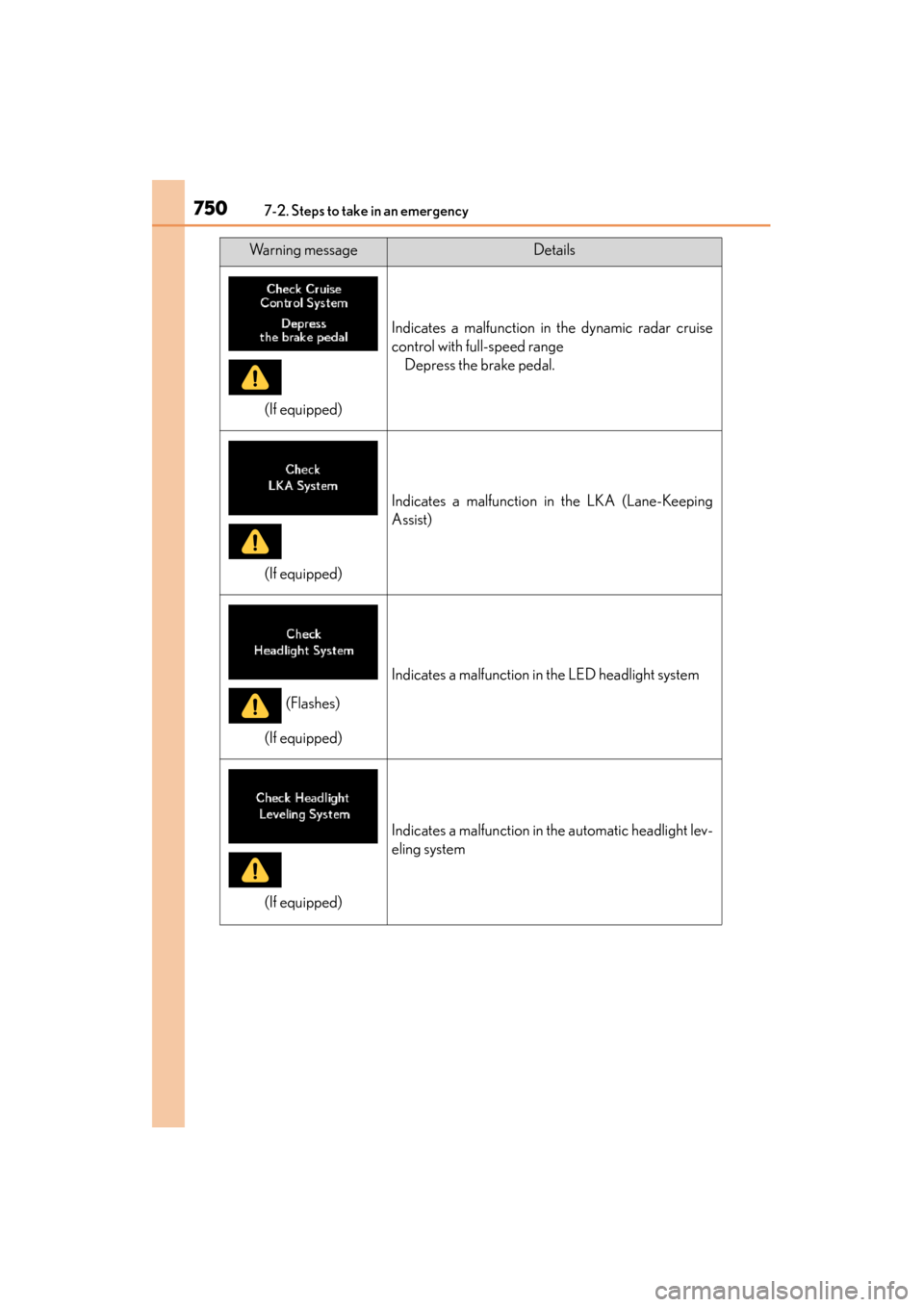

7507-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
Indicates a malfunction in the dynamic radar cruise
control with full-speed rangeDepress the brake pedal.
Indicates a malfunction in the LKA (Lane-Keeping
Assist)
Indicates a malfunction in the LED headlight system
Indicates a malfunction in the automatic headlight lev-
eling system
Warning messageDetails
(If equipped)
(If equipped)
(Flashes)
(If equipped)
(If equipped)
GS450h_OM_OM30D52U_(U).book Page 750 Monday, July 29, 2013 12:07 PM

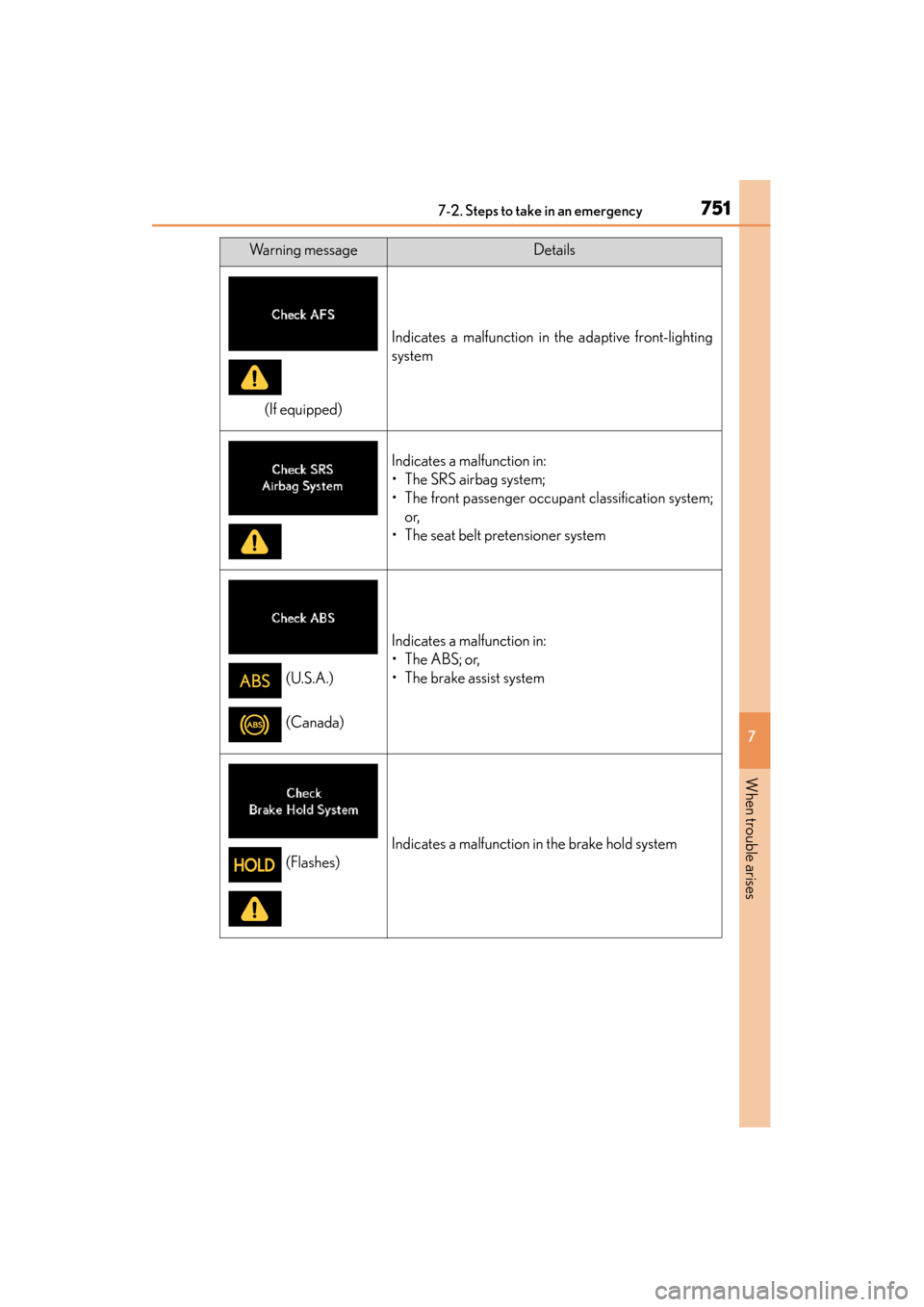

7517-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
7
When trouble arises
Indicates a malfunction in the adaptive front-lighting
system
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system;or,
• The seat belt pretensioner system
Indicates a malfunction in:
•The ABS; or,
• The brake assist system
Indicates a malfunction in the brake hold system
Warning messageDetails
(If equipped)
(U.S.A.)
(Canada)
(Flashes)
GS450h_OM_OM30D52U_(U).book Page 751 Monday, July 29, 2013 12:07 PM

7527-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
Indicates a malfunction in the brake hold systemDepress the brake pedal.
Indicates a malfunction in the parking brake system
Indicates a malfunction in the parking brake system
Indicates a malfunction in the EPS (Electric Power
Steering) system
Warning messageDetails
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
GS450h_OM_OM30D52U_(U).book Page 752 Monday, July 29, 2013 12:07 PM

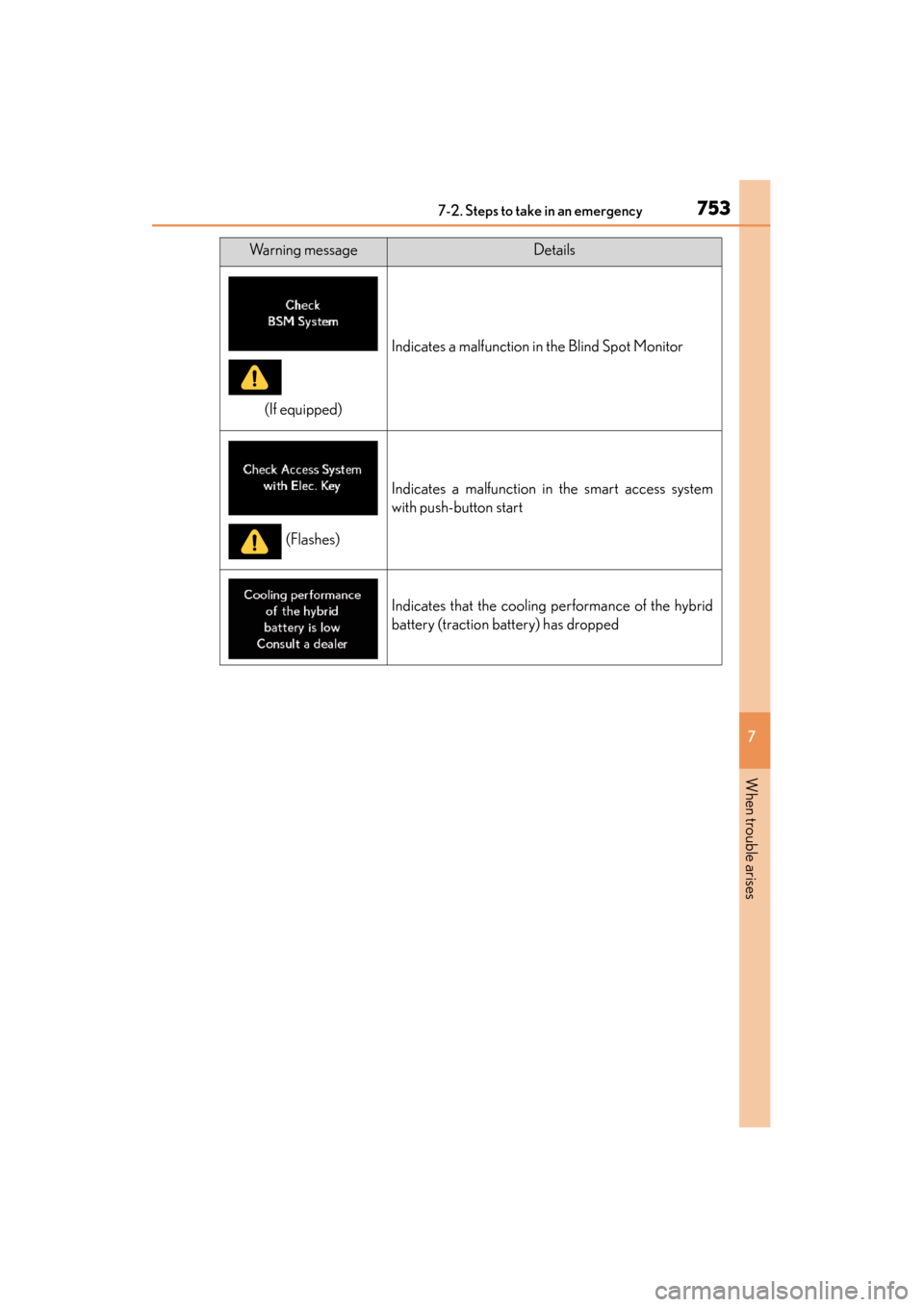

7537-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
7
When trouble arises
Indicates a malfunction in the Blind Spot Monitor
Indicates a malfunction in the smart access system
with push-button start
Indicates that the cooling performance of the hybrid
battery (traction battery) has dropped
Warning messageDetails
(If equipped)
(Flashes)
GS450h_OM_OM30D52U_(U).book Page 753 Monday, July 29, 2013 12:07 PM

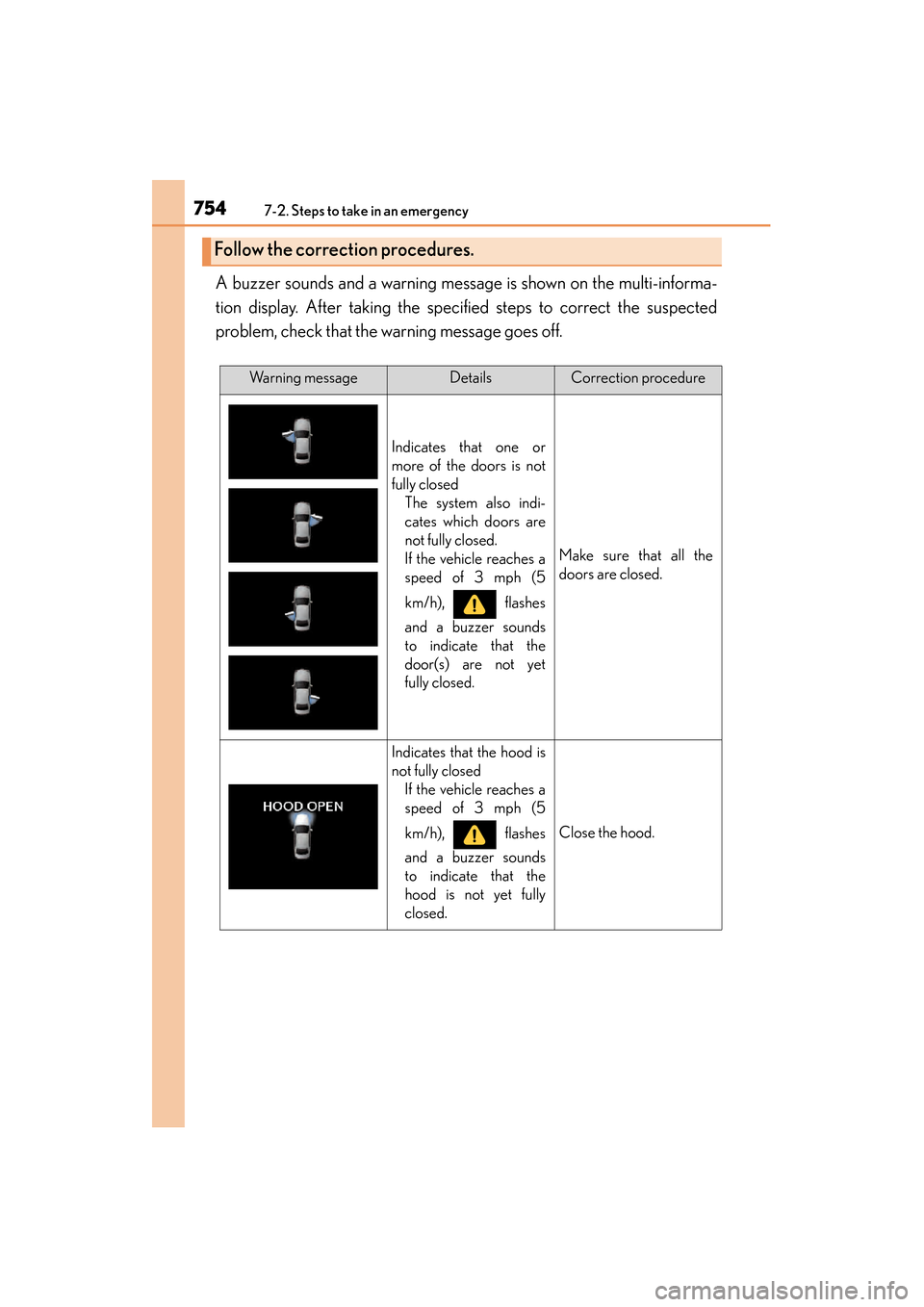

7547-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec
ified steps to correct the suspected
problem, check that the warning message goes off.
Follow the correction procedures.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
door(s) are not yet
fully closed.
Make sure that all the
doors are closed.
Indicates that the hood is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
hood is not yet fully
closed.
Close the hood.
GS450h_OM_OM30D52U_(U).book Page 754 Monday, July 29, 2013 12:07 PM

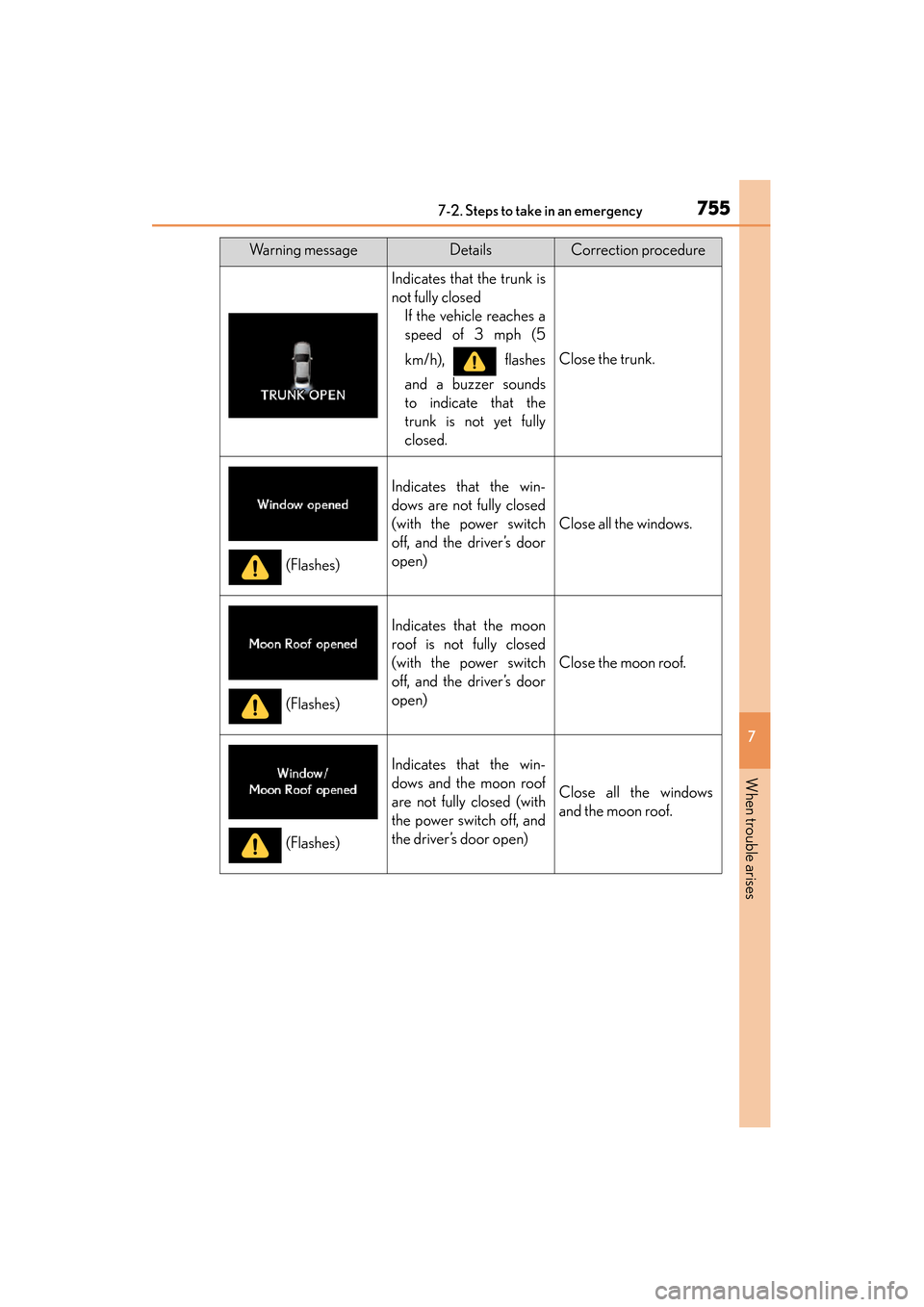

7557-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
7
When trouble arises
Indicates that the trunk is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
trunk is not yet fully
closed.
Close the trunk.
Indicates that the win-
dows are not fully closed
(with the power switch
off, and the driver’s door
open)
Close all the windows.
Indicates that the moon
roof is not fully closed
(with the power switch
off, and the driver’s door
open)
Close the moon roof.
Indicates that the win-
dows and the moon roof
are not fully closed (with
the power switch off, and
the driver’s door open)
Close all the windows
and the moon roof.
Warning messageDetailsCorrection procedure
(Flashes)
(Flashes)
(Flashes)
GS450h_OM_OM30D52U_(U).book Page 755 Monday, July 29, 2013 12:07 PM

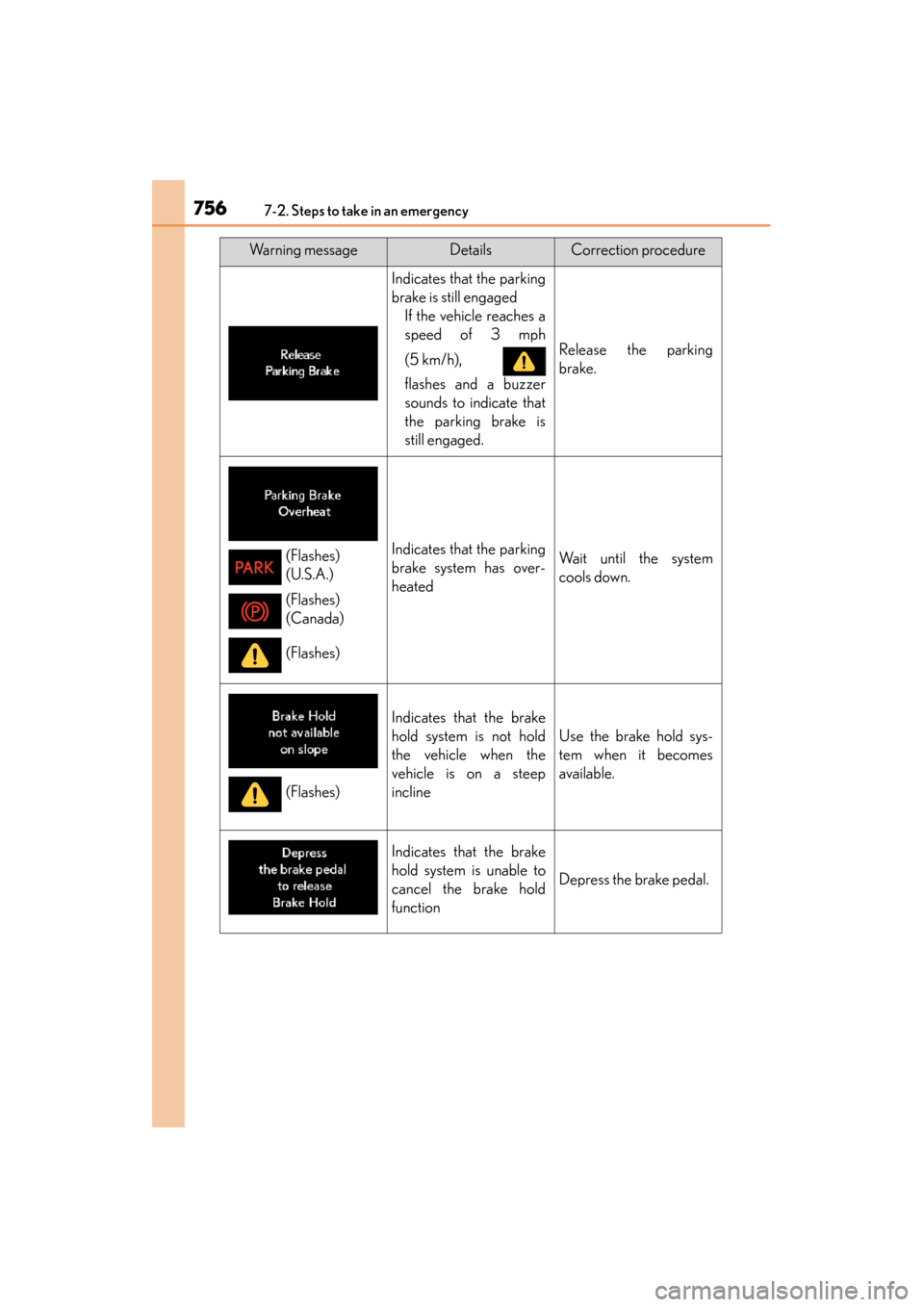

7567-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
Indicates that the parking
brake is still engagedIf the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the parking brake is
still engaged.
Release the parking
brake.
Indicates that the parking
brake system has over-
heatedWait until the system
cools down.
Indicates that the brake
hold system is not hold
the vehicle when the
vehicle is on a steep
incline
Use the brake hold sys-
tem when it becomes
available.
Indicates that the brake
hold system is unable to
cancel the brake hold
function
Depress the brake pedal.
Warning messageDetailsCorrection procedure
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
(Flashes)
(Flashes)
GS450h_OM_OM30D52U_(U).book Page 756 Monday, July 29, 2013 12:07 PM

7577-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
7
When trouble arises
Indicates that the brake
hold system is not avail-
ableThe reason the brake
hold system is not avail-
able may be displayed.• Close the driver’s door.
• Fasten the driver’s seatbelt.
• Close the trunk and hood.
Indicates that the brake
hold system is not avail-
ableThe reason the brake
hold system is not avail-
able may be displayed.• Depress the brakepedal.
• Close the driver’s door.
• Fasten the driver’s seat belt.
Indicates that the parking
brake is set automatically
while the brake hold sys-
tem is holding the brakes
Release the parking
brake.
Warning messageDetailsCorrection procedure
(Flashes)
GS450h_OM_OM30D52U_(U).book Page 757 Monday, July 29, 2013 12:07 PM

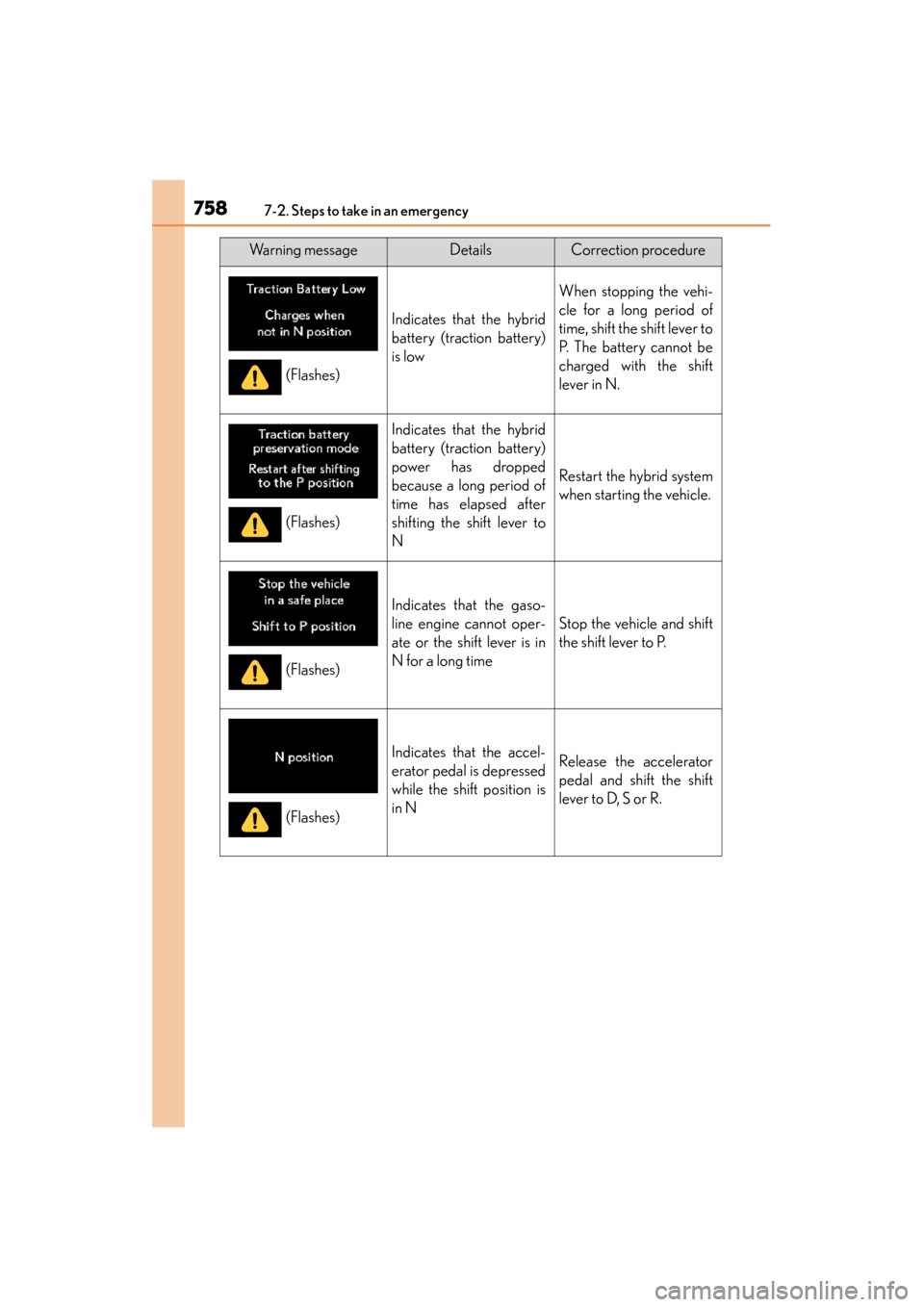

7587-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
Indicates that the hybrid
battery (traction battery)
is low
When stopping the vehi-
cle for a long period of
time, shift the shift lever to
P. The battery cannot be
charged with the shift
lever in N.
Indicates that the hybrid
battery (traction battery)
power has dropped
because a long period of
time has elapsed after
shifting the shift lever to
N
Restart the hybrid system
when starting the vehicle.
Indicates that the gaso-
line engine cannot oper-
ate or the shift lever is in
N for a long time
Stop the vehicle and shift
the shift lever to P.
Indicates that the accel-
erator pedal is depressed
while the shift position is
in NRelease the accelerator
pedal and shift the shift
lever to D, S or R.
Warning messageDetailsCorrection procedure
(Flashes)
(Flashes)
(Flashes)
(Flashes)
GS450h_OM_OM30D52U_(U).book Page 758 Monday, July 29, 2013 12:07 PM

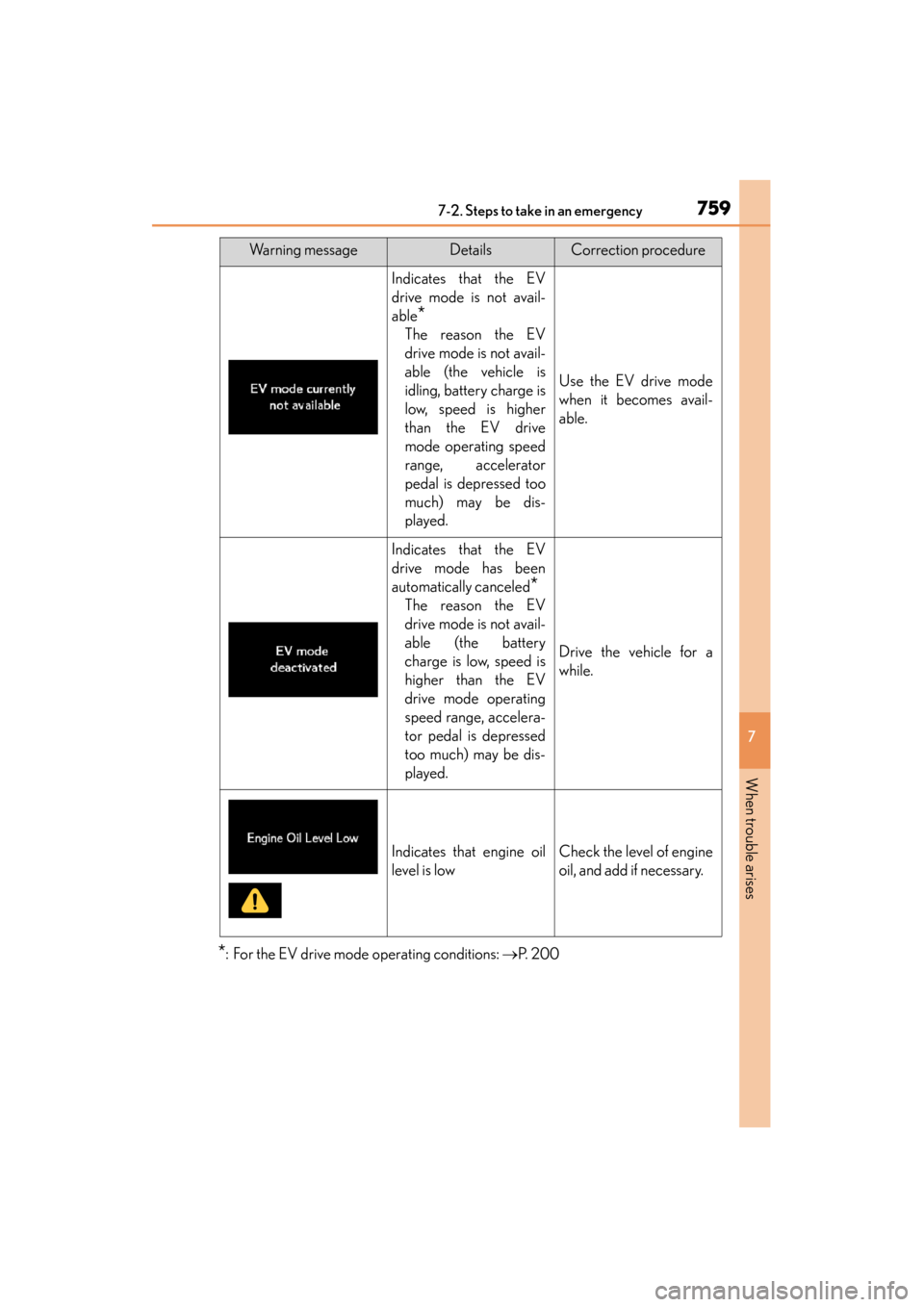

7597-2. Steps to take in an emergency
GS450h_OM_OM30D52U_(U)
7
When trouble arises
*: For the EV drive mode operating conditions: →P. 2 0 0
Indicates that the EV
drive mode is not avail-
able
*
The reason the EV
drive mode is not avail-
able (the vehicle is
idling, battery charge is
low, speed is higher
than the EV drive
mode operating speed
range, accelerator
pedal is depressed too
much) may be dis-
played.
Use the EV drive mode
when it becomes avail-
able.
Indicates that the EV
drive mode has been
automatically canceled
*
The reason the EV
drive mode is not avail-
able (the battery
charge is low, speed is
higher than the EV
drive mode operating
speed range, accelera-
tor pedal is depressed
too much) may be dis-
played.
Drive the vehicle for a
while.
Indicates that engine oil
level is lowCheck the level of engine
oil, and add if necessary.
Warning messageDetailsCorrection procedure
