6-3. Do-it-yourself maintenance

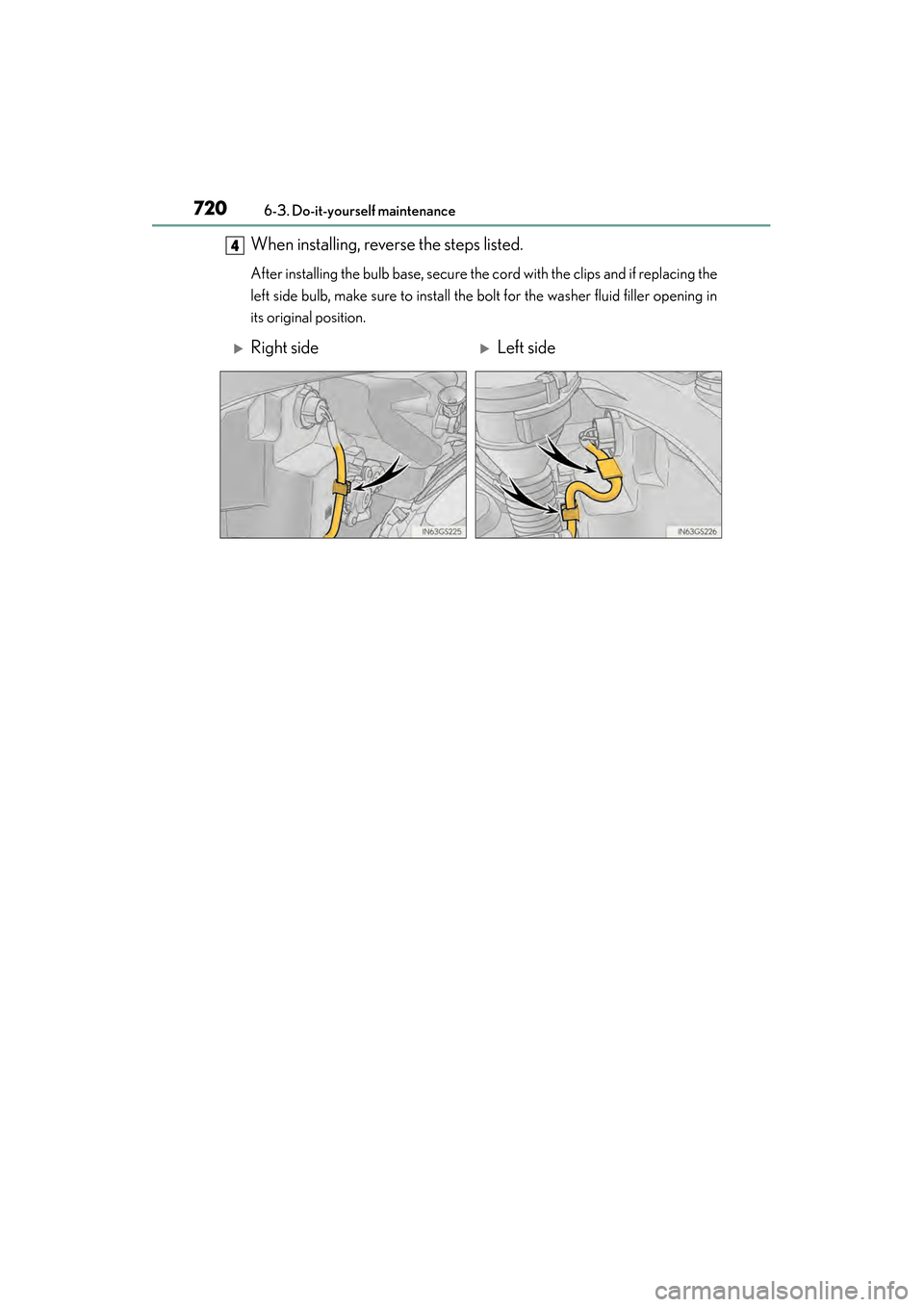

When installing, reverse the steps listed.
After installing the bulb base, secure the cord with the clips and if replacing the
left side bulb, make sure to install the bolt for the washer fluid filler opening in
its original position.
4
XRight sideXLeft side
GS450h_OM_OM30D52U_(U).book Page 720 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
7216-3. Do-it-yourself maintenance
6
Maintenance and care

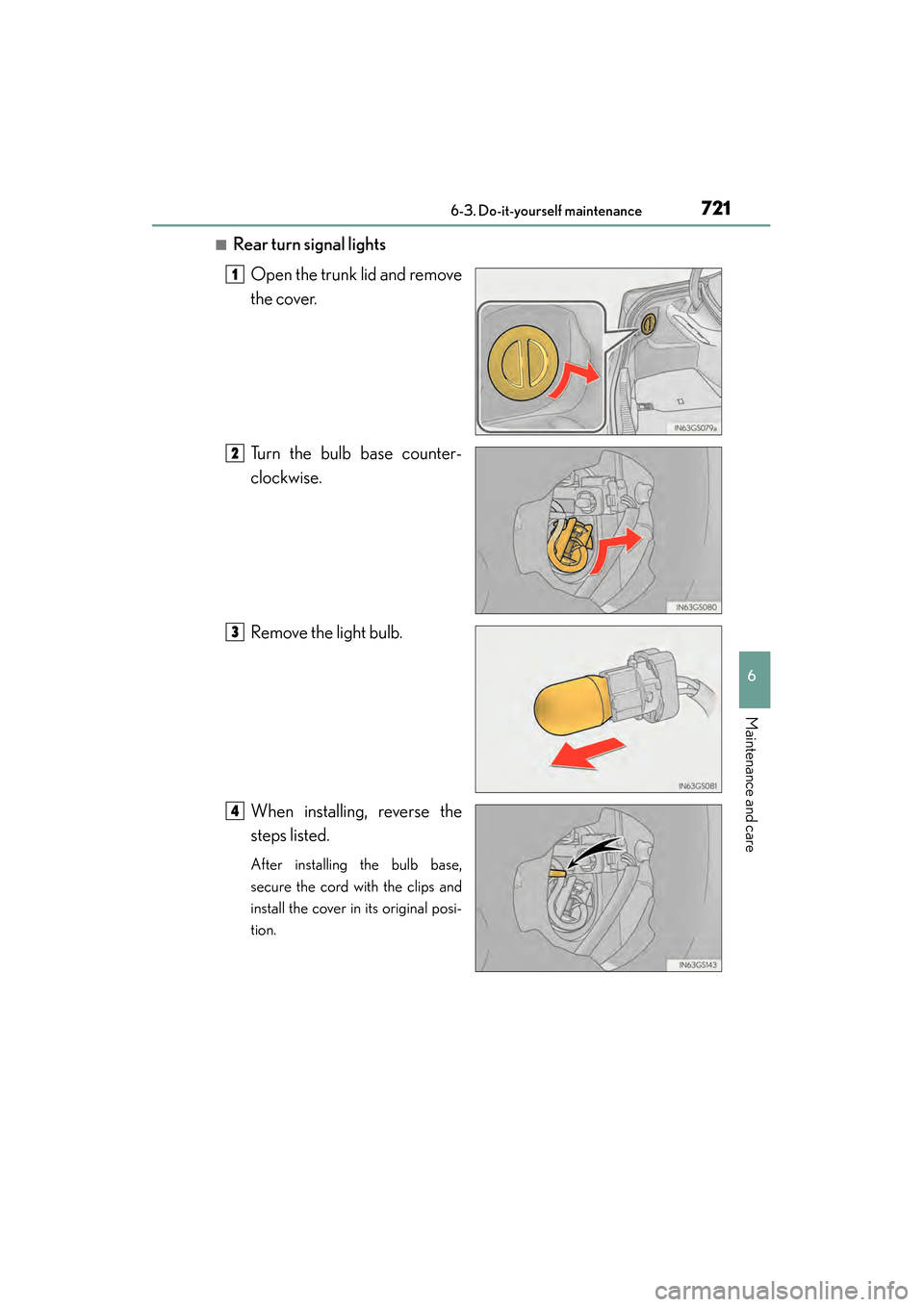

■Rear turn signal lightsOpen the trunk lid and remove
the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the
steps listed.
After installing the bulb base,
secure the cord with the clips and
install the cover in its original posi-
tion.
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 721 Monday, July 29, 2013 12:07 PM

722
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance
■Back-up lightsOpen the trunk lid.
For the left side (vehicles with
power trunk opener and closer
only): Pry out each side of the
trunk closer switch in turn by
inserting a screwdriver into the
base.
To prevent damage, cover the tip of
the screwdriver with a rag.
Remove the clips on whichever
side you are replacing and
open the cover of the trunk lid.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
5
6
GS450h_OM_OM30D52U_(U).book Page 722 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
7236-3. Do-it-yourself maintenance
6
Maintenance and care

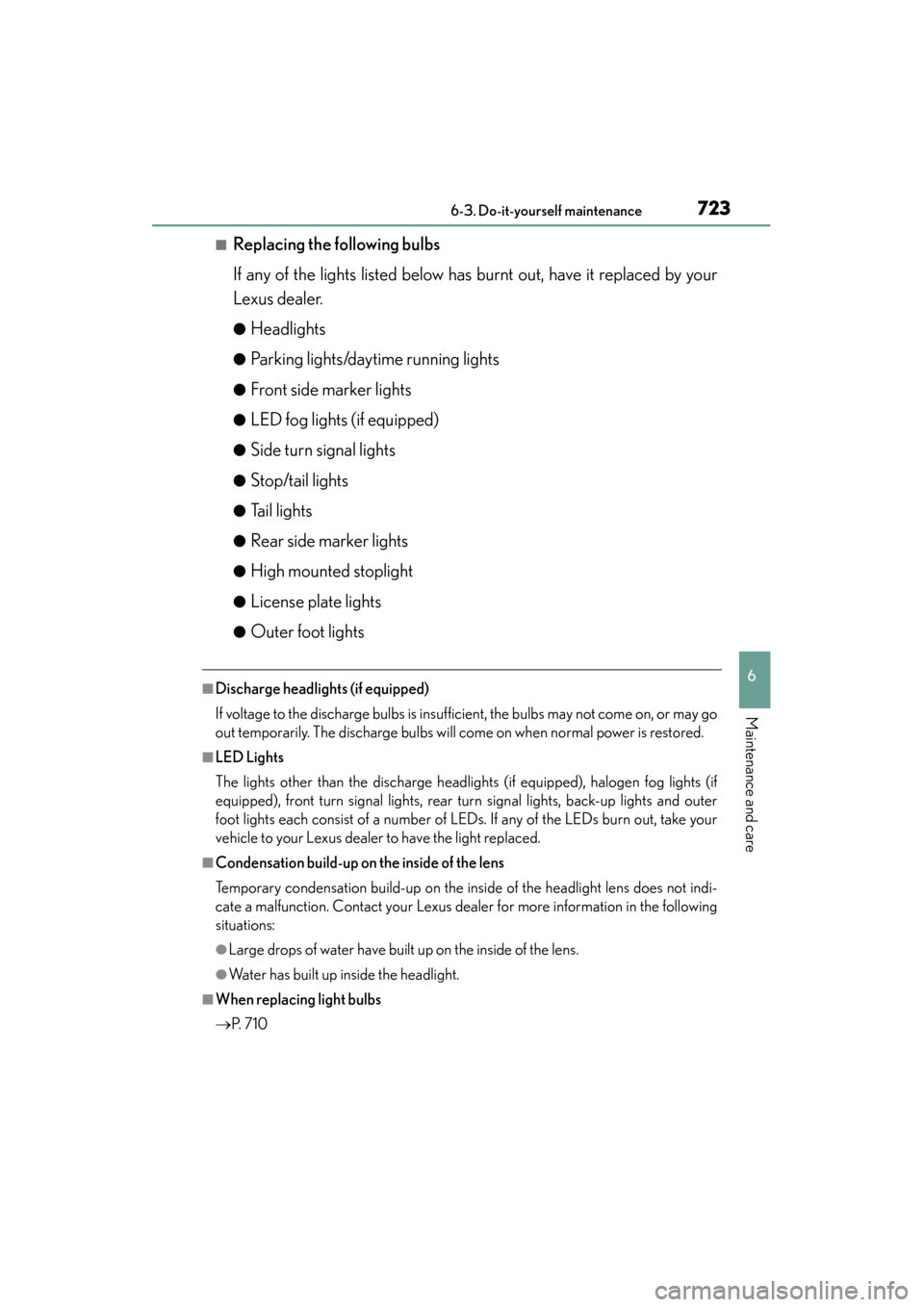

■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your
Lexus dealer.
●Headlights
●Parking lights/daytime running lights
●Front side marker lights
●LED fog lights (if equipped)
●Side turn signal lights
●Stop/tail lights
●Tail lights
●Rear side marker lights
●High mounted stoplight
●License plate lights
●Outer foot lights
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may go
out temporarily. The discharge bulbs will come on when normal power is restored.
■LED Lights
The lights other than the discharge headlights (if equipped), halogen fog lights (if
equipped), front turn signal lights, rear turn signal lights, back-up lights and outer
foot lights each consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus dealer for more information in the following
situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
→P. 7 1 0
GS450h_OM_OM30D52U_(U).book Page 723 Monday, July 29, 2013 12:07 PM

724
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance

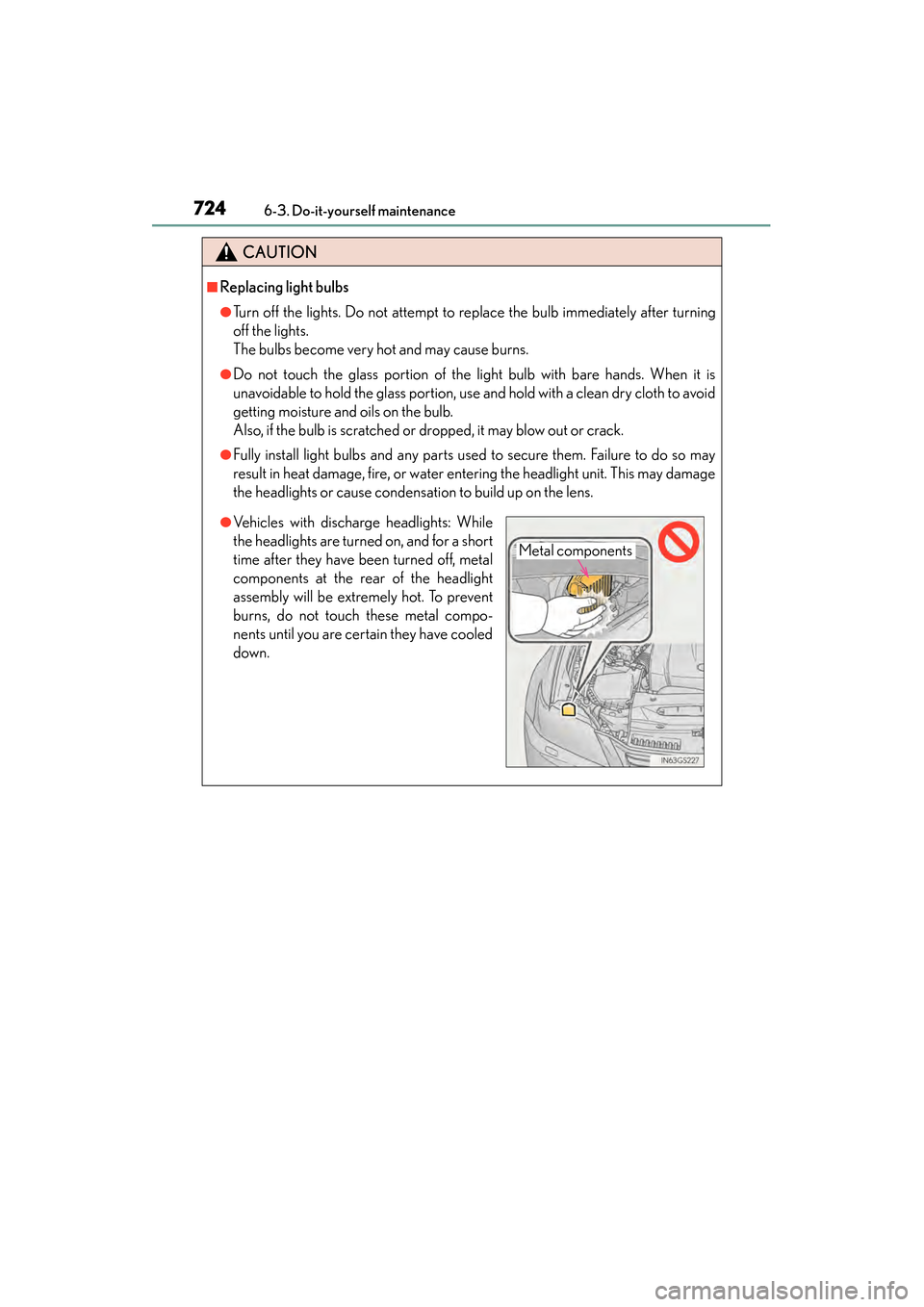

CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid
getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Vehicles with discharge headlights: While
the headlights are turned on, and for a short
time after they have been turned off, metal
components at the rear of the headlight
assembly will be extremely hot. To prevent
burns, do not touch these metal compo-
nents until you are certain they have cooled
down.
Metal components
GS450h_OM_OM30D52U_(U).book Page 724 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
7256-3. Do-it-yourself maintenance
6
Maintenance and care
CAUTION

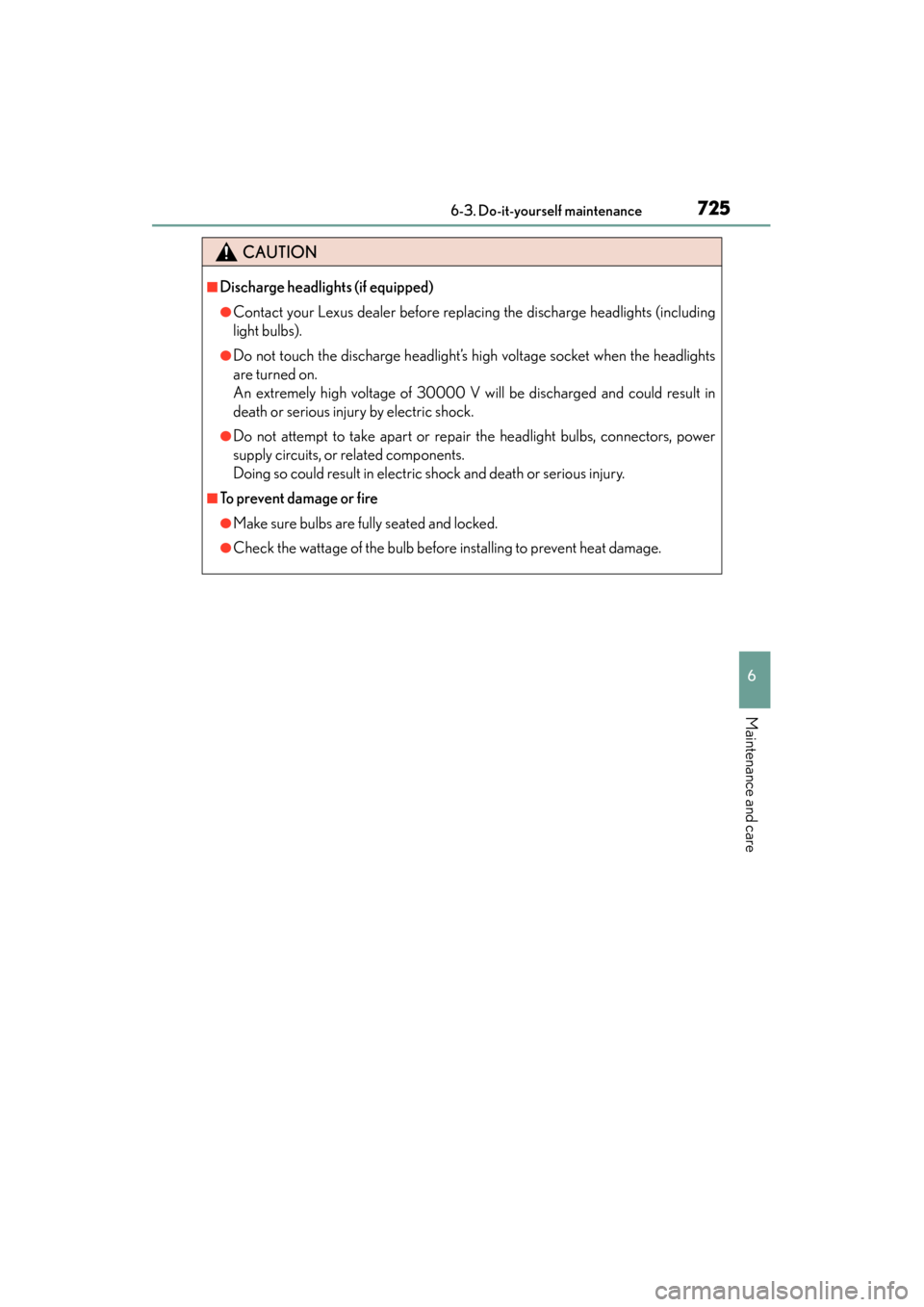

■Discharge headlights (if equipped)
●Contact your Lexus dealer before replacing the discharge headlights (including
light bulbs).
●Do not touch the discharge headlight’s high voltage socket when the headlights
are turned on.
An extremely high voltage of 30000 V will be discharged and could result in
death or serious injury by electric shock.
●Do not attempt to take apart or repair the headlight bulbs, connectors, power
supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.
GS450h_OM_OM30D52U_(U).book Page 725 Monday, July 29, 2013 12:07 PM

726
GS450h_OM_OM30D52U_(U)
6-3. Do-it-yourself maintenance
GS450h_OM_OM30D52U_(U).book Page 726 Monday, July 29, 2013 12:07 PM

727
GS450h_OM_OM30D52U_(U)

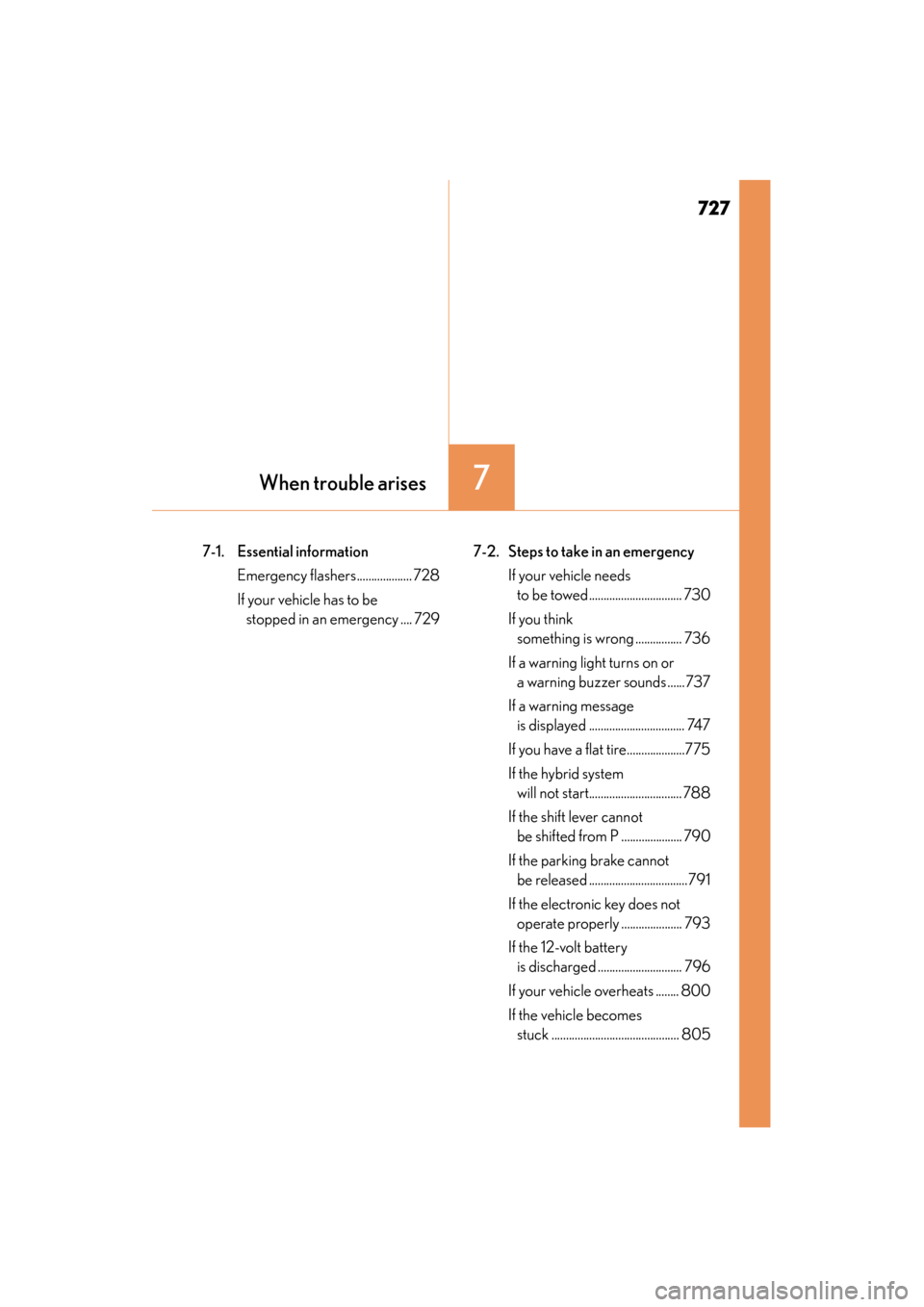

7When trouble arises
7-1. Essential information Emergency flashers................... 728
If your vehicle has to be stopped in an emergency .... 729 7-2. Steps to take in an emergency
If your vehicle needs to be towed ................................ 730
If you think something is wrong ................ 736
If a warning light turns on or a warning buzzer sounds ......737
If a warning message is displayed ................................. 747
If you have a flat tire....................775
If the hybrid system will not start................................ 788
If the shift lever cannot be shifted from P ..................... 790
If the parking brake cannot be released ..................................791
If the electronic key does not operate properly ..................... 793
If the 12-volt battery is discharged ............................. 796
If your vehicle overheats ........ 800
If the vehicle becomes stuck ............................................ 805
GS450h_OM_OM30D52U_(U).book Page 727 Monday, July 29, 2013 12:07 PM

728
GS450h_OM_OM30D52U_(U)
7-1. Essential information
Emergency flashers

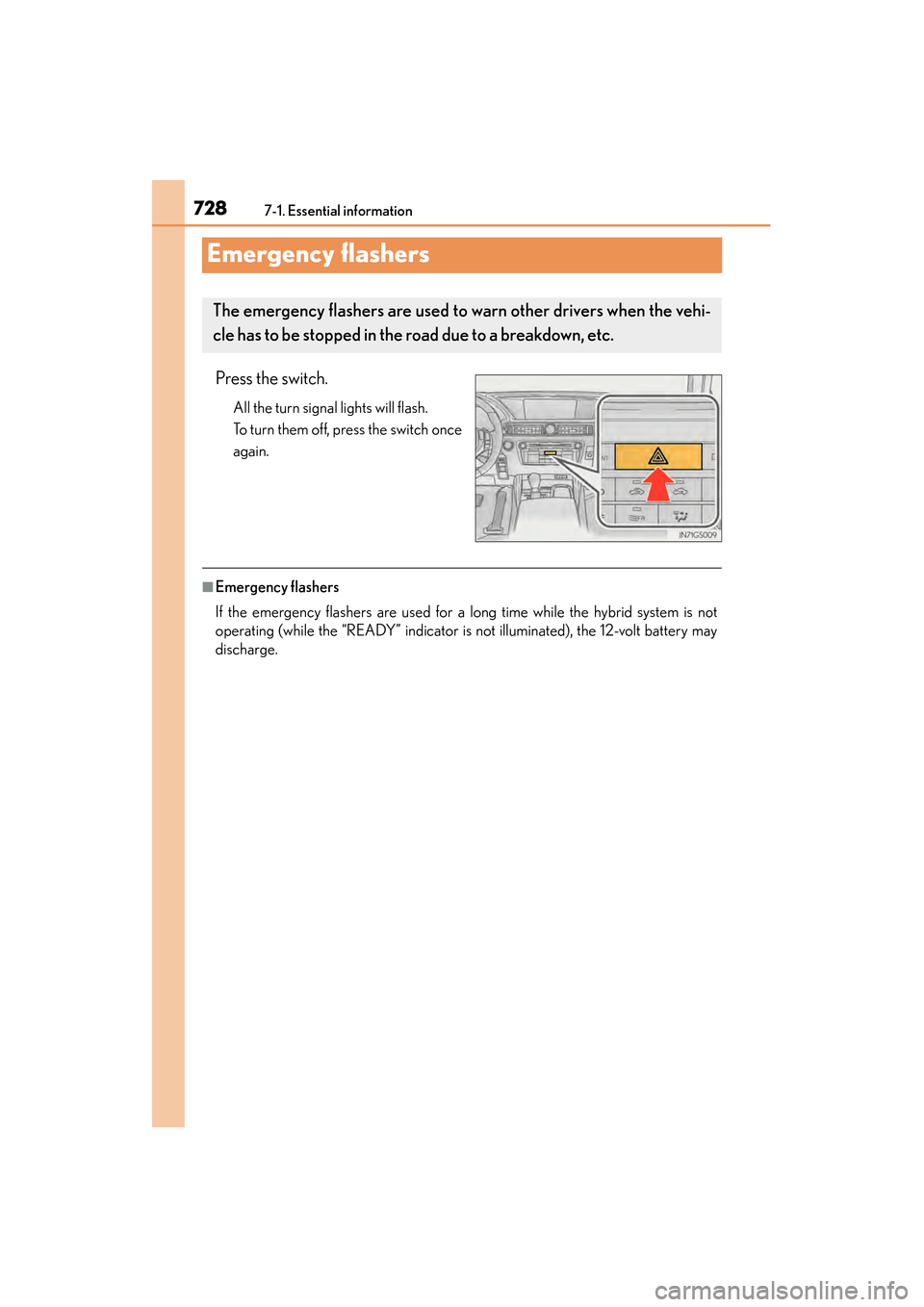

Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once
again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is not
operating (while the “READY” indicator is not illuminated), the 12-volt battery may
discharge.
The emergency flashers are used to warn other drivers when the vehi-
cle has to be stopped in the road due to a breakdown, etc.
GS450h_OM_OM30D52U_(U).book Page 728 Monday, July 29, 2013 12:07 PM

729
GS450h_OM_OM30D52U_(U)
7
When trouble arises
7-1. Essential information
If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.

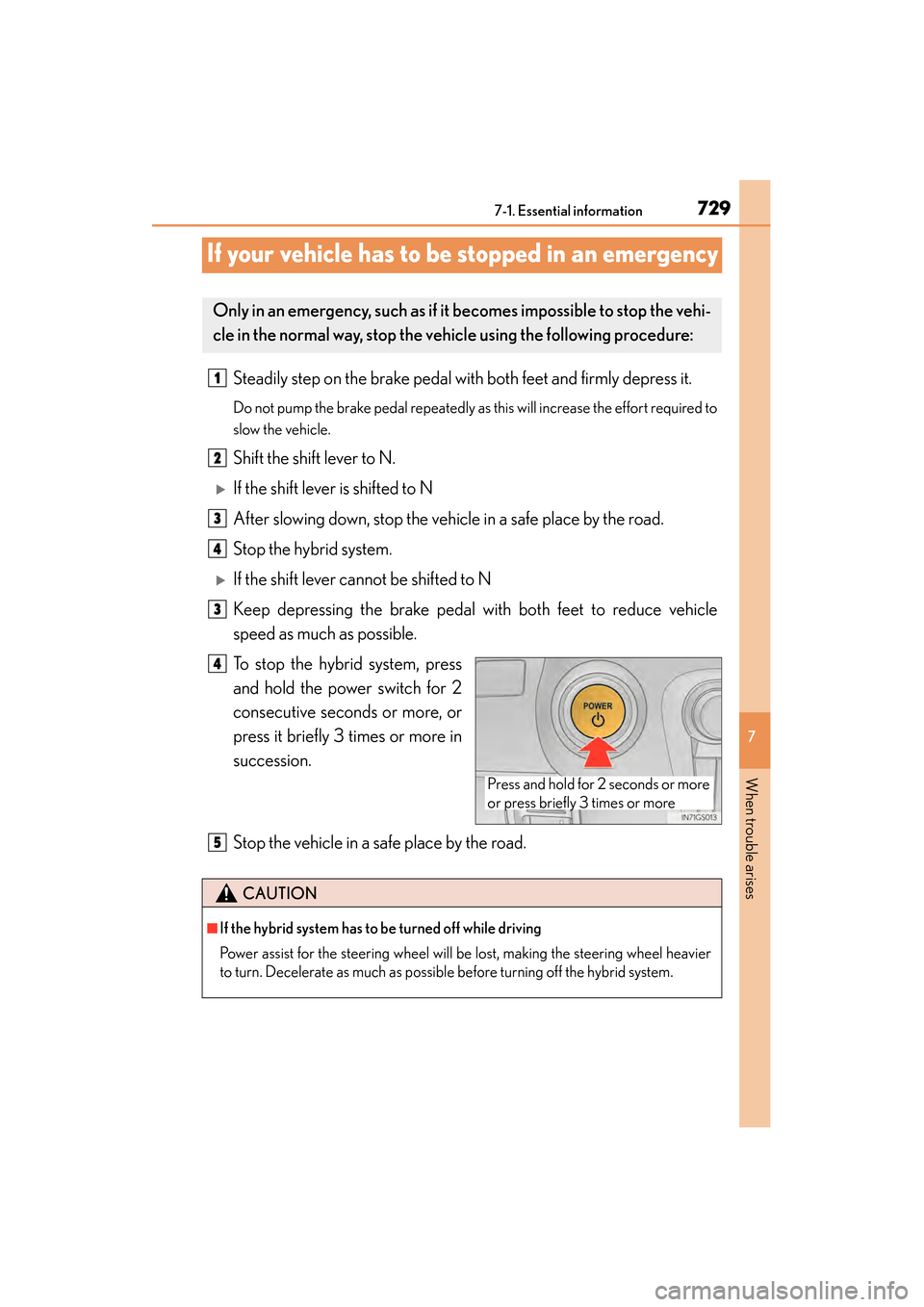

To stop the hybrid system, press
and hold the power switch for 2
consecutive seconds or more, or
press it briefly 3 times or more in
succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop the vehi-
cle in the normal way, stop the ve hicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
CAUTION
■If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel heavier
to turn. Decelerate as much as possible before turning off the hybrid system.
5
