windshield wipers Lexus GS450h 2015 Opening, closing and locking the doors and trunk / LEXUS 2015 GS450H OWNERS MANUAL QUICK GUIDE (OM30E61U)

3
GS450h_QG_OM30E61U_(U)

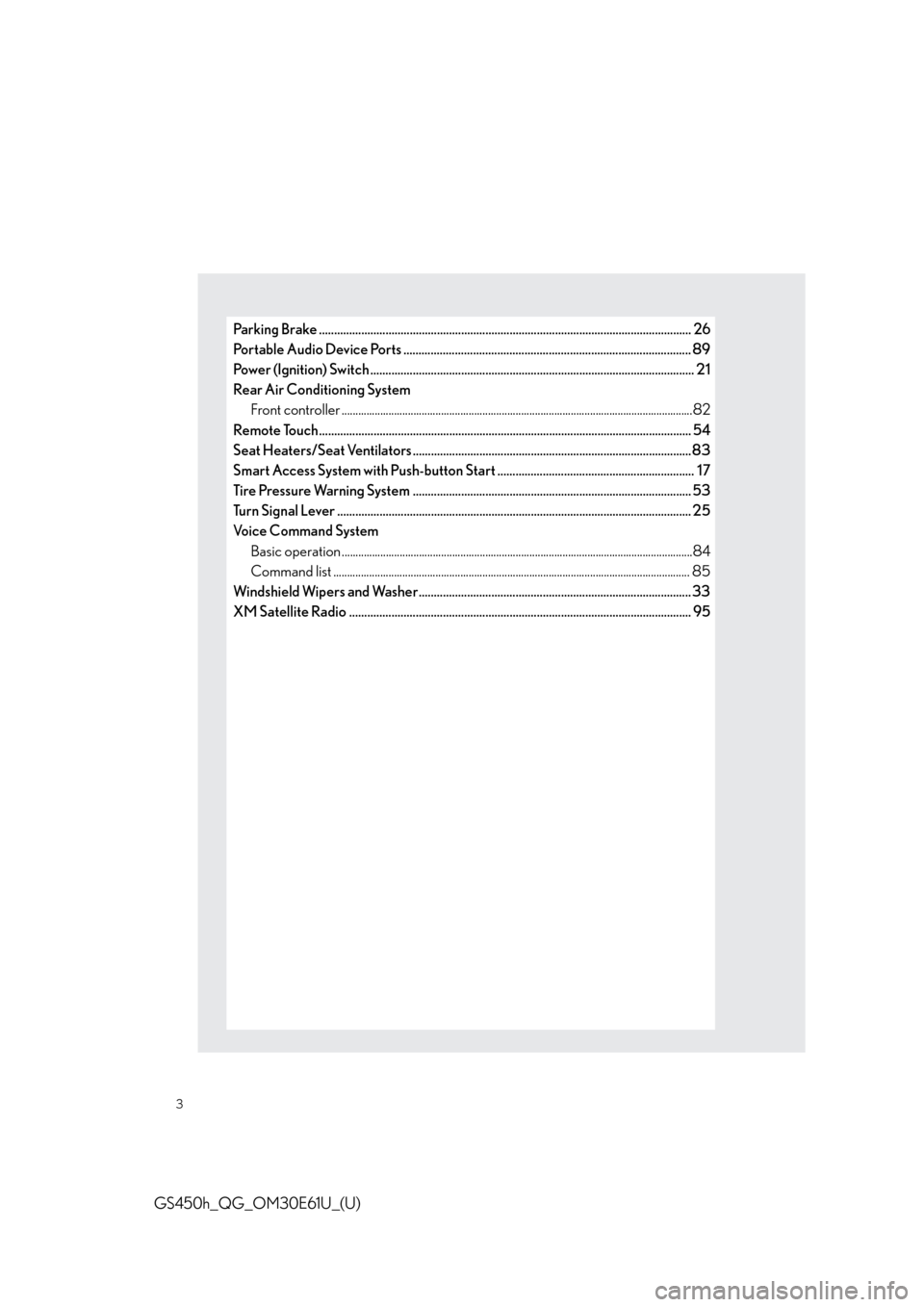

Parking Brake ........................................................................................................................... 26
Portable Audio Device Ports ............................................................................................... 89
Power (Ignition) Switch ........................................................................................................ ... 21
Rear Air Conditioning System
Front controller ............................................................................................................... ................82
Remote Touch................................................................................................................... ........ 54
Seat Heaters/Seat Ventilators ............................................................................................83
Smart Access System with Push-button Start ................................................................. 17
Tire Pressure Warning System ............................................................................................ 53
Turn Signal Lever .............................................................................................................. ....... 25
Voice Command System Basic operation ................................................................................................................ ...............84
Command list ................................................................................................................... .............. 85
Windshield Wipers and Washer.......................................................................................... 33
XM Satellite Radio ............................................................................................................. .... 95

33
GS450h_QG_OM30E61U_(U)
Windshield Wipers and Washer
(U.S.A.) or (Canada)
Move the lever up 2 levels
Move the lever up 1 level
(U.S.A.) or (Canada)
Move the lever down 1 level
(U.S.A.) or (Canada)
Move the lever down 2 levels AUTO mode on/off switch
With AUTO mode selected, the wipers
will operate automatically when the
sensor detects fallin g rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
AUTO mode indicator will turn on
when AUTO mode is selected.
*1: After temporary operation, the mode will return to AUTO mode.
*2: AUTO mode will be canceled.
The lever will return to its original position immediately after operation.
AUTO mode
indicator
1
2
3
4
5
or or or
OffTe m p o r a r y operationTe m p o r a r yoperationLow speedoperationHigh speed operation
Low speed operationOffOffHigh speed operationHigh speedoperation
High speed operationOffLow speedoperationNo changeNo change
AUTO mode
Intermit- tent
operation
Off
Te m p o r a r y
operation
*1Low speed
operation
*2
High speed
operation
*2
Continu- ouslyNo change
Status
before
operation
Operation

34
GS450h_QG_OM30E61U_(U)
When AUTO mode is selected, the sensor
sensitivity can be adjusted by turning the
switch ring.Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
■ Switching to the intermit tent windshield wipers
Press and hold until the AUTO mode
indicator stops flashing.
If is pressed and held until the
AUTO mode indica tor stops flashing
again, it will return to its previous state.
6
7
8

35
GS450h_QG_OM30E61U_(U)
■Operating the intermittent windshield wipers
(U.S.A.) or (Canada)
Move the lever up 2 levels
Move the lever up 1 level

(U.S.A.) or (Canada)
Move the lever down 1 level

(U.S.A.) or (Canada)
Move the lever down 2 levels
1
2
3
4
or or or
OffTe m p o r a r y operationTe m p o r a r yoperationIntermittent operationHigh speedoperation
Intermittent operationOffOffLow speedoperationHigh speed operation
Low speed operationOffIntermittent operationHigh speedoperationHigh speedoperation
High speed operationOffLow speedoperationNo changeNo change
Status
before
operation
Operation

36
GS450h_QG_OM30E61U_(U)
Wiper intervals can be adjusted when inter-
mittent operation is selected.Increases the intermittent windshield
wiper frequency
Decreases the intermittent windshield
wiper frequency
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
5
6
7
