Lexus GS450h 2015 Owner's Manual

260
GS450h_OM_OM30F70U_(U)
4-5. Using the driving support systems
This mode employs a radar sensor to detect the presence of vehicles up to
approximately 400 ft. (120 m) ahead, determines the current vehicle-to-
vehicle following distance, and operates to maintain a suitable following
distance from the vehicle ahead.
Note that vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
Example of constant speed cruising
When there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-vehicle
distance can also be set by operating the vehicle-to-vehicle distance control.
Example of deceleration cruising and follow-up cruising
When the vehicle ahead is driving slower than the set speed
When a vehicle is detected running ahead of you, the system automatically decel-
erates your vehicle. When a greater reduction in vehicle speed is necessary, the
system applies the brakes. The system will respond to changes in the speed of the
vehicle ahead in order to maintain the vehicle-to-vehicle distance set by the
driver. A warning tone warns you when the system cannot decelerate sufficiently
to prevent your vehicle from closing in on the vehicle ahead. When the vehicle
ahead of you stops, your vehicle will also stop. After the vehicle ahead starts off,
pushing the cruise control lever up or depressing the accelerator pedal will
resume follow-up cruising.
Driving in vehicle-to-vehicle distance control mode
1
2
GS450h_OM_OM30F70U_(U).book Page 260 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
2614-5. Using the driving support systems
4
Driving
Example of acceleration
When there are no longer any vehicles ahead driving slower than the
set speed
The system accelerates until the set speed is reached. The system then returns to
constant speed cruising.
When your vehicle is too close to a vehicle ahead, and sufficient auto-
matic deceleration via the cruise control is not possible, the display will
flash and the buzzer will sound to alert the driver. An example of this
would be if another driver cuts in front of you while you are following a
vehicle. Apply the brakes to ensure an appropriate vehicle-to-vehicle dis-
tance.
■Warnings may not occur when
In the following instances, there is a possibility that the warnings will not
occur:
●When the speed of the vehicle ahead matches or exceeds your vehi-
cle speed
●When the vehicle ahead is traveling at an extremely slow speed or is
stationary
●Immediately after the cruise control speed was set
●At the instant the accelerator is applied
Ap proach warni ng
3
GS450h_OM_OM30F70U_(U).book Page 261 Monday, January 19, 2015 9:34 AM

262
GS450h_OM_OM30F70U_(U)
4-5. Using the driving support systems

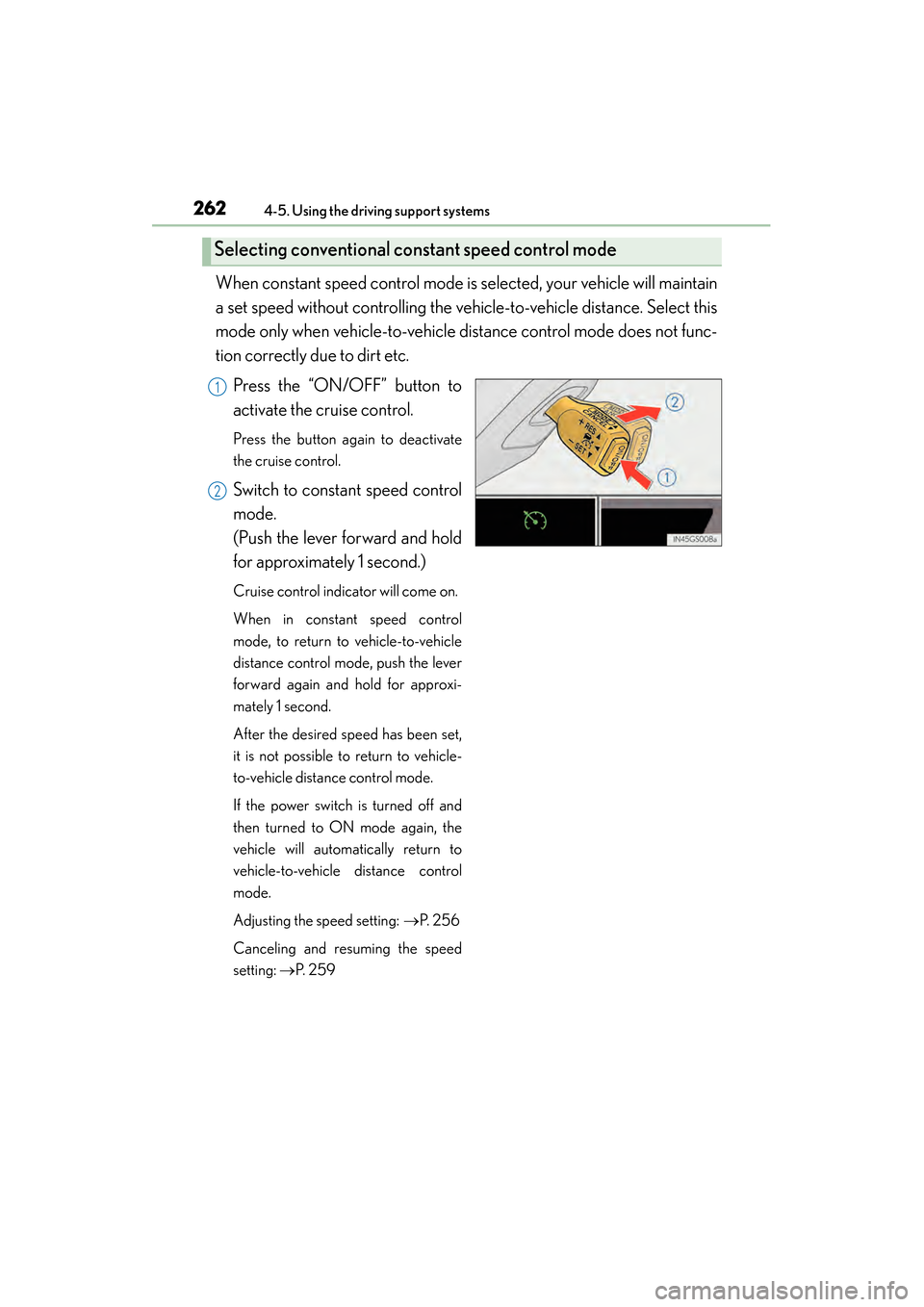

When constant speed control mode is selected, your vehicle will maintain
a set speed without controlling the vehicle-to-vehicle distance. Select this
mode only when vehicle-to-vehicle distance control mode does not func-
tion correctly due to dirt etc.
Press the “ON/OFF” button to
activate the cruise control.
Press the button again to deactivate
the cruise control.
Switch to constant speed control
mode.
(Push the lever forward and hold
for approximately 1 second.)
Cruise control indicator will come on.
When in constant speed control
mode, to return to vehicle-to-vehicle
distance control mode, push the lever
forward again and hold for approxi-
mately 1 second.
After the desired speed has been set,
it is not possible to return to vehicle-
to-vehicle distance control mode.
If the power switch is turned off and
then turned to ON mode again, the
vehicle will automatically return to
vehicle-to-vehicle distance control
mode.
Adjusting the speed setting: →P. 2 5 6
Canceling and resuming the speed
setting: →P. 2 5 9
Selecting conventional constant speed control mode
1
2
GS450h_OM_OM30F70U_(U).book Page 262 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
2634-5. Using the driving support systems
4
Driving
■Dynamic radar cruise control with full-speed range can be set when
●The shift lever is in D or range 4 or higher of S has been selected.
●Range 4 or higher of D has been selected by using the paddle shift.
●Vehicle speed is above approximately 30 mph (50 km/h).
■Accelerating after setting the vehicle speed
The vehicle can accelerate normally. After acceleration, the set speed resumes.
However, during vehicle-to-vehicle distance control mode, the vehicle speed may
decrease below the set speed in order to maintain the distance to the vehicle ahead.
■Automatic cancelation of vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the following
situations:
●Actual vehicle speed falls below approximately 25 mph (40 km/h) when there are
no vehicle ahead.
●The preceding vehicle leaves the lane when your vehicle is following at a speed
below 25 mph (40 km/h).
●VSC is activated.
●TRAC is activated for a period of time.
●When the VSC or TRAC system is turned off by pressing the VSC OFF switch.
●The sensor cannot operate correctly because it is covered in some way.
●The windshield wipers are operating at high speed (when the wiper switch is set to
AUTO mode or the high speed wiper operation).
●When snow mode is set.
●The parking brake is operated.
●The vehicle is stopped by system control on a steep incline.
●Pre-collision brake assist is activated.
●The following are detected when the vehicle has been stopped by system control:
• The driver is not wearing a seat belt.
• The driver’s door is opened.
• The trunk or hood is opened.
• The vehicle has been stopped for about 3 minutes.
If vehicle-to-vehicle distance control driving is automatically canceled for any other
reason, there may be a malfunction in the system. Contact your Lexus dealer.
GS450h_OM_OM30F70U_(U).book Page 263 Monday, January 19, 2015 9:34 AM

264
GS450h_OM_OM30F70U_(U)
4-5. Using the driving support systems
■Automatic cancelation of constant speed control
The cruise control will stop maintaining the vehicle speed in the following situations:
●Actual vehicle speed is more than approximately 10 mph (16 km/h) below the set
vehicle speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed falls below approximately 25 mph (40 km/h).
●VSC is activated.
●TRAC is activated for a period of time.
●When the VSC or TRAC system is turned off by pressing the VSC OFF switch.
■When the LKA (Lane-Keeping Assist) will be activated
Using the radar cruise control in vehicle-to-vehicle distance control mode, lane
keeping assist function is activated.
■Radar sensor and grille cover
Always keep the sensor and grille cover clean to ensure that the vehicle-to-vehicle
distance control operates properly. (Some obstructions, such as snow, ice or plastic
objects, cannot be detected by the obstruction sensor.)
Dynamic radar cruise control with full-speed range is canceled if an obstruction is
detected.
■Warning messages and buzzers for dynamic radar cruise control with full-speed
range
Warning messages and buzzers are used to indicate a system malfunction or to
inform the driver of the need for caution while driving. (→P. 5 1 6 )
Grille cover
Radar sensor
1
2
GS450h_OM_OM30F70U_(U).book Page 264 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
2654-5. Using the driving support systems
4
Driving

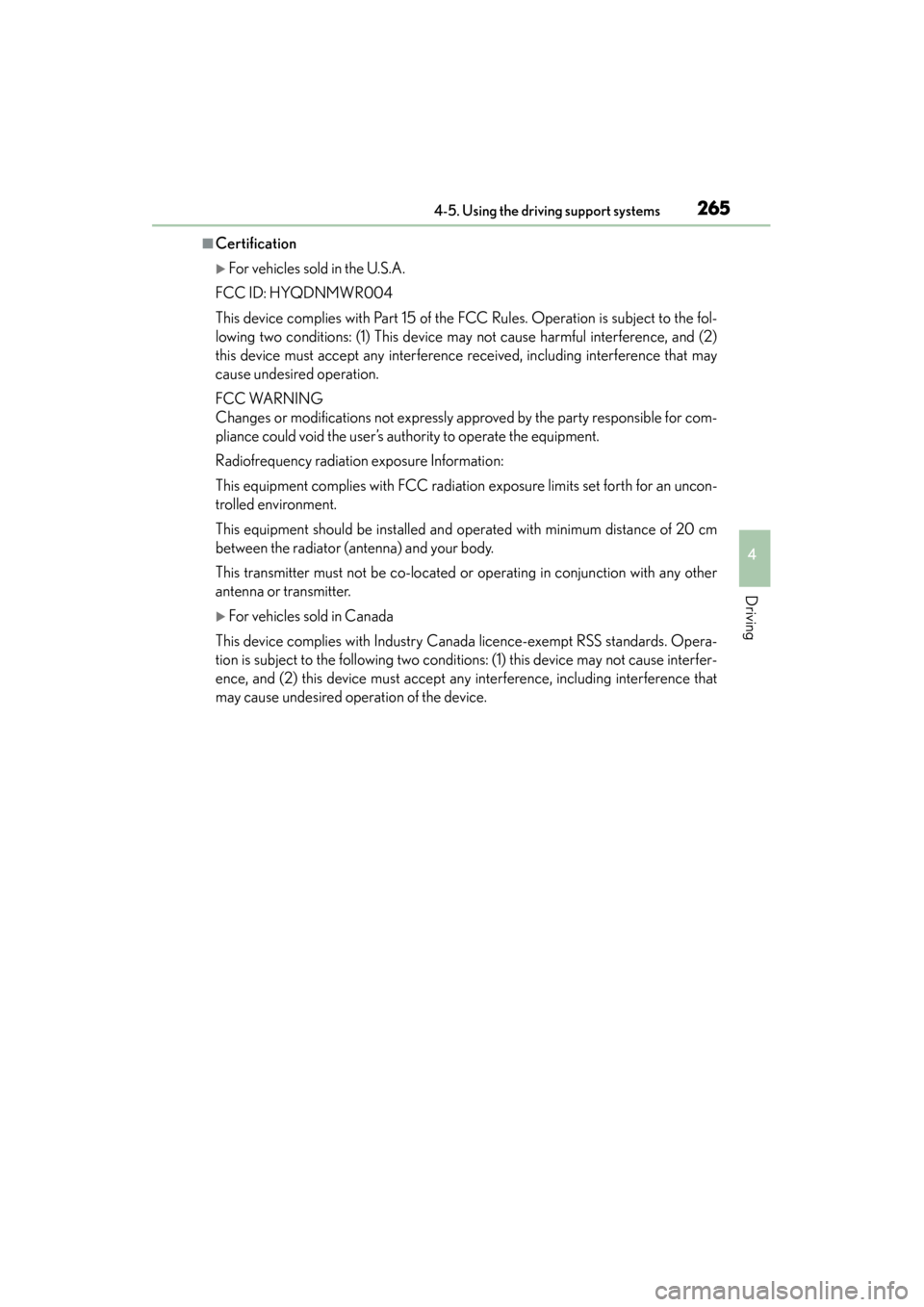

■Certification
XFor vehicles sold in the U.S.A.
FCC ID: HYQDNMWR004
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
Radiofrequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncon-
trolled environment.
This equipment should be installed and operated with minimum distance of 20 cm
between the radiator (antenna) and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
XFor vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standards. Opera-
tion is subject to the following two conditions: (1) this device may not cause interfer-
ence, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
GS450h_OM_OM30F70U_(U).book Page 265 Monday, January 19, 2015 9:34 AM

266
GS450h_OM_OM30F70U_(U)
4-5. Using the driving support systems

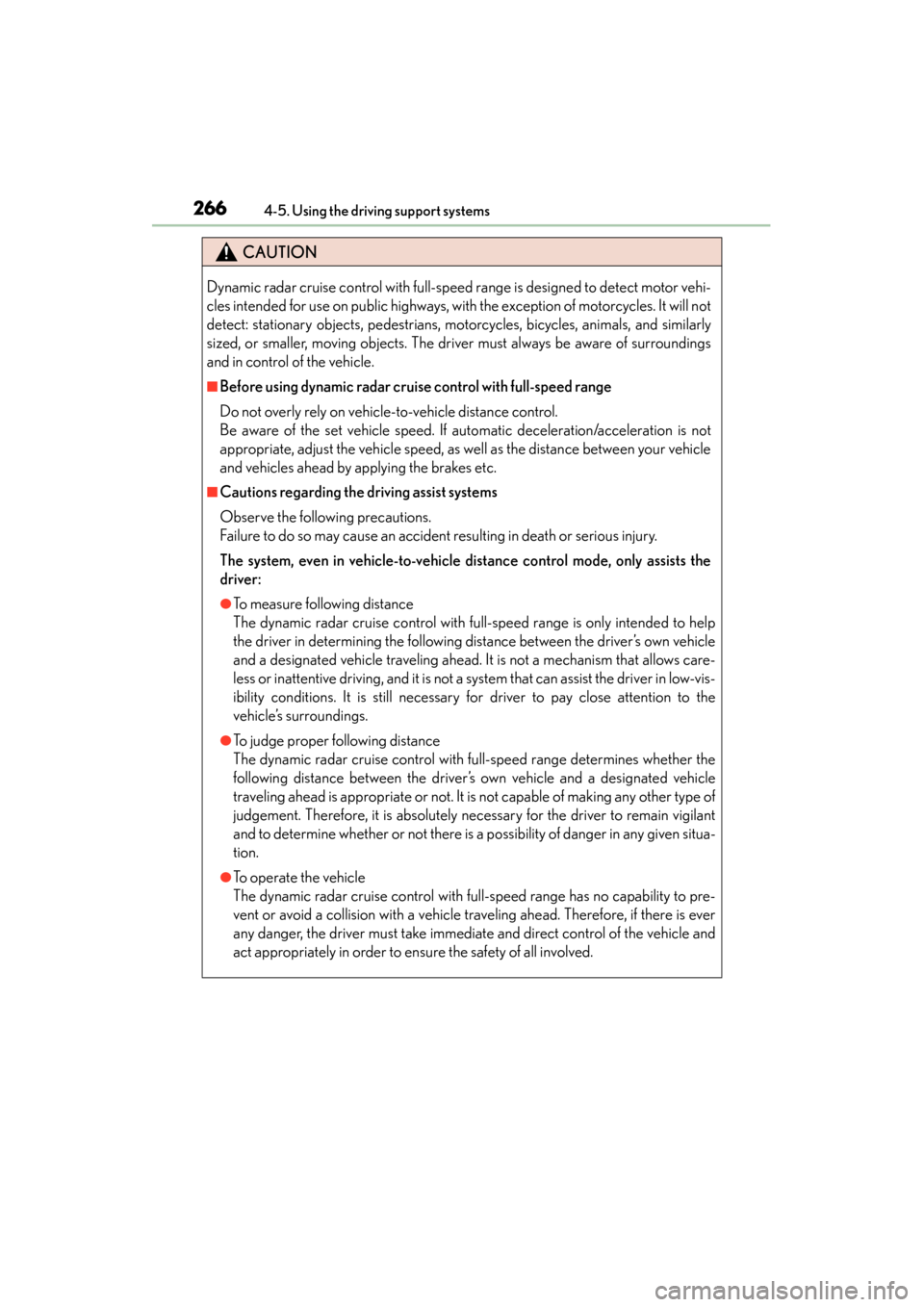

CAUTION
Dynamic radar cruise control with full-speed range is designed to detect motor vehi-
cles intended for use on public highways, with the exception of motorcycles. It will not
detect: stationary objects, pedestrians, motorcycles, bicycles, animals, and similarly
sized, or smaller, moving objects. The driver must always be aware of surroundings
and in control of the vehicle.
■Before using dynamic radar cruise control with full-speed range
Do not overly rely on vehicle-to-vehicle distance control.
Be aware of the set vehicle speed. If automatic deceleration/acceleration is not
appropriate, adjust the vehicle speed, as well as the distance between your vehicle
and vehicles ahead by applying the brakes etc.
■Cautions regarding the driving assist systems
Observe the following precautions.
Failure to do so may cause an accident resulting in death or serious injury.
The system, even in vehicle-to-vehicle distance control mode, only assists the
driver:
●To measure following distance
The dynamic radar cruise control with full-speed range is only intended to help
the driver in determining the following distance between the driver’s own vehicle
and a designated vehicle traveling ahead. It is not a mechanism that allows care-
less or inattentive driving, and it is not a system that can assist the driver in low-vis-
ibility conditions. It is still necessary for driver to pay close attention to the
vehicle’s surroundings.
●To judge proper following distance
The dynamic radar cruise control with full-speed range determines whether the
following distance between the driver’s own vehicle and a designated vehicle
traveling ahead is appropriate or not. It is not capable of making any other type of
judgement. Therefore, it is absolutely necessary for the driver to remain vigilant
and to determine whether or not there is a possibility of danger in any given situa-
tion.
●To operate the vehicle
The dynamic radar cruise control with full-speed range has no capability to pre-
vent or avoid a collision with a vehicle traveling ahead. Therefore, if there is ever
any danger, the driver must take immediate and direct control of the vehicle and
act appropriately in order to ensure the safety of all involved.
GS450h_OM_OM30F70U_(U).book Page 266 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
2674-5. Using the driving support systems
4
Driving
CAUTION
■To avoid inadvertent dynamic radar cruise control with full-speed range activa-
tion
Switch the cruise control off using the “ON/OFF” button when not in use.
■Situations unsuitable for dynamic radar cruise control with full-speed range
Do not use dynamic radar cruise control with full-speed range in any of the follow-
ing situations.
Doing so may result in inappropriate speed control and could cause an accident
resulting in death or serious injury.
●In heavy traffic
●On city streets
●On roads with sharp bends
●On winding roads
●On slippery roads, such as those covered with rain, ice or snow
●On steep downhills, or where there are sudden changes between sharp up and
down gradients
Vehicle speed may exceed the set speed when driving down a steep hill.
●At entrances to expressways
●When weather conditions are bad enough that they may prevent the sensors
from functioning correctly (fog, snow, sandstorm, heavy rain, etc.)
●When an approach warning buzzer is heard often
●In areas where the driver is likely to encounter pedestrians, motorcyclists, bicy-
clists, animals, stationary objects or other people/objects not detectable by the
system. (→P. 266)
●During emergency towing
GS450h_OM_OM30F70U_(U).book Page 267 Monday, January 19, 2015 9:34 AM

268
GS450h_OM_OM30F70U_(U)
4-5. Using the driving support systems
CAUTION
■When the radar sensor may not be correctly detecting the vehicle ahead
Apply the brakes as necessary when any of the following types of vehicles are in
front of you.
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning (→P. 261) will not be activated, and a fatal or serious accident
may result.
●Vehicles that cut in suddenly
●Vehicles traveling at low speeds
●Motorcycles traveling in the same lane
●Vehicles that are not moving
●Vehicles with small rear ends (trailers with no load on board etc.)
●Details about other people/objects the system will not detect:
→ P. 2 6 6
■Conditions under which the vehicle-to-vehicle distance control may not function
correctly
Apply the brakes as necessary in the following conditions as the radar sensor may
not be able to correctly detect vehicles ahead, and a fatal or serious accident may
result:
●When water or snow splashed by the surrounding vehicles hinders the function-
ing of the radar sensor
●When your vehicle is tilted upwards (due to a heavy load in the trunk etc.)
●When the road curves or when the lanes are narrow
●When steering wheel operation or your position in the lane is unstable
●When the vehicle ahead decelerates suddenly as the system is not able to
respond to sudden braking.
Details about limitations:
→P. 2 6 6
Details about unsuitable conditions:
→ P. 2 6 7
GS450h_OM_OM30F70U_(U).book Page 268 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
2694-5. Using the driving support systems
4
Driving
CAUTION
■Handling the radar sensor
Observe the following to ensure the cruise control system can function effectively.
Otherwise, the system may not function correctly and could result in an accident.
●Keep the sensor and grille cover clean at all times.
Clean the sensor and grille cover with a soft cloth so you do not mark or damage
them.
●Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may malfunction. If the
sensor or surrounding area is subject to a strong impact, always have the area
inspected and adjusted by your Lexus dealer.
●Do not disassemble the sensor.
●Do not attach accessories or stickers to the sensor, grille cover or surrounding
area.
●Do not modify or paint the sensor and grille cover.
●Do not replace the sensor or grill cover with non-genuine parts.
GS450h_OM_OM30F70U_(U).book Page 269 Monday, January 19, 2015 9:34 AM
