5-5. Other interior features

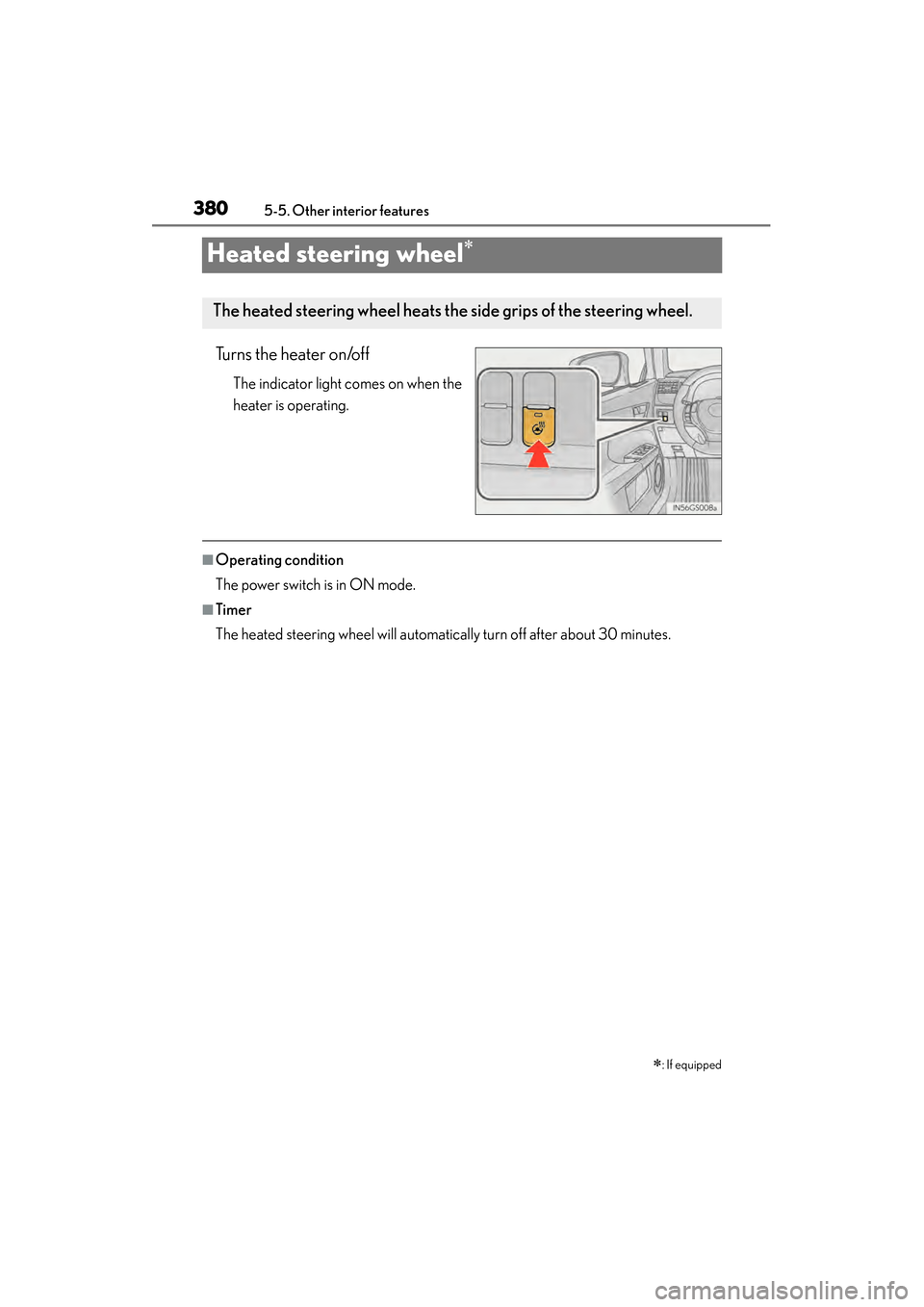

Heated steering wheel∗
Turns the heater on/off
The indicator light comes on when the
heater is operating.
■Operating condition
The power switch is in ON mode.
■Timer
The heated steering wheel will automatically turn off after about 30 minutes.
∗: If equipped
The heated steering wheel heats the side grips of the steering wheel.
GS450h_OM_OM30F70U_(U).book Page 380 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
3815-5. Other interior features
5
Interior features

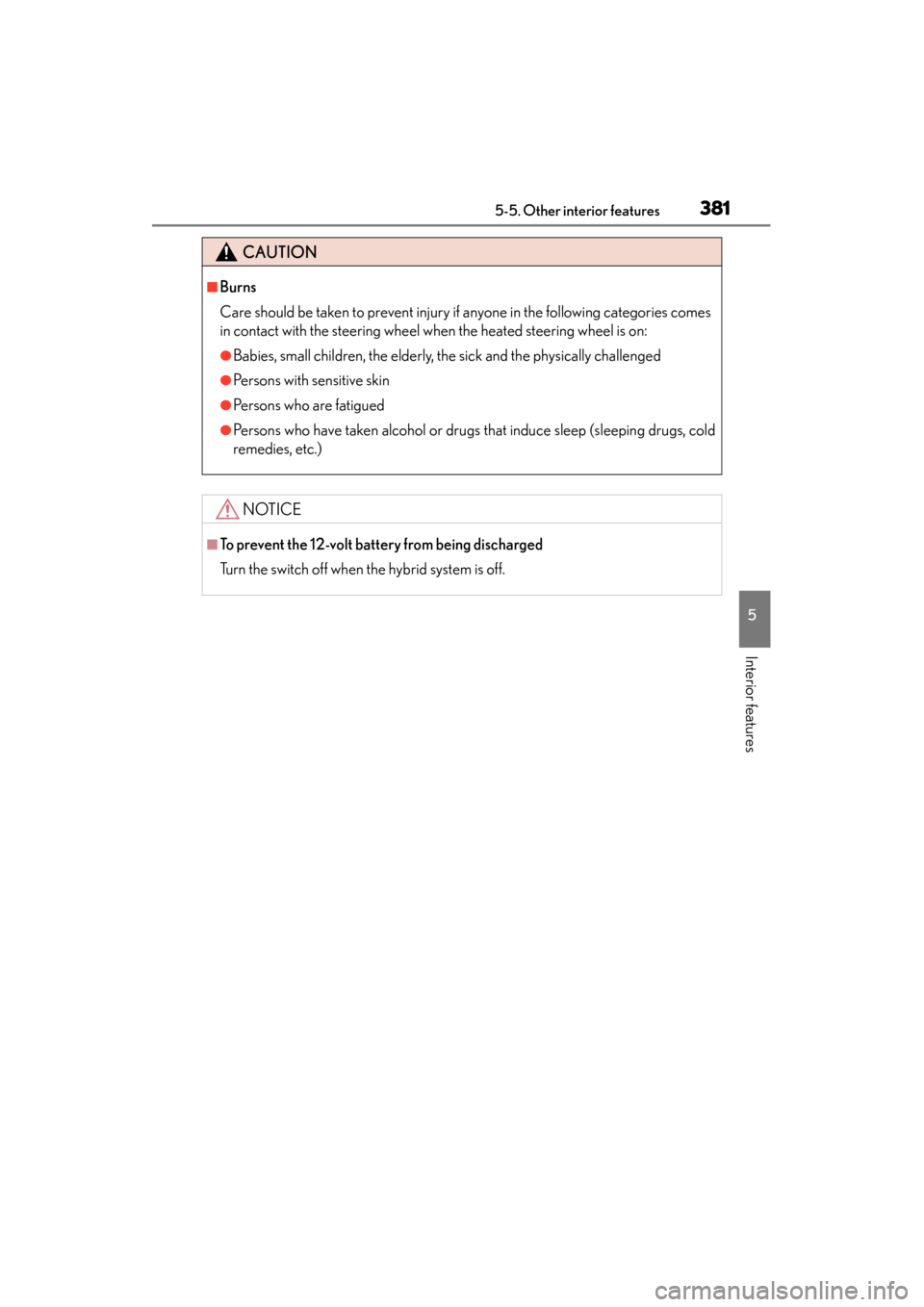

CAUTION
■Burns
Care should be taken to prevent injury if anyone in the following categories comes
in contact with the steering wheel when the heated steering wheel is on:
●Babies, small children, the elderly, the sick and the physically challenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
NOTICE
■To prevent the 12-volt battery from being discharged
Turn the switch off when the hybrid system is off.
GS450h_OM_OM30F70U_(U).book Page 381 Monday, January 19, 2015 9:34 AM

382
GS450h_OM_OM30F70U_(U)
5-5. Other interior features
Seat heaters/seat ventilators
The seat can be warmed and air from the seat can improve ventilation.
Front seat heaters and ventilators/rear seat heaters (if equipped)
Seat heater switches
The indicator light (yellow) on the
switch comes on when the seat heater
is operating.
Seat ventilator switches (front
seats only)
The indicator light (green) on the
switch comes on when the seat venti-
lator is operating.
Level indicator lights
The seat heater temperature level or
the seat ventilator fan speed level (for
front seats only) is displayed.
“AUTO” indicator lights
XFront seats
XRear seats
1
2
3
4
GS450h_OM_OM30F70U_(U).book Page 382 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
3835-5. Other interior features
5
Interior features

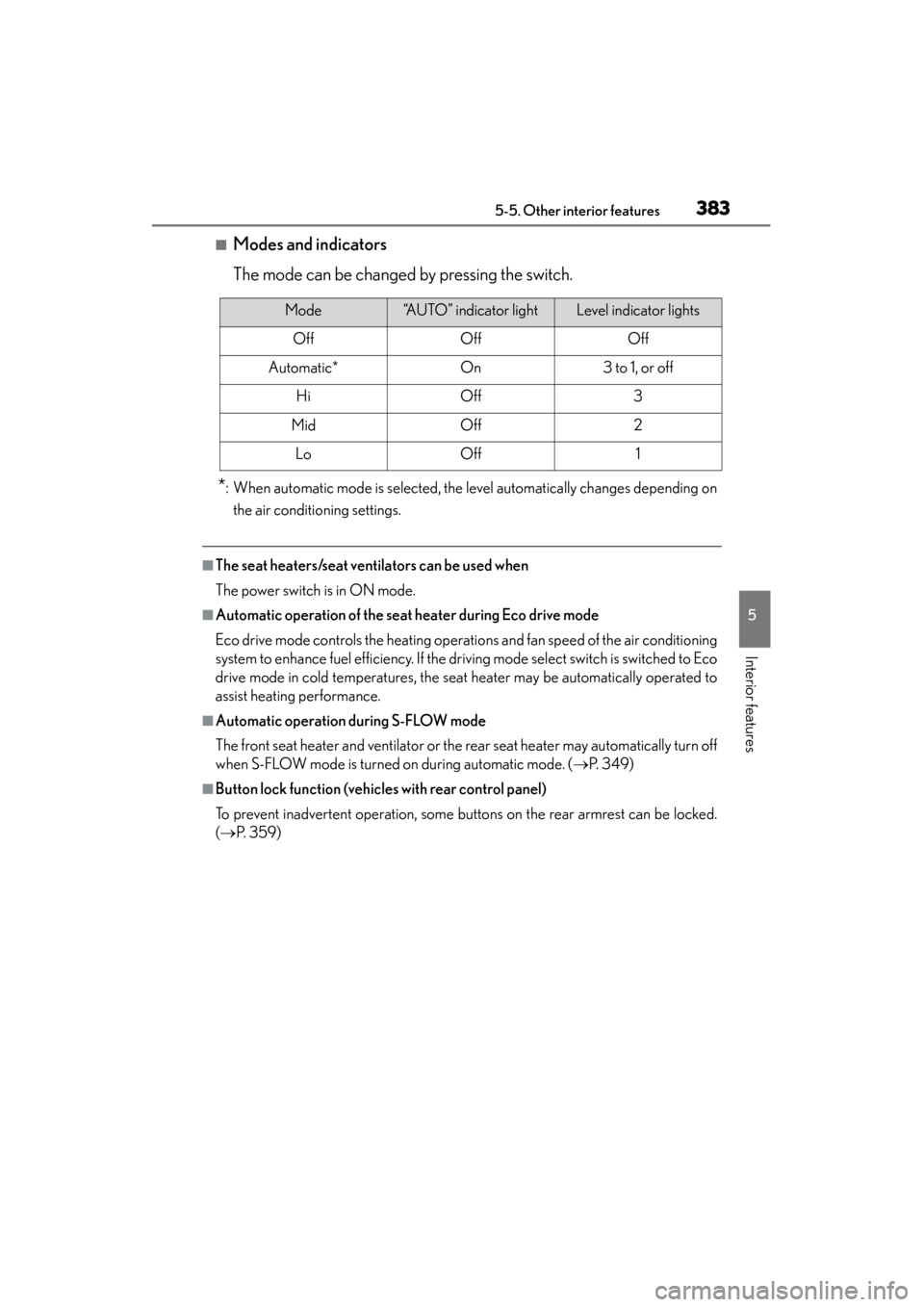

■Modes and indicators
The mode can be changed by pressing the switch.
*: When automatic mode is selected, the level automatically changes depending onthe air conditioning settings.
■The seat heaters/seat ventilators can be used when
The power switch is in ON mode.
■Automatic operation of the seat heater during Eco drive mode
Eco drive mode controls the heating operations and fan speed of the air conditioning
system to enhance fuel efficiency. If the driving mode select switch is switched to Eco
drive mode in cold temperatures, the seat heater may be automatically operated to
assist heating performance.
■Automatic operation during S-FLOW mode
The front seat heater and ventilator or the rear seat heater may automatically turn off
when S-FLOW mode is turned on during automatic mode. ( →P. 3 4 9 )
■Button lock function (vehicles with rear control panel)
To prevent inadvertent operation, some buttons on the rear armrest can be locked.
(→ P. 3 5 9 )
Mode“AUTO” indicator lightLevel indicator lights
OffOffOff
Automatic*On3 to 1, or off
HiOff3
MidOff2
LoOff1
GS450h_OM_OM30F70U_(U).book Page 383 Monday, January 19, 2015 9:34 AM

384
GS450h_OM_OM30F70U_(U)
5-5. Other interior features

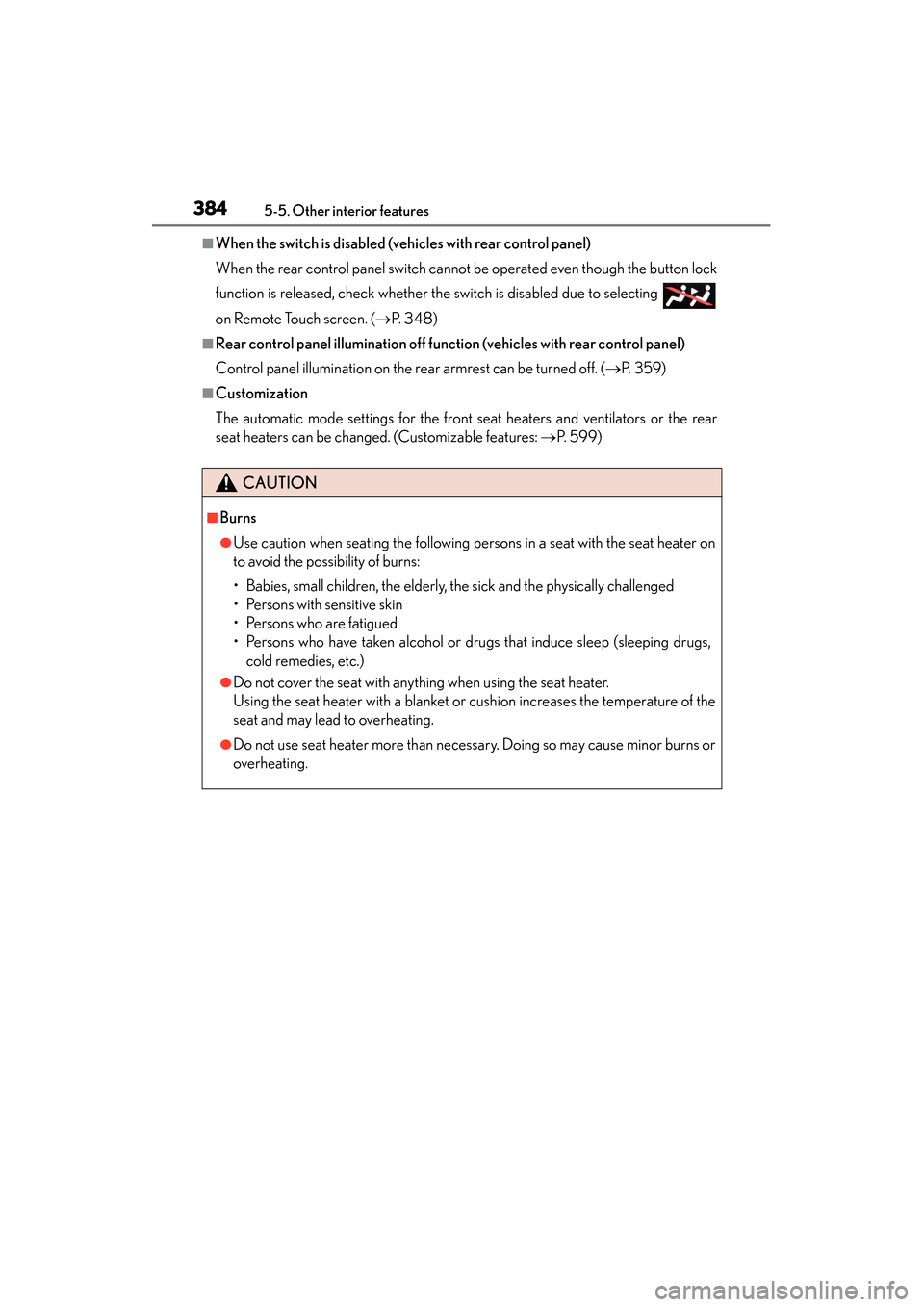

■When the switch is disabled (vehicles with rear control panel)
When the rear control panel switch cannot be operated even though the button lock
function is released, check whether the switch is disabled due to selecting
on Remote Touch screen. (→P. 3 4 8 )
■Rear control panel illumination off function (vehicles with rear control panel)
Control panel illumination on the rear armrest can be turned off. ( →P. 3 5 9 )
■Customization
The automatic mode settings for the front seat heaters and ventilators or the rear
seat heaters can be changed. (Customizable features: →P. 599)
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,
cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
●Do not use seat heater more than necessary. Doing so may cause minor burns or
overheating.
GS450h_OM_OM30F70U_(U).book Page 384 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
3855-5. Other interior features
5
Interior features

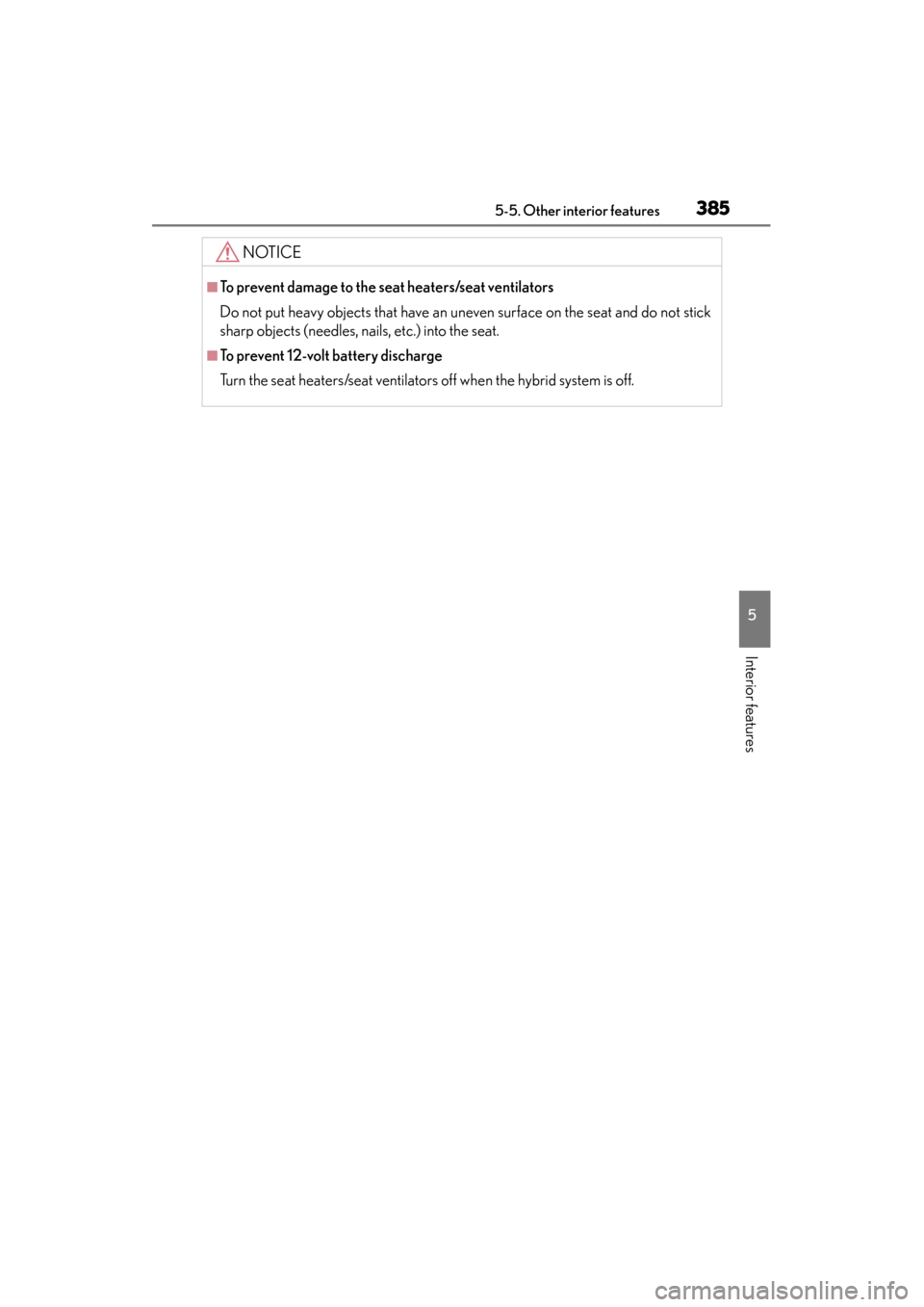

NOTICE
■To prevent damage to the seat heaters/seat ventilators
Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects (needles, nails, etc.) into the seat.
■To prevent 12-volt battery discharge
Turn the seat heaters/seat ventilators off when the hybrid system is off.
GS450h_OM_OM30F70U_(U).book Page 385 Monday, January 19, 2015 9:34 AM

386
GS450h_OM_OM30F70U_(U)
5-5. Other interior features

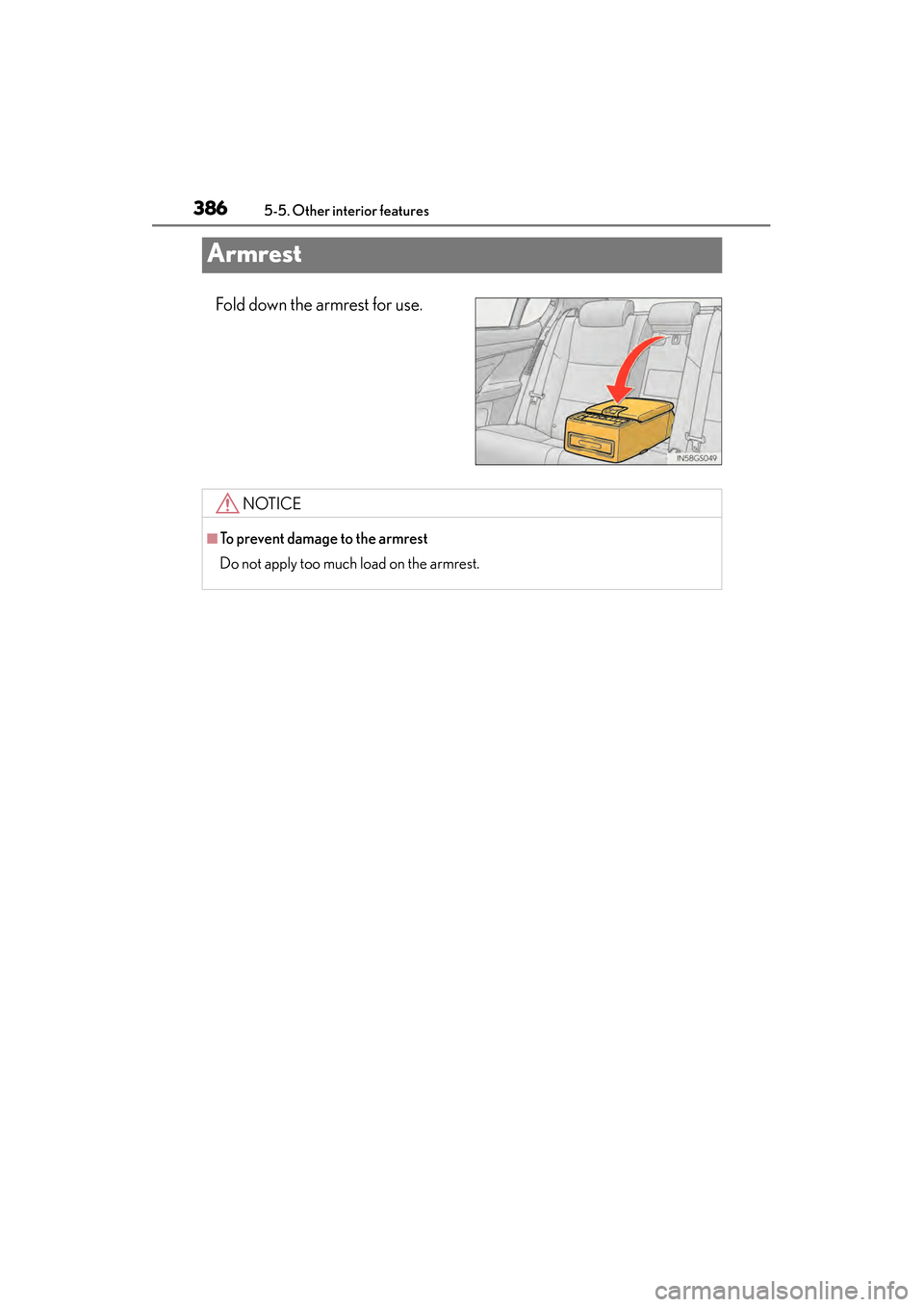

Armrest
Fold down the armrest for use.
NOTICE
■To prevent damage to the armrest
Do not apply too much load on the armrest.
GS450h_OM_OM30F70U_(U).book Page 386 Monday, January 19, 2015 9:34 AM

387
GS450h_OM_OM30F70U_(U)5-5. Other interior features
5
Interior features

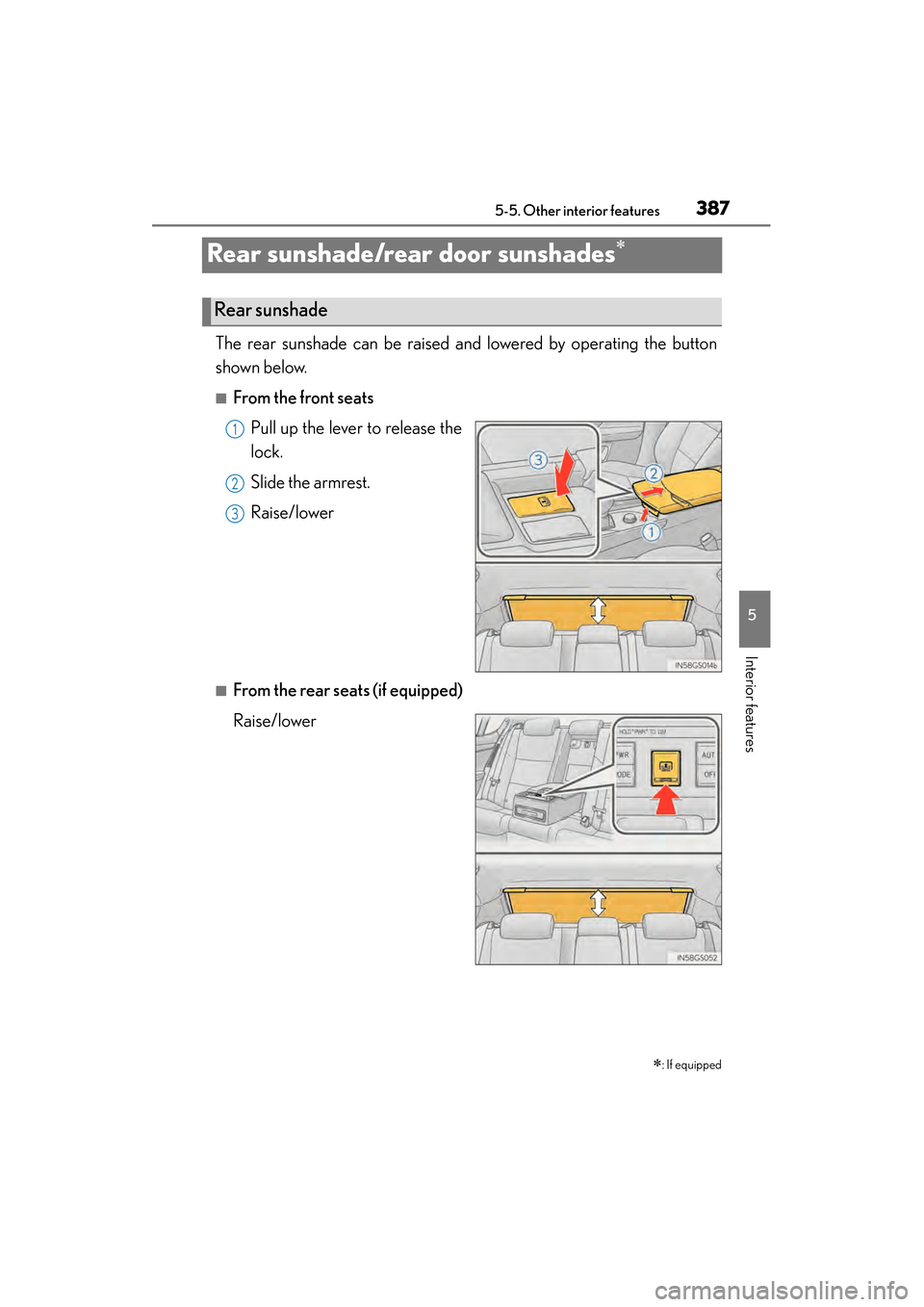

Rear sunshade/rear door sunshades∗
The rear sunshade can be raised and lowered by operating the button
shown below.
■From the front seats Pull up the lever to release the
lock.
Slide the armrest.
Raise/lower
■From the rear seats (if equipped)
Raise/lower
∗
: If equipped
Rear sunshade
1
2
13
GS450h_OM_OM30F70U_(U).book Page 387 Monday, January 19, 2015 9:34 AM

388
GS450h_OM_OM30F70U_(U)
5-5. Other interior features

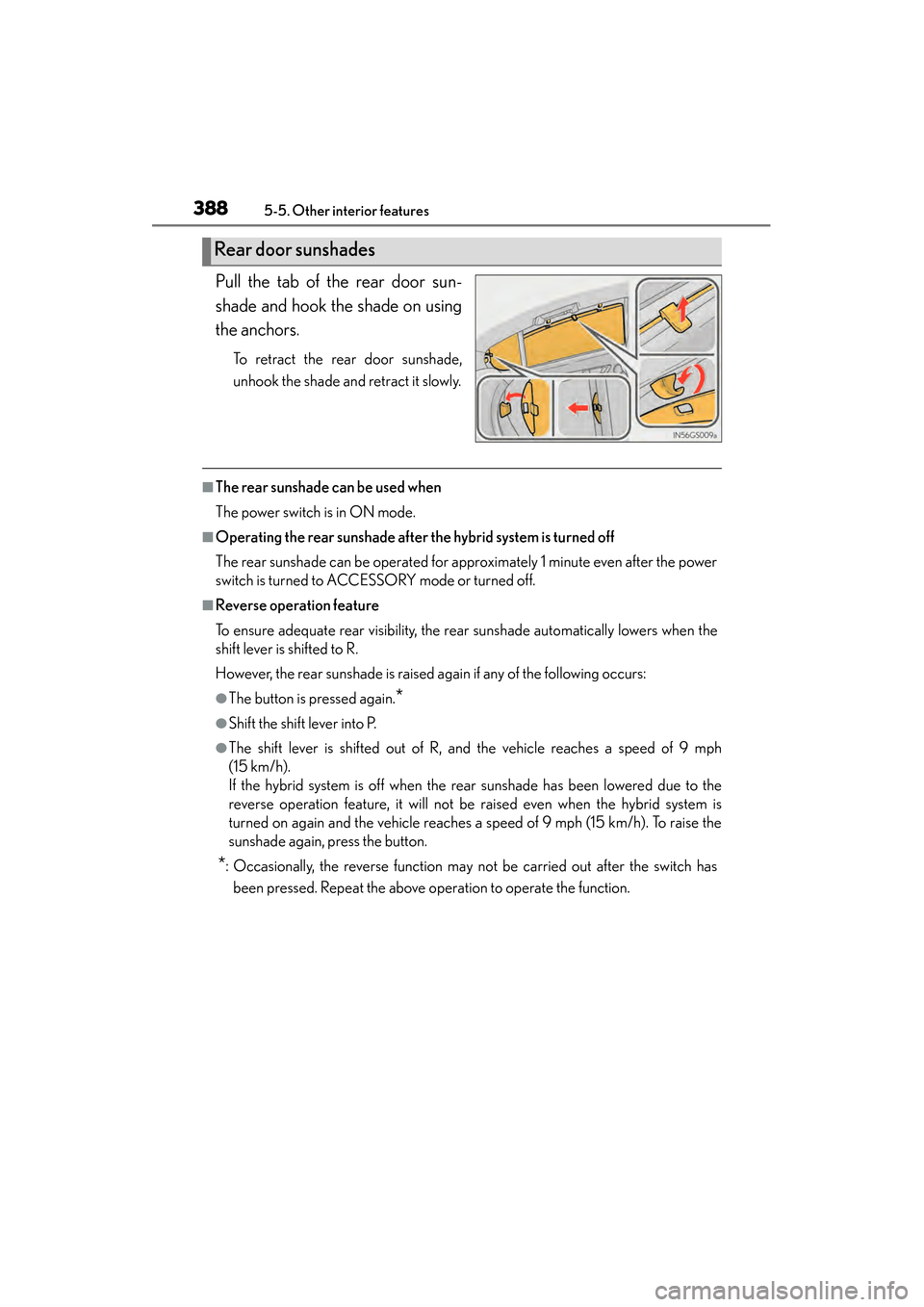

Pull the tab of the rear door sun-
shade and hook the shade on using
the anchors.
To retract the rear door sunshade,
unhook the shade and retract it slowly.
■The rear sunshade can be used when
The power switch is in ON mode.
■Operating the rear sunshade after the hybrid system is turned off
The rear sunshade can be operated for approximately 1 minute even after the power
switch is turned to ACCESSORY mode or turned off.
■Reverse operation feature
To ensure adequate rear visibility, the rear sunshade automatically lowers when the
shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
●The button is pressed again.*
●Shift the shift lever into P.
●The shift lever is shifted out of R, and the vehicle reaches a speed of 9 mph
(15 km/h).
If the hybrid system is off when the rear sunshade has been lowered due to the
reverse operation feature, it will not be raised even when the hybrid system is
turned on again and the vehicle reaches a speed of 9 mph (15 km/h). To raise the
sunshade again, press the button.
*: Occasionally, the reverse function may not be carried out after the switch hasbeen pressed. Repeat the above operation to operate the function.
Rear door sunshades
GS450h_OM_OM30F70U_(U).book Page 388 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
3895-5. Other interior features
5
Interior features

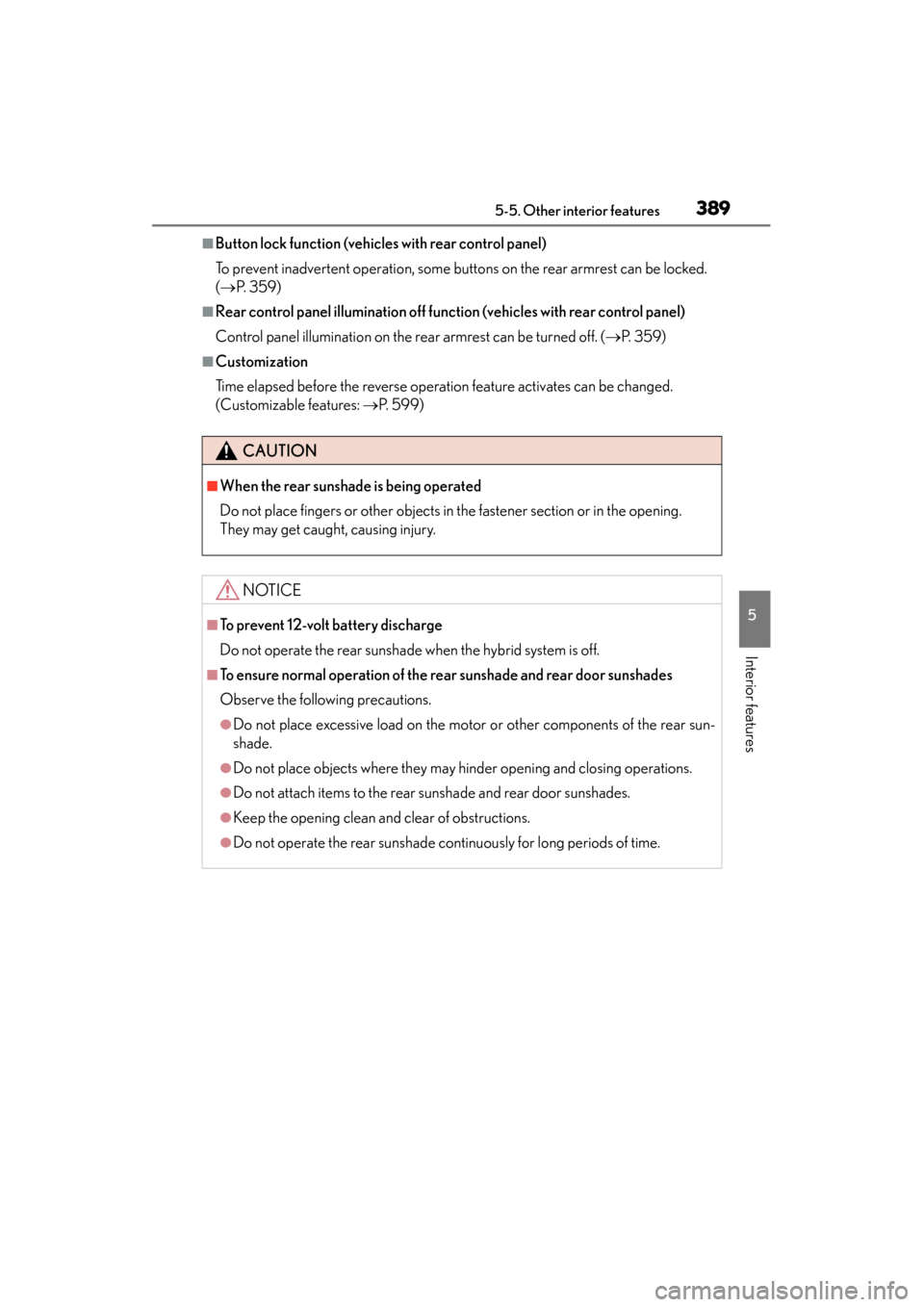

■Button lock function (vehicles with rear control panel)
To prevent inadvertent operation, some buttons on the rear armrest can be locked.
(→ P. 3 5 9 )
■Rear control panel illumination off function (vehicles with rear control panel)
Control panel illumination on the rear armrest can be turned off. ( →P. 3 5 9 )
■Customization
Time elapsed before the reverse operation feature activates can be changed.
(Customizable features: → P. 599)
CAUTION
■When the rear sunshade is being operated
Do not place fingers or other objects in the fastener section or in the opening.
They may get caught, causing injury.
NOTICE
■To prevent 12-volt battery discharge
Do not operate the rear sunshade when the hybrid system is off.
■To ensure normal operation of the re ar sunshade and rear door sunshades
Observe the following precautions.
●Do not place excessive load on the motor or other components of the rear sun-
shade.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear sunshade and rear door sunshades.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade cont inuously for long periods of time.
