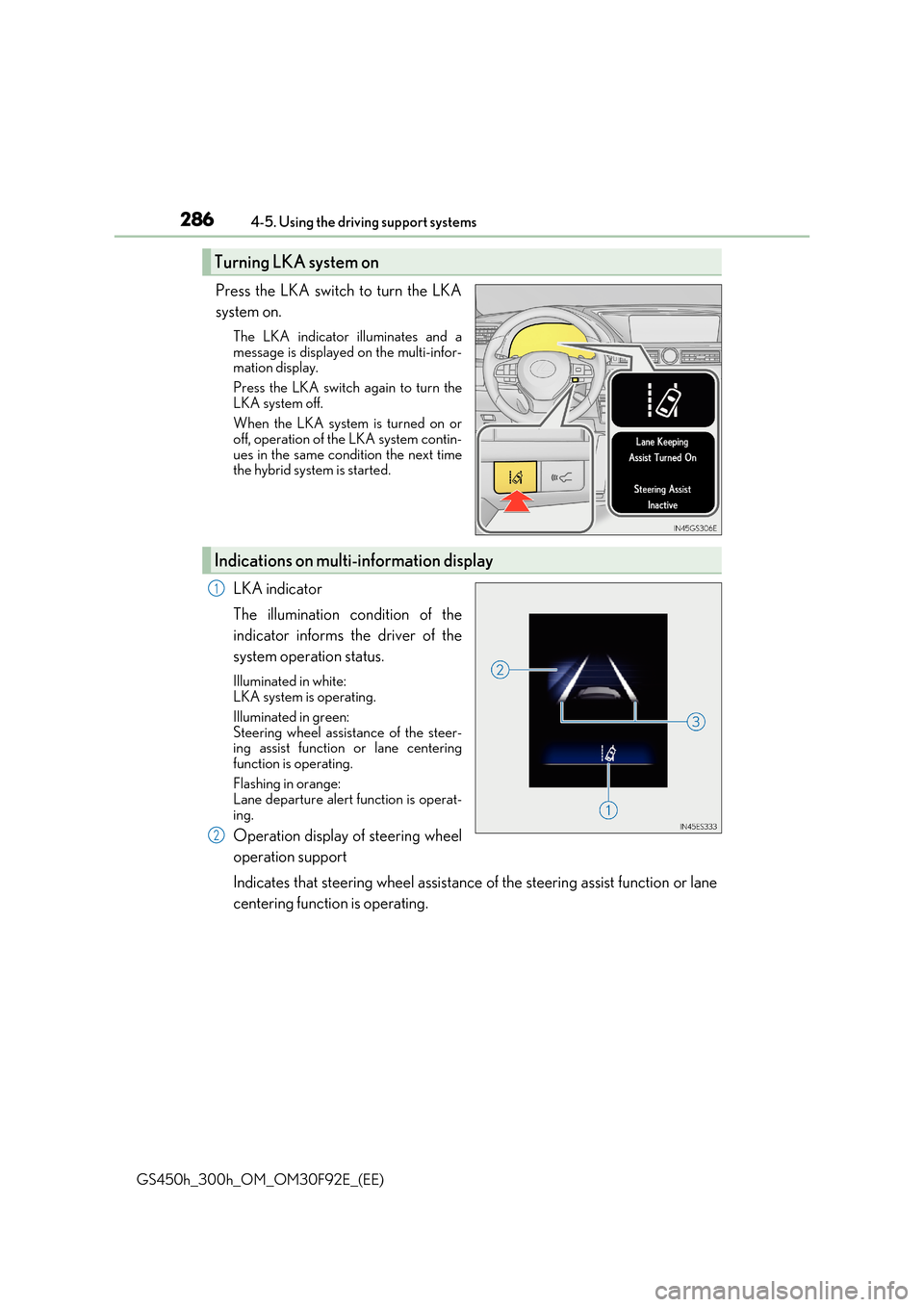

2864-5. Using the driving support systems
GS450h_300h_OM_OM30F92E_(EE)
Press the LKA switch to turn the LKA
system on.
The LKA indicator illuminates and a
message is displayed on the multi-infor- mation display.
Press the LKA switch again to turn the
LKA system off.
When the LKA system is turned on or off, operation of the LKA system contin-
ues in the same condition the next time the hybrid system is started.
LKA indicator
The illumination condition of the
indicator informs the driver of the
system operation status.
Illuminated in white: LKA system is operating.
Illuminated in green: Steering wheel assistance of the steer-ing assist function or lane centering
function is operating.
Flashing in orange: Lane departure alert function is operat-
ing.
Operation display of steering wheel
operation support
Indicates that steering wheel assistance of the steering assist function or lane
centering function is operating.
Turning LKA system on
Indications on multi-information display
1
2

2874-5. Using the driving support systems
4
Driving
GS450h_300h_OM_OM30F92E_(EE)

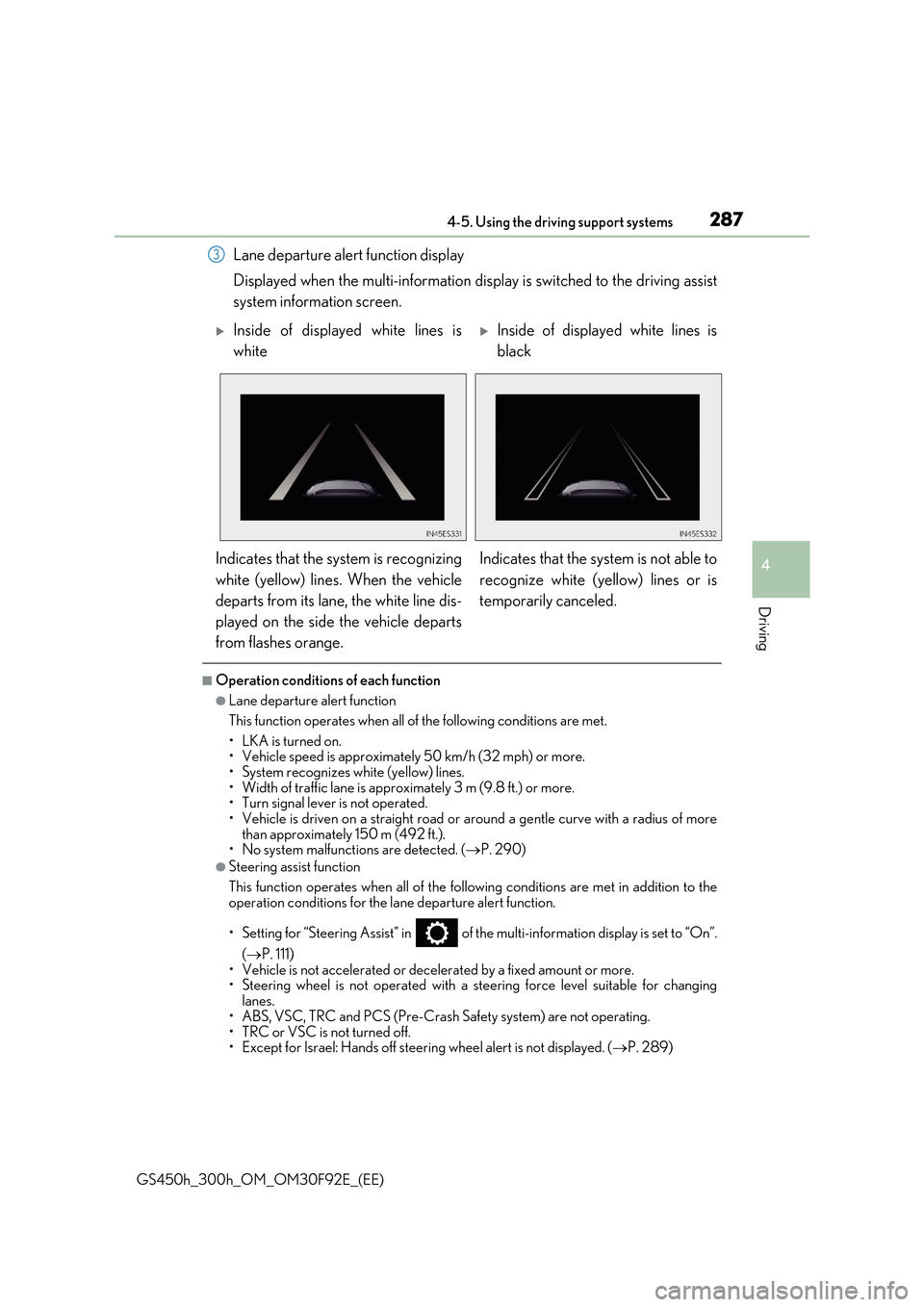

Lane departure alert function display
Displayed when the multi-information display is switched to the driving assist
system information screen.
■Operation conditions of each function
●Lane departure alert function
This function operates when all of the following conditions are met.
• LKA is turned on. • Vehicle speed is approximately 50 km/h (32 mph) or more.• System recognizes white (yellow) lines.
• Width of traffic lane is approximately 3 m (9.8 ft.) or more. • Turn signal lever is not operated.• Vehicle is driven on a straight road or around a gentle curve with a radius of more
than approximately 150 m (492 ft.). • No system malfunctions are detected. ( P. 290)
●Steering assist function
This function operates when all of the follo wing conditions are met in addition to the operation conditions for the la ne departure alert function.
• Setting for “Steering Assist” in of the multi-information display is set to “On”.
( P. 111) • Vehicle is not accelerated or decelerated by a fixed amount or more.• Steering wheel is not operated with a steering force level suitable for changing
lanes. • ABS, VSC, TRC and PCS (Pre-Crash Safety system) are not operating.
• TRC or VSC is not turned off. • Except for Israel: Hands off steering wheel alert is not displayed. ( P. 289)
3
Inside of displayed white lines is
white
Inside of displayed white lines is
black
Indicates that the system is recognizing
white (yellow) lines. When the vehicle
departs from its lane, the white line dis-
played on the side the vehicle departs
from flashes orange.
Indicates that the system is not able to
recognize white (yellow) lines or is
temporarily canceled.

2884-5. Using the driving support systems
GS450h_300h_OM_OM30F92E_(EE)

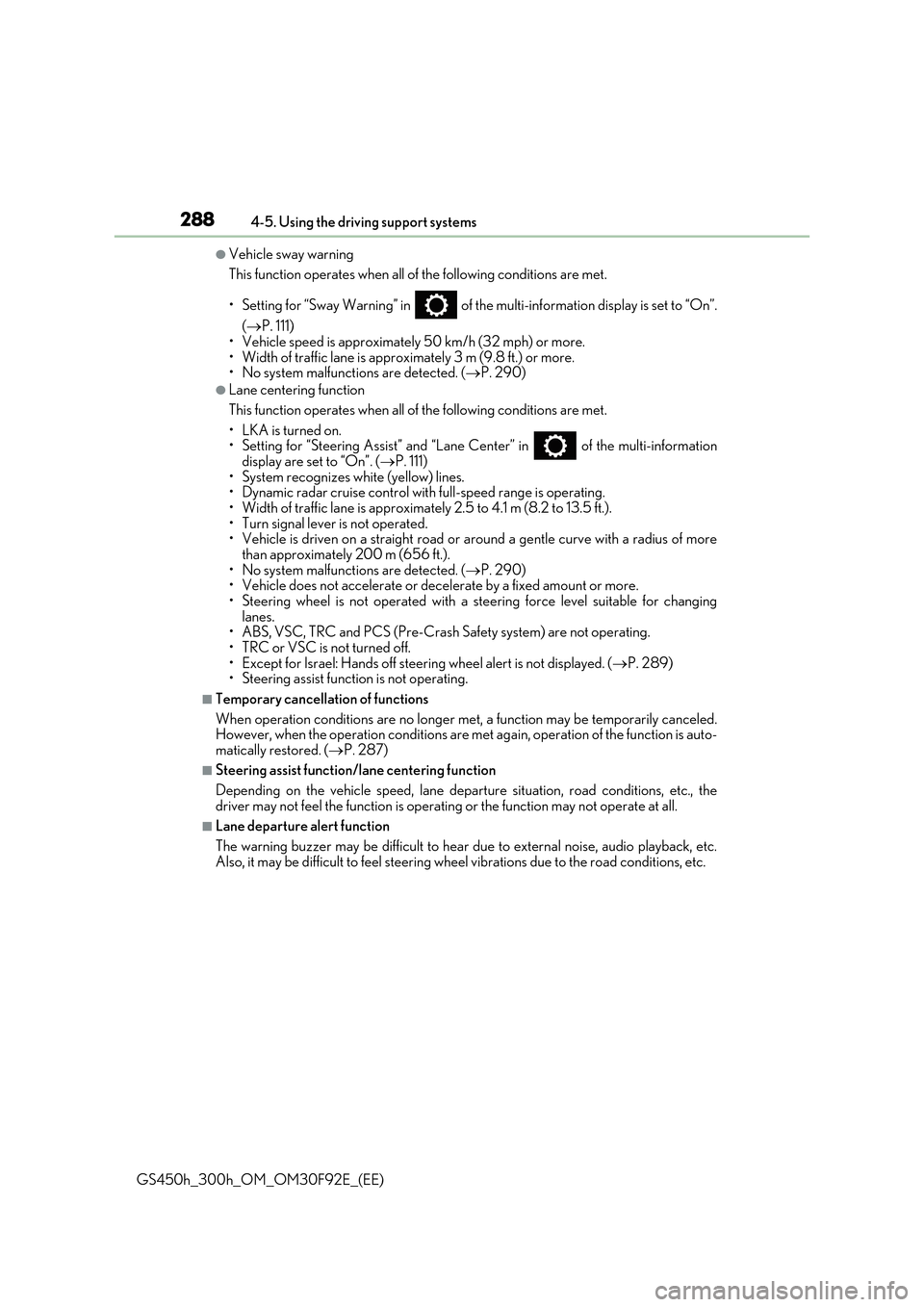

●Vehicle sway warning
This function operates when all of the following conditions are met.
• Setting for “Sway Warning” in of the multi-information display is set to “On”.
( P. 111)
• Vehicle speed is approximately 50 km/h (32 mph) or more. • Width of traffic lane is approximately 3 m (9.8 ft.) or more.• No system malfunctions are detected. ( P. 290)
●Lane centering function
This function operates when all of the following conditions are met.
• LKA is turned on. • Setting for “Steering Assist” and “Lane Center” in of the multi-information display are set to “On”. ( P. 111)
• System recognizes white (yellow) lines. • Dynamic radar cruise control with full-speed range is operating.• Width of traffic lane is approximat ely 2.5 to 4.1 m (8.2 to 13.5 ft.).
• Turn signal lever is not operated. • Vehicle is driven on a straight road or around a gentle curve with a radius of morethan approximately 200 m (656 ft.).
• No system malfunctions are detected. ( P. 290) • Vehicle does not accelerate or dece lerate by a fixed amount or more. • Steering wheel is not operated with a steering force level suitable for changing
lanes. • ABS, VSC, TRC and PCS (Pre-Crash Safety system) are not operating. • TRC or VSC is not turned off.
• Except for Israel: Hands off steering wheel alert is not displayed. ( P. 289) • Steering assist function is not operating.
■Temporary cancellation of functions
When operation conditions are no longer met, a function may be temporarily canceled. However, when the operation conditions are met again, operation of the function is auto-
matically restored. ( P. 287)
■Steering assist function/lane centering function
Depending on the vehicle speed, lane departure situation, road conditions, etc., the
driver may not feel the function is operating or the function may not operate at all.
■Lane departure alert function
The warning buzzer may be difficult to hear due to external noise, audio playback, etc.
Also, it may be difficult to feel steering wheel vibrations due to the road conditions, etc.

2894-5. Using the driving support systems
4
Driving
GS450h_300h_OM_OM30F92E_(EE)
■Hands off steering wheel alert
For Israel: When the system determines that the driver has removed the hands from the steering wheel while the steering assist function or lane centering function is operating, a
warning message is displayed on the multi- information display and the buzzer sounds.
Except for Israel: When the system determines that the driver has removed the hands from the steering wheel while the steering assist function or lane centering function is
operating, a warning message is displa yed on the multi-information display. If the driver continues to keep the hands off of the steering wheel, the buzzer sounds, awarning message is displayed and the function is temporarily canceled. This alert also
operates in the same way when the vehicle is driven with the steering wheel lightly gripped. However, depending on the road conditions, etc., the function may not cancel.
■White (yellow) lines are on ly on one side of road
The LKA system will not operate for the side on which white (yellow) lines could not be recognized.
■Conditions in which functi ons may not operate properly
In the following situations, the camera sensor may not detect white (yellow) lines and var- ious functions may not operate normally.
●There are shadows on the road that run paralle l with, or cover, the white (yellow) lines.
●The vehicle is driven in an area without white (yellow) lines, such as in front of a tollgate or checkpoint, or at an intersection, etc.
●The white (yellow) lines are cracked, “Raised pavement marker” or stones are present.
●The white (yellow) lines cannot be seen or are difficult to see due to sand, etc.
●The vehicle is driven on a road surface that is wet due to rain, puddles, etc.
●The traffic lines are yellow (which may be more difficult to recognize than lines that are
white).
●The white (yellow) lines cross over a curb, etc.
●The vehicle is driven on a bright surface, such as concrete.
●The vehicle is driven on a surface that is bright due to reflected light, etc.
●The vehicle is driven in an area where the brightness changes suddenly, such as at the
entrances and exits of tunnels, etc.
●Light from the headlights of an oncoming vehicle, the sun, etc. enters the camera.
●The vehicle is driven where the road diverges, merges, etc.
●The vehicle is driven on a slope.

291
4
4-5. Using the driving support systems
Driving
GS450h_300h_OM_OM30F92E_(EE)
RSA (Road Sign Assist)
RSA recognizes specific road signs
using the camera sensor and provides
information to the driver via the multi-
information display.
If the system judges that the vehicle is being driven over the speed limit, perform-
ing prohibited actions, etc. in relation to the recognized road signs, it alerts the
driver using a warning display and warning buzzer*.
*: This setting needs to be customized.
: If equipped
Summary of function
Camera sensor
WARNING
■Before using the RSA
Do not rely solely upon the RSA system. RS A is a system which supports the driver by
providing information, but it is not a replacement for a driver’s own vision and aware- ness. Drive safely by always paying careful attention to the traffic rules.
Inappropriate or negligent driving could lead to an unexpected accident.

2924-5. Using the driving support systems
GS450h_300h_OM_OM30F92E_(EE)
After the camera sensor recognizes a sign, it is displayed on the multi-informa-
tion display when the vehicle passes the sign.
●When the driving assist system infor-
mation is selected, a maximum of 3
signs can be displayed. ( P. 111)
●When other than the driving assist
system information is selected, a
speed limit sign or an all canceled
sign can be displayed. ( P. 111)
A no overtaking sign and a speed limit sign with supplemental mark are
not displayed. Howeve r, if signs other than speed limit signs are recog-nized, they are mentioned in a stack
under the current speed limit sign.
Indication on the mult i-information display

2934-5. Using the driving support systems
4
Driving
GS450h_300h_OM_OM30F92E_(EE)

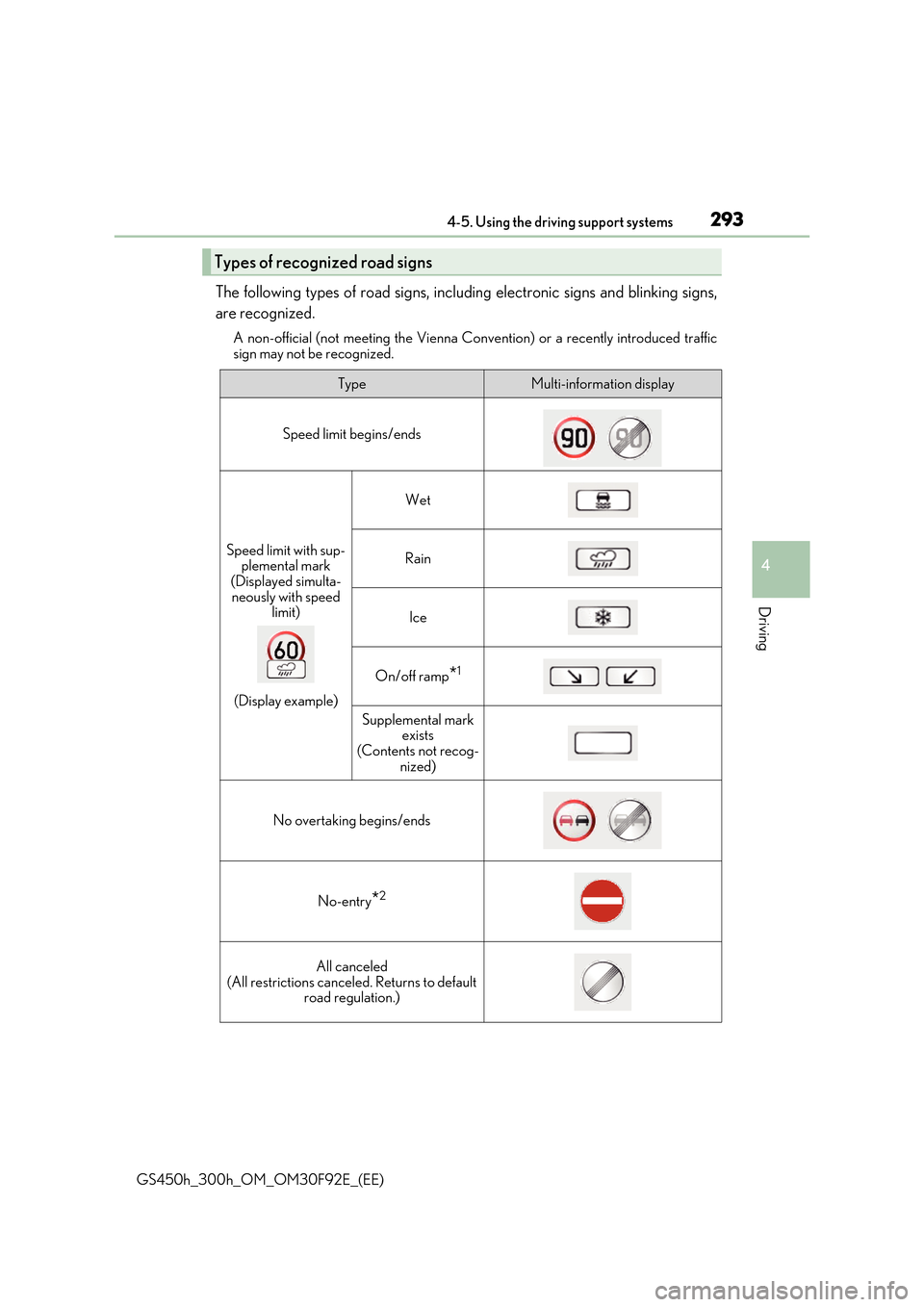

The following types of road signs, including electronic signs and blinking signs,
are recognized.
A non-official (not meeting the Vienna Convention) or a recently introduced traffic sign may not be recognized.
Types of recognized road signs
TypeMulti-information display
Speed limit begins/ends
Speed limit with sup-plemental mark (Displayed simulta-
neously with speed limit)
(Display example)
Wet
Rain
Ice
On/off ramp*1
Supplemental mark exists (Contents not recog-
nized)
No overtaking begins/ends
No-entry*2
All canceled (All restrictions canceled. Returns to default road regulation.)

2944-5. Using the driving support systems
GS450h_300h_OM_OM30F92E_(EE)
*1: If the turn signal indicator is not operated when changing lanes, the mark does not dis-
play.
*2:On some models
In the following situations, the RSA system alerts the driver using a warning dis-
play.
●When the vehicle speed exceeds the speed warning threshold applied to the
speed limit of the sign displayed on the multi-information display, the sign
color becomes inverted.
●If it is detected that your vehicle is overtaking when a no overtaking sign is dis-
played on the multi-information display, the sign flashes.
●On some models: When the RSA system recognizes a no-entry sign and
detects that the vehicle has entered a no-entry area based on the map infor-
mation of the navigation system, the no-entry sign flashes.
Depending on the situation, traffic environment (traffic direction, speed, unit)
may be detected incorrectly and a warning display may not operate properly.
■Automatic turn-off of RSA sign display
One or more signs automatically turn off in the following situations.
●A new sign is not recognized for a certain distance.
●The road changes due to a left or right turn, etc.
■Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not op erate normally and may not recognize signs,
display the incorrect sign, etc. However, this does not indicate a malfunction.
●The camera sensor is misaligned due to a strong impact being applied to the sensor, etc.
●Dirt, snow, stickers, etc. are on the windshield near the camera sensor.
●In inclement weather such as heavy rain, fog, snow or sand storms
●Light from an oncoming vehicle, the sun, etc. enters the camera sensor.
●The sign is dirty, faded, tilted or bent, and if an electronic sign, the contrast is poor.
●All or part of the sign is hidden by the leaves of a tree, a pole, etc.
●The sign is only visible to the camera sensor for a short amount of time.
●The driving scene (turning, lane change, etc.) is judged incorrectly.
●Even if it is a sign not appropriate for the currently traveled lane, such a sign exists
directly after a freeway branches, or in an adjacent lane just before merging.
●Stickers are attached to the rear of the preceding vehicle.
●A sign resembling a system comp atible sign is recognized.
●The vehicle is driven in a country with a different direction of traffic.
Warning display

2954-5. Using the driving support systems
4
Driving
GS450h_300h_OM_OM30F92E_(EE)
●Side road speed signs may be detected and displayed (if positioned in sight of the cam-era sensor) while the vehicle is traveling on the main road.
●Roundabout exit road speed signs may be detected and displayed (if positioned in sight
of the camera sensor) while traveling on a roundabout.
●On some models: The speed information displayed on the meter and that displayed on the navigation system may be different due to the navigation system using map data.
■When driving vehicle in country with different speed unit
Since RSA recognizes signs based on the set unit of the meter, it is necessary to changethe set unit of the meter. Adjust the set unit of the meter to the speed unit of signs in the
current location. (P. 565)
■Turning the system on/off
■Speed limit sign display
If the power switch was last turned off while a speed limit sign was displayed on the multi-
information display, the same sign displays again when the power switch is turned to ON mode.
■Customization
Setting (e.g. speeding warning threshold) can be changed. (Customizable feature: P. 561)
Select on of the
multi-information display (P. 111)
Press on the steering wheel.
1
2

2964-5. Using the driving support systems
GS450h_300h_OM_OM30F92E_(EE)

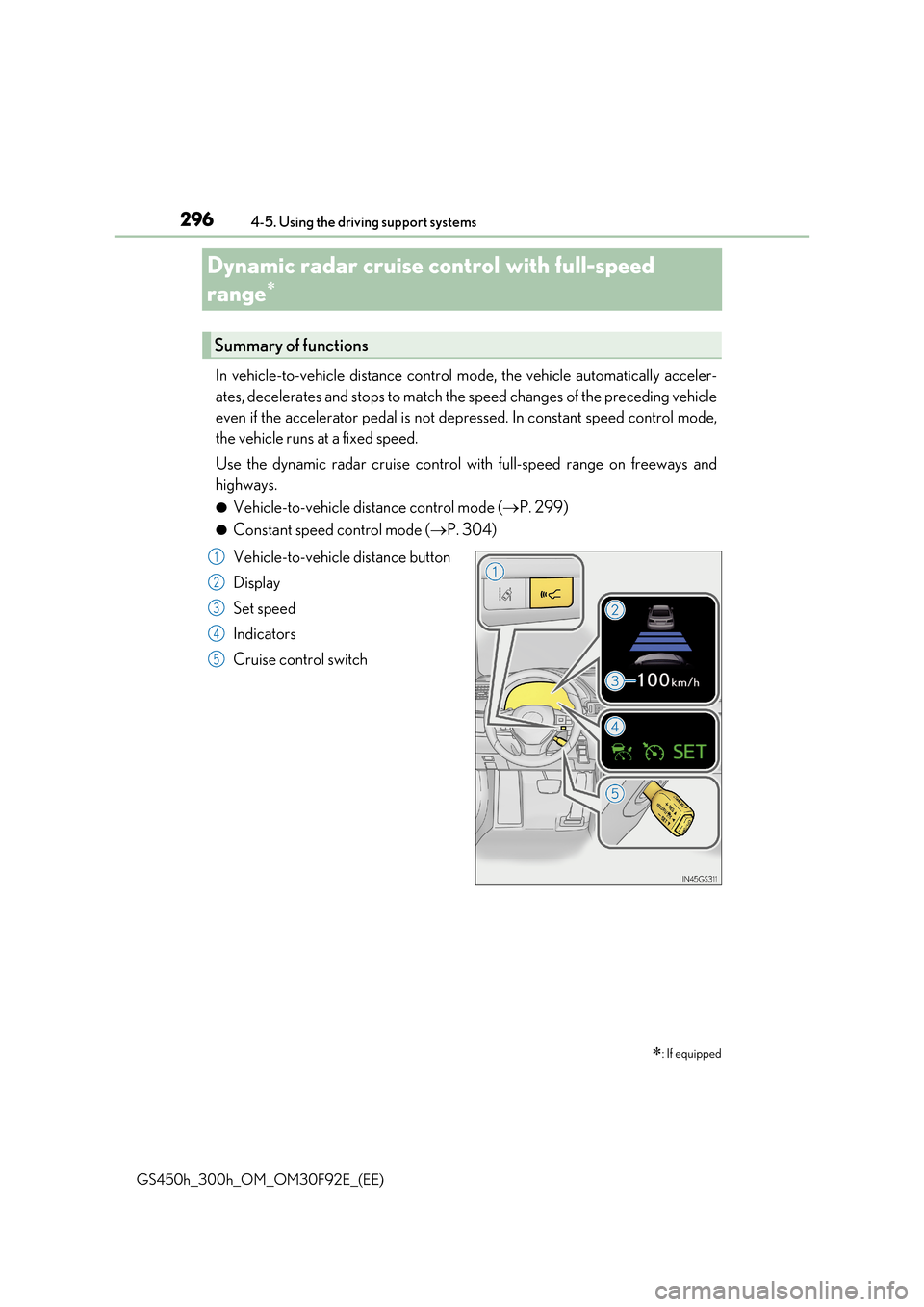

Dynamic radar cruise control with full-speed
range
In vehicle-to-vehicle distance control mode, the vehicle automatically acceler-
ates, decelerates and stops to match the speed changes of the preceding vehicle
even if the accelerator pedal is not depr essed. In constant speed control mode,
the vehicle runs at a fixed speed.
Use the dynamic radar cruise control with full-speed range on freeways and
highways.
●Vehicle-to-vehicle distance control mode ( P. 299)
●Constant speed control mode (P. 304)
Vehicle-to-vehicle distance button
Display
Set speed
Indicators
Cruise control switch
: If equipped
Summary of functions
1
2
3
4
5
