■G-force display
●The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline.
●Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed.
●If a 12-volt battery terminal is disconnected and reconnected, the steering amount dis-
play may be disabled temporarily. After driv ing the vehicle for a while, the display will
be enabled.
●Depending on the condition of the vehicle, the brake fluid pressure display may change
even when the brake pedal is not depressed.
■System check display
After turning the power switch to ON mode , opening image is displayed while system
operation is checked. When the system check is complete, the normal screen will return.
■Suspension of the settings display
In the following situations, the settings display using the meter control switches will be
suspended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the power switch is
turned to ON mode. It may also take a few minutes to display the tire inflation pressure
after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions.
●Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.
■When disconnecting and reconnect ing 12-volt battery terminals
The drive information will be reset.
■Liquid crystal display
→ P. 93

102
GS450h_OM_OM30G62U_(U)
2. Instrument cluster
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.
■Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a place with adequa te ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to dea th or a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

103
GS450h_OM_OM30G62U_(U)2. Instrument cluster
2
Instrument cluster
Head-up display∗
The head-up display can be used to proj ect vehicle speed and other information
onto the windshield.
Head-up display
Display brightness will change automat-
ically according to the brightness of the
surrounding area.
“HUD” button
Display brightness adjustment
switch
Display brightness can be adjusted to
the desired level.
Display position adjustment switch
“DISP” button
∗: If equipped
Summary of functions
1
2
3
4
5

104
GS450h_OM_OM30G62U_(U)
2. Instrument cluster
●Vehicle speed
●Hybrid System Indicator(→P. 106)
●Tachometer
●Shift position and shift range
Displays the selected shift position or selected shift range (→ P. 189)
●Audio display*
Displays audio information for approximat ely 3 seconds when the audio system is
operated
●Route guidance display (→ P. 107)
When approaching an intersec tion while the navigation system is giving route guid-
ance, an arrow will automatically be displa yed to indicate the direction of travel.
●Lexus Enform (if equipped)
Displays “LEXUS Enform” for approximat ely 3 seconds when LEXUS App Suite is
operated
●Lane departure warning display (LKA [Lane-Keeping Assist])
(if equipped) ( →P. 411)
●Approach warning display (dynamic ra dar cruise control with full-speed
range) (if equipped) ( →P. 411)
●Pre-collision warning message (PCS [Pre-Collision System])
(if equipped) ( →P. 410)
●Speed limit display (→ P. 107)
*: The default setting is off
Head-up display contents

GS450h_OM_OM30G62U_(U)
1052. Instrument cluster
2
Instrument cluster
■“HUD” button
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed display units as fol-
lows:
U.S.A.
OFF → ON (MPH) →
ON (km/h) → OFF
Canada
OFF → ON (km/h) → ON (MPH) → OFF
■“DISP” button
Pressing the button changes the dis-
play items (except vehicle speed).
Off
Hybrid System Indicator
Tachometer
When any of the following displays
are operating, the display items do
not change (except vehicle speed):
Audio display/Route guidance dis-
play/Lexus Enform (if equipped)/
Lane departure warning display (if
equipped)/Approach warning dis-
play (if equipped)/Pre-collision
warning message (if equipped)/
Speed limit display.

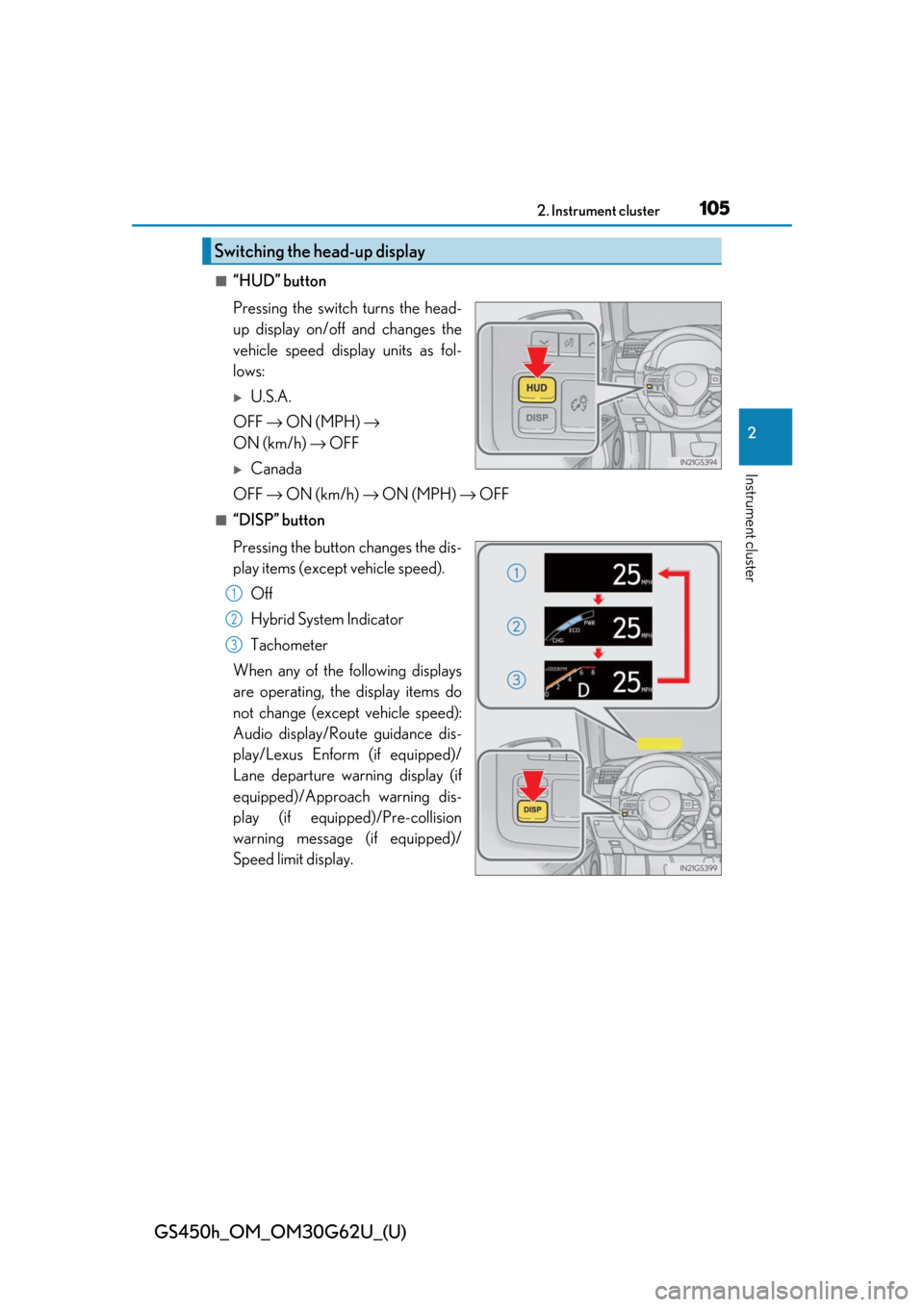

Switching the head-up display
1
2
3

106
GS450h_OM_OM30G62U_(U)
2. Instrument cluster
■Adjusting the display positionHigher
Lower
■Setting the brightness
The brightness of the displa y is automatically adjusted in accordance with the
brightness of the surrounding environm ent. However, the brightness can also
be manually adjusted in 9 stages.
Brighter
Darker
Charge area
Shows regenerati ve charging.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being dr iven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving range is being exceeded (during full power driving
etc.)

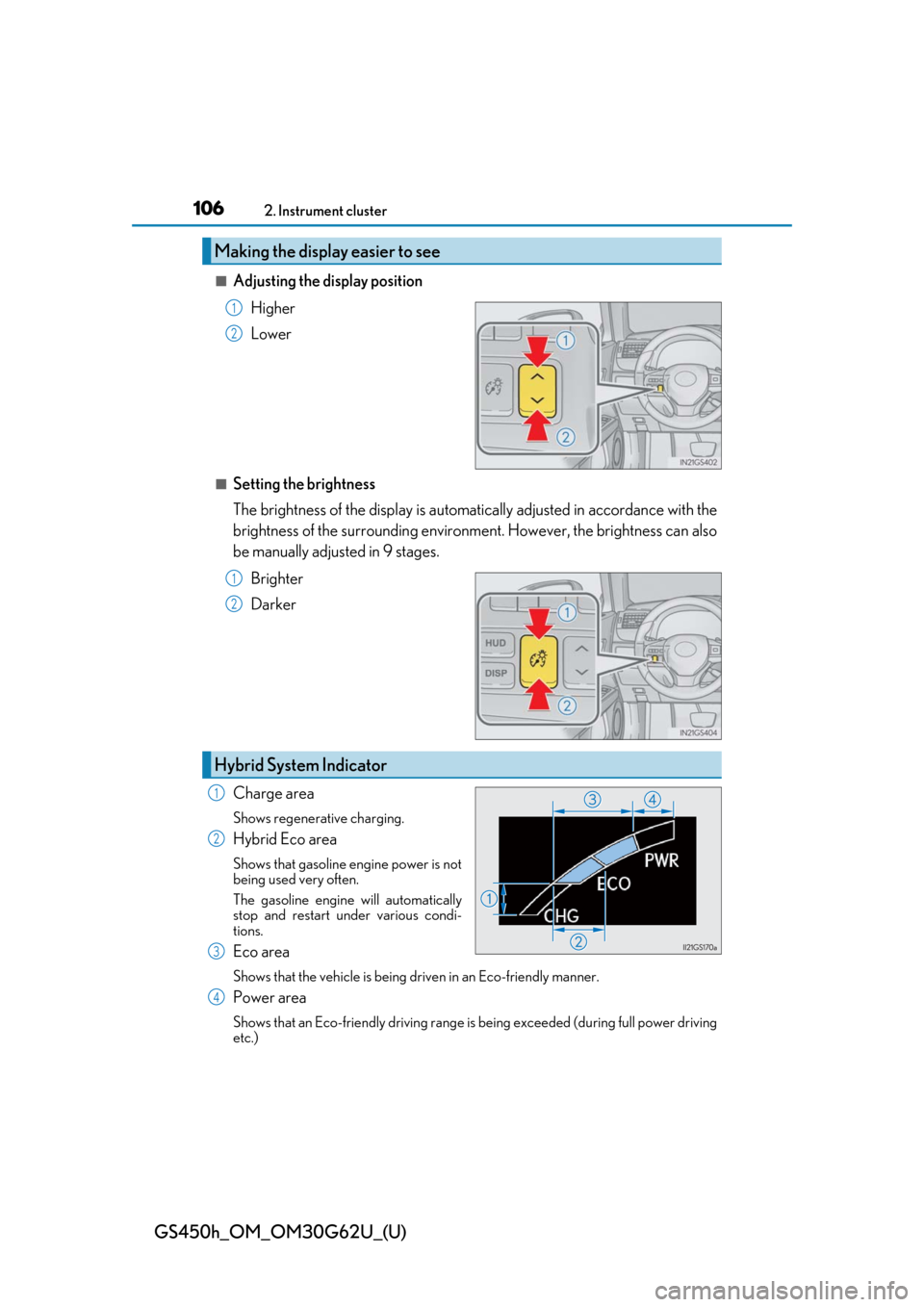

Making the display easier to see
1
2
1
2
Hybrid System Indicator
1
2
3
4

GS450h_OM_OM30G62U_(U)
1072. Instrument cluster
2
Instrument cluster
When the vehicle approaches an inter-
section, the direction the vehicle should
go is guided by the arrow.
When the vehicle approaches an inter-
section, the route guidance will start
and the distance* to the intersection
will also be displayed.
*: The distance decreases in increments of164 ft. (50 m) and the distance indica-
tion will disappear when the vehicle
passes through the intersection.
Displays the speed limit for the current
road.
Display of the following screen s can be switched on or off.
●Audio display
●Route guidance display
■Changing the settings
Continue holding the “DISP” but-
ton until the screen changes, and
repeat the process until the set-
ting you want to change is dis-
played.
Customization can be performed
when the head-up display is on and
the vehicle is trav eling at less than
5 mph (8 km/h).

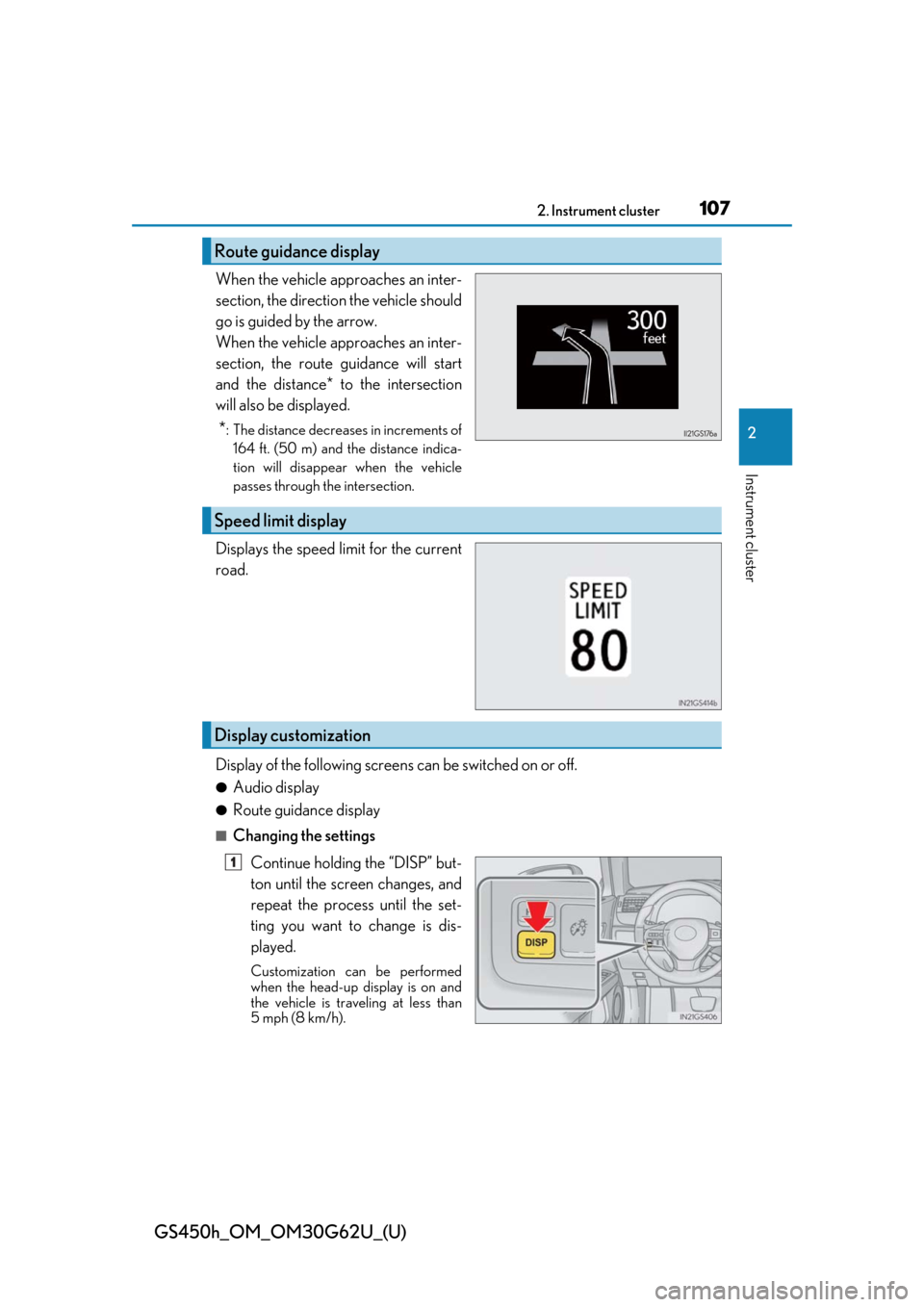

Route guidance display
Speed limit display
Display customization
1

108
GS450h_OM_OM30G62U_(U)
2. Instrument cluster

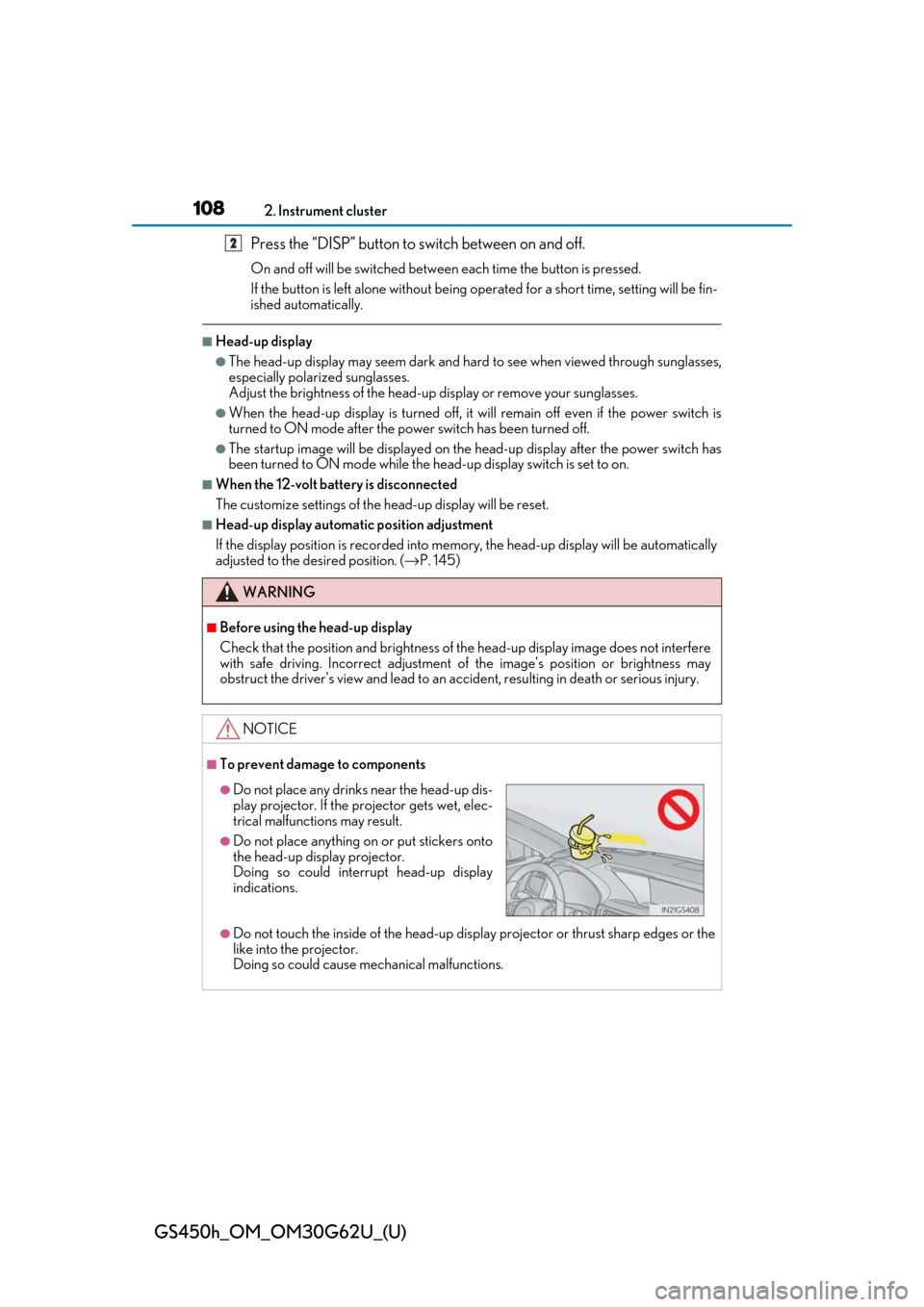

Press the “DISP” button to switch between on and off.
On and off will be switched between each time the button is pressed.
If the button is left alone without being op erated for a short time, setting will be fin-
ished automatically.
■Head-up display
●The head-up display may seem dark and hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
●When the head-up display is turned off, it will remain off even if the power switch is
turned to ON mode after the power switch has been turned off.
●The startup image will be displayed on the head-up display after the power switch has
been turned to ON mode while the head-up display switch is set to on.
■When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
■Head-up display automatic position adjustment
If the display position is recorded into memory, the head-up display will be automatically
adjusted to the desired position. ( →P. 145)
WARNING
■Before using the head-up display
Check that the position and brightness of th e head-up display image does not interfere
with safe driving. Incorrect adjustment of the image’s position or brightness may
obstruct the driver’s view and lead to an a ccident, resulting in death or serious injury.
NOTICE
■To prevent damage to components
●Do not touch the inside of the head-up disp lay projector or thrust sharp edges or the
like into the projector.
Doing so could cause mechanical malfunctions.
2
●Do not place any drinks near the head-up dis-
play projector. If the projector gets wet, elec-
trical malfunctions may result.
●Do not place anything on or put stickers onto
the head-up display projector.
Doing so could interrupt head-up display
indications.

109
GS450h_OM_OM30G62U_(U)2. Instrument cluster
2
Instrument cluster

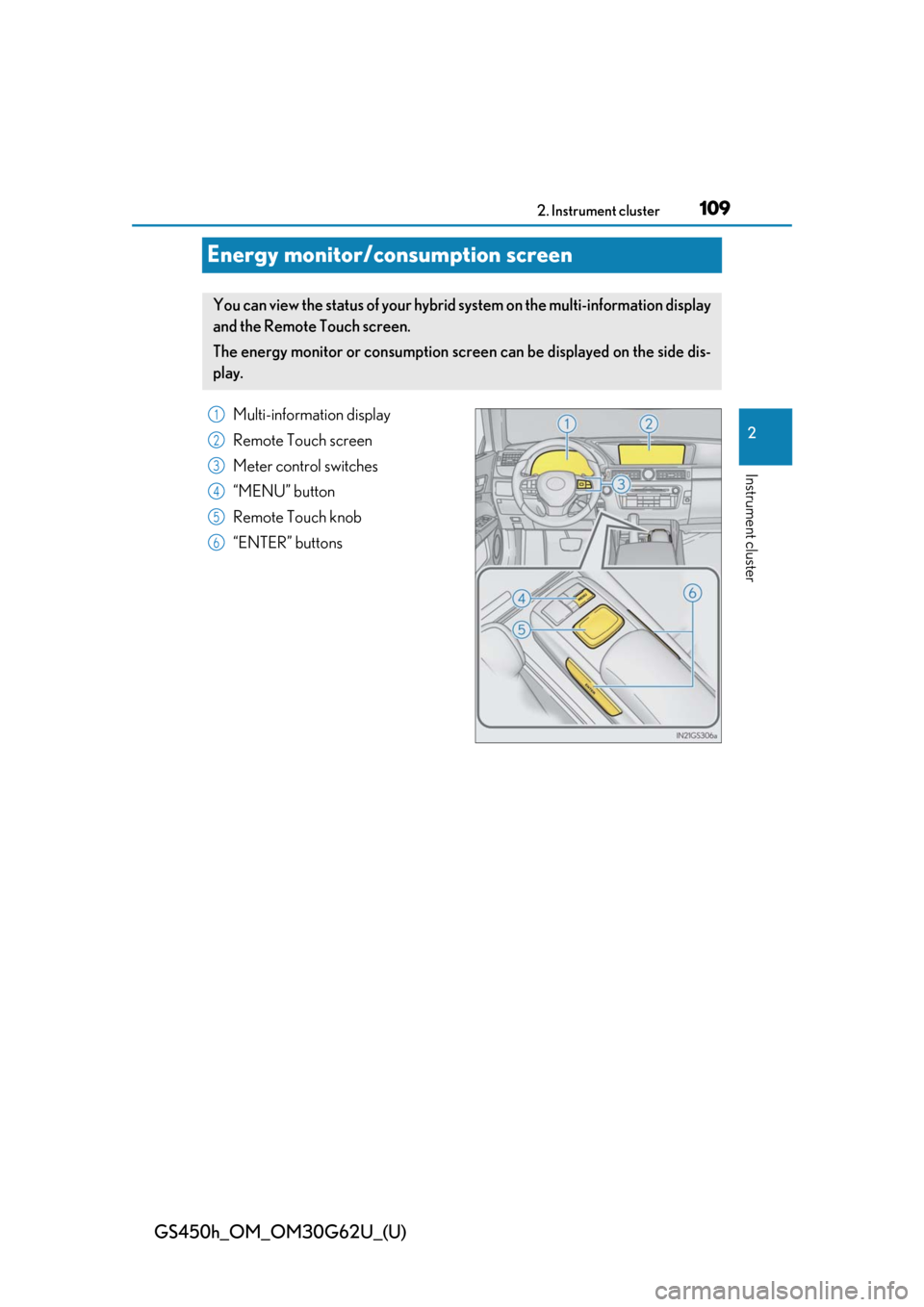

Energy monitor/consumption screen
Multi-information display
Remote Touch screen
Meter control switches
“MENU” button
Remote Touch knob
“ENTER” buttons
You can view the status of your hybrid system on the multi-information display
and the Remote Touch screen.
The energy monitor or consumption scre en can be displayed on the side dis-
play.
1
2
3
4
5
6

110
GS450h_OM_OM30G62U_(U)
2. Instrument cluster
■Remote Touch screen
Press the “MENU” button on the Remote Touch, then select on the
“Menu” screen, and then select “Fuel Consumption”.
If the “Trip Information” or “Past Record” screen is displayed, select “Energy”.
■Multi-information display
Press or of the meter control sw itches and select , and then press
or to select the energy monitor display.

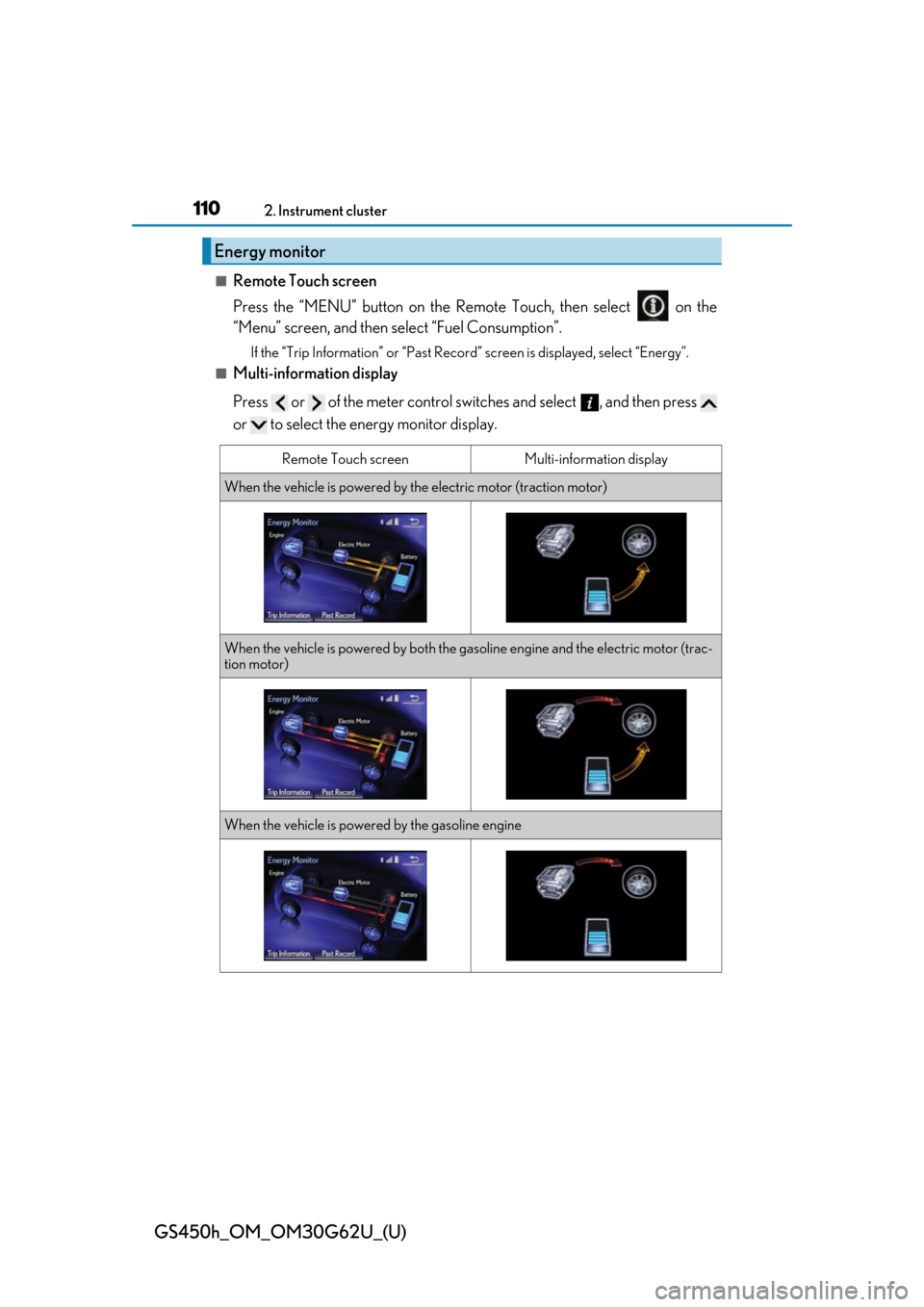

Energy monitor
Remote Touch screen Multi-information display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric motor (trac-
tion motor)
When the vehicle is powered by the gasoline engine
