Lexus GS460 2008 Scheduled Maintenace Guide / LEXUS 2008 GS460/350 OWNER'S MANUAL (OM30A87U)

161
2-4. Using other driving systems
2
When driving
GS_G_U
May 13, 2008 5:14 pm
CAUTION
■Before using dynamic radar cruise control
Do not overly rely on vehicle-to-vehicle distance control.
Be aware of the set vehicle speed. If au tomatic deceleration/acceleration is not
appropriate, adjust the vehicle speed, as well as the distance between your vehicle
and vehicles ahead by applying the brakes, etc.
■To avoid operating the dynamic radar cruise control by mistake
Keep the “ON-OFF” button off when not in use.
■Situations unsuitable for dynamic radar cruise control
Do not use dynamic radar cruise contro l in any of the following situations.
Doing so may result in inappropriate cont rol of speed and could cause serious or
fatal accident.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as thos e covered with rain, ice or snow
●On steep downhills, where there are sudden changes between sharp up and
down gradients
Vehicle speed may exceed the set speed when driving down a steep hill.
●At entrances to expressways
●When weather conditions are bad enough that they may prevent the sensors
from functioning correctly (f og, snow, sandstorm, etc.)
●When the approach warning buzzer can be heard often

162
2-4. Using other driving systems
GS_G_U
May 13, 2008 5:14 pm
CAUTION
■When the radar sensor may not be correctly detecting the vehicle ahead
Apply the brakes as necessary when any of the following types of vehicles are in
front of you. 
As the sensor may not be able to correctly detect these types of vehicles, the prox-
imity alarm ( P. 506) will not be activated, and an accident may result.
●Vehicles that cut in suddenly
●Vehicles traveling at low speeds
●Vehicles that are not moving
●Vehicles with small rear ends (tra ilers with no load on board etc.)
●Motorcycles traveling in the same lane
■Conditions under which the vehicle-to-vehicle distance control may not function
correctly
Apply the brakes as necessary in the foll owing conditions as the radar sensor may
not be able to correctly detect vehicles ahead, and an accident may result.
●When water or snow thrown up by the surrounding vehicles hinders the function-
ing of the sensor
●When your vehicle is pointing upwards (caused by a heavy load in the trunk, etc.)
●When the road curves or when the lanes are narrow
●When steering wheel operation or your position in the lane is unstable
●When the vehicle ahead of you decelerates suddenly

163
2-4. Using other driving systems
2
When driving
GS_G_U
May 13, 2008 5:14 pm
CAUTION
■To ensure the radar sensor functions correctly
Do not do the following to the sensor or grille cover as doing so may cause the sen-
sor not to function correctly and could result in an accident.
●Stick or attach anything to them
●Leave them dirty
●Disassemble, subject them to strong shocks
●Modify or paint them
●Replace them with non-genuine parts
■Handling the radar sensor
Observe the following to ensure the cruise control system can function effectively.
●Keep the sensor and front grille clean at all times. 
Clean the sensor and front grille with a so ft cloth so you do not mark or damage
them.
●Do not subject the sensor or surrounding area to a strong impact. 
If the sensor moves even slightly off position, the system may malfunction. If the
sensor or surrounding area is subject to a strong impact, always have the area
inspected and adjusted by a Lexus dealer.
●Do not disassemble the sensor.
●Do not attach accessories or stickers to the sensor, grille or surrounding area.
●Do not modify or paint the sensor and grille.

164
2-4. Using other driving systems
GS_G_U
May 13, 2008 5:14 pm
Intuitive parking assist (if equipped)
Intuitive parking assist uses sensors in the front and rear of the vehicle to
detect the distance between the vehicle and any obstacles, and informs the
driver of this distance using the mult i-information display, the touch screen,
and warning beeps. 
The system may be used at speeds less than about 6 mph (10 km/h).
■ Sensor types
Dual sensors
There are 4 sensors installed in the front bumper, two in the center section
to detect obstacles directly ahead, an d one in each corner of the bumper,
to detect obstacles in those areas. 
The dual sensors detect obstacles ahea d of the vehicle, and judge whether
avoidance maneuvers are necessary (whether the obstacle will come
within 0.8 ft. [25 cm] of the vehicl e), according to the distance between
the obstacle and the vehicle, and the steering wheel position. The screen
display and beeps will change accordingly.
Rear corner sensors
These sensors detect obstacles around the rear corners of the vehicle.
Back sensors
These sensors detect obstacles behind the vehicle.

165
2-4. Using other driving systems
2
When driving
GS_G_U
May 13, 2008 5:14 pm
■Intuitive parking assist switch
Press the switch to turn the
system on/off.
If the intuitive parking assist is
turned on, the indicator light will
come on, and the system will
operate under the following
conditions:
• The dual sensors will oper- ate if the shift lever is in a
position other than “R” or
“P”.
• All corner sensors and the back sensors will operate if
the shift lever is in “R”.

166
2-4. Using other driving systems
GS_G_U
May 13, 2008 5:14 pm
Multi-information display and touch screenIf the sensors detect an obstacle, it is displayed on the multi-information
display in the instrument cluster. 
You can change the conditions und er which information is displayed on
the touch screen. ( P. 173)
Multi-information display
Dual sensor detection
Steering guide symbol
Rear corner sensor detection
Back sensor detection
Touch screen Dual sensor detection
Steering guide symbol
Rear corner sensor detection
Back sensor detection
If the intuitive parking assist is
operated while the rear view moni-
tor is showing, the intuitive parking
assist will be shown in the upper
right corner of the screen. 
( P. 1 6 9 )

167
2-4. Using other driving systems
2
When driving
GS_G_U
May 13, 2008 5:14 pm
Sensor detection display, obstacle distance and beepsWhen the intuitive parking assist is activated, the approximate distance to
the obstacle is displayed. Also, if an obstacle with which a collision is pos-
sible is detected, a warning beep will sound.
■ Dual sensor
• If the shift lever is in “R”, only th e corner sensors will detect obstacles.
Approximate
distance to obstacleMulti-informa-
tion display
To u c h s c r e e n
With beeps(danger of
collision)No beeps
(no danger of
collision)
3.0 ft. (100 cm)
to 1.5 ft. (50 cm)
(continuous)(continuous)(continuous)
1.5 ft. (50 cm) to
1.1 ft. (37.5 cm)
(continuous)(continuous)(continuous)
1.1 ft. (37.5 cm) to
0.8 f t. (25 cm)
(continuous)(continuous)(continuous)
Less than 0.8 ft.
(25 cm)
(blinking)(continuous)


168
2-4. Using other driving systems
GS_G_U
May 13, 2008 5:14 pm
■Rear corner sensor
■ Back sensor
Approximate distance
to obstacleMulti-information displayTo u c h s c r e e n
1.5 ft. (50 cm) to 1.1 ft.
(37.5 cm)
(continuous)(continuous)
1.1 ft. (37.5 cm) to 0.8 ft.
(25 cm)
(continuous)(continuous)
Less than 0.8 ft. (25
cm)
(blinking)(continuous)
Approximate distance to obstacleMulti-information displayTo u c h s c r e e n
5.0 ft. (150 cm) to 2.0
ft. (60 cm)
(continuous)(continuous)
2.0 ft. (60 cm) to 1.4 ft.
(45 cm)
(continuous)(continuous)
1.4 ft. (45 cm) to 1.1 ft.
(35 cm)
(continuous)(continuous)
Less than 1.1 ft. (35 cm)
(blinking)(continuous)

169
2-4. Using other driving systems
2
When driving
GS_G_U
May 13, 2008 5:14 pm
Touch screen (insert display)Dual sensor (corner) detection
Rear corner sensor detection
Back sensor detection
The tire display and the steering
guide symbol will not be displayed.
■ Dual sensor
Approximate distance
to obstacleWith beeps
(danger of collision)No beeps
(no danger of collision)
3.0 ft. (100 cm) to 1.5 ft.
(50 cm)
(blinking slowly)(continuous)
1.5 ft. (50 cm) to 1.1 ft.
(37.5 cm)
(blinking)(continuous)
1.1 ft. (37.5 cm) to 0.8 ft.
(25 cm)
(blinking rapidly)(continuous)
Less than 0.8 ft. (25
cm)
(continuous)


170
2-4. Using other driving systems
GS_G_U
May 13, 2008 5:14 pm

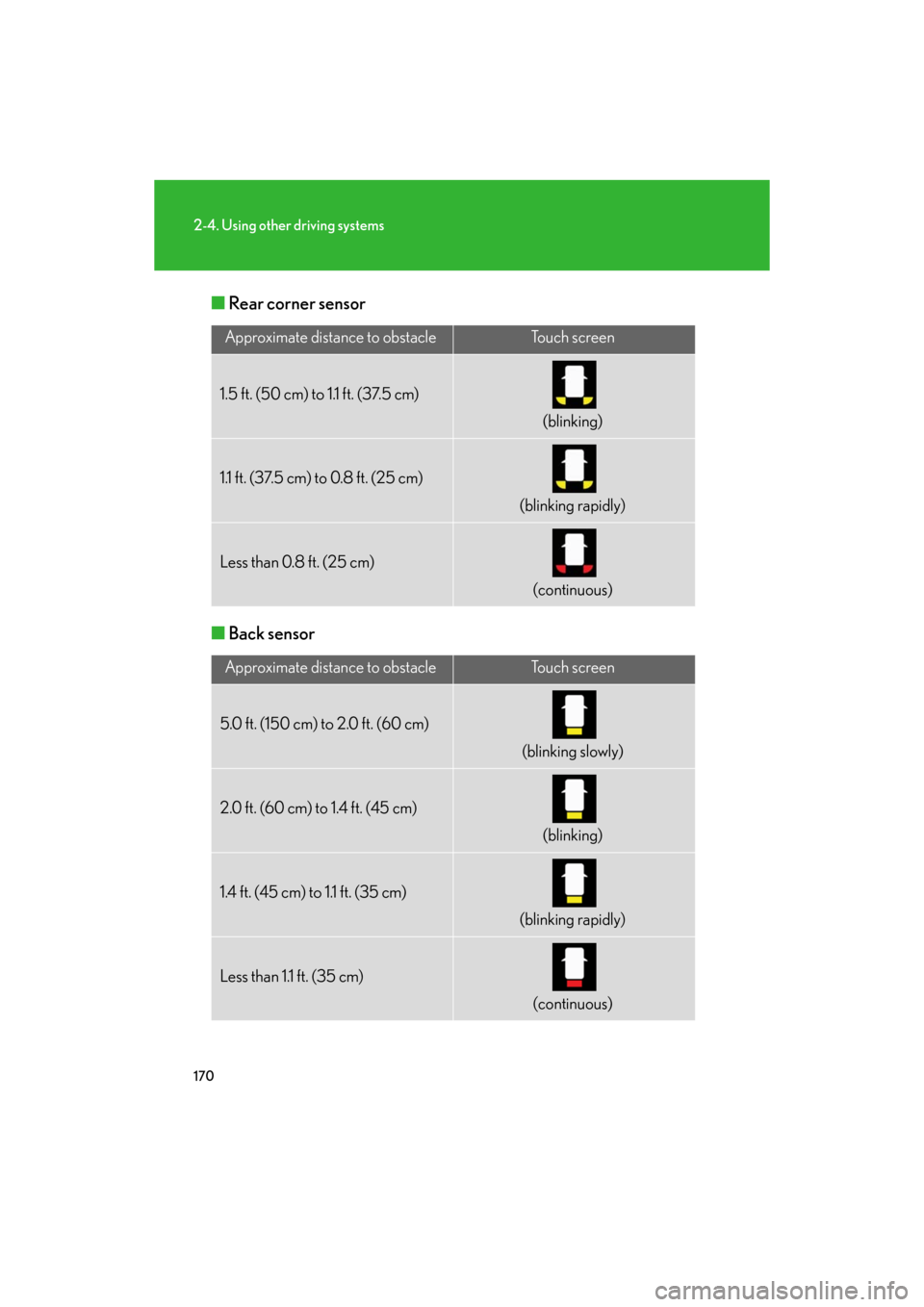

■Rear corner sensor
■ Back sensor
Approximate distance to obstacleTo u c h s c r e e n
1.5 ft. (50 cm) to 1.1 ft. (37.5 cm)
(blinking)
1.1 ft. (37.5 cm) to 0.8 ft. (25 cm)
(blinking rapidly)
Less than 0.8 ft. (25 cm)
(continuous)
Approximate distance to obstacleTo u c h s c r e e n
5.0 ft. (150 cm) to 2.0 ft. (60 cm)
(blinking slowly)
2.0 ft. (60 cm) to 1.4 ft. (45 cm)
(blinking)
1.4 ft. (45 cm) to 1.1 ft. (35 cm)
(blinking rapidly)
Less than 1.1 ft. (35 cm)
(continuous)
