Lexus GS460 2008 Scheduled Maintenace Guide / LEXUS 2008 GS460/350 OWNER'S MANUAL (OM30A87U)

251
3-3. Using the audio system
3
Interior features
GS_G_U
May 13, 2008 5:14 pm

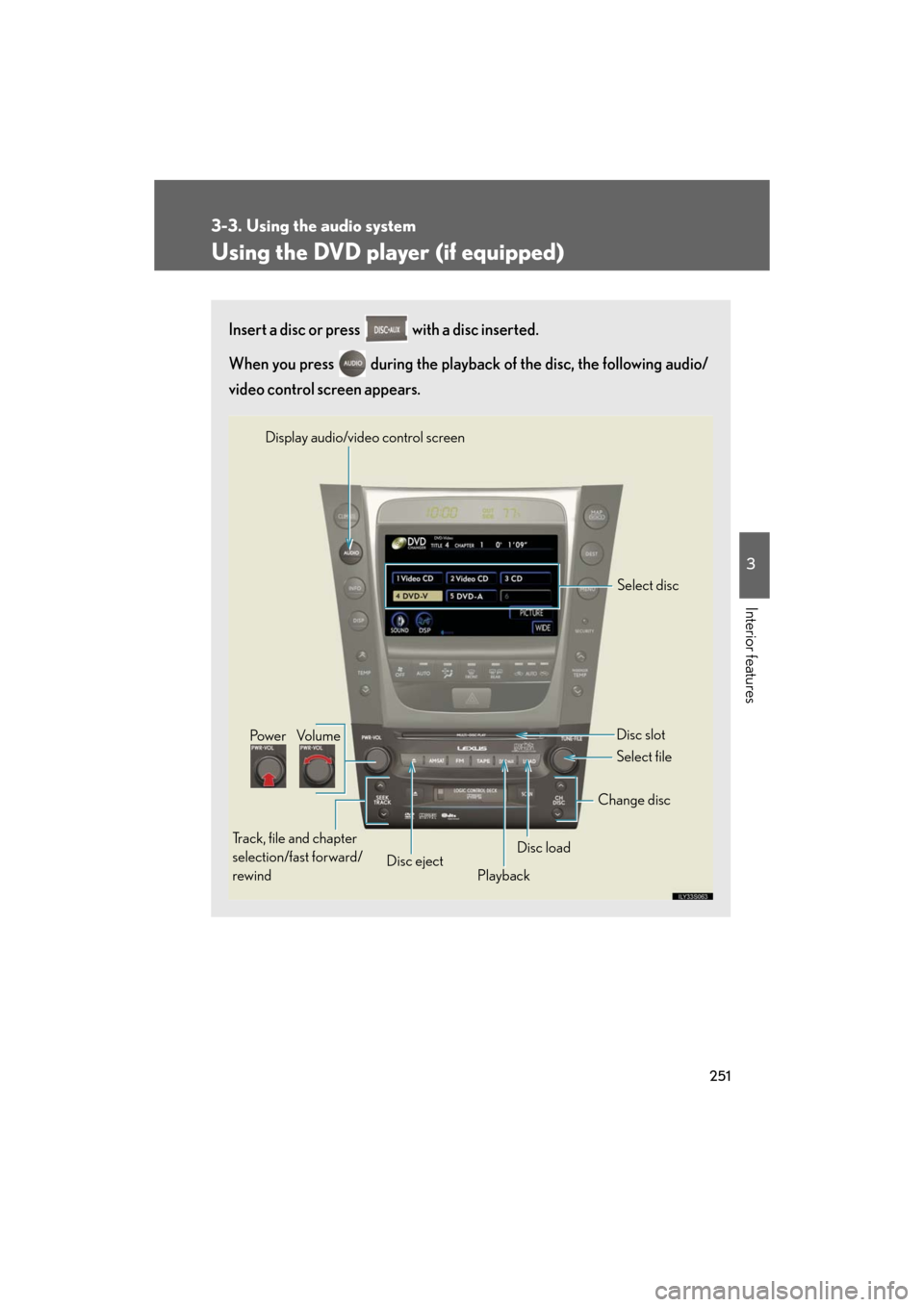

Using the DVD player (if equipped)
Insert a disc or press with a disc inserted.
When you press during the playback of the disc, the following audio/
video control screen appears.
Po w e r Vo l u m e
Track, file and chapter 
selection/fast forward/ 
rewind Disc eject
PlaybackDisc load Change disc
Display audio/video control screen
Select disc
Disc slot
Select file

252
3-3. Using the audio system
GS_G_U
May 13, 2008 5:14 pm
Loading a discs■ Loading a single disc
Push .
When the indicator changes from flashing amber to green, insert
a disc after the DVD player door opens.
■ Loading multiple discs
Press and hold until you hear a beep.
When the indicator changes from flashing amber to green, insert
a disc after the DVD player door opens.
After inserting a disc, wait until the indicator changes from flash-
ing amber to green, then insert the next disc after the DVD player
door has opened.
Repeat steps 2 and 3 until you have inserted all discs.
To cancel the operation, press the or button. If you do not
insert a disc within 15 seconds, loading will be canceled automatically.
■DVD hint screen
This screen appears when a DVD
video, DVD audio or video CD is
first selected with the “ENGINE
START STOP” switch in ACCES-
SORY or IGNITION ON mode.
Touch once you have
read the message.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4

253
3-3. Using the audio system
3
Interior features
GS_G_U
May 13, 2008 5:14 pm
Ejecting discs■ Ejecting a disc
To select the disc to be ejected , touch the desired disc on the
screen or press  or  on .
Press and remove the disc.
■ Ejecting all discs
Press and hold until you hear a beep, then remove the discs.
Selecting a disc
■ To select a disc to play
Touch the desired disc on the
screen or press  or  on .
● Audio CD, CD text P. 2 4 2
● MP3/WMA disc P. 2 4 7
● DVD video/audio P. 2 5 4
● Video CD  P. 2 6 6
STEP1
STEP2

254
3-3. Using the audio system
GS_G_U
May 13, 2008 5:14 pm

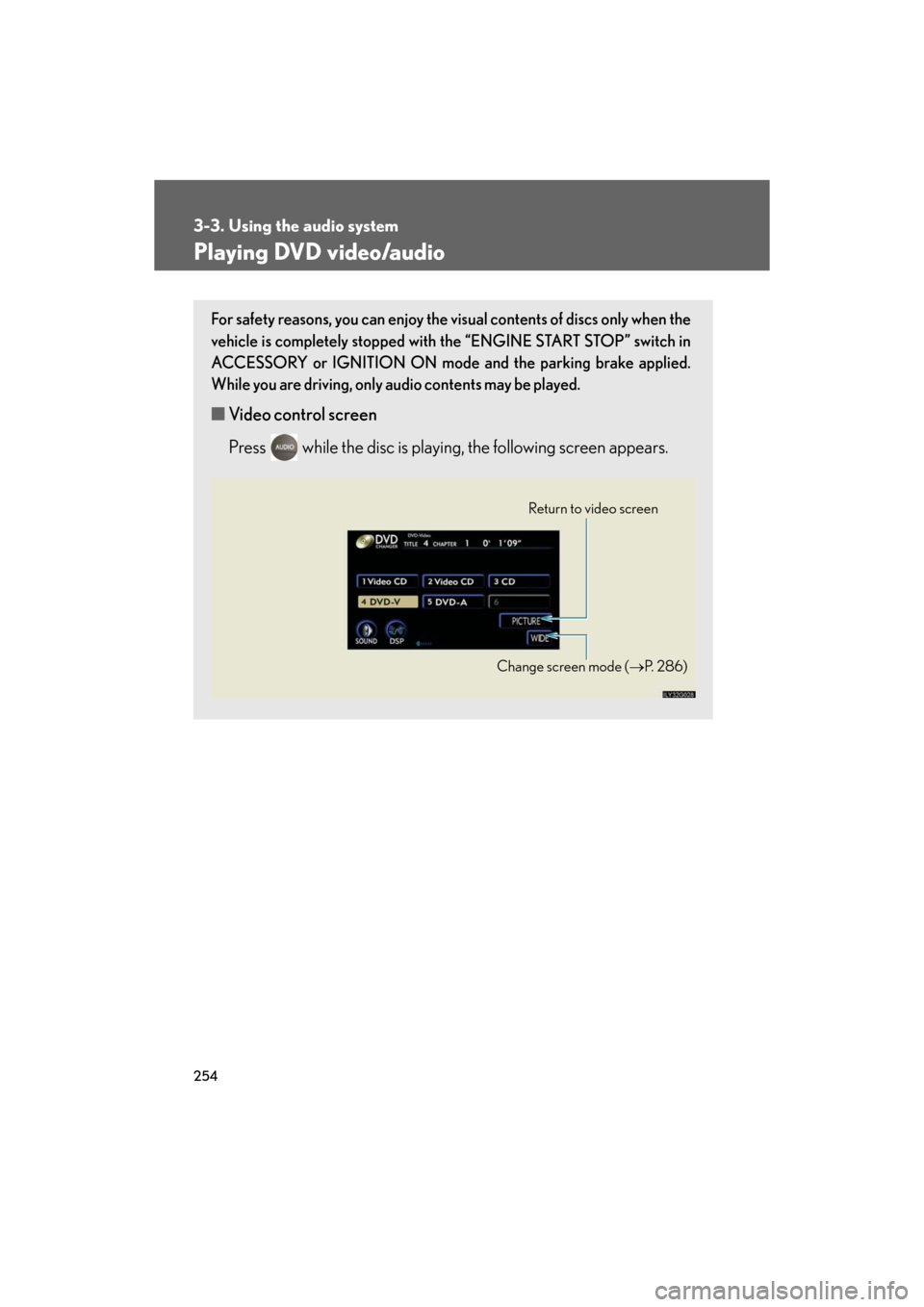

Playing DVD video/audio
For safety reasons, you can enjoy the visual contents of discs only when the
vehicle is completely stopped with the “ENGINE START STOP” switch in
ACCESSORY or IGNITION ON mode and the parking brake applied.
While you are driving, only audio contents may be played.
■ Video control screen
Press while the disc is playing , the following screen appears.
Return to video screen
Change screen mode ( P. 2 8 6 )

255
3-3. Using the audio system
3
Interior features
GS_G_U
May 13, 2008 5:14 pm
■Control icon screen
Touch any part of the screen if no icons are shown while watching
video, the following screen appears.
DVD video mode
If appears on the screen when yo u touch an icon, the operation rel-
evant to that control is not permitted.
Return to top menu screen
Hide control icons
Return to 
menu screen Rewind
Stop Fa st f or ward
Playback
Pa u s e
Menu control key
Go to page 2
Search desired screen
Return to menu screen Change audio language Change subtitle language
Initial DVD setup
Return to 
page 1
Change angle
Pa g e 2 Pa g e 1

256
3-3. Using the audio system
GS_G_U
May 13, 2008 5:14 pm
DVD audio mode
If appears on the screen when yo u touch an icon, the operation rel-
evant to that control is not permitted.
Change the 
audio format
Change angle
Initial DVD setup
Select menu number
Return to 
page 1
Change subtitle language
Return to previous screen Go to next screen Return to registered screen Return to top menu screen
Hide control icons
Rewind
Stop Fa st for wa rd
PlaybackPa u s e
Go to page 2
Search 
desired screen Menu control key
Pa g e 2 Pa g e 1

257
3-3. Using the audio system
3
Interior features
GS_G_U
May 13, 2008 5:14 pm
Loading, ejecting and selecting discs P. 252
Fast forwarding/rewinding disc
Touch and hold or on th e screen or press and hold  or 
on until you hear a beep.
Slow playback Touch and then touch . Video is played slowly while you
are touching .
Searching a desired screen■ Searching by title (DVD video mode)
Touch in the control icons.
Input the desired title number and
then touch .
: Deletes the last input number.
: Hides the icons. To dis- play the icons, touch .
:Returns to previous screen.
STEP1
STEP2

258
3-3. Using the audio system
GS_G_U
May 13, 2008 5:14 pm
■Searching by group (DVD audio mode)
Touch in the control icons.
Input the group number and then
touch .
: Deletes the last input number.
: Hides the icons. To dis- play the icons, touch .
:Returns to previous screen.
■ Playing a bonus group (DVD audio mode only, if the DVD has bonus
options)
Touch in the control icons.
Input the desired bonus group
number on the group search
screen and touch .
: Deletes the number.
: Returns to previous screen.
■ Searching by chapter/track
Press  or  on to select a chapter/track.
STEP1
STEP2
STEP1
STEP2

259
3-3. Using the audio system
3
Interior features
GS_G_U
May 13, 2008 5:14 pm
■Selecting a menu number (DVD audio mode only)
Touch in the control icons.
Input the desired menu number on
the screen and touch .
Using the DVD menu
Touch or in the control icons. 
Touch if the menu control ke y does not appear on the
menu screen.
Touch , , or to select a
menu item, then touch to
select.
: Moves icons up or down.
: Hides icons. To display icons, touch .
:Returns to previous screen.
Note that specific items or the oper ating method differs from one DVD to
another. Refer to the manual that comes with the DVD disc. (The above image is
an example.)
STEP1
STEP2
STEP1
STEP2

260
3-3. Using the audio system
GS_G_U
May 13, 2008 5:14 pm
Changing the subtitle languageTouch in the control icons.
Each time you touch the button,
the next available language is
selected.
: Hides the control icons.
: Returns to previous screen.
Changing the audio language (DVD video only)
Touch in the control icons.
Each time you touch the button,
the next available language is
selected.
: Returns to previous screen.
Changing the audio format (DVD audio only)Touch in the control icons.
Each time you touch the button,
the next available audio format is
selected.
: Returns to previous screen.
