Lexus GX460 2010 Navigation Manual

10
No.NameFunctionPage
1
North−up or
heading −up
symbolThis symbol indicates a map view with
north− up or heading −up. Touching this
symbol changes the map orientation.
43
2Scale indicatorThis figure indicates the map scale.42
3“MAP/VOICE”
buttonPush this button to repeat a guidance
voice, cancel the map scroll, start guid-
ance and display the current position.
33
4“DEST” buttonPush this button to display the “Destina-
tion” screen.12, 14, 16, 17, 20, 62
5“INFO/PHONE”
buttonPush this button to display the “Informa-
tion” screen.23, 134, 149,
151, 163, 169, 176, 417
6Zoom out buttonTouch this button to reduce the map
scale.42
GX460 Navi (U)
OM60E73U
09.09.24
Quickguide—
— Overview buttons and guidance screen

11
No.NameFunctionPage
7“AA Off”
Touch this button to obtain a broader
view. Some of the buttons on the
screen are not displayed. They are dis-
played again by touching “On"" ”.
346
8“Mark”
Touch this button to register the current
position or the cursor position as an ad-
dress book entry.
35
9“Route”Touch this button to change the route.94, 96
10“Show on Map”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
102, 173
11Zoom in buttonTouch this button to magnify the map
scale.42
12Foot print map
buttonTouch this button to display the foot print
map and the building information.42
13
Screen
configuration
buttonTouch this button to change the screen
mode.39
14“DISP” buttonPush this button to display the “Display”
(quality control) screen.31
15“SETUP” button
Push this button to display the “Setup”
screen.
You can change the language from this
screen. (See “ DSelecting a language”
on page 331.)22, 110, 179,
330, 335, 337,
340, 349, 388, 395, 403
16
Distance and
time to
destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
93
17XM rindicatorThis mark is displayed when XM rinfor-
mation is received.173
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
406
GX460 Navi (U)
OM60E73U
09.09.24

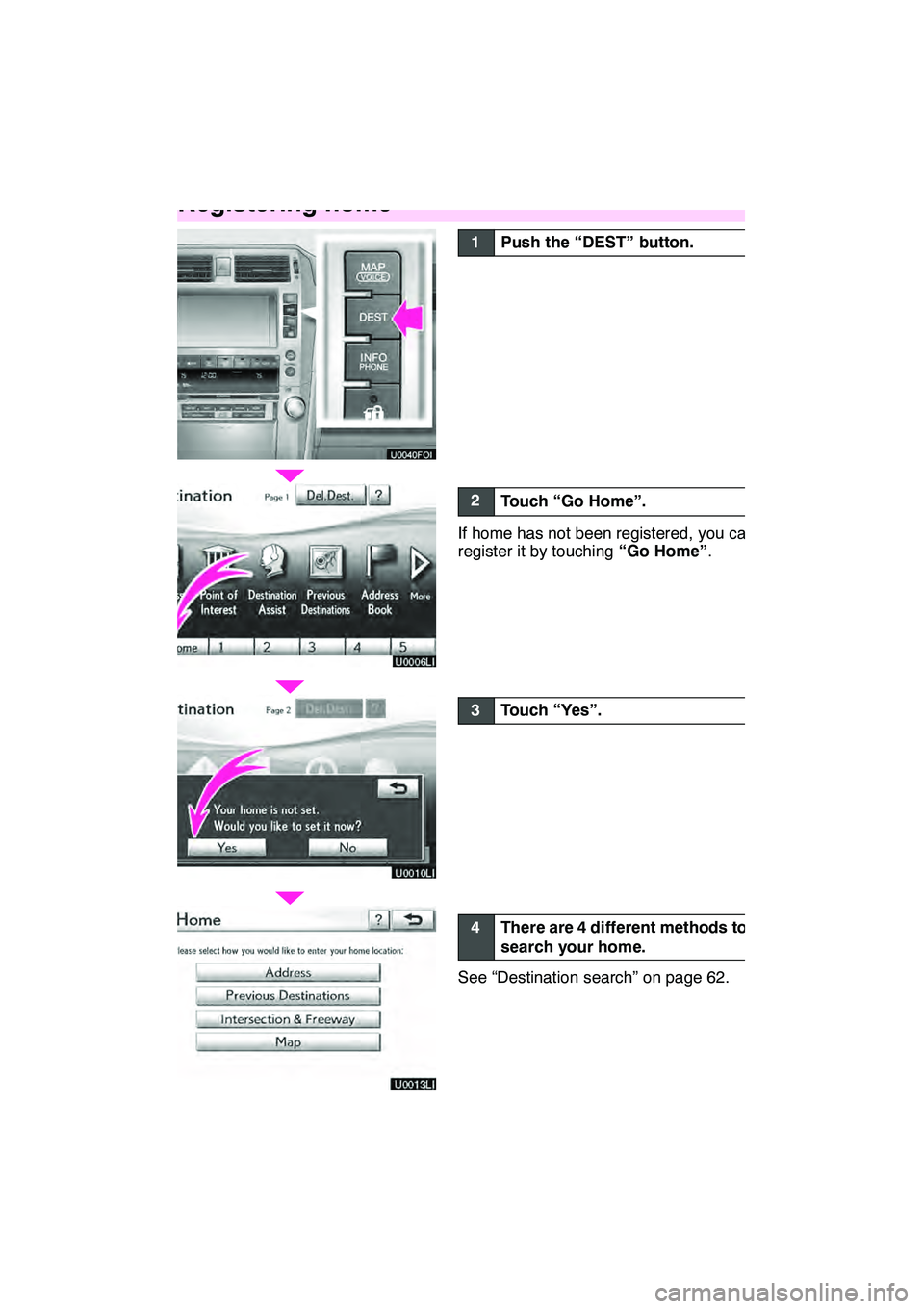

12
U0006LI
U0043LC
1Push the “DEST” button.
2Touch “Go Home”.
If home has not been registered, you can
register it by touching“Go Home”.
3Touch “Yes”.
4There are 4 different methods to
search your home.
See “Destination search” on page 62.
GX460 Navi (U)
OM60E73U
09.09.24
—Registering home

13
U0005LC
U0006LC
5Touch “Enter”.
The “Edit Home” screen is displayed.
6Touch “OK”.
Registration of home is complete.
You can also register home by pushing the
“SETUP”button. (See “(a) Registering
home” on page 111.)
You can change the name, location, phone
number and icon. (See “(b) Editing home”
on page 112.)
GX460 Navi (U)
OM60E73U
09.09.24

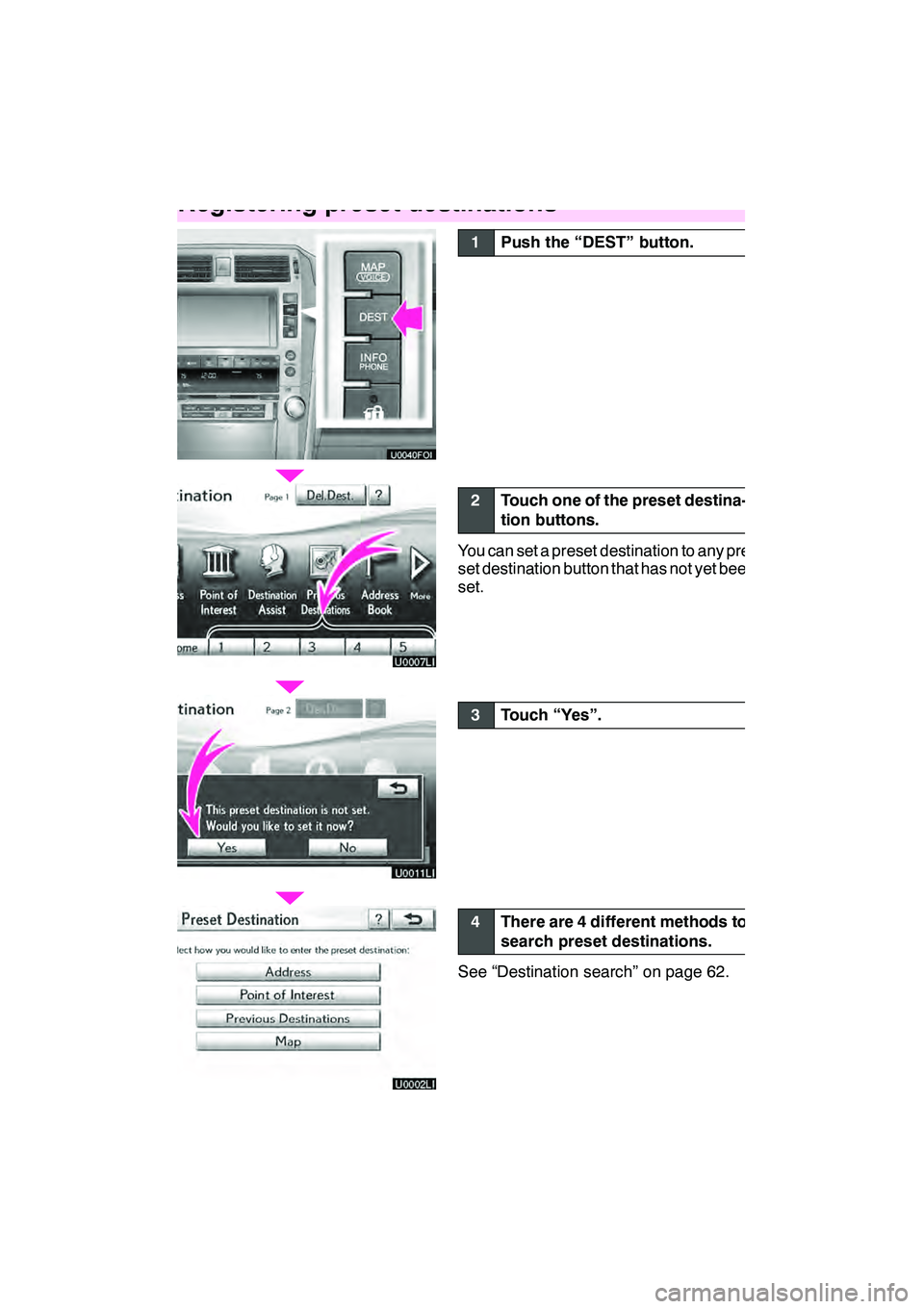

14
U0007LI
U0045LC
U0002LI
1Push the “DEST” button.
2Touch one of the preset destina-
tion buttons.
You can set a preset destination to any pre-
set destination button that has not yet been
set.
3Touch “Yes”.
4There are 4 different methods to
search preset destinations.
See “Destination search” on page 62.
GX460 Navi (U)
OM60E73U
09.09.24
—Registering preset destinations

15
U0010LC
U0011LC
5Touch “Enter”.
The “Edit Preset Destination” screen is
displayed.
6Touch “OK”.
Registration of preset destinations is com-
plete.
You can also register preset destinations
by pushing the“SETUP”button.
(See “(a) Registering preset destinations”
on page 114.)
You can change the name, location, phone
number and icon. (See “(b) Editing preset
destinations” on page 115.)
The registered points can be used on the
“Destination” screen. (See “— Destination
search by Preset destinations” on page
64.)
GX460 Navi (U)
OM60E73U
09.09.24

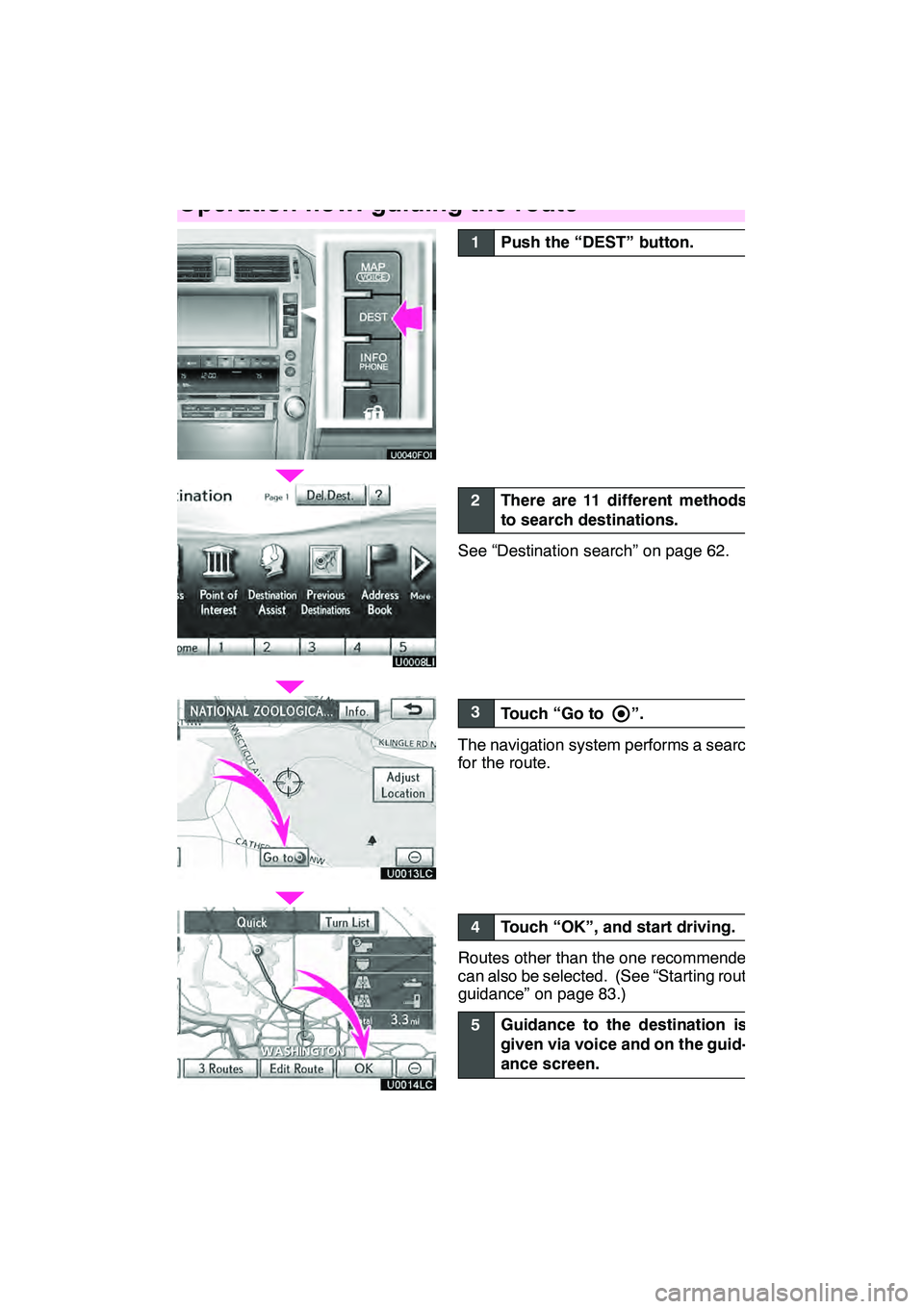

16
U0013LC
U0014LC
1Push the “DEST” button.
2There are 11 different methods
to search destinations.
See “Destination search” on page 62.
3Touch “Go to ”.
The navigation system performs a search
for the route.
4Touch “OK”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 83.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
GX460 Navi (U)
OM60E73U
09.09.24
—Operation flow: guiding the route

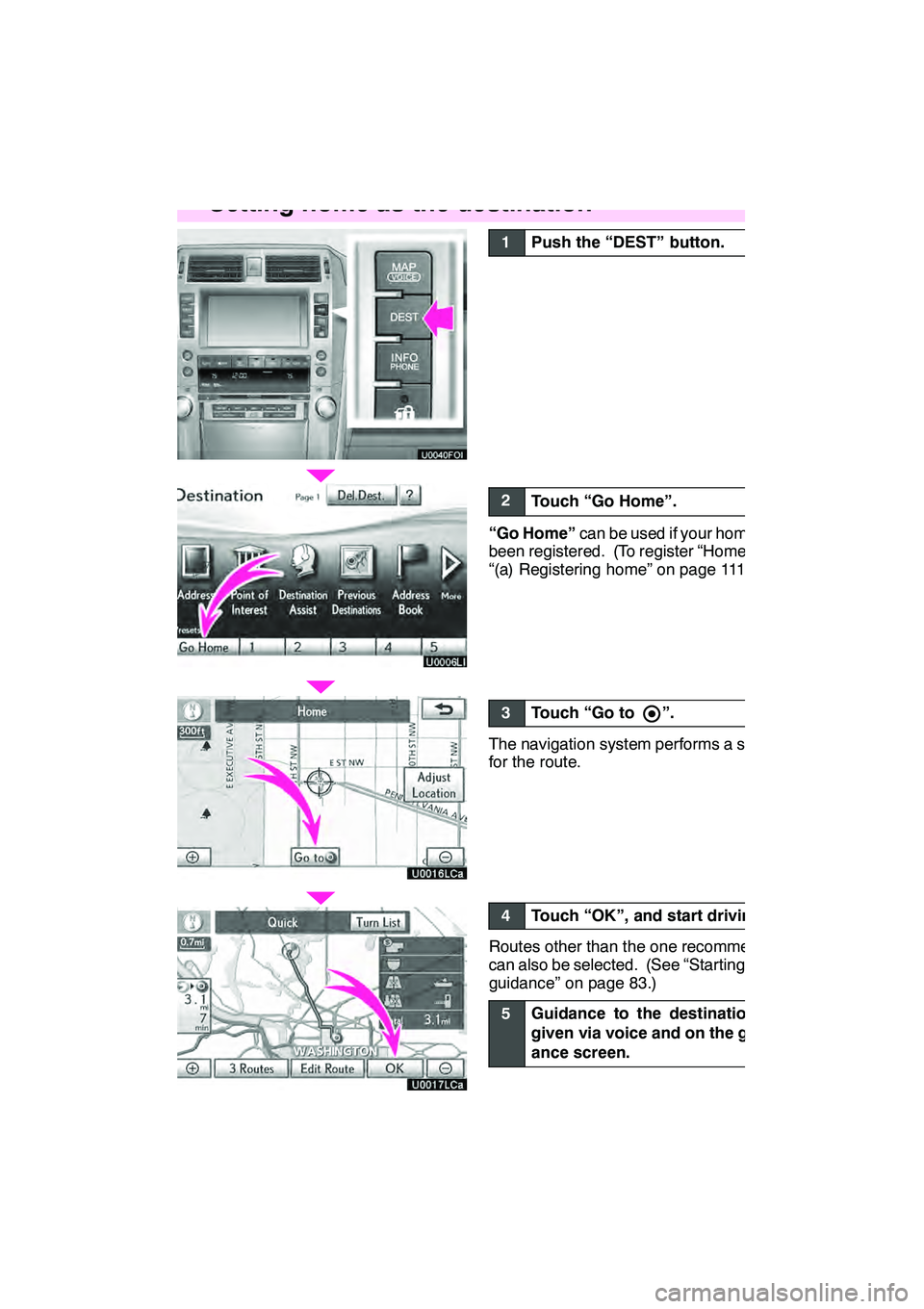

17
U0006LI
U0016LCa
U0017LCa
1Push the “DEST” button.
2Touch “Go Home”.
“Go Home”can be used if your home has
been registered. (To register “Home”, see
“(a) Registering home” on page 111.)
3Touch “Go to ”.
The navigation system performs a search
for the route.
4Touch “OK”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 83.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
GX460 Navi (U)
OM60E73U
09.09.24
—Setting home as the destination

18
hMap i
Displaying mapsPage
Viewing the map screen10
Displaying the current vehicle position33
Viewing the current position vicinity map34
Changing the scale42
Changing the map orientation43
Displaying Point of Interest102
Displaying the estimated travel/arrival time to the destination93
Selecting the dual map screen39
Viewing foot print map42
Deleting map screen buttons346
Searching destinationPage
Searching the destination
(by home, Point of Interest, phone #, etc.)62
Changing the selected search area62
Operating the map location of the selected destination83
hRoute guidance i
Before starting route guidancePage
Setting the destination83
Viewing alternative routes83
Starting route guidance83
Before starting or during route guidancePage
Viewing the route83
Adding destinations94
Changing the route96
Displaying the estimated travel/arrival time to the destination93
GX460 Navi (U)
OM60E73U
09.09.24
Navigation system function index

19
During route guidancePage
Pausing route guidance101
Adjusting route guidance volume338
Deleting the destination82, 95
Displaying the entire route map97
hUseful functions i
Address bookPage
Registering your own address book entries11 6
Marking icons on the map11 8
InformationPage
Displaying vehicle maintenance395
Displaying the calendar151
Hands−free system (for cellular phone)Page
Initial Bluetooth r134
Making a call on the Bluetooth rphone139
Receiving a call on the Bluetooth rphone146
Voice command systemPage
Operating the system with your voice44
GX460 Navi (U)
OM60E73U
09.09.24
