key Lexus GX460 2010 Navigation Manual

SETUP
373
D

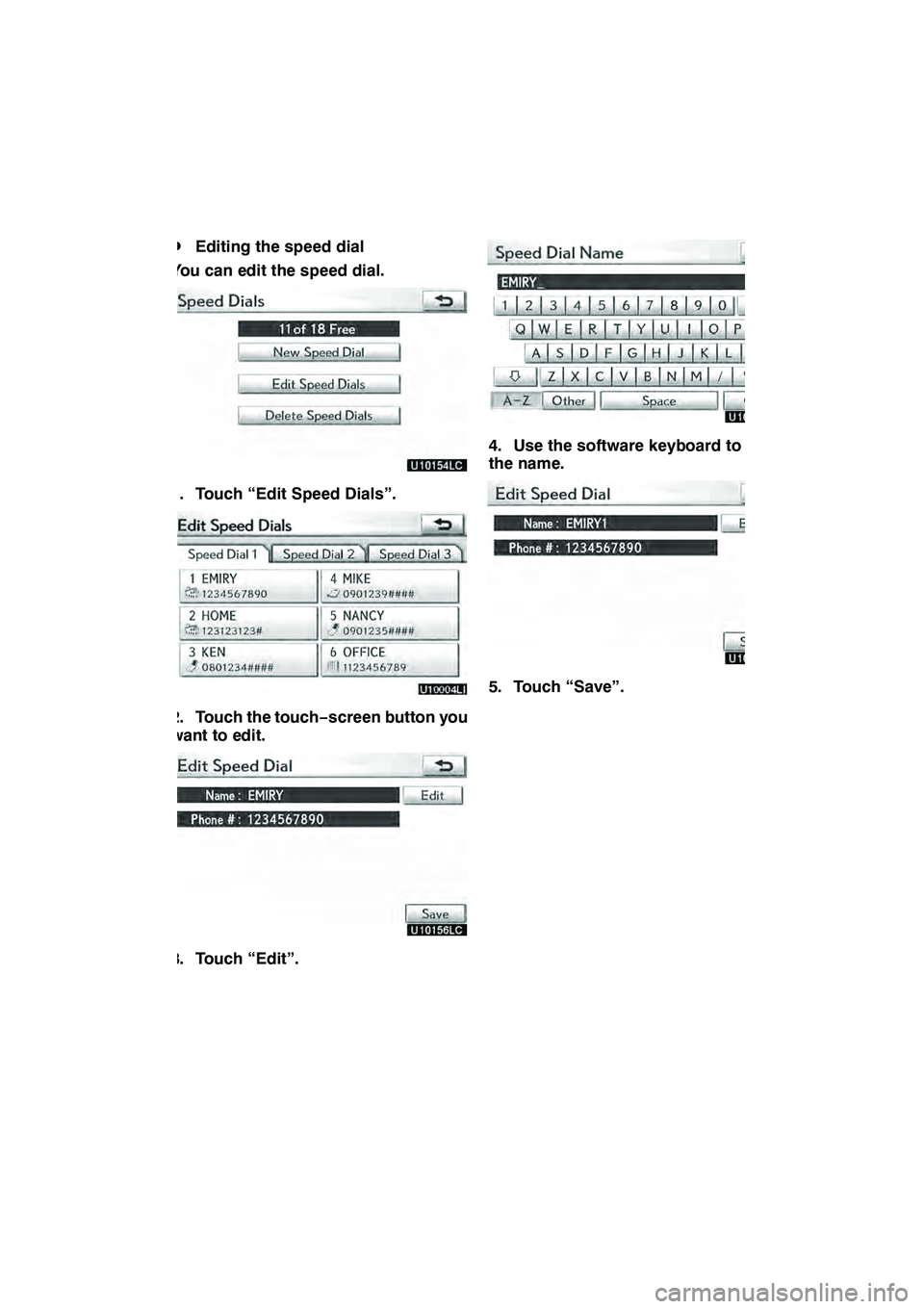

Editing the speed dial
You can edit the speed dial.
1. Touch “Edit Speed Dials”.
2. Touch the touch −screen button you
want to edit.
3. Touch “Edit”.
4. Use the software keyboard to input
the name.
5. Touch “Save”.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
11

SETUP
383
Editing the device name
1. Touch “Edit” of “Device Name”.
2. Use the software keyboard to input
the device name.
INFORMATION
The device names are common
Bluetoothraudio and Bluetooth r
phone.
If you change the device name of the
phone, the device name of the audio
will change at same time.
However, passcodes can be set sep-
arately.
Editing the passcode
1. Touch “Edit” of “Passcode”.
2. Input a passcode and touch “OK”.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
11

SETUP
389
D
Displaying Bluetooth
rinformation
You can see or change the information
of the portable player on the system.
“Device Name” The name of Bluetooth rportable
...
player which is displayed on the
screen. You can change it into a de-
sired name.
“Device Address” The address peculiar to the system.
...
You cannot change it. If you have reg-
istered two Bluetooth rportable play-
ers with the same device name and
you cannot distinguish one from the
other, refer to it.
“Connection Method” The connection method can be
...
switched between “From Vehicle”
and “From Portable Player” .
Select the desired portable player and
then touch “Portable Player Info”.
DChanging a device name
You can change a device name. Even if
you change a device name, the name
registered in your portable player is not
changed.
1. Touch “Portable Player Info” on
“Select Portable Player” screen.
2. Touch “Edit” for “Device Name” on
“Portable Player Information” screen.
3. Use the software keyboard to input
the device name.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
11

SETUP
399
D
To edit “Dealer” or “Contact”
1. Touch “Edit” of “Dealer” or “Con-
tact”.
2. Enter the name using the alphanu-
meric keys.
Up to 32 characters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
DTo edit “Location”
1. Touch “Edit” of “Location”.
2. Touch the 8 directional button to
move the cursorto the desired point
on the map.
3. Touch “OK”.
The previous screen will be displayed.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
11

SETUP
400 D
To edit “Phone #”
(telephone number)
1. Touch “Edit” of “Phone #”.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed.Vehicle settings can be changed.
1. Push the “SETUP” button.
2. Touch “Vehicle” on the “Setup”
screen.
3. Touch “Vehicle Customization”.
4. Select the setting to be changed.
Various settings can be changed. For a
list of the settings that can be changed,
see the vehicle owner’s manual.
5. After changing the settings, touch
“Save”.
A message indicating that the settings
are being saved will appear. Do not per-
form any other operations while this
message is displayed.
GX460 Navi (U)
OM60E73U
Finish
09.09.24
—
Vehicle customization

INDEX
420 Numbers/Symbols
? button20, 33
........................
3 routes selection 85
...................
3− ZONE button 298, 301
...............
A
A/C button 296, 298
....................
A/V input adapter 284
..................
Activating the wide view front &
side monitor 315
....................
Activation of service 155
...............
Adding destinations 94 .................
Address book button 20, 77 .............
Address book entries 117 ...............
Address book entry information 37 .......
Address button 20, 65 ..................
Adjust exhaust gas sensor screen 302 ...
Adjusting the air conditioning
system settings manually 303 .........
Adjusting the air outlets 307 .............
Air conditioning controls 296 ............
Air flow control buttons 296, 304 .........
Air intake control button 296, 302, 305 ....
Air outlets 304 ........................
Alphabet key 28 .......................
AM·FM button 184, 186 .................
Angle mark 235, 279 ...................
Areas to avoid 122 ....................
Arrow screen 39, 90 ...................
ASL 192 .............................
AUDIO button 184, 186 .................
Audio button 22 .......................
Audio language 235, 279 ...............
Audio settings 388 .....................
Audio/video remote controls 261 .........
Auto avoid traffic 173, 343 ..............
AUTO button 296, 298 ..................
Auto start 235 .........................
Automatic air conditioning system 300 ....
Automatic mode 305 ...................
Automatic sound levelizer 192 ...........
AUX adapter 195 ......................
AUX·USB button 184 ..................
B
Bass 193
.............................
Before using the rear seat
entertainment system controller 265 ...
Bluetooth r 130, 349, 380, 388
...........
Bluetooth raudio operation 245 ..........
Bluetooth rconnection status 385, 386 ....
Brightness 31, 286 .....................
Building information 43 .................
C
Calendar 151
.........................
Calendar button 23
....................
Call by call history 142
.................
Call by dial 139
.......................
Call by phonebook 140 .................
Call by POI 145 .......................
Call by speed dial 141 .................
Call by voice recognition 143, 148 ........
Call on the Bluetooth rphone 139 ........
Categories 71 .........................
CAUTION screen 26, 267 ...............
CD button 186 ........................
CD changer operation 206 ..............
Cellular phone 130 ....................
CH·DISC button 184, 186 ...............
Change icon 119 ......................
Change location 121, 126 ...............
Change name 120, 125 .................
Change phone # 121 ...................
Change size 126 ......................
Changing a portable player
name 389 ..........................
Changing the angle 235, 279 ............
Changing the audio format 234, 278 ......
Changing the audio language 234, 278 ...
Changing the Bluetooth raudio
passcode 394 .......................
Changing the Bluetooth raudio
player name 394 ....................
Changing the Bluetooth rsettings 381 ....
Changing the page 233
................
Changing the rear seat audio
source 267
.........................
GX460 Navi (U)
OM60E73U
Finish
09.09.24

INDEX
423
M
Maintenance
395
......................
Maintenance information 27
.............
Maintenance information items 397 ......
Maintenance information setting 396 .....
Manage phone 351
....................
Map button 20, 81 .....................
Map coverage area 417 ................
Map data button 23 ....................
Map database information 408 ..........
Map database updates 408 .............
Map database version 417 ..............
Map icons 44 .........................
Map scale 42 .........................
Map screen 10 ........................
Map screen operation 33 ...............
MAP/VOICE button 10, 33, 34 ...........
Mark button 10 ........................
Marks shown on DVD video discs 244 ....
Memory point names 120 ...............
Message button 198 ...................
Micro dust and pollen filter 310 ..........
Micro dust and pollen filter button 296, 298 ......................
Microphone 44, 130 ....................
Mid 193 ..............................
MODE button 304 .....................
MP3 214, 271 .........................
N
Names of areas to be avoided 125 .......
Natural speech information 47 ...........
Navigation button 22 ...................
Navigation settings 110, 340 ............
North− up 10, 43.......................
Number key 28 .......................
O
OFF button 296, 298
...................
Off function 10 ........................
Operating a DVD disc 226, 270 ..........
OPP (Object Push Profile) 130 ..........
Orientation of the map 43 ...............
Other settings 403 .....................
Outside air mode 305 ..................
Outside rear view mirror defogging 309 ......................
Outside temperature display 296, 298 ....
P
PAL format 285
.......................
Parental lock 235, 279 ..................
Past record 149 .......................
Pause guidance 101 ...................
Phone button 22, 23 ...................
Phonebook 140, 359, 360 ...............
Playing a Bluetooth raudio 250 ..........
Playing a disc 210, 225 .................
Playing a DVD disc 227, 271 ............
Playing a MP3/WMA disc 214, 271 .......
Playing a USB memory or iPod r254
.....
Playing a video CD 240 ................
Playing an audio disc 211, 270 ..........
POI as a destination 105 ...............
POI category change 345 ...............
POI icons hidden 106 ..................
POI information 36 ....................
Point of interest button 20, 69 ...........
POIs near the search point 74 ...........
POIs to be displayed 103 ...............
Pop− up information 348 ................
Portable audio players 195, 245, 253, 388
..................
Preset destination buttons 20, 64 ........
Preset destinations 14, 64, 114 ..........
Presetting a channel 202 ...............
Presetting a station 197 ................
Previous destinations button 20, 76 ......
PWR/VOL knob 184, 186 ...............
R
Radio data system 198
.................
Radio ID 201
.........................
Radio operation 196, 200, 269
...........
RAND button 213, 218, 252, 260
........
RDS 198
.............................
Rear air conditioning controls 306 ........
Rear seat entertainment system
controller 264
.......................
Rear seat entertainment system
displays 264
........................
Rear seat entertainment system
features 263
........................
Rear system lock 332
..................
Rear window defogger button 296, 298 ...
Rear window defogging 309
.............
Receive on the Bluetooth rphone 146 ....
Receive sports information 164
..........
Receive stock data 166
................
GX460 Navi (U)
OM60E73U
Finish
09.09.24
Idx

INDEX
424
Recirculated air mode305
..............
Reconnecting Bluetooth r
audio player 250
....................
Reconnecting the Bluetooth r
phone 138
..........................
Region codes 243
.....................
Registering a Bluetooth r
phone 352, 359
......................
Registering address book entries 117 ....
Registering areas to avoid 123 ..........
Registering home 12, 111 ...............
Registering portable player 390 ..........
Registering preset destinations 14, 114 ...
Registering the phonebook data 363 .....
Registering the speed dial 369 ..........
Registering the voice tag 377 ...........
Removing a Bluetooth raudio 392 .......
Reordering destinations 94 .............
Replacing the rear seat
entertainment system
controller batteries 265 ...............
Resume guidance 102 .................
Ring volume 350 ......................
Route button 10 .......................
Route features 100 ....................
Route guidance screen 88 ..............
Route overview 97 ....................
Route preference 99 ...................
Route preview 98 .....................
Route trace 106 .......................
Route trace −start 107 ..................
Route trace −stop 107 ..................
Route type 99 .........................
RPT button 213, 218, 252, 260 ..........
S
Safety Connect 154
....................
SAT button 184, 186 ...................
Satellite tuner 200 .....................
Scale indicator 10 .....................
SCAN button 213, 217, 218, 259 .........
Screen adjustment 31, 286 ..............
Screen configuration button 10 ..........
Screen layout function 346 ..............
Screen off 31, 286 .....................
Screen scroll operation 34 ..............
Screen size 194, 285 ...................
Screens for clock settings 335 ..........
Screens for general settings 330 ........
Screens for navigation settings 341 ......
Screens for voice settings 337 ..........
Search area 62 .......................
Search by category 71 .................
Search by eDestination 75 ..............Search by freeway entrance/exit 80
......
Search by intersection 79 ...............
Search by name 69 ....................
Search by phone # 74 ..................
Search point from along my route 72 .....
Search point from near a destination 73 ................
Search point from near city center 72 ....
Search point from near hear 72 ..........
Searching by group 232, 276 ............
Searching by title 231, 275 ..............
Searching by track 242, 283 .............
Searching for a desired file 217, 259 ......
Searching for a desired folder 218, 259 ...
Searching for a desired track
or disc 213 .........................
SEEK·TRACK button 184, 186 ...........
Select button 215, 256 ..................
Select portable player 388 ..............
Selecting a Bluetooth rphone 354, 359 ...
Selecting a desired album 252 ..........
Selecting a desired disc 211, 225 ........
Selecting a desired file 215, 271 .........
Selecting a desired files or tracks 257 ....
Selecting a desired folder 215, 256 .......
Selecting a desired track 212, 251, 270 ...
Selecting a keyboard layout 332 .........
Selecting a language 331 ...............
Selecting a play mode 255 ..............
Selecting a satellite radio channel 203 ....
Selecting a station 197 .................
Selecting DVD disc menu item 231 ......
Selecting portable player
connection method 390 ..............
Selecting the bonus group 232, 276 ......
Selecting the menu number 277 .........
Selecting the search area 62 ............
Sensor detection information 325 ........
Sets address book 110 .................
Sets area to avoid 110 .................
Sets home 110 ........................
Sets preset destinations 110 ............
Setting and deleting destinations 94 ......
Setting Bluetooth raudio 390 ............
Setting home as the destination 17 ......
Setting route 96 .......................
Setting the phonebook 360 .............
Setting the vehicle interior temperature 301, 303 ................
Setting the voice tag 376 ...............
Setting up the address book 116 .........
Setting up the areas to avoid 122 ........
Setting up the home 111 ................
Setting up the preset destinations 113 ....
SETUP button 10 .....................
Setup screen 22 ......................
GX460 Navi (U)
OM60E73U
Finish
09.09.24

INDEX
425
Show eDestination icons162
...........
Show free flowing traffic 344 ............
Show on map 102 .....................
Show on map button 10 ................
Side monitor 316 ......................
Single map screen 39, 40 ...............
Sort 30 ..............................
Sound dynamic range 235, 279 ..........
Sound icons 119 ......................
Speed dial 141, 368 ....................
Speed dials settings 368 ...............
Starting route from adjacent road 101 ....
Starting route guidance 83 ..............
Steering switches 261 ..................
Street address 67 .....................
Subscription 155 ......................
Subtitle language 235, 279 ..............
Surround function 192 ..................
Switching between audio functions 190 ...
Switching the air intake control to automatic mode 302 ...............
Switching the screens 39 ...............
Symbol key 29 ........................
T
Talk on the Bluetooth rphone 146 ........
Talk switch 44, 143 ....................
Telephone settings 349 .................
Telephone switch 130 ..................
TEMP button 296, 298, 301, 303 .........
Temperature display 296, 298, 311 .......
Time zone 336 ........................
Tire change calibration 346, 348 .........
Title 244 .............................
Tone 31, 286 ..........................
Tone and balance 193 ..................
Touch screen operation 27 ..............
Traffic announcement 200 ..............
Traffic button 200 ......................
Traffic voice guidance 339 ..............
Transferring a phone number 361 ........
Treble 193 ............................
TUNE/FILE knob 184, 186 ..............
Turn list screen 39, 90 ..................
Turning the audio system on and off 189 ......................
TypeSeek button 198 ..................
Typical voice guidance prompts 91 .......
U
Unit of measurement 333
...............
USB memory operation 253
.............
V
Vehicle button 22
......................
Vehicle customization 400
..............
Vehicle settings 395
...................
Video CD 240, 284
.....................
Video CD controls 242, 282
.............
Video CD settings 241, 282
.............
Video mode 284
.......................
Viewer restrictions 244
.................
Voice button 22 .......................
Voice command example 47, 50 .........
Voice command system 44 .............
Voice guidance speaker 339 ............
Voice settings 337 .....................
Voice tag 144, 376 .....................
Voice volume 338, 350 .................
W
Wide view front & side monitor 314 ......
Wide view front & side monitor cameras 318 .......................
Wide view front & side monitor simultaneous display 316 .............
Wide view front monitor 316 ............
Windshield air flow button
296, 298, 306
.......................
Windshield wiper de −icer 308 ...........
WMA 214, 271 ........................
X
XMrindicator 10 ......................
XM rNavTraffic 154, 173 ................
XM rNavTraffic icon 174 ...............
XM rNavTraffic indicator 175 ............
XM rNavTraffic information arrow 174 ....
XM rNavTraffic text information 39 ......
XM rSatellite Radio broadcast 200 .......
XM NavWeather  168
.................
XM NavWeather button 23 ............
XM Sports 164 ........................
XM Sports button 23 ...................
XM Sports settings 164 ................
XM Stocks 166 ........................
XM Stocks button 23 ...................
XM Stocks settings 167 ................
Z
Zoom in button 10
.....................
Zoom out button 10
....................
GX460 Navi (U)
OM60E73U
Finish
09.09.24
Idx
