light Lexus GX460 2010 Owner's Manual

552
3-7. Other interior features
GX460_CANADA (OM60F29U)
■The seat heaters/ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Turn the dial until the indicator light turns off.
■Outer second seat heaters (if equipped)
For left second seat
For right second seat
High heating temperature
Low heating temperature
To turn on the seat heater, press
“HI” or “LO”.
The indicator light on “HI” or
“LO” switch indicates that the
seat heater is on.
Off
To turn off, press “OFF”.
GX460_CANADA.book Page 552 Thursday, February 4, 2010 11:54 AM

567
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured
under license from HomeLink®.
Programming HomeLink® (for U.S. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator light
Buttons
The garage door opener can be programmed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
GX460_CANADA.book Page 567 Thursday, February 4, 2010 11:54 AM

568
3-7. Other interior features
GX460_CANADA (OM60F29U)■
Programming HomeLink
®
Point the remote control transmit-
ter for the device 1 in. (25 mm)
from the HomeLink
® buttons.
Keep the HomeLink® indicator
light in view while programming.
Press and hold one of the
HomeLink® buttons and the trans-
mitter button. When the
HomeLink
® indicator light
changes from a slow to a rapid
flash, you can release both buttons.
If the HomeLink® indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds and
remains lit, the HomeLink
® button
is already programmed. Use the
other buttons or follow the “Repro-
gramming a HomeLink
® button”
instructions. ( →P. 5 7 2 )
STEP1
STEP2
GX460_CANADA.book Page 568 Thursday, February 4, 2010 11:54 AM

569
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)Test the HomeLink
® operation by
pressing the newly programmed
button.
If a HomeLink® button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the rolling
code type. Press and hold the pro-
grammed HomeLink
® button. The
remote control transmitter is of the
rolling code type if the HomeLink
®
indicator light flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the rolling code
type, proceed to the heading “Pro-
gramming a rolling code system”.
Repeat the steps above to program another device for any of the
remaining HomeLink® buttons.
STEP3
STEP4
GX460_CANADA.book Page 569 Thursday, February 4, 2010 11:54 AM

571
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)■
Programming an entry gate (for U.S. owners)/Programming a
device in the Canadian market
Place the remote control transmit ter 1 in. (25 mm) away from the
HomeLink
® buttons.
Keep the HomeLink® indicator light in view while programming.
Press and hold the selected HomeLink® button.
Repeatedly press and release (cycle) the remote control trans-
mitter for 2 seconds each until step 4 is completed.
When the HomeLink
® indicator light starts to flash rapidly,
release the buttons.
Test the HomeLink
® operation by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink
® buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
® buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Reprogramming a
HomeLink
® button” instructions.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
GX460_CANADA.book Page 571 Thursday, February 4, 2010 11:54 AM

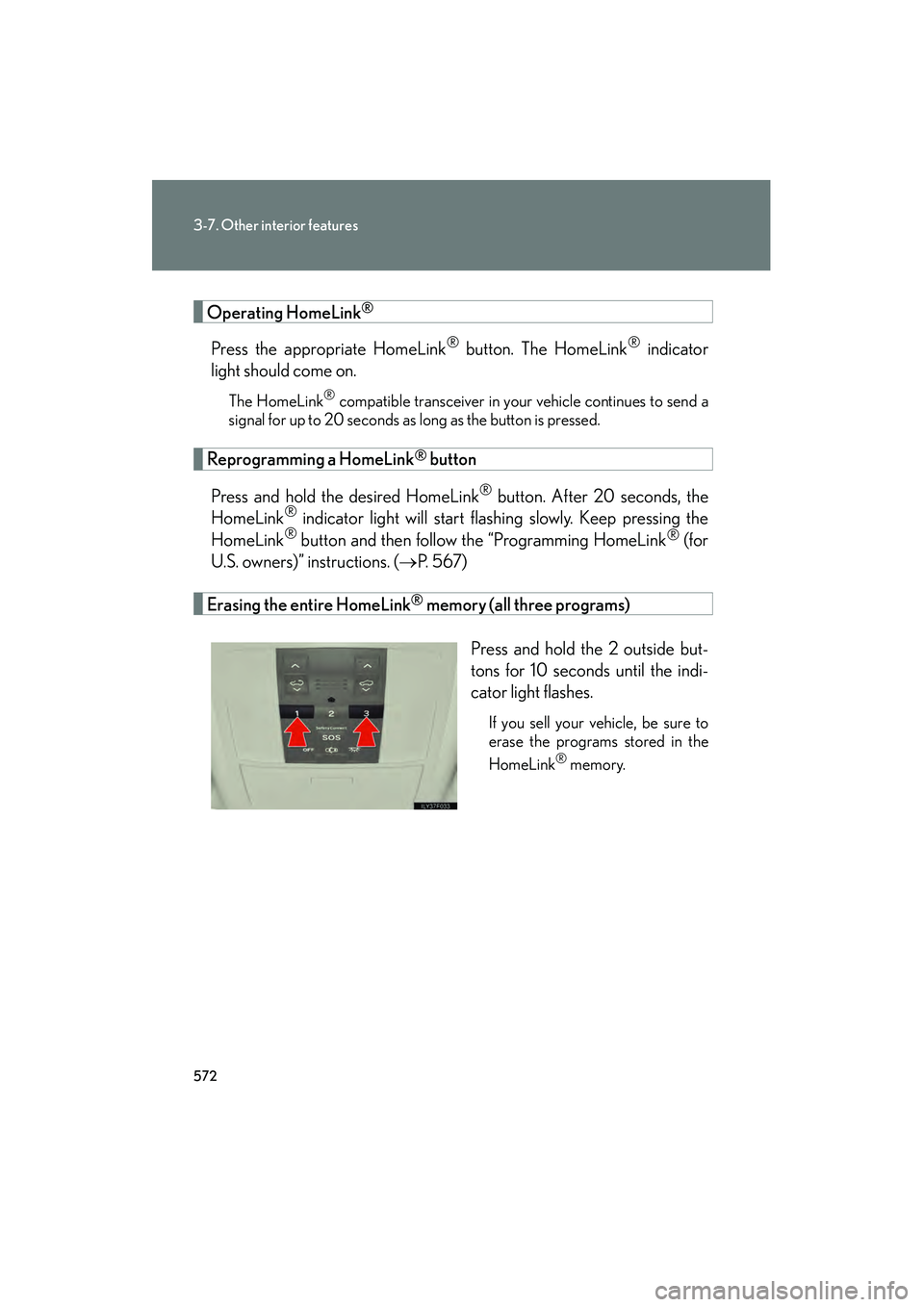

572
3-7. Other interior features
GX460_CANADA (OM60F29U)
Operating HomeLink®
Press the appropriate HomeLink® button. The HomeLink® indicator
light should come on.
The HomeLink® compatible transceiver in your vehicle continues to send a
signal for up to 20 seconds as long as the button is pressed.
Reprogramming a HomeLink® button
Press and hold the desired HomeLink
® button. After 20 seconds, the
HomeLink® indicator light will start flashing slowly. Keep pressing the
HomeLink® button and then follow the “Programming HomeLink® (for
U.S. owners)” instructions. ( →P. 567)
Erasing the entire HomeLink® memory (all three programs)
Press and hold the 2 outside but-
tons for 10 seconds until the indi-
cator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
® memory.
GX460_CANADA.book Page 572 Thursday, February 4, 2010 11:54 AM

580
3-7. Other interior features
GX460_CANADA (OM60F29U)
Safety Connect∗
∗: If equipped
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to pro-
vide safety and security features to subscribers. Safety Connect is sup-
ported by Lexus’ designated response center, which operates 24 hours per
day, 7 days per week.
Safety Connect service is available by subscription on select, telematics
hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be bound by the
Telematics Subscription Service Agreement and its Terms and Conditions,
as in effect and amended from time to time, a current copy of which is avail-
able at Lexus.com. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.
■ System components
Microphone
LED light indicators
“SOS” button
GX460_CANADA.book Page 580 Thursday, February 4, 2010 11:54 AM

583
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
Safety Connect LED light IndicatorsWhen the “ENGINE START STOP” switch is turned to IGNITION ON
mode, the red indicator light comes on for 2 seconds then turns off.
Afterward, the green indicator light comes on, indicating that the service
is active.
The following indicator light patterns indicate specific system usage con-
ditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
● No indicator light (off) = Safety Connect service not active
Safety Connect services
■ Automatic Collis ion Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to speak
with the vehicle occupants to assess the level of emergency. If the
occupants are unable to communicate, the agent automatically treats
the call as an emergency, contacts the nearest emergency services
provider to describe the situation, an d requests that assistance be sent
to the location.
GX460_CANADA.book Page 583 Thursday, February 4, 2010 11:54 AM

Maintenance and care4
587
GX460_CANADA (OM60F29U)
4-1. Maintenance and careCleaning and protecting the vehicle exterior............ 588
Cleaning and protecting the vehicle interior .............. 592 4-2. Maintenance
Maintenance requirements........................ 595
General maintenance ........... 597
Emission inspection and maintenance (I/M)
programs ................................ 601
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ........................... 602
Hood .......................................... 607
Engine compartment ........... 608
Tires............................................. 627
Tire inflation pressure........... 634
Wheels ...................................... 638
Air conditioning filter ........... 640
Electronic key battery.......... 642
Checking and replacing fuses ........................................ 645
Headlight aim (vehicles with low beam halogen bulbs) ......... 658
Light bulbs................................ 660
GX460_CANADA.book Page 587 Thursday, February 4, 2010 11:54 AM

591
4-1. Maintenance and care
4
Maintenance and care
GX460_CANADA (OM60F29U)
NOTICE
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
■To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side wiper
arm upward first, and repeat for the passenger side. When returning the wipers to
their original position, do so from the passenger side first.
■When using an automatic car wash
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wipers
may operate and the wiper blades may be
damaged.OFF
GX460_CANADA.book Page 591 Thursday, February 4, 2010 11:54 AM
