key Lexus GX460 2010 Repair Manual

5
When trouble arises
709
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)
Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning message and light go off.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Sounds
once
(Flashes)
The electronic key
is not detected
when an attempt
is made to start
the engine.
Confirm the loca-
tion of the elec-
tronic key.
GX460_CANADA.book Page 709 Thursday, February 4, 2010 11:54 AM

710
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)
Sounds
onceSounds
3 times
(Flashes)
The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the “ENGINE
START STOP”
switch was in a
mode other than
off.
Bring the elec-
tronic key back
into the vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
in P and the
“ENGINE START
STOP” switch was
not turned off.
Tu r n t h e
“ENGINE START
STOP” switch off
or bring the elec-
tronic key back
into the vehicle.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
GX460_CANADA.book Page 710 Thursday, February 4, 2010 11:54 AM

5
When trouble arises
711
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)
Sounds
onceSounds
once
(Displayed alternately)(Flashes)
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the “ENGINE
START STOP”
switch off.
Tu r n t h e
“ENGINE START
STOP” switch off
and lock the
doors again.
Sounds
once
(Flashes)
An attempt was
made to start the
engine without
the electronic key
being present, or
the electronic key
was not function-
ing normally.
An attempt was
made to drive
when the regular
key was not inside
the vehicle.
Confirm that the
electronic key is
inside the vehicle.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
GX460_CANADA.book Page 711 Thursday, February 4, 2010 11:54 AM

712
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)
Con-
tinuous
(Flashes)
The driver’s door
was opened when
the shift lever was
not in P and the
“ENGINE START
STOP” switch was
not turned off.
Shift the shift lever
to P.
Con-
tinuousCon-
tinuous
(Displayed alternately)(Flashes)
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
“ENGINE START
STOP” switch was
not turned off.
• Shift the shift lever to P.
• Bring the elec- tronic key back
into the vehicle.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
GX460_CANADA.book Page 712 Thursday, February 4, 2010 11:54 AM

5
When trouble arises

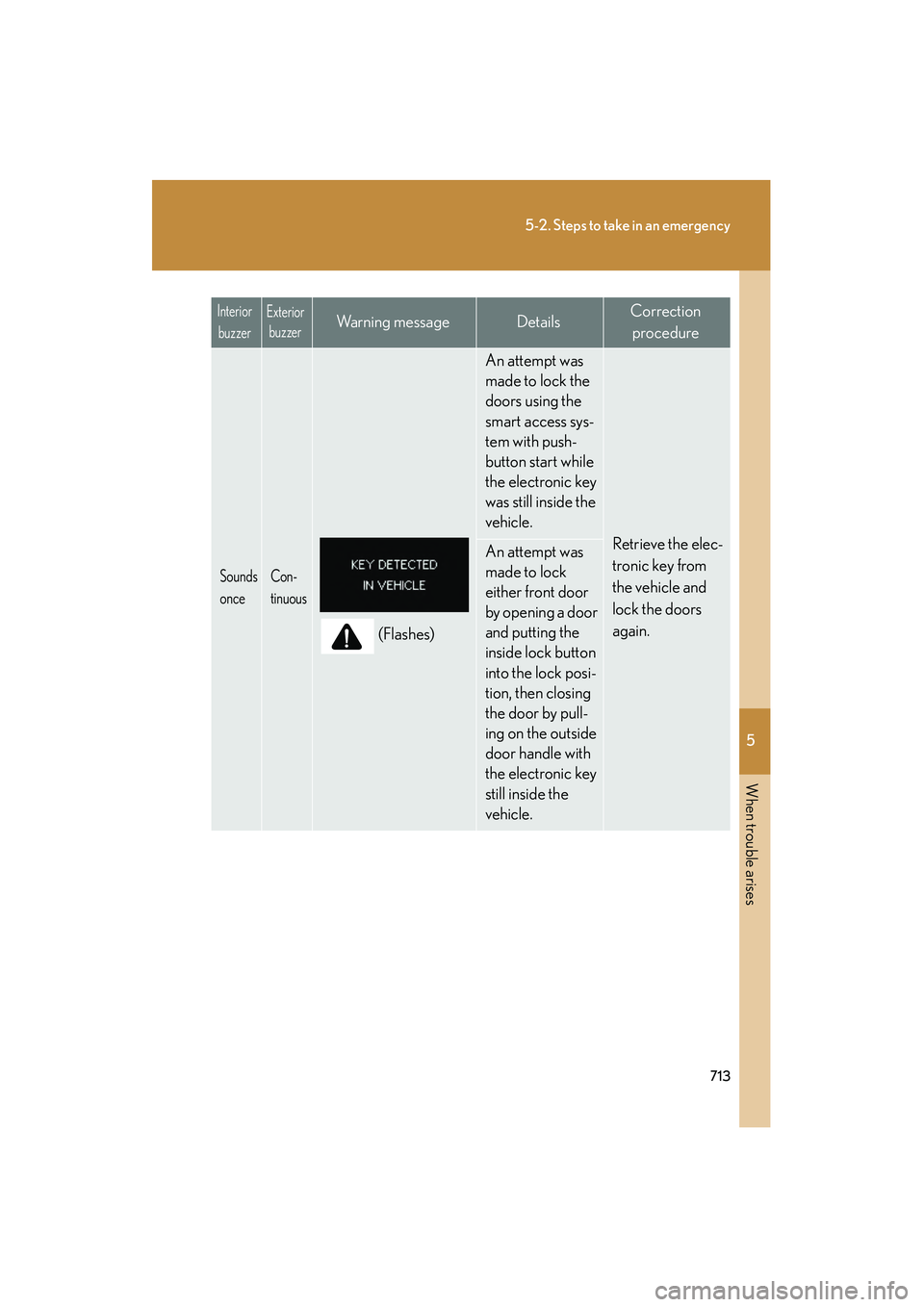

713
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)
Sounds
onceCon-
tinuous
(Flashes)
An attempt was
made to lock the
doors using the
smart access sys-
tem with push-
button start while
the electronic key
was still inside the
vehicle.
Retrieve the elec-
tronic key from
the vehicle and
lock the doors
again.An attempt was
made to lock
either front door
by opening a door
and putting the
inside lock button
into the lock posi-
tion, then closing
the door by pull-
ing on the outside
door handle with
the electronic key
still inside the
vehicle.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
GX460_CANADA.book Page 713 Thursday, February 4, 2010 11:54 AM

714
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)
Sounds
once
(Flashes)
• When the doors were unlocked
with the
mechanical key
and then the
“ENGINE
START STOP”
switch was
pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic
key could not be
detected in the
vehicle even
after the
“ENGINE
START STOP”
switch was
pressed two
consecutive
times.
Touch the elec-
tronic key to the
“ENGINE START
STOP” switch
while depressing
the brake pedal.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
GX460_CANADA.book Page 714 Thursday, February 4, 2010 11:54 AM

716
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)

Power was turned
off due to the
automatic power
off function.
Next time when
starting the
engine, increase
the engine speed
slightly and main-
tain that level for
approximately 5
minutes to
recharge the bat-
tery.
Sounds
onceThe electronic key
has a low battery.Replace the elec-
tronic key battery.
(→ P. 6 4 2 )
Interior
buzzerExterior buzzerWarning messageDetailsCorrection
procedure
GX460_CANADA.book Page 716 Thursday, February 4, 2010 11:54 AM

5
When trouble arises
717
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)
Sounds
once
(Flashes)
The driver’s door
was opened and
closed with the
“ENGINE START
STOP” switch
turned off and
then the
“ENGINE START
STOP” switch was
put in ACCES-
SORY mode
twice without the
engine being
started.
Press the
“ENGINE START
STOP” switch
while depressing
the brake pedal.
During an engine
starting proce-
dure in the event
that the elec-
tronic key was not
functioning prop-
erly (→P. 7 3 8 ) ,
the “ENGINE
START STOP”
switch was
touched with the
electronic key.
Press the
“ENGINE START
STOP” switch
within 10 seconds
of the buzzer
sounding.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
GX460_CANADA.book Page 717 Thursday, February 4, 2010 11:54 AM

5
When trouble arises
737
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)
If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using the other
key and the key number stamped on your key number plate.
GX460_CANADA.book Page 737 Thursday, February 4, 2010 11:54 AM

738
5-2. Steps to take in an emergency
GX460_CANADA (OM60F29U)
If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Use the mechanical key ( →P. 2 6 )
in order to perform the following
operations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Tu r n i n g t h e k e y r e a r w a r d u n l o c k s
the driver’s door. Turning the key
once again unlocks the other
doors.
Opens the windows and moon
roof (turn and hold)
*
*
: This setting must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is interrupted
(→ P. 40) or the electronic key cann ot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened or
the engine can be started by following the procedure below.
