start stop button Lexus GX460 2010 Owner's Manual

39
1-2. Opening, closing and locking the doors
1
Before driving
GX460_CANADA (OM60F29U)
■Switching the door unlock function
It is possible to set which doors the entry function unlocks.Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, press and hold
or for approximately 5 seconds while pressing on the key.
The setting changes each time an operation is preformed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat .)
Unlock the doors using the wireless remote control and open one of the
doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set. In case
that the alarm is triggered, immediately stop the alarm. ( →P. 1 1 6 )
STEP1
STEP2
STEP2
Multi-information
displayUnlocking functionBeep
Hold the driver’s door handle
to unlock only the driver’s
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either door handle to
unlock all doors.Exterior: Beeps twice
Interior: Pings once
STEP3
GX460_CANADA.book Page 39 Thursday, February 4, 2010 11:54 AM

45
1-2. Opening, closing and locking the doors
1
Before driving
GX460_CANADA (OM60F29U)
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine will
stop. (→P. 3 4 )
●As the electronic key always transmits radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when nec-
essary. ( →P. 6 4 2 )
• The smart access system with push-button start or the wireless remote con- trol does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Glass top ranges
• Table lamps
■When the electronic key battery is fully depleted
→ P. 6 4 2
■Customization
Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features →P. 7 8 3 )
GX460_CANADA.book Page 45 Thursday, February 4, 2010 11:54 AM

52
1-2. Opening, closing and locking the doors
GX460_CANADA (OM60F29U)
Locking the driver’s door from the outside without a key
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correc tly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock is
set.
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP1
STEP2
GX460_CANADA.book Page 52 Thursday, February 4, 2010 11:54 AM

79
1
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Before driving
GX460_CANADA (OM60F29U)
Driving position memory (driver’s seat)
Your preferred driving position (the po sition of the driver’s seat, steering
wheel and angle of the outside rear view mirrors) can be memorized and
recalled with the touch of a button. It is also possible to set this function to
activate automatically when the driver’s door is unlocked.
Two different driving positions can be entered into memory.
■ Entering a positi on into memory
Check that the shift lever is in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button 1 or 2 until the sig-
nal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3
STEP4
GX460_CANADA.book Page 79 Thursday, February 4, 2010 11:54 AM

80
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_CANADA (OM60F29U)
■Recalling the memorized position
Check that the shift lever is in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Press button 1 or 2 to recall the
desired position.
The buzzer will sound once.
STEP1
STEP2
STEP3
GX460_CANADA.book Page 80 Thursday, February 4, 2010 11:54 AM

81
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_CANADA (OM60F29U)
’
Linking driving position memory with door unlock operation
Record your driving position to button 1 or 2 before performing the fol-
lowing:
Carry only the key to which you want to link the driving position. If 2 or
more keys are in the vehicle, the driving position cannot be linked prop-
erly.
Turn the “ENGINE START STOP” switch off and close the
driver’s door. While pressing the desired button
(1 or 2), press the driver’s door lock
switches (either lock or unlock)
until the signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver ’s
door is opened.
STEP1
STEP2
GX460_CANADA.book Page 81 Thursday, February 4, 2010 11:54 AM

82
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_CANADA (OM60F29U)
■Operating the driving position memory after turning the engine off
Memorized positions (except the steering wheel position) can be activated up to
180 seconds after the driver’s door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch off.
■Canceling the linked door unlock operation Turn the “ENGINE START STOP” switch off and close the driver’s door.
While pressing “SET” button, press driver’s door lock switches (either
lock or unlock) until the signal beeps.
■Stopping seat position operation part-way through
Perform any of the following operations:
●Press the “SET” button.
●Press button 1 or 2.
●Adjust the seat using the switches (only cancels seat position recall).
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger
or squeeze your body against the steering wheel.
STEP1
STEP2
GX460_CANADA.book Page 82 Thursday, February 4, 2010 11:54 AM

231
2-3. Operating the lights and windshield wipers
2
When driving
GX460_CANADA (OM60F29U)
■If the Automatic High Beam indicator flashes...
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
To lower the sensitivity, push and hold the “AUTO” button on the inside rear view
mirror for 15 to 20 seconds, and release. The indicator light on the inside rear view
mirror will flash to indicate that the sensitivity has been lowered.
When the “ENGINE START STOP” switch is turned off, the sensitivity will be
returned to its normal level.
■Customization that can be configured at your Lexus dealer
The Automatic High Beam can be turned off.
GX460_CANADA.book Page 231 Thursday, February 4, 2010 11:54 AM

247
2-4. Using other driving systems
2
When driving
GX460_CANADA (OM60F29U)

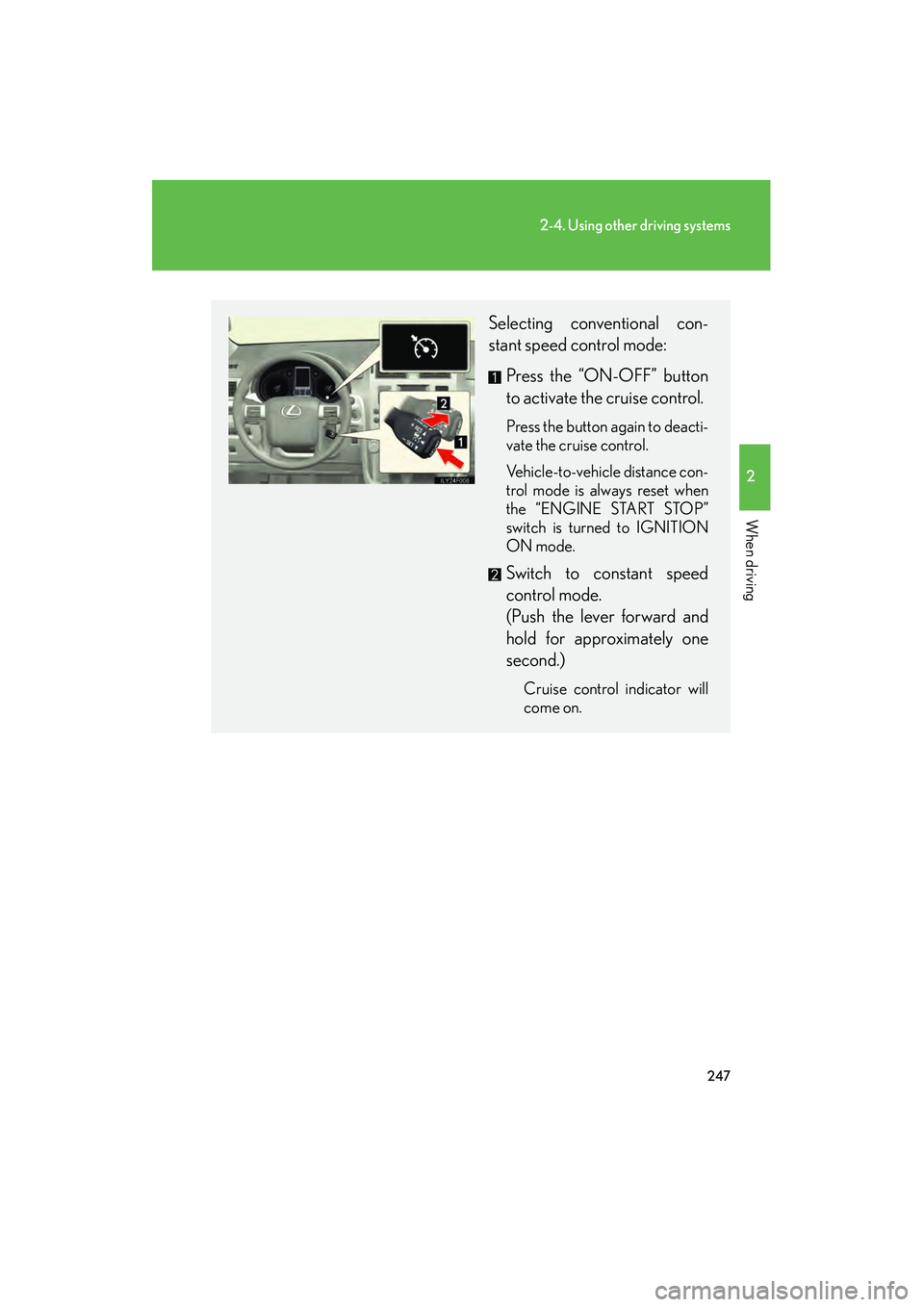

Selecting conventional con-
stant speed control mode: Press the “ON-OFF” button
to activate the cruise control.
Press the button again to deacti-
vate the cruise control.
Vehicle-to-vehicle distance con-
trol mode is always reset when
the “ENGINE START STOP”
switch is turned to IGNITION
ON mode.
Switch to constant speed
control mode.
(Push the lever forward and
hold for approximately one
second.)
Cruise control indicator will
come on.
GX460_CANADA.book Page 247 Thursday, February 4, 2010 11:54 AM

249
2-4. Using other driving systems
2
When driving
GX460_CANADA (OM60F29U)
■Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied.
Pushing the lever up resumes
the constant speed control.
■ Changing the vehicle- to-vehicle distance
Pressing the button changes the
vehicle-to-vehicle distance as
follows:
Long
Medium
Short
The vehicle-to-vehicle distance
is set automatically to long
mode when the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
If a vehicle is running ahead of
you, the preceding vehicle mark
will be also displayed.
Preceding vehicle mark
GX460_CANADA.book Page 249 Thursday, February 4, 2010 11:54 AM
