2-1. Driving proceduresDriving the vehicle ........................ 168
Engine (ignition) switch .............. 179
Automatic transmission.............. 186
Turn signal lever ............................ 192
Parking brake ................................. 193
Horn.................................................... 194
2-2. Instrument cluster Gauges and meters ..................... 195
Indicators and warning lights................................................. 198
Multi-information display (Optitron meters) ..................... 204
Multi-information display (Accessory meters)................... 212
2-3. Operating the lights and windshield wipers
Headlight switch ........................... 220
Automatic High Beam ............... 226
Fog light switch ............................. 233
Windshield wipers and washer............................................ 235
Rear window wiper and washer............................................ 239
Headlight cleaner switch ........... 241 2-4. Using other driving systems
Cruise control ............................... 242
Dynamic radar cruise control............................................ 246
Intuitive parking assist ................ 259
LDA (Lane Departure Alert) .......... 268
Rear view monitor system ........ 274
Wide view front & side monitor................................. 279
Multi-terrain Select ..................... 290
Multi-terrain Monitor ................. 298
Rear height control air suspension .................................... 310
AVS (Adaptive Variable Suspension System) .................. 316
Four-wheel drive system............ 317
Crawl Control ............................... 323
DAC (Downhill Assist Control system)........................................... 327
Driving assist systems................ 330
PCS (Pre-Collision System) .......... 338
2-5. Driving information Off-road precautions ................ 348
Cargo and luggage ..................... 353
Vehicle load limits........................ 359
Winter driving tips ........................ 361
Trailer towing ................................. 365
Dinghy towing .............................. 380
2When driving
GX460_CANADA.book Page 3 Thursday, February 4, 2010 11:54 AM

TABLE OF CONTENTSIndex
6
GX460_CANADA (OM60F29U)
5-1. Essential informationEmergency flashers..................... 674
If your vehicle needs to be towed .................................. 675
If you think something is wrong .............................................. 681
Fuel pump shut off system ....... 682
Event data recorder ................... 683
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer sounds... ...... 686
If a warning message is displayed ...................................... 698
If you have a flat tire..................... 720
If the engine will not start .......... 734
If the shift lever cannot be shifted from P .............................. 736
If you lose your keys .................... 737
If the electronic key does not operate properly ............... 738
If the vehicle battery is discharged .................................... 741
If your vehicle overheats ........... 744
If the vehicle becomes stuck................................................ 747
If your vehicle has to be stopped
in an emergency ........................ 749 6-1. Specifications
Maintenance data (fuel, oil level, etc.)..................... 752
Fuel information ............................ 764
Tire information............................. 767
6-2. Customization Customizable features............... 783
6-3. Initialization Items to initialize .......................... 803
Reporting safety defects for U.S. owners.......................... 806
Seat belt instructions for Canadian owners
(in French) ................................... 807
Abbreviation list......................... 810
Alphabetical index .................... 812
What to do if... ........................... 822
5When trouble arises6Vehicle specifications
7For owners
Index
GX460_CANADA.book Page 6 Thursday, February 4, 2010 11:54 AM

19
GX460_CANADA (OM60F29U)
Warning reflector holder P. 558
Tools P. 720
Back door handle
GX460_CANADA.book Page 19 Thursday, February 4, 2010 11:54 AM

23
GX460_CANADA (OM60F29U)

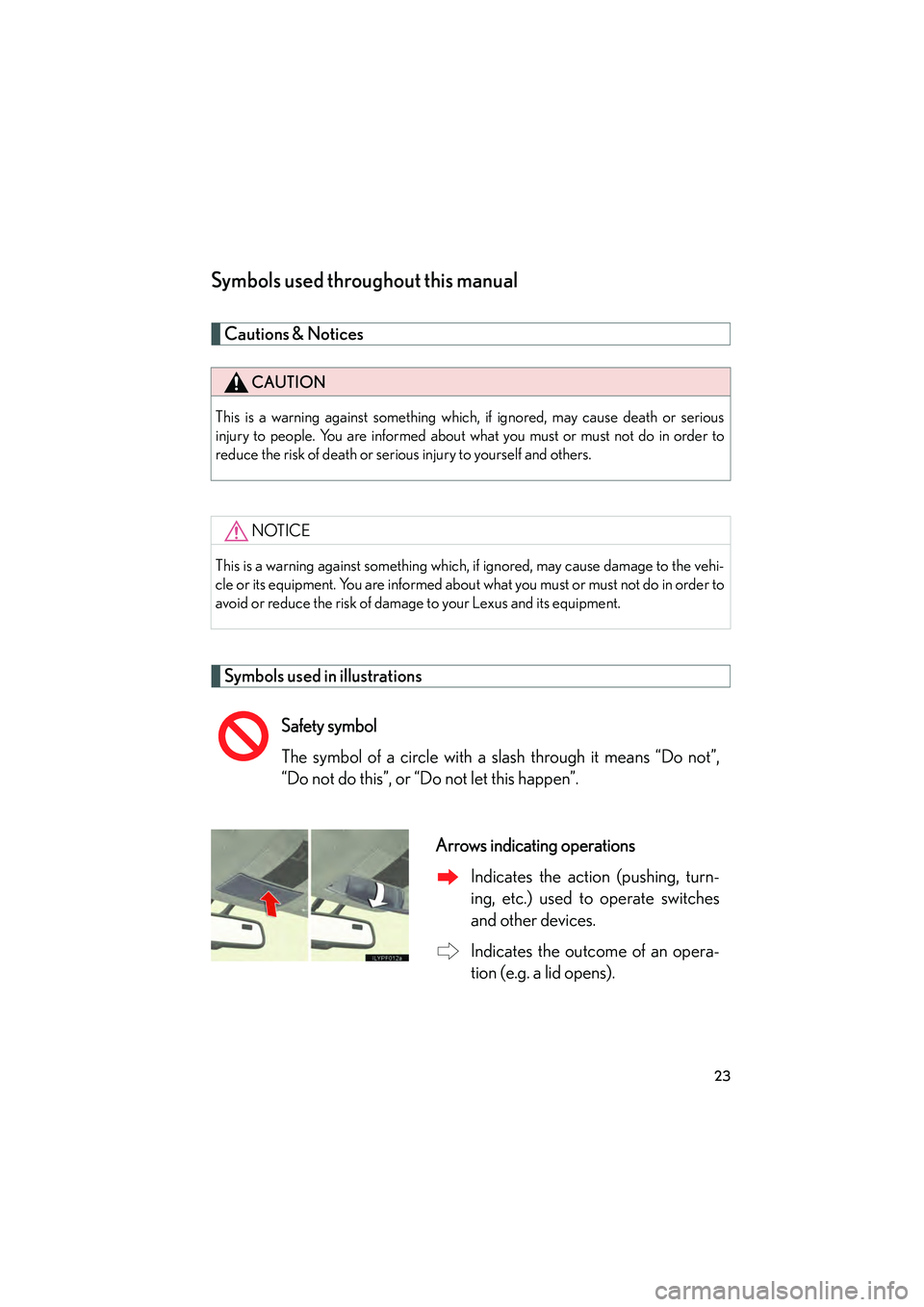

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or serious
injury to people. You are informed about what you must or must not do in order to
reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to the vehi-
cle or its equipment. You are informed about what you must or must not do in order to
avoid or reduce the risk of damage to your Lexus and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.Arrows indicating operationsIndicates the action (pushing, turn-
ing, etc.) used to operate switches
and other devices.
Indicates the outcome of an opera-
tion (e.g. a lid opens).
GX460_CANADA.book Page 23 Thursday, February 4, 2010 11:54 AM

34
1-2. Opening, closing and locking the doors
GX460_CANADA (OM60F29U)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
■When the door cannot be locked by the lock sensor on the upper part of the door
handle
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages shown
on the multi-information display is used to prevent theft of the vehicle and accidents
resulting from erroneous operation.
●When a warning message is shown on the multi-information display
Take appropriate measures in response to the warning message on the multi-
information display. (→P. 7 0 9 ) Touch both lock sensors on the upper and
lower part of the door handle simultaneously.
GX460_CANADA.book Page 34 Thursday, February 4, 2010 11:54 AM

46
1-2. Opening, closing and locking the doors
GX460_CANADA (OM60F29U)
■Certification for the smart access system with push-button start
U.S.A.
FCC ID: NI4TMIMB-2
FCC ID: NI4TMLF8-21
FCC ID: HYQ14ACX FCC ID: HYQ14ADF
FCC ID: HYQ13CZM FCC ID: HYQ13CZN
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
GX460_CANADA.book Page 46 Thursday, February 4, 2010 11:54 AM

76
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_CANADA (OM60F29U)
■Enlarging the luggage compartment (vehicles with third seats)
The third seat can be used for sitting when it is in the position shown in of
the folding down the third seats. (→P. 7 3 )
This can be convenient for enlarging the luggage compartment, for instance when
the luggage is against the back of the seatback.
■If the warning buzzer sounds continuously (vehicles with third seats)
If there is an abnormality in the system, the warning buzzer will sound continuously
while the “ENGINE START STOP” switch is in IGNITION ON mode. In this case,
take the following operations:
Press and hold .
Press and hold to stow the seat.
For each step, wait until the seat movement stops automatically and the two beeps
sound twice before removing your hand from the switch.
If the warning buzzer does not stop even after performing the above procedure
correctly, perform the following operations:
Press and hold on the rear door side.
While holding , press forward on 5 times within 10 seconds
and keep holding until 3 beeps sound. The beep will then sound
continuously again.
Repeat and .
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5STEP1STEP2
GX460_CANADA.book Page 76 Thursday, February 4, 2010 11:54 AM

91
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_CANADA (OM60F29U)
CAUTION
■Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, which prevents the sensor form detecting
the passenger’s weight properly. As a result, the seat belt pretensioner for the
front passenger’s seat may not activate in the event of a collision.
●If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at your Lexus dealer.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in a collision. (→P. 8 7 )
■Child restraint lock function belt precaution
Do not allow children to play with the chil d restraint lock function belt. If the belt
becomes twisted around a child’s neck, it will not be possible to pull the belt out
leading to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
GX460_CANADA.book Page 91 Thursday, February 4, 2010 11:54 AM

123
1-7. Safety information
1
Before driving
GX460_CANADA (OM60F29U)
SRS airbag system componentsOccupant detection system
(ECU and sensors)
Knee airbag
Curtain shield airbag
Front passenger airbag
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Side and curtain shield airbag
sensor
Front side airbag
SRS warning light and “RSCA
OFF” indicator light Rear side (if equipped) and
curtain shield airbag sensor
Rear side airbag (outer second
seat) (if equipped)
Driver airbag
Driver’s seat belt buckle switch
Floor sensor
“RSCA OFF” switch
Airbag sensor assembly
Front airbag sensor
Front passenger’s seat belt
buckle switch
GX460_CANADA.book Page 123 Thursday, February 4, 2010 11:54 AM

140
1-7. Safety information
GX460_CANADA (OM60F29U)
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and
activates or deactivates the devices for the front passenger.
SRS warning light
Front passenger’s seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
GX460_CANADA.book Page 140 Thursday, February 4, 2010 11:54 AM
