load capacity Lexus GX460 2012 User Guide

774
6-1. Specifications
GX460_U.S.A. (OM60J00U)
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic trans-
mission, power steering, power brakes, power win-
dows, power seats, radio and heater, to the extent
that these items are available as factory-installed
equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil
and coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

775
6-1. Specifications
6
Vehicle specifications
GX460_U.S.A. (OM60J00U)
Tire related termMeaning
Normal occupant weight150 lb. (68 kg) times the number of occupants spec-
ified in the second column of Table 1 that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1* below
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a rim by
style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68
kg) times the vehicle’s designated seating capacity

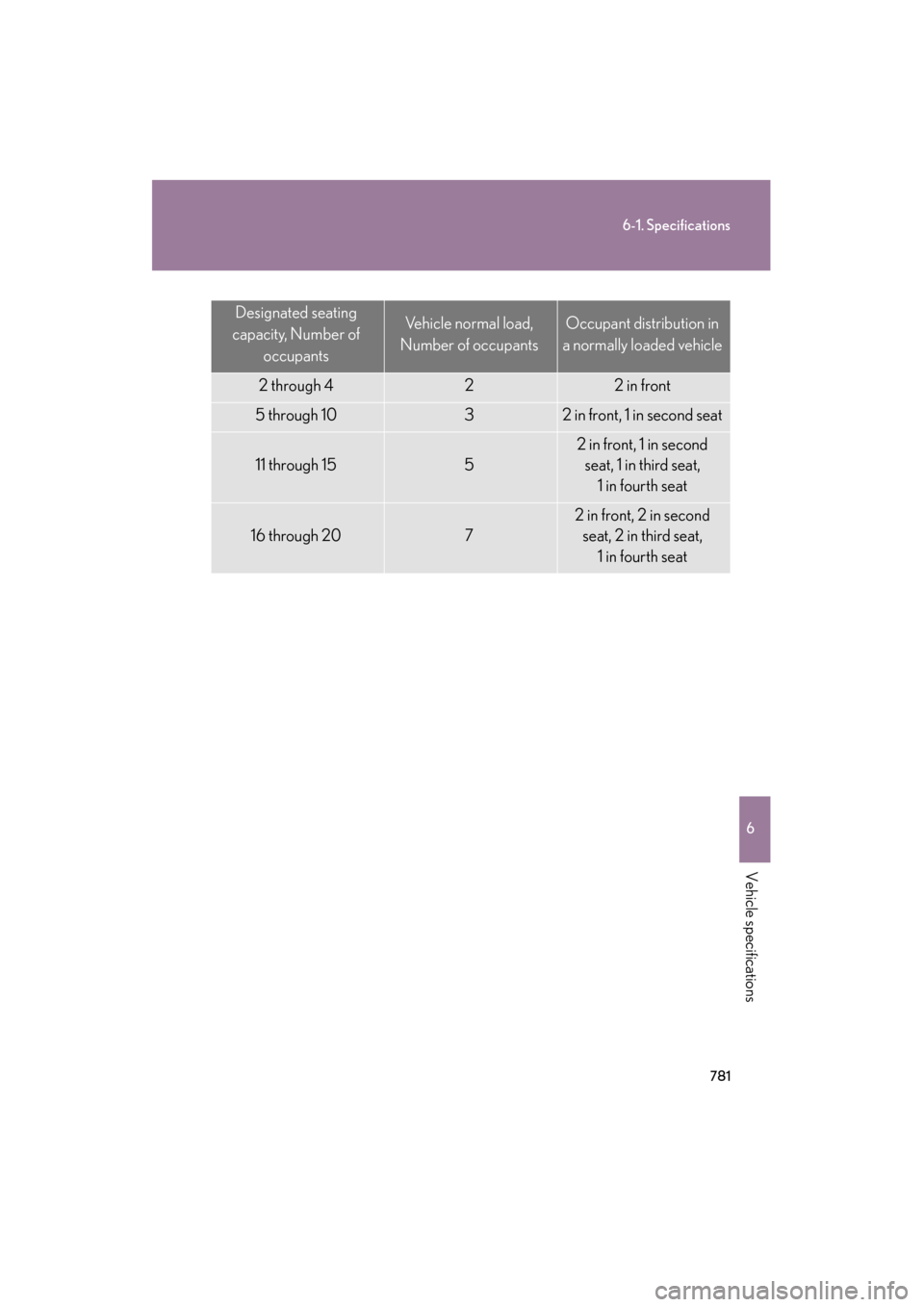

781
6-1. Specifications
6
Vehicle specifications
GX460_U.S.A. (OM60J00U)
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in
a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second seat, 1 in third seat,
1 in fourth seat
16 through 207
2 in front, 2 in second seat, 2 in third seat,
1 in fourth seat

826
Alphabetical index
GX460_U.S.A. (OM60J00U)
LightsDoor courtesy lights.......................... 519
Emergency flasher switch ............. 676
Engine switch light ............................. 519
Fog light switch................................... 233
Hazard light switch ........................... 676
Headlights switch ................................ 219
Inside door handle light................... 519
Interior lights list................................... 519
Personal/interior lights .....................521
Replacing light bulbs........................ 662
Running board lights......................... 519
Scuff lights............................................... 519
Shift lever light ...................................... 519
Turn signal lever ................................... 192
Vanity lights ..........................................539
Wattage.................................................. 763
Load capacity .........................................364
Luggage cover...................................... 560
Maintenance Do-it-yourself ma intenance .........603
General maintenance .................... 598
Maintenance data.............................. 752
Maintenance requirements ..........596
Meter
Instrument cluster light control....................................................196
Meters ...................................................... 195
Micro dust and pollen filter................ 401
Mirrors Inside rear view mirror....................... 95
Side mirror heater .................................411
Side mirrors ............................................. 97
Vanity mirrors......................................539 Moon roof................................................. 104
MP3 disc....................................................431
Multi-information display
Brightness control .............................. 215
Multi-information display ........ 204, 212
Multi Terrain ABS ................................ 335
Multi-terrain Monitor ......................... 304
Multi-terrain Select.............................. 296
Navigation system
*
Noise from under vehicle .................... 20
Odometer ................................................ 195
Off-road precautions ......................... 353
Oil Engine oil................................................... 611
Opener Fuel filler door .......................................109
Hood .......................................................608
Outside rear view mirrors
Adjusting and folding .......................... 97
Driving position memory ..................78
Outside temperature display .......................................... 205, 212
Overhead console ............................... 533
Overheating, Engine .......................... 744
Parking assist sensors......................... 266
Parking brake...........................................193
Parking lights Replacing light bulbs ....................... 667
Switch ........................................................ 219
Wattage ..................................................763
PCS ............................................................ 343
M
N
O
P

829
Alphabetical index
GX460_U.S.A. (OM60J00U)
Switch“ENGINE START STOP”
switch ..................................................... 179
Engine switch ........................................ 179
“2nd STRT” switch ............................. 188
Center differential lock/unlock
switch ................................................... 323
“DAC” switch ...................................... 332
Emergency flasher Switch ............ 676
Fog light switch................................... 233
Hazard light Switch .......................... 676
Heated steering wheel switch .... 549
Height control off switch .................316
Ignition switch........................................ 179
Light switches........................................ 219
Power door lock switch.................... 50
Power window switch........................ 101
“RSCA OFF” switch .......................... 137
Rear window defogger switch
*.................................................... 411
Transmission shift switch .................189
Window lock switch ........................... 101
Wipers and washer switch........... 236
Tachometer .............................................. 195
Tail lights Replacing light bulbs ........................672
Switch ........................................................ 219
Talk switch
*............................................ 490
Telephones switch
*............................ 490
Theft deterrent system Alarm ........................................................... 117
Engine immobilizer system ..............115 Tire inflation pressure .........................635
Tire information
Glossary ................................................. 774
Size............................................................770
Tire identification number..............769
Uniform Tire Quality Grading .... 772
Tires Chains .................................................... 366
Checking .............................................. 628
If you have a flat tire ............................ 721
Inflation pressure................................ 762
Information ........................................... 768
Pressure warning system.............. 628
Replacing ................................................. 721
Rotating tires ....................................... 628
Size............................................................ 762
Snow tires ............................................. 366
Spare tire .................................................. 721
Tire pressure warning system ................................................. 628
Tools .............................................................721
Total load capacity ............................... 364
Towing Dinghy towing .................................... 389
Emergency towing............................ 677
Trailer towing .......................................370
T
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

831
Alphabetical index
GX460_U.S.A. (OM60J00U)
Rear height control air suspension system.................................................. 702
Smart access system with push button start .......................................... 710
Steering lock system.......................... 701
Warning reflector holder.................. 558
Washer Checking ................................................627
Preparing and checking before winter.................................... 366
Switch ...................................................... 236
Washing and waxing .......................... 588
Weight Cargo capacity ..................................358
Load limits ............................................. 364
Weight .....................................................752
Wheels ..................................................... 639
Wide view front & side monitor
*..................................... 286
Window glasses ...................................... 101
Window lock switch............................... 101
Windows
Power windows .................................... 101
Rear window defogger ...................... 411
Washer ................................................... 236
Windshield wiper de-icer
*................ 412
Windshield wipers ................................236
Winter driving tips ............................... 366
Wireless remote control key Locking/Unlocking ..............................47
Replacing the battery ...................... 644
Wireless remote control key...........47
WMA disc................................................. 431
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
