244
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60J00U)
■The rear window wiper and washer can be operated when
●The “ENGINE START STOP” switch is in IGNITION ON mode.
●The glass hatch is closed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.

289
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)
■The wide view front & side monitor can be operated when
●The “ENGINE START STOP” switch is in IGNITION ON mode.
●The vehicle speed is less than approximately 6 mph (10km/h).
■Automatic system cancelation
In the following situations, the system is canceled automatically.
●When the vehicle speed exceeds approximately 7 mph (12 km/h).
●When the shift lever is in P or R.
■When the outside rear view mirrors have been folded
The side monitor screen can be displayed even if the outside rear view mirrors have
been folded. In this case, there will be a slight difference between the image dis-
played when the outside rear view mirrors are extended and when the outside rear
view mirrors have been folded.
If the side monitor is displayed while the outside rear view mirrors are folded, you
cannot check the area near the front edge of the vehicle as the base of the outside
rear view mirrors will be in the way.

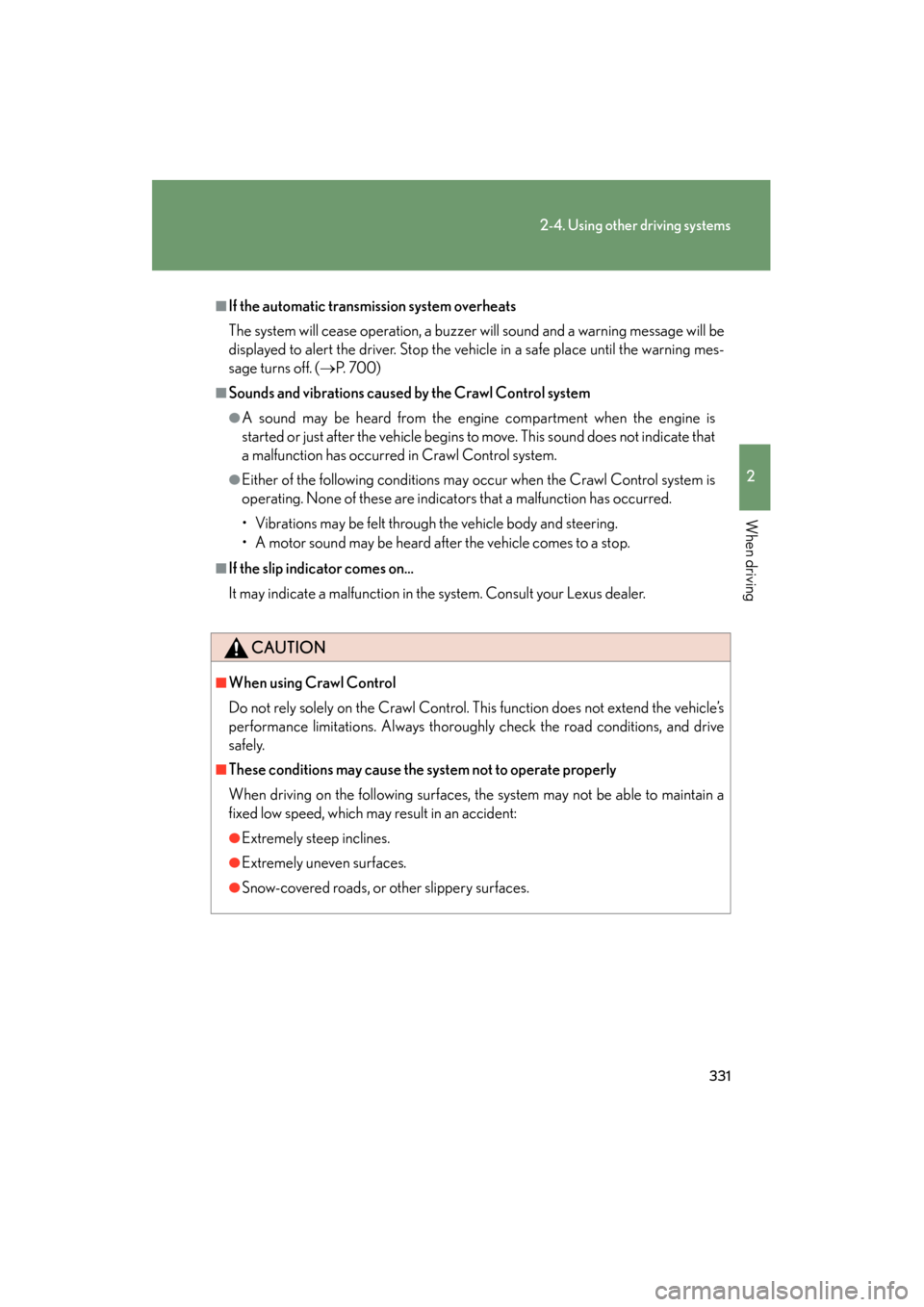

331
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)
■If the automatic transmission system overheats
The system will cease operation, a buzzer will sound and a warning message will be
displayed to alert the driver. Stop the vehicle in a safe place until the warning mes-
sage turns off. (→P. 700)
■Sounds and vibrations caused by the Crawl Control system
●A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate that
a malfunction has occurred in Crawl Control system.
●Either of the following conditions may occur when the Crawl Control system is
operating. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
■If the slip indicator comes on...
It may indicate a malfunction in the system. Consult your Lexus dealer.
CAUTION
■When using Crawl Control
Do not rely solely on the Crawl Control. This function does not extend the vehicle’s
performance limitations. Always thoroughly check the road conditions, and drive
safely.
■These conditions may cause the system not to operate properly
When driving on the following surfaces, the system may not be able to maintain a
fixed low speed, which may result in an accident:
●Extremely steep inclines.
●Extremely uneven surfaces.
●Snow-covered roads, or other slippery surfaces.

333
2-4. Using other driving systems
2
When driving
GX460_U.S.A. (OM60J00U)
■Operating tips
The system will operate when the shift lever is in a position other than P, however to
make effective use of the system it is recommended that the shift lever be shifted to
2 or 1 range of S mode.
■If the four-wheel drive control switch is in H4
The system does not operate.
■When the downhill assist control system is operated continuously
This may cause the brake actuator to overheat. In this case, the downhill assist con-
trol system will stop operating, a buzzer will sound and the DAC indicator will start
flashing, and the TRAC OFF will be shown on the multi-information display. Refrain
from using the system until the DAC indicator stays on and the message goes off.
(The vehicle can be driven normally during this time.)
■Sounds and vibrations caused by the DAC
●A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate that
a malfunction has occurred in DAC.
●Either of the following conditions may occur when the DAC is operating. None
of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
■System malfunction
●The DAC indicator does not come on when the “ENGINE START STOP”
switch is turned to IGNITION ON mode.
●The “DAC” indicator does not come on when the “DAC” switch is pressed.
●The slip indicator comes on.
In the above cases, have your vehicle checked by your Lexus dealer.

357
2-5. Driving information
2
When driving
GX460_U.S.A. (OM60J00U)
NOTICE
■To prevent the water damage
Take all necessary safety measures to ensure that water damage to the engine or
other components does not occur.
●Water entering the engine air intake will cause severe engine damage.
●Water entering the automatic transmission will cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately dam-
age.
●Water can wash the grease from wheel bearings, causing rusting and premature
failure, and may also enter the differentials, transmission and transfer case, reduc-
ing the gear oil’s lubricating qualities.
■When you drive through water
If driving through water, such as when crossing shallow streams, first check the
depth of the water and the bottom of the riverbed for firmness. Drive slowly and
avoid deep water.
■Inspection after off-road driving
●Sand and mud that has accumulated in brake drums and around brake discs may
affect braking efficiency and may damage brake system components.
●Always perform a maintenance inspection after each day of off-road driving that
has taken you through rough terrain, sand, mud, or water. For scheduled mainte-
nance information, refer to the “Warranty and Services Guide”, “Owner’s Manual
Supplement” or “Scheduled Maintenance”.

366
2-5. Driving information
GX460_U.S.A. (OM60J00U)
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■ Before driving the vehicle
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.

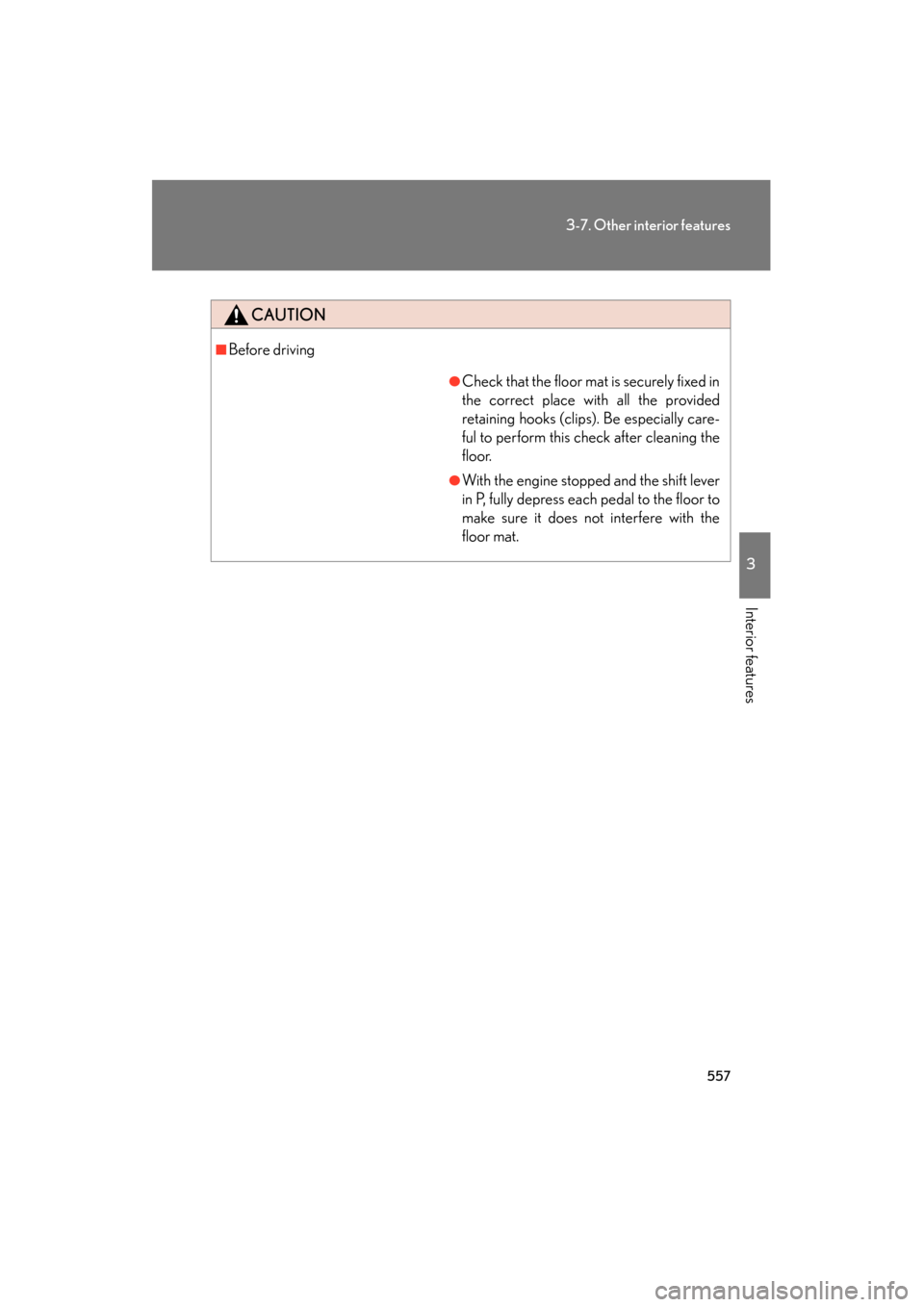

557
3-7. Other interior features
3
Interior features
GX460_U.S.A. (OM60J00U)
CAUTION
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided
retaining hooks (clips). Be especially care-
ful to perform this check after cleaning the
floor.
●With the engine stopped and the shift lever
in P, fully depress each pedal to the floor to
make sure it does not interfere with the
floor mat.

Maintenance and care4
587
GX460_U.S.A. (OM60J00U)
4-1. Maintenance and careCleaning and protecting the vehicle exterior............ 588
Cleaning and protecting the vehicle interior .............. 593 4-2. Maintenance
Maintenance requirements........................ 596
General maintenance .......... 598
Emission inspection and maintenance (I/M)
programs ............................... 602
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ........................... 603
Hood .......................................... 608
Engine compartment ........... 609
Tires............................................ 628
Tire inflation pressure........... 635
Wheels ...................................... 639
Air conditioning filter ........... 642
Electronic key battery.......... 644
Checking and replacing fuses ......................................... 647
Headlight aim (vehicles with low beam
halogen bulbs)...................... 660
Light bulbs................................ 662

598
4-2. Maintenance
GX460_U.S.A. (OM60J00U)
General maintenance
Engine compartment
ItemsCheck points
BatteryCheck the indicator and
connections. (→P. 6 2 3 )
Brake fluidIs the brake fluid at the correct level?
(→ P. 6 1 9 )
Engine coolantIs the engine coolant at the correct
level? ( →P. 6 1 6 )
Engine oilIs the engine oil at the correct level?
(→ P. 611)
Exhaust systemThere should not be any fumes or
strange sounds.
Power steering fluidIs the power steering fluid at the
correct level? ( →P. 6 2 1 )
Radiator/condenser
The radiator and condenser should
be free from foreign objects.
( →P. 6 1 8 )
Wa s h e r f l u i dIs there sufficient washer fluid?
(→ P. 6 2 7 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

601
4-2. Maintenance
4
Maintenance and care
GX460_U.S.A. (OM60J00U)
Vehicle exterior
ItemsCheck points
Doors• Do the doors operate smoothly?
Engine hood• Does the engine hood lock system work properly?
Fluid leaks
• There should not be any signs of fluid leakage after the vehicle has
been parked.
Ti r e
• Is the tire inflation pressure cor-rect?
• The tires should not be damaged or
excessively worn.
• Have the tires been rotated according to the maintenance
schedule?
• The wheel nuts should not be loose.
CAUTION
■If the engine is running
Turn off the engine and ensure that there is adequate ventilation before performing
maintenance checks.
