When trouble arises
707
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
(U.S.A. only)
Indicates that the engine
oil and oil filter should be
changedHave the engine oil and oil
filter checked and
changed by your Lexus
dealer.
(Turns on)
(If equipped)
Indicates that the pre-
collision system is not
currently functional
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(If equipped)
Indicates that intuitive
parking assist is dirty or
covered with iceA buzzer also sounds.
Clean the sensor.
Wa r n i n g m e s s a g eDetailsCorrection procedure

710
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Sounds
once
(Flashes)
The electronic key
is not detected
when an attempt
is made to start
the engine.
Confirm the loca-
tion of the elec-
tronic key.

732
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or injuries due to the vehicle sud-
denly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Be sure to turn off the rear height control air suspension and stop the engine.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured.
■Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screwdriver, to pre-
vent the extension parts from coming apart unexpectedly.

742
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle
is not in use, due to natural discharge and the draining effects of certain electrical
appliances. If the vehicle is left for a long time, the battery may discharge, and the
engine may be unable to start. (The battery recharges automatically during driving.)
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Open and close any of the doors of your vehicle with the
“ENGINE START STOP” switch off.
Maintain the engine speed of the second vehicle and start the
engine of your vehicle by turning the “ENGINE START STOP”
switch to IGNI TION ON mode.
Once your vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.STEP3
STEP4
STEP5
STEP6

744
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
If your vehicle overheats
If the engine overheats:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Carefully lift the hood after the steam sub-
sides and then restart the engine.
If you do not see steam: Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: Stop the engine and call your local Lexus dealer.STEP1
STEP2
STEP3

5
When trouble arises
745
5-2. Steps to take in an emergency
GX460_U.S.A. (OM60J00U)
After the engine has cooled
down sufficiently, check the
coolant level and inspect the
radiator core (radiator) for any
leaks.
If the engine cover needs to be
removed. (→P. 6 1 0 )
Add engine coolant if required.
Water can be used as an emer-
gency measure if engine coolant
is unavailable. ( →P. 7 5 7 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP4
STEP5

755
6-1. Specifications
6
Vehicle specifications
GX460_U.S.A. (OM60J00U)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill — reference
*)
With filter
Without filter
8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)
Outside temperature

758
6-1. Specifications

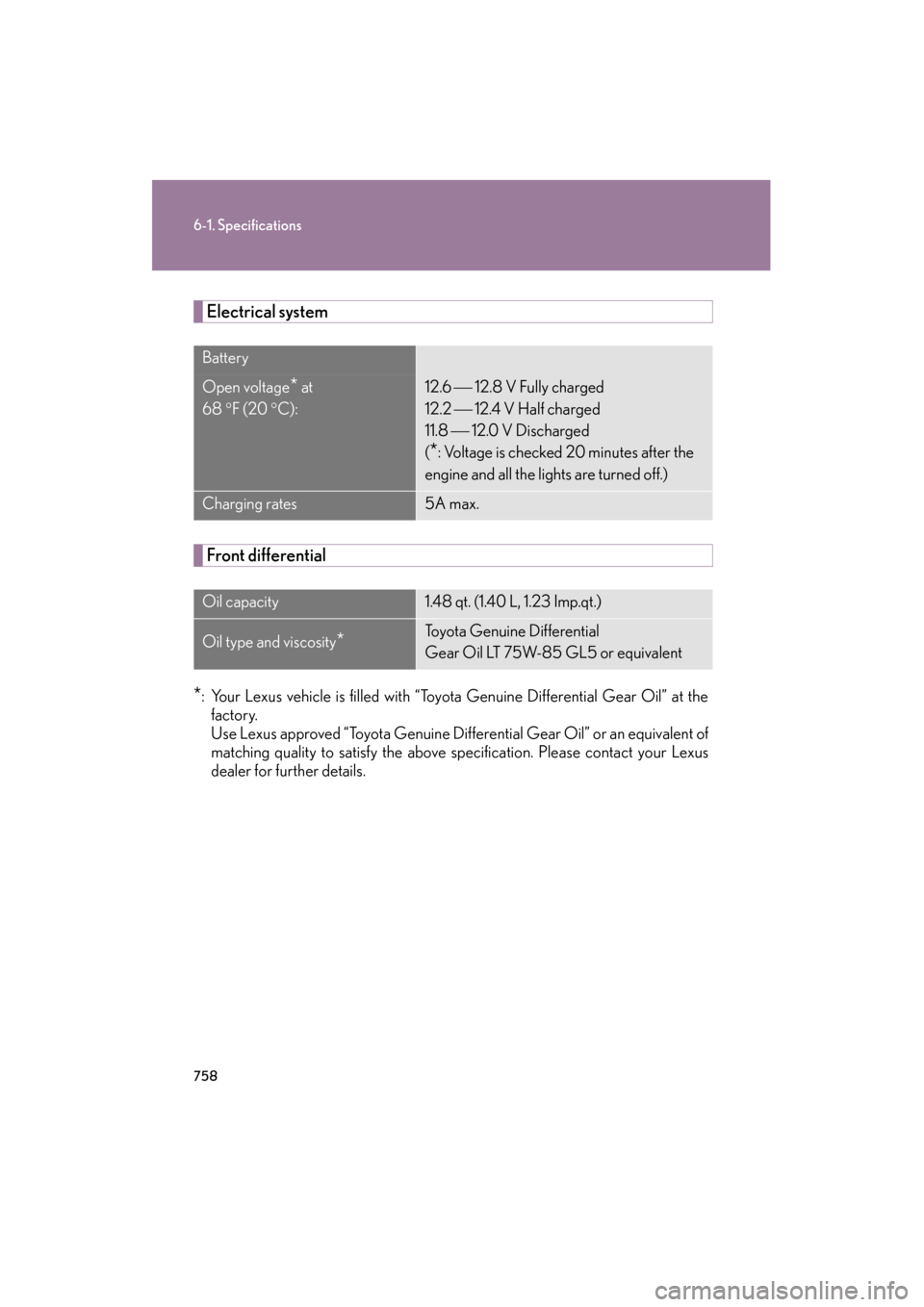

GX460_U.S.A. (OM60J00U)
Electrical system
Front differential
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
Battery
Open voltage* at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(
*: Voltage is checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5A max.
Oil capacity1.48 qt. (1.40 L, 1.23 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential
Gear Oil LT 75W-85 GL5 or equivalent
