Lexus GX460 2012 Owner's Manual

519
3
Interior features
GX460_U.S.A. (OM60J00U)
3-5. Using the interior lights
Interior lights list
Personal/interior lights (→P. 5 2 1 )
Inside door handle lights
Shift lever light (when the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode)
“ENGINE START STOP” switch light
Scuff lights (if equipped)
Footwell lights
Door courtesy lights
Running board lights

520
3-5. Using the interior lights
GX460_U.S.A. (OM60J00U)
Personal/interior light main switchOFF
The personal/Interior lights and
interior light can be individually
turned on or off.
Door position
The personal/interior lights
come on when a door is
opened. They turn off when the
doors are closed.
On
The personal/interior lights can-
not be individually turned off.
Personal/interior light main switch

521
3-5. Using the interior lights
3
Interior features
GX460_U.S.A. (OM60J00U)
Personal/interior lightsFront Turns the lights on/off
Rear Turns the lights on/off
Personal/interior lights

522
3-5. Using the interior lights
GX460_U.S.A. (OM60J00U)

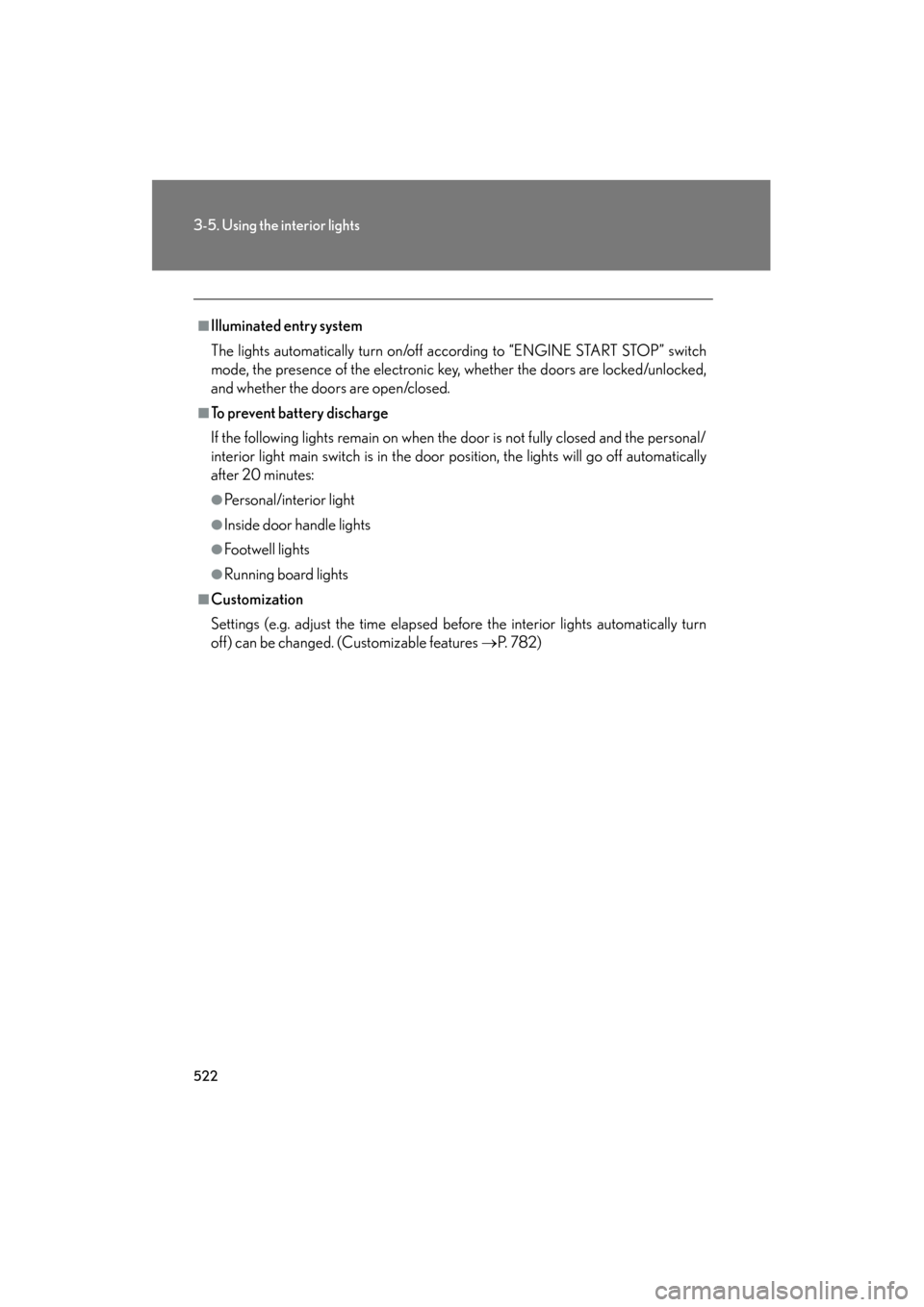

■Illuminated entry system
The lights automatically turn on/off according to “ENGINE START STOP” switch
mode, the presence of the electronic key, whether the doors are locked/unlocked,
and whether the doors are open/closed.
■To prevent battery discharge
If the following lights remain on when the door is not fully closed and the personal/
interior light main switch is in the door position, the lights will go off automatically
after 20 minutes:
●Personal/interior light
●Inside door handle lights
●Footwell lights
●Running board lights
■Customization
Settings (e.g. adjust the time elapsed before the interior lights automatically turn
off) can be changed. (Customizable features →P. 7 8 2 )

523
3
Interior features
GX460_U.S.A. (OM60J00U)
3-6. Using the storage features
List of storage features
Cup holders
Auxiliary boxes
Bottle holders/door pockets
Glove box
Console box (if equipped)
Coin holder (if equipped)

524
3-6. Using the storage features
GX460_U.S.A. (OM60J00U)

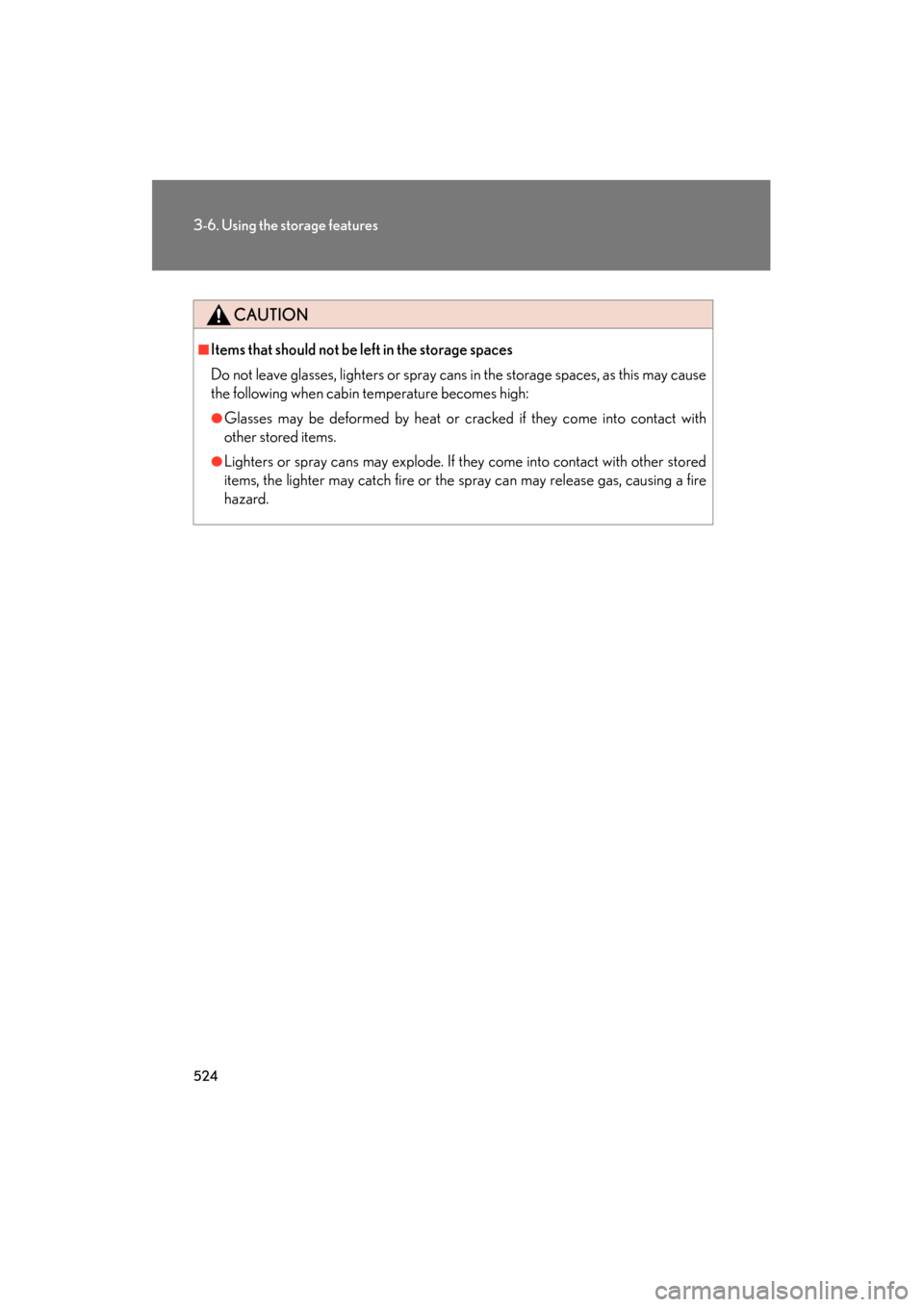

CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with
other stored items.
●Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.

525
3-6. Using the storage features
3
Interior features
GX460_U.S.A. (OM60J00U)
Glove boxThe glove box can be opened by pulling the lever and can be locked and
unlocked by using the mechanical key. Lock
Unlock
Open
■Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
■Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open glove box or the
items stored inside.
Glove box

526
3-6. Using the storage features
GX460_U.S.A. (OM60J00U)
Console box (if equipped)Your vehicle is equipped with either a console box or cool box.
For vehicles with the cool box, refer to P. 535.
Console box Lift the lid while pulling up the
lower lever to release the lock.
■Console box light
The console box light turns on when the tail lights are on.
■When using the console box lid as an armrest
Slide the console box lid forward or back-
ward as needed. Slide the lid while pulling up
the upper lever to release the lock.
Console box

527
3-6. Using the storage features
3
Interior features
GX460_U.S.A. (OM60J00U)
■Tray in the console box
■Removing the tray
CAUTION
■Caution while driving
Keep the console box closed. In the event of sudden braking or sudden swerving,
an accident may occur due to an occupant being struck by the open console box or
the items stored inside.
NOTICE
■Tr a y
Do not insert items exceeding the height of the tray. Doing so may prevent opening
and closing of the lid.
The tray slides forward/backward.
Pull up the tray.
Console box

528
3-6. Using the storage features
GX460_U.S.A. (OM60J00U)
Coin holder (if equipped)The coin holder is located in the console box.
Coin holder
