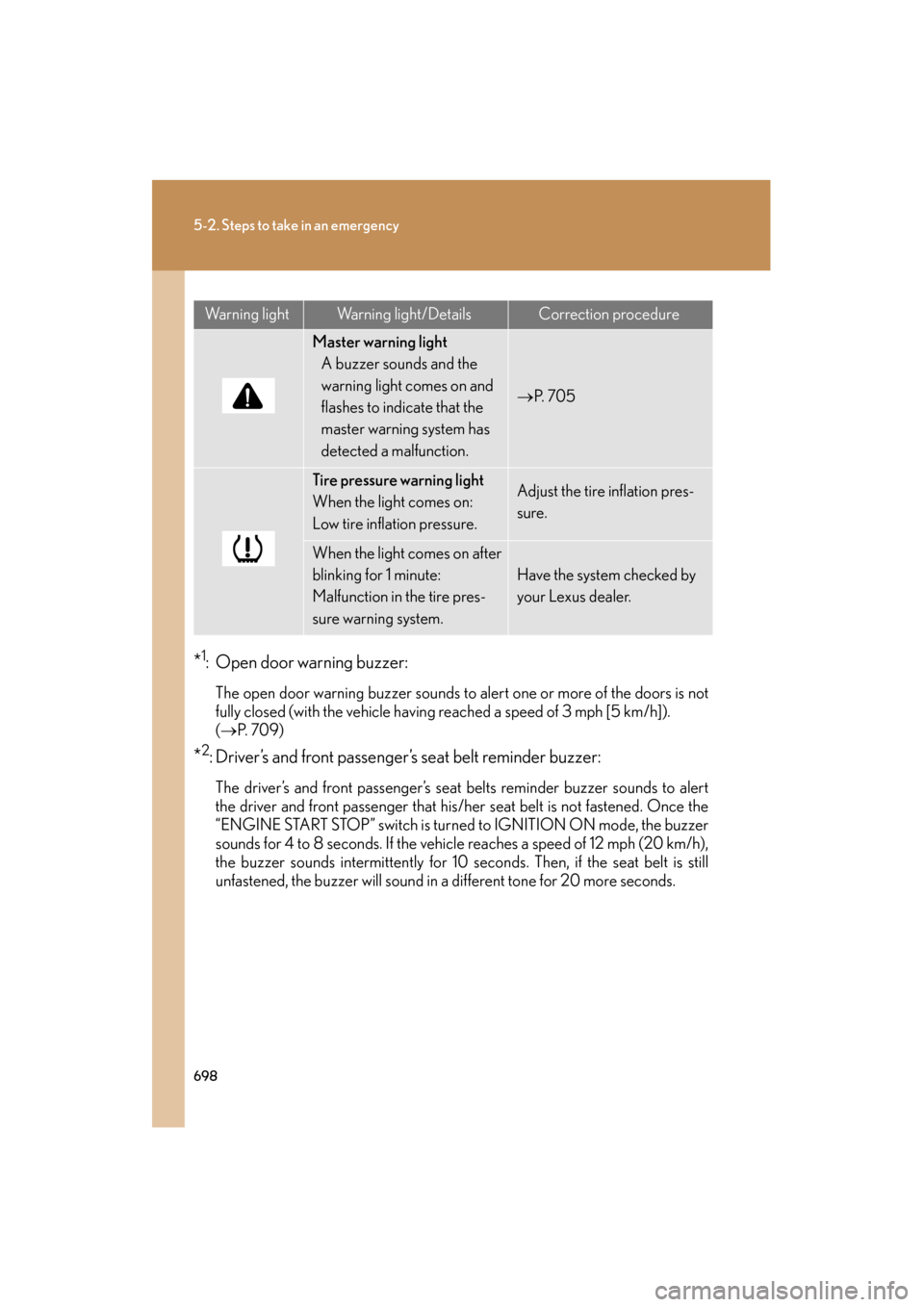

698
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
*1: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is not
fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
(→ P. 7 0 9 )
*2: Driver’s and front passenger’s seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder buzzer sounds to alert
the driver and front passenger that his/her seat belt is not fastened. Once the
“ENGINE START STOP” switch is turned to IGNITION ON mode, the buzzer
sounds for 4 to 8 seconds. If the vehicle reaches a speed of 12 mph (20 km/h),
the buzzer sounds intermittently for 10 seconds. Then, if the seat belt is still
unfastened, the buzzer will sound in a different tone for 20 more seconds.
Warning lightWarning light/DetailsCorrection procedure
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
→ P. 7 0 5
Tire pressure warning light
When the light comes on:
Low tire inflation pressure.Adjust the tire inflation pres-
sure.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system.
Have the system checked by
your Lexus dealer.
GX460_OM_OM60J63U_(U).book Page 698 Thursday, March 29, 2012 9:10 AM

706
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Have the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Indicates that the automatic transmission fluid tem-
perature is too high Stop the vehicle in a safe place, shift the shift lever to
P and wait until the message goes off. If the message
goes off, you may start the vehicle again.
Indicates a malfunction in the automatic transmission
system
Indicates a malfunction in the steering lock system
GX460_OM_OM60J63U_(U).book Page 706 Thursday, March 29, 2012 9:10 AM

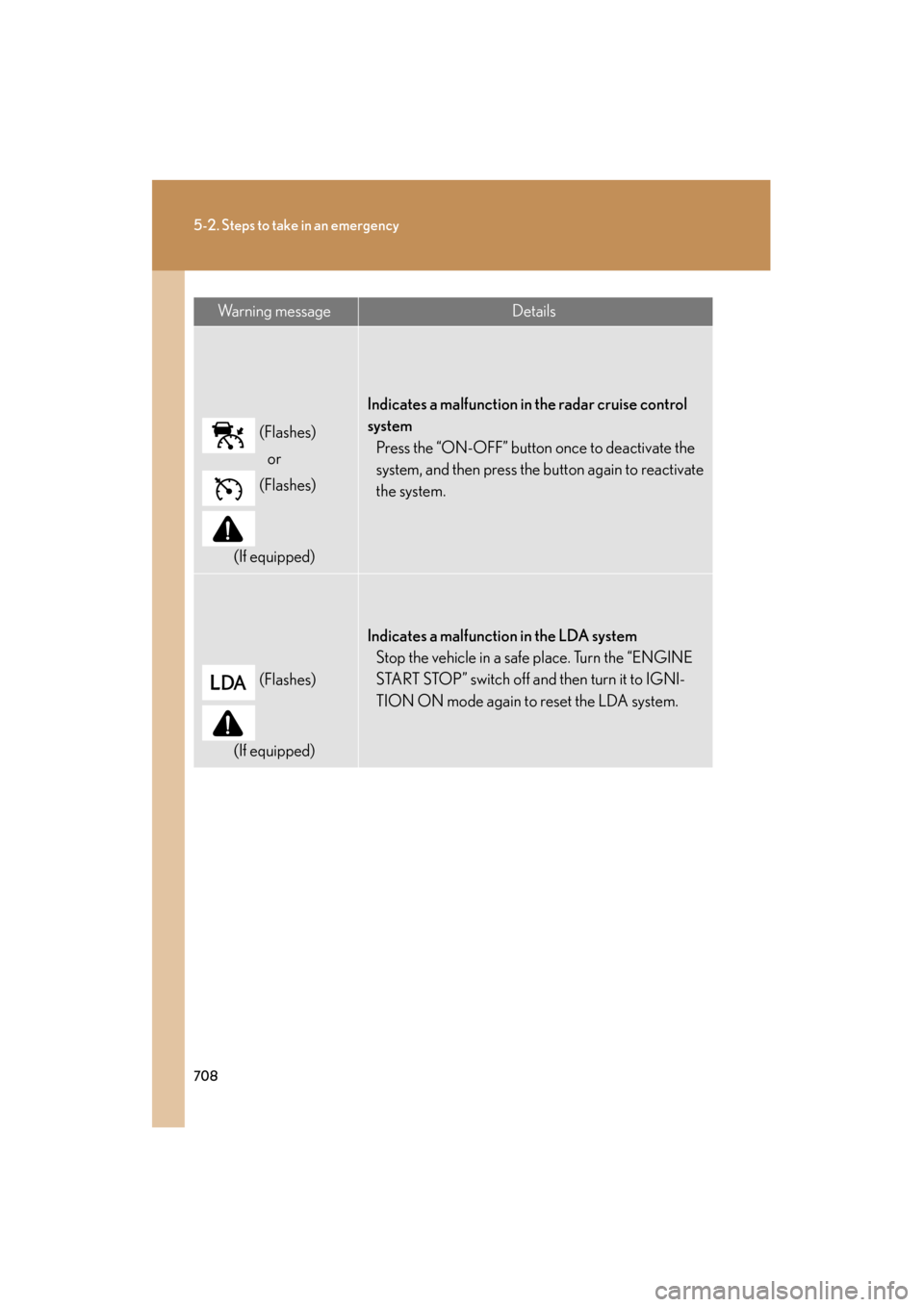

708
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
(Flashes)or
(Flashes)
(If equipped)
Indicates a malfunction in the radar cruise control
system Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
(Flashes)
(If equipped)
Indicates a malfunction in the LDA system Stop the vehicle in a safe place. Turn the “ENGINE
START STOP” switch off and then turn it to IGNI-
TION ON mode again to reset the LDA system.
Wa r n i n g m e s s a g eDetails
GX460_OM_OM60J63U_(U).book Page 708 Thursday, March 29, 2012 9:10 AM

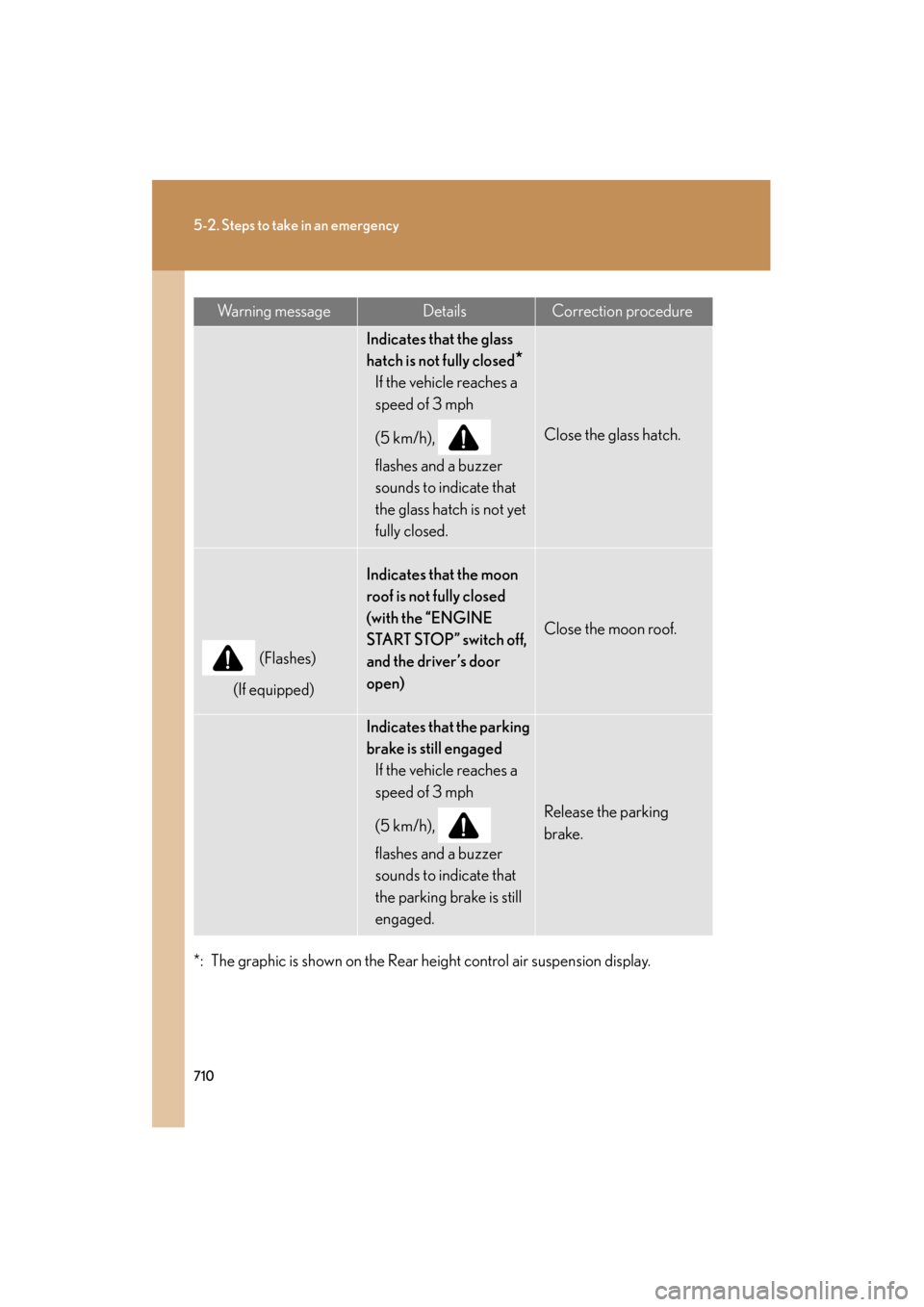

710
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
*: The graphic is shown on the Rear height control air suspension display.
Indicates that the glass
hatch is not fully closed
*
If the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the glass hatch is not yet
fully closed.
Close the glass hatch.
(Flashes)
(If equipped)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch off,
and the driver’s door
open)
Close the moon roof.
Indicates that the parking
brake is still engaged If the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to in dicate that
the parking brake is still
engaged.
Release the parking
brake.
Wa r n i n g m e s s a g eDetailsCorrection procedure
GX460_OM_OM60J63U_(U).book Page 710 Thursday, March 29, 2012 9:10 AM

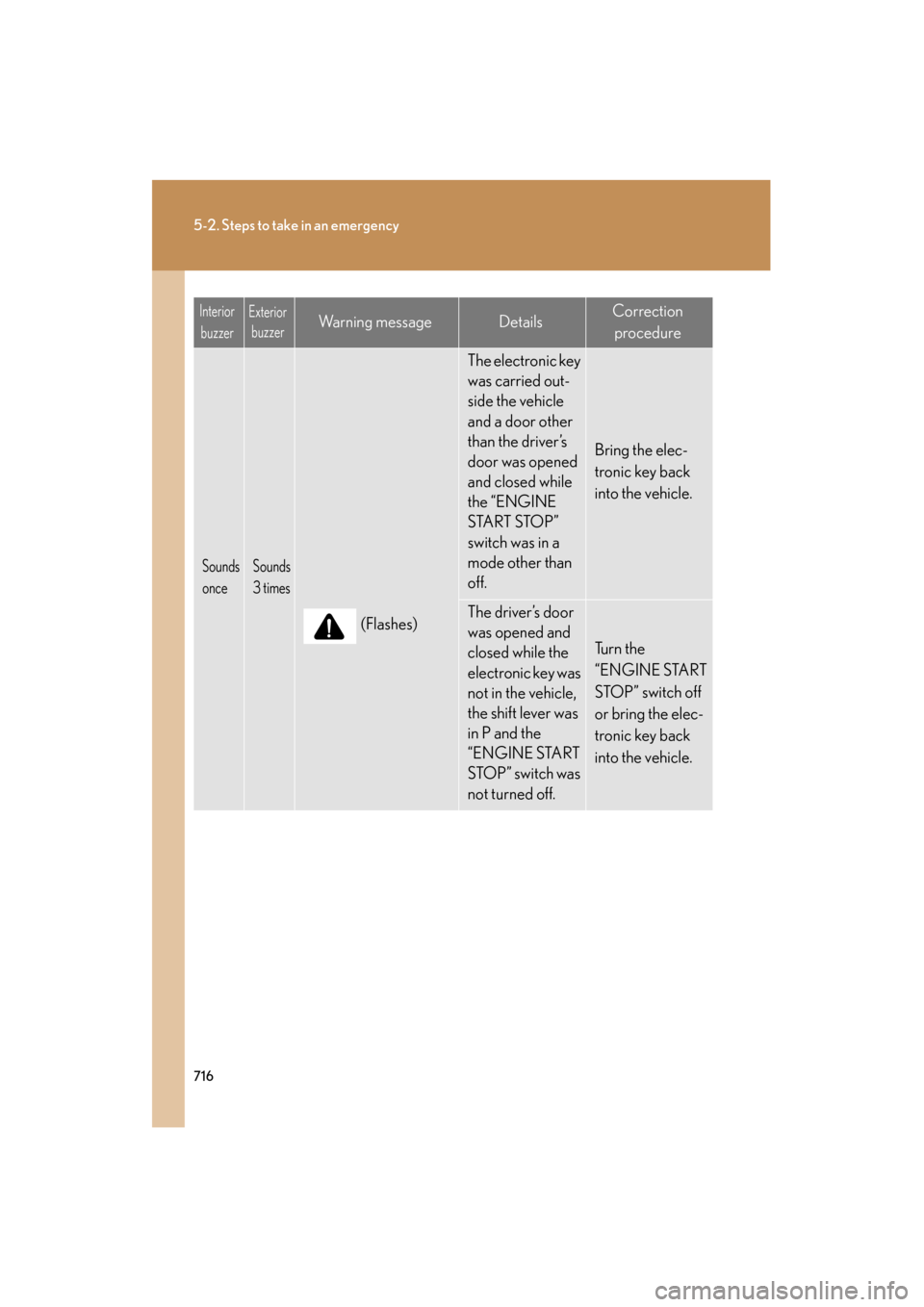

716
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Sounds
onceSounds
3 times
(Flashes)
The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the “ENGINE
START STOP”
switch was in a
mode other than
off.
Bring the elec-
tronic key back
into the vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
in P and the
“ENGINE START
STOP” switch was
not turned off.
Tu r n t h e
“ENGINE START
STOP” switch off
or bring the elec-
tronic key back
into the vehicle.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
GX460_OM_OM60J63U_(U).book Page 716 Thursday, March 29, 2012 9:10 AM

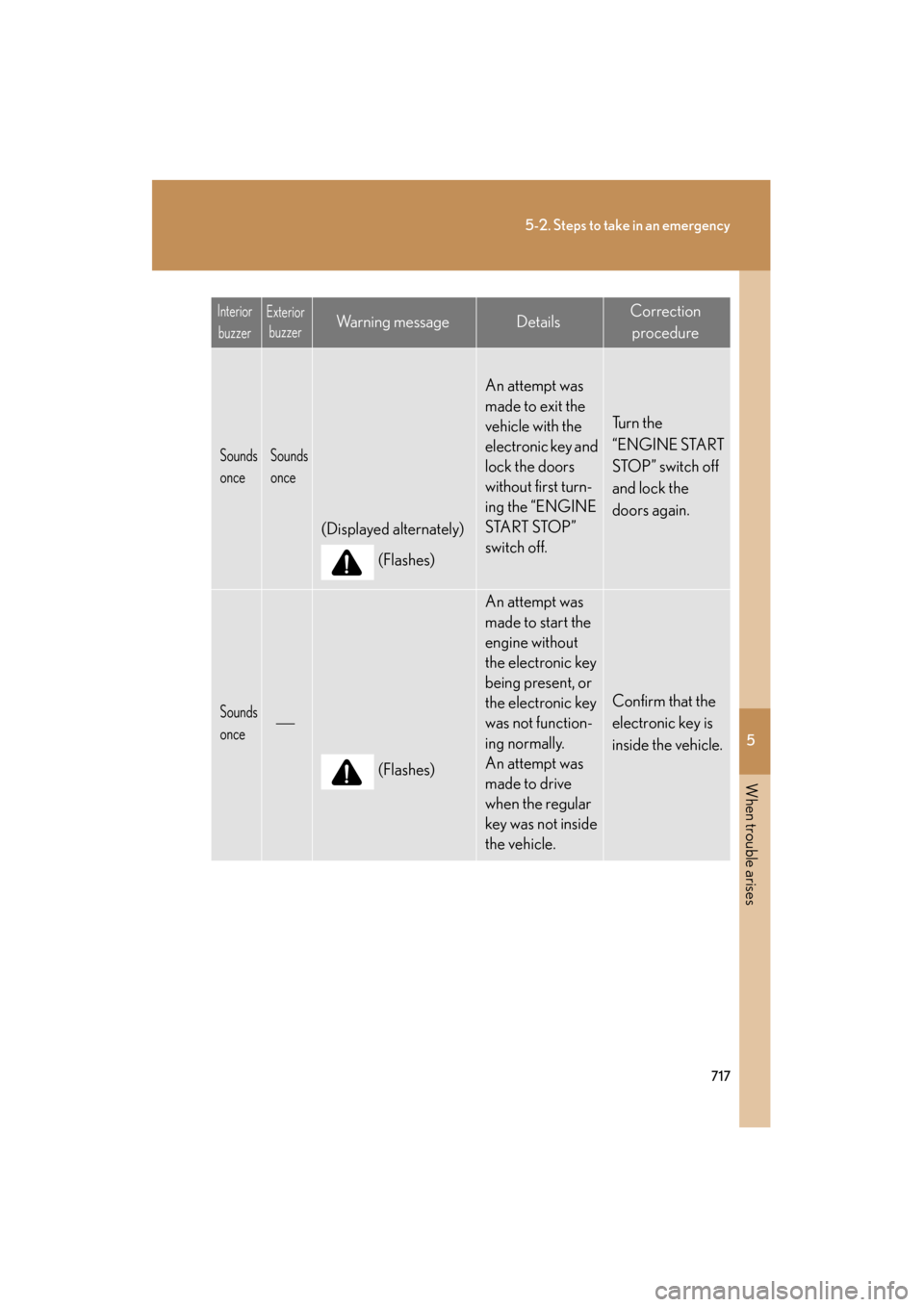

5
When trouble arises
717
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Sounds
onceSounds
once
(Displayed alternately)(Flashes)
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the “ENGINE
START STOP”
switch off.
Tu r n t h e
“ENGINE START
STOP” switch off
and lock the
doors again.
Sounds
once
(Flashes)
An attempt was
made to start the
engine without
the electronic key
being present, or
the electronic key
was not function-
ing normally.
An attempt was
made to drive
when the regular
key was not inside
the vehicle.
Confirm that the
electronic key is
inside the vehicle.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
GX460_OM_OM60J63U_(U).book Page 717 Thursday, March 29, 2012 9:10 AM

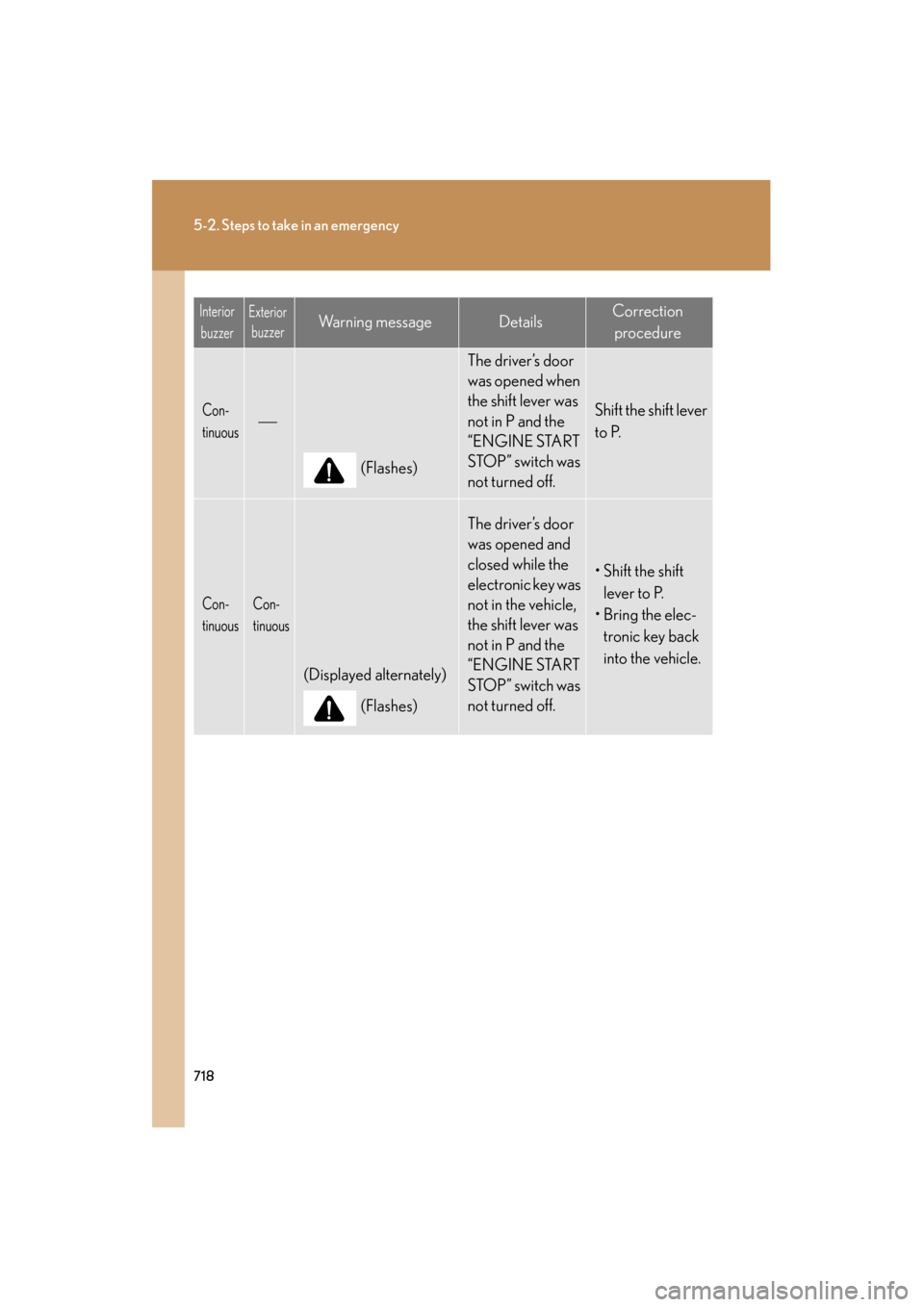

718
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Con-
tinuous
(Flashes)
The driver’s door
was opened when
the shift lever was
not in P and the
“ENGINE START
STOP” switch was
not turned off.
Shift the shift lever
to P.
Con-
tinuousCon-
tinuous
(Displayed alternately)(Flashes)
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
“ENGINE START
STOP” switch was
not turned off.
• Shift the shift lever to P.
• Bring the elec- tronic key back
into the vehicle.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
GX460_OM_OM60J63U_(U).book Page 718 Thursday, March 29, 2012 9:10 AM

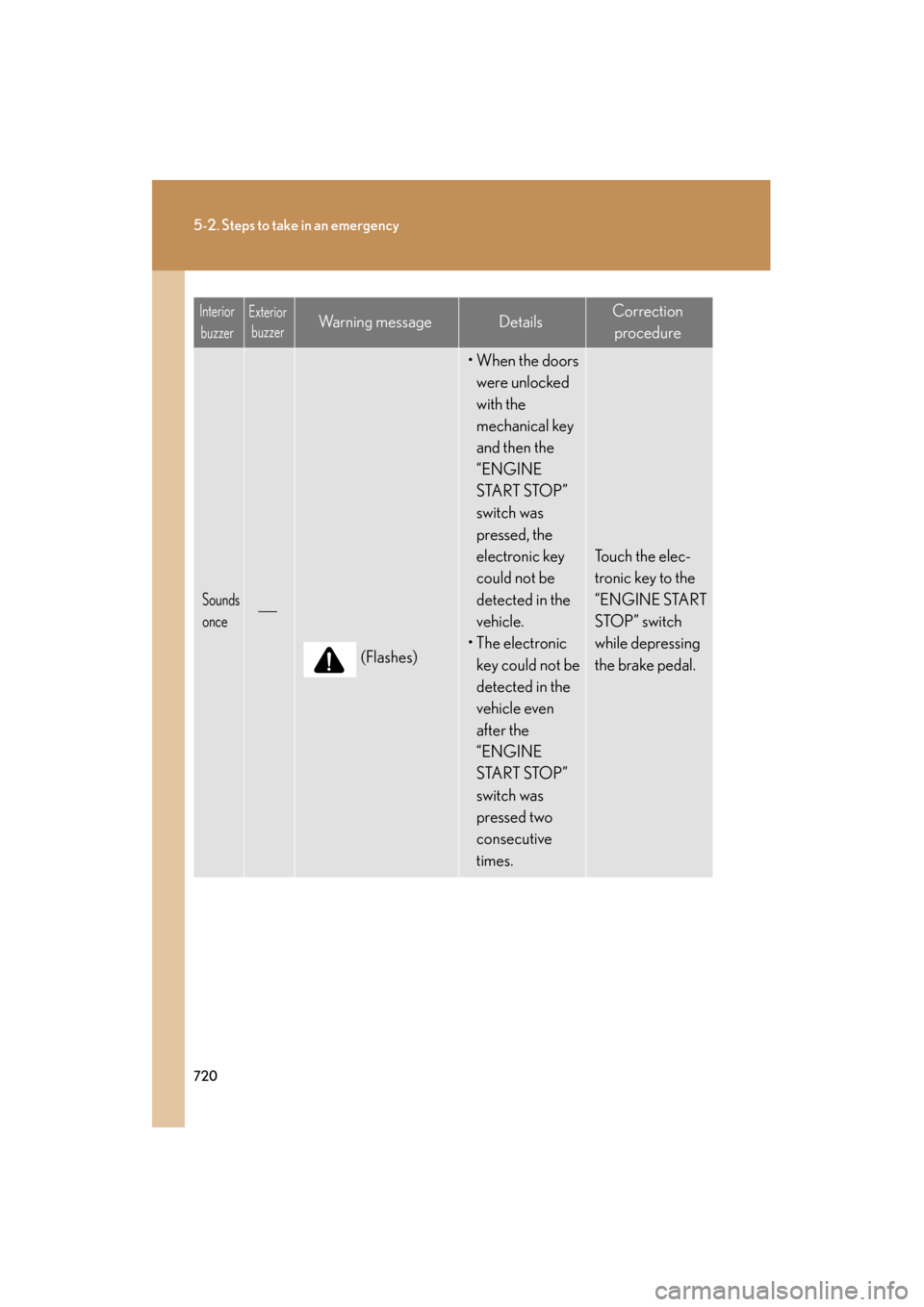

720
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Sounds
once
(Flashes)
• When the doors were unlocked
with the
mechanical key
and then the
“ENGINE
START STOP”
switch was
pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic
key could not be
detected in the
vehicle even
after the
“ENGINE
START STOP”
switch was
pressed two
consecutive
times.
Touch the elec-
tronic key to the
“ENGINE START
STOP” switch
while depressing
the brake pedal.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
GX460_OM_OM60J63U_(U).book Page 720 Thursday, March 29, 2012 9:10 AM

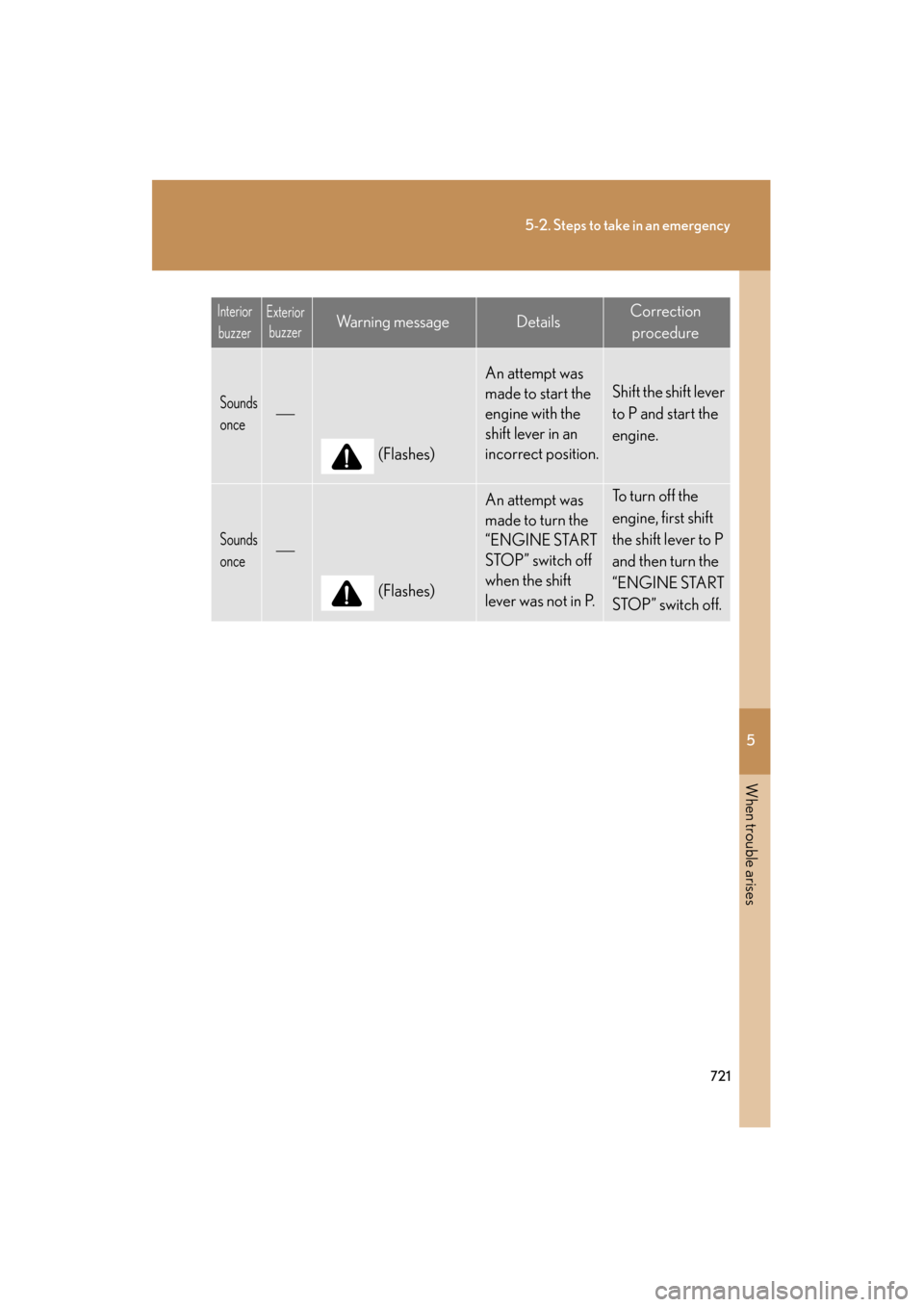

5
When trouble arises
721
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Sounds
once
(Flashes)
An attempt was
made to start the
engine with the
shift lever in an
incorrect position.
Shift the shift lever
to P and start the
engine.
Sounds
once
(Flashes)
An attempt was
made to turn the
“ENGINE START
STOP” switch off
when the shift
lever was not in P.To turn off the
engine, first shift
the shift lever to P
and then turn the
“ENGINE START
STOP” switch off.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
GX460_OM_OM60J63U_(U).book Page 721 Thursday, March 29, 2012 9:10 AM

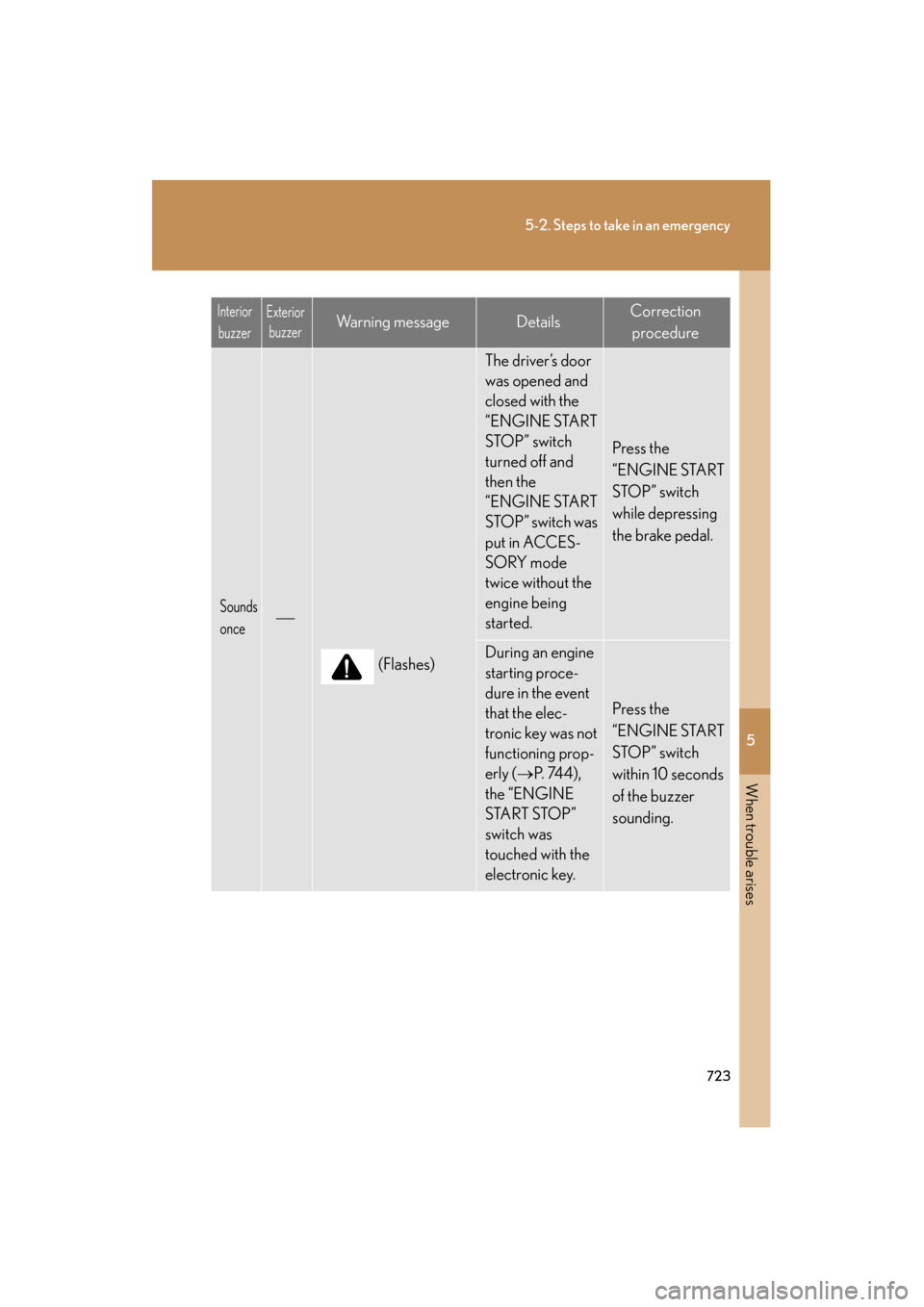

5
When trouble arises
723
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Sounds
once
(Flashes)
The driver’s door
was opened and
closed with the
“ENGINE START
STOP” switch
turned off and
then the
“ENGINE START
STOP” switch was
put in ACCES-
SORY mode
twice without the
engine being
started.
Press the
“ENGINE START
STOP” switch
while depressing
the brake pedal.
During an engine
starting proce-
dure in the event
that the elec-
tronic key was not
functioning prop-
erly (→P. 744),
the “ENGINE
START STOP”
switch was
touched with the
electronic key.
Press the
“ENGINE START
STOP” switch
within 10 seconds
of the buzzer
sounding.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
GX460_OM_OM60J63U_(U).book Page 723 Thursday, March 29, 2012 9:10 AM
