engine Lexus GX460 2013 User Guide

37

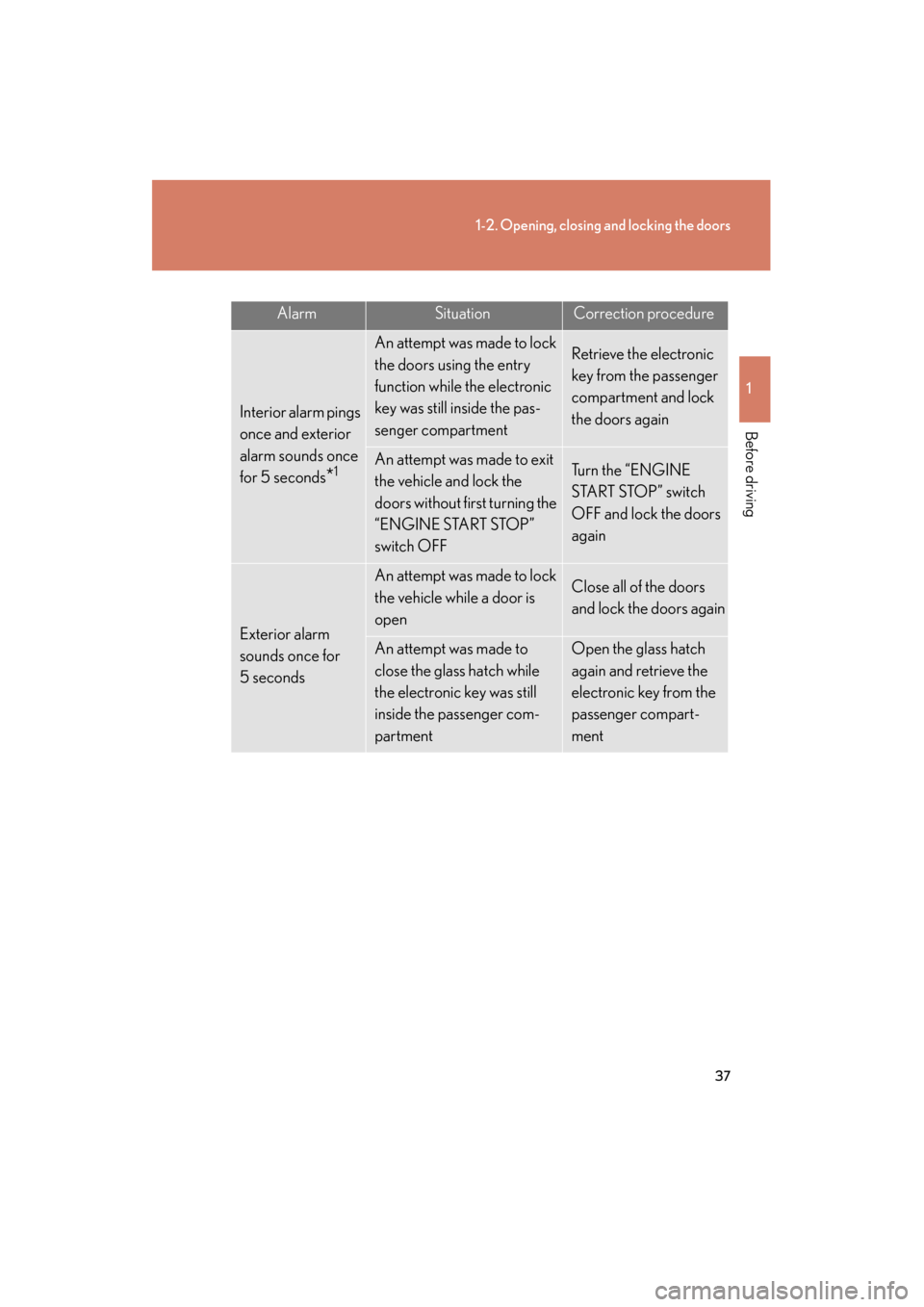

1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)
AlarmSituationCorrection procedure
Interior alarm pings
once and exterior
alarm sounds once
for 5 seconds
*1
An attempt was made to lock
the doors using the entry
function while the electronic
key was still inside the pas-
senger compartmentRetrieve the electronic
key from the passenger
compartment and lock
the doors again
An attempt was made to exit
the vehicle and lock the
doors without first turning the
“ENGINE START STOP”
switch OFFTu r n t h e “ E N G I N E
START STOP” switch
OFF and lock the doors
again
Exterior alarm
sounds once for
5 seconds
An attempt was made to lock
the vehicle while a door is
openClose all of the doors
and lock the doors again
An attempt was made to
close the glass hatch while
the electronic key was still
inside the passenger com-
partmentOpen the glass hatch
again and retrieve the
electronic key from the
passenger compart-
ment
GX460_OM_OM60J63U_(U).book Page 37 Thursday, March 29, 2012 9:10 AM

38

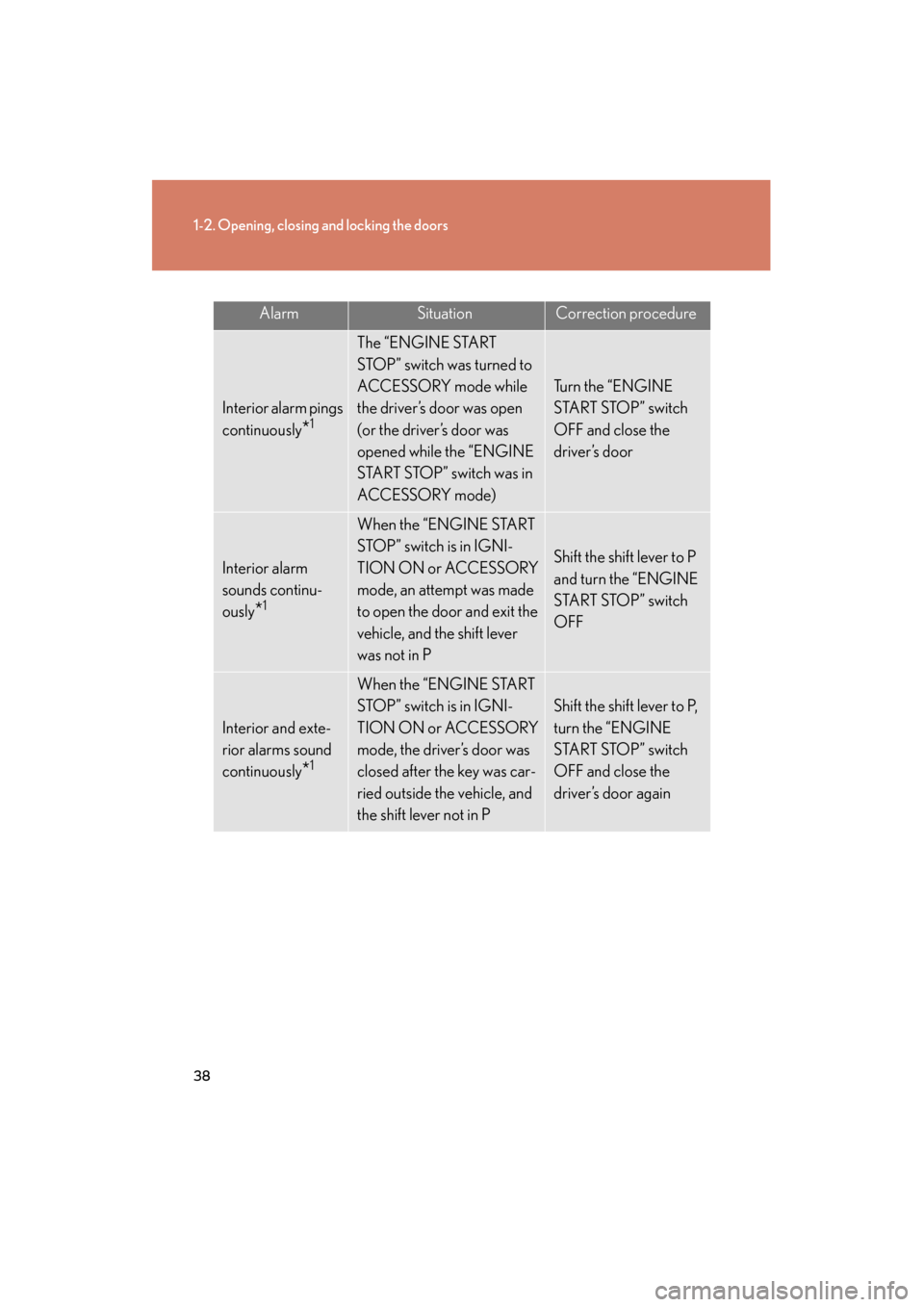

1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
AlarmSituationCorrection procedure
Interior alarm pings
continuously
*1
The “ENGINE START
STOP” switch was turned to
ACCESSORY mode while
the driver’s door was open
(or the driver’s door was
opened while the “ENGINE
START STOP” switch was in
ACCESSORY mode)
Tu r n t h e “ E N G I N E
START STOP” switch
OFF and close the
driver’s door
Interior alarm
sounds continu-
ously
*1
When the “ENGINE START
STOP” switch is in IGNI-
TION ON or ACCESSORY
mode, an attempt was made
to open the door and exit the
vehicle, and the shift lever
was not in P
Shift the shift lever to P
and turn the “ENGINE
START STOP” switch
OFF
Interior and exte-
rior alarms sound
continuously
*1
When the “ENGINE START
STOP” switch is in IGNI-
TION ON or ACCESSORY
mode, the driver’s door was
closed after the key was car-
ried outside the vehicle, and
the shift lever not in P
Shift the shift lever to P,
turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again
GX460_OM_OM60J63U_(U).book Page 38 Thursday, March 29, 2012 9:10 AM

39

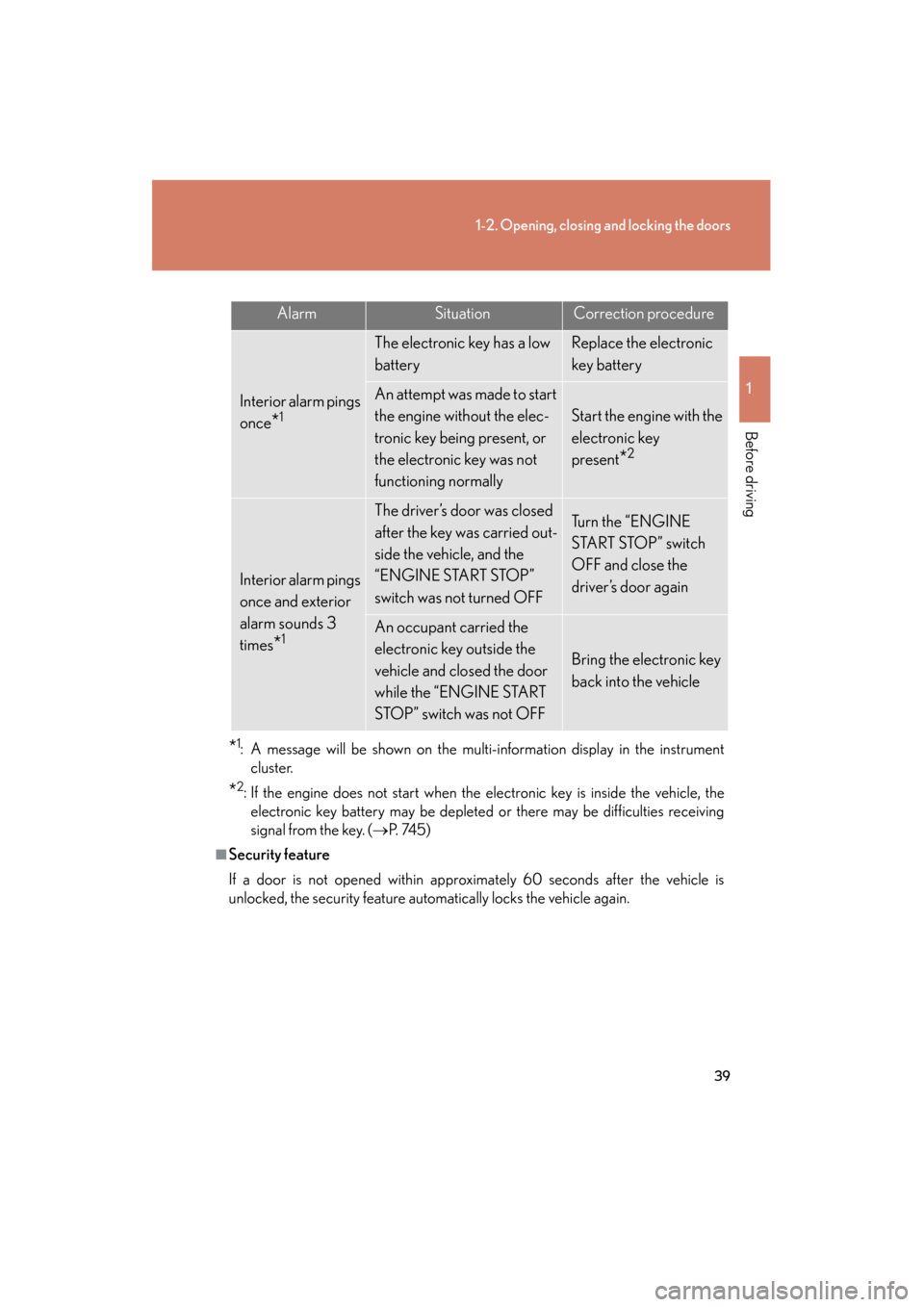

1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)
*1: A message will be shown on the multi-information display in the instrumentcluster.
*2: If the engine does not start when the electronic key is inside the vehicle, theelectronic key battery may be depleted or there may be difficulties receiving
signal from the key. ( →P. 74 5 )
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
AlarmSituationCorrection procedure
Interior alarm pings
once
*1
The electronic key has a low
batteryReplace the electronic
key battery
An attempt was made to start
the engine without the elec-
tronic key being present, or
the electronic key was not
functioning normally
Start the engine with the
electronic key
present
*2
Interior alarm pings
once and exterior
alarm sounds 3
times
*1
The driver’s door was closed
after the key was carried out-
side the vehicle, and the
“ENGINE START STOP”
switch was not turned OFFTu r n t h e “ E N G I N E
START STOP” switch
OFF and close the
driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the door
while the “ENGINE START
STOP” switch was not OFF
Bring the electronic key
back into the vehicle
GX460_OM_OM60J63U_(U).book Page 39 Thursday, March 29, 2012 9:10 AM

40
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)
■Switching the door unlock function
It is possible to set which doors the entry function unlocks.Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, press and hold
or for approximately 5 seconds while pressing on the key.
The setting changes each time an operation is preformed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open a door once after the settings have been changed. (If a
door is not opened within 60 seconds after is pressed, the doors will be
locked again and the alarm will automatically be set).
In case that the alarm is triggered, immediately stop the alarm. ( →P. 121)
STEP1
STEP2
STEP2
Multi-information
displayUnlocking functionBeep
Hold the driver’s door handle
to unlock only the driver’s
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either door handle to
unlock all doors.Exterior: Beeps twice
Interior: Pings once
GX460_OM_OM60J63U_(U).book Page 40 Thursday, March 29, 2012 9:10 AM

45

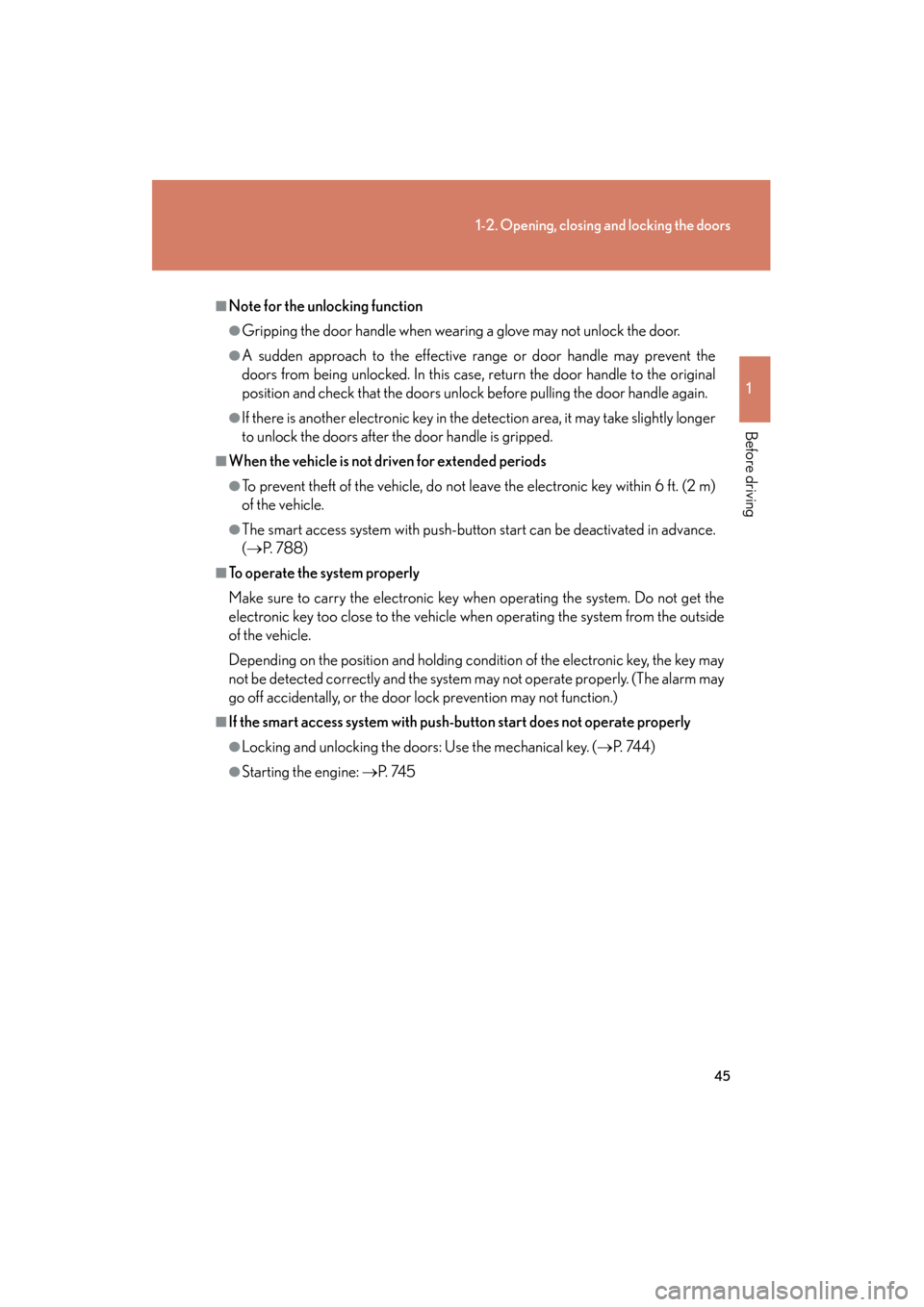

1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)
■Note for the unlocking function
●Gripping the door handle when wearing a glove may not unlock the door.
●A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
●If there is another electronic key in the detection area, it may take slightly longer
to unlock the doors after the door handle is gripped.
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m)
of the vehicle.
●The smart access system with push-button start can be deactivated in advance.
(→ P. 788)
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
■If the smart access system with push-button start does not operate properly
●Locking and unlocking the doors: Use the mechanical key. ( →P. 74 4 )
●Starting the engine: →P. 74 5
GX460_OM_OM60J63U_(U).book Page 45 Thursday, March 29, 2012 9:10 AM

46
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)

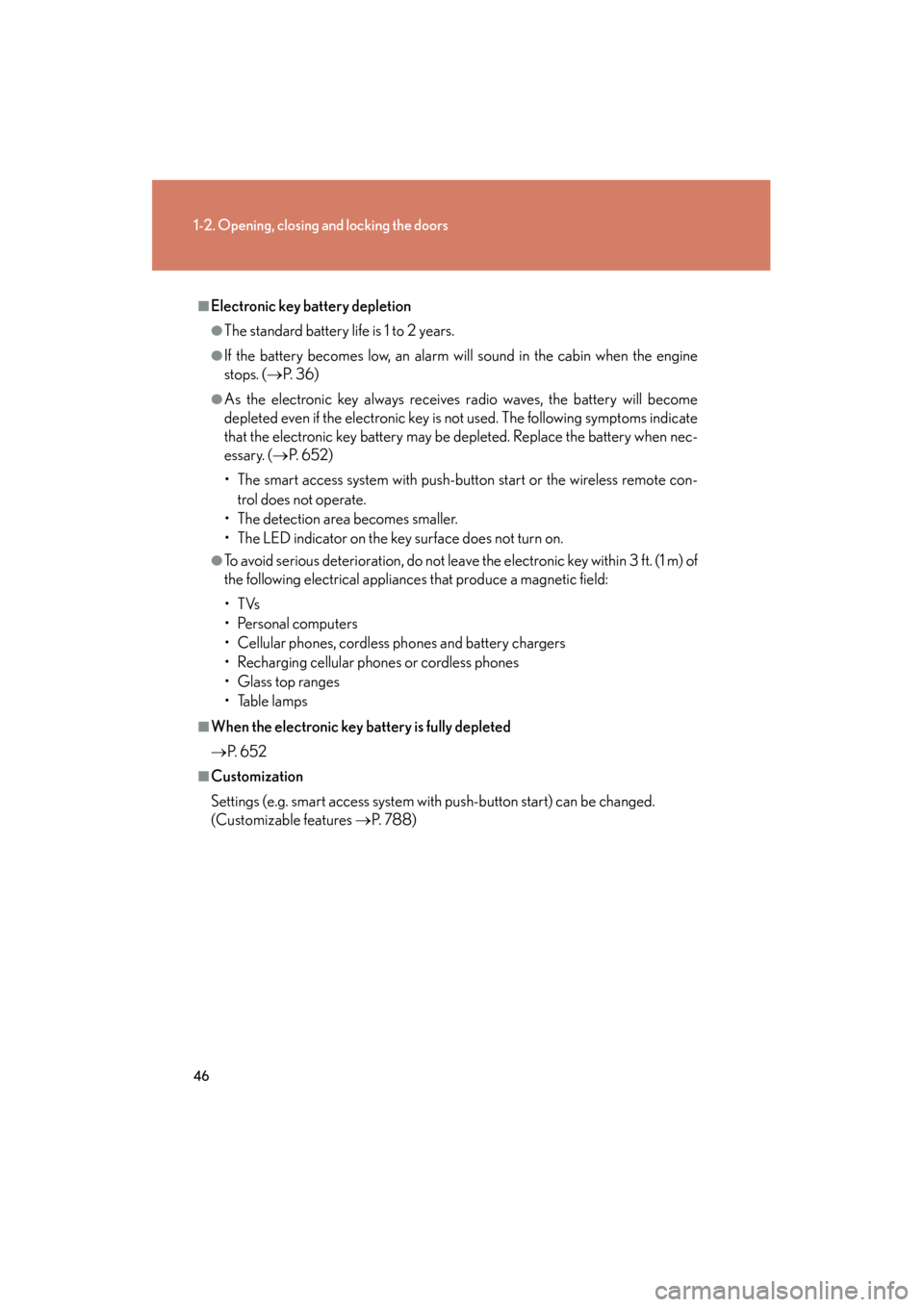

■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (→P. 3 6 )
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when nec-
essary. ( →P. 6 5 2 )
• The smart access system with push-button start or the wireless remote con- trol does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
•Glass top ranges
•Table lamps
■When the electronic key battery is fully depleted
→ P. 6 5 2
■Customization
Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features →P. 788)
GX460_OM_OM60J63U_(U).book Page 46 Thursday, March 29, 2012 9:10 AM

53
1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)
Locking the driver’s door from the outside without a keyMove the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 53 Thursday, March 29, 2012 9:10 AM

54
1-2. Opening, closing and locking the doors
GX460_OM_OM60J63U_(U)

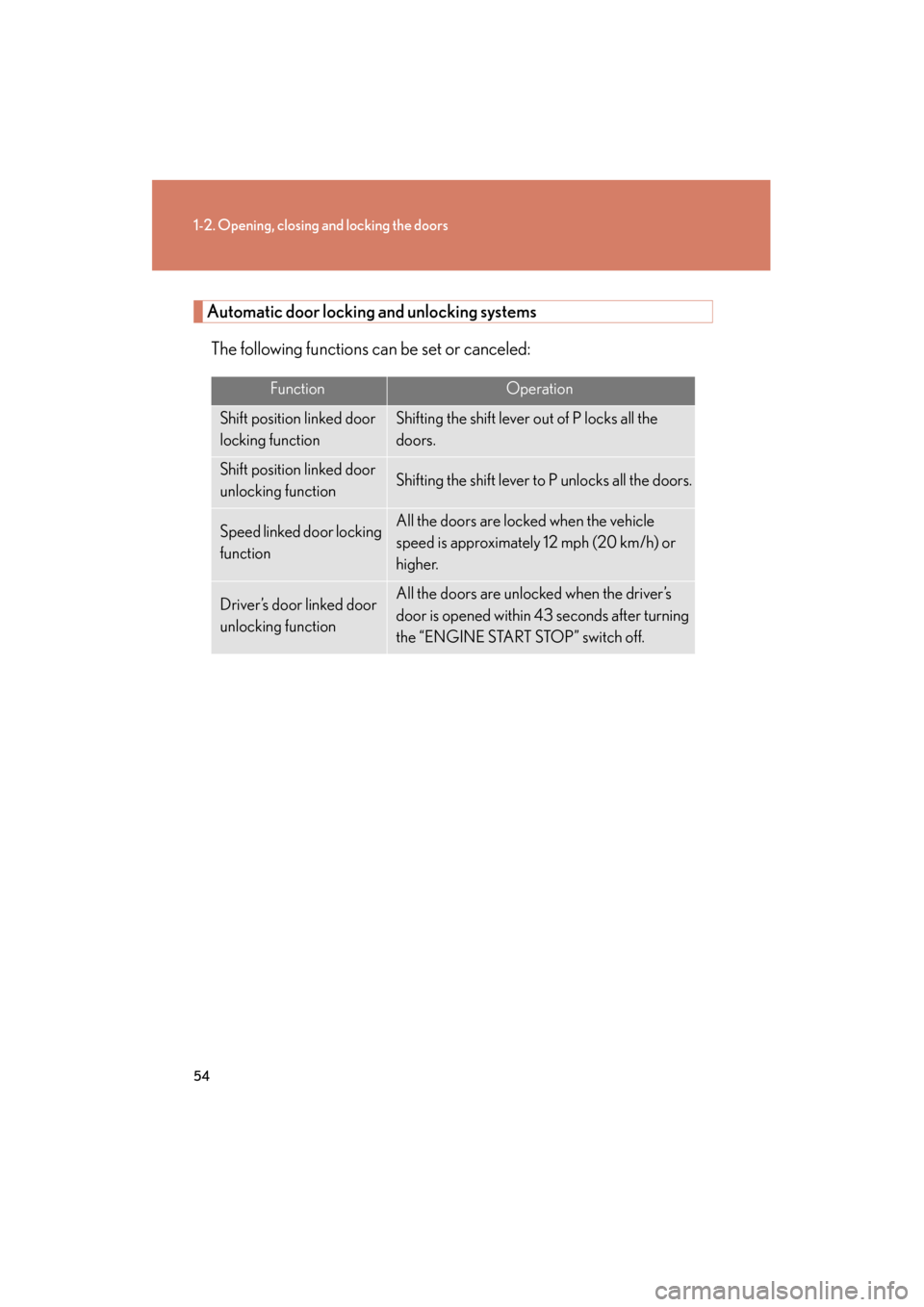

Automatic door locking and unlocking systems
The following functions can be set or canceled:
FunctionOperation
Shift position linked door
locking functionShifting the shift lever out of P locks all the
doors.
Shift position linked door
unlocking functionShifting the shift lever to P unlocks all the doors.
Speed linked door locking
functionAll the doors are locked when the vehicle
speed is approximately 12 mph (20 km/h) or
higher.
Driver’s door linked door
unlocking functionAll the doors are unlocked when the driver’s
door is opened within 43 seconds after turning
the “ENGINE START STOP” switch off.
GX460_OM_OM60J63U_(U).book Page 54 Thursday, March 29, 2012 9:10 AM

55

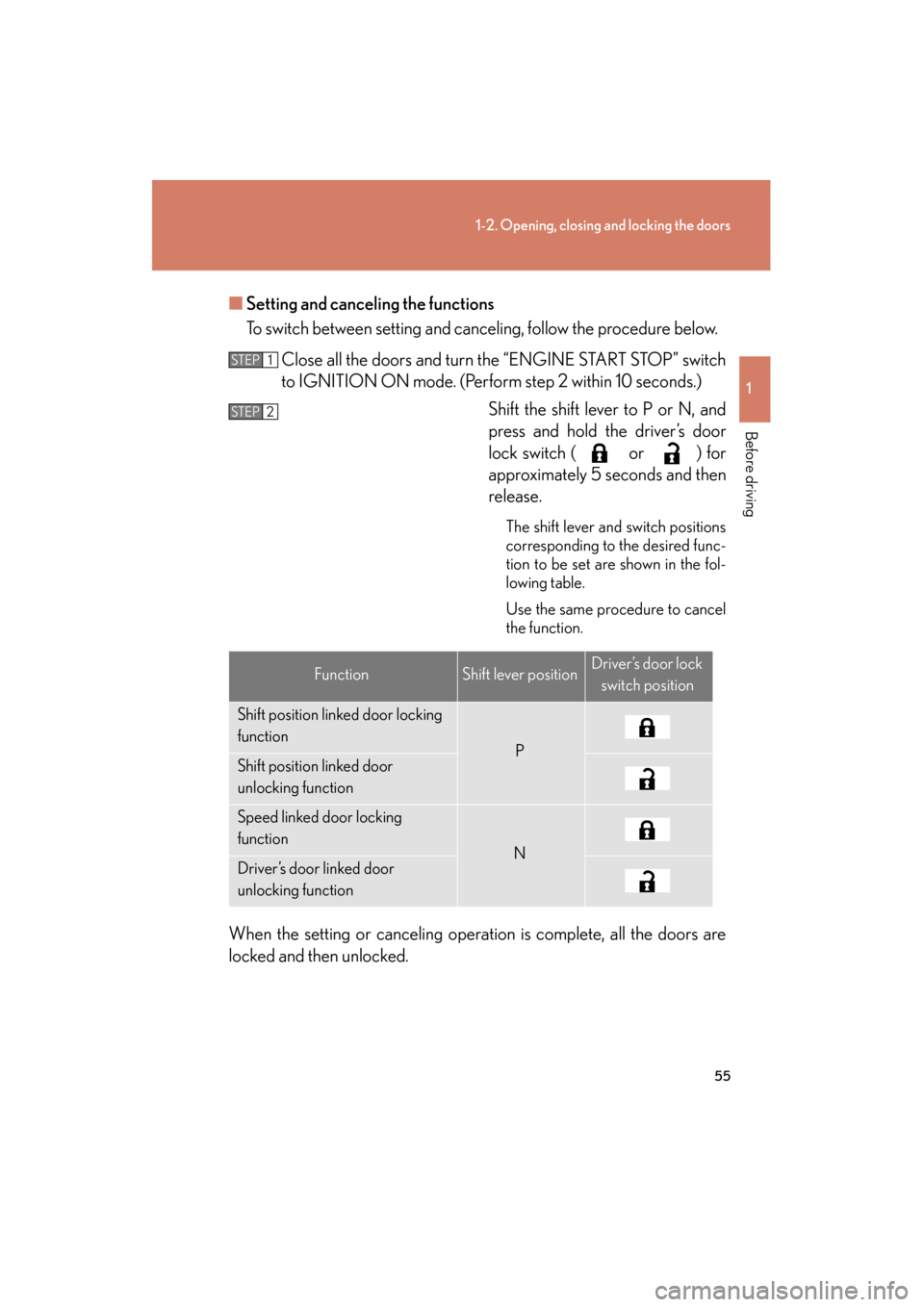

1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)■
Setting and canceling the functions
To switch between setting and canceling, follow the procedure below.
Close all the doors and turn the “ENGINE START STOP” switch
to IGNITION ON mode. (Perform step 2 within 10 seconds.)
Shift the shift lever to P or N, and
press and hold the driver’s door
lock switch ( or
) for
approximately 5 seconds and then
release.
The shift lever and switch positions
corresponding to the desired func-
tion to be set are shown in the fol-
lowing table.
Use the same procedure to cancel
the function.
When the setting or canceling operation is complete, all the doors are
locked and then unlocked.
STEP1
STEP2
FunctionShift lever positionDriver’s door lock
switch position
Shift position linked door locking
function
PShift position linked door
unlocking function
Speed linked door locking
function
NDriver’s door linked door
unlocking function
GX460_OM_OM60J63U_(U).book Page 55 Thursday, March 29, 2012 9:10 AM

68
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)
Power easy access systemWhen the driver enters and exits the vehicle, the driver’s seat and steer-
ing wheel will automatically perform the following operations: Exiting the vehicle: When all of the
following actions have been per-
formed, the steering wheel will
move up and back to the point far-
thest away from the driver and the
seat will move backward (auto
away function):
• The shift lever has been shifted to P
•The “ENGINE START STOP”switch has been turned off
• The driver seat belt has been
unfastened
Entering the vehicle: When either
of the following actions has been
performed, the steering wheel will
move toward the driver and seat
will move forward (auto return
function):
•The “ENGINE START STOP”switch has been turned to ACCES-
SORY mode
• The driver seat belt has been fas- tened
GX460_OM_OM60J63U_(U).book Page 68 Thursday, March 29, 2012 9:10 AM
