engine Lexus GX460 2013 Owner's Guide

78
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)■
Returning the third seats
Press and hold .
Two beeps sound and seatback
and seat cushion begin to move.
When operating is completed, two
beeps sound again.
Lift the head restraints up until they
lock.
STEP1
STEP2
■The third power seats can be operated when
●The “ENGINE START STOP” switch is off.
●The shift lever is in P position with the “ENGINE START STOP” switch in IGNI-
TION ON mode.
■During third power seat stowing operation
Do not remove your hand from the switch until the operation stops automatically. If
you remove your hand from the switch, the operation will stop and the buzzer will
sound continuously. The seat cannot be used in this state. The buzzer will stop when
the switch is pressed again.
GX460_OM_OM60J63U_(U).book Page 78 Thursday, March 29, 2012 9:10 AM

79
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_OM_OM60J63U_(U)
■Enlarging the luggage compartment (vehicles with third seats)
The third seat can be used for sitting when it is in the position shown in of
the folding down the third seats. (→P. 76 )
This can be convenient for enlarging the luggage compartment, for instance when
the luggage is against the back of the seatback.
■If the warning buzzer sounds continuously (vehicles with third seats)
If there is an abnormality in the system, the warning buzzer will sound continuously
while the “ENGINE START STOP” switch is in IGNITION ON mode. In this case,
take the following operations:
Press and hold .
Press and hold to stow the seat.
For each step, wait until the seat movement stops automatically and the two beeps
sound twice before removing your hand from the switch.
If the warning buzzer does not stop even after performing the above procedure
correctly, perform the following operations:
Press and hold on the rear door side.
While holding , press forward on 5 times within 10 seconds
and keep holding until 3 beeps sound. The beep will then sound
continuously again.
Repeat and .
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5STEP1STEP2
GX460_OM_OM60J63U_(U).book Page 79 Thursday, March 29, 2012 9:10 AM

82
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)

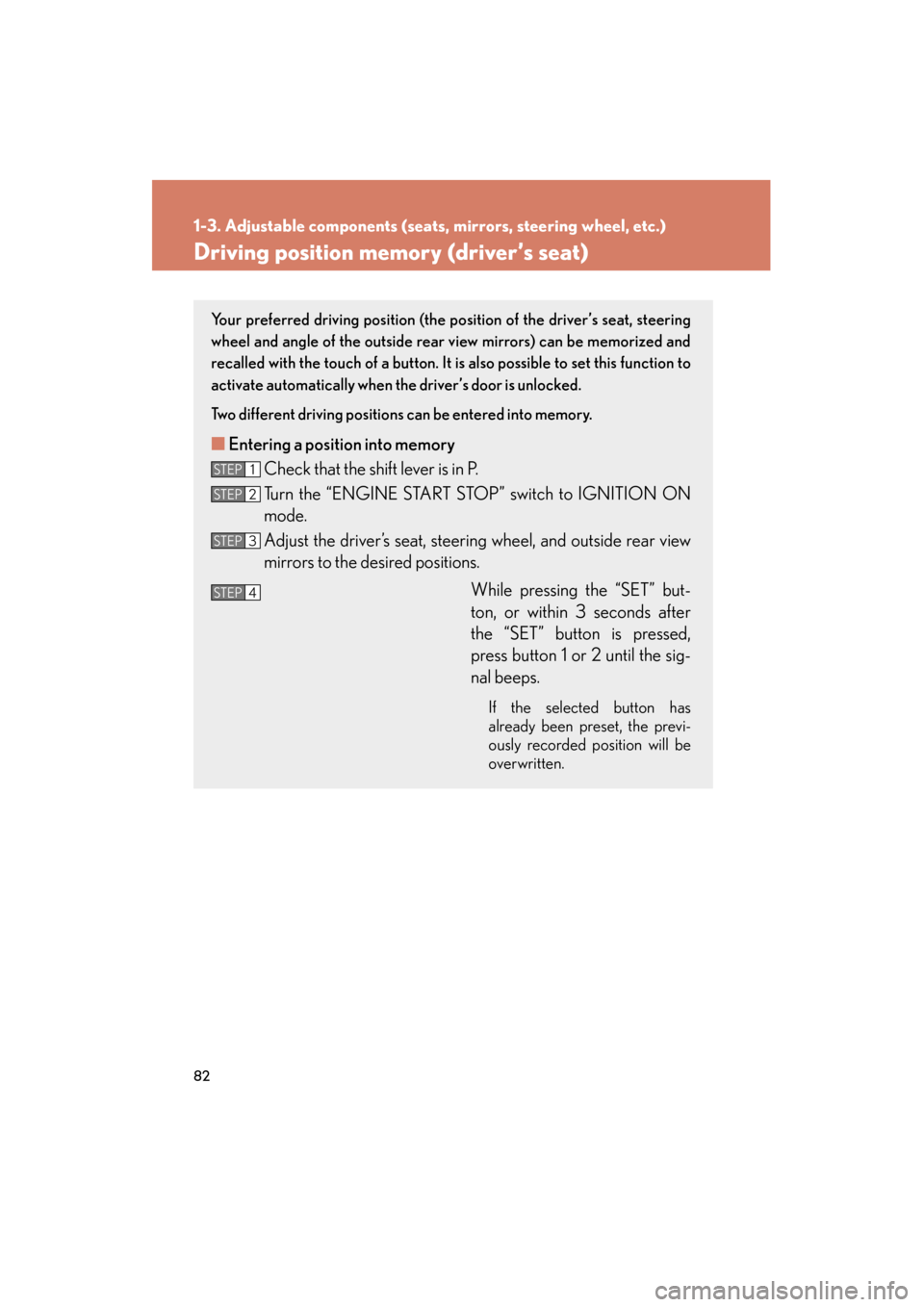

Driving position memory (driver’s seat)
Your preferred driving position (the position of the driver’s seat, steering
wheel and angle of the outside rear view mirrors) can be memorized and
recalled with the touch of a button. It is also possible to set this function to
activate automatically when the driver’s door is unlocked.
Two different driving positions can be entered into memory.
■ Entering a positi on into memory
Check that the shift lever is in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button 1 or 2 until the sig-
nal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 82 Thursday, March 29, 2012 9:10 AM

83
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_OM_OM60J63U_(U)

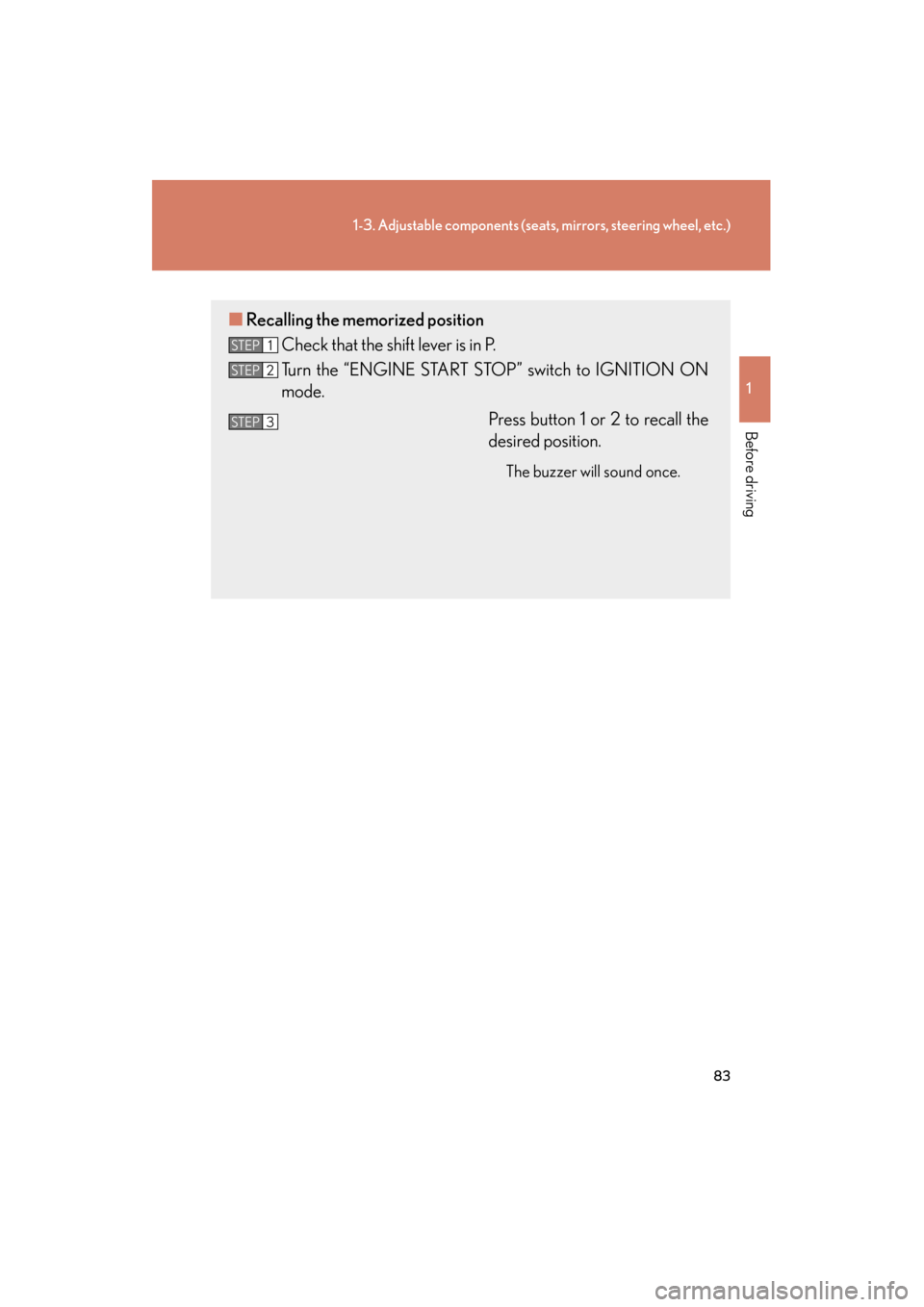

■Recalling the memorized position
Check that the shift lever is in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Press button 1 or 2 to recall the
desired position.
The buzzer will sound once.
STEP1
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 83 Thursday, March 29, 2012 9:10 AM

84
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)
’

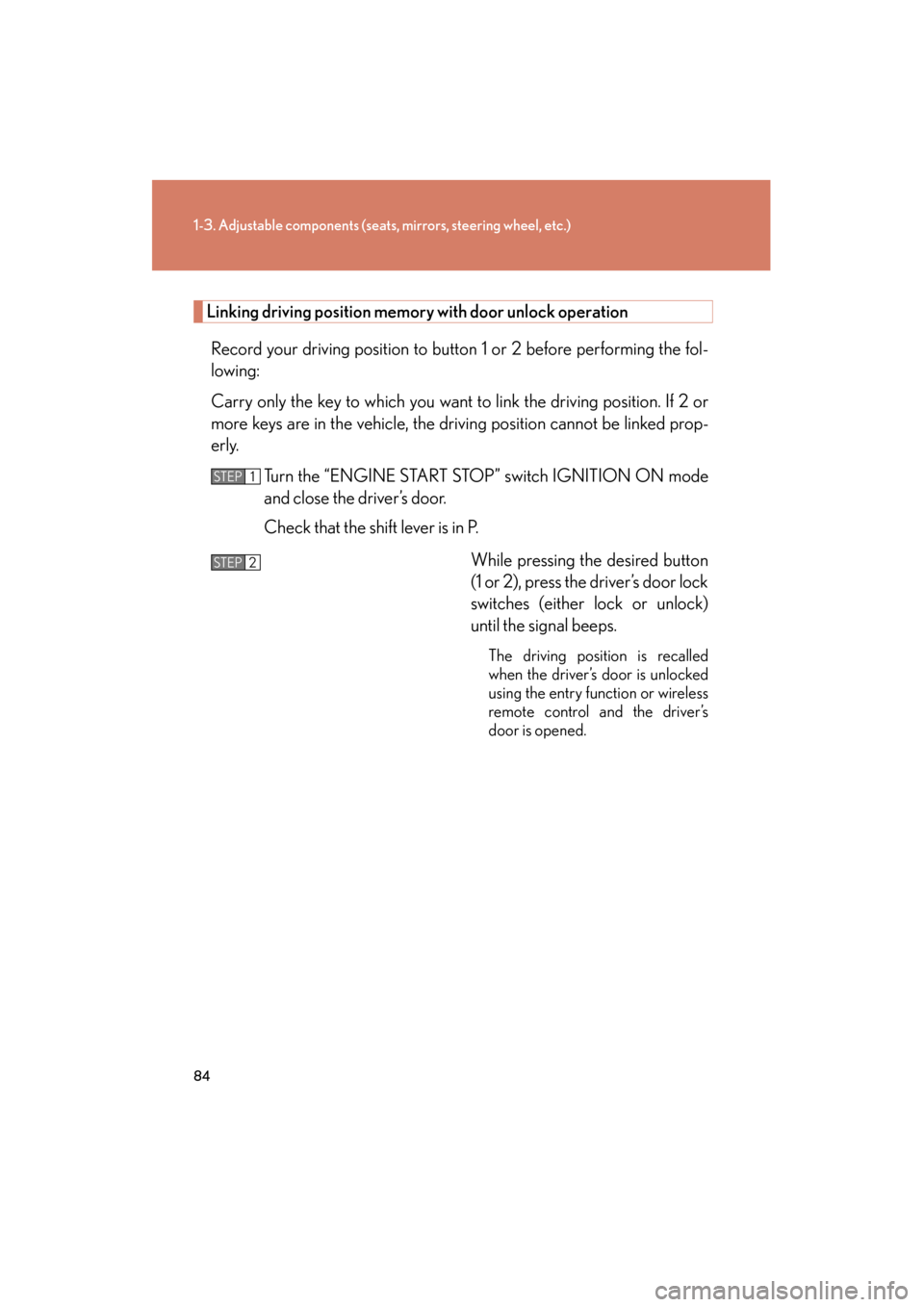

Linking driving position memory with door unlock operation
Record your driving position to button 1 or 2 before performing the fol-
lowing:
Carry only the key to which you want to link the driving position. If 2 or
more keys are in the vehicle, the driving position cannot be linked prop-
erly. Turn the “ENGINE START STOP” switch IGNITION ON mode
and close the driver’s door.
Check that the shift lever is in P.
While pressing the desired button
(1 or 2), press the driver’s door lock
switches (either lock or unlock)
until the signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 84 Thursday, March 29, 2012 9:10 AM

85
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_OM_OM60J63U_(U)
■Operating the driving position memory after turning the engine off
Memorized positions (except the steering wheel position) can be activated up to
180 seconds after the driver’s door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch off.
■Canceling the linked door unlock operation Turn the “ENGINE START STOP” switch IGNITION ON mode and
close the driver’s door.
While pressing “SET” button, press driver’s door lock switches (either
lock or unlock) until the signal beeps.
■Stopping seat position operation part-way through
Perform any of the following operations:
●Press the “SET” button.
●Press button 1 or 2.
●Adjust the seat using the switches (only cancels seat position recall).
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger
or squeeze your body against the steering wheel.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 85 Thursday, March 29, 2012 9:10 AM

97
1
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Before driving
GX460_OM_OM60J63U_(U)

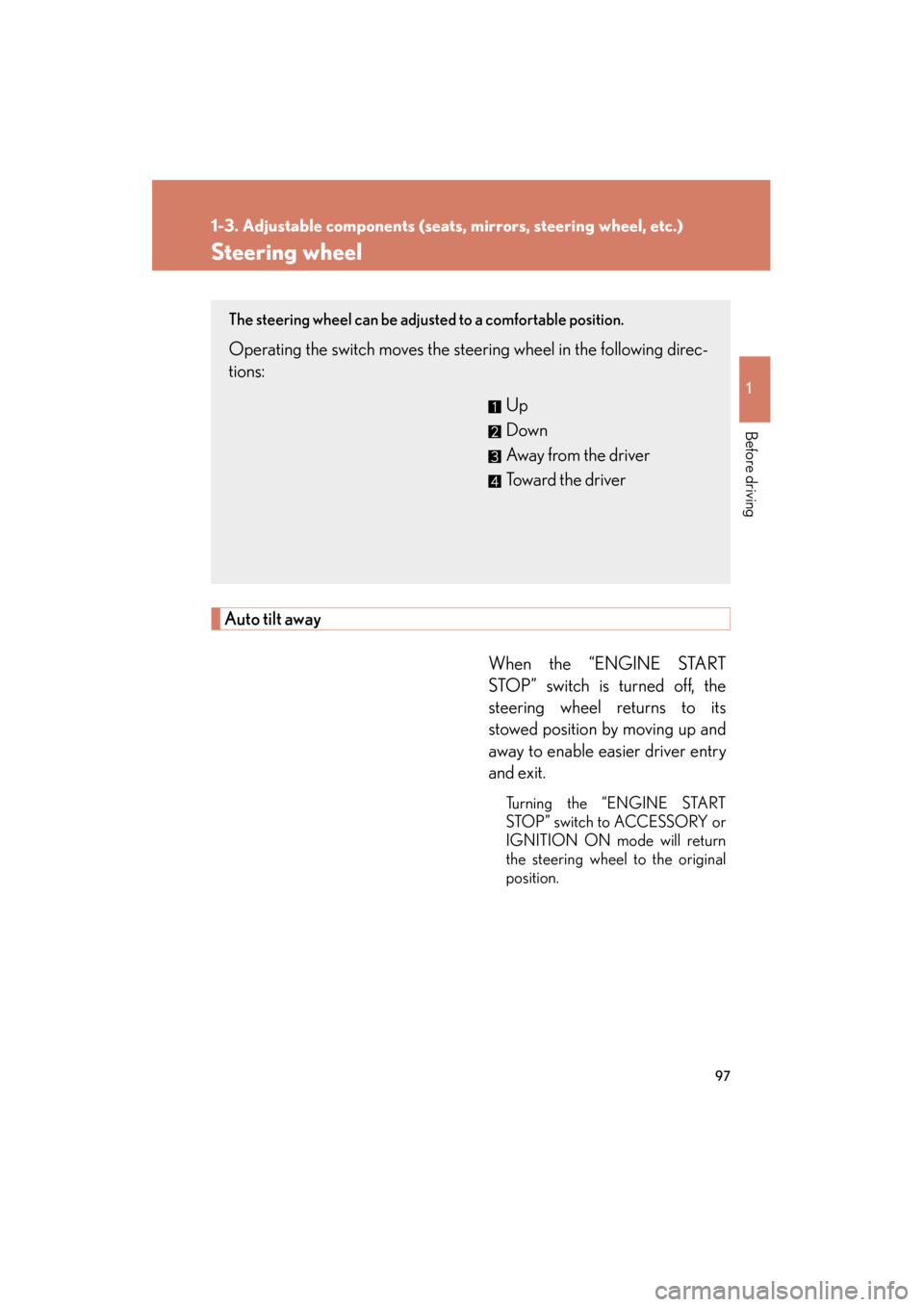

Steering wheel
Auto tilt away
When the “ENGINE START
STOP” switch is turned off, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Tu r n i n g t h e “ E N G I N E S T A R T
STOP” switch to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position.
Operating the switch moves the steering wheel in the following direc-
tions: Up
Down
Away from the driver
Toward the driver
GX460_OM_OM60J63U_(U).book Page 97 Thursday, March 29, 2012 9:10 AM

98
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_OM_OM60J63U_(U)

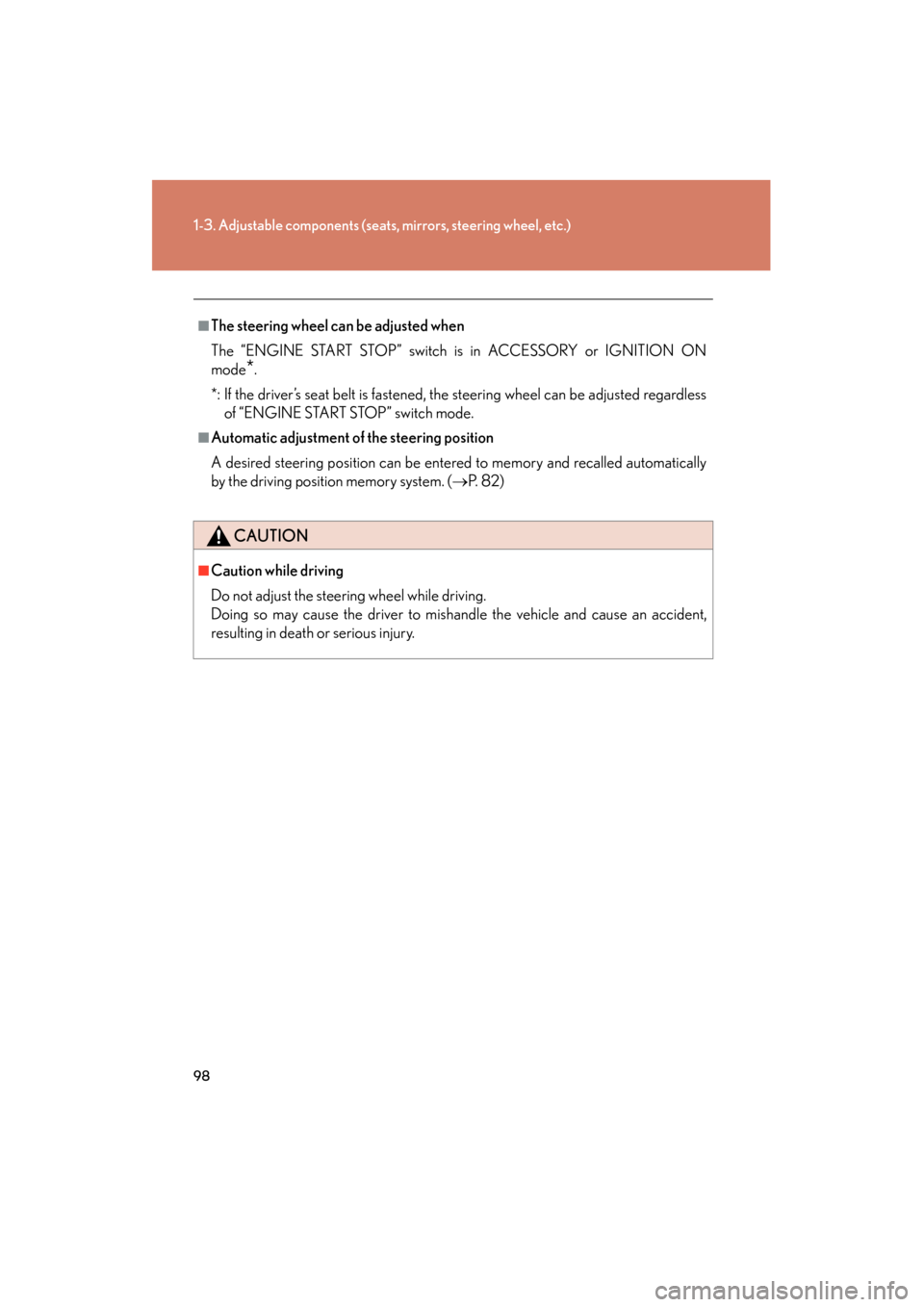

■The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of “ENGINE START STOP” switch mode.
■Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automatically
by the driving position memory system. ( →P. 8 2 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
GX460_OM_OM60J63U_(U).book Page 98 Thursday, March 29, 2012 9:10 AM

99
1
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
Before driving
GX460_OM_OM60J63U_(U)

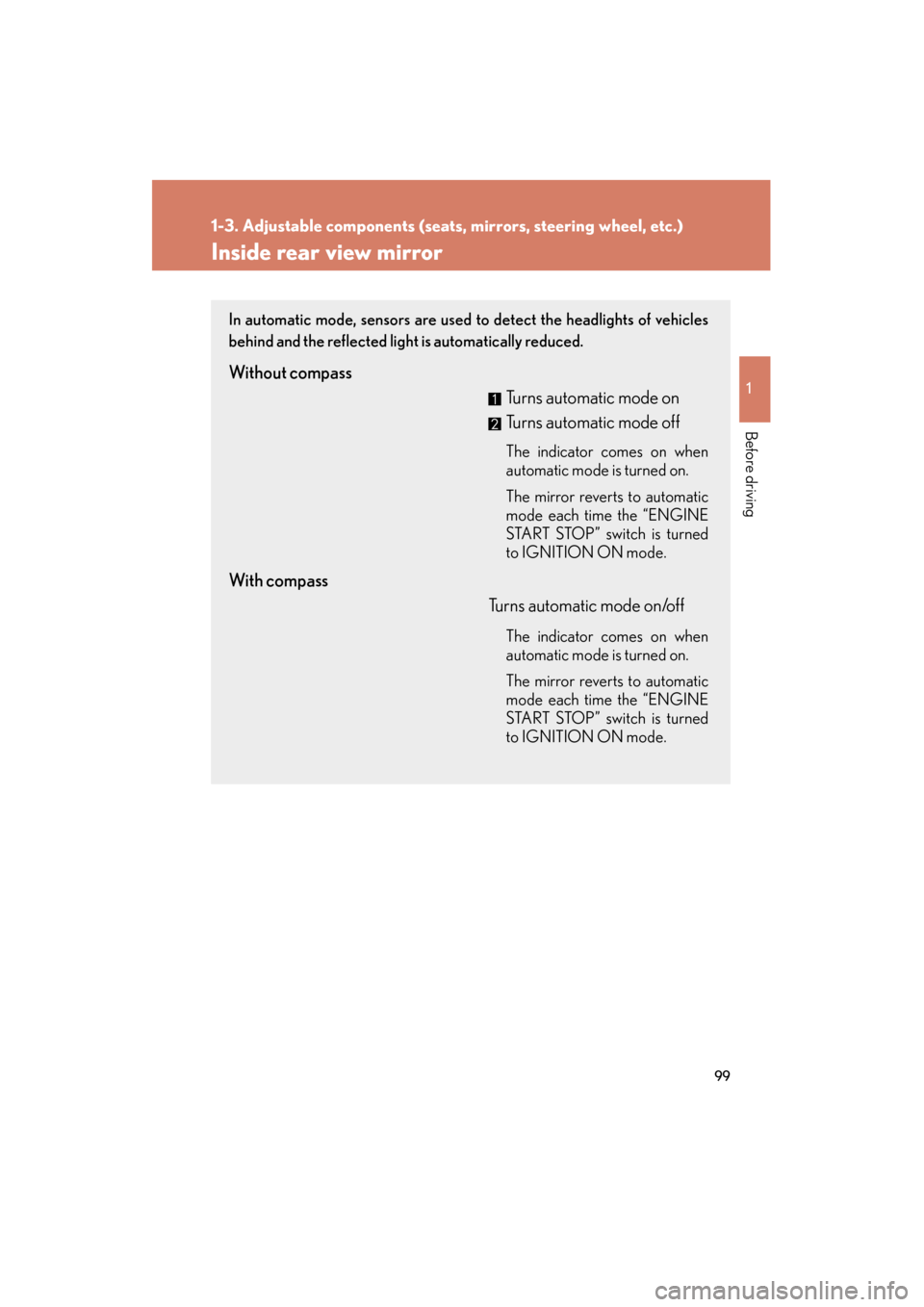

Inside rear view mirror
In automatic mode, sensors are used to detect the headlights of vehicles
behind and the reflected light is automatically reduced.
Without compass
Turns automatic mode on
Turns automatic mode off
The indicator comes on when
automatic mode is turned on.
The mirror reverts to automatic
mode each time the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
With compassTurns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The mirror reverts to automatic
mode each time the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
GX460_OM_OM60J63U_(U).book Page 99 Thursday, March 29, 2012 9:10 AM

103
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
1
Before driving
GX460_OM_OM60J63U_(U)

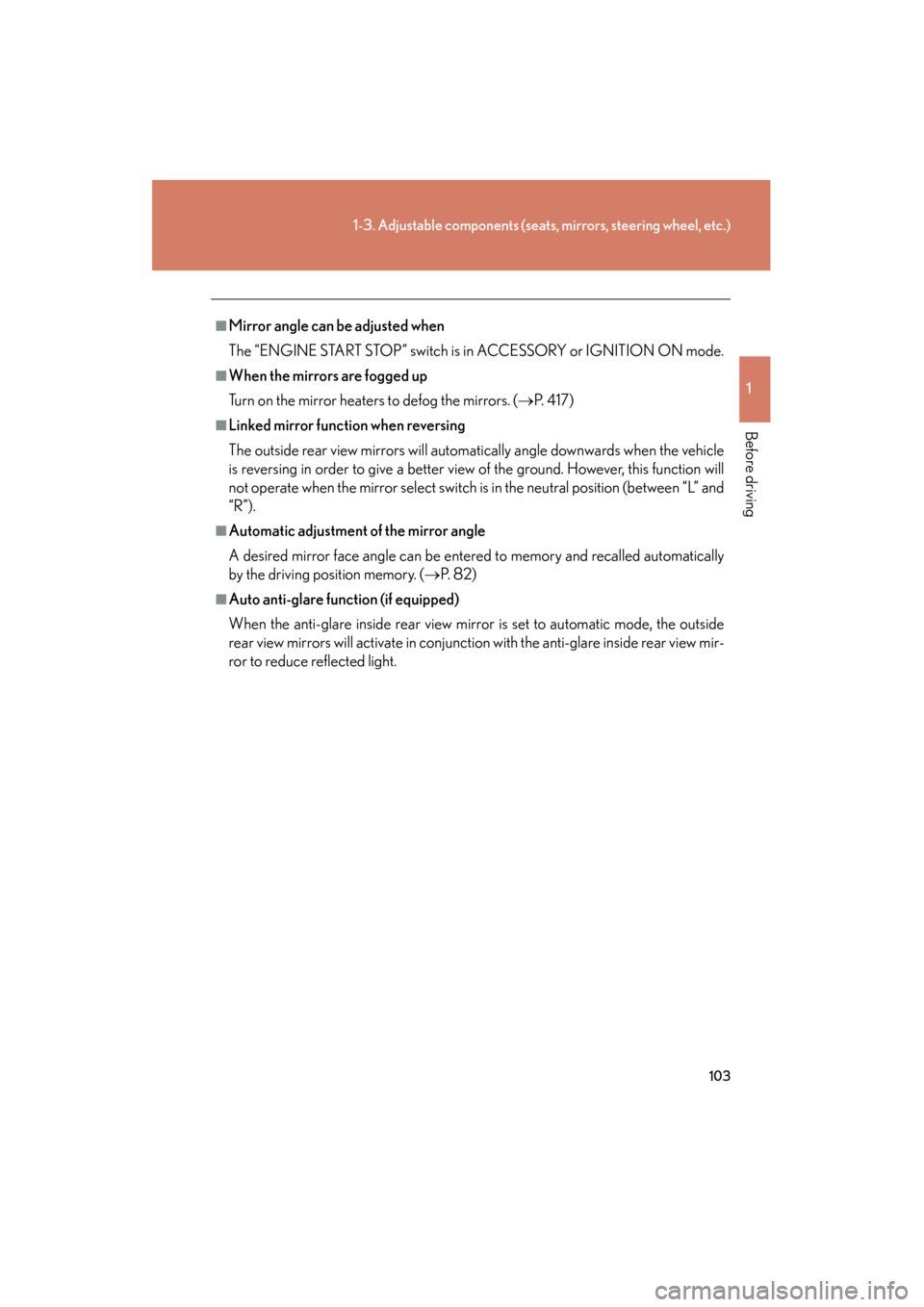

■Mirror angle can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. (→P. 4 1 7 )
■Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( →P. 8 2 )
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light.
GX460_OM_OM60J63U_(U).book Page 103 Thursday, March 29, 2012 9:10 AM
