transmission Lexus GX460 2013 User Guide

388
2-5. Driving information
GX460_OM_OM60J63U_(U)●

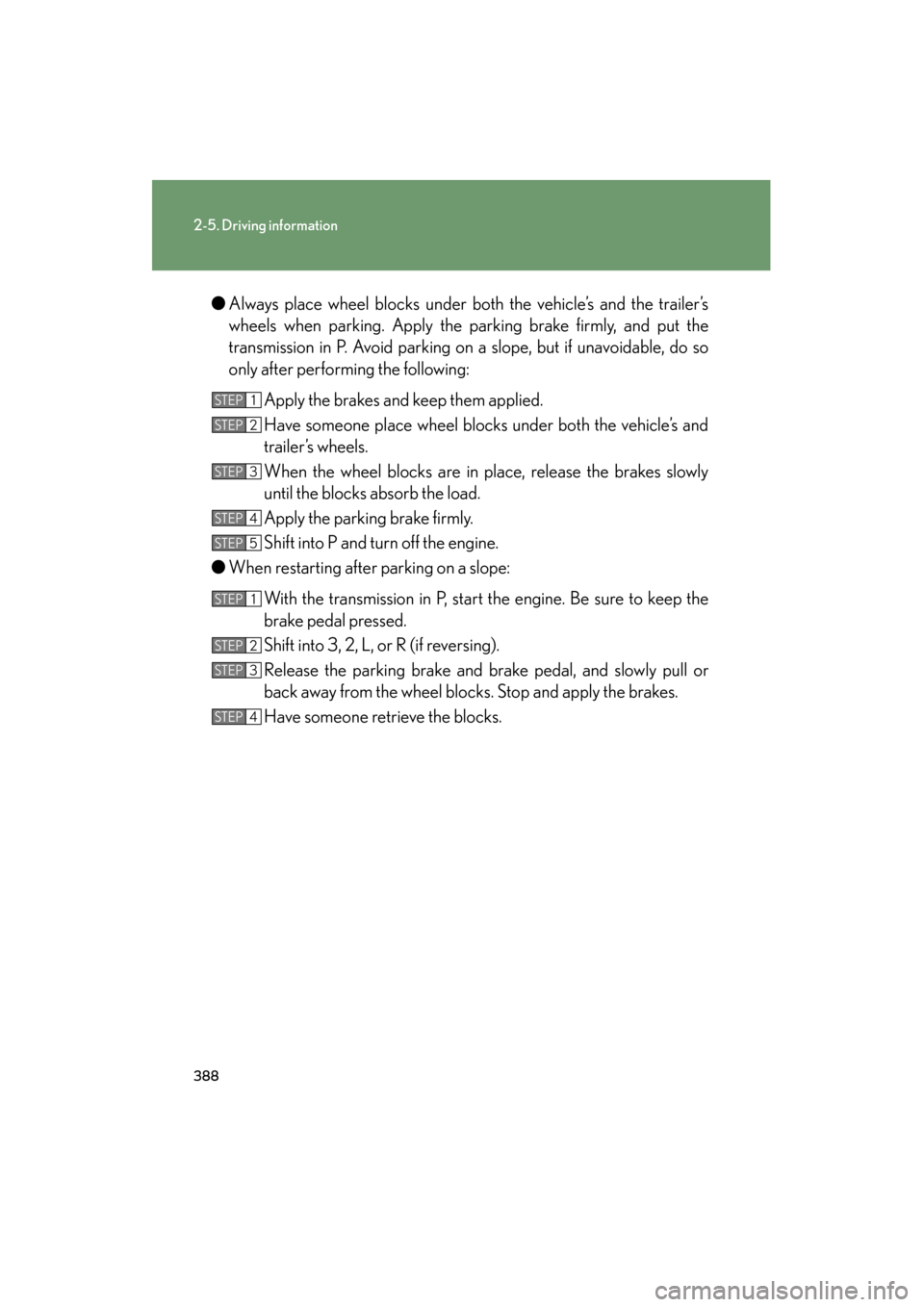

Always place wheel blocks under both the vehicle’s and the trailer’s
wheels when parking. Apply the parking brake firmly, and put the
transmission in P. Avoid parking on a slope, but if unavoidable, do so
only after performing the following:
Apply the brakes and keep them applied.
Have someone place wheel blocks under both the vehicle’s and
trailer’s wheels.
When the wheel blocks are in place, release the brakes slowly
until the blocks absorb the load.
Apply the parking brake firmly.
Shift into P and turn off the engine.
● When restarting after parking on a slope:
With the transmission in P, start the engine. Be sure to keep the
brake pedal pressed.
Shift into 3, 2, L, or R (if reversing).
Release the parking brake and brake pedal, and slowly pull or
back away from the wheel blocks. Stop and apply the brakes.
Have someone retrieve the blocks.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 388 Thursday, March 29, 2012 9:10 AM

390
2-5. Driving information
GX460_OM_OM60J63U_(U)
■AVS (adaptive variable suspension system)
The suspension can be switched for improvement in driveability. (→P. 3 2 5 )
■Break-in schedule
If your vehicle is new or equipped with any new power train components (such as
an engine, transmission, differential or wheel bearing), Lexus recommends that you
do not tow a trailer until the vehicle has been driven for over 500 miles (800 km).
After the vehicle has been driven for over 500 miles (800 km), you can start tow-
ing. However, for the next 500 miles (800 km), drive the vehicle at a speed of less
than 50 mph (80 km/h) when towing a trailer, and avoid full throttle acceleration.
■Maintenance
●If you tow a trailer, your vehicle will require more frequent maintenance due to
the additional load. (See “Owner’s Guide”, “Warranty and Services Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.)
●Retighten the fixing bolts of the towing ball and bracket after approximately
600 miles (1000 km) of trailer towing.
■If trailer sway occurs
One or more factors (crosswinds, passing vehicles, rough roads, etc.) can adversely
affect handling of your vehicle and trailer, causing instability.
●If trailer swaying occurs:
• Firmly grip the steering wheel. Steer straight ahead.
Do not try to control trailer swaying by turning the steering wheel.
• Begin releasing the accelerator pedal immediately but very gradually to reduce speed.
Do not increase speed. Do not apply vehicle brakes.
If you make no extreme correction with the steering or brakes, your vehicle and
trailer should stabilize.
GX460_OM_OM60J63U_(U).book Page 390 Thursday, March 29, 2012 9:10 AM

608
4-2. Maintenance
GX460_OM_OM60J63U_(U)

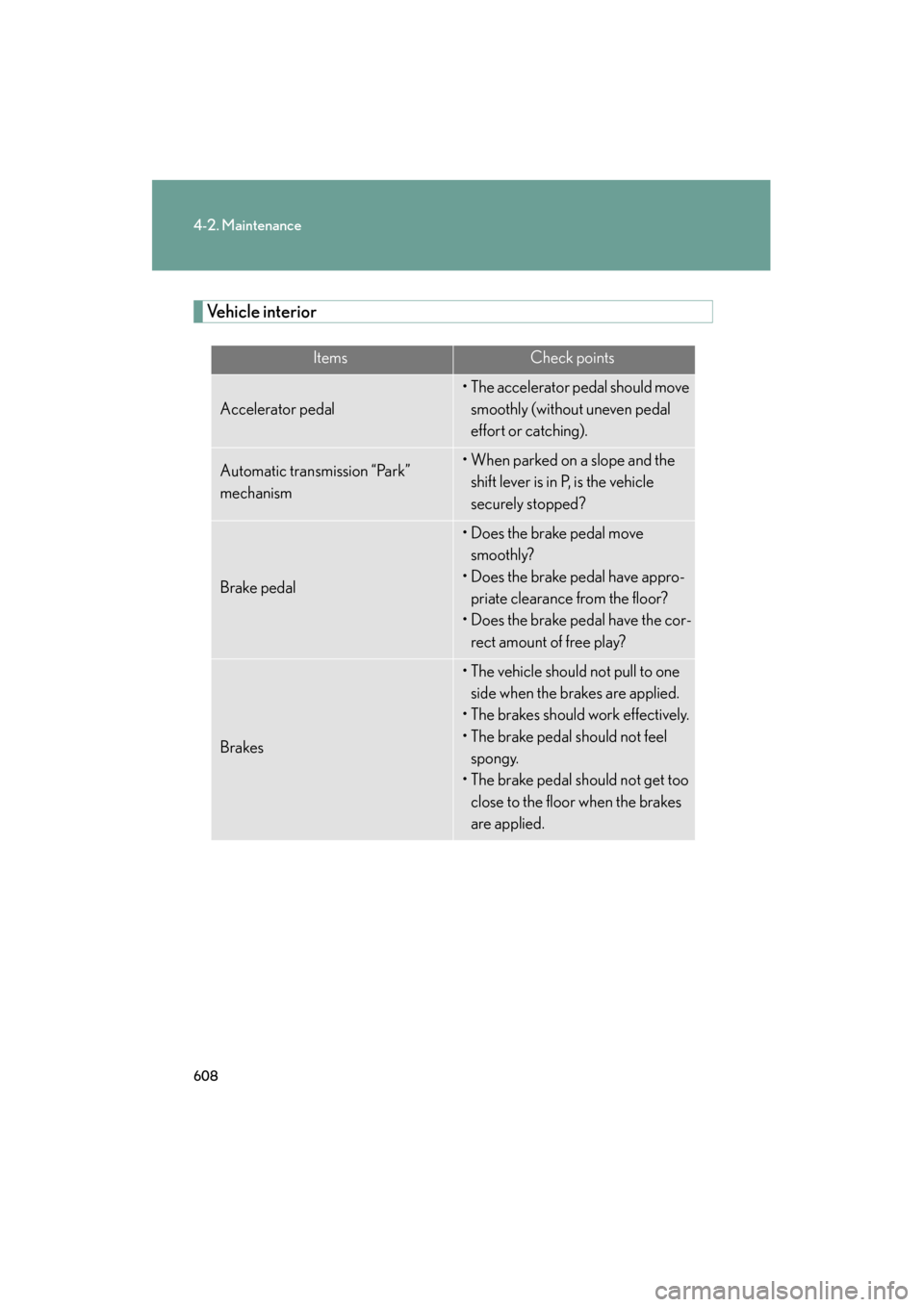

Vehicle interior
ItemsCheck points
Accelerator pedal
• The accelerator pedal should move smoothly (without uneven pedal
effort or catching).
Automatic transmission “Park”
mechanism• When parked on a slope and the shift lever is in P, is the vehicle
securely stopped?
Brake pedal
• Does the brake pedal move
smoothly?
• Does the brake pedal have appro- priate clearance from the floor?
• Does the brake pedal have the cor- rect amount of free play?
Brakes
• The vehicle should not pull to one side when the brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel
spongy.
• The brake pedal should not get too
close to the floor when the brakes
are applied.
GX460_OM_OM60J63U_(U).book Page 608 Thursday, March 29, 2012 9:10 AM

614
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
ItemsParts and tools
Fuses(→ P. 6 5 5 )• Fuse with same amperage rating as
original
Headlight aim ( →P. 668)• Phillips-head screwdriver
Light bulbs (→ P. 6 7 0 )
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Power steering fluid level (→ P. 6 2 9 )
• Automatic transmission fluid
DEXRON® II or III
•Rag or paper towel
• Clean funnel
Radiator and condenser ( →P. 6 2 6 )
Tire inflation pressure ( →P. 643)• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( →P. 6 3 5 )
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)
GX460_OM_OM60J63U_(U).book Page 614 Thursday, March 29, 2012 9:10 AM

630
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)■
Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall the cap and remove it again.
Check the fluid level.
Fluid typeAutomatic transmission fluid DEXRON® II or III
ItemsRag or paper, clean funnel (only for adding fluid)
CAUTION
■When checking the reservoir
Take care as the reservoir may be hot.
NOTICE
■When adding fluid
Avoid overfilling, or the power steering may be damaged.
■After replacing the reservoir cap
Check the steering box case, vane pump and hose connections for leaks or dam-
age.
STEP1
STEP2
STEP3
STEP4
STEP5
GX460_OM_OM60J63U_(U).book Page 630 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
685
5-1. Essential information
GX460_OM_OM60J63U_(U)
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The engine is running but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
The wheels and axle on the ground must be in good condition.
If they are damaged, use a towing dolly or flat bed truck.
GX460_OM_OM60J63U_(U).book Page 685 Thursday, March 29, 2012 9:10 AM

690
5-1. Essential information
GX460_OM_OM60J63U_(U)
NOTICE
■To prevent causing serious damage to the transmission and transfer when towing
using a wheel-lift type truck
Never tow this vehicle with any of the wheels in contact with the ground.
■To avoid serious damage to your vehicle
■]To prevent damage to the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle could
be damaged while being towed.
■To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent causing serious damage to the transmission and transfer in emer-
gency towing
Never tow a vehicle from the rear with four wheels on the ground. This may cause
serious damage to the transmission.
Do not use the rear emergency towing hook.
GX460_OM_OM60J63U_(U).book Page 690 Thursday, March 29, 2012 9:10 AM

694
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

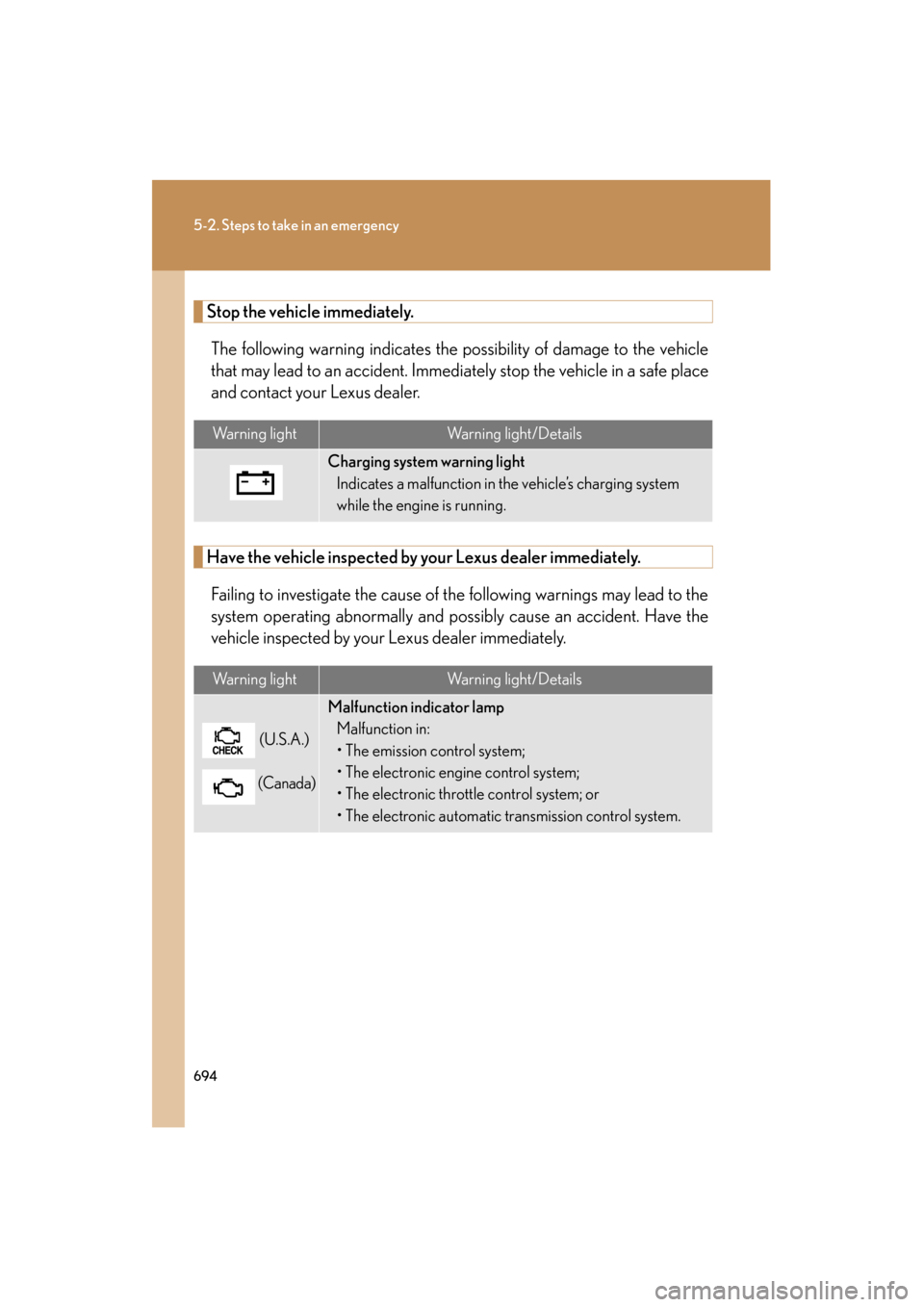

Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Have the vehicle inspected by your Lexus dealer immediately. Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system
while the engine is running.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Malfunction indicator lampMalfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.
GX460_OM_OM60J63U_(U).book Page 694 Thursday, March 29, 2012 9:10 AM

706
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Have the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Indicates that the automatic transmission fluid tem-
perature is too high Stop the vehicle in a safe place, shift the shift lever to
P and wait until the message goes off. If the message
goes off, you may start the vehicle again.
Indicates a malfunction in the automatic transmission
system
Indicates a malfunction in the steering lock system
GX460_OM_OM60J63U_(U).book Page 706 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
753
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

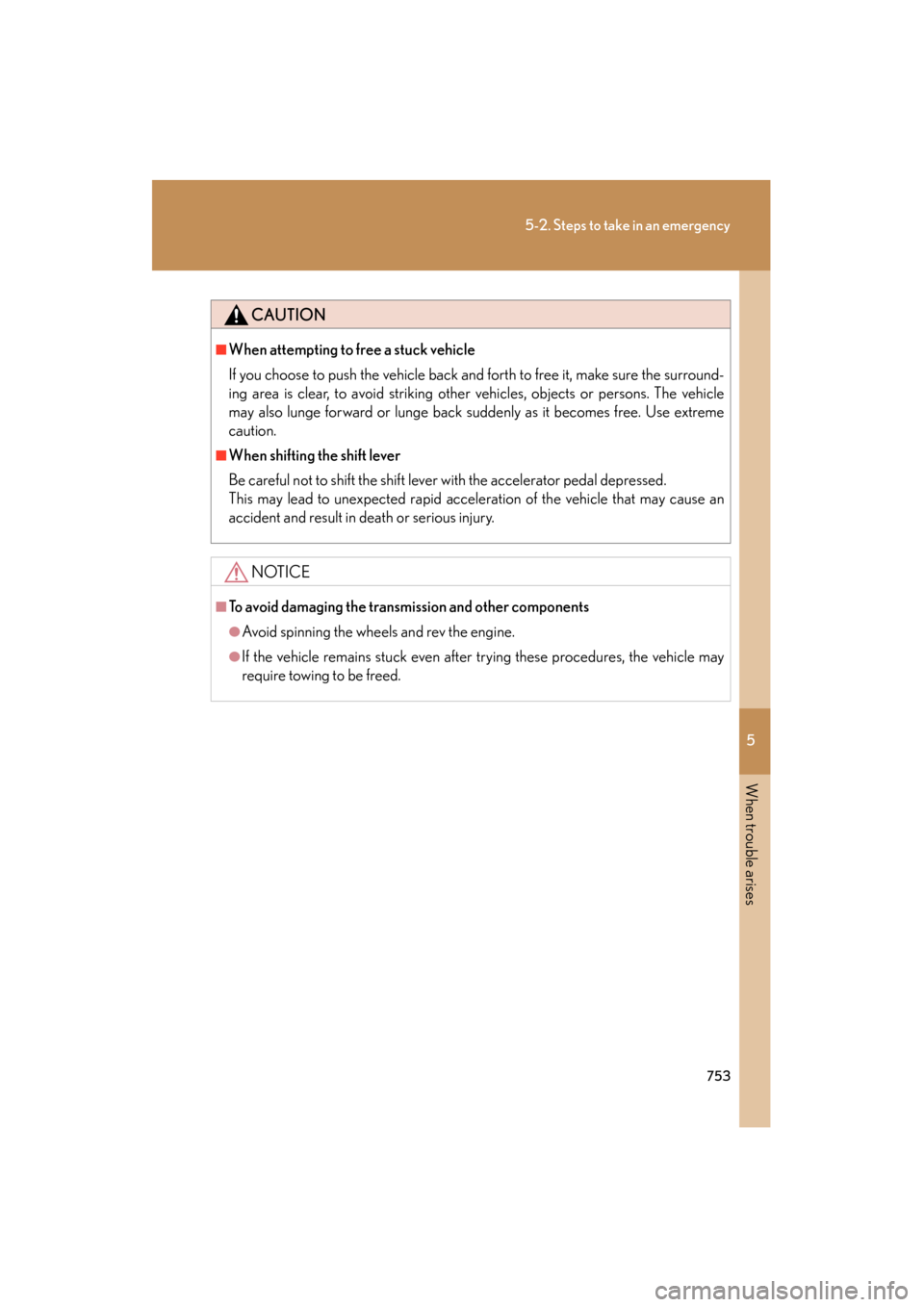

CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and rev the engine.
●If the vehicle remains stuck even after trying these procedures, the vehicle may
require towing to be freed.
GX460_OM_OM60J63U_(U).book Page 753 Thursday, March 29, 2012 9:10 AM
