transmission Lexus GX460 2013 Owner's Guide

766
6-1. Specifications
GX460_OM_OM60J63U_(U)
Automatic transmission
*: The fluid capacity is a reference quantity. If replacement is necessary, contact
your Lexus dealer.
Fluid capacity*
Wi th
air-cooled type
ATF cooler
11.8 qt. (11.2 L, 9.9 Imp.qt.)
Without
air-cooled type
ATF cooler
11.6 qt. (11.0 L, 9.7 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of the transmission accompanied by vibration and,
ultimately, damage to the vehicle’s transmission.
GX460_OM_OM60J63U_(U).book Page 766 Thursday, March 29, 2012 9:10 AM

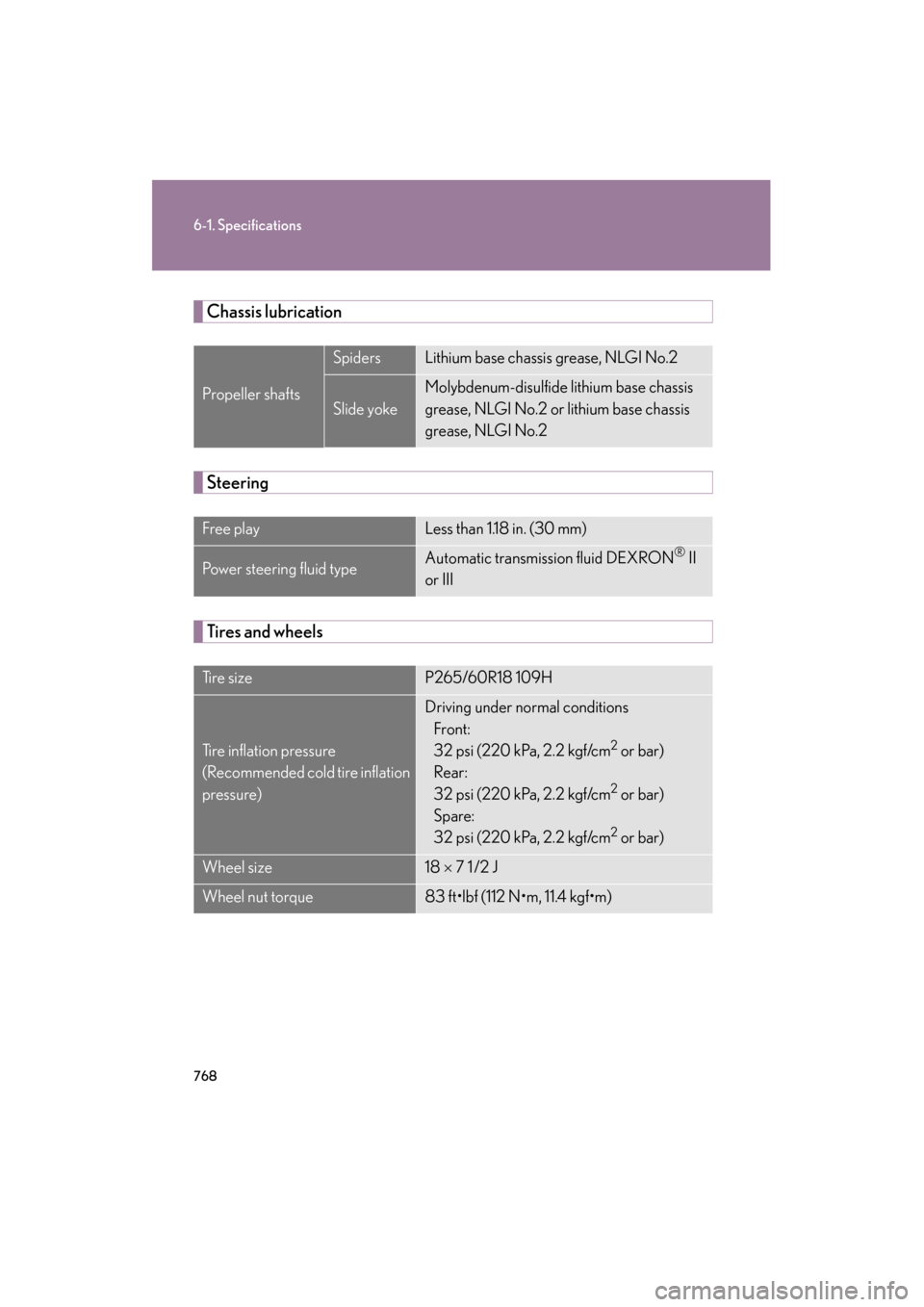

768
6-1. Specifications
GX460_OM_OM60J63U_(U)
Chassis lubrication
Steering
Tires and wheels
Propeller shafts
SpidersLithium base chassis grease, NLGI No.2
Slide yoke
Molybdenum-disulfide lithium base chassis
grease, NLGI No.2 or lithium base chassis
grease, NLGI No.2
Free playLess than 1.18 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II
or III
Ti r e s i z eP265/60R18 109H
Tire inflation pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size18 × 7 1 /2 J
Wheel nut torque83 ft•lbf (112 N•m, 11.4 kgf•m)
GX460_OM_OM60J63U_(U).book Page 768 Thursday, March 29, 2012 9:10 AM

826
GX460_OM_OM60J63U_(U)
Alphabetical index
Alphabetical index
A/CFront automatic air conditioning
system
*...............................................398
Rear automatic air conditioning
system
*................................................. 413
ABS.............................................................339
Active traction control........................340
Adaptive front lighting system ........ 227
Adaptive variable suspension system.....................................................325
AFS ............................................................. 227
Air conditioning filter ......................... 650
Air conditioning system Air conditioning filter ...................... 650
Front automatic air conditioning system
*...............................................398
Rear automatic air conditioning system
*................................................. 413
Airbags Airbag deployment
conditions............................................ 130
Airbag precautions for your
child.........................................................136
Airbag warning light ........................695
Front passenger occupant classification system........................143
General airbag pr ecautions ..........135
Locations of airbags........................... 126
Modification and disposal of airbags .................................................. 140
Proper driving posture ..................... 124
Side airbag precautions ................... 137
Side and curtain shield airbags deployment conditions ...................131
Side and curtain shield airbag precautions ........................................ 138
SRS airbags ............................................ 126 Alarm............................................................ 121
Antenna .................................................... 426
Anti-lock brake system ...................... 339
Armrest .................................................... 560
Assist grips .............................................. 562
Audio input.............................................. 465
Audio system
Antenna...................................................426
Audio input........................................... 465
AUX port .............................................. 465
CD player/changer ..........................429
iPod .......................................................... 446
MP3/WMA disc................................437
Optimal use ......................................... 463
Portable music player ..................... 465
Radio ......................................................... 421
Steering wheel audio switch........ 466
USB memory ...................................... 454
Audio/video remote controls
*
Audio/video system*
Automatic air conditioning system Air conditioning filter .......................650
Front automatic air conditioning system
*.............................................. 398
Rear automatic air conditioning system
*................................................ 413
Automatic light control system....... 223
Automatic transmission Automatic transmission ...................190
If the shift lever cannot be shifted from P ................................................... 742
S mode ..................................................... 193
AUX port
*.............................................. 465
Auxiliary box ...............................539, 567
AVS............................................................ 325
A
GX460_OM_OM60J63U_(U).book Page 826 Thursday, March 29, 2012 9:10 AM

834
Alphabetical index
GX460_OM_OM60J63U_(U)
SeatsAdjustment................................67, 71, 82
Adjustment precautions ....................... 70, 80, 85
Child seats/child restraint system installation ........................... 155
Cleaning.................................................. 601
Driver’s seat position memory....... 82
Folding down the second seatbacks ...................................... 73, 74
Folding down the third seats .......... 76
Head restraint......................................... 86
Properly sitting in the seat ............... 124
Seat heaters .......................................... 557
Seat position memory ........................ 82
Ventilated seats .................................. 557
Service reminder indicators ............202
Shift lever Automatic transmission................... 190
If the shift lever cannot be shifted from P ....................................742
Shift lever lighting .................................525
Shift lock system .................................... 742
Side airbags.............................................. 126
Side marker lights Replacing light bulbs............ 675, 677
Switch ...................................................... 223
Wattage.................................................. 769 Side mirror
Adjusting and folding ..........................101
Mirror position memory ....................82
Side turn signal lights
Replacing light bulbs .......................680
Smart access system with
push-button startAntenna location ...................................34
Entry functions ......................................... 31
Starting the engine.............................. 183
Spare tire Inflation pressure ............................... 768
Storage location .................................726
Spark plug ............................................... 763
Specifications ......................................... 758
Speedometer ...........................................199
Steering Column lock release ......................... 187
Fluid .......................................................... 768
Steering wheel
Adjustment ............................................... 97
Audio switches ................................... 466
Heated steering wheel ................... 555
Steering wheel position memory ..................................................82
Stop light
Replacing light bulbs .......................680
Storage feature ..................................... 529
Stuck If your vehicle becomes stuck .....752
Sun visors ................................................. 544
GX460_OM_OM60J63U_(U).book Page 834 Thursday, March 29, 2012 9:10 AM

835
Alphabetical index
GX460_OM_OM60J63U_(U)
Switch“ENGINE START STOP”
switch .....................................................183
Engine switch ........................................183
“2nd STRT” switch .............................. 192
Center differential lock/unlock
switch ....................................................327
“DAC” switch ...................................... 336
Emergency flasher Switch ............684
Fog light switch....................................237
Hazard light Switch ..........................684
Heated steering wheel switch ....555
Height control off switch ............... 320
Ignition switch........................................183
Light switches.......................................223
Power door lock switch.....................52
Power window switch...................... 105
“RSCA OFF” switch ............................ 141
Rear window defogger switch
*.................................................. 417
Transmission shift switch ................. 193
Window lock switch ......................... 105
Wipers and washer switch........... 240
Tachometer .............................................. 199
Tail lights Replacing light bulbs ...................... 680
Switch .......................................................223
Talk switch
*.............................................496
Telephones switch
*.............................496
Theft deterrent system Alarm ........................................................... 121
Engine immobilizer system ..............119 Tire inflation pressure ......................... 643
Tire information
Glossary ................................................ 780
Size............................................................ 776
Tire identification number.............. 775
Uniform Tire Quality Grading ....778
Tires Chains .......................................................371
Checking .............................................. 636
If you have a flat tire .......................... 726
Inflation pressure............................... 768
Information ............................................ 774
Pressure warning system.............. 636
Replacing ............................................... 726
Rotating tires ....................................... 636
Size........................................................... 768
Snow tires ................................................371
Spare tire ................................................ 726
Tire pressure warning system ................................................. 636
Tools ........................................................... 726
Total load capacity ...............................369
Towing Dinghy towing .....................................394
Emergency towing........................... 685
Trailer towing .......................................375
T
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
GX460_OM_OM60J63U_(U).book Page 835 Thursday, March 29, 2012 9:10 AM

836
Alphabetical index
GX460_OM_OM60J63U_(U)
TRAC.........................................................340
Traction control .....................................340
Trailer towing.......................................... 375
Transmission shift switches ................ 193
Trip information display....................... 216
Trip meter ................................................. 199
Turn signal lightsReplacing light bulbs............ 676, 677
Switch ........................................................196
Wattage.................................................. 769
Vanity lights Vanity lights ..........................................545
Wattage.................................................. 769
Vanity mirrors ............................................545
Vehicle identification number ......... 759
Vehicle load limits ................................369
Ventilators ...............................................557
VSC (Vehicle Stability Control).....339
Warning buzzers Brake system .........................................710
Open door ...............................697, 709
Open glass hatch reminder ........... 710
Seat belt reminder............................. 697
Third power seat................................... 76 Warning lights
Anti-lock brake system
(ABS) ................................................... 695
Brake system....................................... 693
Charging system ............................... 694
Kinetic dynamic suspension
system.................................................. 696
Low fuel level....................................... 697
Malfunction indicator lamp .......... 694
Master warning light........................ 698
Open door ........................................... 697
PCS .......................................................... 695
Seat belt reminder light .................. 697
Slip indicator light.............................. 695
SRS airbags.......................................... 695
Tire pressure warning light .......... 698
Warning messages Automatic transmission fluid
temperature...................................... 706
Automatic transmission
system.................................................. 706
Brake system......................................... 710
Dynamic radar cruise control system........................................ 708, 712
Engine oil maintenance...................... 711
Engine oil pressure........................... 705
Intuitive parking assist ......................707
Low washer level .................................. 711
Open door ........................................... 709
Open glass hatch................................ 710
Open moon roof................................. 710
Pre-collision system................707, 712
V
W
GX460_OM_OM60J63U_(U).book Page 836 Thursday, March 29, 2012 9:10 AM
