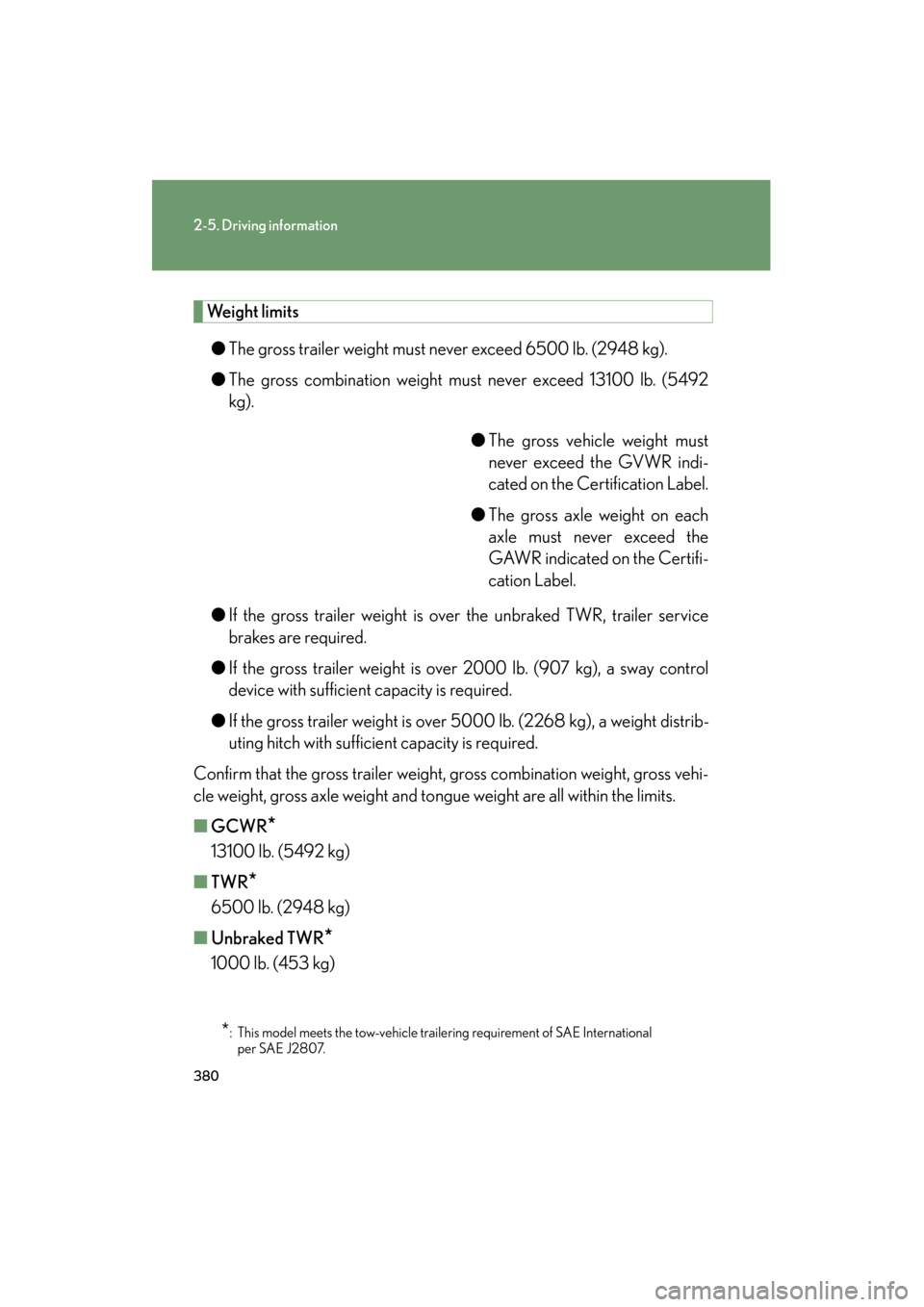

Weight limits● The gross trailer weight must never exceed 6500 lb. (2948 kg).
● The gross combination weight must never exceed 13100 lb. (5492
kg).
●The gross vehicle weight must
never exceed the GVWR indi-
cated on the Certification Label.
● The gross axle weight on each
axle must never exceed the
GAWR indicated on the Certifi-
cation Label.
● If the gross trailer weight is over the unbraked TWR, trailer service
brakes are required.
● If the gross trailer weight is over 2000 lb. (907 kg), a sway control
device with sufficient capacity is required.
● If the gross trailer weight is over 5000 lb. (2268 kg), a weight distrib-
uting hitch with sufficient capacity is required.
Confirm that the gross trailer weight, gross combination weight, gross vehi-
cle weight, gross axle weight and tongue weight are all within the limits.
■ GCWR
*
13100 lb. (5492 kg)
■ TWR
*
6500 lb. (2948 kg)
■ Unbraked TWR
*
1000 lb. (453 kg)
*: This model meets the tow-vehicle trailering requirement of SAE International
per SAE J2807.
GX460_OM_OM60J63U_(U).book Page 380 Thursday, March 29, 2012 9:10 AM

381
2-5. Driving information
2
When driving
GX460_OM_OM60J63U_(U)

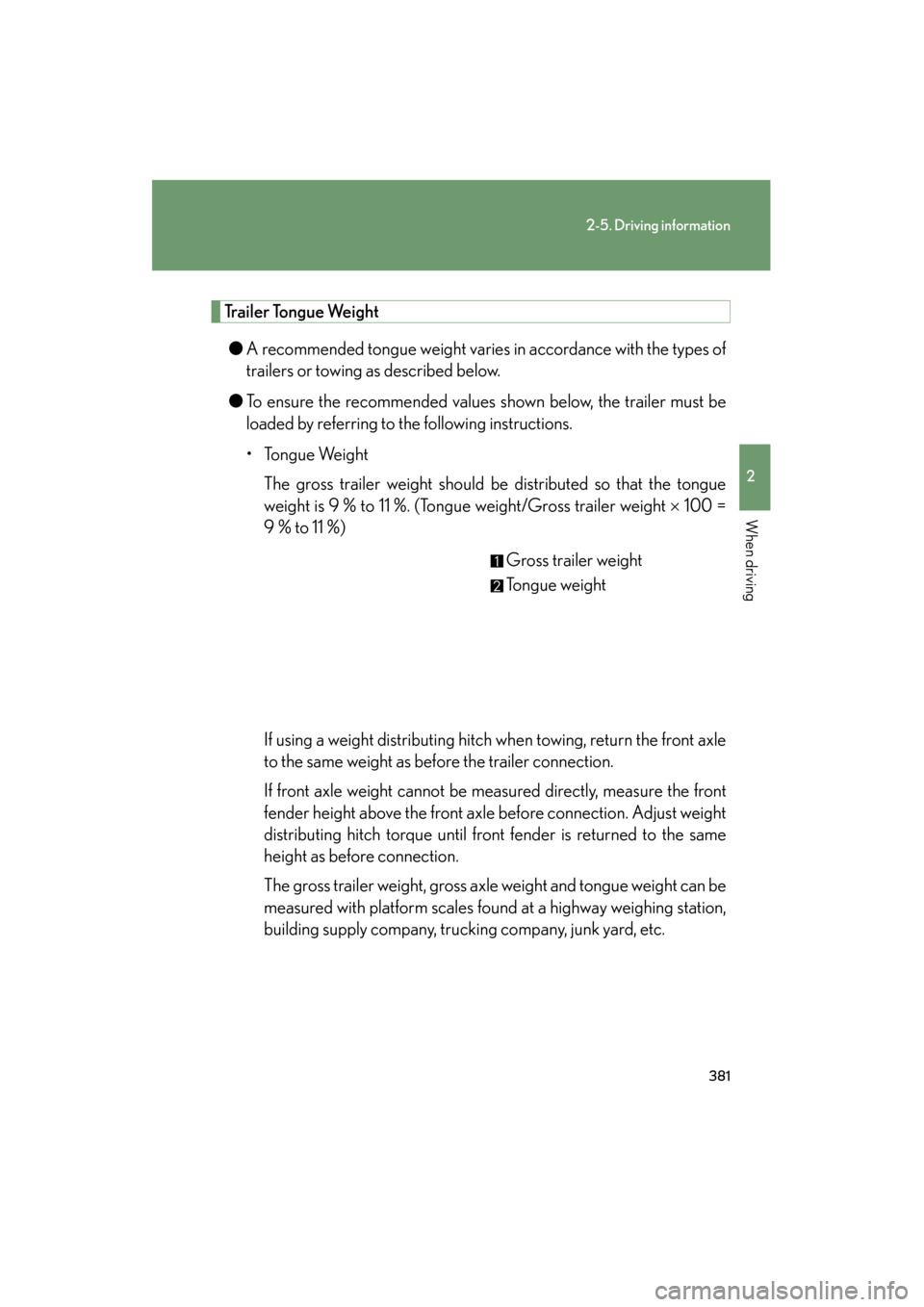

Trailer Tongue Weight● A recommended tongue weight varies in accordance with the types of
trailers or towing as described below.
● To ensure the recommended values shown below, the trailer must be
loaded by referring to the following instructions.
• Tongue Weight
The gross trailer weight should be distributed so that the tongue
weight is 9 % to 11 %. (Tongue weight/Gross trailer weight × 100 =
9% to 11%)
Gross trailer weight
Tongue weight
If using a weight distributing hitch when towing, return the front axle
to the same weight as before the trailer connection.
If front axle weight cannot be measured directly, measure the front
fender height above the front axle before connection. Adjust weight
distributing hitch torque until front fender is returned to the same
height as before connection.
The gross trailer weight, gross axle weight and tongue weight can be
measured with platform scales found at a highway weighing station,
building supply company, trucking company, junk yard, etc.
GX460_OM_OM60J63U_(U).book Page 381 Thursday, March 29, 2012 9:10 AM

382
2-5. Driving information
GX460_OM_OM60J63U_(U)

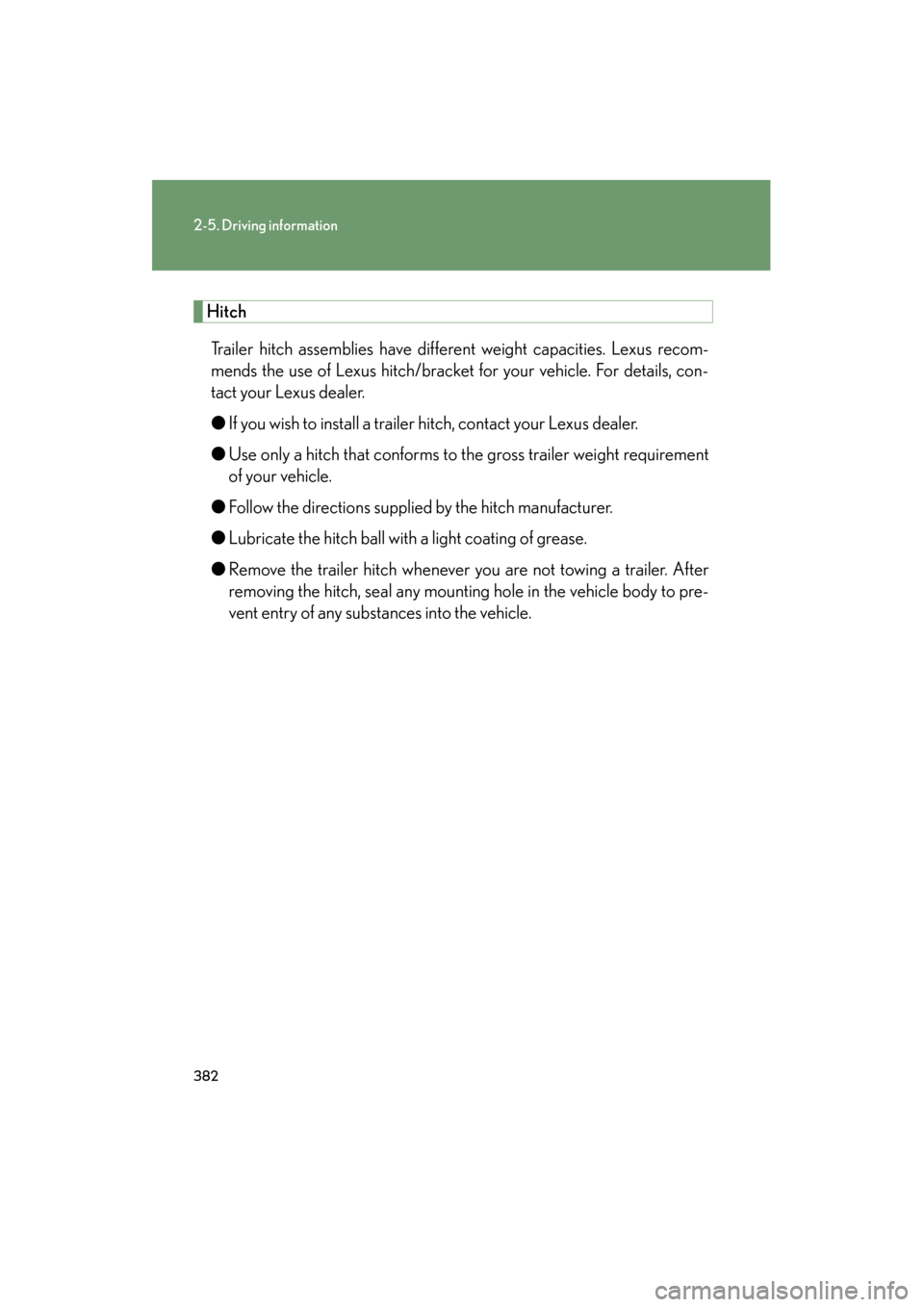

HitchTrailer hitch assemblies have different weight capacities. Lexus recom-
mends the use of Lexus hitch/bracket for your vehicle. For details, con-
tact your Lexus dealer.
● If you wish to install a trailer hitch, contact your Lexus dealer.
● Use only a hitch that conforms to the gross trailer weight requirement
of your vehicle.
● Follow the directions supplied by the hitch manufacturer.
● Lubricate the hitch ball with a light coating of grease.
● Remove the trailer hitch whenever you are not towing a trailer. After
removing the hitch, seal any mounting hole in the vehicle body to pre-
vent entry of any substances into the vehicle.
GX460_OM_OM60J63U_(U).book Page 382 Thursday, March 29, 2012 9:10 AM

383
2-5. Driving information
2
When driving
GX460_OM_OM60J63U_(U)
Selecting trailer ballUse the correct trailer ball for your application. Trailer ball load rating
Matches or exceeds the gross
trailer weight rating of the trailer.
Ball diameter
Matches the size of the trailer cou-
pler. Most couplers are stamped
with the required trailer ball size.
Shank length
Protrudes beyond the bottom of
the lock washer and nut by at least
2 threads.
Shank diameter
Matches the ball mount hole diam-
eter size.
Trailer classTypical trailer ball
size
IV2 5/16 in.
II and III2 in.
I1 7/8 in.
GX460_OM_OM60J63U_(U).book Page 383 Thursday, March 29, 2012 9:10 AM

384
2-5. Driving information
GX460_OM_OM60J63U_(U)
Positions for towing hitch receiver and hitch ballWeight carrying ball position:
50.5 in. (1282.9 mm)
Hitch receiver pin hole position:
44.1 in. (1120.4 mm)
Connecting trailer lightsUse the wire harness stored in the
rear end under the vehicle body.
Please consult your dealer when installing trailer lights, as incorrect
installation may cause damage to the vehicle’s lights. Please take care to
comply with your state’s laws when installing trailer lights.
GX460_OM_OM60J63U_(U).book Page 384 Thursday, March 29, 2012 9:10 AM

385
2-5. Driving information
2
When driving
GX460_OM_OM60J63U_(U)

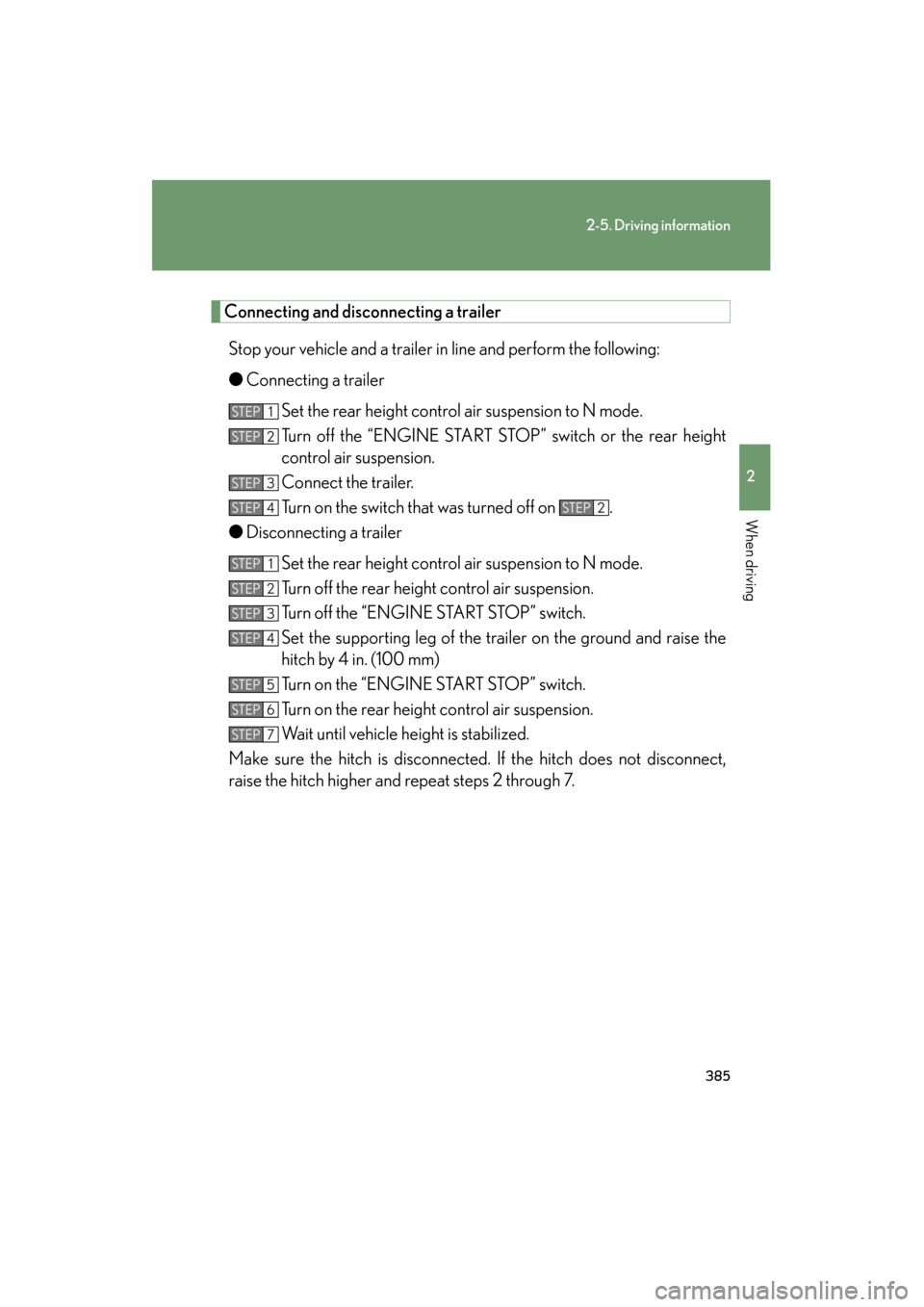

Connecting and disconnecting a trailerStop your vehicle and a trailer in line and perform the following:
● Connecting a trailer
Set the rear height control air suspension to N mode.
Turn off the “ENGINE START STOP” switch or the rear height
control air suspension.
Connect the trailer.
Turn on the switch that was turned off on .
● Disconnecting a trailer
Set the rear height control air suspension to N mode.
Turn off the rear height control air suspension.
Turn off the “ENGINE START STOP” switch.
Set the supporting leg of the trailer on the ground and raise the
hitch by 4 in. (100 mm)
Turn on the “ENGINE START STOP” switch.
Turn on the rear height control air suspension.
Wait until vehicle height is stabilized.
Make sure the hitch is disconnected. If the hitch does not disconnect,
raise the hitch higher and repeat steps 2 through 7.
STEP1STEP1
STEP2STEP2
STEP1STEP3STEP3
STEP1STEP4STEP4STEP2STEP2
STEP1STEP1
STEP2STEP2
STEP1STEP3STEP3
STEP1STEP4STEP4
STEP1STEP5STEP5STEP5
STEP1STEP5STEP6STEP6STEP6
STEP1STEP5STEP6STEP7STEP7
GX460_OM_OM60J63U_(U).book Page 385 Thursday, March 29, 2012 9:10 AM

386
2-5. Driving information
GX460_OM_OM60J63U_(U)
Trailer towing tipsYour vehicle will handle differently when towing a trailer. Help to avoid an
accident, death or serious injury, keep the following in mind when towing:
● Speed limits for towing a trailer vary by state or province. Do not
exceed the posted towing speed limit.
● Lexus recommends that the vehicle- trailer speed limit is 65 mph (104
km/h) on a flat, straight, dry road. Do not exceed this limit, the posted
towing speed limit or the speed limit for your trailer as set forth in your
trailer owner’s manual, whichever is lowest. Instability of the towing
vehicle-trailer combination (trailer sway) increases as speed increases.
Exceeding speed limits may cause loss of control.
● Before starting out, check the trailer lights, tires and the vehicle-trailer
connections. Recheck after driving a short distance.
● Practice turning, stopping and reversing with the trailer attached in an
area away from traffic until you become accustomed to the feel of the
vehicle-trailer combination.
● Reversing with a trailer attached is difficult and requires practice. Grip
the bottom of the steering wheel and move your hand to the left to
move the trailer to the left. Move your hand to the right to move the
trailer to the right. (This is generally opposite to reversing without a
trailer attached.) Avoid sharp or prolonged turning. Have someone
guide you when reversing to reduce the risk of an accident.
● As stopping distance is increased when towing a trailer, vehicle-to-
vehicle distance should be increased. For each 10 mph (16 km/h) of
speed, allow at least one vehicle and trailer length.
● Avoid sudden braking as you may skid, resulting in the trailer jackknif-
ing and loss of vehicle control. This is especially true on wet or slippery
surfaces.
GX460_OM_OM60J63U_(U).book Page 386 Thursday, March 29, 2012 9:10 AM

387
2-5. Driving information
2
When driving
GX460_OM_OM60J63U_(U)●
Avoid jerky starts or sudden acceleration.
● Avoid jerky steering and sharp turns, and slow down before making a
turn.
● Note that when making a turn, the trailer wheels will be closer than the
vehicle wheels to the inside of the turn. Compensate by making a
wider than normal turning radius.
● Slow down before making a turn, in crosswinds, on wet or slippery sur-
faces, etc.
Increasing vehicle speed can destabilize the trailer.
● Take care when passing other vehicles. Passing requires considerable
distance. After passing a vehicle, do not forget the length of your
trailer, and be sure you have plenty of room before changing lanes.
● To maintain engine braking efficiency and charging system perfor-
mance when using engine braking, do not put the transmission in D.
Transmission shift range position must be in 5 in the S mode.
● Instability happens more frequently when descending steep or long
downhill grades. Before descending, slow down and downshift. Do not
make sudden downshifts while descending steep or long downhill
grades.
● Avoid holding the brake pedal down too long or applying the brakes
too frequently. This could cause the brakes to overheat and result in
reduced braking efficiency.
● Due to the added load of the trailer, your vehicle’s engine may overheat
on hot days (at temperatures over 85°F [30°C]) when driving up a
long or steep grade. If the engine coolant temperature gauge indicates
overheating, immediately turn off the air conditioning (if in use), pull
your vehicle off the road and stop in a safe spot. ( →P. 74 9 )
GX460_OM_OM60J63U_(U).book Page 387 Thursday, March 29, 2012 9:10 AM

388
2-5. Driving information
GX460_OM_OM60J63U_(U)●
Always place wheel blocks under both the vehicle’s and the trailer’s
wheels when parking. Apply the parking brake firmly, and put the
transmission in P. Avoid parking on a slope, but if unavoidable, do so
only after performing the following:
Apply the brakes and keep them applied.
Have someone place wheel blocks under both the vehicle’s and
trailer’s wheels.
When the wheel blocks are in place, release the brakes slowly
until the blocks absorb the load.
Apply the parking brake firmly.
Shift into P and turn off the engine.
● When restarting after parking on a slope:
With the transmission in P, start the engine. Be sure to keep the
brake pedal pressed.
Shift into 3, 2, L, or R (if reversing).
Release the parking brake and brake pedal, and slowly pull or
back away from the wheel blocks. Stop and apply the brakes.
Have someone retrieve the blocks.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 388 Thursday, March 29, 2012 9:10 AM

389
2-5. Driving information
2
When driving
GX460_OM_OM60J63U_(U)
■Matching trailer ball height to trailer coupler height
■Before towing
Check that the following conditions are met:
●Ensure that your vehicle’s tires are properly inflated. (→P. 76 8 )
●Trailer tires are inflated according to the trailer manufacturer’s recommenda-
tion.
●All trailer lights work as required by law.
●All lights work each time you connect them.
●The trailer ball is set at the proper height for the coupler on the trailer.
●The trailer is level when it is hitched.
Do not drive if the trailer is not level, and check for improper tongue weight,
overloading, worn suspension, or other possible causes.
●The trailer cargo is securely loaded.
●The rear view mirrors conform to all applicable federal, state/provincial or local
regulations. If they do not, install rear view mirrors appropriate for towing pur-
poses. No matter which class of tow hitch applies,
for a more safe trailer hookup, the trailer ball
setup must be the proper height for the cou-
pler on the trailer.
Tr a i l e r b a l l
Coupler
