hood open Lexus GX460 2013 Owner's Manual

1
2
3
4
5
6
7
5
GX460_OM_OM60J63U_(U)
3-6. Using the storage featuresList of storage features............... 529
• Glove box ..................................... 531
• Console box ................................ 532
• Coin holder.................................. 534
• Bottle holders/door pockets ......................................... 535
• Cup holders................................. 536
• Auxiliary boxes........................... 539
3-7. Other interior features Cool box ........................................... 541
Sun visors......................................... 544
Vanity mirror .................................. 545
Clock ................................................. 546
Conversation mirror................... 547
Power outlet (12 V DC) ........... 548
Power outlet (120 V AC) ........ 550
Heated steering wheel.............. 555
Seat heaters and ventilators .... 557
Armrest ........................................... 560
Coat hooks ...................................... 561
Assist grips ...................................... 562
Floor mat.......................................... 563
Luggage compartment features.......................................... 565
Garage door opener.................. 574
Compass......................................... 582
Safety Connect ............................. 587 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 596
Cleaning and protecting the vehicle interior ..................... 601
4-2. Maintenance Maintenance requirements ..... 604
General maintenance ................ 607
Emission inspection and maintenance (I/M)
programs ......................................... 611
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................... 612
Hood ................................................... 617
Engine compartment................... 618
Tires ................................................... 636
Tire inflation pressure................. 643
Wheels ............................................. 647
Air conditioning filter................. 650
Electronic key battery ................ 652
Checking and replacing fuses ................................................ 655
Headlight aim (vehicles with low beam halogen bulbs)....... 668
Light bulbs ....................................... 670
4Maintenance and care
GX460_OM_OM60J63U_(U).book Page 5 Thursday, March 29, 2012 9:10 AM

121
1
1-6. Theft deterrent system
Before driving
GX460_OM_OM60J63U_(U)
Alarm
The system sounds the alarm and flashes the lights when forced entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or glass hatch is unlocked or opened in any way
other than using the entry function, wireless remote control or
mechanical key. (The doors will lock again automatically.)
● The hood is opened.
■ Setting the alarm system
Vehicles without a navigation system Close the doors, glass hatch
and hood, and lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
GX460_OM_OM60J63U_(U).book Page 121 Thursday, March 29, 2012 9:10 AM

123
1-6. Theft deterrent system
1
Before driving
GX460_OM_OM60J63U_(U)
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent
intruders.
●Do not leave the key inside the vehicle when the alarm is operating, and make
sure the key is not inside the vehicle when recharging or replacing the battery.
■Alarm memory function
After the alarm is activated, when you unlock any door using a entry function, wire-
less remote control or mechanical key, the tail lights turn on for about 2 seconds to
inform you that the system was activated.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
●A person inside the vehicle opens a door
or hood.
●The battery is recharged or replaced
when the vehicle is locked.
GX460_OM_OM60J63U_(U).book Page 123 Thursday, March 29, 2012 9:10 AM

297
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■Smear effect
■Flicker effect
When the camera is used under fluorescent lights, sodium lights, mercury lights
etc., the lights and the illuminated areas may appear to flicker.
CAUTION
■When using the wide view front & side monitor system
Observe the following precautions to avoid an accident that could result in death or
serious injuries.
●Never depend solely on the monitor system.
●Always check visually and with the mirrors to confirm your intended path is clear.
●Depicted distances between objects and flat surfaces differ from actual dis-
tances.
●Do not use the system if the hood or doors are open.
If a bright light, such as sunlight reflected off
the vehicle body, is picked up by the camera,
a smear effect
* characteristic to the camera
may occur.
*: Smear effect  A phenomenon that
occurs when a bright light is picked up by
the camera; when transmitted by the cam-
era, the light source will appear to have
streaks of light emanating from it. The
streaks will also appear when the light
source is in the masked area.
GX460_OM_OM60J63U_(U).book Page 297 Thursday, March 29, 2012 9:10 AM

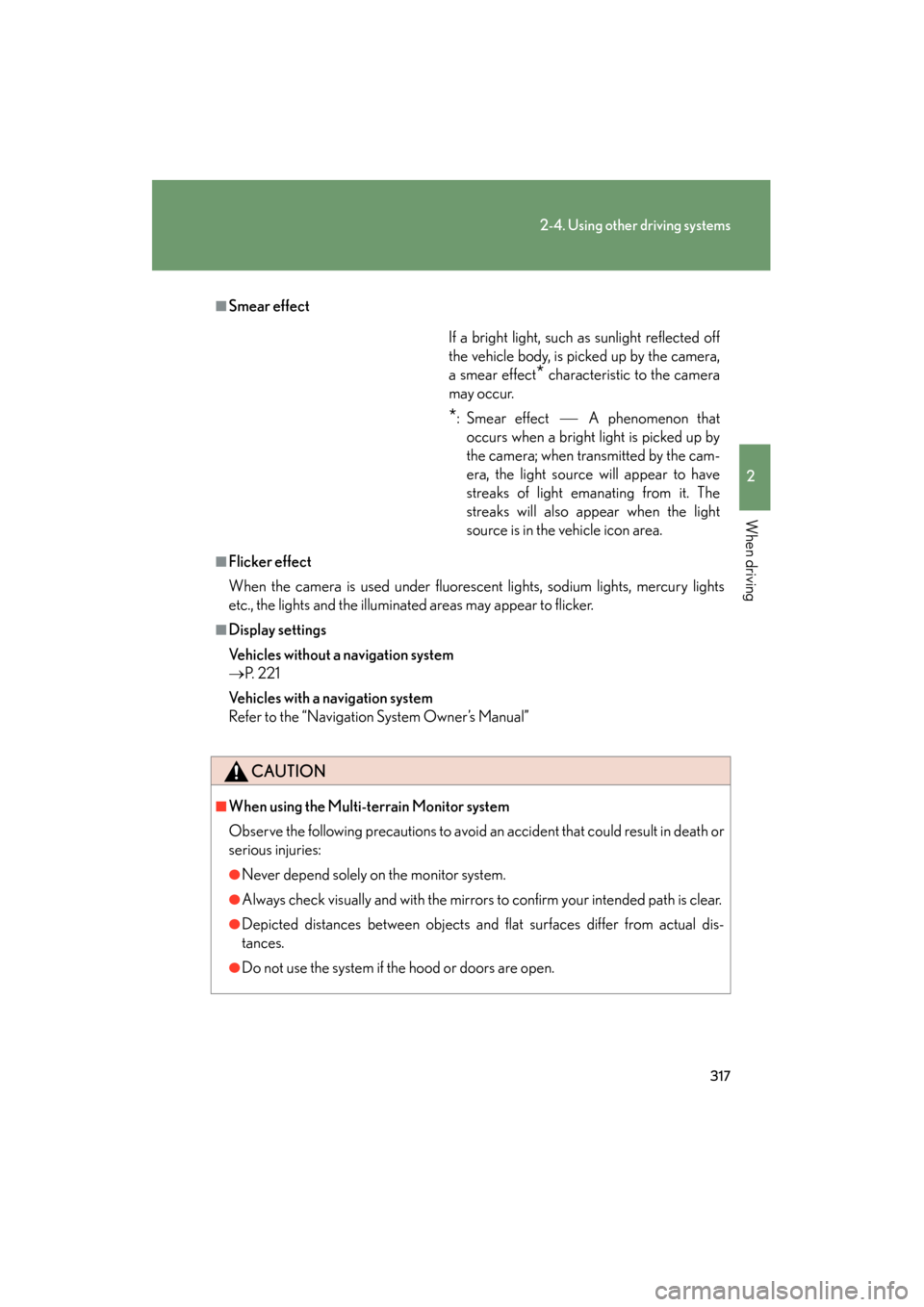

317
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■Smear effect
■Flicker effect
When the camera is used under fluorescent lights, sodium lights, mercury lights
etc., the lights and the illuminated areas may appear to flicker.
■Display settings
Vehicles without a navigation system
→P. 2 2 1
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”
CAUTION
■When using the Multi-terrain Monitor system
Observe the following precautions to avoid an accident that could result in death or
serious injuries:
●Never depend solely on the monitor system.
●Always check visually and with the mirrors to confirm your intended path is clear.
●Depicted distances between objects and flat surfaces differ from actual dis-
tances.
●Do not use the system if the hood or doors are open.
If a bright light, such as sunlight reflected off
the vehicle body, is picked up by the camera,
a smear effect
* characteristic to the camera
may occur.
*: Smear effect  A phenomenon that
occurs when a bright light is picked up by
the camera; when transmitted by the cam-
era, the light source will appear to have
streaks of light emanating from it. The
streaks will also appear when the light
source is in the vehicle icon area.
GX460_OM_OM60J63U_(U).book Page 317 Thursday, March 29, 2012 9:10 AM

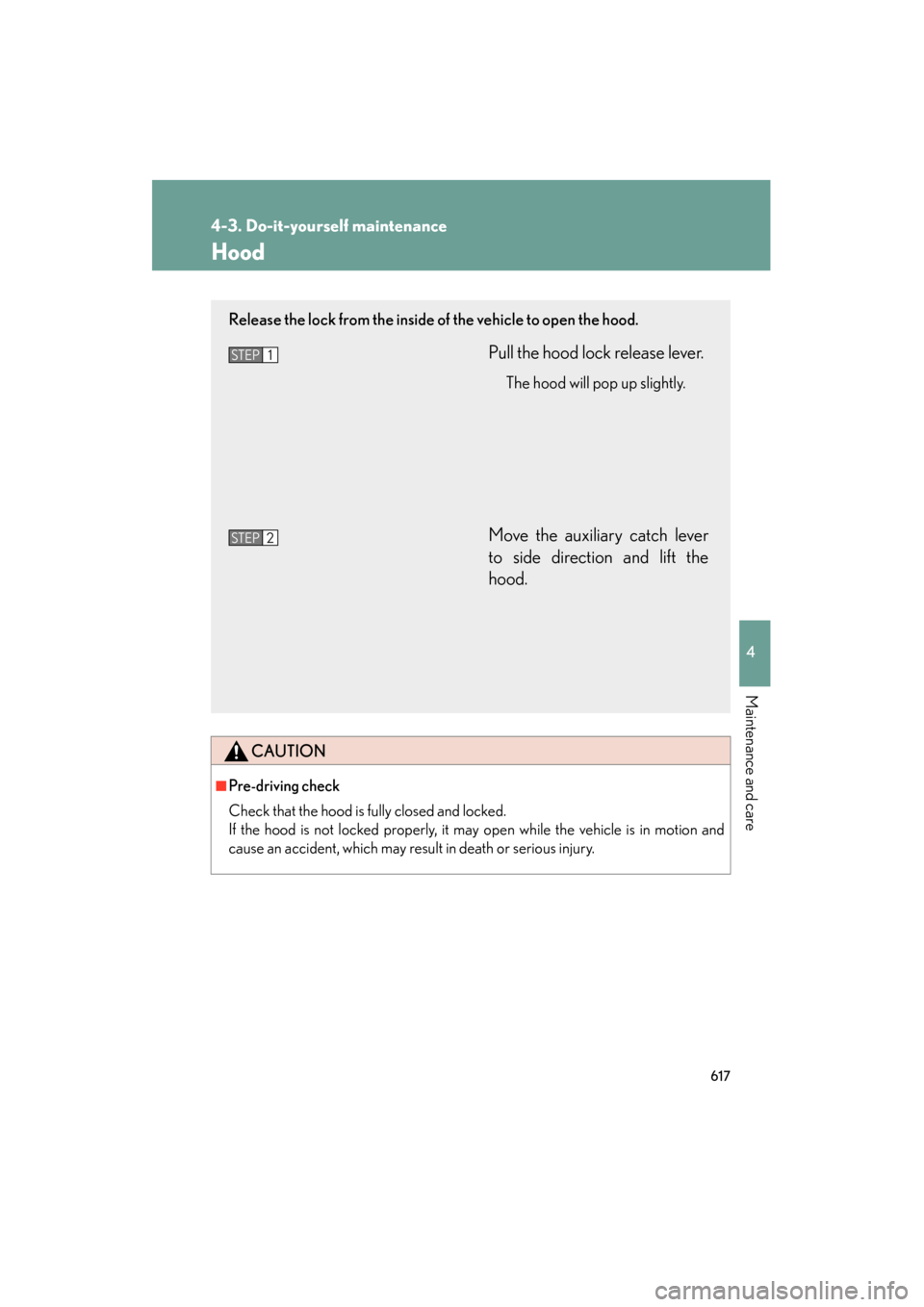

617
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release lever.
The hood will pop up slightly.
Move the auxiliary catch lever
to side direction and lift the
hood.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 617 Thursday, March 29, 2012 9:10 AM

746
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If the vehicle battery is discharged
The following procedures may be used to start the engine if the vehicle’s
battery is discharged.
You can call your Lexus dealer, or qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12 volt battery, you can jump start your Lexus by following the
steps below.
Open the hood. ( →P. 6 1 7 )
Connecting the jumper cables according to the following procedure: Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Connect the jumper cable to ground on your vehicle as shown in the
illustration.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 746 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
751
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
■Overheating
In the following situations, your vehicle may be overheating:
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injury such as burns.
●Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding coolant.
When adding coolant, do so slowly. Adding cold coolant to a hot engine too quickly
can cause damage to the engine.
GX460_OM_OM60J63U_(U).book Page 751 Thursday, March 29, 2012 9:10 AM

832
Alphabetical index
GX460_OM_OM60J63U_(U)
LightsDoor courtesy lights.........................525
Emergency flasher switch .............684
Engine switch light ............................ 525
Fog light switch................................... 237
Hazard light switch ...........................684
Headlights switch .............................. 223
Inside door handle light.................. 525
Interior lights list.................................. 525
Personal/interior lights ................... 527
Replacing light bulbs........................ 670
Running board lights........................ 525
Scuff lights.............................................. 525
Shift lever light ..................................... 525
Turn signal lever ...................................196
Vanity lights ..........................................545
Wattage.................................................. 769
Load capacity .........................................369
Luggage cover....................................... 567
Maintenance Do-it-yourself ma intenance ........... 612
General maintenance .....................607
Maintenance data..............................758
Maintenance requirements ..........604
Reset the maintenance data........ 605
Meter Instrument cluster light
control..................................................200
Meters .......................................................199
Micro dust and pollen filter............... 407
Mirrors Inside rear view mirror....................... 99
Side mirror heater ............................... 417
Side mirrors ............................................. 101
Vanity mirrors......................................545 Moon roof................................................. 108
MP3 disc.................................................. 437
Multi-information display
Brightness control .............................. 219
Multi-information display ........ 208, 216
Multi Terrain ABS ................................ 339
Multi-terrain Monitor .........................308
Multi-terrain Select..............................300
Navigation system
*
Noise from under vehicle .................... 20
Odometer .................................................199
Off-road precautions .........................358
Oil Engine oil............................................... 620
Opener Fuel filler door ......................................... 113
Hood ......................................................... 617
Outside rear view mirrors
Adjusting and folding ..........................101
Driving position memory ..................82
Outside temperature display .......................................... 209, 216
Overhead console ............................... 539
Overheating, Engine .......................... 749
Parking assist sensors......................... 270
Parking brake........................................... 197
Parking lights Replacing light bulbs ....................... 675
Switch .......................................................223
Wattage ................................................. 769
PCS ............................................................ 347
M
N
O
P
GX460_OM_OM60J63U_(U).book Page 832 Thursday, March 29, 2012 9:10 AM
