5
When trouble arises
715
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

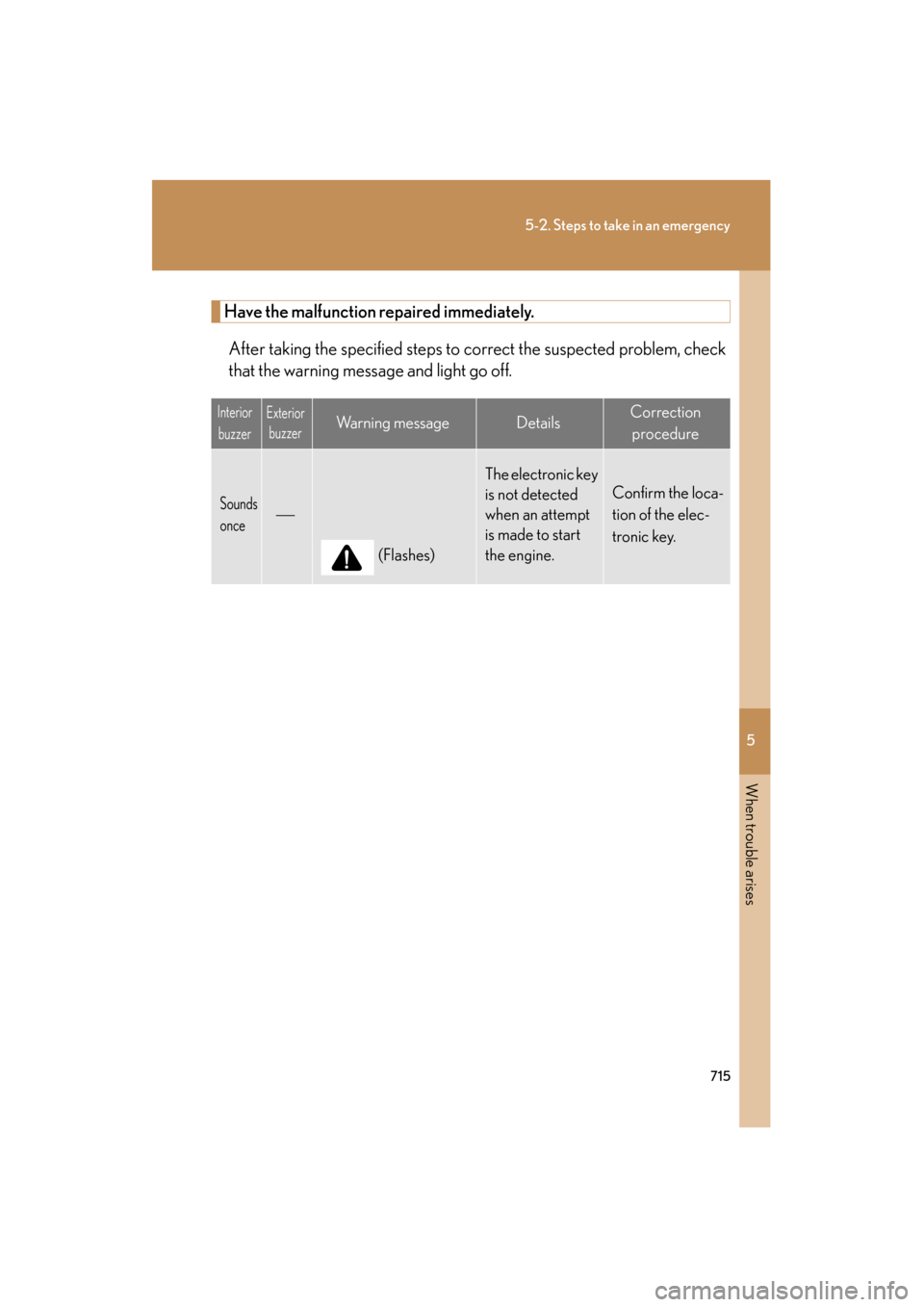

Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning message and light go off.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Sounds
once
(Flashes)
The electronic key
is not detected
when an attempt
is made to start
the engine.
Confirm the loca-
tion of the elec-
tronic key.
GX460_OM_OM60J63U_(U).book Page 715 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
737
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

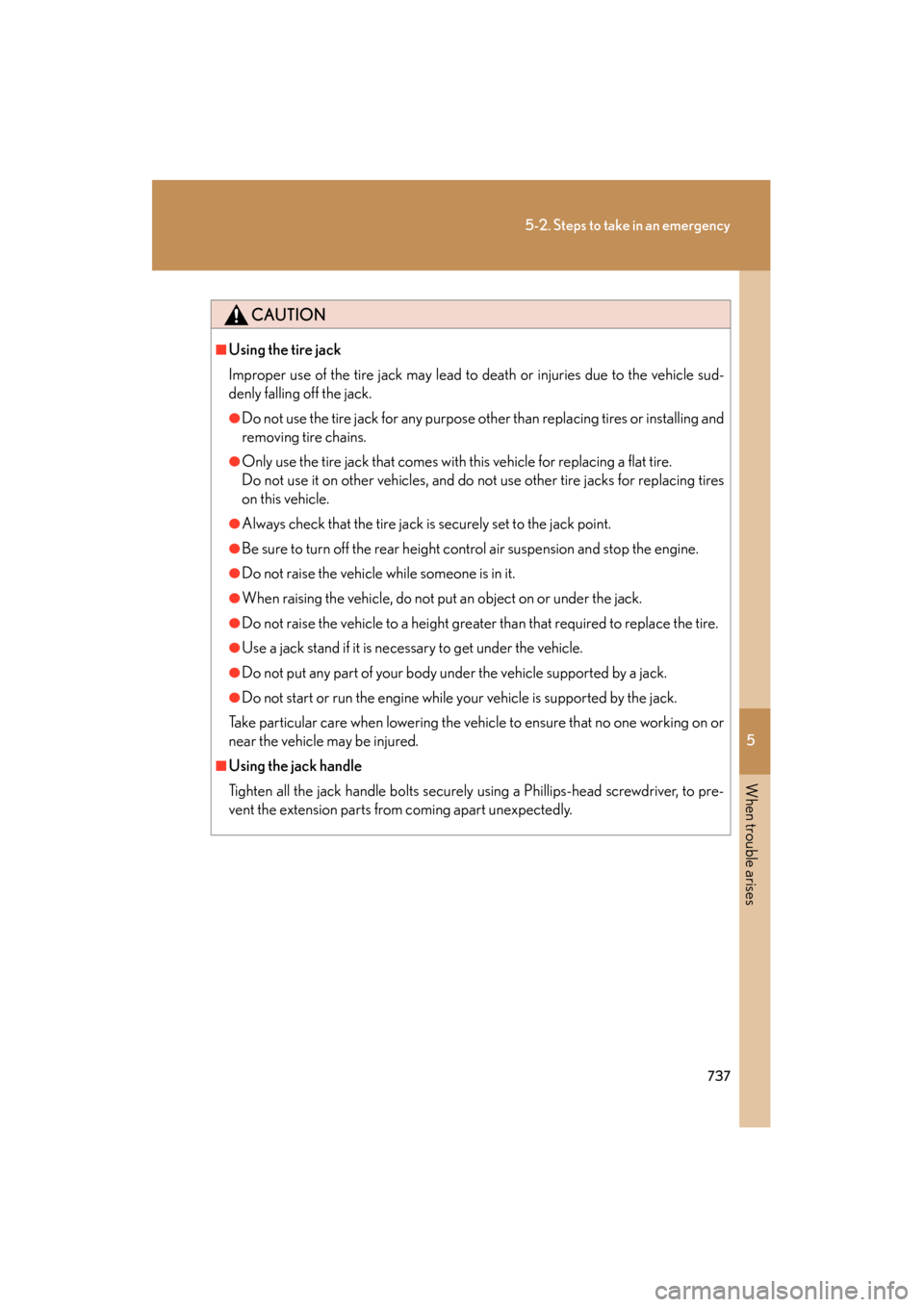

CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or injuries due to the vehicle sud-
denly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Be sure to turn off the rear height control air suspension and stop the engine.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured.
■Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screwdriver, to pre-
vent the extension parts from coming apart unexpectedly.
GX460_OM_OM60J63U_(U).book Page 737 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
747
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

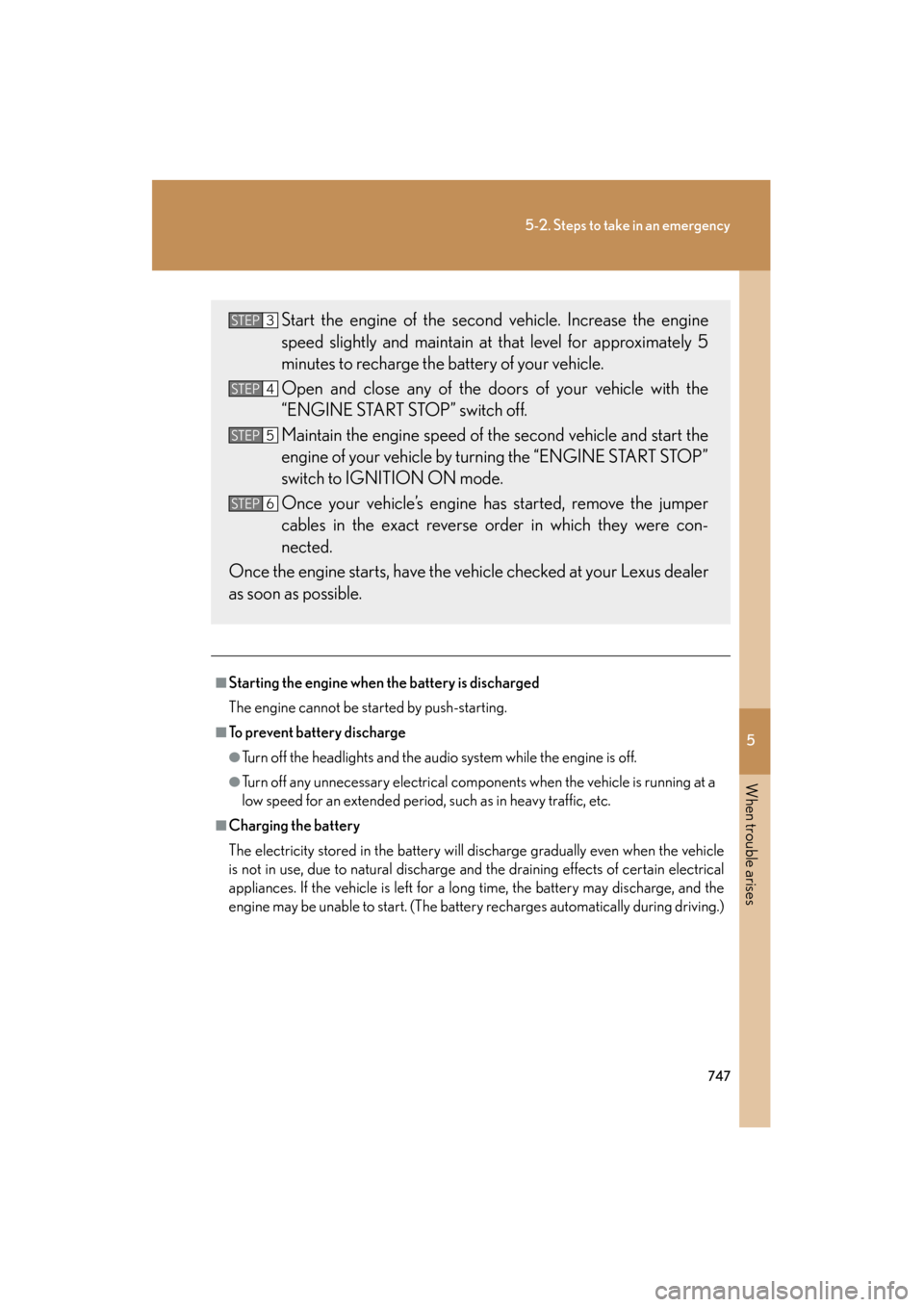

■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle
is not in use, due to natural discharge and the draining effects of certain electrical
appliances. If the vehicle is left for a long time, the battery may discharge, and the
engine may be unable to start. (The battery recharges automatically during driving.)
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Open and close any of the doors of your vehicle with the
“ENGINE START STOP” switch off.
Maintain the engine speed of the second vehicle and start the
engine of your vehicle by turning the “ENGINE START STOP”
switch to IGNI TION ON mode.
Once your vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.STEP3
STEP4
STEP5
STEP6
GX460_OM_OM60J63U_(U).book Page 747 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
749
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If your vehicle overheats
If the engine overheats:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Carefully lift the hood after the steam sub-
sides and then restart the engine.
If you do not see steam: Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: Stop the engine and call your local Lexus dealer.STEP1
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 749 Thursday, March 29, 2012 9:10 AM

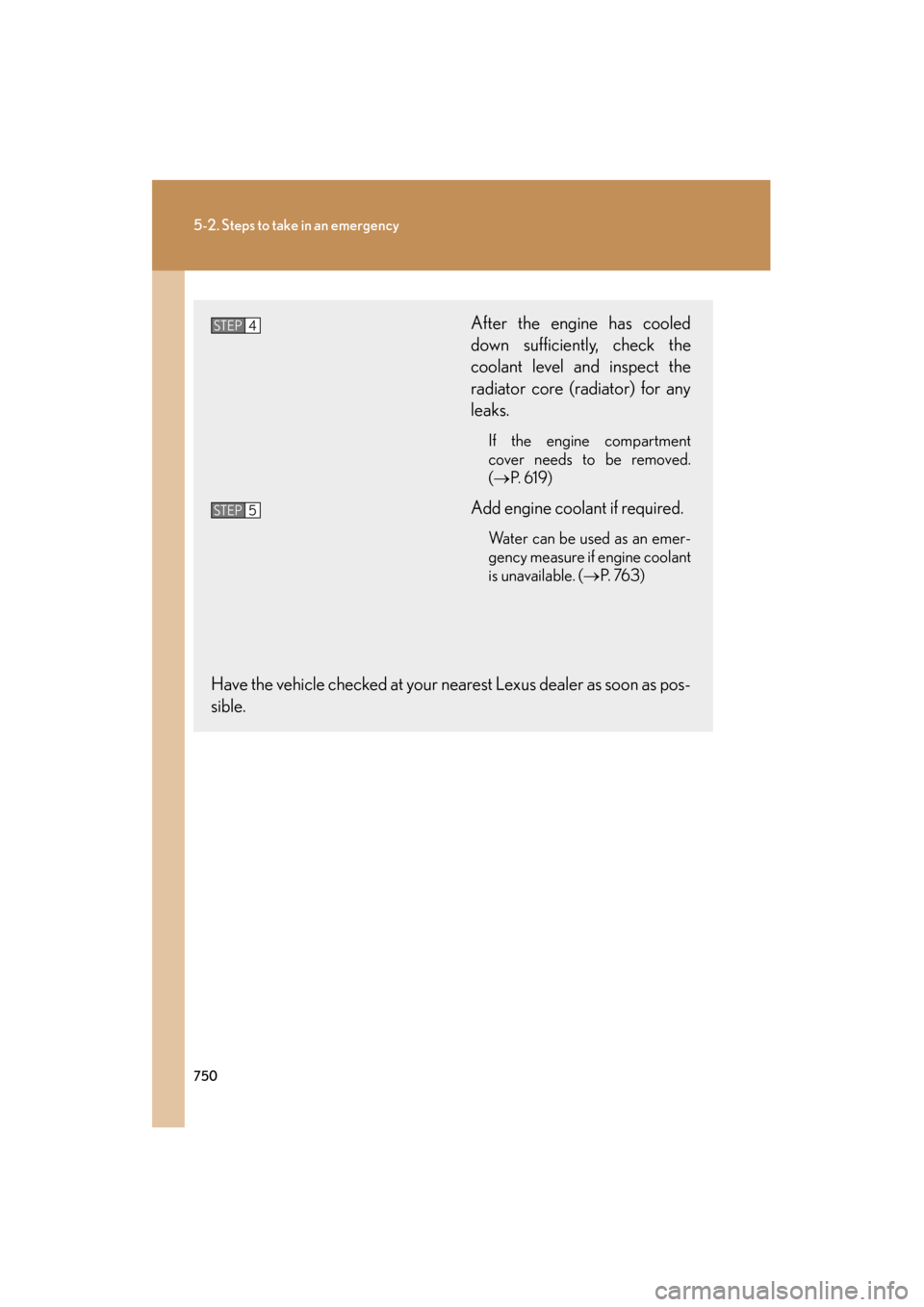

750
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
After the engine has cooled
down sufficiently, check the
coolant level and inspect the
radiator core (radiator) for any
leaks.
If the engine compartment
cover needs to be removed.
(→ P. 6 1 9 )
Add engine coolant if required.
Water can be used as an emer-
gency measure if engine coolant
is unavailable. (→ P. 763)
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP4
STEP5
GX460_OM_OM60J63U_(U).book Page 750 Thursday, March 29, 2012 9:10 AM

761
6-1. Specifications
6
Vehicle specifications
GX460_OM_OM60J63U_(U)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill — reference
*)
With filter
Without filter
8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)
Outside temperature
GX460_OM_OM60J63U_(U).book Page 761 Thursday, March 29, 2012 9:10 AM

764
6-1. Specifications
GX460_OM_OM60J63U_(U)
Electrical system
Front differential
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
Battery
Open voltage* at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(
*: Voltage is checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5A max.
Oil capacity1.48 qt. (1.40 L, 1.23 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential
Gear Oil LT 75W-85 GL5 or equivalent
GX460_OM_OM60J63U_(U).book Page 764 Thursday, March 29, 2012 9:10 AM

829
Alphabetical index
GX460_OM_OM60J63U_(U)
Electronic keyIf the electronic key does not
operate properly .............................744
Emergency, in case of
If the electronic key does not operate properly .............................744
If the engine will not start ............... 740
If the shift lever cannot be shifted from P.................................... 742
If the vehicle has discharged
battery.................................................. 746
If the warning buzzer sounds...... 693
If the warning light turns on .......... 693
If the warning message is
displayed ............................................ 705
If you have a flat tire .........................726
If you lose your keys .........................743
If you think something is
wrong.....................................................691
If your vehicle becomes stuck .....752
If your vehicle has to be stopped in an emergency ......... 754
If your vehicle needs to be towed ...................................................685
If your vehicle overheats................ 749
Emergency flashers
Switch ......................................................684 Engine
Accessory mode................................. 183
Compartment....................................... 618
Engine switch ........................................ 183
Hood ..........................................................617
How to start the engine ................... 183
Identification number .......................759
If the engine will not start................740
Ignition switch ....................................... 183
Overheating ......................................... 749
Engine compartment cover .............. 619
Engine coolant Capacity ................................................. 763
Checking ............................................... 624
Preparing and checking before winter ......................................371
Engine coolant temperature gauge....................................................... 199
Engine immobilizer system.................. 119
Engine oil Capacity ...................................................761
Checking .............................................. 620
Preparing and checking before winter ......................................371
Engine switch .......................................... 183
Engine switch light................................ 525
Event data recorder (EDR) ................. 23E
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
sec_08-02.fm Page 829 Thursday, March 29, 2012 10:00 AM

835
Alphabetical index
GX460_OM_OM60J63U_(U)
Switch“ENGINE START STOP”
switch .....................................................183
Engine switch ........................................183
“2nd STRT” switch .............................. 192
Center differential lock/unlock
switch ....................................................327
“DAC” switch ...................................... 336
Emergency flasher Switch ............684
Fog light switch....................................237
Hazard light Switch ..........................684
Heated steering wheel switch ....555
Height control off switch ............... 320
Ignition switch........................................183
Light switches.......................................223
Power door lock switch.....................52
Power window switch...................... 105
“RSCA OFF” switch ............................ 141
Rear window defogger switch
*.................................................. 417
Transmission shift switch ................. 193
Window lock switch ......................... 105
Wipers and washer switch........... 240
Tachometer .............................................. 199
Tail lights Replacing light bulbs ...................... 680
Switch .......................................................223
Talk switch
*.............................................496
Telephones switch
*.............................496
Theft deterrent system Alarm ........................................................... 121
Engine immobilizer system ..............119 Tire inflation pressure ......................... 643
Tire information
Glossary ................................................ 780
Size............................................................ 776
Tire identification number.............. 775
Uniform Tire Quality Grading ....778
Tires Chains .......................................................371
Checking .............................................. 636
If you have a flat tire .......................... 726
Inflation pressure............................... 768
Information ............................................ 774
Pressure warning system.............. 636
Replacing ............................................... 726
Rotating tires ....................................... 636
Size........................................................... 768
Snow tires ................................................371
Spare tire ................................................ 726
Tire pressure warning system ................................................. 636
Tools ........................................................... 726
Total load capacity ...............................369
Towing Dinghy towing .....................................394
Emergency towing........................... 685
Trailer towing .......................................375
T
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
GX460_OM_OM60J63U_(U).book Page 835 Thursday, March 29, 2012 9:10 AM
