Lexus GX460 2013 Owner's Manual

500
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)
“Setup”
“Security”
“Set PIN”Setting a PIN code
“Phbk Lock”Locking the phone book
“Phbk Unlock”Unlocking the phone book
“Phone
Setup”
“Pair Phone”Registering the cellular phone
to be used
“Connect”Selecting a cellular phone to be
used
“Change Name”Changing a registered name of
a cellular phone
“List Phones”Listing the registered cellular
phones
“Set Passkey”Changing the passkey
“Delete Phone”Deleting a registered cellular
phone
“System
Setup”
“Guidance Vol”Setting voice guidance volume
“Device Name”Displaying the Bluetooth®
device address and name
“Initialize”Initializing the system
First menuSecond menuThird menuOperation detail
GX460_OM_OM60J63U_(U).book Page 500 Thursday, March 29, 2012 9:10 AM

501
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_OM_OM60J63U_(U)■

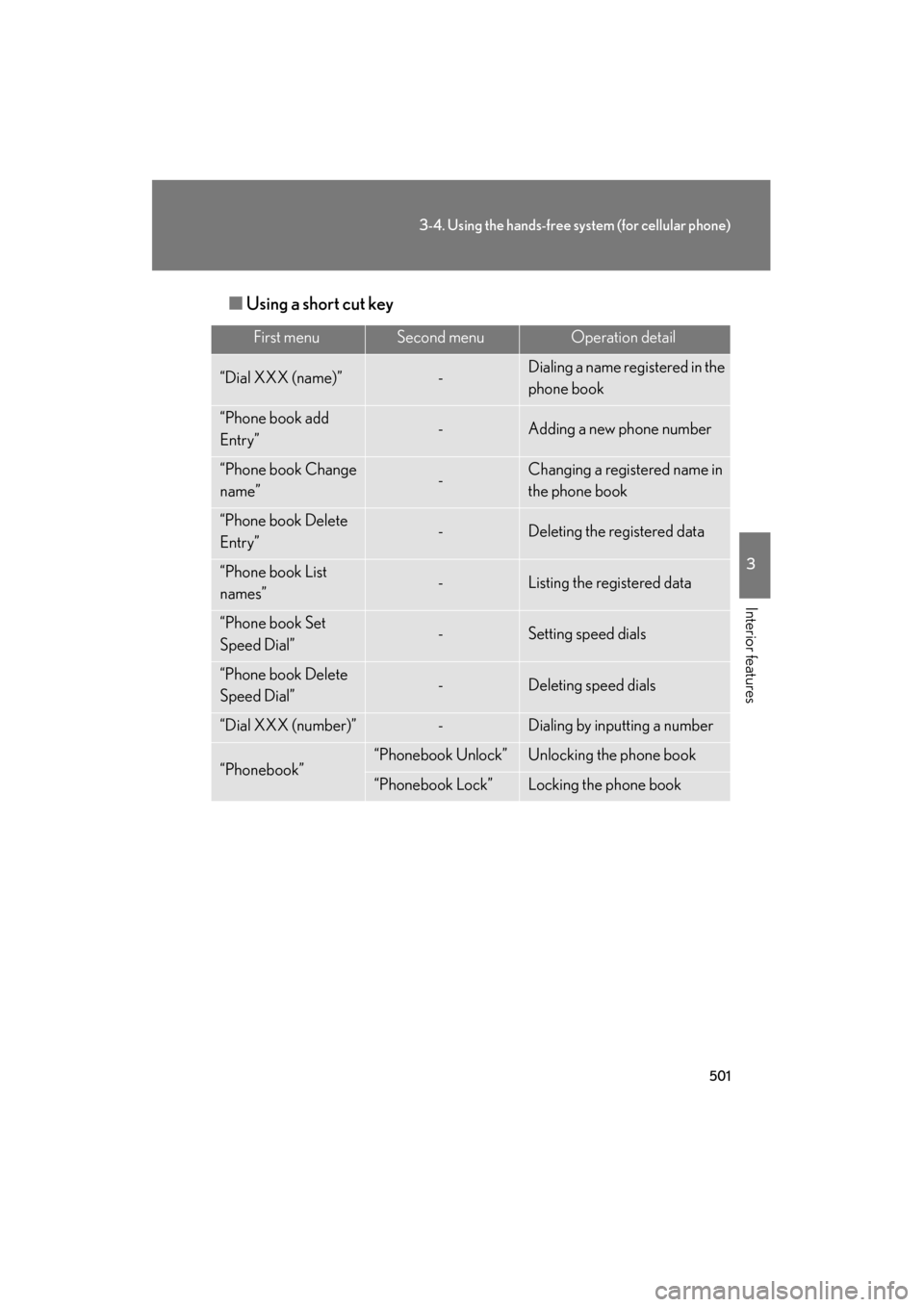

Using a short cut key
First menuSecond menuOperation detail
“Dial XXX (name)”-Dialing a name registered in the
phone book
“Phone book add
Entry”-Adding a new phone number
“Phone book Change
name”-Changing a registered name in
the phone book
“Phone book Delete
Entry”-Deleting the registered data
“Phone book List
names”-Listing the registered data
“Phone book Set
Speed Dial”-Setting speed dials
“Phone book Delete
Speed Dial”-Deleting speed dials
“Dial XXX (number)”-Dialing by inputting a number
“Phonebook”“Phonebook Unlock”Unlocking the phone book
“Phonebook Lock”Locking the phone book
GX460_OM_OM60J63U_(U).book Page 501 Thursday, March 29, 2012 9:10 AM

502
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)

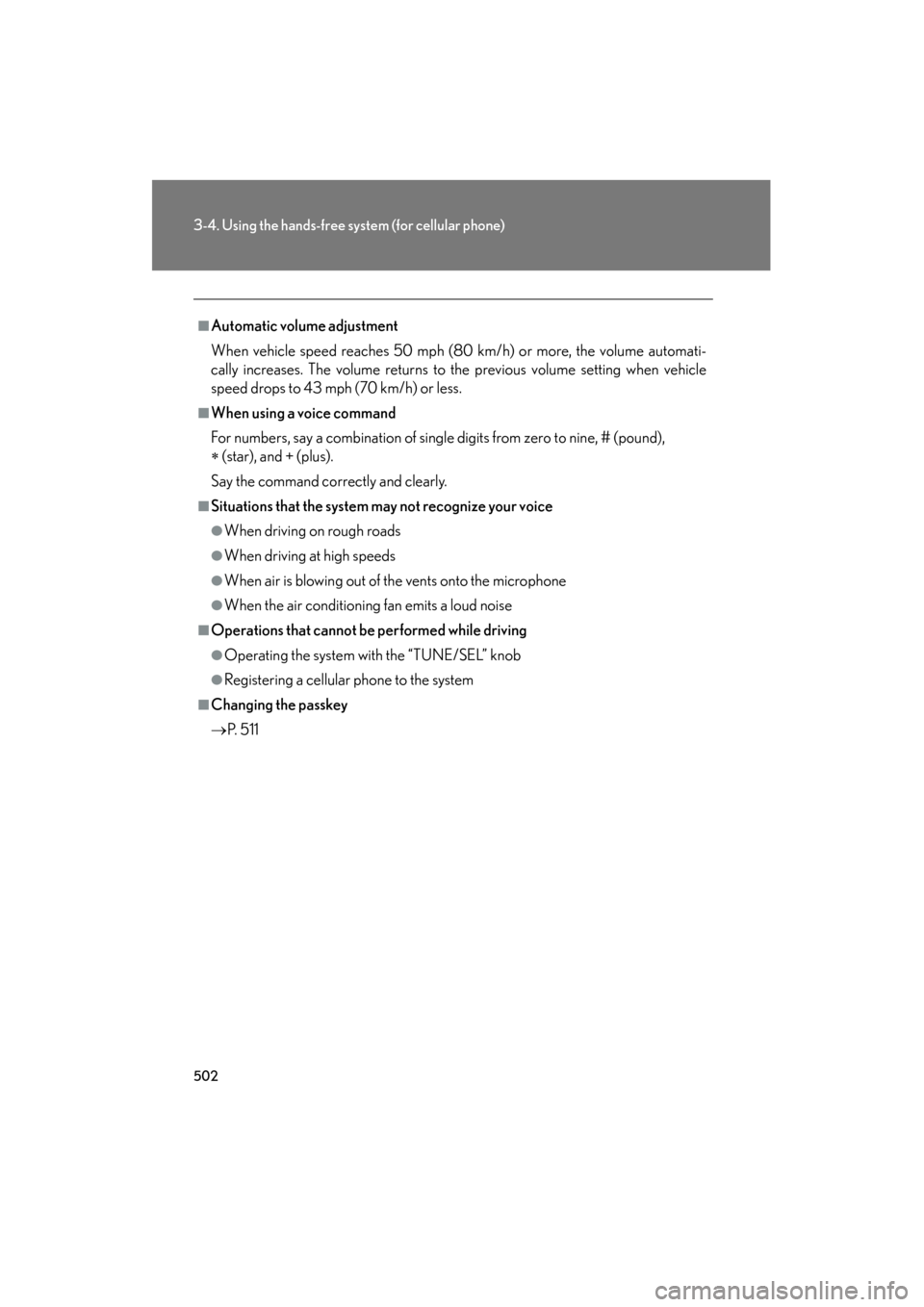

■Automatic volume adjustment
When vehicle speed reaches 50 mph (80 km/h) or more, the volume automati-
cally increases. The volume returns to the previous volume setting when vehicle
speed drops to 43 mph (70 km/h) or less.
■When using a voice command
For numbers, say a combination of single digits from zero to nine, # (pound),
∗ (star), and + (plus).
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with the “TUNE/SEL” knob
●Registering a cellular phone to the system
■Changing the passkey
→ P. 5 1 1
GX460_OM_OM60J63U_(U).book Page 502 Thursday, March 29, 2012 9:10 AM

503
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_OM_OM60J63U_(U)

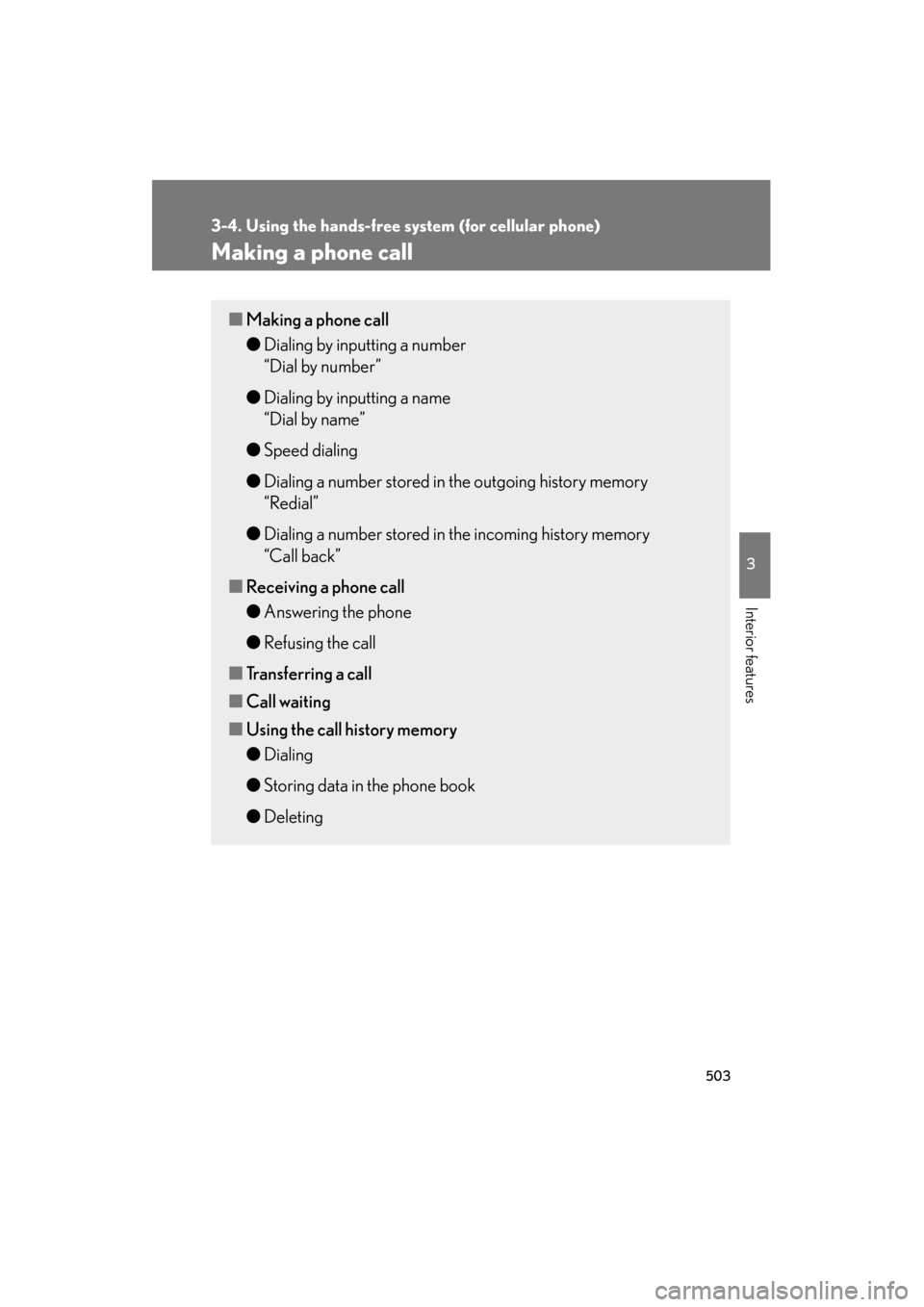

Making a phone call
■Making a phone call
● Dialing by inputting a number
“Dial by number”
● Dialing by inputting a name
“Dial by name”
● Speed dialing
● Dialing a number stored in the outgoing history memory
“Redial”
● Dialing a number stored in the incoming history memory
“Call back”
■ Receiving a phone call
● Answering the phone
● Refusing the call
■ Transferring a call
■ Call waiting
■ Using the call history memory
● Dialing
● Storing data in the phone book
● Deleting
GX460_OM_OM60J63U_(U).book Page 503 Thursday, March 29, 2012 9:10 AM

504
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)

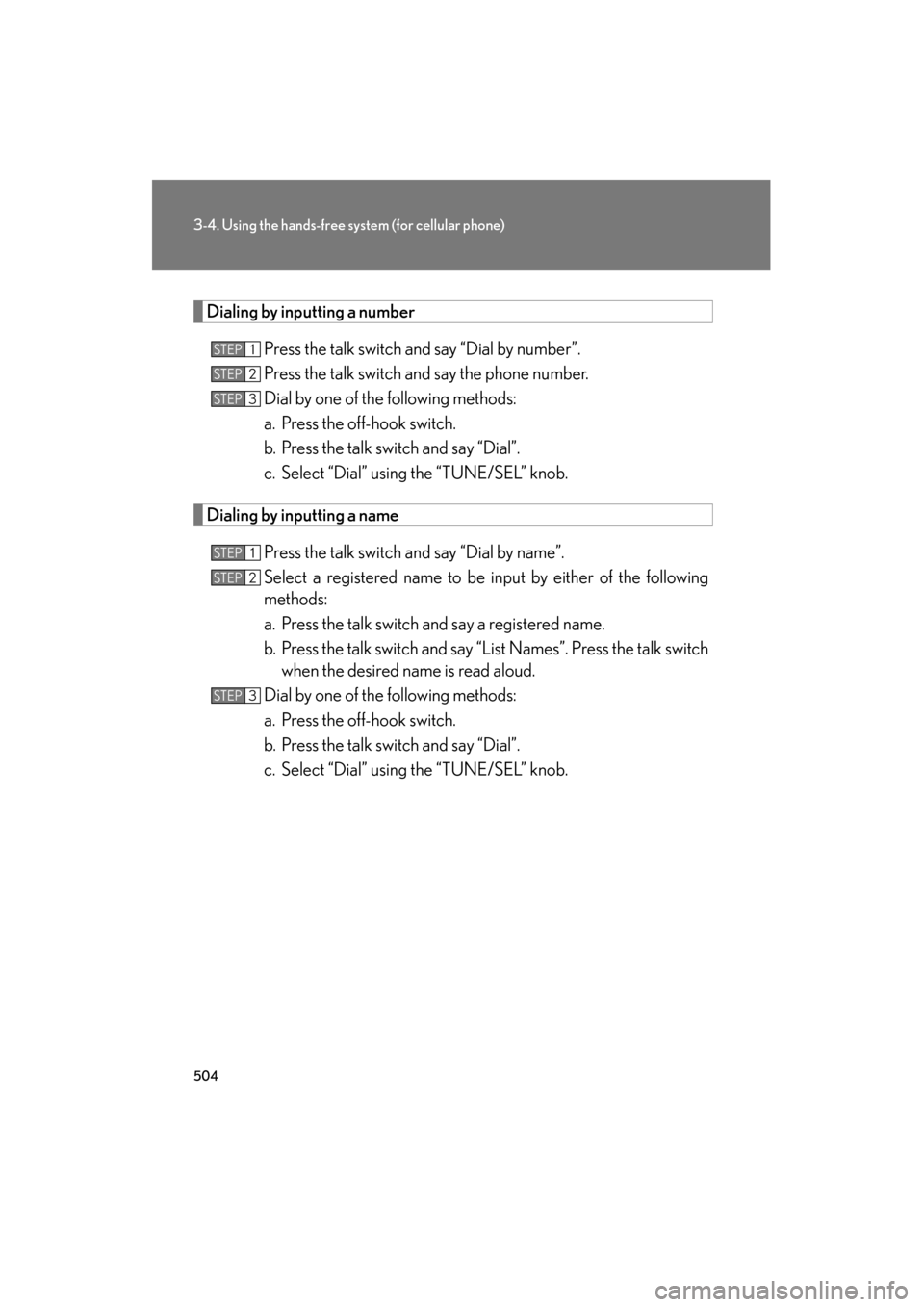

Dialing by inputting a number
Press the talk switch and say “Dial by number”.
Press the talk switch and say the phone number.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using the “TUNE/SEL” knob.
Dialing by inputting a namePress the talk switch and say “Dial by name”.
Select a registered name to be input by either of the following
methods:
a. Press the talk switch and say a registered name.
b. Press the talk switch and say “List Names”. Press the talk switchwhen the desired name is read aloud.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using the “TUNE/SEL” knob.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 504 Thursday, March 29, 2012 9:10 AM

505
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_OM_OM60J63U_(U)

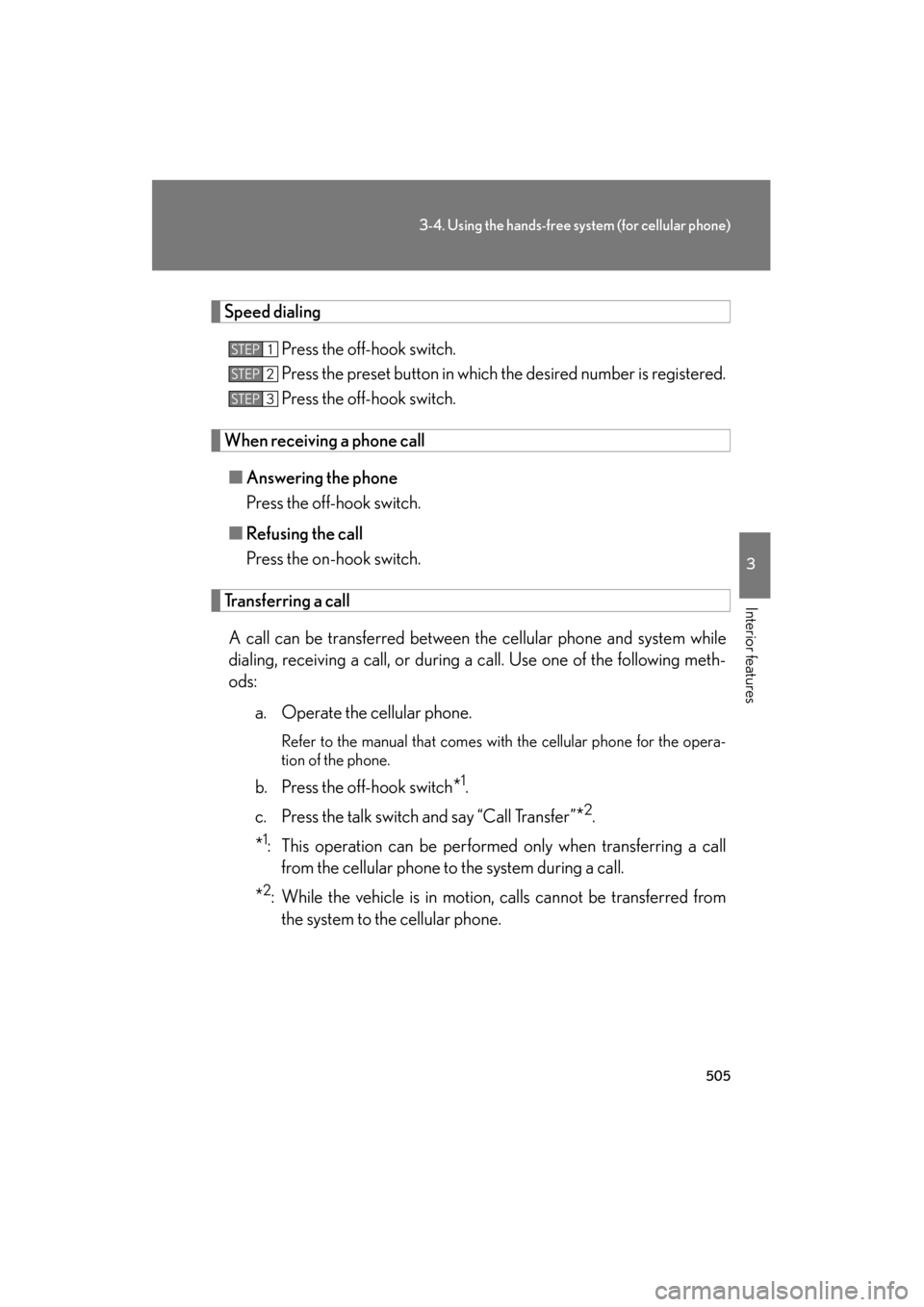

Speed dialingPress the off-hook switch.
Press the preset button in which the desired number is registered.
Press the off-hook switch.
When receiving a phone call■ Answering the phone
Press the off-hook switch.
■ Refusing the call
Press the on-hook switch.
Transferring a call
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following meth-
ods: a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the opera-
tion of the phone.
b. Press the off-hook switch*1.
c. Press the talk switch and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call from the cellular phone to the system during a call.
*2: While the vehicle is in motion, calls cannot be transferred fromthe system to the cellular phone.
STEP1
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 505 Thursday, March 29, 2012 9:10 AM

506
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)

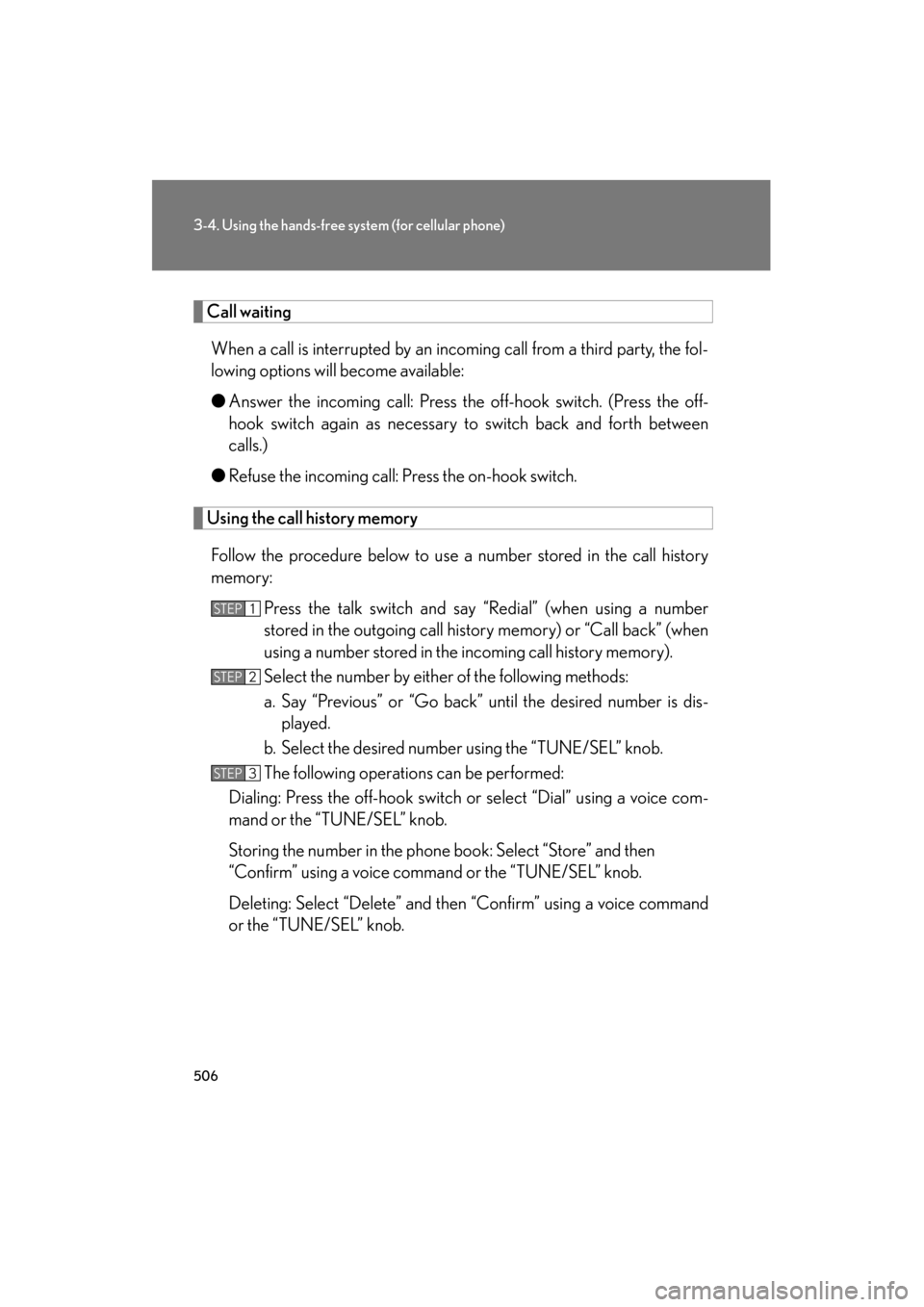

Call waiting
When a call is interrupted by an incoming call from a third party, the fol-
lowing options will become available:
● Answer the incoming call: Press the off-hook switch. (Press the off-
hook switch again as necessary to switch back and forth between
calls.)
● Refuse the incoming call: Press the on-hook switch.
Using the call history memory
Follow the procedure below to use a number stored in the call history
memory: Press the talk switch and say “Redial” (when using a number
stored in the outgoing call history memory) or “Call back” (when
using a number stored in the incoming call history memory).
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number is dis-played.
b. Select the desired number using the “TUNE/SEL” knob.
The following operations can be performed:
Dialing: Press the off-hook switch or select “Dial” using a voice com-
mand or the “TUNE/SEL” knob.
Storing the number in the phone book: Select “Store” and then
“Confirm” using a voice command or the “TUNE/SEL” knob.
Deleting: Select “Delete” and then “Confirm” using a voice command
or the “TUNE/SEL” knob.
STEP1
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 506 Thursday, March 29, 2012 9:10 AM

507
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_OM_OM60J63U_(U)

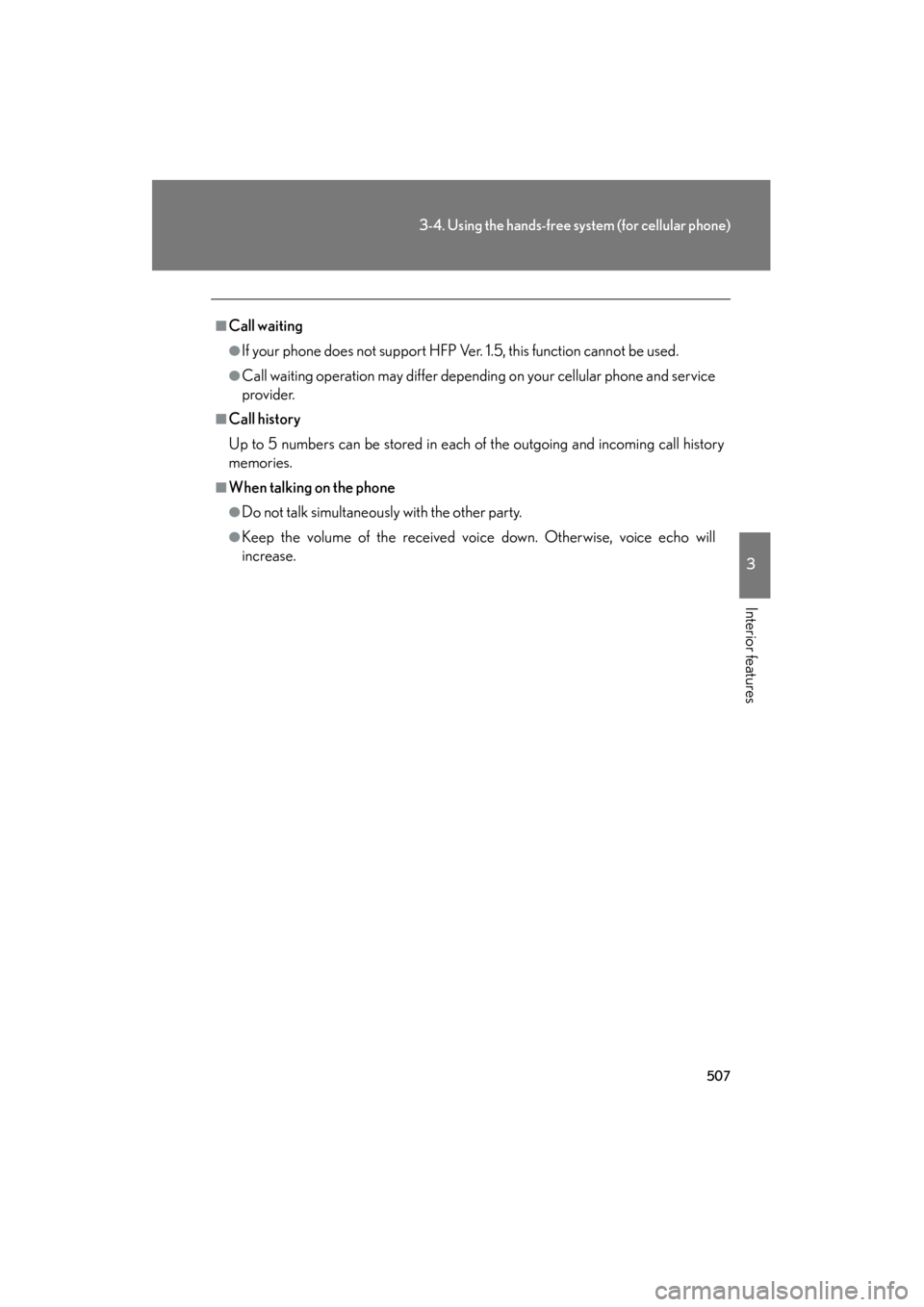

■Call waiting
●If your phone does not support HFP Ver. 1.5, this function cannot be used.
●Call waiting operation may differ depending on your cellular phone and service
provider.
■Call history
Up to 5 numbers can be stored in each of the outgoing and incoming call history
memories.
■When talking on the phone
●Do not talk simultaneously with the other party.
●Keep the volume of the received voice down. Otherwise, voice echo will
increase.
GX460_OM_OM60J63U_(U).book Page 507 Thursday, March 29, 2012 9:10 AM

508
3-4. Using the hands-free system (for cellular phone)
GX460_OM_OM60J63U_(U)

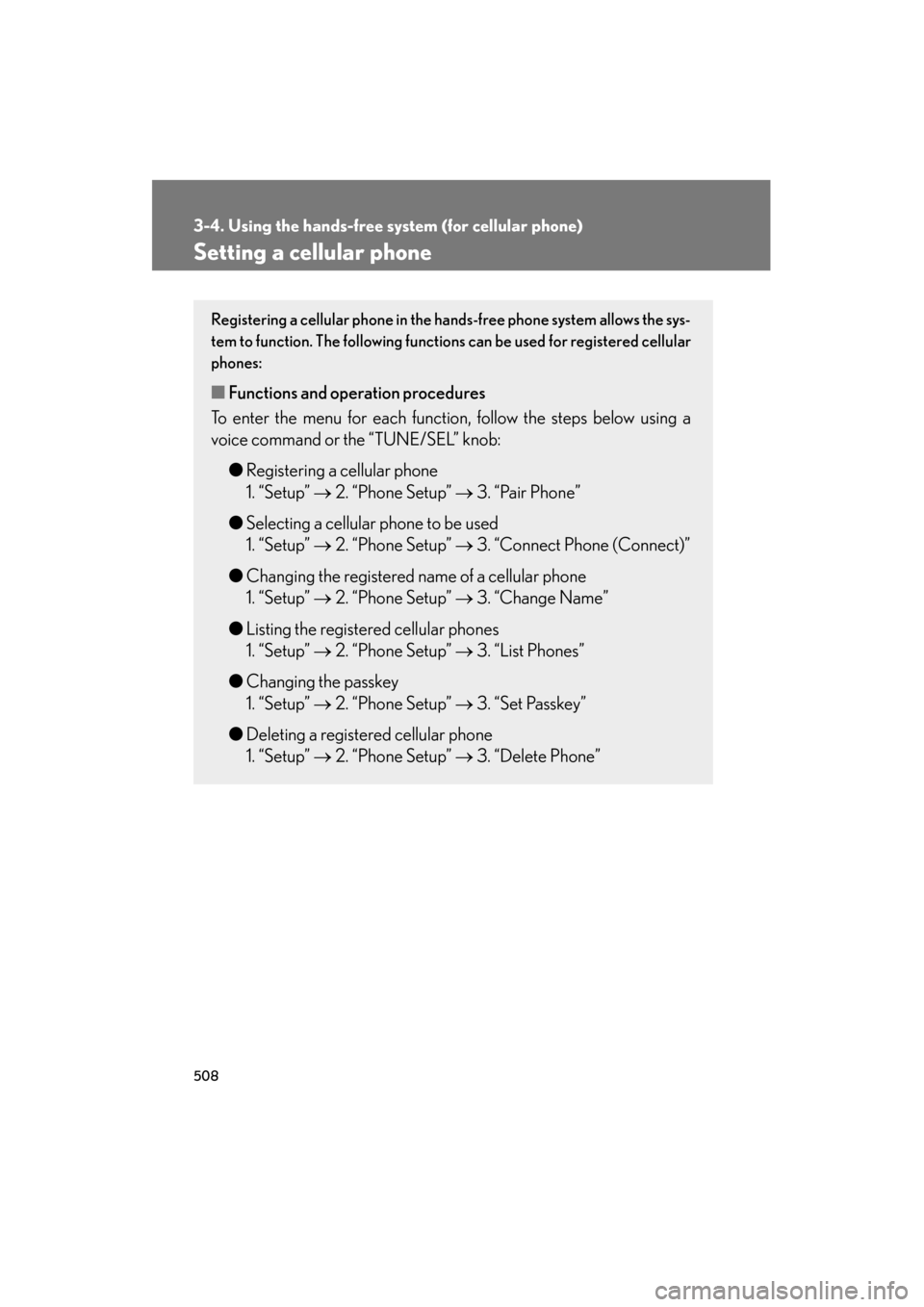

Setting a cellular phone
Registering a cellular phone in the hands-free phone system allows the sys-
tem to function. The following functions can be used for registered cellular
phones:
■Functions and operation procedures
To enter the menu for each function, follow the steps below using a
voice command or the “TUNE/SEL” knob:
●Registering a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Pair Phone”
● Selecting a cellular phone to be used
1. “Setup” → 2. “Phone Setup” → 3. “Connect Phone (Connect)”
● Changing the registered name of a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Change Name”
● Listing the registered cellular phones
1. “Setup” → 2. “Phone Setup” → 3. “List Phones”
● Changing the passkey
1. “Setup” → 2. “Phone Setup” → 3. “Set Passkey”
● Deleting a registered cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Delete Phone”
GX460_OM_OM60J63U_(U).book Page 508 Thursday, March 29, 2012 9:10 AM

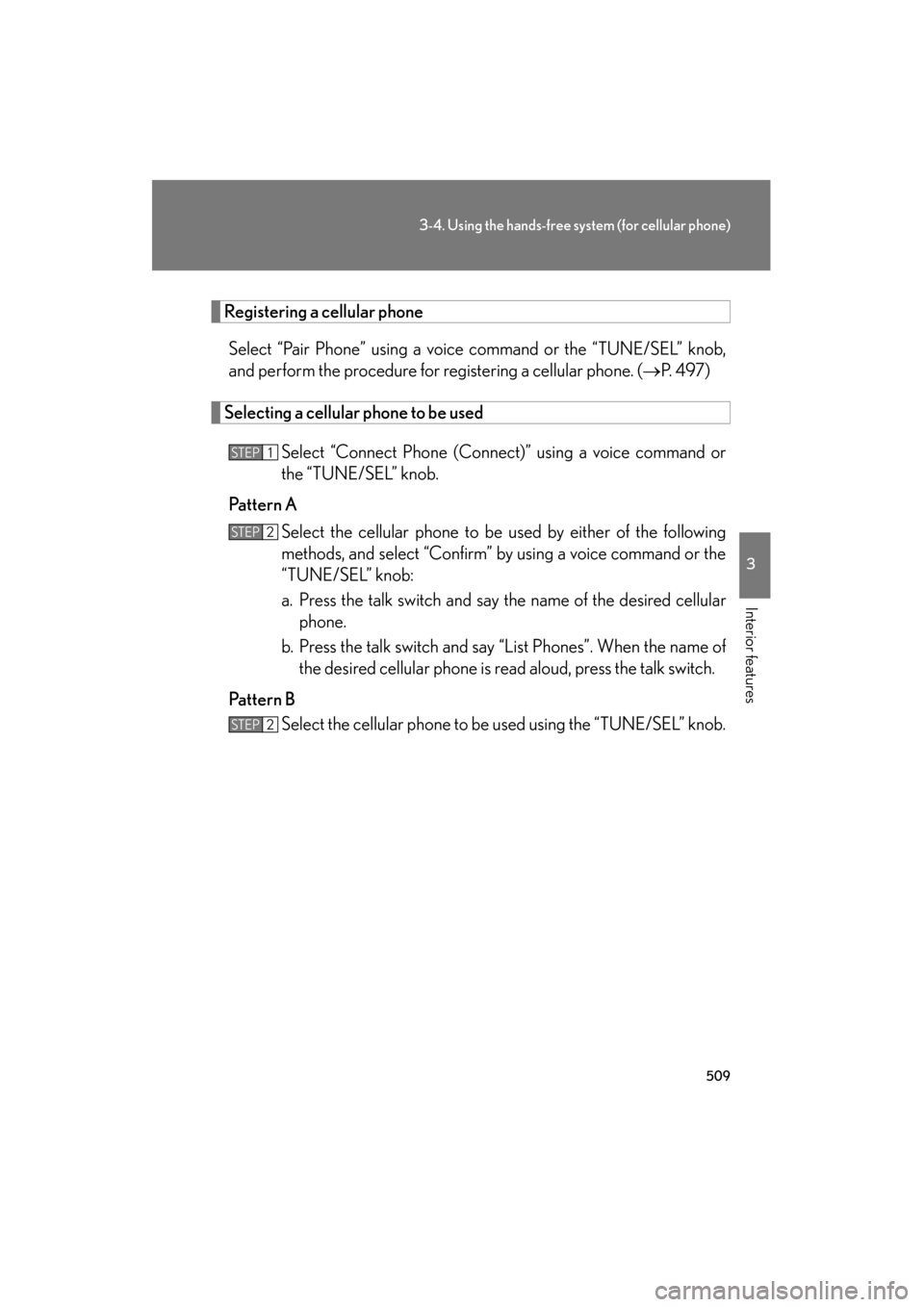

509
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_OM_OM60J63U_(U)
Registering a cellular phoneSelect “Pair Phone” using a voice command or the “TUNE/SEL” knob,
and perform the procedure for registering a cellular phone. ( →P. 4 9 7 )
Selecting a cellular phone to be used
Select “Connect Phone (Connect)” using a voice command or
the “TUNE/SEL” knob.
Pattern A Select the cellular phone to be used by either of the following
methods, and select “Confirm” by using a voice command or the
“TUNE/SEL” knob:
a. Press the talk switch and say the name of the desired cellularphone.
b. Press the talk switch and say “List Phones”. When the name of the desired cellular phone is read aloud, press the talk switch.
Pattern B Select the cellular phone to be used using the “TUNE/SEL” knob.
STEP1
STEP2
STEP2
