4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause loss of handling
control.
■ Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capacity, diameter, rim
width, and inset
*.
Replacement wheels are available at your Lexus dealer.
*: Conventionally referred to as “offset”.
Lexus does not recommend using:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
● Lexus wheels with after market chrome plating
■ Aluminum wheel precautions
● Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● When balancing your wheels, use only Lexus genuine balance
weights or the equivalent. If clip-on balance weights are being
used, use a plastic or rubber hammer to install the weight.
GX460_OM_OM60J63U_(U).book Page 647 Thursday, March 29, 2012 9:10 AM

648
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
■When replacing wheels
The wheels of your Lexus are equipped with tire pressure warning valves and trans-
mitters that allow the tire pressure warning system to provide advanced warning in
the event of a loss in tire inflation pressure. Whenever wheels are replaced, the tire
pressure warning valves and transmitters must be installed. (→P. 6 3 7 )
CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident, causing death or serious injury.
■When installing the wheel nuts
●Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, causing an accident and resulting in death or
serious injury. Remove any oil or grease from the wheel bolts or wheel nuts.
●Be sure to install the wheel nuts with the
tapered ends facing inward. Installing the
nuts with the tapered ends facing outward
can cause the wheel to break and eventu-
ally cause the wheel to come off while driv-
ing, which could lead to an accident
resulting in death or serious injury.
Ta p e r e d
portion
GX460_OM_OM60J63U_(U).book Page 648 Thursday, March 29, 2012 9:10 AM

649
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)

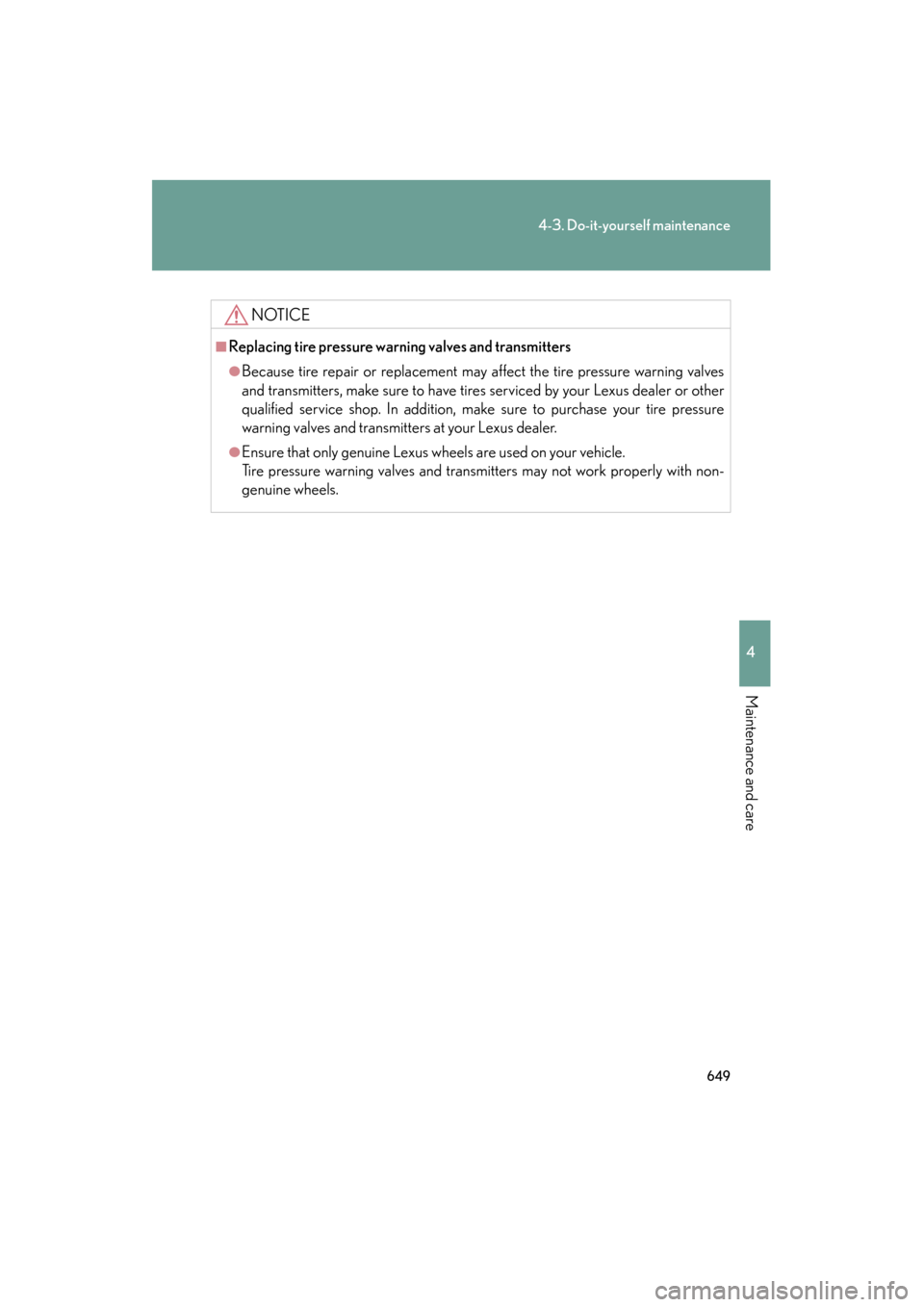

NOTICE
■Replacing tire pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by your Lexus dealer or other
qualified service shop. In addition, make sure to purchase your tire pressure
warning valves and transmitters at your Lexus dealer.
●Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.
GX460_OM_OM60J63U_(U).book Page 649 Thursday, March 29, 2012 9:10 AM

650
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
■ Removal method
Turn the “ENGINE START STOP” switch off.
Open the glove box and
remove the glove box cover.
Remove the filter cover.
Replace the filter with a new
one.
The “↑UP” marks shown on the
filter should be pointing up.
STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 650 Thursday, March 29, 2012 9:10 AM

651
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)

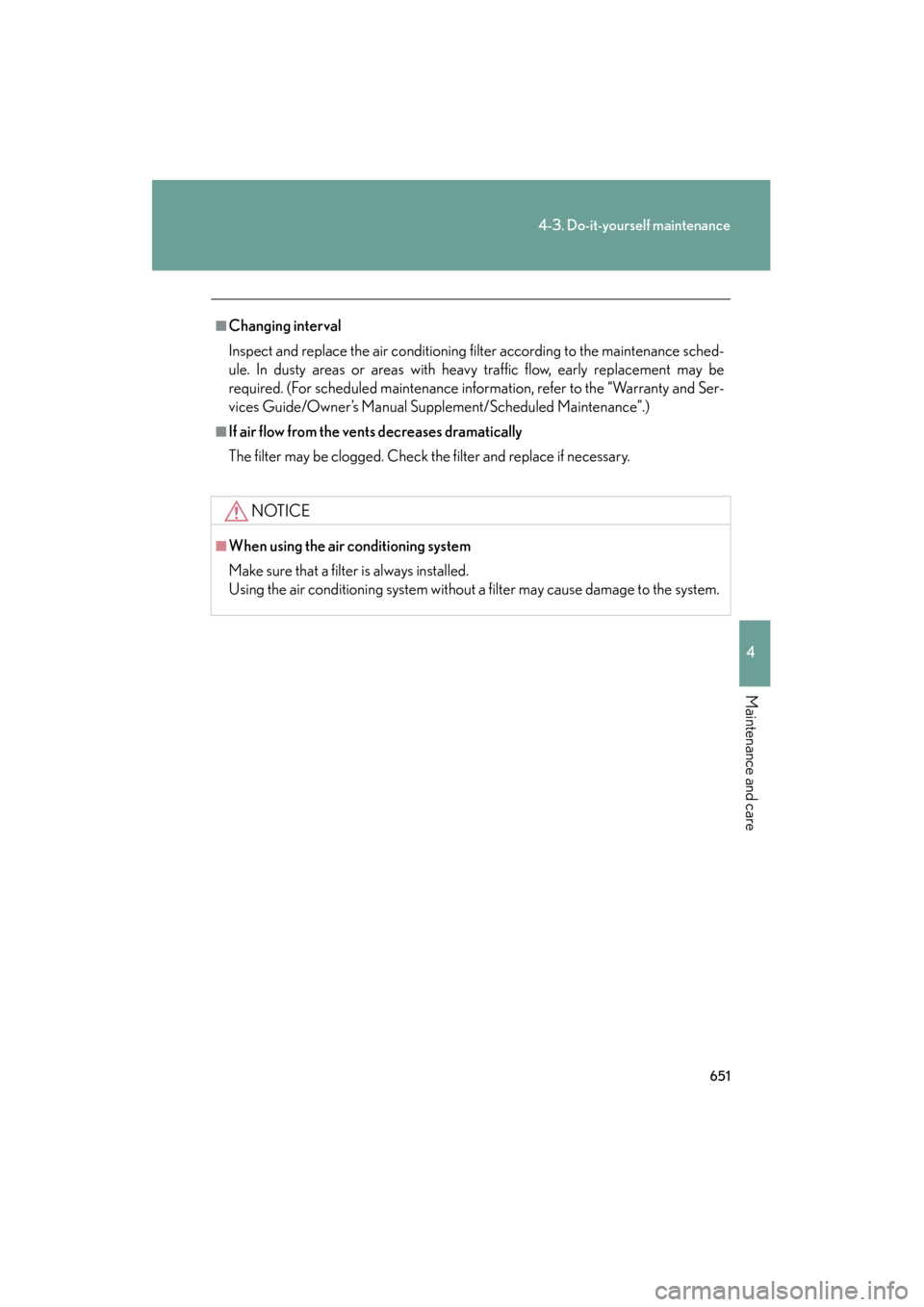

■Changing interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, refer to the “Warranty and Ser-
vices Guide/Owner’s Manual Supplement/Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.
GX460_OM_OM60J63U_(U).book Page 651 Thursday, March 29, 2012 9:10 AM

652
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
Electronic key battery
Replace the battery with a new one if it is depleted.
■You will need th e following items:
● Flathead screwdriver
● Small Phillips-head screwdriver
● Lithium battery (CR1632)
■ Replacing the battery
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 652 Thursday, March 29, 2012 9:10 AM

653
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance
shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufac-
turer.
●Dispose of used batteries according to the local laws.
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
STEP3
GX460_OM_OM60J63U_(U).book Page 653 Thursday, March 29, 2012 9:10 AM

654
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)

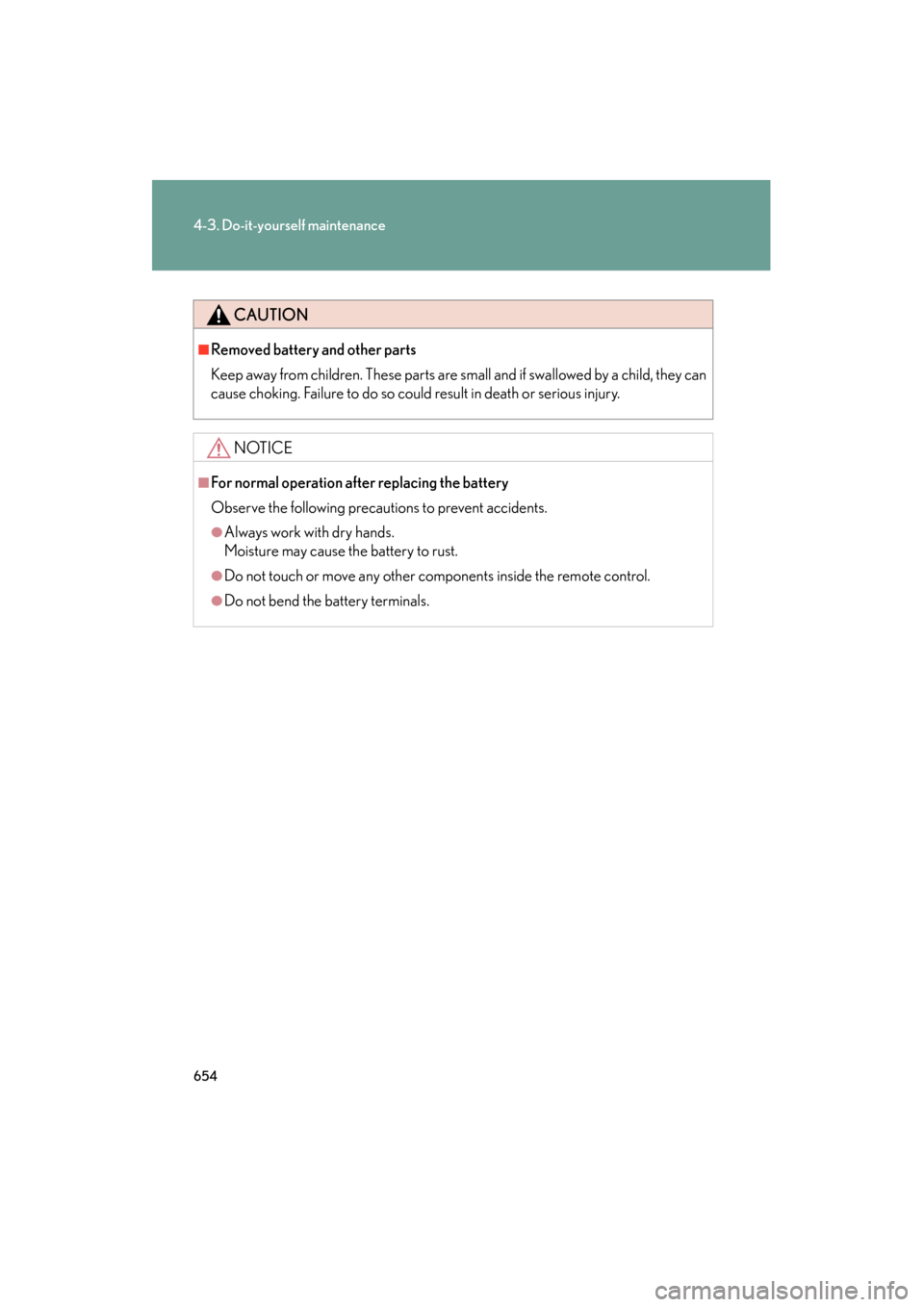

CAUTION
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child, they can
cause choking. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend the battery terminals.
GX460_OM_OM60J63U_(U).book Page 654 Thursday, March 29, 2012 9:10 AM

655
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment Push the tab in and lift the lid off.
Driver’s side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(→ P. 658) for details about which fuse to check.
Remove the fuse with the pull-out tool.STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 655 Thursday, March 29, 2012 9:10 AM

656
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
Only type A fuse can be
removed using the pullout tool.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amperage
rating can be found on the fuse
box lid.
Ty p e B
Normal fuse
Blown fuse
Contact your Lexus dealer.
STEP5
