6-1. Specifications
GX460_OM_OM60J63U_(U)
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic trans-
mission, power steering, power brakes, power win-
dows, power seats, radio and heater, to the extent
that these items are available as factory-installed
equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil
and coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
GX460_OM_OM60J63U_(U).book Page 780 Thursday, March 29, 2012 9:10 AM

781
6-1. Specifications
6
Vehicle specifications
GX460_OM_OM60J63U_(U)
Tire related termMeaning
Normal occupant weight150 lb. (68 kg) times the number of occupants spec-
ified in the second column of Table 1 that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1* below
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a rim by
style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68
kg) times the vehicle’s designated seating capacity
GX460_OM_OM60J63U_(U).book Page 781 Thursday, March 29, 2012 9:10 AM

782
6-1. Specifications
GX460_OM_OM60J63U_(U)

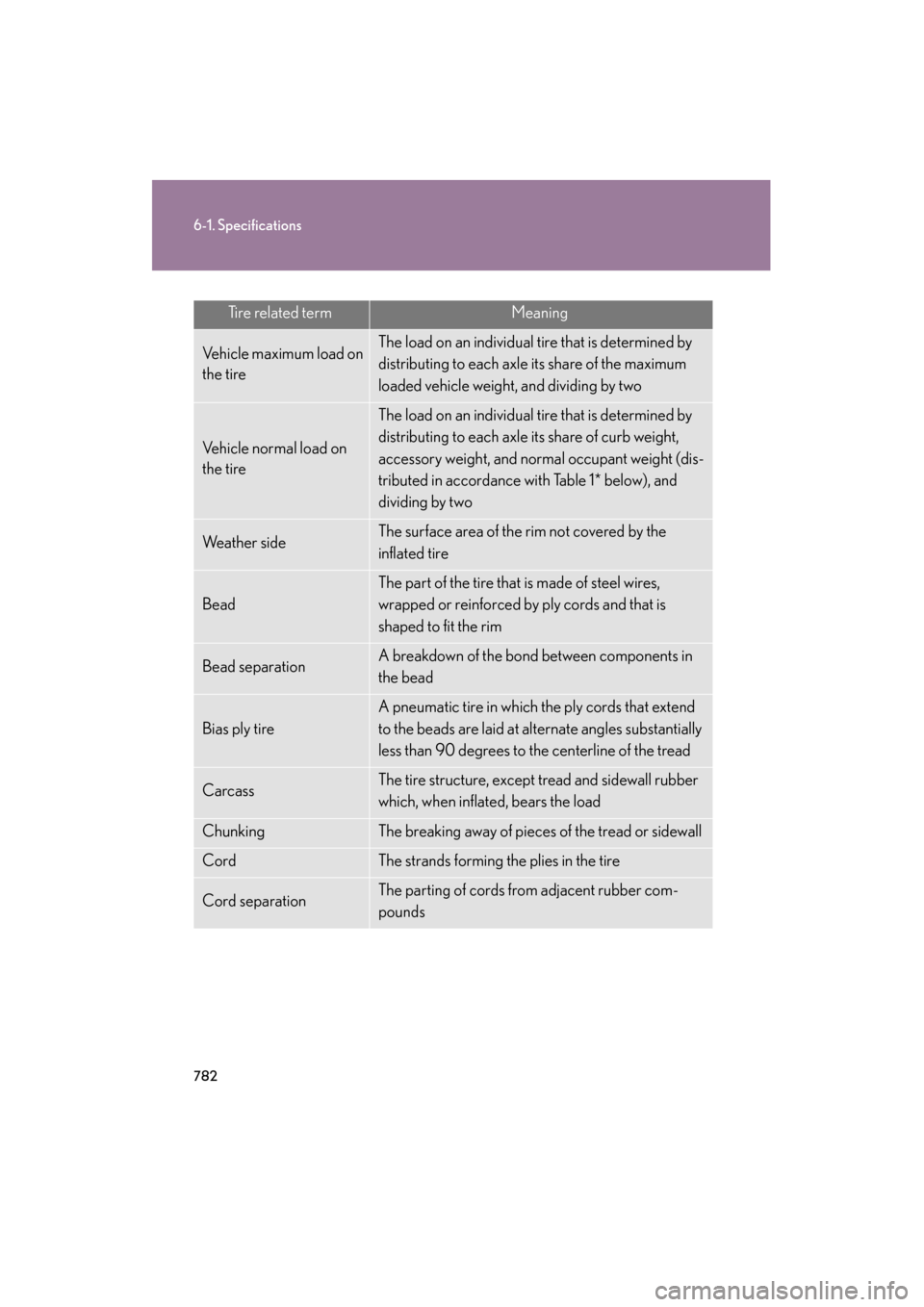

Tire related termMeaning
Vehicle maximum load on
the tireThe load on an individual tire that is determined by
distributing to each axle its share of the maximum
loaded vehicle weight, and dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is determined by
distributing to each axle its share of curb weight,
accessory weight, and normal occupant weight (dis-
tributed in accordance with Table 1* below), and
dividing by two
We a t h e r s i d eThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separationA breakdown of the bond between components in
the bead
Bias ply tire
A pneumatic tire in which the ply cords that extend
to the beads are laid at alternate angles substantially
less than 90 degrees to the centerline of the tread
CarcassThe tire structure, except tread and sidewall rubber
which, when inflated, bears the load
ChunkingThe breaking away of pieces of the tread or sidewall
CordThe strands forming the plies in the tire
Cord separationThe parting of cords from adjacent rubber com-
pounds
GX460_OM_OM60J63U_(U).book Page 782 Thursday, March 29, 2012 9:10 AM

783
6-1. Specifications
6
Vehicle specifications
GX460_OM_OM60J63U_(U)
Tire related termMeaning
CrackingAny parting within the tread, sidewall, or innerliner
of the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit
on the underside of the rim in a manner that
encloses the rim flanges inside the air cavity of the
tire
Extra load tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the inside surface of a tubeless
tire that contains the inflating medium within the tire
Innerliner separationThe parting of the innerliner from cord material in
the carcass
Intended outboard
sidewall
(a)The sidewall that contains a whitewall, bears white
lettering, or bears manufacturer, brand, and/or
model name molding that is higher or deeper than
the same molding on the other sidewall of the tire, or
(b)The outward facing sidewall of asymmetrical tire
that has a particular side that must always face out-
ward when mounted on a vehicle
GX460_OM_OM60J63U_(U).book Page 783 Thursday, March 29, 2012 9:10 AM

784
6-1. Specifications
GX460_OM_OM60J63U_(U)
Tire related termMeaning
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multipur-
pose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a
given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a tire
may be inflated
Measuring rimThe rim on which a tire is fitted for physical dimen-
sion requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of the
sidewalls of an inflated tire, including elevations due
to labeling, decorations, or protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipur-
pose passenger vehicles, and trucks, that have a
gross vehicle weight rating (GVWR) of 10000 lb. or
less
GX460_OM_OM60J63U_(U).book Page 784 Thursday, March 29, 2012 9:10 AM

785
6-1. Specifications
6
Vehicle specifications
GX460_OM_OM60J63U_(U)
Tire related termMeaning
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent
plies
Pneumatic tire
A mechanical device made of rubber, chemicals,
fabric and steel or other materials, that, when
mounted on an automotive wheel, provides the trac-
tion and contains the gas or fluid that sustains the
load
Radial ply tire
A pneumatic tire in which the ply cords that extend
to the beads are laid at substantially 90 degrees to
the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
Section width
The linear distance between the exteriors of the
sidewalls of an inflated tire, excluding elevations due
to labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
GX460_OM_OM60J63U_(U).book Page 785 Thursday, March 29, 2012 9:10 AM

786
6-1. Specifications
GX460_OM_OM60J63U_(U)
*:Table 1  Occupant loading and distribution for vehicle normal load for various
designated seating capacities
Tire related termMeaning
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard
Reference Test Tire, when using the snow traction
test as described in ASTM F-1805-00, Standard
Test Method for Single Wheel Driving Traction in a
Straight Line on Snow-and Ice-Covered Surfaces,
and which is marked with an Alpine Symbol ( )
on at least one sidewall
Te s t r i mThe rim on which a tire is fitted for testing, and may
be any rim listed as appropriate for use with that tire
Tr e a dThat portion of a tire that comes into contact with the
road
Tr e a d r i bA tread section running circumferentially around a
tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the degrees of
wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
GX460_OM_OM60J63U_(U).book Page 786 Thursday, March 29, 2012 9:10 AM

787
6-1. Specifications
6
Vehicle specifications
GX460_OM_OM60J63U_(U)

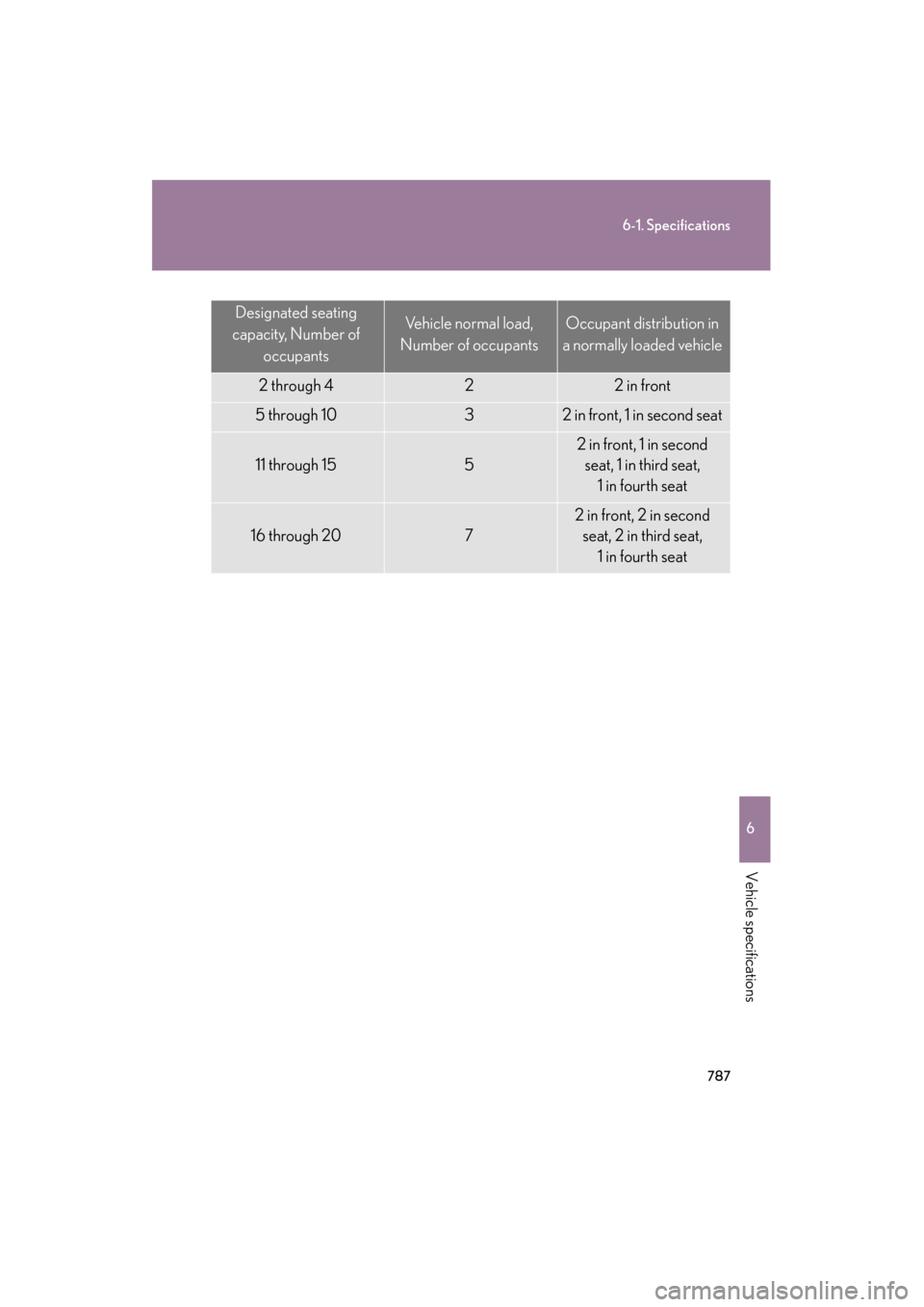

Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in
a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second seat, 1 in third seat,
1 in fourth seat
16 through 207
2 in front, 2 in second seat, 2 in third seat,
1 in fourth seat
GX460_OM_OM60J63U_(U).book Page 787 Thursday, March 29, 2012 9:10 AM

788
GX460_OM_OM60J63U_(U)

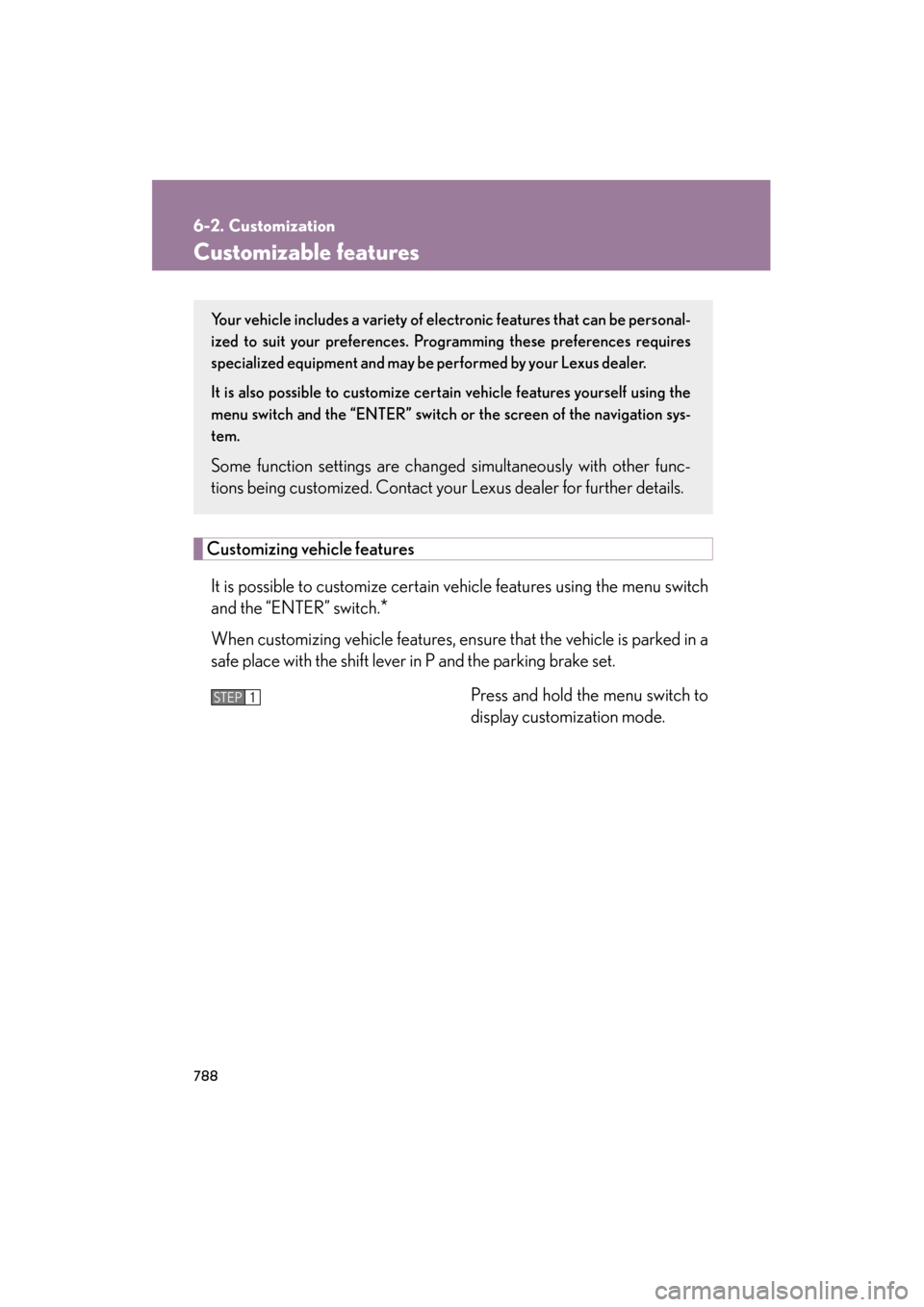

6-2. Customization
Customizable features
Customizing vehicle featuresIt is possible to customize certain vehicle features using the menu switch
and the “ENTER” switch.
*
When customizing vehicle features, ensure that the vehicle is parked in a
safe place with the shift lever in P and the parking brake set. Press and hold the menu switch to
display customization mode.
Your vehicle includes a variety of electr onic features that can be personal-
ized to suit your preferences. Programming these preferences requires
specialized equipment and may be performed by your Lexus dealer.
It is also possible to customize cert ain vehicle features yourself using the
menu switch and the “ENTER” switch or the screen of the navigation sys-
tem.
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Lexus dealer for further details.
STEP1
GX460_OM_OM60J63U_(U).book Page 788 Thursday, March 29, 2012 9:10 AM

789
6-2. Customization
6
Vehicle specifications
GX460_OM_OM60J63U_(U)Press the “ENTER” switch
upwards or downwards to
select the item to be custom-
ized.
Press the “ENTER” switch to
confirm.
Press the “ENTER” switch
upwards or downwards to
select the desired setting for the
item being customized.
Press the “ENTER” switch to
confirm.
When customization is completed, press the menu switch to clear the
customization screen.
*: For instructions on customizing vehicle features using the screen of the navi- gation system, refer to the “Navigation System Owner’s Manual”.
STEP2
STEP3
