5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

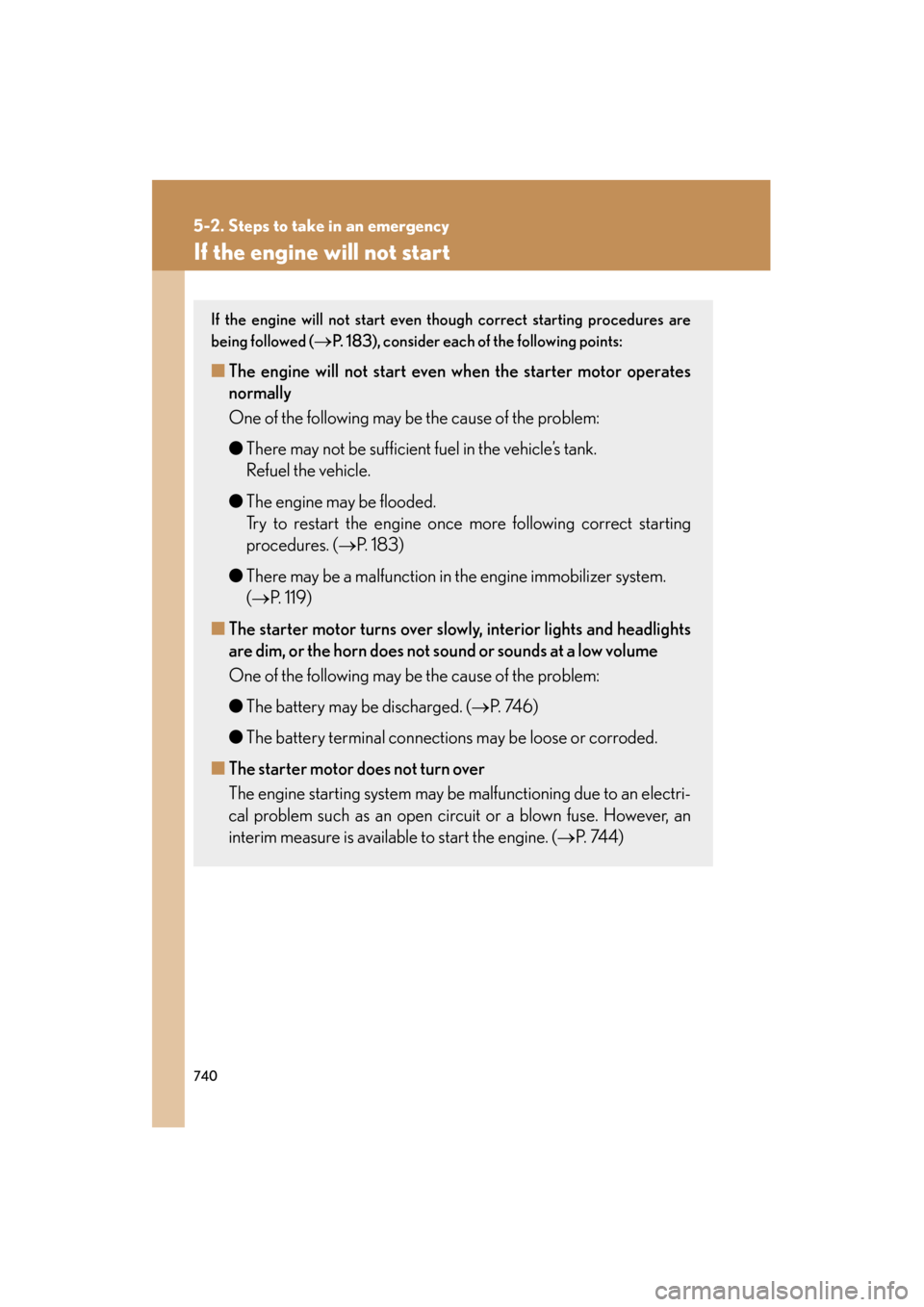

If the engine will not start
If the engine will not start even though correct starting procedures are
being followed (
→P. 183), consider each of the following points:
■The engine will not start even when the starter motor operates
normally
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( →P. 183)
● There may be a malfunction in the engine immobilizer system.
(→ P. 1 1 9 )
■ The starter motor turns over slowly, interior lights and headlights
are dim, or the horn does not sound or sounds at a low volume
One of the following may be the cause of the problem:
● The battery may be discharged. ( →P. 74 6 )
● The battery terminal connections may be loose or corroded.
■ The starter motor does not turn over
The engine starting system may be malfunctioning due to an electri-
cal problem such as an open circuit or a blown fuse. However, an
interim measure is available to start the engine. ( →P. 744)
GX460_OM_OM60J63U_(U).book Page 740 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
741
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Emergency start function
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the “ENGINE START STOP” switch
is functioning normally:Set the parking brake.
Shift the shift lever to P.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch for about 15
seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system may
be malfunctioning. Have the vehicle inspected by your Lexus dealer.
■ The starter motor does not turn ov er, interior lights and headlights
do not turn on, or the horn does not sound
One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( →P. 74 6 )
● There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.
STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 741 Thursday, March 29, 2012 9:10 AM

742
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted:
Set the parking brake.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or tool.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5
GX460_OM_OM60J63U_(U).book Page 742 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
743
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

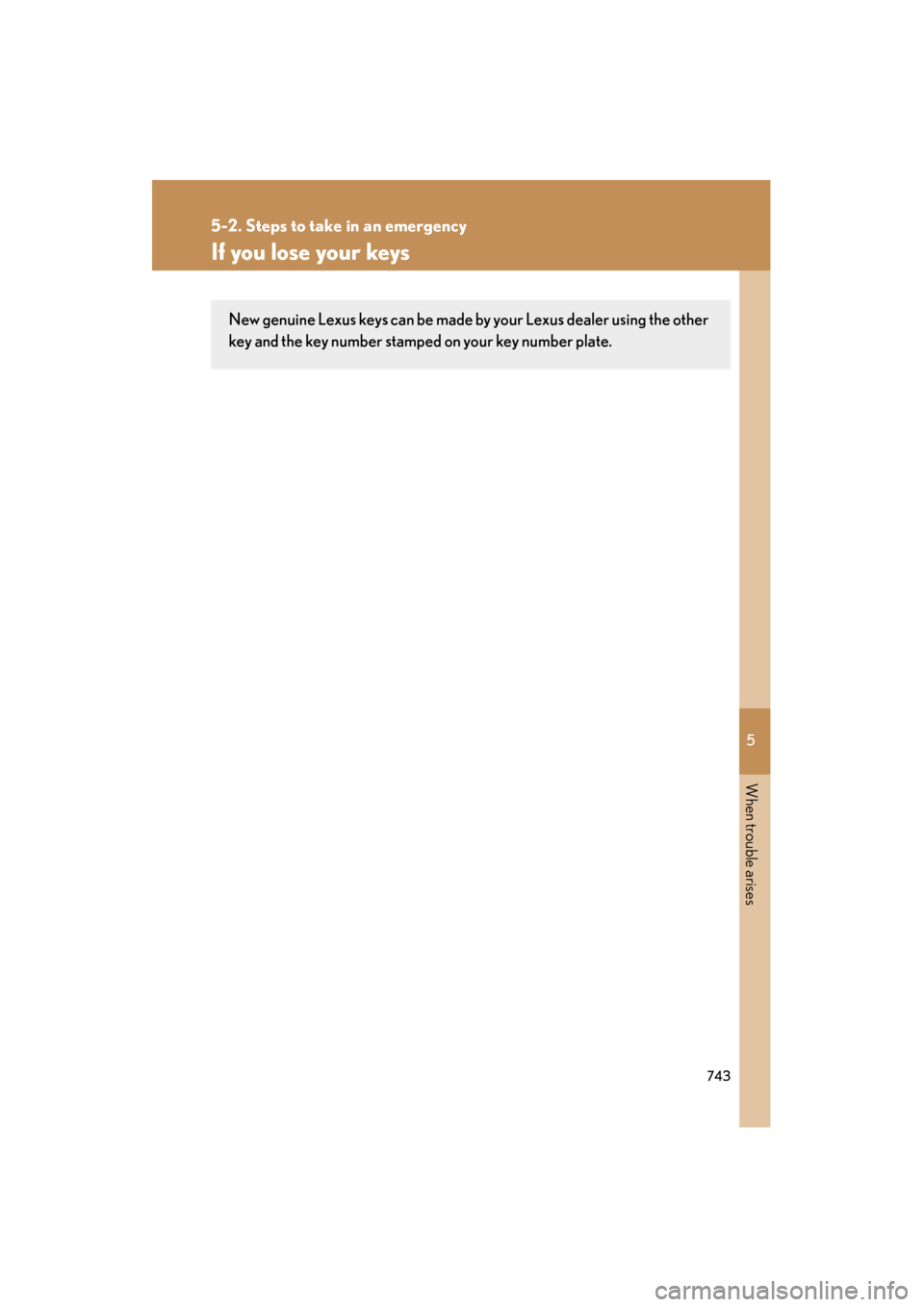

If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using the other
key and the key number stamped on your key number plate.
GX460_OM_OM60J63U_(U).book Page 743 Thursday, March 29, 2012 9:10 AM

744
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Use the mechanical key ( →P. 2 8 )
in order to perform the following
operations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Tu r n i n g t h e k e y r e a r w a r d u n l o c k s
the driver’s door. Turning the key
once again unlocks the other
doors.
Opens the windows and moon
roof (turn and hold)
*
*
: This setting must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is interrupted
(→ P. 41) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened or
the engine can be started by following the procedure below.
GX460_OM_OM60J63U_(U).book Page 744 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
745
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Starting the engine
Ensure that the shift lever is in P and depress the brake pedal.Touch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
If any of the doors is opened or
closed while the key is being
touched to the switch, an alarm will
sound to indicate that the start
function cannot detect the elec-
tronic key.
Press the “ENGINE START STOP” switch within 10 seconds of
the buzzer sounding, keeping the brake pedal depressed.
In the event that the “ENGINE START STOP” switch still cannot be oper-
ated, contact your Lexus dealer.
STEP1
STEP2
■Stopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted.
( → P. 6 5 2 )
■Changing “ENGINE START STOP” switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press the
“ENGINE START STOP” switch.
The engine does not start and modes w ill be changed each time the switch is
pressed. ( →P. 1 8 5 )
STEP3
GX460_OM_OM60J63U_(U).book Page 745 Thursday, March 29, 2012 9:10 AM

746
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If the vehicle battery is discharged
The following procedures may be used to start the engine if the vehicle’s
battery is discharged.
You can call your Lexus dealer, or qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12 volt battery, you can jump start your Lexus by following the
steps below.
Open the hood. ( →P. 6 1 7 )
Connecting the jumper cables according to the following procedure: Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Connect the jumper cable to ground on your vehicle as shown in the
illustration.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 746 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
747
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle
is not in use, due to natural discharge and the draining effects of certain electrical
appliances. If the vehicle is left for a long time, the battery may discharge, and the
engine may be unable to start. (The battery recharges automatically during driving.)
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Open and close any of the doors of your vehicle with the
“ENGINE START STOP” switch off.
Maintain the engine speed of the second vehicle and start the
engine of your vehicle by turning the “ENGINE START STOP”
switch to IGNI TION ON mode.
Once your vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.STEP3
STEP4
STEP5
STEP6
GX460_OM_OM60J63U_(U).book Page 747 Thursday, March 29, 2012 9:10 AM

748
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

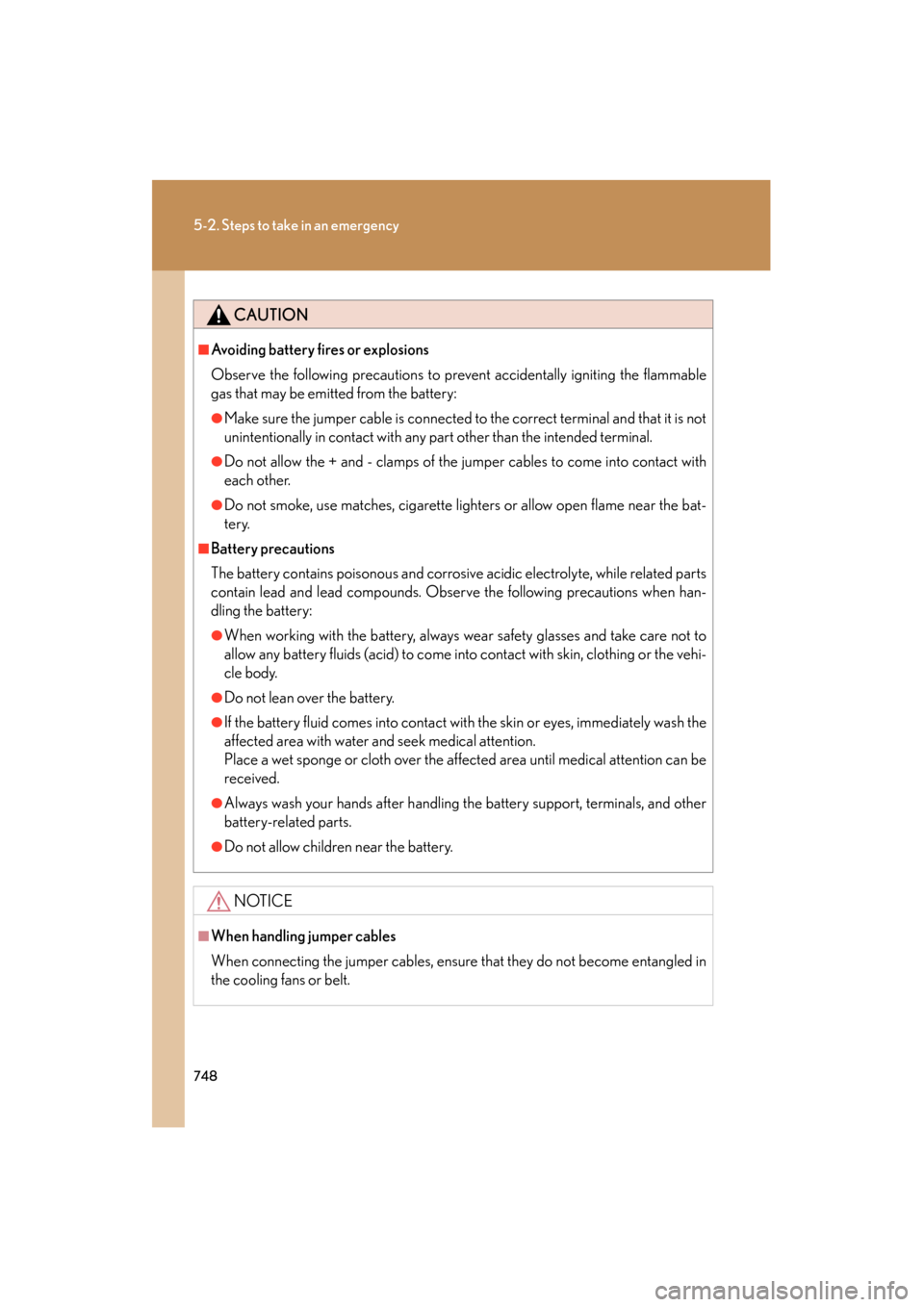

CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery:
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any part other than the intended terminal.
●Do not allow the + and - clamps of the jumper cables to come into contact with
each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the bat-
tery.
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead compounds. Observe the following precautions when han-
dling the battery:
●When working with the battery, always wear safety glasses and take care not to
allow any battery fluids (acid) to come into contact with skin, clothing or the vehi-
cle body.
●Do not lean over the battery.
●If the battery fluid comes into contact with the skin or eyes, immediately wash the
affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the battery support, terminals, and other
battery-related parts.
●Do not allow children near the battery.
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in
the cooling fans or belt.
GX460_OM_OM60J63U_(U).book Page 748 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
749
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
If your vehicle overheats
If the engine overheats:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Carefully lift the hood after the steam sub-
sides and then restart the engine.
If you do not see steam: Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: Stop the engine and call your local Lexus dealer.STEP1
STEP2
STEP3
