check engine light Lexus GX460 2013 Owner's Manual

1
2
3
4
5
6
7
5
GX460_OM_OM60J63U_(U)
3-6. Using the storage featuresList of storage features............... 529
• Glove box ..................................... 531
• Console box ................................ 532
• Coin holder.................................. 534
• Bottle holders/door pockets ......................................... 535
• Cup holders................................. 536
• Auxiliary boxes........................... 539
3-7. Other interior features Cool box ........................................... 541
Sun visors......................................... 544
Vanity mirror .................................. 545
Clock ................................................. 546
Conversation mirror................... 547
Power outlet (12 V DC) ........... 548
Power outlet (120 V AC) ........ 550
Heated steering wheel.............. 555
Seat heaters and ventilators .... 557
Armrest ........................................... 560
Coat hooks ...................................... 561
Assist grips ...................................... 562
Floor mat.......................................... 563
Luggage compartment features.......................................... 565
Garage door opener.................. 574
Compass......................................... 582
Safety Connect ............................. 587 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 596
Cleaning and protecting the vehicle interior ..................... 601
4-2. Maintenance Maintenance requirements ..... 604
General maintenance ................ 607
Emission inspection and maintenance (I/M)
programs ......................................... 611
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................... 612
Hood ................................................... 617
Engine compartment................... 618
Tires ................................................... 636
Tire inflation pressure................. 643
Wheels ............................................. 647
Air conditioning filter................. 650
Electronic key battery ................ 652
Checking and replacing fuses ................................................ 655
Headlight aim (vehicles with low beam halogen bulbs)....... 668
Light bulbs ....................................... 670
4Maintenance and care
GX460_OM_OM60J63U_(U).book Page 5 Thursday, March 29, 2012 9:10 AM

45
1-2. Opening, closing and locking the doors
1
Before driving
GX460_OM_OM60J63U_(U)
■Note for the unlocking function
●Gripping the door handle when wearing a glove may not unlock the door.
●A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
●If there is another electronic key in the detection area, it may take slightly longer
to unlock the doors after the door handle is gripped.
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m)
of the vehicle.
●The smart access system with push-button start can be deactivated in advance.
(→ P. 788)
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
■If the smart access system with push-button start does not operate properly
●Locking and unlocking the doors: Use the mechanical key. ( →P. 74 4 )
●Starting the engine: →P. 74 5
GX460_OM_OM60J63U_(U).book Page 45 Thursday, March 29, 2012 9:10 AM

110
1-4. Opening and closing the windows and moon roof
GX460_OM_OM60J63U_(U)
■Moon roof open reminder function
An alarm will sound when the driver’s door is opened with the moon roof not fully
closed and the “ENGINE START STOP” switch off.
■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightlyStop the vehicle.
Press and hold “ ∨” on the .
*1
The moon roof will close, re-open and pause for approximately 10 sec-
onds.
*2 Then it will close again, tilt up and pause for approximately 1 sec-
ond. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
STEP1
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 110 Thursday, March 29, 2012 9:10 AM

122
1-6. Theft deterrent system
GX460_OM_OM60J63U_(U)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the
following:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
Vehicles with a navigation systemClose the doors, glass hatch
and hood, and lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to de activate or stop the alarms:
● Unlock the doors.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
GX460_OM_OM60J63U_(U).book Page 122 Thursday, March 29, 2012 9:10 AM

175
2-1. Driving procedures
2
When driving
GX460_OM_OM60J63U_(U)
CAUTION
■When starting the vehicle
Always keep your foot on the brake pedal while stopped with the engine running.
This prevents the vehicle from creeping.
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator
pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal willresult in sudden acceleration that may lead to an accident that could result in
death or serious injury.
• When backing up, you may twist your body around, leading to a difficulty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly. This allows you to depress the brake and accelerator pedals
properly.
• Depress the brake pedal using your right foot. Depressing the brake pedal using your left foot may delay response in an emergency, resulting in an acci-
dent.
●Do not drive the vehicle over or stop the vehicle near flammable materials. The
exhaust system and exhaust gases can be extremely hot. These hot parts may
cause a fire if there is any flammable material nearby.
●Do not let the vehicle roll backwards while th e shift lever is in a driving position, or
roll forward while the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering perfor-
mance, resulting in an accident or damage to the vehicle.
●If the smell of exhaust is noticed inside the vehicle, open the windows and check
that the back door is closed.
Large amounts of exhaust in the vehicle can cause driver drowsiness and an acci-
dent, resulting in death or a serious heal th hazard. Have the vehicle inspected by
your Lexus dealer immediately.
GX460_OM_OM60J63U_(U).book Page 175 Thursday, March 29, 2012 9:10 AM

177
2-1. Driving procedures
2
When driving
GX460_OM_OM60J63U_(U)
CAUTION
■When driving the vehicle
●Always check that all passengers’ arms, heads or other parts of their body are not
outside the vehicle, as this may result in death or serious injury.
●Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do
not drive over 85 mph (140 km/h) unless your vehicle has high-speed capability
tires. Driving over 85 mph (140 km/h) may result in tire failure, loss of control and
possible injury. Be sure to consult a tire dealer to determine whether the tires on
your vehicle are high-speed capability tires or not before driving at such speeds.
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce
your ability to control the vehicle, resulting in an accident.
●Sudden changes in engine speed, such as engine braking caused by up-shifting
or down-shifting, may cause the vehicle to skid, resulting in an accident.
●After driving through a puddle, lightly depress the brake pedal to make sure that
the brakes are functioning properly. Wet brake pads may prevent the brakes from
functioning properly. If the brakes on only one side are wet and not functioning
properly, steering control may be affected, resulting in an accident.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
Shifting the shift lever to a gear other than P or N may lead to unexpected rapid
acceleration of the vehicle that may cause an accident and result in death or serious
injury.
GX460_OM_OM60J63U_(U).book Page 177 Thursday, March 29, 2012 9:10 AM

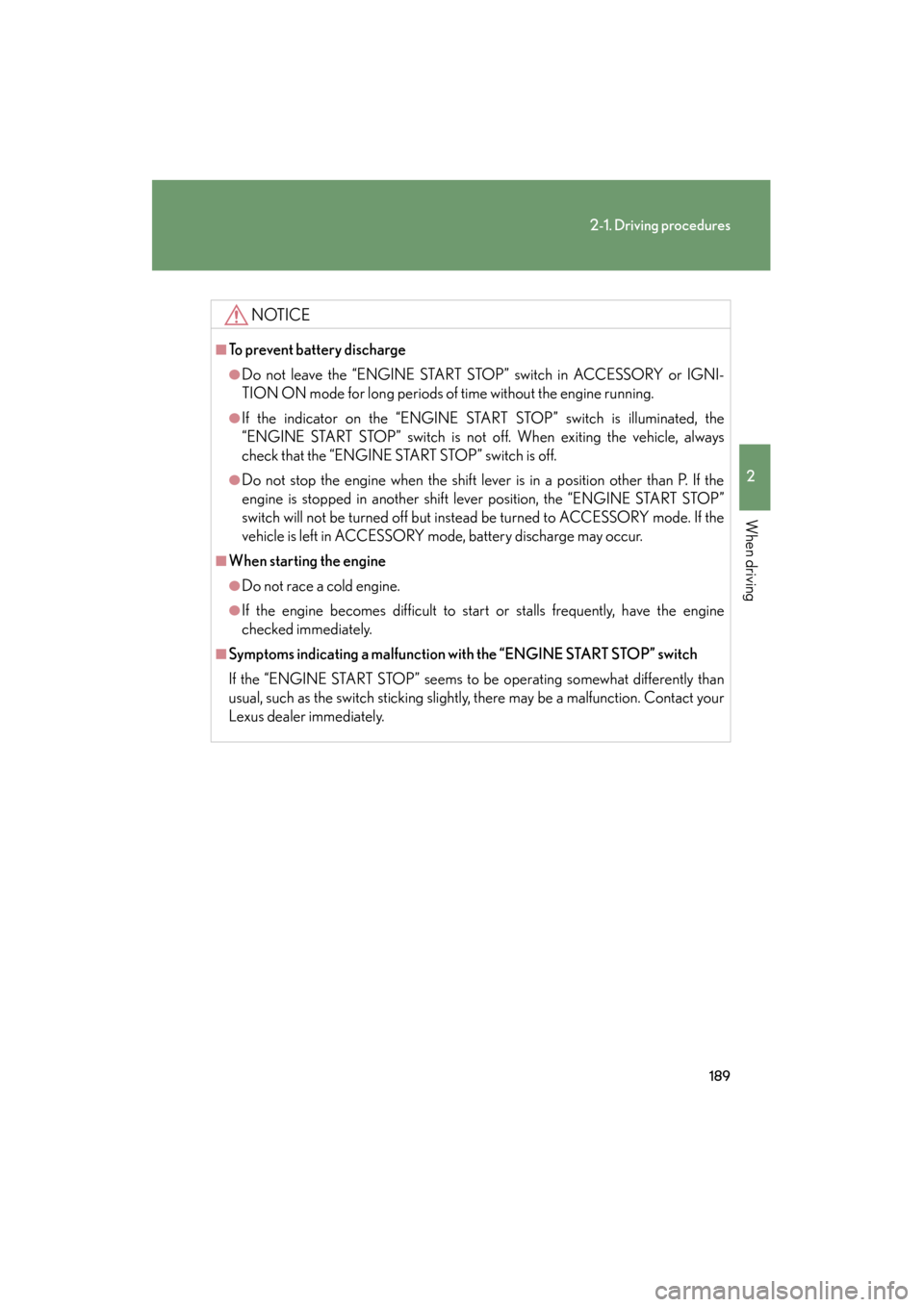

189
2-1. Driving procedures
2
When driving
GX460_OM_OM60J63U_(U)
NOTICE
■To prevent battery discharge
●Do not leave the “ENGINE START STOP” switch in ACCESSORY or IGNI-
TION ON mode for long periods of time without the engine running.
●If the indicator on the “ENGINE START STOP” switch is illuminated, the
“ENGINE START STOP” switch is not off. When exiting the vehicle, always
check that the “ENGINE START STOP” switch is off.
●Do not stop the engine when the shift lever is in a position other than P. If the
engine is stopped in another shift lever position, the “ENGINE START STOP”
switch will not be turned off but instead be turned to ACCESSORY mode. If the
vehicle is left in ACCESSORY mode, battery discharge may occur.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.
■Symptoms indicating a malfunction with the “ENGINE START STOP” switch
If the “ENGINE START STOP” seems to be operating somewhat differently than
usual, such as the switch sticking slightly, there may be a malfunction. Contact your
Lexus dealer immediately.
GX460_OM_OM60J63U_(U).book Page 189 Thursday, March 29, 2012 9:10 AM

196
2-1. Driving procedures
GX460_OM_OM60J63U_(U)
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
The turn signal lever can be used to show the following intentions of the
driver:Right turn
Left turn
Lane change to the right
(push and hold the lever part-
way)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash
until you release the lever.
GX460_OM_OM60J63U_(U).book Page 196 Thursday, March 29, 2012 9:10 AM

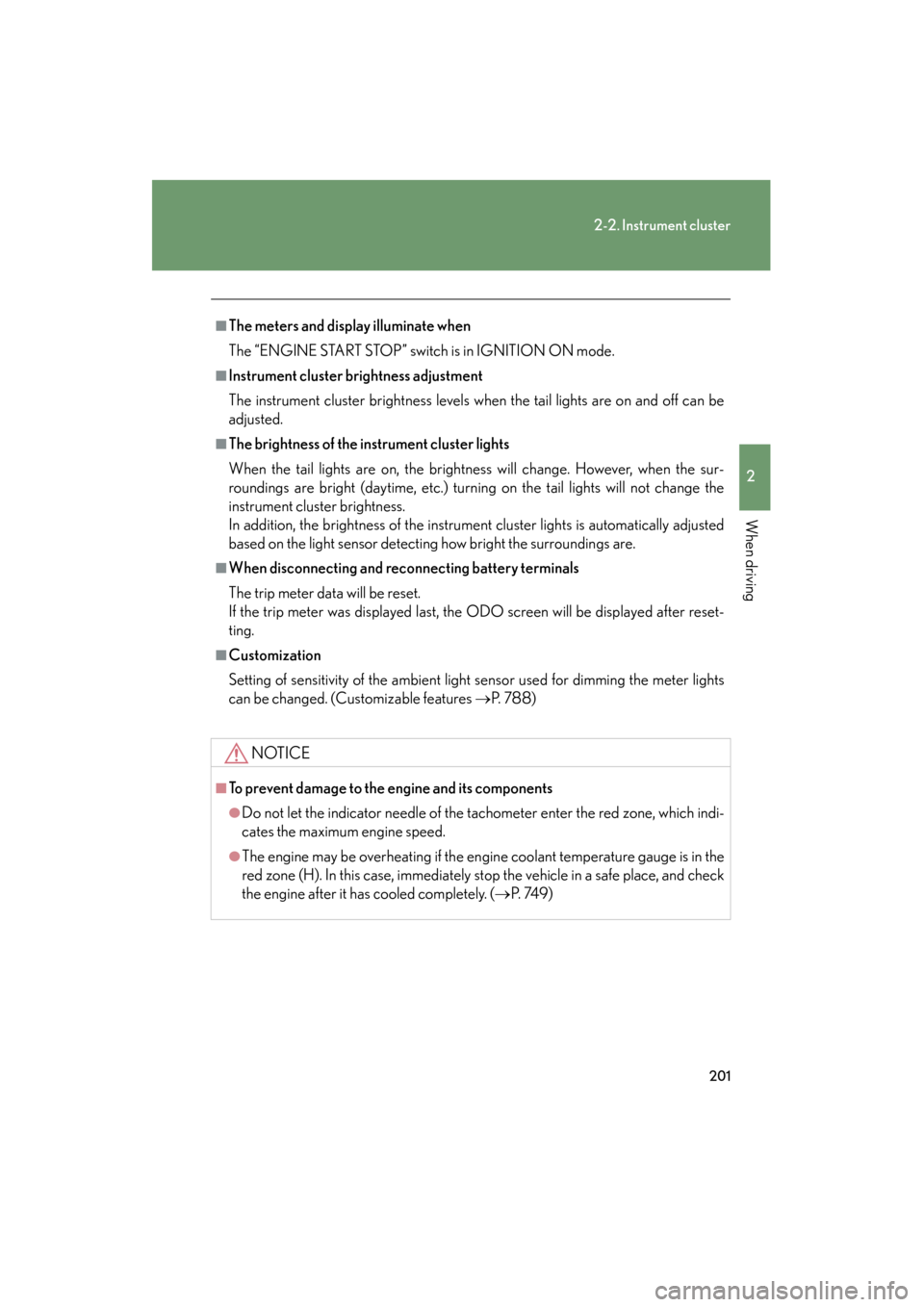

201
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the instrument cluster lights
When the tail lights are on, the brightness will change. However, when the sur-
roundings are bright (daytime, etc.) turning on the tail lights will not change the
instrument cluster brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted
based on the light sensor detecting how bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the ODO screen will be displayed after reset-
ting.
■Customization
Setting of sensitivity of the ambient light sensor used for dimming the meter lights
can be changed. (Customizable features →P. 7 8 8 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 74 9 )
GX460_OM_OM60J63U_(U).book Page 201 Thursday, March 29, 2012 9:10 AM

205

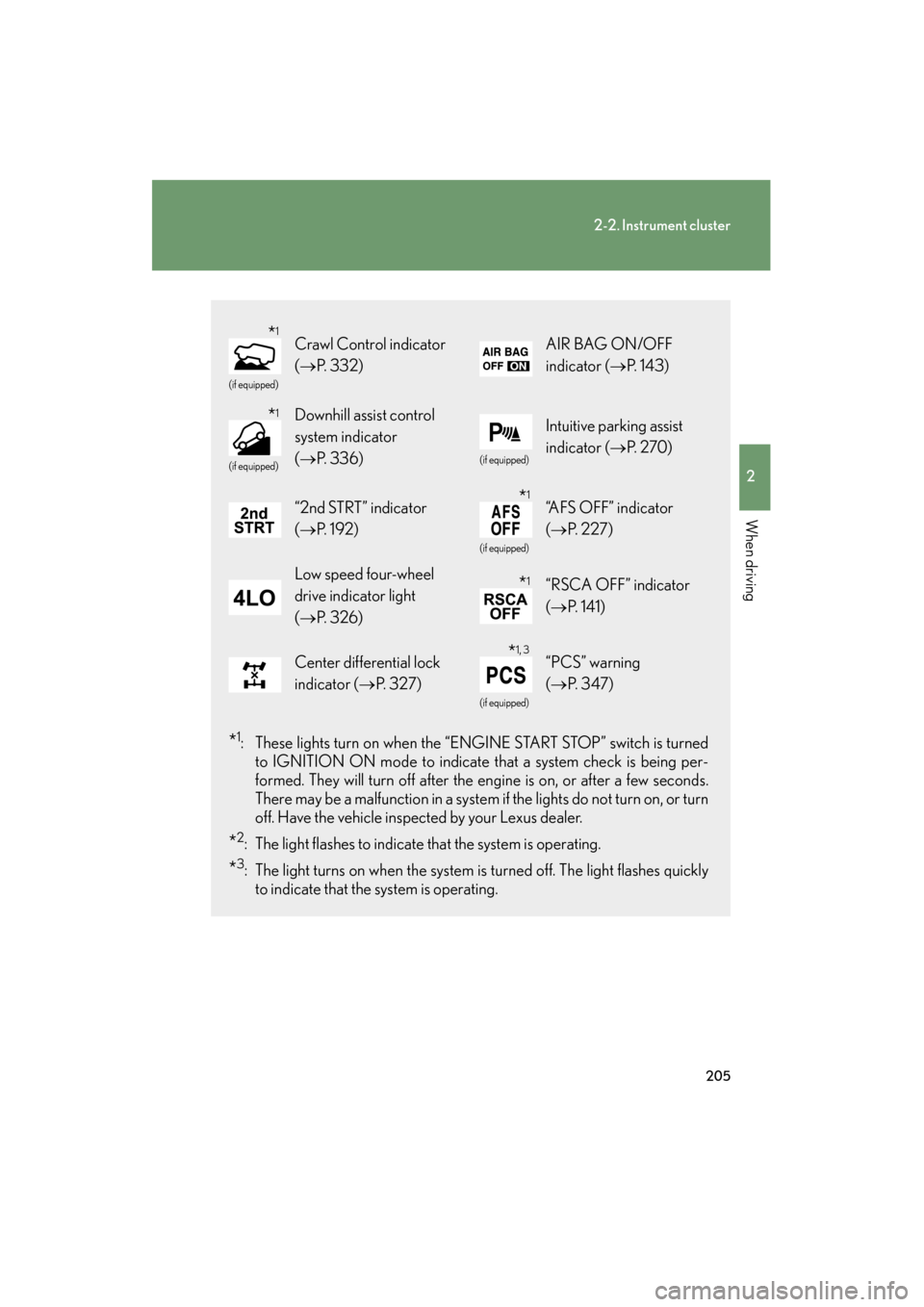

2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
*1: These lights turn on when the “ENGINE START STOP” switch is turnedto IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is on, or after a few seconds.
There may be a malfunction in a system if the lights do not turn on, or turn
off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off. The light flashes quicklyto indicate that the system is operating.
(if equipped)
Crawl Control indicator
(→ P. 3 3 2 )AIR BAG ON/OFF
indicator ( →P. 1 4 3 )
(if equipped)
Downhill assist control
system indicator
(→ P. 3 3 6 )
(if equipped)
Intuitive parking assist
indicator ( →P. 2 7 0 )
“2nd STRT” indicator
(→ P. 1 9 2 )
(if equipped)
“AFS OFF” indicator
(→ P. 2 2 7 )
Low speed four-wheel
drive indicator light
(→ P. 326)“RSCA OFF” indicator
(→ P. 141)
Center differential lock
indicator ( →P. 3 2 7 )
(if equipped)
“PCS” warning
(→ P. 3 4 7 )
*1
*1
*1
*1
*1, 3
GX460_OM_OM60J63U_(U).book Page 205 Thursday, March 29, 2012 9:10 AM
