clock Lexus GX460 2013 Owner's Manual

1
2
3
4
5
6
7
5
GX460_OM_OM60J63U_(U)
3-6. Using the storage featuresList of storage features............... 529
• Glove box ..................................... 531
• Console box ................................ 532
• Coin holder.................................. 534
• Bottle holders/door pockets ......................................... 535
• Cup holders................................. 536
• Auxiliary boxes........................... 539
3-7. Other interior features Cool box ........................................... 541
Sun visors......................................... 544
Vanity mirror .................................. 545
Clock ................................................. 546
Conversation mirror................... 547
Power outlet (12 V DC) ........... 548
Power outlet (120 V AC) ........ 550
Heated steering wheel.............. 555
Seat heaters and ventilators .... 557
Armrest ........................................... 560
Coat hooks ...................................... 561
Assist grips ...................................... 562
Floor mat.......................................... 563
Luggage compartment features.......................................... 565
Garage door opener.................. 574
Compass......................................... 582
Safety Connect ............................. 587 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 596
Cleaning and protecting the vehicle interior ..................... 601
4-2. Maintenance Maintenance requirements ..... 604
General maintenance ................ 607
Emission inspection and maintenance (I/M)
programs ......................................... 611
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................... 612
Hood ................................................... 617
Engine compartment................... 618
Tires ................................................... 636
Tire inflation pressure................. 643
Wheels ............................................. 647
Air conditioning filter................. 650
Electronic key battery ................ 652
Checking and replacing fuses ................................................ 655
Headlight aim (vehicles with low beam halogen bulbs)....... 668
Light bulbs ....................................... 670
4Maintenance and care
GX460_OM_OM60J63U_(U).book Page 5 Thursday, March 29, 2012 9:10 AM

216
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)
Multi-information display (Accessory meters)∗
∗: If equipped
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
● Clock ( →P. 546)
Indicates the time.
●Outside temperature
Indicates the outside temperature.
The temperature range that can be displayed is from -40 °F (-40 ° C) to
122 °F (50 ° C).
●Air conditioning system display ( →P. 398)
● Rear view monitor ( →P. 285)
Automatically displayed when the shift lever is moved into R.
●Multi-terrain Monitor (if equipped) ( →P. 308)
● Wide view front & side monitor (if equipped) ( →P. 2 9 0 )
● Trip information ( →P. 217)
Displays driving range, fuel consumption and other cruising-related infor-
mation.
●Intuitive parking assist display (if equipped) (→ P. 2 7 0 )
GX460_OM_OM60J63U_(U).book Page 216 Thursday, March 29, 2012 9:10 AM

Interior features3
397
GX460_OM_OM60J63U_(U)
3-5. Using the interior lightsInterior lights list ..................... 525
• Personal/interior light main switch ............................... 526
• Personal/interior lights ........ 527
3-6. Using the storage features List of storage features ......... 529
• Glove box .................................. 531
• Console box ............................. 532
• Coin holder............................... 534
• Bottle holders/door pockets ...................................... 535
• Cup holders.............................. 536
• Auxiliary boxes....................... 539 3-7. Other interior features
Cool box .................................... 541
Sun visors ................................. 544
Vanity mirror ........................... 545
Clock ......................................... 546
Conversation mirror............. 547
Power outlet (12 V DC)........ 548
Power outlet (120 V AC) ..... 550
Heated steering wheel ........ 555
Seat heaters and ventilators ............................. 557
Armrest .................................... 560
Coat hooks ................................ 561
Assist grips ............................... 562
Floor mat .................................. 563
Luggage compartment features .................................. 565
Garage door opener ............. 574
Compass .................................. 582
Safety Connect ...................... 587
GX460_OM_OM60J63U_(U).book Page 397 Thursday, March 29, 2012 9:10 AM

464

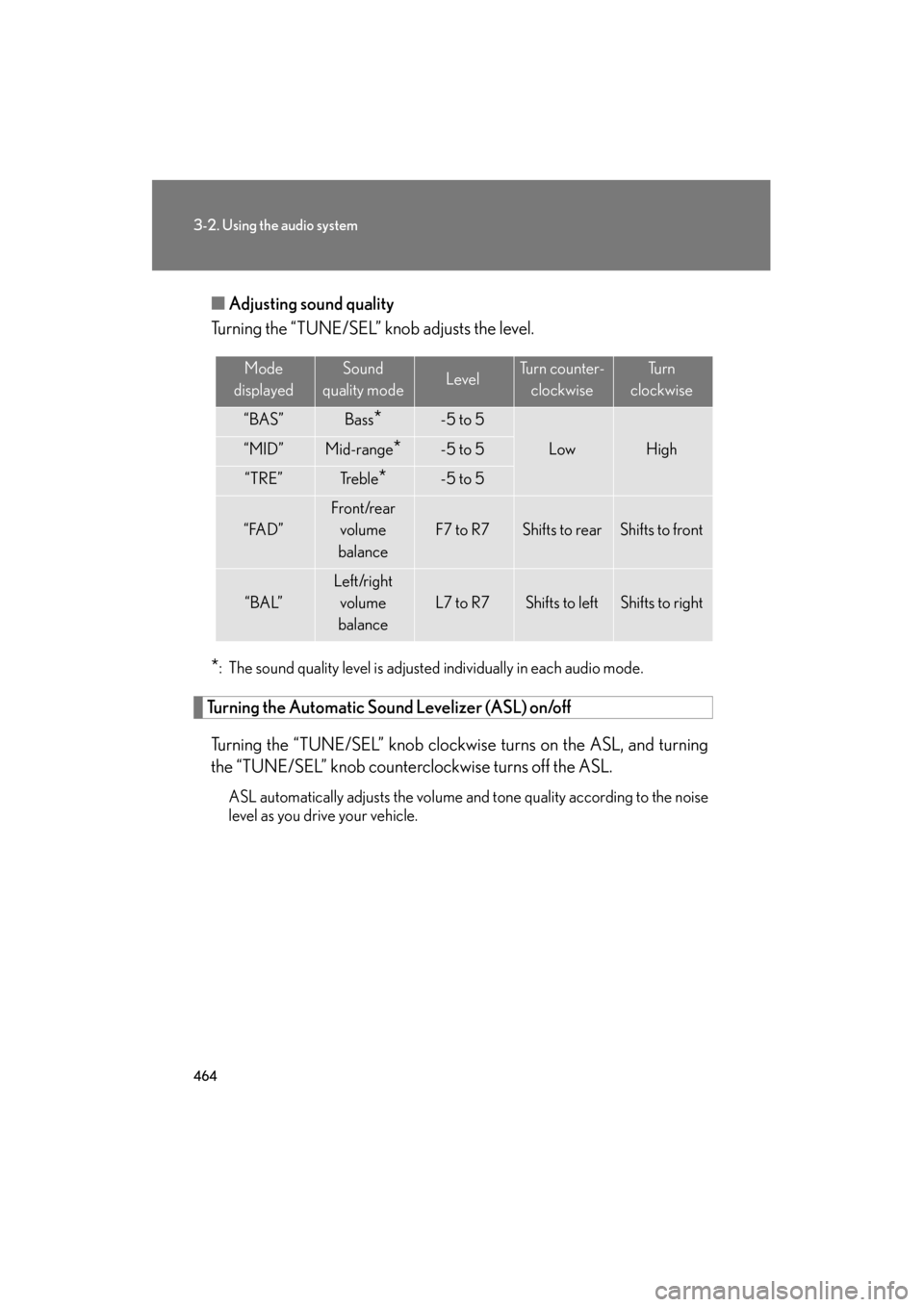

3-2. Using the audio system
GX460_OM_OM60J63U_(U)■
Adjusting sound quality
Turning the “TUNE/SEL” knob adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Turning the Automatic Sound Levelizer (ASL) on/off
Turning the “TUNE/SEL” knob clockwise turns on the ASL, and turning
the “TUNE/SEL” knob counterclockwise turns off the ASL.
ASL automatically adjusts the volume an d tone quality according to the noise
level as you drive your vehicle.
Mode
displayedSound
quality modeLevelTu r n c o u n t e r - clockwiseTu r n
clockwise
“BAS”Bass*-5 to 5
LowHigh“MID”Mid-range*-5 to 5
“TRE”Tr e b l e*-5 to 5
“FAD”
Front/rear volume
balance
F7 to R7Shifts to rearShifts to front
“BAL”
Left/right volume
balance
L7 to R7Shifts to leftShifts to right
GX460_OM_OM60J63U_(U).book Page 464 Thursday, March 29, 2012 9:10 AM

515
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GX460_OM_OM60J63U_(U)
Setting voice guidance volumeSelect “Guidance Vol” using the “TUNE/SEL” knob.
Change the voice guidance volume.
To decrease the volume: Turn the “TUNE/SEL” knob counterclockwise.
To increase the volume: Turn the “TUNE/SEL” knob clockwise.
Displaying the Bluetooth® device address and name
Select “Device Name” using the “TUNE/SEL” knob.
Turn the “TUNE/SEL” knob to display the Bluetooth
® device
address and name.
Select “Go Back” using the “TUNE/ SEL” knob to return to “Sys-
tem Setup”.
Initializing the system
Select “Initialize” and then “Confirm” using the “TUNE/SEL”
knob.
Select “Confirm” again using the “TUNE/SEL” knob.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 515 Thursday, March 29, 2012 9:10 AM

546
3-7. Other interior features
GX460_OM_OM60J63U_(U)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When disconnecting and reconnecting battery terminals
The clock data will be reset.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system Adjusts the hours
Adjusts the minutes
GX460_OM_OM60J63U_(U).book Page 546 Thursday, March 29, 2012 9:10 AM

565
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)
Luggage compartment features
■Cargo hooks
Vehicles without third seats Raise the hook to use.
The cargo hooks are provided
for securing loose items.
Vehicles with third seats
Raise the hook to use.
The cargo hooks are provided
for securing loose items.
When using the deck hooks, the
third seat must be fold down.
(→ P. 76 )
■Warning reflector holder
Turn the knob clockwise.
Open the lid.
STEP1
GX460_OM_OM60J63U_(U).book Page 565 Thursday, March 29, 2012 9:10 AM

621
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→P. 76 1
Oil quantity (Low → Full)1.6 qt. (1.5 L, 1.3 Imp.qt.)
ItemsClean funnel
STEP1
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 621 Thursday, March 29, 2012 9:10 AM

630

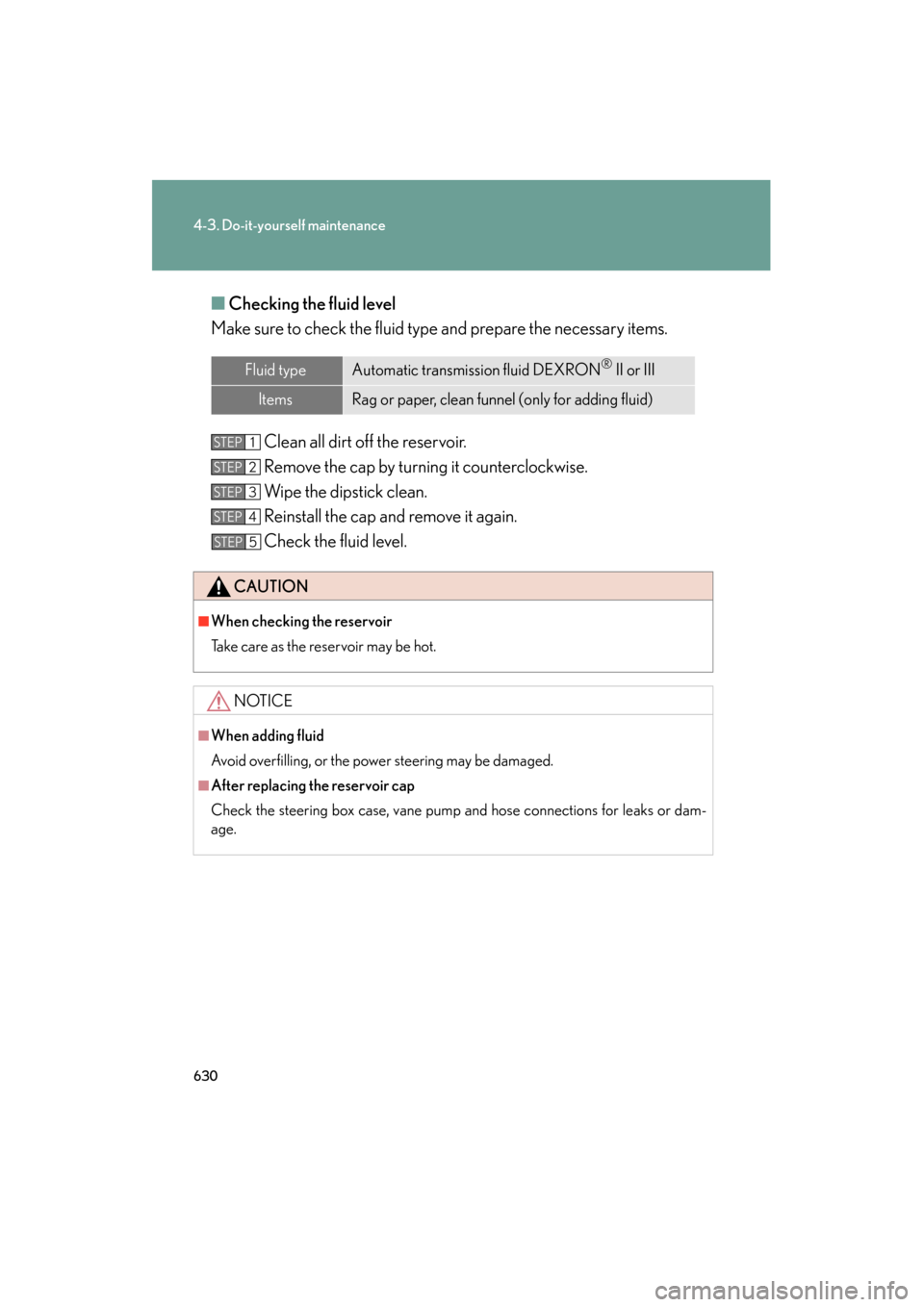

4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)■
Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall the cap and remove it again.
Check the fluid level.
Fluid typeAutomatic transmission fluid DEXRON® II or III
ItemsRag or paper, clean funnel (only for adding fluid)
CAUTION
■When checking the reservoir
Take care as the reservoir may be hot.
NOTICE
■When adding fluid
Avoid overfilling, or the power steering may be damaged.
■After replacing the reservoir cap
Check the steering box case, vane pump and hose connections for leaks or dam-
age.
STEP1
STEP2
STEP3
STEP4
STEP5
GX460_OM_OM60J63U_(U).book Page 630 Thursday, March 29, 2012 9:10 AM

671
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
Replacing light bulbs■ Headlight low beams (vehicles with halogen bulbs)
Turn the cover counterclockwise
and remove it.
■Rear bulb locations
Rear turn signal light
Back-up light
Rear side marker light
STEP1
