Page 762 of 846
761
6-1. Specifications
6
Vehicle specifications
GX460_OM_OM60J63U_(U)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill — reference
*)
With filter
Without filter
8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)
Outside temperature
GX460_OM_OM60J63U_(U).book Page 761 Thursday, March 29, 2012 9:10 AM
Page 765 of 846
764
6-1. Specifications
GX460_OM_OM60J63U_(U)

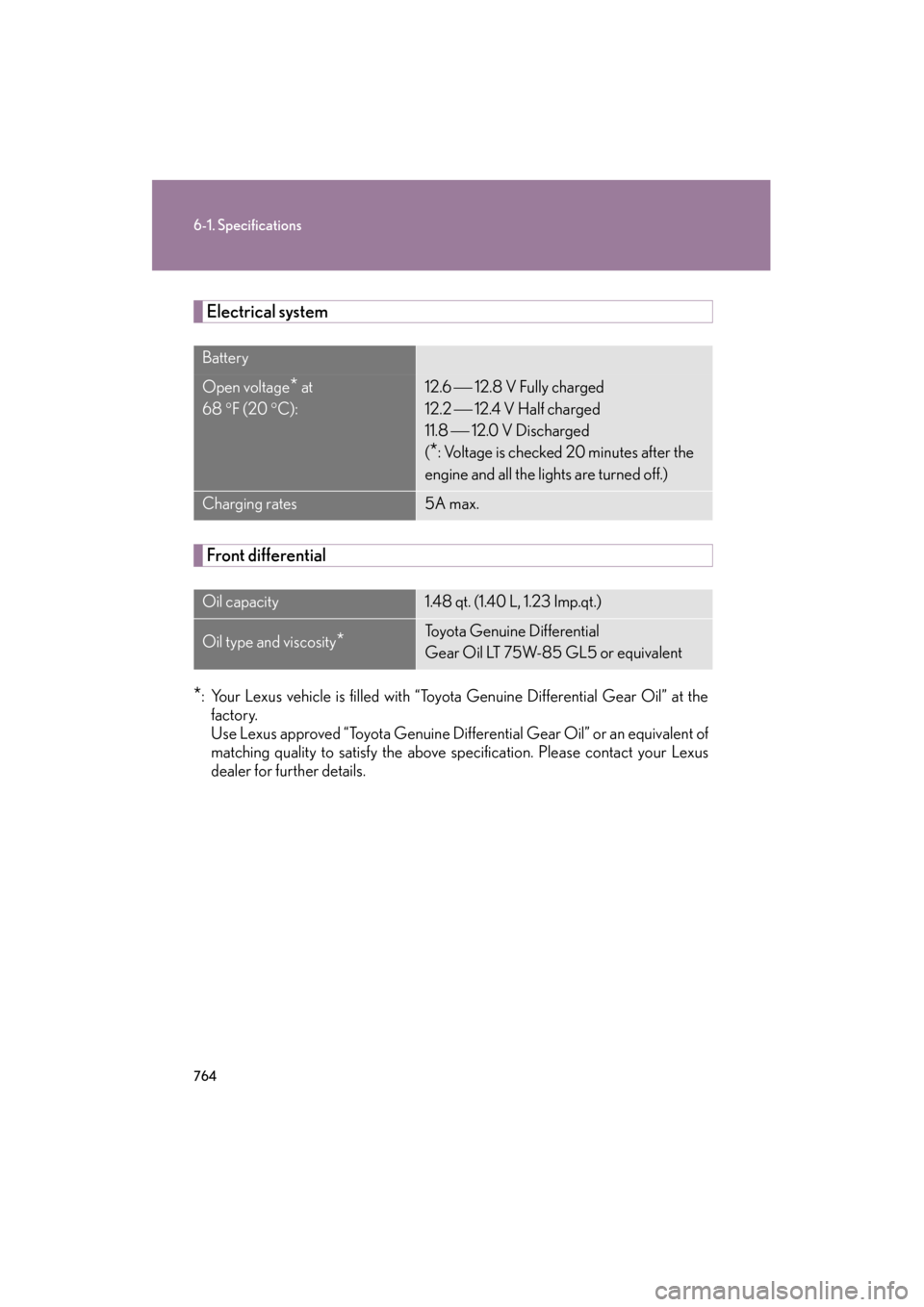

Electrical system
Front differential
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
Battery
Open voltage* at
68 °F (20 °C):12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11.8 12.0 V Discharged
(
*: Voltage is checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5A max.
Oil capacity1.48 qt. (1.40 L, 1.23 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential
Gear Oil LT 75W-85 GL5 or equivalent
GX460_OM_OM60J63U_(U).book Page 764 Thursday, March 29, 2012 9:10 AM
Page 768 of 846
767
6-1. Specifications
6
Vehicle specifications
GX460_OM_OM60J63U_(U)

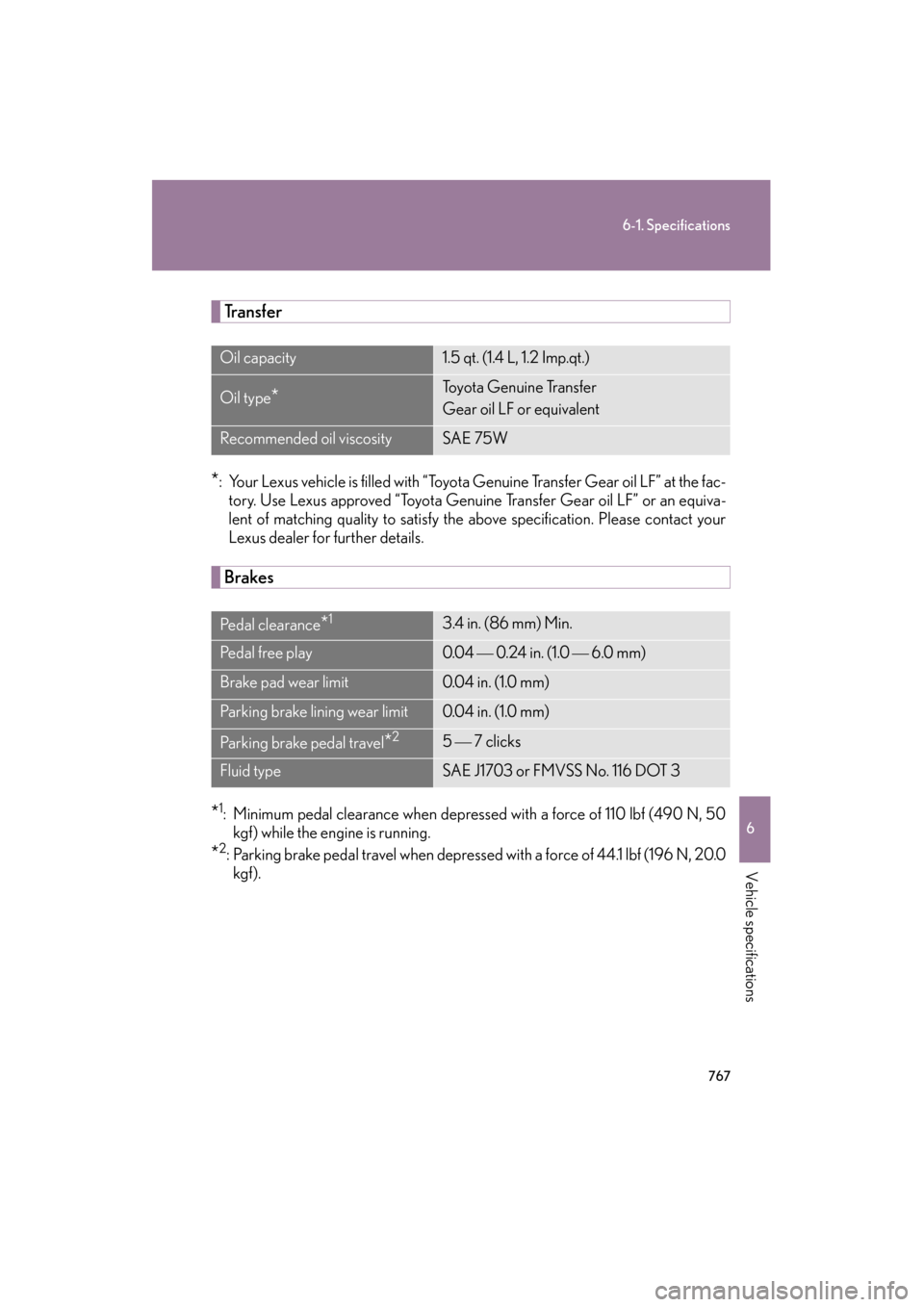

Tr a n s f e r
*: Your Lexus vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the fac-tory. Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equiva-
lent of matching quality to satisfy the above specification. Please contact your
Lexus dealer for further details.
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 44.1 lbf (196 N, 20.0kgf ).
Oil capacity1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type*To y o t a G e n u i n e Tr a n s f e r
Gear oil LF or equivalent
Recommended oil viscositySAE 75W
Pe d a l c l e a r a n c e*13.4 in. (86 mm) Min.
Pedal free play0.04 0.24 in. (1.0 6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*25 7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
GX460_OM_OM60J63U_(U).book Page 767 Thursday, March 29, 2012 9:10 AM
Page 781 of 846
780
6-1. Specifications
GX460_OM_OM60J63U_(U)

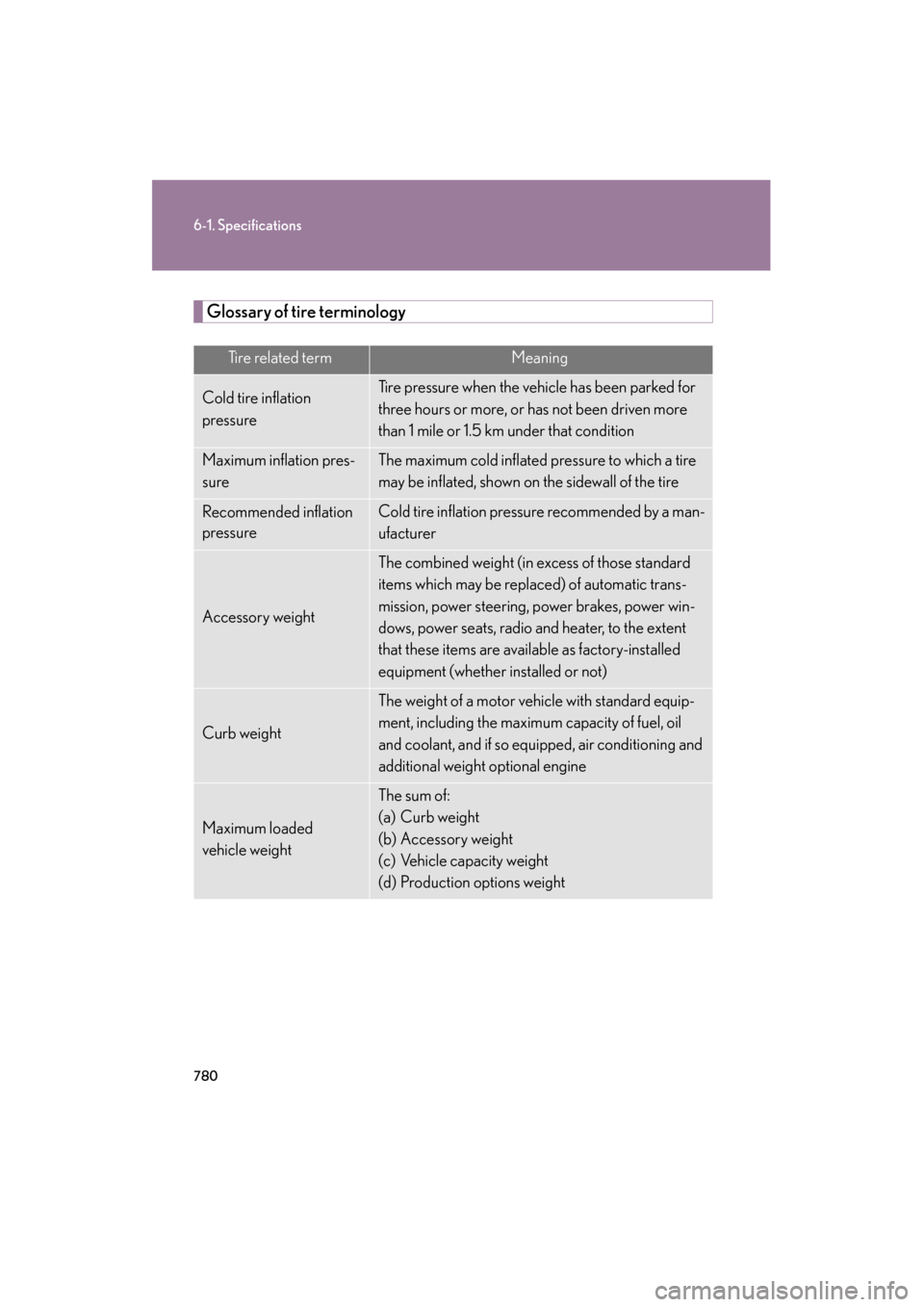

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic trans-
mission, power steering, power brakes, power win-
dows, power seats, radio and heater, to the extent
that these items are available as factory-installed
equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil
and coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
GX460_OM_OM60J63U_(U).book Page 780 Thursday, March 29, 2012 9:10 AM
Page 830 of 846
829
Alphabetical index
GX460_OM_OM60J63U_(U)
Electronic keyIf the electronic key does not
operate properly .............................744
Emergency, in case of
If the electronic key does not operate properly .............................744
If the engine will not start ............... 740
If the shift lever cannot be shifted from P.................................... 742
If the vehicle has discharged
battery.................................................. 746
If the warning buzzer sounds...... 693
If the warning light turns on .......... 693
If the warning message is
displayed ............................................ 705
If you have a flat tire .........................726
If you lose your keys .........................743
If you think something is
wrong.....................................................691
If your vehicle becomes stuck .....752
If your vehicle has to be stopped in an emergency ......... 754
If your vehicle needs to be towed ...................................................685
If your vehicle overheats................ 749
Emergency flashers
Switch ......................................................684 Engine
Accessory mode................................. 183
Compartment....................................... 618
Engine switch ........................................ 183
Hood ..........................................................617
How to start the engine ................... 183
Identification number .......................759
If the engine will not start................740
Ignition switch ....................................... 183
Overheating ......................................... 749
Engine compartment cover .............. 619
Engine coolant Capacity ................................................. 763
Checking ............................................... 624
Preparing and checking before winter ......................................371
Engine coolant temperature gauge....................................................... 199
Engine immobilizer system.................. 119
Engine oil Capacity ...................................................761
Checking .............................................. 620
Preparing and checking before winter ......................................371
Engine switch .......................................... 183
Engine switch light................................ 525
Event data recorder (EDR) ................. 23E
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
sec_08-02.fm Page 829 Thursday, March 29, 2012 10:00 AM
Page 833 of 846
832
Alphabetical index
GX460_OM_OM60J63U_(U)
LightsDoor courtesy lights.........................525
Emergency flasher switch .............684
Engine switch light ............................ 525
Fog light switch................................... 237
Hazard light switch ...........................684
Headlights switch .............................. 223
Inside door handle light.................. 525
Interior lights list.................................. 525
Personal/interior lights ................... 527
Replacing light bulbs........................ 670
Running board lights........................ 525
Scuff lights.............................................. 525
Shift lever light ..................................... 525
Turn signal lever ...................................196
Vanity lights ..........................................545
Wattage.................................................. 769
Load capacity .........................................369
Luggage cover....................................... 567
Maintenance Do-it-yourself ma intenance ........... 612
General maintenance .....................607
Maintenance data..............................758
Maintenance requirements ..........604
Reset the maintenance data........ 605
Meter Instrument cluster light
control..................................................200
Meters .......................................................199
Micro dust and pollen filter............... 407
Mirrors Inside rear view mirror....................... 99
Side mirror heater ............................... 417
Side mirrors ............................................. 101
Vanity mirrors......................................545 Moon roof................................................. 108
MP3 disc.................................................. 437
Multi-information display
Brightness control .............................. 219
Multi-information display ........ 208, 216
Multi Terrain ABS ................................ 339
Multi-terrain Monitor .........................308
Multi-terrain Select..............................300
Navigation system
*
Noise from under vehicle .................... 20
Odometer .................................................199
Off-road precautions .........................358
Oil Engine oil............................................... 620
Opener Fuel filler door ......................................... 113
Hood ......................................................... 617
Outside rear view mirrors
Adjusting and folding ..........................101
Driving position memory ..................82
Outside temperature display .......................................... 209, 216
Overhead console ............................... 539
Overheating, Engine .......................... 749
Parking assist sensors......................... 270
Parking brake........................................... 197
Parking lights Replacing light bulbs ....................... 675
Switch .......................................................223
Wattage ................................................. 769
PCS ............................................................ 347
M
N
O
P
GX460_OM_OM60J63U_(U).book Page 832 Thursday, March 29, 2012 9:10 AM
Page 845 of 846
844
GX460_OM_OM60J63U_(U)
GAS STATION INFORMATION
Auxiliary catch leverP. 6 1 7Fuel filler doorP. 113
Hood lock release lever P. 6 1 7Fuel filler door leverP. 1 1 3Tire inflation pressure P. 76 8
Fuel tank capacity
(Reference)23.0 gal. (87 L, 19.1 Imp.gal.)
Fuel typePremium unleaded gasoline only P. 115, 760
Cold tire inflation
pressureP. 76 8
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
With filter 8.2 (7.8, 6.9)
Without filter 7.8 (7.4, 6.5)
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil P. 761
Recommended oil viscosity: SAE 0W-20
