2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the instrument cluster lights
When the tail lights are on, the brightness will change. However, when the sur-
roundings are bright (daytime, etc.) turning on the tail lights will not change the
instrument cluster brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted
based on the light sensor detecting how bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the ODO screen will be displayed after reset-
ting.
■Customization
Setting of sensitivity of the ambient ligh t sensor used for dimming the meter lights
can be changed. (Customizable features P. 7 8 8 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( P. 74 9 )

202
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)
Indicators and warning lights
The indicators and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
Center panel (vehicles without a navigation system)

203
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
Center panel (vehicles with a navigation system)

204
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)

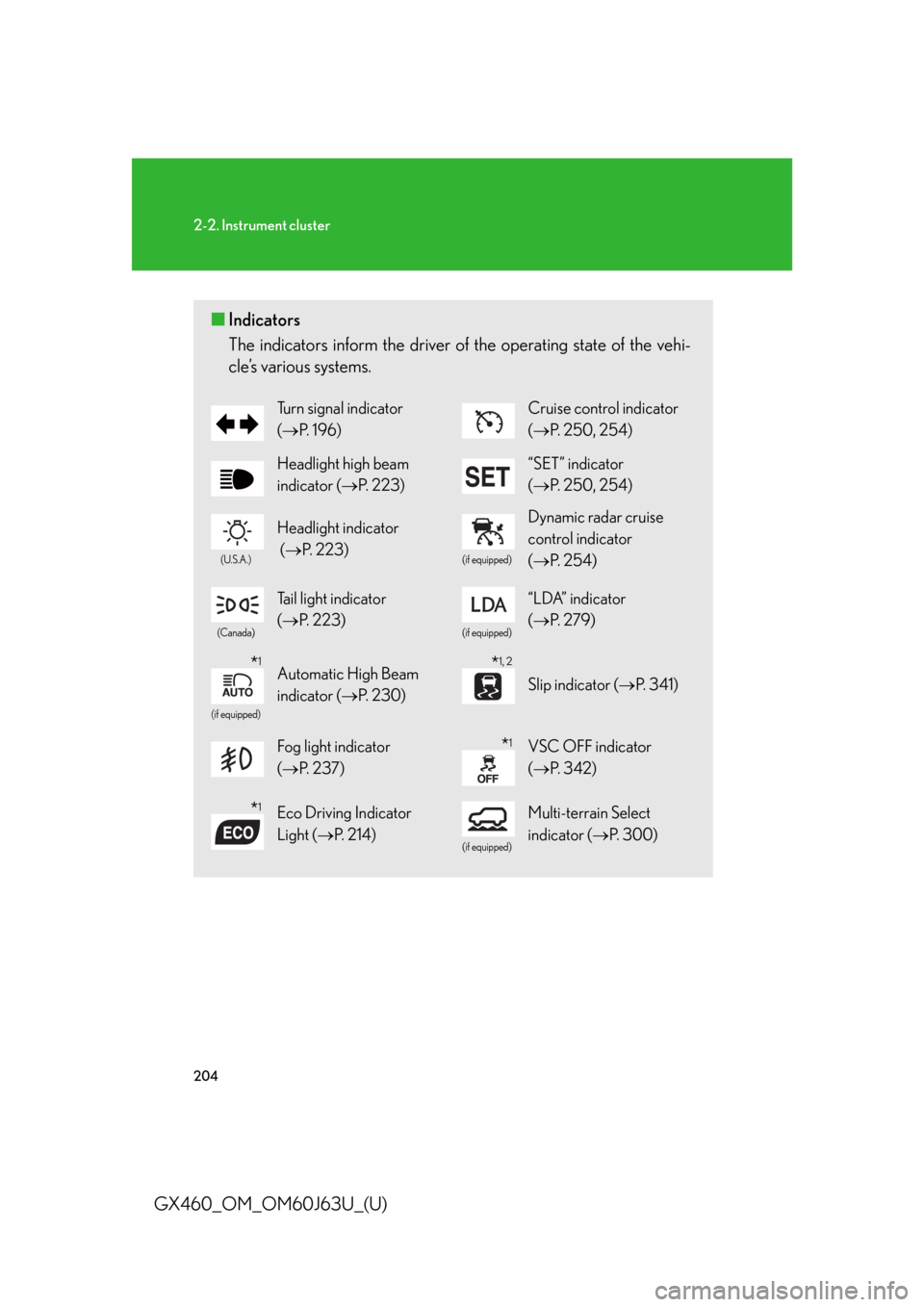

■Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems.
Turn signal indicator
( P. 1 9 6 )Cruise control indicator
(P. 250, 254)
Headlight high beam
indicator ( P. 223)“SET” indicator
( P. 250, 254)
(U.S.A.)
Headlight indicator
( P. 2 2 3 )
(if equipped)
Dynamic radar cruise
control indicator
( P. 2 5 4 )
(Canada)
Tail light indicator
(P. 223)
(if equipped)
“LDA” indicator
(P. 2 7 9 )
(if equipped)
Automatic High Beam
indicator ( P. 2 3 0 )Slip indicator ( P. 3 4 1 )
Fog light indicator
( P. 2 3 7 )VSC OFF indicator
(P. 3 4 2 )
Eco Driving Indicator
Light ( P. 2 1 4 )
(if equipped)
Multi-terrain Select
indicator ( P. 300)
*1*1, 2
*1
*1

205
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
*1: These lights turn on when the “ENGINE START STOP” switch is turnedto IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the en gine is on, or after a few seconds.
There may be a malfunction in a system if the lights do not turn on, or turn
off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off. The light flashes quickly
to indicate that the system is operating.
(if equipped)
Crawl Control indicator
( P. 3 3 2 )AIR BAG ON/OFF
indicator ( P. 1 4 3 )
(if equipped)
Downhill assist control
system indicator
( P. 3 3 6 )
(if equipped)
Intuitive parking assist
indicator ( P. 2 7 0 )
“2nd STRT” indicator
( P. 1 9 2 )
(if equipped)
“AFS OFF” indicator
(P. 2 2 7 )
Low speed four-wheel
drive indicator light
(P. 3 2 6 )“RSCA OFF” indicator
(P. 1 4 1 )
Center differential lock
indicator ( P. 3 2 7 )
(if equipped)
“PCS” warning
( P. 3 4 7 )
*1
*1
*1
*1
*1, 3

206
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)
■Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 693, 705)
*1: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the en gine is on, or after a few seconds.
There may be a malfunction in a system if a light does not turn on, or if the
lights do not turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(Canada)(for driver)(for front
passenger)(if equipped)
(if equipped)(if equipped)(if equipped)(if equipped)
(if equipped)
*1*1*1*1*1*1
*1*1*1*1*1, 2*1
*1*2*2*2*1, 2*2*2*2
*2

207
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS/Multi Terrain ABS and SRS warning
light not come on when you start the engine, this could mean that these systems are
not available to help protect you in an accid ent, which could result in death or seri-
ous injury. Have the vehicle inspected by your Lexus dealer immediately if this
occurs.

208
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)
Multi-information display (Optitron meters)
The multi-information display presents the driver with a variety of driving-
related data.
●Trip information contents ( P. 2 0 9 )
Displays driving range, fuel consumpt ion and other cruising-related infor-
mation.
● Electronic features control contents ( P. 212)
● Other contents ( P. 212)

209
2-2. Instrument cluster
2
When driving
GX460_OM_OM60J63U_(U)
Switching the displayMenu switch
Changes modes to electronic fea-
tures control mode, customization
mode or back to normal display
mode.
“ENTER” switch
Changes trip information items.
This switch is also used to turn on/
off electronic features controls and
to change customization settings.
Display items■ Trip information contents
Trip information items displayed ca n be switched by pressing the
“ENTER” switch upwards or downwards.
● Outside temperature display
● Front tire angle
Displays the outside temperature
The temperature range that can be displayed is from
-40 F (-40 C) to 122 F (50  C).
The direction of the front tires is displayed
The tire direction is displayed in 3 stages for both
left and right, in accordance with the angle of the
tire.

210
2-2. Instrument cluster
GX460_OM_OM60J63U_(U)●
Driving range
● Average fuel consumption after refueling
● Current fuel consumption Displays the estimated ma
ximum distance that can
be driven with the quantity of fuel remaining
• This distance is computed based on your average fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.
• When refueling, turn the “ENGINE START STOP” switch off. If the vehicle is refueled without
turning the “ENGINE START STOP” switch off,
the display may not be updated.
Displays the average fu el consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a ref-
erence.
Displays the current rate of fuel consumption
