windshield wipers Lexus GX460 2013 Specifications /

249
2-3. Operating the lights and windshield wipers
2
When driving
GX460_OM_OM60J63U_(U)
Headlight cleaner switch
: If equipped
■The headlight cleaners can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode and the headlight
switch is turned on.
■Windshield washer linked operation
When the windshield washer is operated with the “ENGINE START STOP” switch
in IGNITION ON mode and the headlights on, the head light cleaners will operate
once. ( P. 2 4 0 )
NOTICE
■When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

263
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■Dynamic radar cruise control can be set when
●The shift lever is in the D or range 4 or higher of S has been selected.
●Vehicle speed is above approximately 30 mph (50 km/h).
■Accelerating after setting the vehicle speed
The vehicle can be accelerated normally. After acceleration, the set speed
resumes. However, during vehicle-to-vehicle distance control mode, the vehicle
speed may decrease below the set speed in order to maintain the distance to the
vehicle ahead.
■Automatic cancelation of vehicle-to-vehicle distance control
Vehicle-to-vehicle distance control driving is automatically canceled in the follow-
ing situations:
●Actual vehicle speed falls below approximately 25 mph (40 km/h).
●VSC is activated.
●The sensor cannot operate correctly because it is covered in some way.
●The windshield wipers are operating at high speed (when the wiper switch is set
to the “AUTO” mode or the high speed wiper operation position).
●When second start mode is set.
●Bad weather causes the detection function to become extremely unstable.
●Multi-terrain mode is selected other than OFF.
●The center differential lock/unlock is not completed within 5 seconds while the
dynamic radar cruise control system is on.
If vehicle-to-vehicle distance control driving is automatically canceled for any other
reason, there may be a malfunction in the system. Contact your Lexus dealer.

600
4-1. Maintenance and care
GX460_OM_OM60J63U_(U)
NOTICE
■To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side wiper
arm upward first, and repeat for the passenger side. When returning the wipers to
their original position, do so from the passenger side first.
■When using an automatic car wash
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wipers may operate and the wiper blades may
be damaged.

665
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
19ECU-IG NO.210 A
Rear window defogger, outside rear
view mirror memory, seat heater/ven-
tilator switch, inverter relay, air condi-
tioning system, EC mirror, BODY
ECU, exhaust gas sensor, parking
assist sensor, navigation system,
DSS#2 ECU, meter switch, accessory
meter, folding seat ECU, O/H IG,
head light cleaner, rear air condition-
ing system, deicer, D-module, rain
sensor, air suspension, RR VLV ECU,
steering heater, LKA, P/SEAT IND
20S/HTR FR20 ASeat heater and ventilator
21P/ S E AT F R30 AFront power seat (right)
22DOOR P30 A
Front power window (passenger’s
side), outside rear view mirror mem-
ory
23DOOR10 APo w e r w i n d o w
24DOOR D25 AFront power window (driver’s side)
25DOOR RR25 ARear power window (right)
26S/ROOF25 AMoon roof
27WIP30 AWindshield wipers and washer
28WA S H E R20 AWindshield wipers and washer, rear
window wipers and washer
29COOLING10 ACool box
FuseAmpereCircuit

5
When trouble arises
713
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)

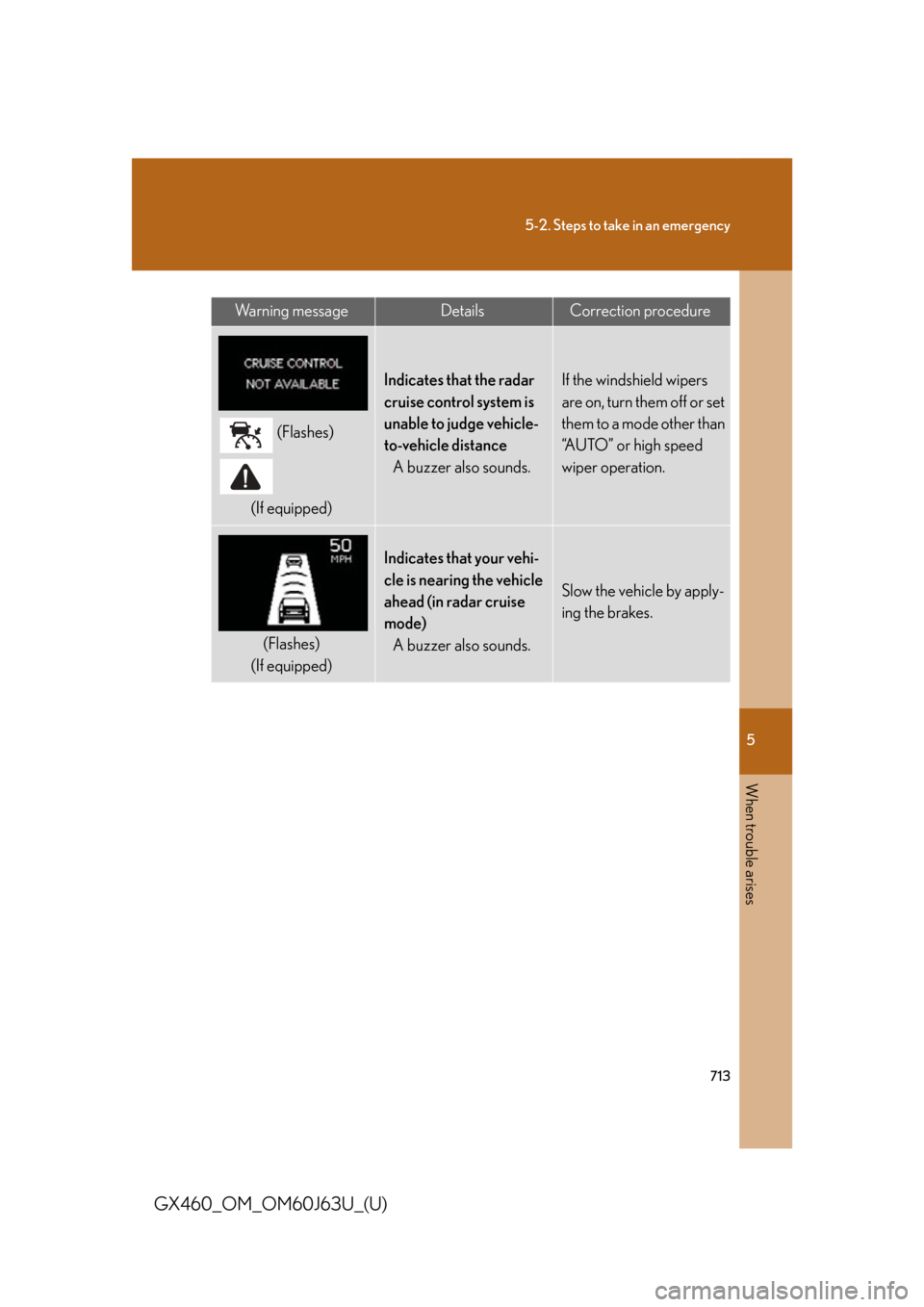

(Flashes)
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance A buzzer also sounds.If the windshield wipers
are on, turn them off or set
them to a mode other than
“A U T O ” o r h i g h s p e e d
wiper operation.
(Flashes)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode)
A buzzer also sounds.
Slow the vehicle by apply-
ing the brakes.
Wa r n i n g m e s s a g eDetailsCorrection procedure

837
Alphabetical index
GX460_OM_OM60J63U_(U)
Rear height control air suspension system.................................................. 707
Smart access system with push button start .......................................... 715
Steering lock system........................ 706
Warning reflector holder.................. 565
Washer Checking ............................................... 635
Preparing and checking before winter ...................................... 371
Switch ...................................................... 240
Washing and waxing .......................... 596
Weight Cargo capacity .................................. 363
Load limits ............................................. 369
Weight .................................................... 758
Wheels ...................................................... 647
Wide view front & side monitor
*..................................... 290
Window glasses .....................................105
Window lock switch..............................105
Windows Power windows .................................. 105
Rear window defogger .................... 417
Washer ................................................... 240
Windshield wiper de-icer
*................418
Windshield wipers ............................... 240
Winter driving tips ................................. 371
Wireless remote control key Locking/Unlocking ..............................49
Replacing the battery ...................... 652
Wireless remote control key...........49
WMA disc................................................437
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
