Lexus GX460 2013 Specifications /

601
4-1. Maintenance and care
4
Maintenance and care
GX460_OM_OM60J63U_(U)

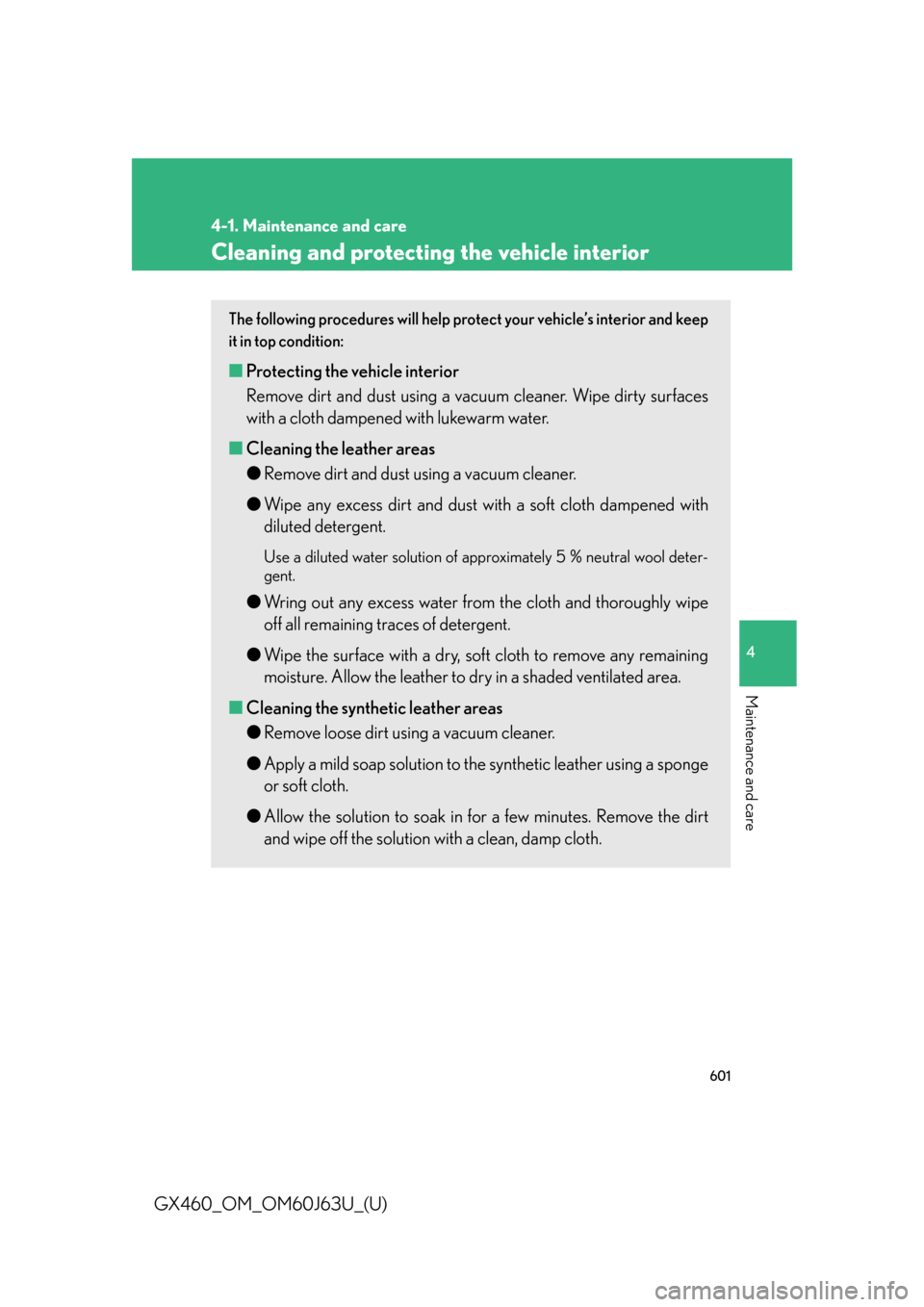

Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and keep
it in top condition:
■ Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.
■ Cleaning the leather areas
●Remove dirt and dust using a vacuum cleaner.
● Wipe any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5 % neutral wool deter-
gent.
● Wring out any excess water from the cloth and thoroughly wipe
off all remaining traces of detergent.
● Wipe the surface with a dry, so ft cloth to remove any remaining
moisture. Allow the leather to dr y in a shaded ventilated area.
■ Cleaning the synthetic leather areas
●Remove loose dirt using a vacuum cleaner.
● Apply a mild soap solution to th e synthetic leather using a sponge
or soft cloth.
● Allow the solution to soak in fo r a few minutes. Remove the dirt
and wipe off the solution with a clean, damp cloth.

602
4-1. Maintenance and care
GX460_OM_OM60J63U_(U)
■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to main-
tain the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or
brush to apply the foam. Rub in overlapping circles. Do not use water. The excellent
results are obtained by keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the
belts periodically for excessive wear, fraying or cuts.
CAUTION
■Water in the vehicle
●Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch fire.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
(  P. 1 2 6 )
An electrical malfunction may cause the airbags to deploy or not function prop-
erly, resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off the
windshield, obstructing the driver’s view and leading to an accident, resulting in
death or serious injury.

603
4-1. Maintenance and care
4
Maintenance and care
GX460_OM_OM60J63U_(U)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces.
• Non-seat portions: Organic substances such as benzene or gasoline, alkaline or acidic solutions, dye, or bleach.
• Seats: Acidic solutions, such as thinner, benzene, or alcohol.
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended pe riods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if th e vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the re ar window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

604
GX460_OM_OM60J63U_(U)
4-2. Maintenance
Maintenance requirements
To ensure safe and economical driving, day-to-day care and regular main-
tenance are essential. It is the owne r’s responsibility to perform regular
checks. Lexus recommends performing the following maintenance:
■ General maintenance
General maintenance should be performed on a daily basis. This
can be done by yourself or by a Lexus dealer.
■ Scheduled maintenance
Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.
For details about maintenance items and schedules, refer to the “War-
ranty and Service Guide”, “Owner’s Manual Supplement” or “Scheduled
Maintenance”.
■ Do-it-yourself maintenance
You can perform some maintenance procedures by yourself.
Please be aware that do-it-your self maintenance may affect war-
ranty coverage.
The use of Lexus repair manuals is recommended.
For details about warranty coverage, refer to the separate “Owner’s
Guide”, “Warranty and Service Guide”, “Owner’s Manual Supplement”
or “Warranty Booklet”.

605
4-2. Maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
■Repair and replacement
It is recommended that genuine Lexus parts be used for repair to ensure perfor-
mance of each system. If non-Lexus parts are used in replacement or if a repair
shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
■Reset the maintenance data (U.S.A. only)
After the required maintenance is performed according to the maintenance sched-
ule, please reset the maintenance data.
To reset the data, follow the procedures described below:Press the Menu switch ( P. 216) to change the multi-information display
to blank.
Turn the “ENGINE START STOP” switch off.
While pressing the ODO/TRIP button ( P. 1 9 9 ) , t u r n t h e “ E N G I N E
START STOP” switch to IGNITION ON mode.
Continue to press and hold the butto n for more than 7 seconds after the
“ENGINE START STOP” switch is turned to IGNITION ON mode.
STEP1
STEP2
STEP3
STEP4
The message shown in the illustration will
appear on the display. After 5 seconds, the
system reset will be completed.

606
4-2. Maintenance
GX460_OM_OM60J63U_(U)
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained speciali sts and are kept up to date with the
latest service information. They are well informed about the operation of all sys-
tems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus de aler will promptly take care of it.
CAUTION
■If your vehicle is not properly maintained
Improper maintenance could result in se rious damage to the vehicle and possible
serious injury or death.
■Handling of the battery
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. ( P. 6 3 1 )

607
4-2. Maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
General maintenance
Engine compartment
ItemsCheck points
BatteryMaintenance-free. (P. 6 3 1 )
Brake fluidIs the brake fluid at the correct level?
(P. 6 2 7 )
Engine coolantIs the engine coolant at the correct
level? ( P. 6 2 4 )
Engine oilIs the engine oil at the correct level?
(P. 6 2 0 )
Exhaust systemThere should not be any fumes or
strange sounds.
Power steering fluidIs the power steering fluid at the
correct level? ( P. 6 2 9 )
Radiator/condenser
The radiator and condenser should
be free from foreign objects.
( P. 6 2 6 )
Wa s h e r f l u i dIs there sufficient washer fluid?
(P. 6 3 5 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recomme nded that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

608
4-2. Maintenance
GX460_OM_OM60J63U_(U)
Vehicle interior
ItemsCheck points
Accelerator pedal
• The accelerator pedal should move smoothly (without uneven pedal
effort or catching).
Automatic transmission “Park”
mechanism• When parked on a slope and the shift lever is in P, is the vehicle
securely stopped?
Brake pedal
• Does the brake pedal move smoothly?
• Does the brake pedal have appro- priate clearance from the floor?
• Does the brake pedal have the cor-
rect amount of free play?
Brakes
• The vehicle should not pull to one side when the brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel
spongy.
• The brake pedal should not get too
close to the floor when the brakes
are applied.

609
4-2. Maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
ItemsCheck points
Head restraints• Do the head restraints move smoothly and lock securely?
Indicators/buzzers• Do the indicators and buzzers
function properly?
Lights• Do all the lights come on?
Pa r k i n g b r a ke
• Does the parking brake lever or pedal move smoothly?
• When parked on a slope and the parking brake is on, is the vehicle
securely stopped?
Seat belts
• Do the seat belts operate smoothly?
• The seat belts should not be dam- aged.
Seats• Do the seat controls operate prop-erly?
Steering wheel
• Does the steering wheel rotate smoothly?
• Does the steering wheel have the
correct amount of free play?
• There should not be any strange sounds coming from the steering
wheel.

610
4-2. Maintenance
GX460_OM_OM60J63U_(U)
Vehicle exterior
ItemsCheck points
Doors• Do the doors operate smoothly?
Engine hood• Does the engine hood lock system work properly?
Fluid leaks
• There should not be any signs of fluid leakage after the vehicle has
been parked.
Ti r e
• Is the tire inflation pressure cor-
rect?
• The tires should not be damaged or excessively worn.
• Have the tires been rotated according to the maintenance
schedule?
• The wheel nuts should not be loose.
CAUTION
■If the engine is running
Turn off the engine and ensure that there is adequate ventilation before performing
maintenance checks.
