GX 460 _O M_ OM6 0K 80 U_ (U)6-2. Maintenance
Maintenance requirements
General maintenance should be performed
on a daily basis. This can be done by
yourself or by a Lexus dealer.
Scheduled maintenance should be performed at specified intervals according to
the maintenance schedule.
For details about maintenance items and schedules, refer to the “Warranty and
Service Guide”, “Owner’s Manual Supplement” or “Scheduled Maintenance”.
You can perform some maintenance procedures by yourself.
Please be aware that do-it-yourself maintenance may affect warranty coverage.
The use of Lexus repair manuals is recommended.
For details about warranty coverage, refer to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Manual Supplement” or “Warranty Booklet”.
To ensure safe and economical driving, day-to-day care and regular mainte-
nance are essential. It is the owner’s responsibility to perform regular checks.
Lexus recommends the following maintenance:
General maintenance
Scheduled maintenance
Do-it-yourself maintenance
GX460_OM_OM60K80U_(U).book Page 440 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
4696-3. Do-it-yourself maintenance
6
Maintenance and care
■Certification for tire pressure warning system
XFor vehicles sold in the U.S.A., Hawaii, Guam, Saipan and Puerto Rico
FCC ID: PAXPMV107J
FCC ID: HYQ13BCX
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
XFor vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
CAUTION
■Tire pressure warning system operation
The tire pressure warning system may not provide warning immediately if a tire bursts
or if sudden air leakage occurs.
■When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so may cause
damage to parts of the drive train as well as dangerous handling characteristics, which
may lead to an accident resulting in death or serious injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
GX460_OM_OM60K80U_(U).book Page 469 Wednesday, July 3, 2013 11:40 AM

5137-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recommended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check yo ur tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level to trigger illumination of the TPMS low
tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indicator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one minu te and then remain continuously illumi-
nated. This sequence will continue upon su bsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning syst em) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressure warning system) to continue to function
properly.
NOTICE
■Precaution when installing a different tire
When differently constructed tires or tires of different makers, models or tread pat-
terns are installed, the tire pressure warning system may not operate properly.
GX460_OM_OM60K80U_(U).book Page 513 Wednesday, July 3, 2013 11:40 AM

5207-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)

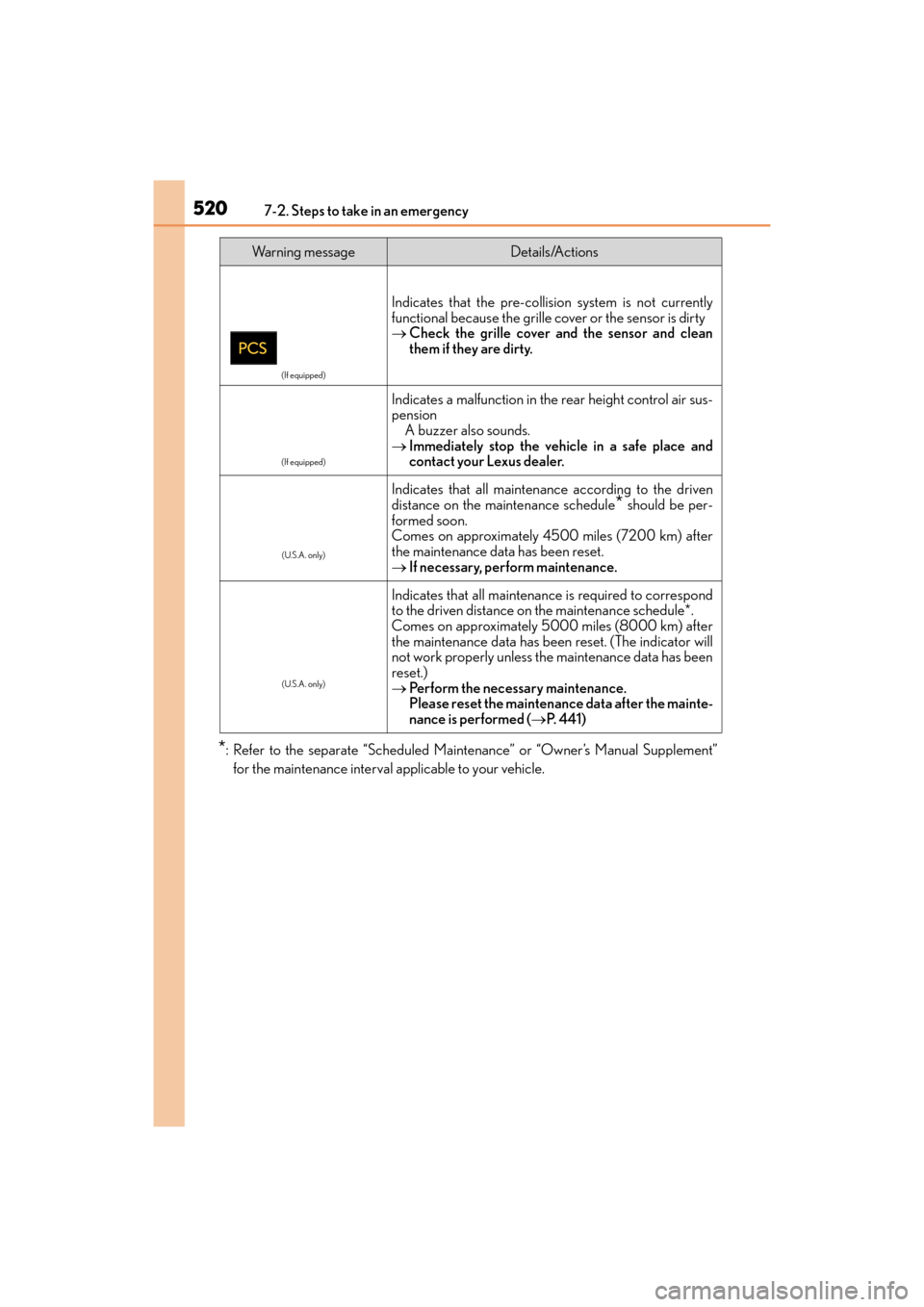

*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement”for the maintenance interval applicable to your vehicle.
(If equipped)
Indicates that the pre-collision system is not currently
functional because the grille cover or the sensor is dirty
→ Check the grille cover and the sensor and clean
them if they are dirty.
(If equipped)
Indicates a malfunction in the rear height control air sus-
pension
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
(U.S.A. only)
Indicates that all maintenance according to the driven
distance on the maintenance schedule
* should be per-
formed soon.
Comes on approximately 4500 miles (7200 km) after
the maintenance data has been reset.
→ If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to correspond
to the driven distance on the maintenance schedule*.
Comes on approximately 5000 miles (8000 km) after
the maintenance data has been reset. (The indicator will
not work properly unless the maintenance data has been
reset.)
→Perform the necessary maintenance.
Please reset the maintenance data after the mainte-
nance is performed ( →P. 441)
Wa r n i n g m e s s a g eDetails/Actions
GX460_OM_OM60K80U_(U).book Page 520 Wednesday, July 3, 2013 11:40 AM

5467-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the battery of
your vehicle.
Open and close any of the doors of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the engine of your
vehicle by turning the engine switch to IGNITION ON mode.
Once your vehicle’s engine has started, remove the jumper cables in the exact
reverse order in which they were connected.
Once the engine starts, have the vehicle checked at your Lexus dealer as soon
as possible.
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will disc harge gradually even when the vehicle is not
in use, due to natural discharge and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●Make sure that the key is not inside the vehicle when recharging or replacing the bat-
tery. The key may be locked in the vehicle if the alarm is activated. ( →P. 6 9 )
●In some cases, it may not be possible to unlock the doors using the smart access system
with push-button start when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off. If you are unsure what
mode the engine switch was in before the battery discharged, be especially careful
when reconnecting the battery.
3
4
5
6
GX460_OM_OM60K80U_(U).book Page 546 Wednesday, July 3, 2013 11:40 AM

5507-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
●Do not loosen the radiator cap or the coolant reservoir cap while the engine and radi-
ator are hot. High temperature steam or coolant could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cool ed down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
GX460_OM_OM60K80U_(U).book Page 550 Wednesday, July 3, 2013 11:40 AM

572
GX 460 _O M_ OM6 0K 80 U_ (U)8-1. Specifications

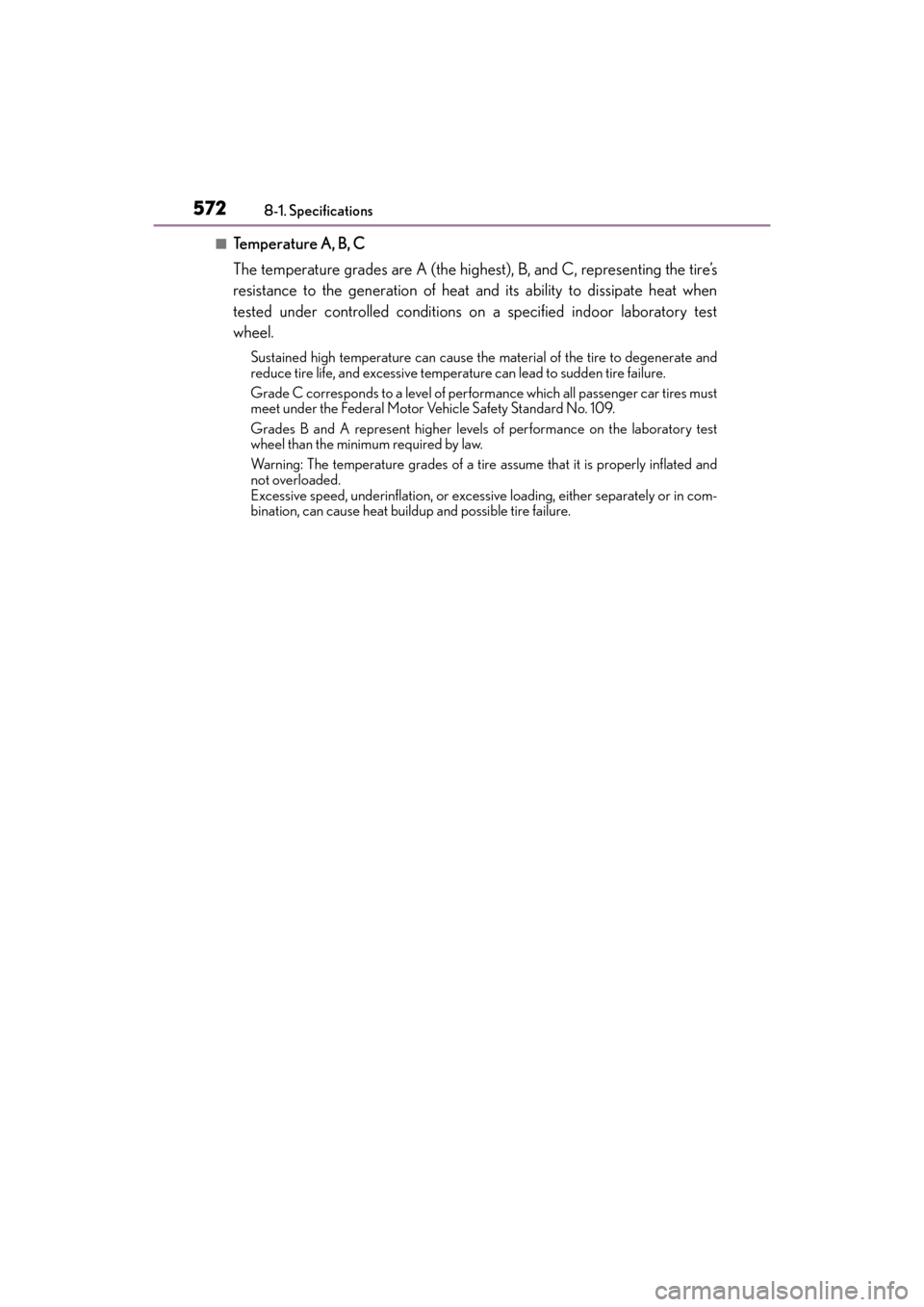

■Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing the tire’s
resistance to the generation of heat and its ability to dissipate heat when
tested under controlled conditions on a specified indoor laboratory test
wheel.
Sustained high temperature can cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory test
wheel than the minimum required by law.
Warning: The temperature grades of a tire
assume that it is properly inflated and
not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in com-
bination, can cause heat buildup and possible tire failure.
GX460_OM_OM60K80U_(U).book Page 572 Wednesday, July 3, 2013 11:40 AM

574
GX 460 _O M_ OM6 0K 80 U_ (U)8-1. Specifications
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68 kg)
times the vehicle’s designated seating capacity
Vehicle maximum load on
the tireThe load on an individual tire that is determined by dis-
tributing to each axle its share of the maximum loaded
vehicle weight, and dividing by two
Vehicle normal load on the
tireThe load on an individual tire that is determined by dis-
tributing to each axle its share of curb weight, accessory
weight, and normal occupant
weight (distributed in
accordance with Table 1
* below), and dividing by two
We a t h e r s i d eThe surface area of the rim not covered by the inflated
tire
BeadThe part of the tire that is made of steel wires, wrapped
or reinforced by ply cords and that is shaped to fit the
rim
Bead separationA breakdown of the bond between components in the
bead
Bias ply tireA pneumatic tire in which the ply cords that extend to
the beads are laid at alternate angles substantially less
than 90 degrees to the centerline of the tread
CarcassThe tire structure, except tread and sidewall rubber
which, when inflated, bears the load
ChunkingThe breaking away of pieces of the tread or sidewall
CordThe strands forming the plies in the tire
Cord separationThe parting of cords from adjacent rubber compounds
CrackingAny parting within the tread, sidewall, or innerliner of
the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit on
the underside of the rim in a manner that encloses the
rim flanges inside the air cavity of the tire
Extra load tireA tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the inside surface of a tubeless tire
that contains the inflating medium within the tire
Tire related termMeaning
GX460_OM_OM60K80U_(U).book Page 574 Wednesday, July 3, 2013 11:40 AM

576
GX 460 _O M_ OM6 0K 80 U_ (U)8-1. Specifications
*:Table 1  Occupant loading and distribution for vehicle normal load for various des-
ignated seating capacities
Reinforced tire A tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
Section widthThe linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard Ref-
erence Test Tire, when using the snow traction test as
described in ASTM F-1805-00, Standard Test Method
for Single Wheel Driving Tract ion in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is marked
with an Alpine Symbol ( ) on at least one sidewall
Te s t r i mThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
Tr e a dThat portion of a tire that comes into contact with the
road
Tr e a d r i bA tread section running circumferentially around a tire
Tr e a d s e p a r a t i o nPulling away of the tread from the tire carcass
Treadwear indicators (TWI)The projections within the principal grooves designed
to give a visual indication of the degrees of wear of the
tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Tire related termMeaning
GX460_OM_OM60K80U_(U).book Page 576 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
599
9
For owners
ATTENTION
■Précautions relatives aux coussins gonflables SRS
●N’accrochez pas de cintres ni d’autres objets rigides sur les crochets porte-vête-
ments. Tous ces objets pourraient se tran sformer en projectiles et vous occasionner
des blessures graves, voire mortelles, en cas de déploiement des coussins gonflables
SRS en rideau.
●Si le recouvrement de vinyle est placé sur la zone de déploiement du coussin gon-
flable SRS de protection des genoux, veillez à le retirer.
●N’utilisez pas d’accessoires recouvrant les parties du siège où les coussins gonflables
SRS latéraux se déploient, car ces accessoires pourraient entraver le déploiement
des coussins gonflables. De tels accessoi res peuvent empêcher les coussins gon-
flables latéraux de se déployer correcteme nt, rendre le système inopérant ou provo-
quer accidentellement le déploiemen t des coussins gonflables latéraux,
occasionnant des blessures graves, voire mortelles.
●Ne frappez pas et n’appliquez pas une pression importante à l’emplacement des
composants des coussins gonflables SRS.
Cela peut provoquer un mauvais fonctionnement des coussins gonflables SRS.
●Ne touchez à aucun composant des coussi ns gonflables SRS immédiatement après
leur déploiement (gonflage), car ils pourraient être chauds.
●Si vous avez de la difficulté à respirer après le déploiement des coussins gonflables
SRS, ouvrez une portière ou une glace pour laisser entrer l’air, ou quittez le véhicule
si vous pouvez le faire en toute sécurité. Dès que possible, nettoyez tous les résidus
afin d’éviter les irritations cutanées.
●Si les emplacements de stockage des coussins gonflables SRS, tels que le tampon de
volant et les garnitures des montants avant, latéraux et arrière, sont endommagés ou
fissurés, faites-les remplacer par votre concessionnaire Lexus.
●Ne placez aucun objet, par exemple un coussin, sur le siège du passager avant. Cela
disperserait le poids du passager, ce qui empêcherait le capteur de le détecter cor-
rectement. Cela pourrait empêcher le dé ploiement des coussins gonflables SRS du
passager avant en cas de collision.
●Ne fixez rien sur des zones telles que les
portières, le pare-brise, les glaces de
portières, les montants avant, latéraux ou
arrière, le brancard de pavillon et la poignée
de maintien.
GX460_OM_OM60K80U_(U).book Page 599 Wednesday, July 3, 2013 11:40 AM
