GX 460 _O M_ OM6 0K 80 U_ (U)5-3. Using the storage features
Stow the hooks.
Fold over the sub cover.
Push the lock release button.
Pull the case until it locks.
Check that the lock release button can
be seen.
5
6
Extending the case
Lock release
button
1
Lock release button
2
GX460_OM_OM60K80U_(U).book Page 406 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
4075-3. Using the storage features
5
Interior features
■Adjusting the sub cover
Fasten the button when the second seats are in the rear-most position.
Unfasten the buttons before sliding the second seats forward.
CAUTION
●When the cargo hooks are not in use, to avoid injury, always return the cargo hooks to
their stowed positions.
●Keep the auxiliary box closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by an open auxiliary box or the
items stored inside.
●Keep the both sides of the luggage cover case locked. Otherwise, the luggage cover
may fly out in case of the sudden braking, sudden serving or an accident, resulting in
death or serious injury. (vehicles without third seats)
●When stowing the luggage cover in the luggage compartment, use the luggage
cover restraining bands to secure the left and right sides of the luggage cover. Other-
wise, the luggage cover may fly out in case of the sudden braking, sudden serving or
an accident, resulting in death or serious injury. (vehicles without third seats)
●Do not allow children to climb on the luggage cover. Climbing on the luggage cover
could result in damage to the luggage cove r, possibly causing death or serious injury
to the child.
GX460_OM_OM60K80U_(U).book Page 407 Wednesday, July 3, 2013 11:40 AM

408
GX 460 _O M_ OM6 0K 80 U_ (U)5-3. Using the storage features
NOTICE
■To prevent damage to the luggage cover
When stowing the luggage cover, do not put luggage on the luggage cover.
●Do not use the luggage cover restraining bands for anything other than securing the
luggage cover.
●Do not insert coins etc. into the area shown in
the illustration.
GX460_OM_OM60K80U_(U).book Page 408 Wednesday, July 3, 2013 11:40 AM

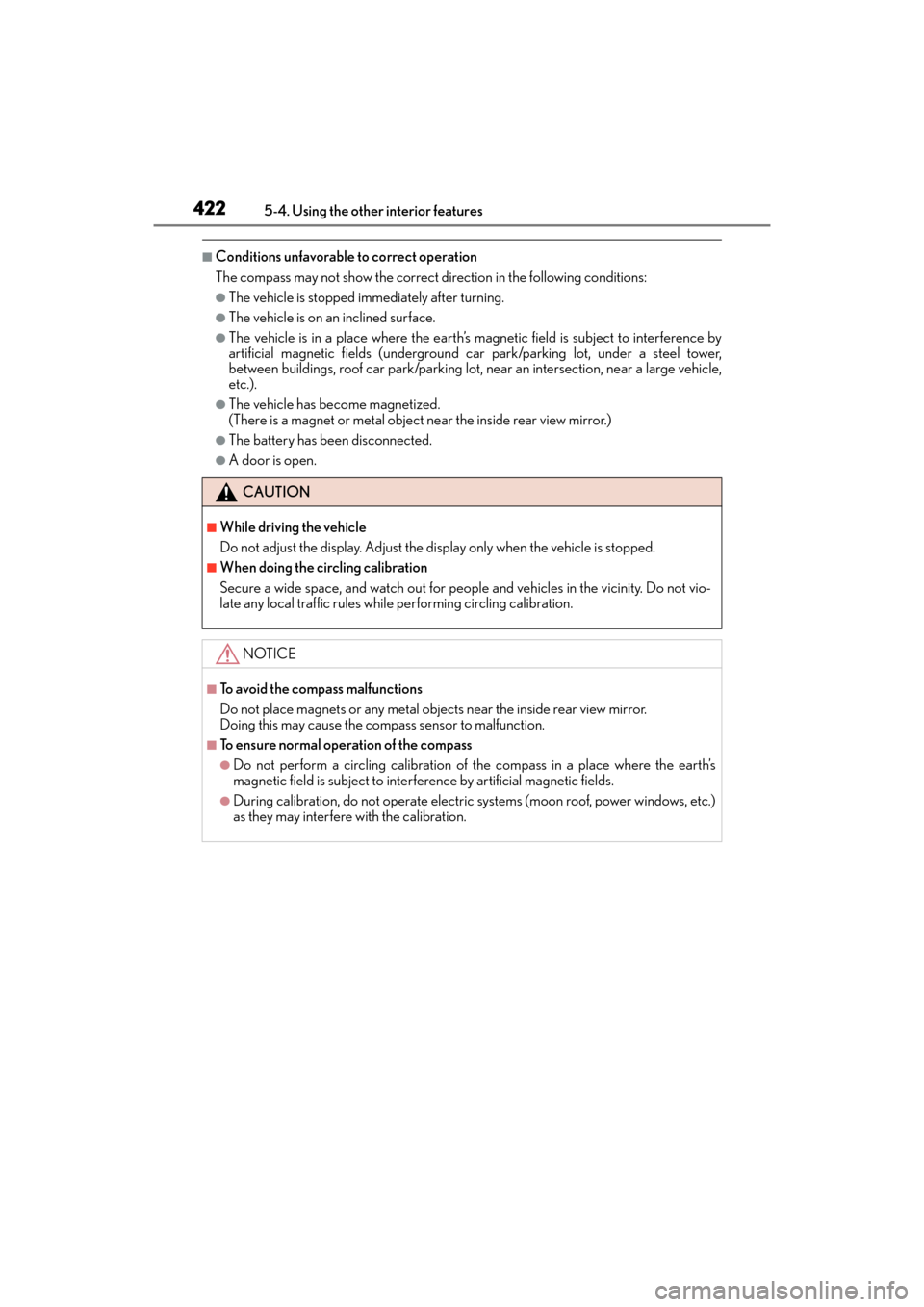

422
GX 460 _O M_ OM6 0K 80 U_ (U)5-4. Using the other interior features
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth’s magnetic field is subject to interference by
artificial magnetic fields (underground car park/parking lot, under a steel tower,
between buildings, roof car park/parking lot, near an intersection, near a large vehicle,
etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object
near the inside rear view mirror.)
●The battery has been disconnected.
●A door is open.
CAUTION
■While driving the vehicle
Do not adjust the display. Adjust the di splay only when the vehicle is stopped.
■When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity. Do not vio-
late any local traffic rules while performing circling calibration.
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause the compass sensor to malfunction.
■To ensure normal operation of the compass
●Do not perform a circling calibration of the compass in a place where the earth’s
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electric systems (moon roof, power windows, etc.)
as they may interfere with the calibration.
GX460_OM_OM60K80U_(U).book Page 422 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
4315-4. Using the other interior features
5
Interior features
■Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to
assist them in locating and recovering the vehicle. After filing a police report,
call the Safety Connect response center at 1-800-25-LEXUS (1-800-255-
3987) and follow the prompts for Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle location data may, under certain circum-
stances, be shared with third parties to locate your vehicle. Further informa-
tion is available at Lexus.com.
■Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to reach the
Safety Connect response center. The answering agent will determine your
vehicle’s location, assess the emergency, and dispatch the necessary assis-
tance required.
If you accidentally press the “SOS” button, tell the response-center agent that you
are not experiencing an emergency.
■Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect response-
center agent, who can help with a wide range of needs, such as: towing, flat
tire, fuel delivery, etc. For a description of the Roadside Assistance services
and their limitations, please see the Safety Connect Terms and Conditions,
which are available at Lexus.com.
GX460_OM_OM60K80U_(U).book Page 431 Wednesday, July 3, 2013 11:40 AM

447
GX 460 _O M_ OM6 0K 80 U_ (U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct procedures
as given in these sections.
ItemsParts and tools
Battery condition
(
→ P. 4 6 0 )•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
(→ P. 4 5 7 )
• FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level
(→ P. 4 5 5 )
• “Toyota Super Long Life Coolant” or similar high quality eth-
ylene glycol based non-silicate, non-amine, non-nitrite and
non-borate coolant with long-life hybrid organic acid tech-
nology.
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with 50 %
coolant and 50 % deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with 55 %
coolant and 45 % deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(→ P. 4 5 3 )
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
(→ P. 4 8 1 )• Fuse with same amperage rating as original
GX460_OM_OM60K80U_(U).book Page 447 Wednesday, July 3, 2013 11:40 AM

448
GX 460 _O M_ OM6 0K 80 U_ (U)6-3. Do-it-yourself maintenance
Headlight aim
(
→ P. 484)• Phillips-head screwdriver
Light bulbs
(→ P. 4 8 6 )
• Bulb with same number and wattage rating as original
• Phillips-head screwdriver•Flathead screwdriver
•Wrench
Power steering fluid
level ( →P. 4 5 9 )• Automatic transmission fluid DEXRON® II or III
• Rag or paper towel•Clean funnel
Radiator and con-
denser ( →P. 4 5 7 )
Tire inflation pres-
sure ( →P. 4 7 1 )• Tire pressure gauge• Compressed air source
Wa s h e r f l u i d
(→ P. 4 6 3 )• Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)
ItemsParts and tools
GX460_OM_OM60K80U_(U).book Page 448 Wednesday, July 3, 2013 11:40 AM

454
GX 460 _O M_ OM6 0K 80 U_ (U)6-3. Do-it-yourself maintenance
■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example direct ly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
Engine oil selection→ P. 5 5 6
Oil quantity (Low → Full)1.6 qt. (1.5 L, 1.3 Imp.qt.)
ItemsClean funnel
1
2
3
GX460_OM_OM60K80U_(U).book Page 454 Wednesday, July 3, 2013 11:40 AM

468
GX 460 _O M_ OM6 0K 80 U_ (U)6-3. Do-it-yourself maintenance
■If the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is lost.
■Situations in which the tire pressure warning system may not operate properly
●In the following cases, the tire pressure warning system may not operate properly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• Lock nuts are equipped.
• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the wheels or wheel
housings.
• If the tire inflation pressure is extremely higher than the specified level.
• If the spare tire is in a location subject to poor radio wave signal reception.
• If a large metallic object which can interf ere with signal reception is put near the
spare tire.
• If tires not equipped with the tire pressure warning valves and transmitters are used.
• If the ID code on the tire pressure warning valves and transmitters is not registered in the tire pressure warning computer.
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display, air-port or other facility that generates st rong radio waves or electrical noise
• When carrying a portable radio, cellular phone, cordless phone or other wireless communication device
●When the vehicle is parked, the time taken for the warning to start or go off could be
extended.
●When tire inflation pressure declines rapidly for example when a tire has burst, the
warning may not function.
GX460_OM_OM60K80U_(U).book Page 468 Wednesday, July 3, 2013 11:40 AM

497
GX 460 _O M_ OM6 0K 80 U_ (U)
7When trouble arises
7-1. Essential informationEmergency flashers .................. 498
If your vehicle has to be stopped in an emergency .... 499
7-2. Steps to take in an emergency If your vehicle needs to be towed ............................... 500
If you think something is wrong .......................................... 505
Fuel pump shut off system ......506
If a warning light turns on or a warning buzzer
sounds.......................................... 507
If a warning message is displayed...................................... 514
If you have a flat tire................... 527
If the engine will not start ........540
If the shift lever cannot be shifted from P............................ 542
If the electronic key does not operate properly ............. 543
If the vehicle battery is discharged ................................. 545
If your vehicle overheats .........548
If the vehicle becomes stuck .............................................. 551
