Lexus GX460 2015 Owner's Manual

250
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems
■Rear view monitor system camera
The camera for the rear view moni-
tor system is located above the
license plate.
●Using the camera
If the camera lens becomes dirty, it cannot transmit a clear image. If water
droplets, snow or mud adhere to the lens, rinse with water and wipe with a
soft cloth. If the lens is extremely dirty, wash it with a mild cleanser and
rinse.
■Differences between the screen and the actual road
The distance guide lines and the vehicle width extension guide lines may not
actually be parallel with the dividing lines of the parking space, even when
they appear to be so. Be sure to check visually.
The distances between the vehicle width extension guide lines and the left and
right dividing lines of the parking space may not be equal, even when they
appear to be so. Be sure to check visually.
The distance guide lines give a distance
guide for flat road surfaces. In any of
the following situations, there is a margin of error between the fixation guide
lines on the screen and the actual distance/course on the road.
GX460_OM_OM60L72U_(U).book Page 250 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
2514-5. Using the driving support systems
4
Driving
●When the ground behind the vehicle slopes up sharply
The distance guide lines will
appear to be closer to the vehicle
than the actual distance. Because
of this, objects will appear to be
farther away than they actually
are. In the same way, there will be
a margin of error between the
guide lines and the actual dis-
tance/course on the road.
●When the ground behind the vehicle slopes down sharply
The distance guide lines will
appear to be further from the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guide lines and the
actual distance/course on the
road.
GX460_OM_OM60L72U_(U).book Page 251 Friday, May 16, 2014 3:03 PM

252
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems
●When any part of the vehicle sags
When any part of the vehicle sags
due to the number of passengers
or the distribution of the load,
there is a margin of error between
the fixation guide lines on the
screen and the actual distance/
course on the road.
■When approaching three-dimensional objects
The distance guide lines are displayed according to flat surfaced objects (such
as the road). It is not possible to de
termine the position of three-dimensional
objects (such as vehicles) using the distance guide lines. When approaching a
three-dimensional object that extends outward (such as the flatbed of a truck),
be careful of the following.
●Vehicle width extension guide lines
Visually check the surroundings
and the area behind the vehicle.
In the case shown in the illustra-
tion, the truck appears to be out-
side of the vehicle width
extension guide lines and the
vehicle does not look as if it hits
the truck. However, the rear body
of the truck may actually cross
over the vehicle width extension
guide lines. In reality if you back
up as guided by the vehicle width
extension guide lines, the vehicle
may hit the truck.
A margin of error
GX460_OM_OM60L72U_(U).book Page 252 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
2534-5. Using the driving support systems
4
Driving
●Distance guide lines
Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point . How-
ever, in reality if you back up to
point , you will hit the truck.
On the screen, it appears that
is closest and is farthest away.
However, in reality, the distance to and is the same, and is
farther than and .
2
1
1
3
132
13
GX460_OM_OM60L72U_(U).book Page 253 Friday, May 16, 2014 3:03 PM

254
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems
■If you notice any symptoms
If you notice any of the following symp
toms, refer to the likely cause and the
solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by
your Lexus dealer.
Things you should know
Likely causeSolution
‰ The image is difficult to see
• The vehicle is in a dark area
• The temperature around the lens is
either high or low
• The outside temperature is low
• There are water droplets on the cam- era
• It is raining or humid
• Foreign matter (mud etc.) is adhering to the camera
• There are scratches on the camera
• Sunlight or headlights are shining directly into the camera
• The vehicle is under fluorescent lights, sodium lights, mercury lights etc.
If this happens due to these causes, it
does not indicate a malfunction.
Back up while visually checking the vehi-
cle’s surroundings. (Use the monitor
again once conditions have been
improved.)
The image on the rear view monitor sys-
tem screen can be adjusted, refer to the
“MULTIMEDIA OWNER’S MANUAL”
or “NAVIGATION SYSTEM OWNER’S
MANUAL”.
‰ The image is blurry
Dirt or foreign matter (such as water
droplets, snow, mud etc.) is adhering to
the camera.Rinse the camera lens with water and
wipe it clean with a soft cloth.
Wash with a mild soap if the dirt is stub-
born.
‰The image is out of alignment
The camera or surrounding area has
received a strong impact.Have the vehicle inspected by your Lexus
dealer.
‰The fixed guide lines are very far out of alignment
The camera position is out of alignment.Have the vehicle inspected by your Lexus
dealer.
• The vehicle is tilted (there is a heavy
load on the vehicle, tire pressure is low
due to a tire puncture, etc.)
• The vehicle is used on an incline.If this happens due to these causes, it
does not indicate a malfunction.
Back up while visually checking the vehi-
cle’s surroundings.
GX460_OM_OM60L72U_(U).book Page 254 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
2554-5. Using the driving support systems
4
Driving
CAUTION
■When using the rear view monitor system
The rear view monitor system is a supplemental device intended to assist the driver
when backing up. When backing up, be sure to check visually behind and all around
the vehicle before proceeding.
Observe the following precautions to avoid an accident that could result in death or
serious injuries.
●Never depend on the rear view monitor system entirely when backing up. The image
and the position of the guide lines displayed on the screen may differ from the actual
state.
Use caution, just as you would when backing up any vehicle.
●Be sure to back up slowly, depressing the brake pedal to control vehicle speed.
●The instructions given are only guide lines.
When and how much to turn the steering wh eel will vary according to traffic condi-
tions, road surface conditions, vehicle condit ion, etc. when parking. It is necessary to
be fully aware of this before using the rear view monitor system.
●When parking, be sure to check that the parking space will accommodate your vehi-
cle before maneuvering into it.
●Do not use the rear view monitor system in the following cases:
• On icy or slick road surfaces, or in snow
•When using tire chains
• When the back door is not closed completely
• On roads that are not flat or straight, such as curves or slopes.
●In low temperatures, the screen may darken or the image may become faint. The
image could distort when the vehicle is moving, or you may become unable to see the
image on the screen. Be sure to check direct visually and with the mirrors all around
the vehicle before proceeding.
●If the tire sizes are changed, the position of the fixed guide lines displayed on the
screen may change.
●The camera uses a special lens. The distances between objects and pedestrians that
appear in the image displayed on the scre en will differ from the actual distances.
( → P. 2 5 0 )
GX460_OM_OM60L72U_(U).book Page 255 Friday, May 16, 2014 3:03 PM

256
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems

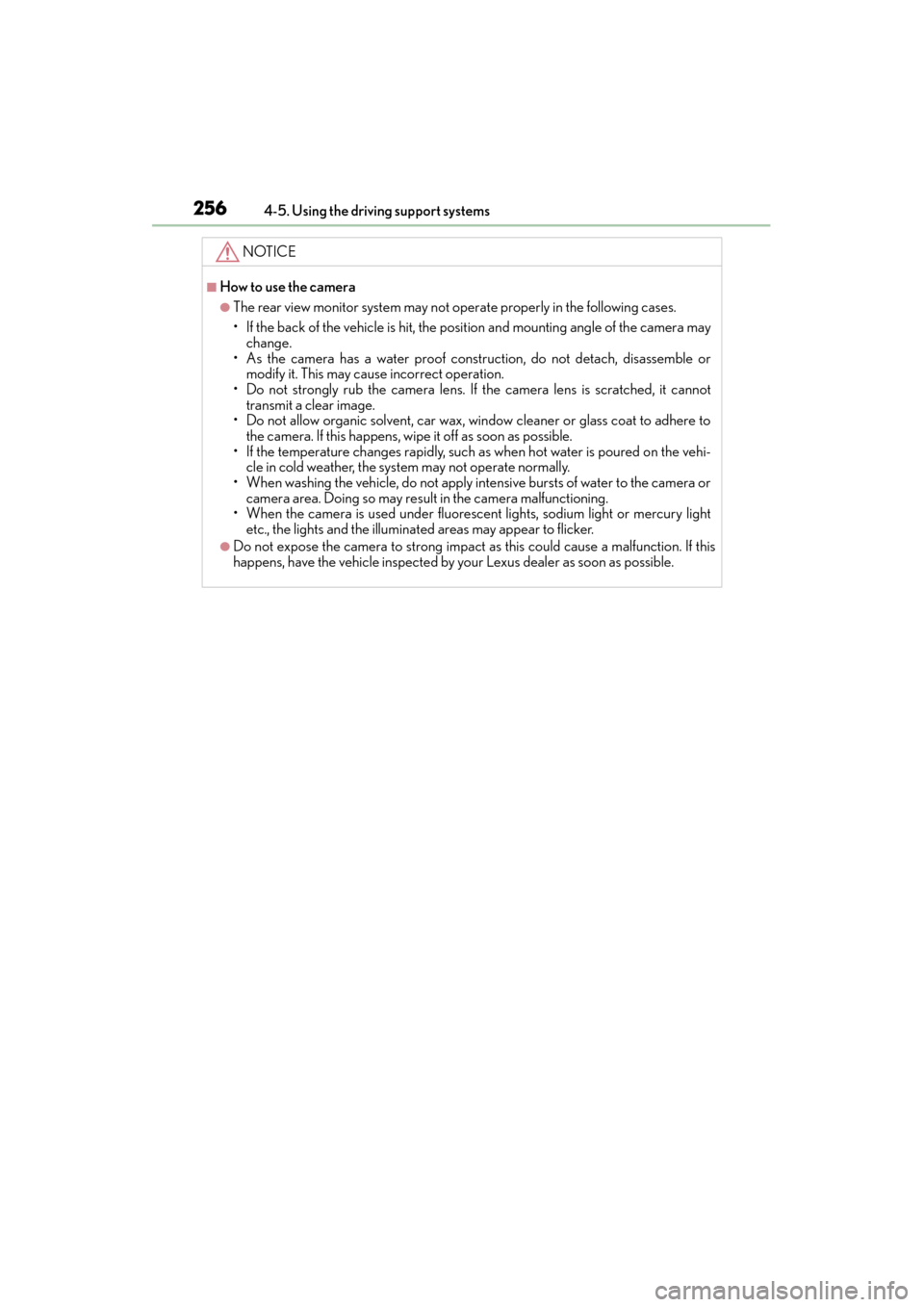

NOTICE
■How to use the camera
●The rear view monitor system may not operate properly in the following cases.
• If the back of the vehicle is hit, the position and mounting angle of the camera may
change.
• As the camera has a water proof construction, do not detach, disassemble or modify it. This may cause incorrect operation.
• Do not strongly rub the camera lens. If the camera lens is scratched, it cannot
transmit a clear image.
• Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to
the camera. If this happens, wipe it off as soon as possible.
• If the temperature changes rapidly, such as when hot water is poured on the vehi- cle in cold weather, the system may not operate normally.
• When washing the vehicle, do not apply intensive bursts of water to the camera or camera area. Doing so may result in the camera malfunctioning.
• When the camera is used under fluorescen t lights, sodium light or mercury light
etc., the lights and the illuminated areas may appear to flicker.
●Do not expose the camera to strong impact as this could cause a malfunction. If this
happens, have the vehicle inspected by your Lexus dealer as soon as possible.
GX460_OM_OM60L72U_(U).book Page 256 Friday, May 16, 2014 3:03 PM

257
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems
4
Driving
Lexus parking assist monitor∗
The parking assist monitor assists with
the following 2 backing-up operations:
• Perpendicular parking (parking in a garage, etc.)
• Parallel parking (parking at the side of the road, etc.)
The screen illustrations used in this text ar e intended as examples, and may differ from
the image that is actually displayed on the screen.
The rear view image is displayed when
the shift position is in R and the engine
switch is in IGNITION ON mode.
The parking assist monitor system will
be deactivated when the shift lever is in
any position other than R.
When the shift lever is shifted to the R
position and any mode button (such as
“SETUP”) is pressed, the parking assist
monitor is canceled, and the screen is
switched to the mode of the button that
was pressed.
∗: If equipped
The parking assist monitor assists the driver by displaying an image of the view
behind the vehicle while backing up, for example while parking.
GX460_OM_OM60L72U_(U).book Page 257 Friday, May 16, 2014 3:03 PM

258
GX 460 _O M_ OM6 0L 72U _( U)4-5. Using the driving support systems
■Screen display
The parking assist monitor screen will be displayed if the shift lever is shifted to
R while the engine switch is in IGNITION ON mode.
The parking assist monitor displays
the last-used parking mode first.
Using the Lexus parking assist monitor
XPerpendicular parkingXParallel parking
Display mode switch screen button
Switches the display mode. ( →P. 2 5 9 )
Intuitive parking assist display
If an obstacle is detected wh ile the intuitive parking assist is on, a display is shown in
the top right corner of the screen.
Parking mode switch screen button
Switches the parking mode (between perpendicular parking and parallel parking
assist screens)
1
2
3
GX460_OM_OM60L72U_(U).book Page 258 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
2594-5. Using the driving support systems
4
Driving
■Using the system when perpendicular parking
Use any of the following modes
when perpendicular parking (for
example, when parking in a garage).
Each time you select the display
mode switch screen button, the dis-
play mode switches in the following
order:
Estimated course
line display mode
Parking assist guide
line display mode
Distance guide line
display mode
GX460_OM_OM60L72U_(U).book Page 259 Friday, May 16, 2014 3:03 PM
