Lexus GX460 2015 Owner's Manual

5407-2. Steps to take in an emergency
GX 460 _O M_ OM6 0L 72U _( U)
Assembling the jack handle.
Remove the jack handle, jack handle extension bar and jack handle bar from
the tool box and assemble by following these steps.
Loosen the bolt and the screw
using either the jack handle end
or a screwdriver.
Assemble the jack handle exten-
sion bar and the jack handle bar
and tighten the bolts.
Check that the bolts are firmly tight-
ened.
Assemble the jack handle exten-
sion bar and the jack handle and
tighten the screw.
Check that the screw is firmly tight-
ened.
4
1
2
3
GX460_OM_OM60L72U_(U).book Page 540 Friday, May 16, 2014 3:03 PM

5417-2. Steps to take in an emergency
GX 460 _O M_ OM6 0L 72U _( U)
7
When trouble arises
Position the jack at the jack points as
shown. Front
Under the chassis frame side rail
Rear
Under the rear axle housing
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
5
1
2
6
7
GX460_OM_OM60L72U_(U).book Page 541 Friday, May 16, 2014 3:03 PM

5427-2. Steps to take in an emergency
GX 460 _O M_ OM6 0L 72U _( U)
CAUTION
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it from under thevehicle.
• Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes
will be extremely hot. Touching these areas with hands, feet or other body parts
while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the nuts to loosen and the wheel may
fall off, which could lead to an accid ent causing death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while
the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically designed for
that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Lexus dealer.
GX460_OM_OM60L72U_(U).book Page 542 Friday, May 16, 2014 3:03 PM

5437-2. Steps to take in an emergency
GX 460 _O M_ OM6 0L 72U _( U)
7
When trouble arises
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, and the
tire may come off the vehicle.
Install the spare tire and loosely
tighten each nut by hand to approxi-
mately the same amount.
Turn the lug nuts until the washers come
into contact with the disc wheel.
Lower the vehicle.
Installing the spare tire
1
Wheel nut
Wa s h e r
Disc wheel2
3
GX460_OM_OM60L72U_(U).book Page 543 Friday, May 16, 2014 3:03 PM

5447-2. Steps to take in an emergency
GX 460 _O M_ OM6 0L 72U _( U)
Firmly tighten each nut two or three
times in the order shown in the illus-
tration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Reinstall the wheel ornament.
Lay down the tire with the outer side
facing up, and install the holding
bracket.
Insert the holding bracket tab into one of
the holes in the wheel.
Raise the tire.
Pull the tire towards the rear of the vehicle when raising. After raising, visually
check that the tire is not interf ering with suspension components.
Stow the tools and jack securely, and replace all covers.
4
5
Stowing the flat/spare tire, jack and tools
1
2
3
GX460_OM_OM60L72U_(U).book Page 544 Friday, May 16, 2014 3:03 PM

5457-2. Steps to take in an emergency
GX 460 _O M_ OM6 0L 72U _( U)
7
When trouble arises

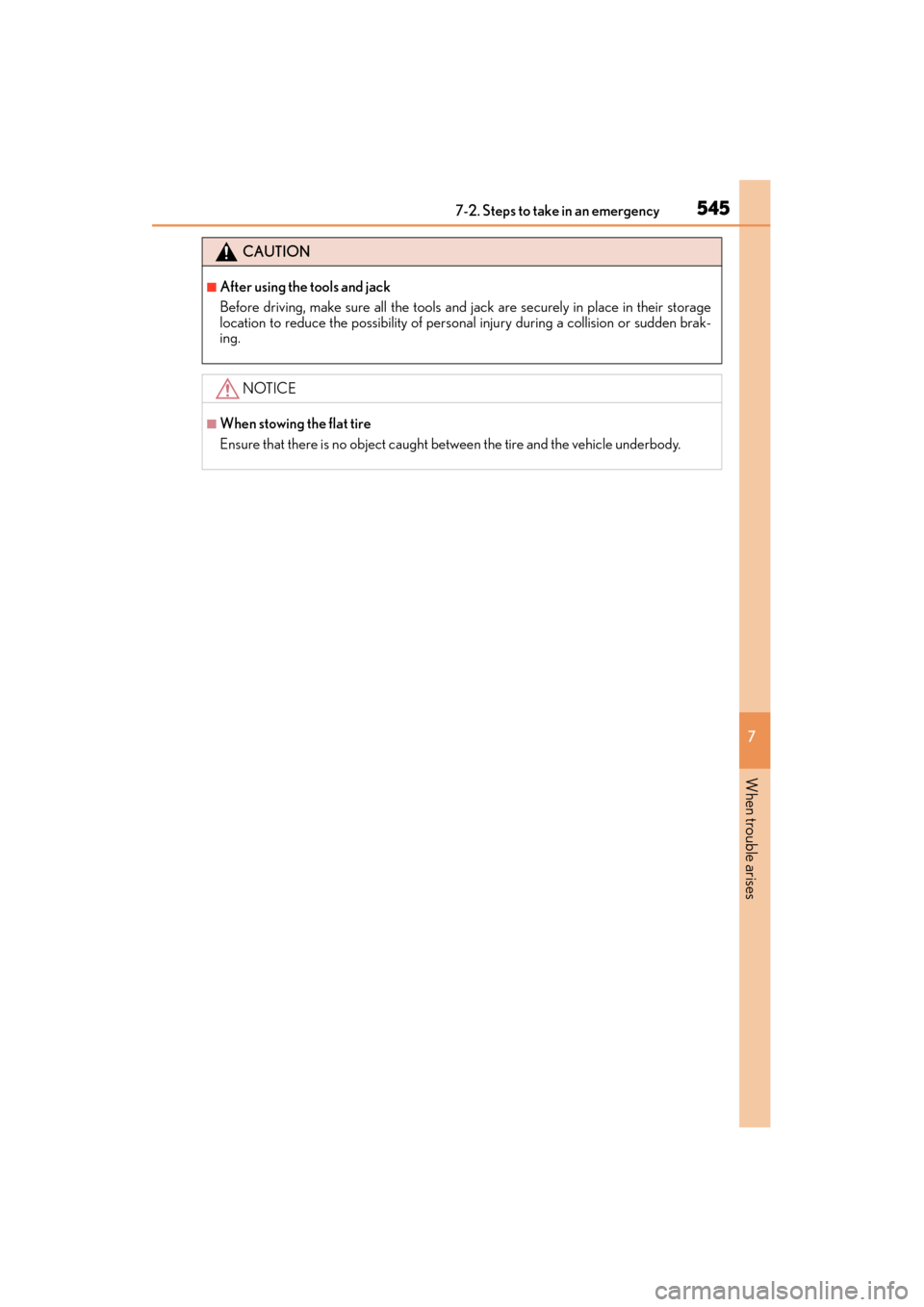

CAUTION
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
NOTICE
■When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle underbody.
GX460_OM_OM60L72U_(U).book Page 545 Friday, May 16, 2014 3:03 PM

546
GX 460 _O M_ OM6 0L 72U _( U)7-2. Steps to take in an emergency
If the engine will not start
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(
→ P. 1 8 5 )
●There may be a malfunction in the engine immobilizer system. ( →P. 6 8 )
One of the following may be the cause of the problem:
●The battery may be discharged. ( →P. 5 5 2 )
●The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical problem
such as an open circuit or a blown fuse. However, an interim measure is available
to start the engine. ( →P. 5 4 7 )
If the engine will not start even though correct starting procedures are being
followed ( →P. 185), consider each of the following points:
The engine will not start even when the starter motor operates nor-
mally.
The starter motor turns over slowly , the interior lights and headlights
are dim, or the horn does not so und or sounds at a low volume.
The starter motor does not turn over.
GX460_OM_OM60L72U_(U).book Page 546 Friday, May 16, 2014 3:03 PM

5477-2. Steps to take in an emergency
GX 460 _O M_ OM6 0L 72U _( U)
7
When trouble arises
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. ( →P. 5 5 2 )
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair procedures
are unknown.
When the engine does not start, the following steps can be used as an interim
measure to start the engine if the engine switch is functioning normally.
Set the parking brake.
Put the shift lever in P.
Set the engine switch to the ACCESSORY mode.
Push and hold the engine switch for about 15 seconds while depressing the
brake pedal firmly.
Even if the engine can be started using the above steps, the system may be mal-
functioning. Have the vehicle inspected by your Lexus dealer.
The starter motor does not turn over , the interior lights and headlights
do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4
GX460_OM_OM60L72U_(U).book Page 547 Friday, May 16, 2014 3:03 PM

548
GX 460 _O M_ OM6 0L 72U _( U)7-2. Steps to take in an emergency
If the shift lever cannot be shifted from P
Set the parking brake.
Turn the engine switch to ACCESSORY mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or tool.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer, imme-
diately.
The following steps may be used as an emergency measure to ensure that the
shift lever can be shifted:
1
2
3
4
5
GX460_OM_OM60L72U_(U).book Page 548 Friday, May 16, 2014 3:03 PM

549
GX 460 _O M_ OM6 0L 72U _( U)
7
When trouble arises
7-2. Steps to take in an emergency
If the electronic key does not operate properly
Use the mechanical key (→P. 9 1 ) i n
order to perform the following opera-
tions (driver’s door only):
Locks all the doors
Closes the windows and moon roof
*
(turn and hold)
Unlocks the doors
Turning the key rearward unlocks the
driver’s door. Turning the key once again
unlocks the other doors.
Opens the windows and moon roof* (turn and hold)
*: These settings must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is interrupted
(→ P. 113) or the electronic key cann ot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened and
the engine can be started by following the procedure below.
Locking and unlocking the door s and key linked functions
1
2
3
4
