Alarm
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or glass hatch is unlo cked or opened in any way other than
using the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)
●The hood is opened.
Close the doors, glass hatch and hood,
and lock all the doors. The system will
be set automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to deactivate or stop the alarms:
●Unlock the doors.
●Start the engine. (The alarm will be deactivated or stopped after a few sec-
onds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm
GX460_OM_OM60L72U_(U).book Page 70 Friday, May 16, 2014 3:03 PM

711-2. Theft deterrent system
GX 460 _O M_ OM6 0L 72U _( U)
1
For safety and security
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing.
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●A person inside the vehicle opens a door or
hood.
●The battery is recharged or replaced when the
vehicle is locked. (→P. 553)
GX460_OM_OM60L72U_(U).book Page 71 Friday, May 16, 2014 3:03 PM

721-2. Theft deterrent system
GX 460 _O M_ OM6 0L 72U _( U)
■Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent intruders.
●Do not leave the key inside the vehicle when the alarm is operating, and make sure the
key is not inside the vehicle when recharging or replacing the battery.
■Alarm memory function
After the alarm is activated, when you unlock any door using a entry function, wireless
remote control or mechanical key, the tail lights turn on for about 2 seconds to inform
you that the system was activated.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.
GX460_OM_OM60L72U_(U).book Page 72 Friday, May 16, 2014 3:03 PM

73
GX 460 _O M_ OM6 0L 72U _( U)
Instrument cluster2
2. Instrument clusterWarning and indicators lights ................................................. 74
Gauges and meters ..................... 79
Multi-information display .......... 82
Fuel consumption information ...................................88
GX460_OM_OM60L72U_(U).book Page 73 Friday, May 16, 2014 3:03 PM

74
GX 460 _O M_ OM6 0L 72U _( U)2. Instrument cluster
Warning and indicators lights
The units used on the speedometer may di
ffer depending on the target region.
The warning and indicators lights on the instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
GX460_OM_OM60L72U_(U).book Page 74 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
752. Instrument cluster
2
Instrument cluster

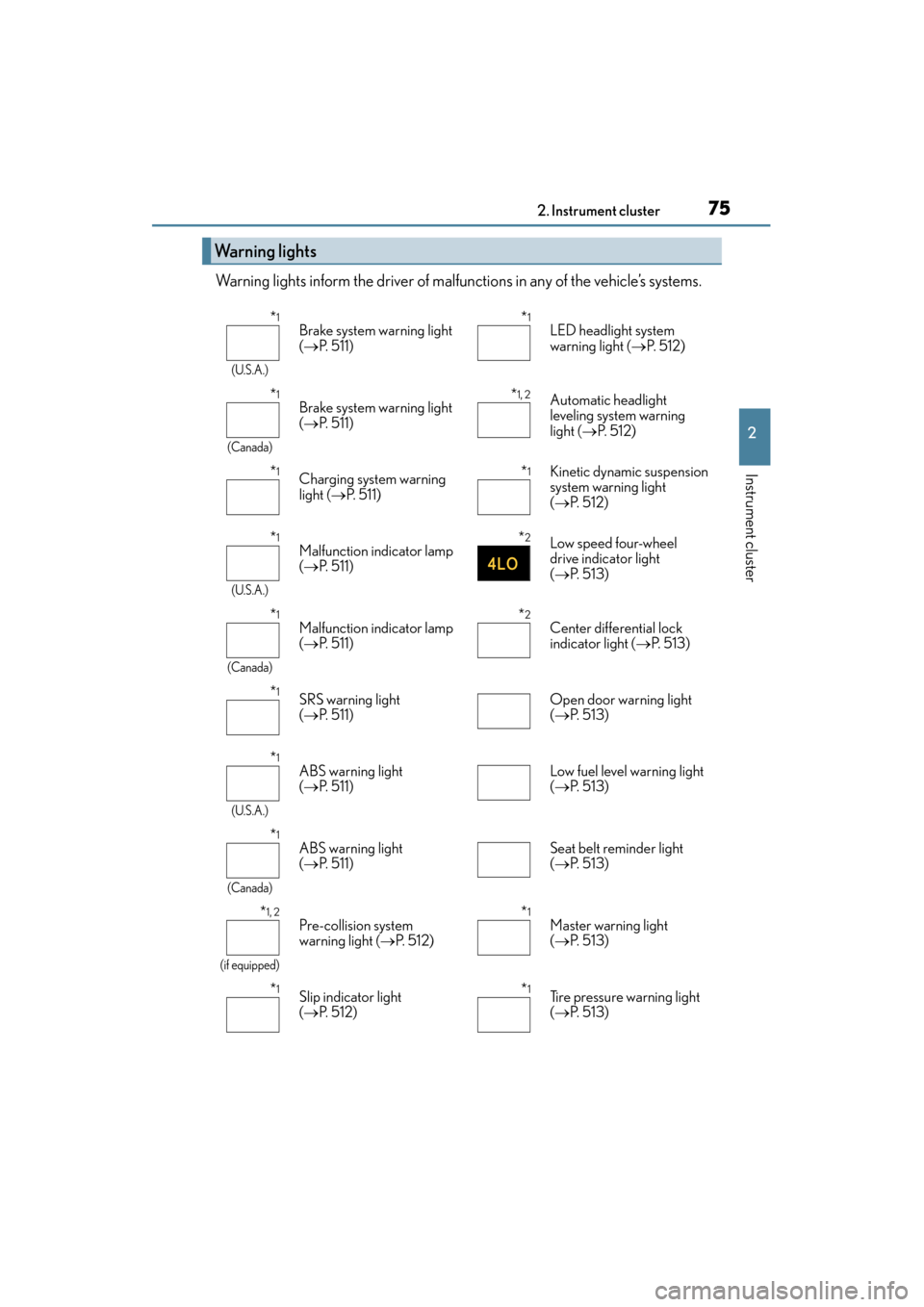

Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
(→ P. 511)*1LED headlight system
warning light ( →P. 5 1 2 )
*1
(Canada)
Brake system warning light
(→ P. 511)*1, 2Automatic headlight
leveling system warning
light ( →P. 5 1 2 )
*1Charging system warning
light ( →P. 511)*1Kinetic dynamic suspension
system warning light
(→ P. 5 1 2 )
*1
(U.S.A.)
Malfunction indicator lamp
(→ P. 511)*2Low speed four-wheel
drive indicator light
(→ P. 5 1 3 )
*1
(Canada)
Malfunction indicator lamp
(→ P. 511)*2Center differential lock
indicator light ( →P. 5 1 3 )
*1SRS warning light
(→ P. 511) Open door warning light
(
→ P. 5 1 3 )
*1
(U.S.A.)
ABS warning light
(→ P. 511) Low fuel level warning light
(
→ P. 5 1 3 )
*1
(Canada)
ABS warning light
(→ P. 511) Seat belt reminder light
(
→ P. 5 1 3 )
*1, 2
(if equipped)
Pre-collision system
warning light ( →P. 5 1 2 )*1Master warning light
(→ P. 5 1 3 )
*1Slip indicator light
(→ P. 5 1 2 )*1Tire pressure warning light
(→ P. 5 1 3 )
GX460_OM_OM60L72U_(U).book Page 75 Friday, May 16, 2014 3:03 PM

76
GX 460 _O M_ OM6 0L 72U _( U)2. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
(→ P. 1 9 4 ) “SET” indicator
(
→ P. 2 1 8 , 2 2 1 )
(U.S.A.)
Headlight indicator
(→ P. 1 9 6 )
(if equipped)
Dynamic radar cruise
control indicator
(→ P. 2 2 1 )
(Canada)
Tail light indicator
(→ P. 1 9 6 )
(if equipped)
“LDA” (Lane Departure
Alert) indicator (→ P. 232)
Headlight high beam
indicator ( →P. 1 9 7 )
*1, 2
Slip indicator ( →P. 3 4 6 )
(if equipped)
Automatic High Beam
indicator ( →P. 1 9 9 )*1VSC OFF indicator
(→ P. 3 4 7 )
(if equipped)
Fog light indicator
(→ P. 2 0 4 )
(if equipped)
Multi-terrain Select
indicator ( →P. 3 0 2 )
*1
Eco Driving Indicator
Light ( →P. 8 6 )
*1
(if equipped)
Crawl Control indicator
(→ P. 3 4 0 )
Cruise control indicator
( → P. 2 1 8 , 2 2 1 )
*1
(if equipped)
Downhill assist control
system indicator
(→ P. 3 4 3 )
GX460_OM_OM60L72U_(U).book Page 76 Friday, May 16, 2014 3:03 PM

GX 460 _O M_ OM6 0L 72U _( U)
772. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turn ed off. The light flashes quickly to indicate
that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi- nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel. “2nd STRT” indicator
(
→ P. 1 9 1 )
(if equipped)
“BSM” (Blind Spot
Monitor) indicator
(→ P. 3 5 1 )
Low speed four-wheel
drive indicator light
( → P. 336)
*4, 5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( →P. 3 5 1 )
Center differential lock
indicator ( →P. 3 3 7 )
*6Security indicator
(→ P. 6 8 , 7 0 )
(if equipped)
Intuitive parking assist
indicator ( →P. 2 3 8 )*1, 6“A I R B A G O N / O F F ”
indicator ( →P. 4 6 )
*1, 3
(if equipped)
Pre-collision system
warning light ( →P. 3 6 2 )
GX460_OM_OM60L72U_(U).book Page 77 Friday, May 16, 2014 3:03 PM

78
GX 460 _O M_ OM6 0L 72U _( U)2. Instrument cluster
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as th
e ABS/Multi Terrain ABS and the SRS warning
light not come on when you start the engine, this could mean that these systems are not
available to help protect you in an acciden t, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.
GX460_OM_OM60L72U_(U).book Page 78 Friday, May 16, 2014 3:03 PM

79
GX 460 _O M_ OM6 0L 72U _( U)2. Instrument cluster
2
Instrument cluster
Gauges and meters
The units used on the speedometer may di
ffer depending on the target region.
Ta c h o m e t e r
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of driving-related data (→P. 8 2 )
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Rear height control air suspension display (if equipped)
Displays the rear height mode selected ( →P. 3 3 1 )
Shift position and shift range display
Displays the selected shift position or selected shift range ( →P. 1 9 0 )
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record and display different distances independently.
1
2
3
4
5
6
7
