601-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
■Rear-facing  Infant seat/convertible seat
Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). ( →P. 1 2 0 )
Place the child restraint system
on the seat facing the rear of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
Installing child restraints using a se at belt (child restraint lock function
belt)
1
2
3
4
GX460_OM_OM60L72U_(U).book Page 60 Friday, May 16, 2014 3:03 PM

611-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
1
For safety and security
While pushing the child restraint
system down into the seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
■For ward-facing  Convertible seat
Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). ( →P. 1 2 0 )
Place the child restraint system
on the seat facing the front of the
vehicle.
5
1
2
GX460_OM_OM60L72U_(U).book Page 61 Friday, May 16, 2014 3:03 PM

621-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the seat, allow the
shoulder belt to retract until the
child restraint system is securely
in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
If the child restraint has a top tether strap, the top tether strap should be
latched onto the top tether strap anchor. ( →P. 6 4 )
3
4
5
6
GX460_OM_OM60L72U_(U).book Page 62 Friday, May 16, 2014 3:03 PM

631-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
1
For safety and security
■Booster seat Fold the seatback forward. Then
return the seatback and secure it
at the first lock position (most
upright position). ( →P. 1 2 0 )
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. ( →P. 2 8 )
Push the buckle release button and fully
retract the seat belt.
1
2
3
Removing a child restraint installed with a seat belt
GX460_OM_OM60L72U_(U).book Page 63 Friday, May 16, 2014 3:03 PM

641-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
Secure the child restraint system
using the seat belt or LATCH
anchors and move the head restraint
in place at the upmost position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be
used.
This vehicle is designed to conform to the SAE J1819.
Child restraint systems with a top tether strap
1
2
GX460_OM_OM60L72U_(U).book Page 64 Friday, May 16, 2014 3:03 PM

651-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
1
For safety and security
CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lo ck mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten only . This could cause injury or discomfort to
the child. ( →P. 3 0 )
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix the
child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passengers
may be seriously injured or even killed in the event of sudden braking, sudden swerving
or an accident.
●When installing a child restraint system in the cent er second seat, adjust both seat-
backs at the same angle.
●When using the LATCH anchors for a child restraint system, move the seat as far
back as possible, with the seatback close to the child restraint system.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Adjust the front passenge r seat so that it does
not interfere with the child restraint system.
●Child restraint system installed on the third
seat should not contact the second seatbacks.
●Only put a forward-facing child restraint sys-
tem on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger seat,
move the seat as far back as possible even if
the “AIR BAG OFF” indicator light is illumi-
nated. Failure to do so may result in death or
serious injury if the airbags deploy (inflate).
GX460_OM_OM60L72U_(U).book Page 65 Friday, May 16, 2014 3:03 PM

661-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
CAUTION
■When installing a child restraint system
●When a booster seat is installed, always ensure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it could fall off the child’s shoulder. Failing to do so may result in
death or serious injury in the event of sudden braking, sudden swerving or an acci-
dent.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufacturer.
■Do not use a seat belt extender
If a seat belt extender is used when installi ng a child restraint system, the seat belt will
not securely hold the child restraint system, which could cause death or serious injury
to the child or other passengers in the event of sudden braking, sudden swerving or an
accident.
■To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects around the
anchors and that the seat belt is not caught behind the child restraint system. Make sure
the child restraint system is securely attached , or it may cause death or serious injury to
the child or other passengers in the event of a sudden stop, sudden swerve or accident.
●When using the left-hand second seat for the
child restraint system, do not sit in the center
second seat.
Seat belt function may be impaired, such as
being positioned overly high or loose-fitting,
which may result in death or serious injury in
the event of sudden braking, sudden swerv-
ing or an accident.
GX460_OM_OM60L72U_(U).book Page 66 Friday, May 16, 2014 3:03 PM

671-1. For safe use
GX 460 _O M_ OM6 0L 72U _( U)
1
For safety and security
Exhaust gas precautions
Harmful substance to the hu man body is included in exhaust gases if inhaled.
CAUTION
Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
●Keep the back door closed.
●If you smell exhaust gases in the vehicle even when the back door is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
engine.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior.
●Do not leave the engine running in an area with snow build-up, or where it is snowing.
If snowbanks build up around the vehicle wh ile the engine is running, exhaust gases
may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked period ically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by your Lexus dealer.
GX460_OM_OM60L72U_(U).book Page 67 Friday, May 16, 2014 3:03 PM

681-2. Theft deterrent system
GX 460 _O M_ OM6 0L 72U _( U)
Engine immobilizer system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a
built-in transponder chip) of another vehicle
■Certifications for the engine immobilizer system
XFor vehicles sold in the U.S.A., Hawaii, Guam, Saipan and Puerto Rico
XFor vehicles sold in Canada
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.
GX460_OM_OM60L72U_(U).book Page 68 Friday, May 16, 2014 3:03 PM

691-2. Theft deterrent system
GX 460 _O M_ OM6 0L 72U _( U)
1
For safety and security

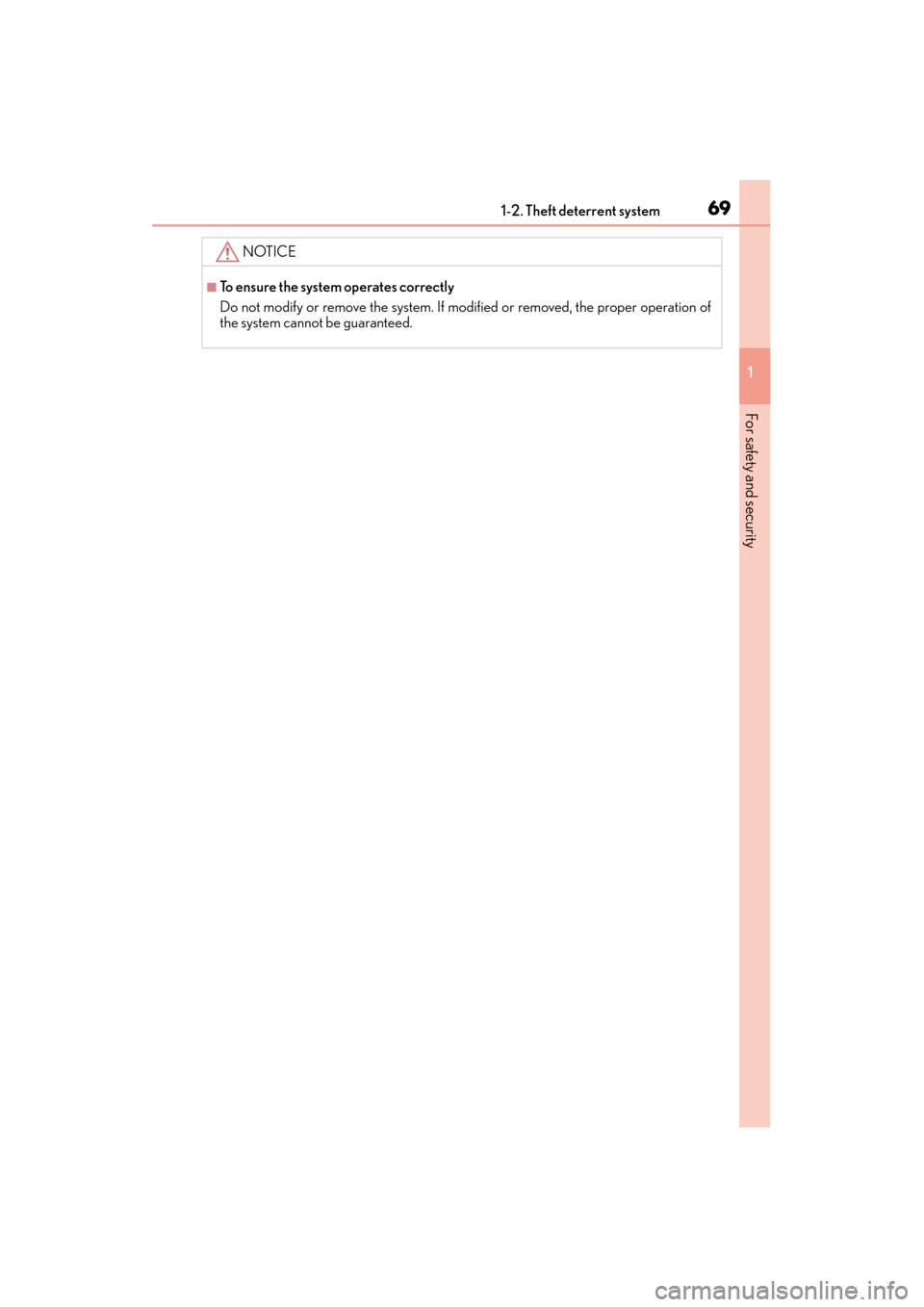

NOTICE
