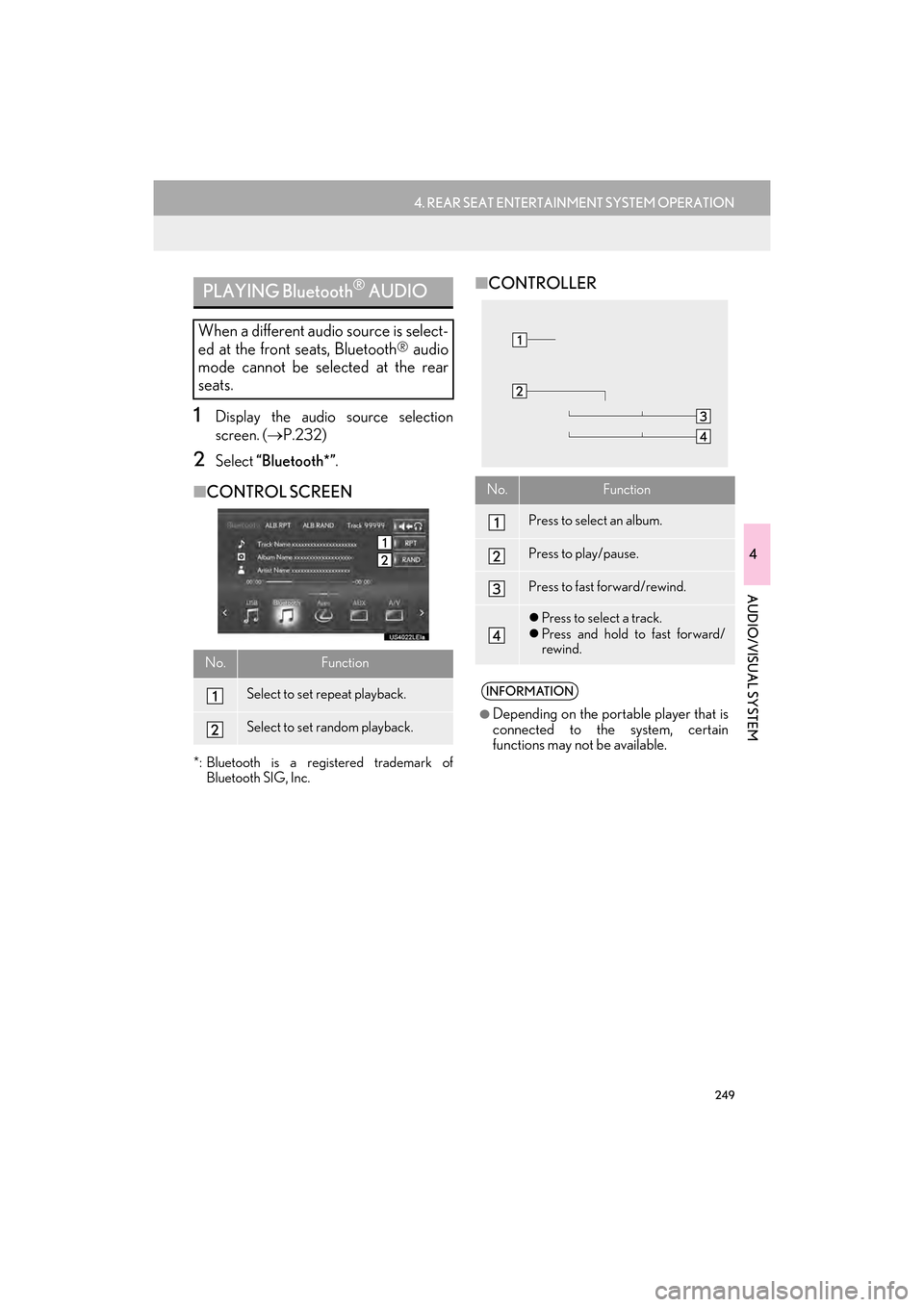

Lexus GX460 2017 Navigation Manual

249
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
1Display the audio source selection
screen. (→P.232)
2Select “Bluetooth*” .
■CONTROL SCREEN
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
■CONTROLLERPLAYING Bluetooth® AUDIO
When a different audio source is select-
ed at the front seats, Bluetooth
® audio
mode cannot be selected at the rear
seats.
No.Function
Select to set repeat playback.
Select to set random playback.
No.Function
Press to select an album.
Press to play/pause.
Press to fast forward/rewind.
z Press to select a track.
z Press and hold to fast forward/
rewind.
INFORMATION
●
Depending on the portable player that is
connected to the system, certain
functions may not be available.
GX_Navi_OM60N98U_(U).book Page 249 Monday, May 30, 2016 2:28 PM

250
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Connecting a device to the AUX port.
(→ P.163)
2Display the audio source selection
screen. ( →P.232)
3Select “A U X ” .
1Connecting a device to the AUX port.
(→ P.163)
2Display the audio source selection
screen. ( →P.232)
3Select “A / V ”.
1Press and release the lid, connecting an
audio/visual device.
zThe A/V input port is composed of 3 input
ports.
2Display the audio source selection
screen. ( →P.232)
3Select “Rear-A/V”.
zVideo mode can be selected by using the
controller. (
→P. 2 5 1 )
USING THE AUX MODE
When a different audio source is select-
ed at the front seats, AUX mode cannot
be selected at the rear seats.
USING THE VIDEO MODE
The rear seat entertainment system
plays videos and sound when audio-vid-
eo equipment is connected to the port.
INFORMATION
●
The volume can be adjusted using the
vehicle’s audio controls. All other
operations must be made on the audio/
visual equipment itself. For details about
operation of audio/visual equipment,
refer to the manufacturer’s instructions.
USING THE AUX PORT
USING THE A/V INPUT PORT
ColorFunction
YellowVideo input port
WhiteLeft channel audio input port
RedRight channel audio input port
NOTICE
●When the A/V input port and/or head-
phone jack is not in use, keep the lid
closed. Inserting anything other than an
appropriate plug may cause electrical
failure or a short circuit.
GX_Navi_OM60N98U_(U).book Page 250 Monday, May 30, 2016 2:28 PM

251
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
1Press and release the lid, connecting an
audio/visual device.
2Display the audio source selection
screen. (→P.232)
3Select “Rear-HDMI” .
zVideo mode can be selected by using the
controller. (
→P. 2 5 1 )
■COMPATIBLE FORMAT
z Compatible video signal
480p,576p,VGA
z Compatible sound signal
LPCM 2ch
1Press the “INPUT” button.
zWhen the audio/visual device is connected
to A/V input port and HDMI port at the
same time, the mode will be switched by
pressing “INPUT” button each time.
z In video mode, different sound/visual
modes can be enjoyed for the left and right
screens when is off.
USING THE HDMI PORT
About the HDMI terminal, the interface
that is connected video and audio to sys-
tem and audio/visual device. You can
enjoy the high-definition video and au-
dio by connecting the single cable to the
HDMI terminal and the system.
NOTICE
●When the HDMI port and/or headphone
jack is not in use, keep the lid closed.
Inserting anything other than an appro-
priate plug may cause electrical failure or
a short circuit.
The terms HDMI and HDMI High-Defi-
nition Multimedia Interface, and the
HDMI Logo are trademarks or regis-
tered trademarks of HDMI Licensing
LLC in the United States and other
countries.
SELECTING THE VIDEO
MODE BY USING THE
CONTROLLER
GX_Navi_OM60N98U_(U).book Page 251 Monday, May 30, 2016 2:28 PM

252
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Press the “SETTING” button.
2Select the desired item to be adjusted.
zThe screen goes off when “Screen Off” is
selected. To turn the screen back on, press
any remote control button. The selected
screen appears.
CHANGING SETTINGS
CONTRAST, BRIGHTNESS,
COLOR AND TONE
ADJUSTMENT
Screen buttonFunction
“Brightness” “+”Select to brighten the
screen.
“Brightness” “-”Select to darken the
screen.
“Contrast” “+”Select to strengthen the
contrast of the screen.
“Contrast” “-”Select to weaken the
contrast of the screen.
“Color” “G”
Select to strengthen the
green color of the
screen.
“Color” “R”Select to strengthen the
red color of the screen.
“Tone” “+”Select to strengthen the
tone of the screen.
“Tone” “-”Select to weaken the
tone of the screen.
GX_Navi_OM60N98U_(U).book Page 252 Monday, May 30, 2016 2:28 PM

253
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
1Press the “SETTING” button.
2Select “PAL Video” .
zThe “PAL Video” indicator is highlighted.
1Press the “SETTING” button.
2Select “LCD AI” .
zThe “LCD AI” indicator is highlighted.
CHANGING TO PAL FORMAT
Turn “PAL Video” on when PAL format
equipment is connected to the A/V in-
put port.SETTING LCD AI
Automatically determines the tone of
the video image and sets the contrast to
an optimum level, displaying a sharp im-
age.
INFORMATION
●
Because the image quality is
automatically adjusted when the “LCD
AI” indicator is on, brightness and
contrast adjustment becomes less
effective.
GX_Navi_OM60N98U_(U).book Page 253 Monday, May 30, 2016 2:28 PM

254
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Press the “SETTING” button.
2Select the “Screen Size” tab.
3Select “Normal 1” , “Normal 2” or “Full”. If “Check DISC” appears on the screen: It
indicates that the disc is dirty, damaged, or it
was inserted upside down. Clean the disc or
insert it correctly.
If “Region code error” appears on the
screen
: It indicates that the DVD region
code is not set properly. Insert a disc with a
region code of “ALL” or “1”.
If “DISC error” appears on the screen : The
following causes are possible:
• There is a problem inside the system. Eject the disc.
• The inside of the player unit may be too hot due to a very high ambient tempera-
ture. Eject the disc and allow the player to
cool down.
If “No supported data.” appears on the
screen : It indicates that the iPod or USB has
no playable data. If a disc which is not play-
able is inserted, “No supported data.” will
also appear on the screen. For appropriate
discs for the player: →P.268
If the malfunction is not rectified : Take
your vehicle to your Lexus dealer.
SCREEN SIZE SETTINGSIF THE REAR SEAT
ENTERTAINMENT SYSTEM
MALFUNCTIONS
If the rear seat entertainment system
malfunctions, the system will display a
message.
These are described below.
GX_Navi_OM60N98U_(U).book Page 254 Monday, May 30, 2016 2:28 PM

255
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
5. AUDIO/VISUAL REMOTE CONTROLS
1. STEERING SWITCHES
XVolume control switch
Some parts of the audio/visual system can be adjusted using the switches on the steer-
ing wheel.
No.Switch
Volume control switch
“∧∨ ” switch
“MODE” switch
ModeOperationFunction
All
PressVolume up/down
Press and hold
(0.8 sec. or more)Volume up/down continuously
GX_Navi_OM60N98U_(U).book Page 255 Monday, May 30, 2016 2:28 PM

256
5. AUDIO/VISUAL REMOTE CONTROLS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
X switch
ModeOperationFunction
AM/FM
RadioPressPreset station up/down
Press and hold
(0.8 sec. or more)Seek up/down continuously while the switch is being
pressed
SAT
PressPreset channel up/down
Press and hold
(0.8 sec. or more)Type seek up/down
Press and hold
(1.5 sec. or more)Fast up/down
CD
PressTrack up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
MP3/
WMA/AAC
discPressFile up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
DVD
PressChapter up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
USB
PressFile/Track up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
iPod
PressTrack/File up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
BT audio
PressTrack up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
GX_Navi_OM60N98U_(U).book Page 256 Monday, May 30, 2016 2:28 PM

257
5. AUDIO/VISUAL REMOTE CONTROLS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
X“MODE” switch
ModeOperationFunction
AM, FM,
SAT, AUX, VTRPressChange audio modes
Press and hold
(0.8 sec. or more)Mute
CD/MP3/
WMA/AAC disc, DVD,
USB, iPod, BT audio, APPSPressChange audio modes
Press and hold
(0.8 sec. or more)Pause
INFORMATION
●
In the APPS mode, some of the operations may be done on the screen, it will depend on the
selected APPS.
GX_Navi_OM60N98U_(U).book Page 257 Monday, May 30, 2016 2:28 PM

258
GX460_Navi_OM60N98U_(U)16.05.30 14:27
6. SETUP
1. AUDIO SETTINGS
1Press the “SETUP” button.
2Select “A u d i o ” .
3Select the items to be set.
*: Only in DVD video mode
Detailed audio settings can be pro-
grammed.AUDIO SETTINGS SCREEN
No.FunctionPage
Select to set the iPod audio
signal input settings.259
Select to set the video signal
format settings.259
Select to change the number
of preset radio stations dis-
played on the screen.260
Select to set detailed cover
art settings.260
*Select to set detailed DVD
settings.261
GX_Navi_OM60N98U_(U).book Page 258 Monday, May 30, 2016 2:28 PM
