Lexus GX460 2017 Owner's Manual

219
GX 460 _O M_ OM6 0F 6 8U _(U )4-3. Operating the lights and wipers
4
Driving
Headlight cleaner switch∗
Press the switch to clean the headlights.
■The headlight cleaners can be operated when
The engine switch is in IGNITION ON mode
and the headlight switch is turned on.
■Windshield washer linked operation
When the windshield washer is operated with the engine switch in IGNITION ON mode
and the headlights on, the headlight cleaners will operate once. (→P. 212)
∗: If equipped
Washer fluid can be sprayed on the headlights.
NOTICE
■When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.
GX460_OM_OM60F68U_(U).book Page 219 Wednesday, June 8, 2016 6:37 PM

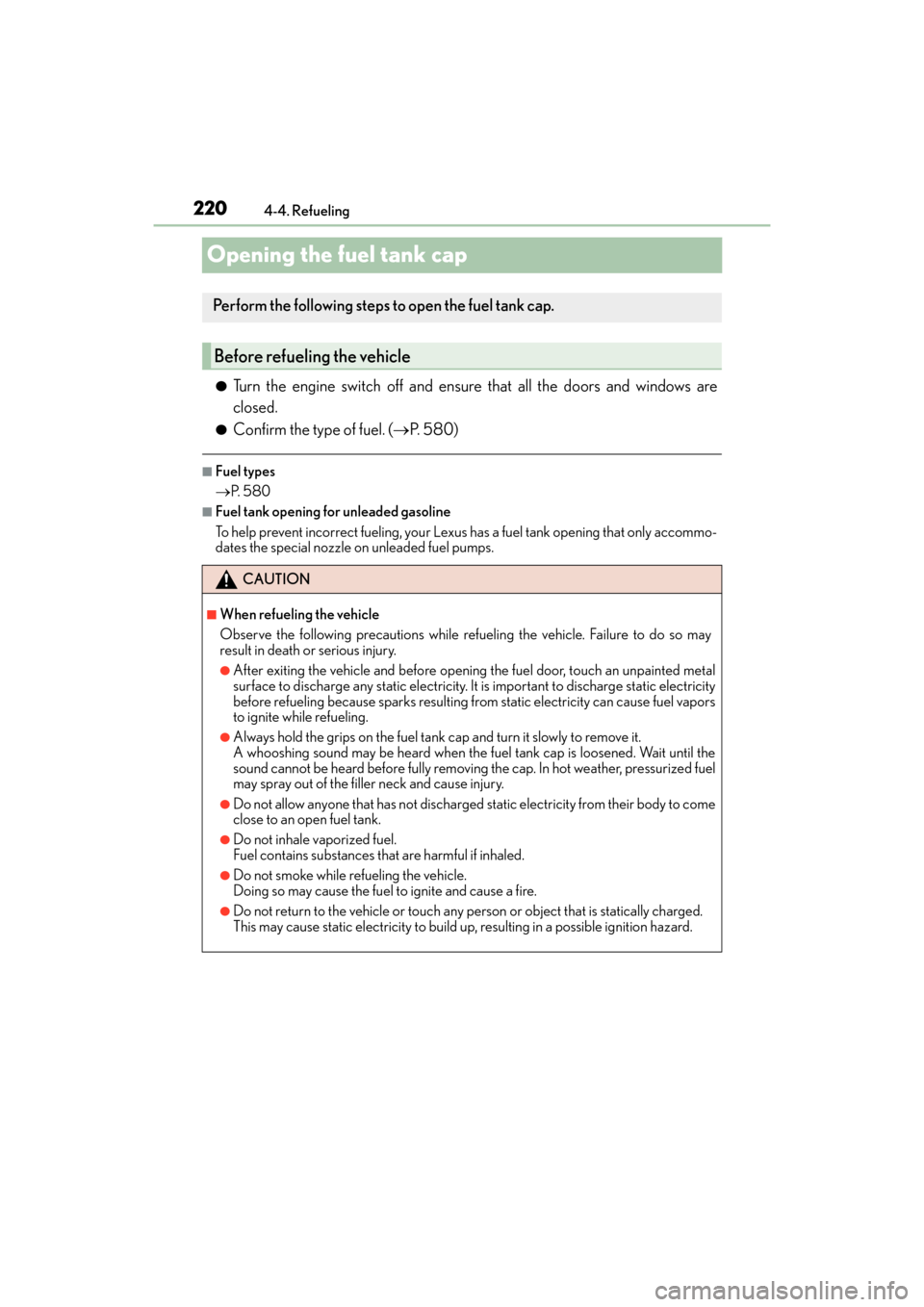

220
GX 460 _O M_ OM6 0F 6 8U _(U )4-4. Refueling
Opening the fuel tank cap
●Turn the engine switch off and ensure that all the doors and windows are
closed.
●Confirm the type of fuel. (
→P. 5 8 0 )
■Fuel types
→P. 5 8 0
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only accommo-
dates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap.
Before refueling the vehicle
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an unpainted metal
surface to discharge any static electricity. It is important to discharge static electricity
before refueling because sparks resulting fr om static electricity can cause fuel vapors
to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until the
sound cannot be heard before fully removing the cap. In hot weather, pressurized fuel
may spray out of the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their body to come
close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically charged.
This may cause static electricity to build up , resulting in a possible ignition hazard.
GX460_OM_OM60F68U_(U).book Page 220 Wednesday, June 8, 2016 6:37 PM

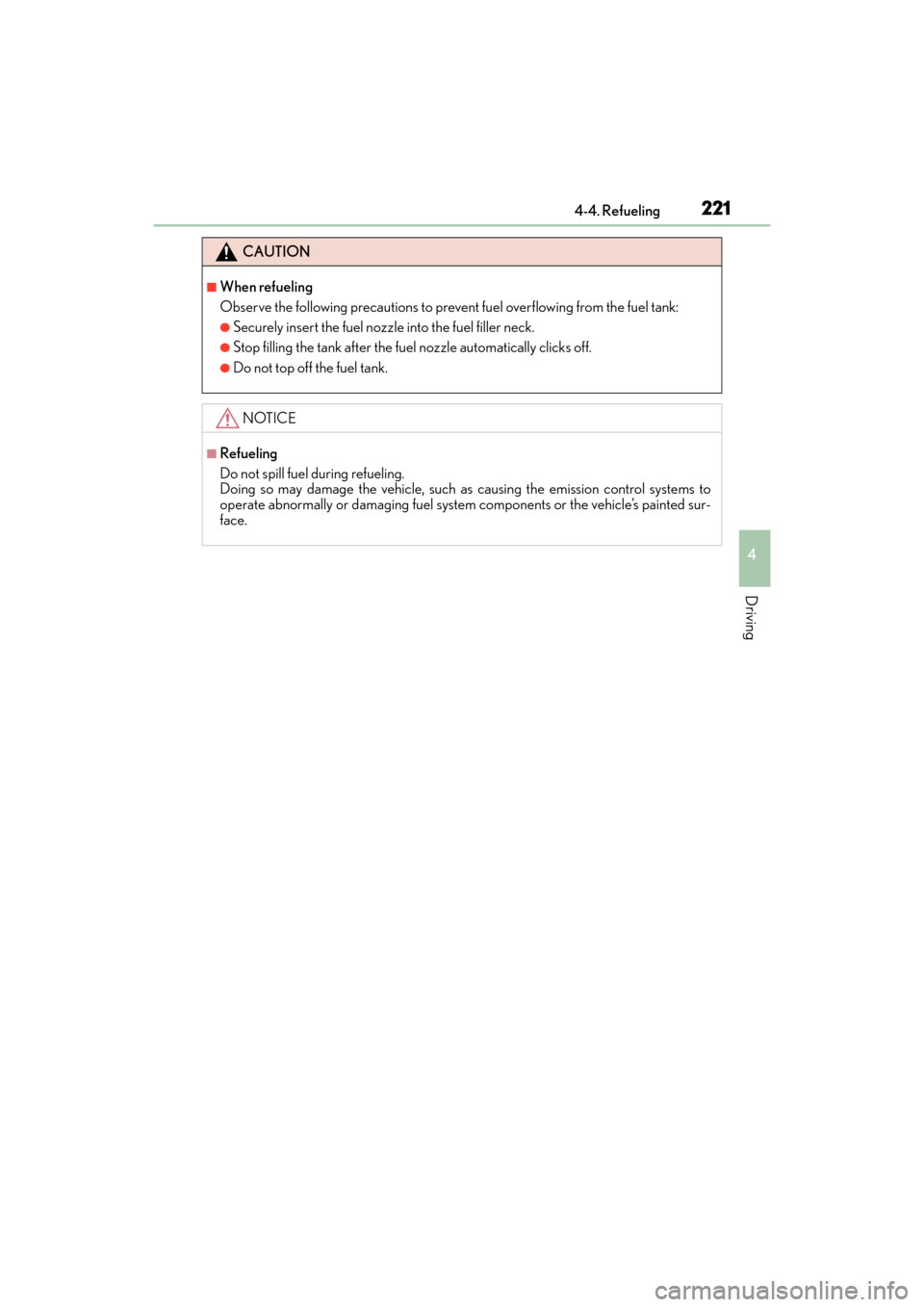

GX 460 _O M_ OM6 0F 6 8U _(U )
2214-4. Refueling
4
Driving
CAUTION
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank:
●Securely insert the fuel nozzle into the fuel filler neck.
●Stop filling the tank after the fuel nozzle automatically clicks off.
●Do not top off the fuel tank.
NOTICE
■Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control systems to
operate abnormally or damaging fuel system components or the vehicle’s painted sur-
face.
GX460_OM_OM60F68U_(U).book Page 221 Wednesday, June 8, 2016 6:37 PM

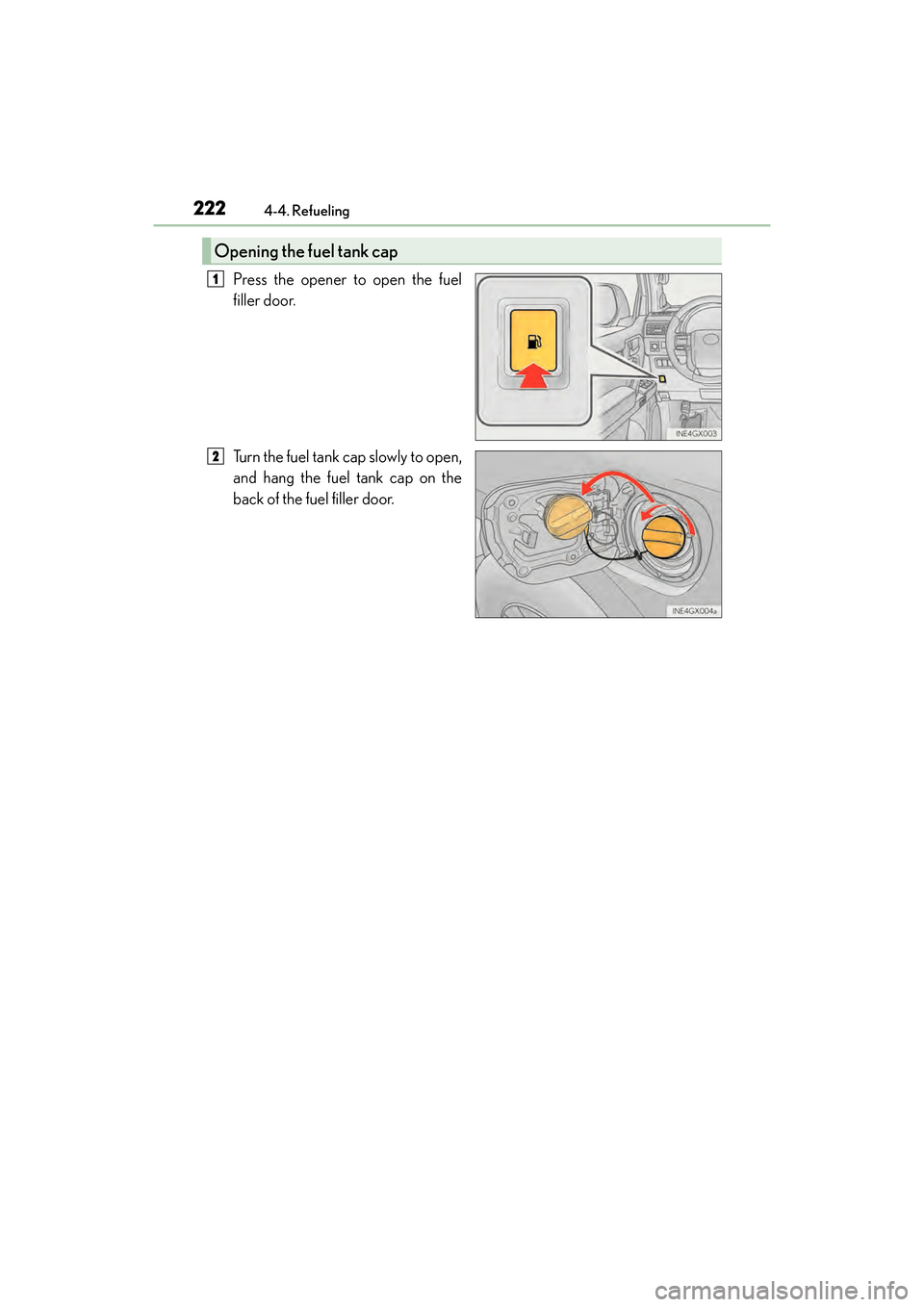

222
GX 460 _O M_ OM6 0F 6 8U _(U )4-4. Refueling
Press the opener to open the fuel
filler door.
Turn the fuel tank cap slowly to open,
and hang the fuel tank cap on the
back of the fuel filler door.
Opening the fuel tank cap
1
2
GX460_OM_OM60F68U_(U).book Page 222 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2234-4. Refueling
4
Driving
■When the fuel filler door cannot be opened by pressing the inside switch
After refueling, turn the fuel tank cap
until you hear a click. Once the cap is
released, it will turn slightly in the oppo-
site direction.
Remove the cover inside the luggage compart-
ment and pull the lever.
Closing the fuel tank cap
CAUTION
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Doing
so may cause a fire or other incident which may result in death or serious injury.
GX460_OM_OM60F68U_(U).book Page 223 Wednesday, June 8, 2016 6:37 PM

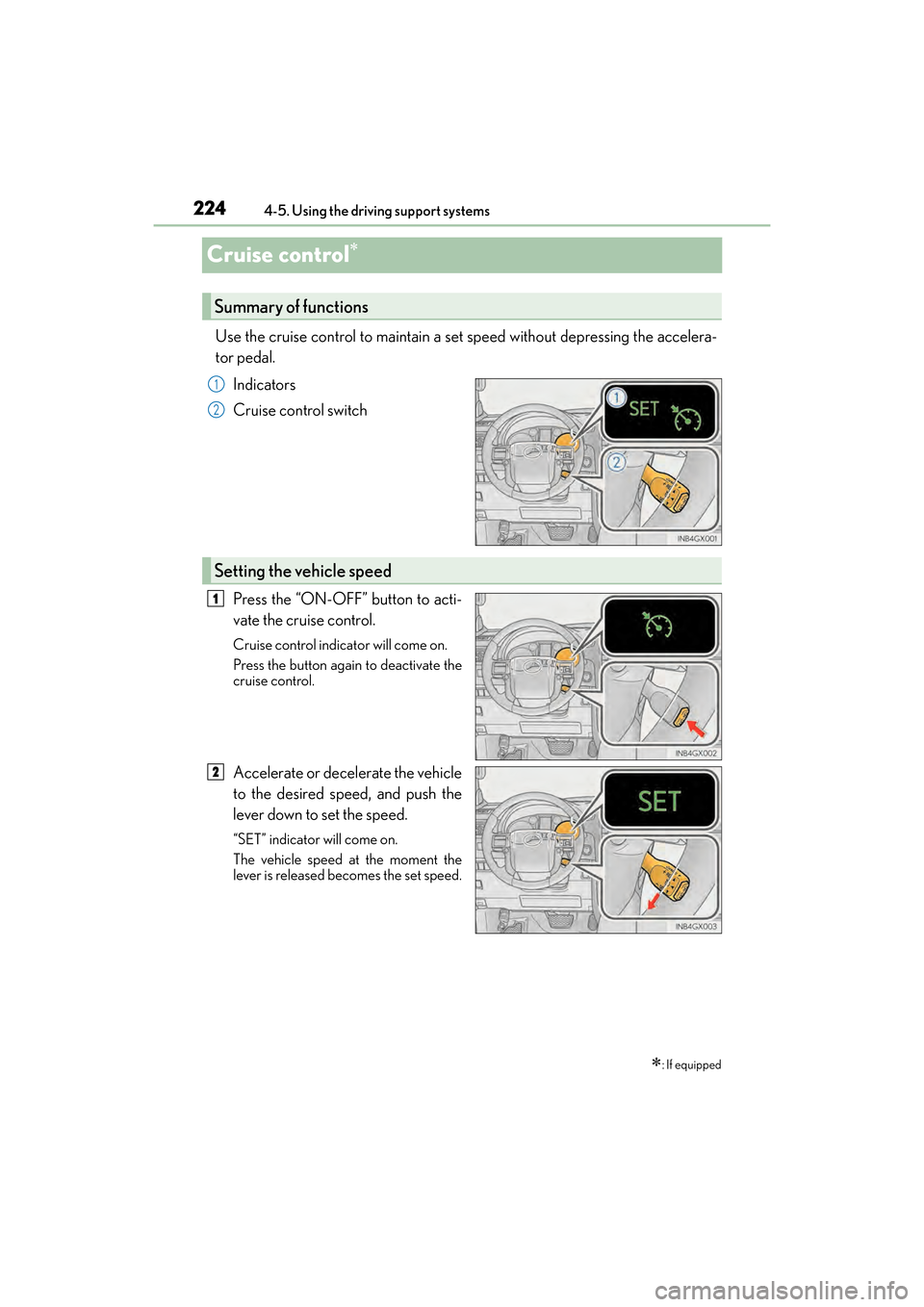

224
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
Cruise control∗
Use the cruise control to maintain a set speed without depressing the accelera-
tor pedal.
Indicators
Cruise control switch
Press the “ON-OFF” button to acti-
vate the cruise control.
Cruise control indicator will come on.
Press the button again to deactivate the
cruise control.
Accelerate or decelerate the vehicle
to the desired speed, and push the
lever down to set the speed.
“SET” indicator will come on.
The vehicle speed at the moment the
lever is released becomes the set speed.
∗: If equipped
Summary of functions
1
2
Setting the vehicle speed
1
2
GX460_OM_OM60F68U_(U).book Page 224 Wednesday, June 8, 2016 6:37 PM

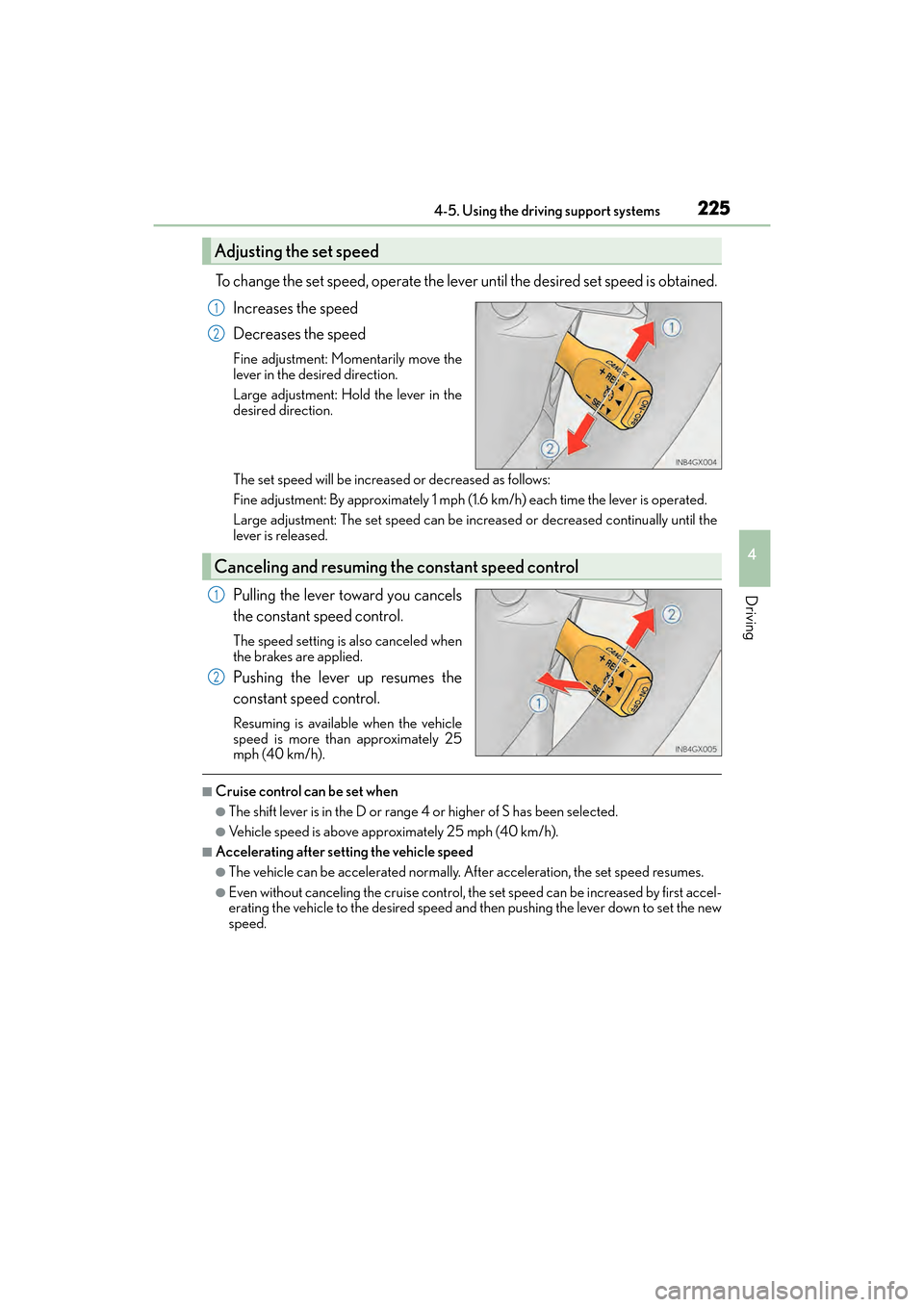

GX 460 _O M_ OM6 0F 6 8U _(U )
2254-5. Using the driving support systems
4
Driving
To change the set speed, operate the lever until the desired set speed is obtained.Increases the speed
Decreases the speed
Fine adjustment: Momentarily move the
lever in the desired direction.
Large adjustment: Hold the lever in the
desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is operated.
Large adjustment: The set speed can be increased or decreased continually until the
lever is released.
Pulling the lever toward you cancels
the constant speed control.
The speed setting is also canceled when
the brakes are applied.
Pushing the lever up resumes the
constant speed control.
Resuming is available when the vehicle
speed is more than approximately 25
mph (40 km/h).
■Cruise control can be set when
●The shift lever is in the D or range 4 or higher of S has been selected.
●Vehicle speed is above approximately 25 mph (40 km/h).
■Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, the set speed resumes.
●Even without canceling the cruise control, the set speed can be increased by first accel-
erating the vehicle to the desired speed and then pushing the lever down to set the new
speed.
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2
GX460_OM_OM60F68U_(U).book Page 225 Wednesday, June 8, 2016 6:37 PM

226
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following situations:
●Actual vehicle speed falls more than approximately 10 mph (16 km/h) below the preset
vehicle speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed is below approximately 25 mph (40 km/h).
●VSC is activated.
●The center differential lock/unlock is not completed within 5 seconds while the cruise
control system is on.
■If the warning message for the cruise contro
l is shown on the multi-information display
Press the “ON-OFF” button once to deactivate the system, and then press the button
again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels immediately after
being activated, there may be a malfunction in the cruise control system. Have the vehi-
cle inspected by your Lexus dealer.
CAUTION
■To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting in death or
serious injury.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as those covered with rain, ice or snow
●On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
●When your vehicle is towing a trailer (with towing hitch) or during emergency towing
GX460_OM_OM60F68U_(U).book Page 226 Wednesday, June 8, 2016 6:37 PM

227
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
4
Driving
Dynamic radar cruise control∗
Dynamic radar cruise control supplements conventional cruise control with a
vehicle-to-vehicle distance control. In
vehicle-to-vehicle distance control mode,
the vehicle automatically accelerates or decelerates in order to maintain a set
following distance from vehicles ahead.
Display
Set speed
Indicators
Vehicle-to-vehicle distance button
Cruise control switch
Press the “ON-OFF” button to acti-
vate the cruise control.
Dynamic radar cruise control indicator
will come on.
Press the button again to deactivate the
cruise control.
∗: If equipped
Summary of functions
1
2
3
4
5
Setting the vehicle speed (vehicle -to-vehicle distance control mode)
1
GX460_OM_OM60F68U_(U).book Page 227 Wednesday, June 8, 2016 6:37 PM

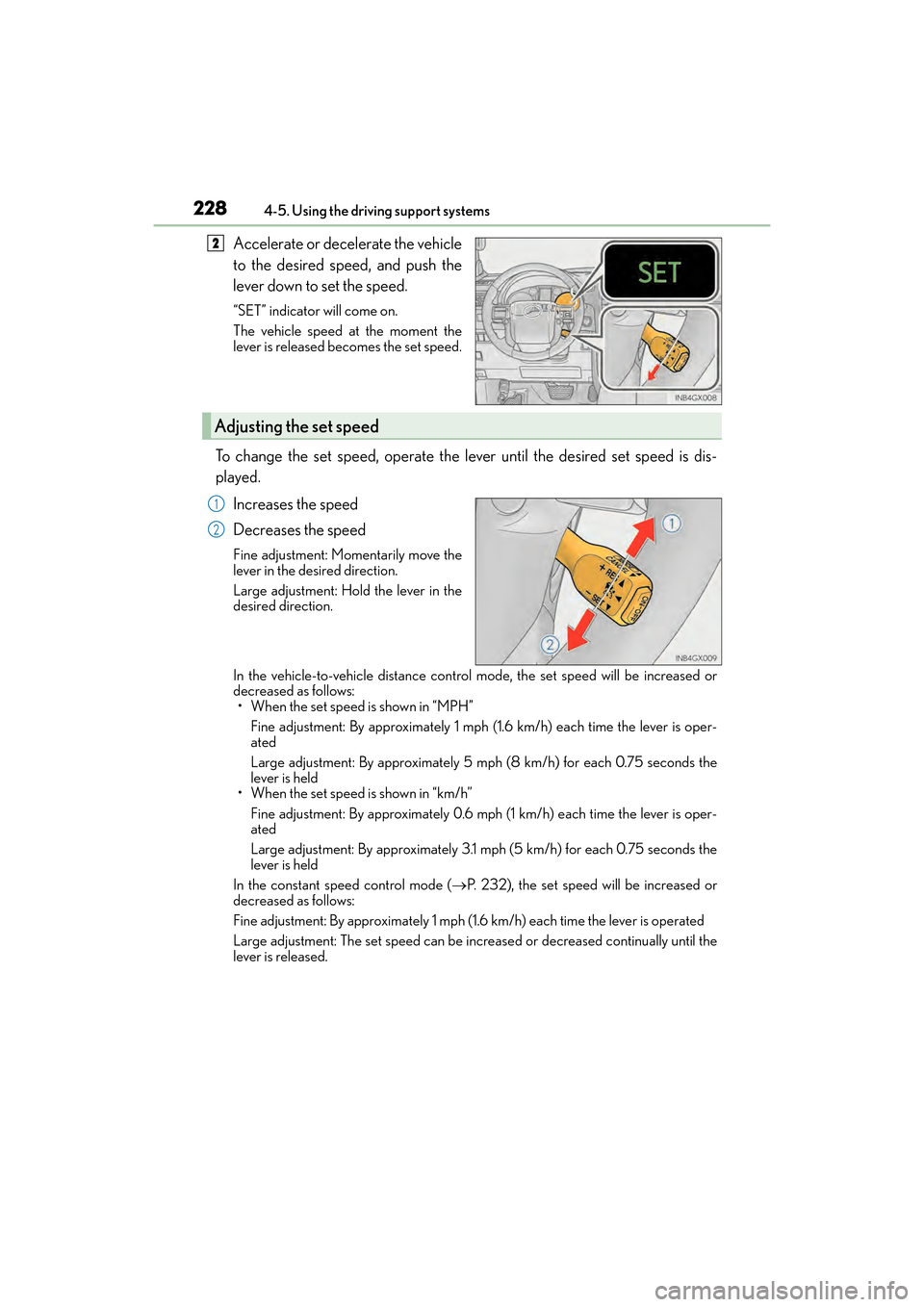

228
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
Accelerate or decelerate the vehicle
to the desired speed, and push the
lever down to set the speed.
“SET” indicator will come on.
The vehicle speed at the moment the
lever is released becomes the set speed.
To change the set speed, operate the lever until the desired set speed is dis-
played.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily move the
lever in the desired direction.
Large adjustment: Hold the lever in the
desired direction.
In the vehicle-to-vehicle distance contro l mode, the set speed will be increased or
decreased as follows:
• When the set speed is shown in “MPH”
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is oper-
ated
Large adjustment: By approximately 5 mph (8 km/h) for each 0.75 seconds the
lever is held
• When the set speed is shown in “km/h”
Fine adjustment: By approximately 0.6 mph (1 km/h) each time the lever is oper-
ated
Large adjustment: By approximately 3.1 mph (5 km/h) for each 0.75 seconds the
lever is held
In the constant speed control mode ( →P. 232), the set speed will be increased or
decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is operated
Large adjustment: The set speed can be increased or decreased continually until the
lever is released.
2
Adjusting the set speed
1
2
