multi-information Lexus GX460 2017 Owner's Guide

310
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems

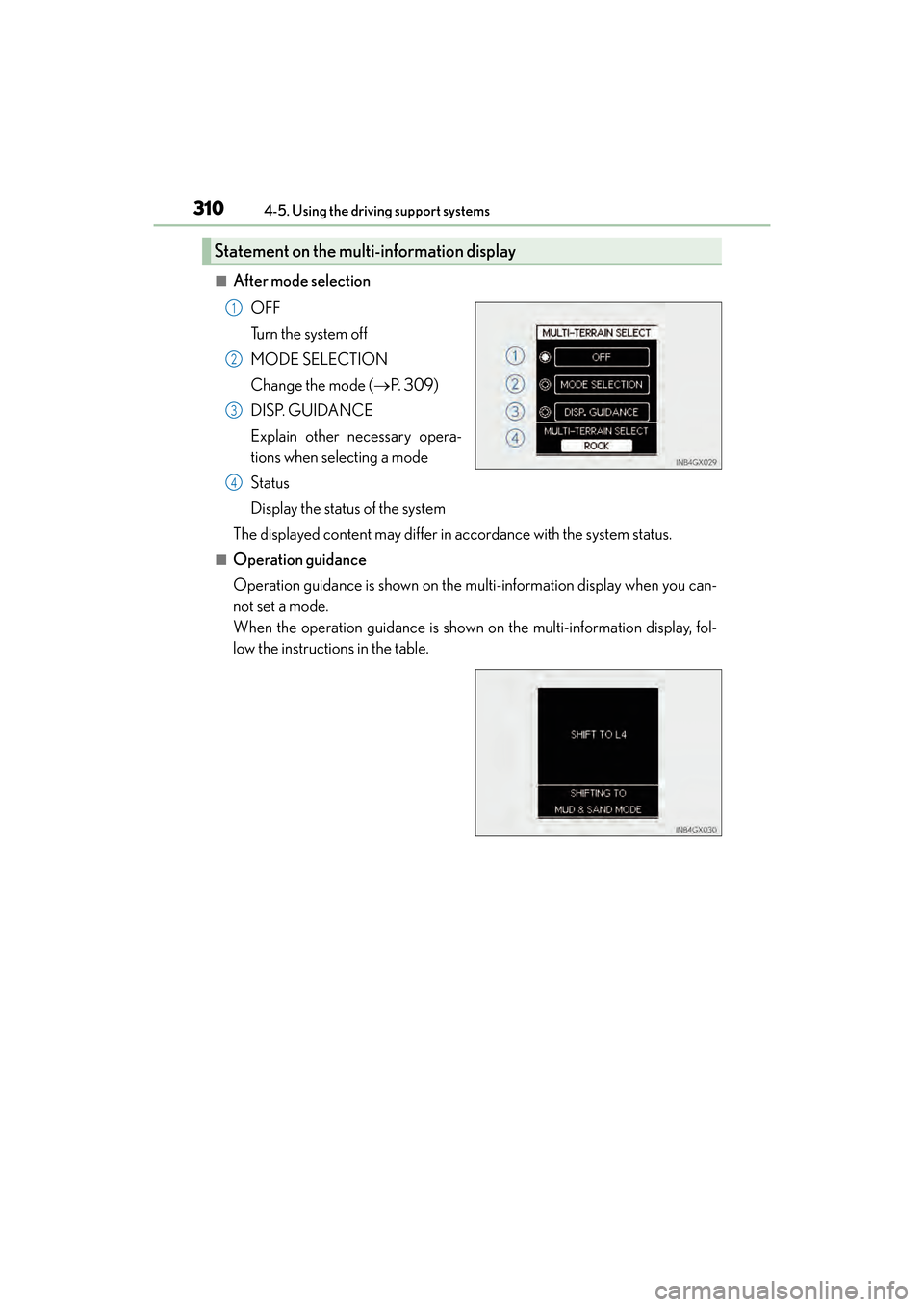

■After mode selection
OFF
Tu r n t h e s y s t e m o f f
MODE SELECTION
Change the mode ( →P. 3 0 9 )
DISP. GUIDANCE
Explain other necessary opera-
tions when selecting a mode
Status
Display the status of the system
The displayed content may differ in accordance with the system status.
■Operation guidance
Operation guidance is shown on the multi-information display when you can-
not set a mode.
When the operation guidance is shown on the multi-information display, fol-
low the instructions in the table.
Statement on the mult i-information display
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 310 Wednesday, June 8, 2016 6:37 PM

312
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■When it is difficult to generate traction
MUD & SAND mode provides the largest amount of tire slippage, followed by LOOSE
ROCK, MOGUL and ROCK mode.
Drivability can be improved by selecting a mo
de which provides a smaller amount of tire
slippage than the current mode when the amount of tire slippage is large, or conversely
selecting a mode which provides a larger amou nt of tire slippage than the current mode
when the amount of tire slippage is small.
■When the vehicle is stuck
Switching the transfer and differential
For the operation of the following functions, refer to the following pages.
●Four-wheel drive system ( →P. 3 4 2 )
●Center differential lock ( →P. 3 4 3 )
■When the TRAC or Active TRAC operates continuously
→P. 3 5 4
■When the four-wheel drive cont rol switch is in L4 position
If the Multi-terrain Select system is not op erating and the four-wheel drive control switch
is in L4, “TRAC OFF” will be shown on the multi-information display.
■When there is a malfunction in the system
The slip indicator light will come on. Have the vehicle inspected by your Lexus dealer
immediately.
CAUTION
■When using the Multi-terrain Select
Observe the following precautions to avoid an accident that could result in death or
serious injuries:
●There is a chance that the selected mode may not be the most appropriate in terms of
road conditions such as pitch, slipperiness, undulation, etc. ( →P. 3 0 8 )
●Multi-terrain Select is not intended to expand the limits of the vehicle. Check the road
conditions thoroughly beforehand, and drive safely and carefully.
NOTICE
■Precaution for use
The Multi-terrain Select is intended for use during off-road driving. Do not use the sys-
tem at any other time.
GX460_OM_OM60F68U_(U).book Page 312 Wednesday, June 8, 2016 6:37 PM

344
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■When the four-wheel drive control switch can be operated
●The engine switch is in IGNITION ON mode.
●The shift lever is in the N position.
●The vehicle is stopped completely.
■The low speed four-wheel drive indicator
●The indicator blinks while sw
itching between H4 and L4.
●If the low speed four-wheel drive indicator continues to blink when you operate the
four-wheel drive control switch to the H4 or L4 position, stop the vehicle completely,
shift the shift lever securely into N and then operate the switch again.
●If the shift lever is moved before the low speed four-wheel drive indicator turns on/off,
the transfer mode may not be shifted completely. The transfer mode disengages both
the front and rear drive shafts from the powertrain and allows the vehicle to move
regardless of the shift position. (At this time, the indicator blinks and the buzzer sounds.)
Therefore, the vehicle is free to roll even if the shift lever is in P. You or someone else
could be seriously injured. You must comple te the shifting of the transfer mode and
confirm that the indicator has turned off (H4) or turned on (L4).
●If the engine coolant temperature is too low, the four-wheel drive control system may
not be able to shift. When the engine is warmer operate the switch again.
If the indicator continue to blink even if doing so, have the vehicle inspected by your
Lexus dealer as soon as possible. There may be a trouble in the four-wheel drive system.
■When the transfer mode is switched to L4
Vehicles without Multi-terrain Select:
VSC is automatically turned off. (The VSC OFF indicator will come on.)
Vehicles with Multi-terrain Select:
VSC and TRAC/Active TRAC are automatically turned off. (The VSC OFF indicator will
come on and the “TRAC OFF” will be shown on the multi-information display.)
■When the center differential lock/unlock switch can be operated
The engine switch is in IGNITION ON mode.
■The center differential lock indicator
●The indicator blinks wh ile locking/unlocking the center differential.
●If the center differential lock indicator b links and the buzzer sounds when the center
differential is locked, stop the slipping or spinning and push the switch again.
If the indicator continue to blink even if doing so, have the vehicle inspected by your
Lexus dealer as soon as possible. There may be a trouble in the four-wheel drive system.
GX460_OM_OM60F68U_(U).book Page 344 Wednesday, June 8, 2016 6:37 PM

346
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
Crawl Control∗
ON/OFF switch
Speed selection switch
On/off
The Crawl Control indicator is lit and
the slip indicator flashes when operat-
ing.
Also, the operating status and speed
select status of the Crawl Control are
shown on the multi-information display.
Higher
Lower
∗: If equipped
Allows travel on extremely rough off-road surfaces at a fixed low speed with-
out pressing the accelerator or brake
pedal. Minimizes loss of traction or
vehicle slip when driving on slippery road surfaces, helping for stable driving.
Crawl Control switch
1
2
System operation
1
2
3
GX460_OM_OM60F68U_(U).book Page 346 Wednesday, June 8, 2016 6:37 PM

350
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Operating tips
The system will operate when the shift lever is
in a position other than P, however to make
effective use of the system it is recommended that the shift lever be shifted to 2 or 1 range
of S mode.
■If the four-wheel drive control switch is in H4
The system does not operate.
■When the downhill assist control system is operated continuously
This may cause the brake actuator to overheat . In this case, the downhill assist control
system will stop operating, a buzzer will sound and the downhill assist control system
indicator will start flashing, and the “TRAC OF F” will be shown on the multi-information
display. Refrain from using the system until the downhill assist control system indicator
stays on and the message goes off. (The vehicle can be driven normally during this time.)
■Sounds and vibrations caused by the downhill assist control system
●A sound may be heard from the engine compartment when the engine is started or just
after the vehicle begins to move. This sound does not indicate that a malfunction has
occurred in downhill assist control system.
●Either of the following conditions may occu r when the downhill assist control system is
operating. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
■System malfunction
●The downhill assist control system indicator does not come on when the engine switch
is turned to IGNITION ON mode.
●The downhill assist control system indicator does not come on when the “DAC” switch
is pressed.
●The slip indicator comes on.
In the above cases, have your vehicle checked by your Lexus dealer.
CAUTION
■When using downhill assist control system
Do not rely overmuch on the downhill assi st control system. This function does not
extend the vehicle’s performance limitations . Always thoroughly check the road condi-
tions, and drive safely.
■The system may not operate on the following surfaces, which may lead to an accident
causing death or serious injury
●Slippery surfaces such as wet or muddy roads
●Icy surface
●Unpaved roads
GX460_OM_OM60F68U_(U).book Page 350 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3534-5. Using the driving support systems
4
Driving
If the vehicle gets stuck in fresh snow or mud, the TRAC or Active TRAC/VSC/
Trailer Sway Control systems may reduce power from the engine to the wheels.
You may need to turn the system off to enable you to rock the vehicle in order to
free it.
■Turning off TRAC or Active TRAC system only
To turn the TRAC or Active TRAC
system off, quickly press and release
the switch.
The “TRAC OFF” will be shown on
the multi-information display.
Press the switch again to turn the sys-
tem back on.
■Turning off both TRAC or Active TRAC and VSC/Trailer Sway Control sys-
tems
To turn the TRAC or Active TRAC
and VSC/Trailer Sway Control sys-
tems off, press and hold the switch
for 3 seconds and more while the
vehicle is stopped.
The VSC OFF indicator light will
come on and the “TRAC OFF” will
be shown on the multi-information
display.
Press the switch again to turn the sys-
tem back on.
■When the “TRAC OFF” is displayed on the multi-information display even if the VSC
OFF switch has not been pressed
TRAC/Active TRAC, hill-start assist control, downhill assist control and Crawl Control
cannot be operated. Contact your Lexus dealer.
■Hill-start assist control operation conditions
●The shift lever is in D or S.
●The brake pedal is not depressed.
Disabling the TRAC or Active TRAC/VSC/Trailer Sway Control sys-
tems
GX460_OM_OM60F68U_(U).book Page 353 Wednesday, June 8, 2016 6:37 PM

354
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Sounds and vibrations caused by the ABS/Multi Terrain ABS, brake assist, TRAC/
Active TRAC, VSC/Trailer Sway Control and hill-start assist control systems
●A sound may be heard from the engine compartment when the engine is started or just
after the vehicle begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
●Any of the following conditions may occur when the above systems are operating.
None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS/Multi Terrain ABS is activated.
• The brake pedal may move down slightly after the ABS/Multi Terrain ABS is acti-
vated.
■Reactivation of the TRAC or Active TRAC/VSC/Trailer Sway Control systems after
turning off the engine
Turning off the engine after turning off the TRAC or Active TRAC/VSC/Trailer Sway
Control systems will automatically re-enabled them.
■Reactivation of the TRAC or Active TRAC system linked to vehicle speed
When only the TRAC or Active TRAC system is turned off, the TRAC or Active TRAC
system will turn on when vehicle speed increases. However, when both TRAC or Active
TRAC and VSC/Trailer Sway Control systems ar e turned off, the systems will not turn on
even when vehicle speed increases.
■When the brake system operates continuously
The brake actuator may overheat. In this case, the TRAC or Active TRAC and hill-start
assist control systems will stop operating, a buzzer will sound and the “TRAC OFF” will
be shown on the multi-information display. Refrain from using the system until the mes-
sage goes off. (There is no proble m with continuing normal driving.)
■If the slip indicator comes on...
It may indicate a malfunction in the TRAC/Active TRAC, VSC/Trailer Sway Control or
hill-start assist control system. Consult your Lexus dealer.
■KDSS
Some difference of vehicle height between left and right side can appear. This does not
indicate a malfunction in the KDSS system. For more information, contact your Lexus
dealer.
GX460_OM_OM60F68U_(U).book Page 354 Wednesday, June 8, 2016 6:37 PM

358
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems

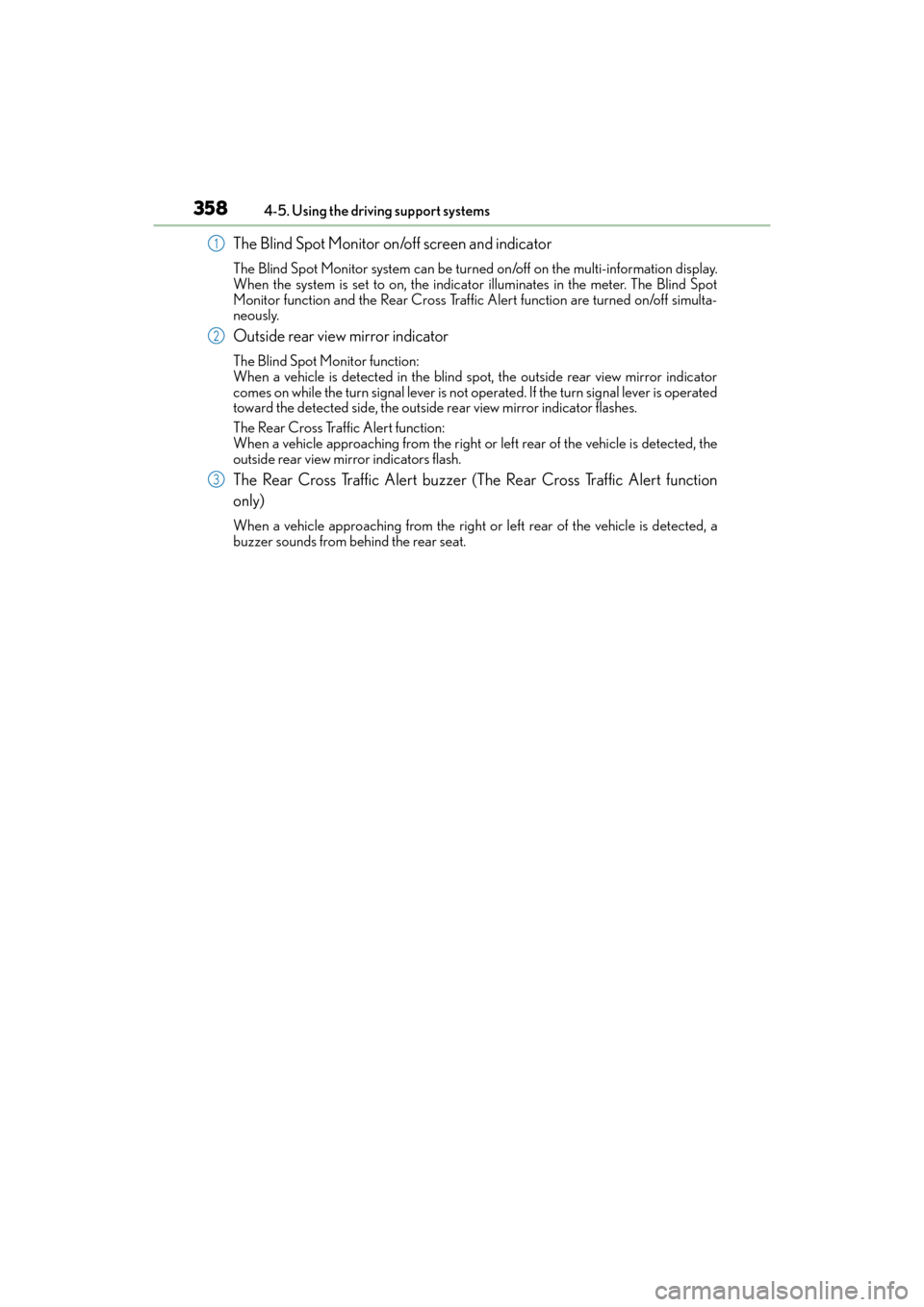

The Blind Spot Monitor on/off screen and indicator
The Blind Spot Monitor system can be turn
ed on/off on the multi-information display.
When the system is set to on, the indicator illuminates in the meter. The Blind Spot
Monitor function and the Rear Cross Traffic Alert function are turned on/off simulta-
neously.
Outside rear view mirror indicator
The Blind Spot Monitor function:
When a vehicle is detected in the blind spot, the outside rear view mirror indicator
comes on while the turn signal lever is not operated. If the turn signal lever is operated
toward the detected side, the outside rear view mirror indicator flashes.
The Rear Cross Traffic Alert function:
When a vehicle approaching from the right or left rear of the vehicle is detected, the
outside rear view mirror indicators flash.
The Rear Cross Traffic Alert buzzer (The Rear Cross Traffic Alert function
only)
When a vehicle approaching from the right or left rear of the vehicle is detected, a
buzzer sounds from behind the rear seat.
1
2
3
GX460_OM_OM60F68U_(U).book Page 358 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3594-5. Using the driving support systems
4
Driving

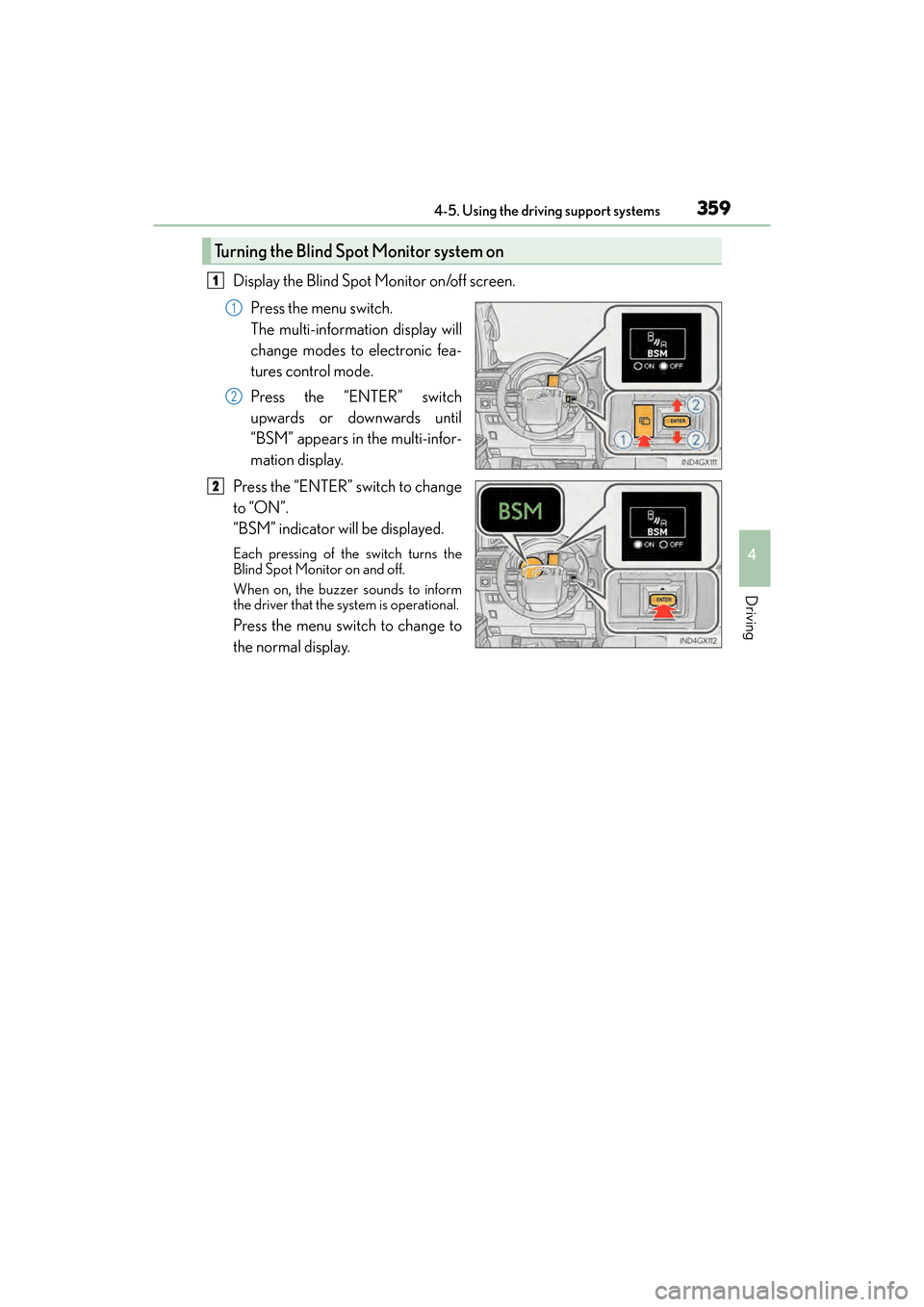

Display the Blind Spot Monitor on/off screen.Press the menu switch.
The multi-information display will
change modes to electronic fea-
tures control mode.
Press the “ENTER” switch
upwards or downwards until
“BSM” appears in the multi-infor-
mation display.
Press the “ENTER” switch to change
to “ON”.
“BSM” indicator will be displayed.
Each pressing of the switch turns the
Blind Spot Monitor on and off.
When on, the buzzer sounds to inform
the driver that the system is operational.
Press the menu switch to change to
the normal display.
Turning the Blind Spot Monitor system on
1
1
2
2
GX460_OM_OM60F68U_(U).book Page 359 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
4536-2. Maintenance
6
Maintenance and care
■Repair and replacement
It is recommended that genuine Lexus parts be used for repairs to ensure performance
of each system. If non-Lexus parts are used in replacement or if a repair shop other than
a Lexus dealer performs repairs, confirm the warranty coverage.
■Resetting the message indicating maintenance is required (U.S.A. only)
After the required maintenance is performed according to the maintenance schedule,
please reset the message.
To reset the message, follow the procedures described below:Press the Menu switch ( →P. 87) to change the multi-information display to blank.
Turn the engine switch off.
While pressing the ODO/TRIP button ( →P. 84), turn the engine switch to IGNITION
ON mode.
Continue to press and hold the button for more than 7 seconds after the engine switch
is turned to IGNITION ON mode.
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the latest ser-
vice information. They are well informed about the operation of all systems on your
vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while your vehicle is
under warranty, your Lexus dealer will promptly take care of it.
The message shown in the illustration will
appear on the display. After 5 seconds, the sys-
tem reset will be completed.
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 453 Wednesday, June 8, 2016 6:37 PM
