234
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems

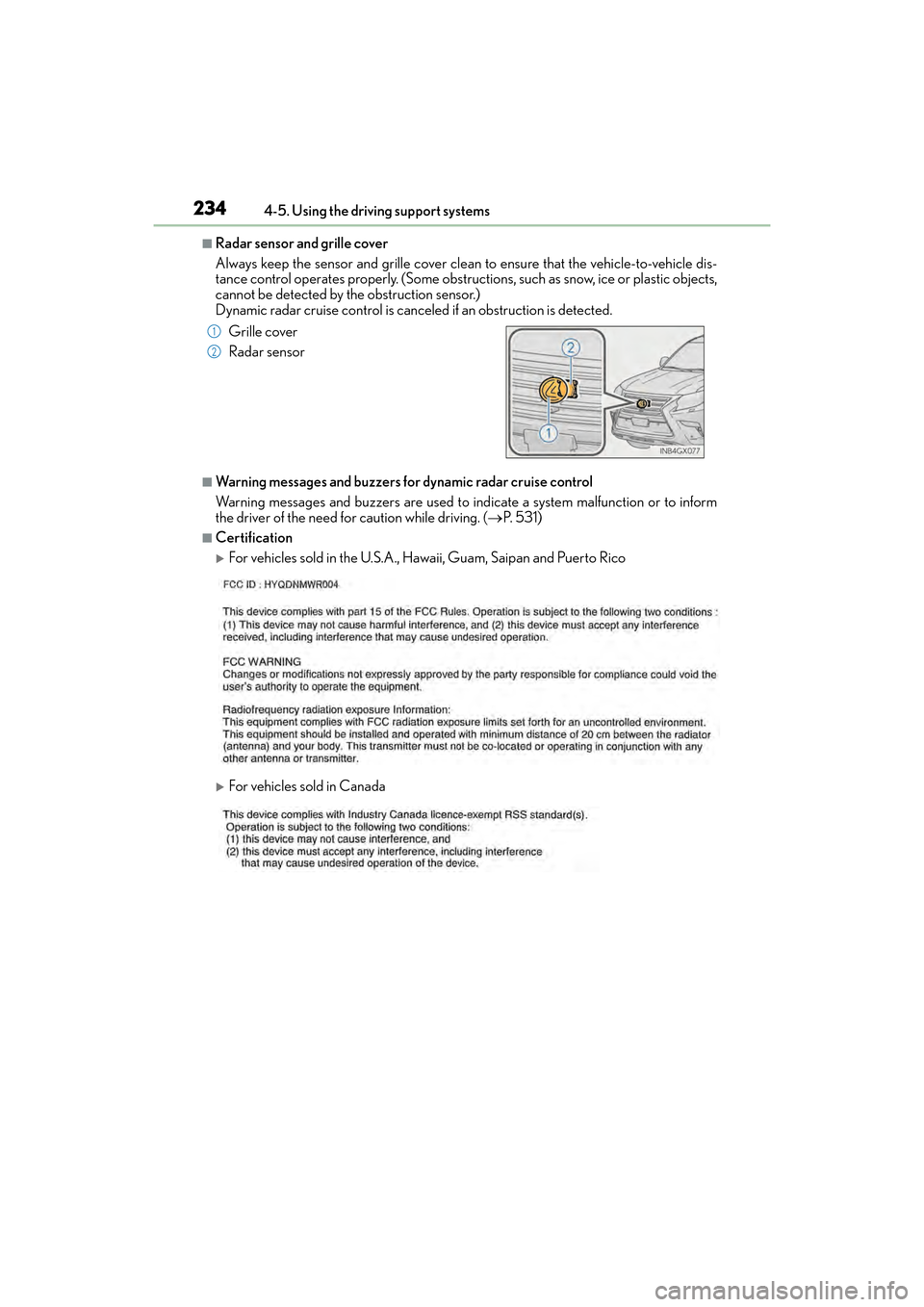

■Radar sensor and grille cover
Always keep the sensor and grille cover clean to ensure that the vehicle-to-vehicle dis-
tance control operates properly. (Some obstructions, such as snow, ice or plastic objects,
cannot be detected by the obstruction sensor.)
Dynamic radar cruise control is canceled if an obstruction is detected.
■Warning messages and buzzers for dynamic radar cruise control
Warning messages and buzzers are used to indicate a system malfunction or to inform
the driver of the need for caution while driving. (
→P. 5 3 1 )
■Certification
XFor vehicles sold in the U.S.A., Hawaii, Guam, Saipan and Puerto Rico
XFor vehicles sold in Canada Grille cover
Radar sensor
1
2
GX460_OM_OM60F68U_(U).book Page 234 Wednesday, June 8, 2016 6:37 PM

236
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
CAUTION
■To avoid inadvertent cruise control activation
Switch the cruise control off using the “ON-OFF” button when not in use.
■Situations unsuitable for dynamic radar cruise control
Do not use dynamic radar cruise control in any of the following situations.
Doing so may result in inappropriate speed control and could cause an accident result-
ing in death or serious injury.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as those covered with rain, ice or snow
●On steep downhills, or where there are su
dden changes between sharp up and down
gradients
Vehicle speed may exceed the set speed when driving down a steep hill.
●At entrances to expressways
●When weather conditions are bad enough that they may prevent the sensors from
functioning correctly (fog, snow, sandstorm, heavy rain, etc.)
●When an approach warning buzzer is heard often
●When your vehicle is towing a trailer (with towing hitch) or during emergency towing
■When the sensor may not be correctly detecting the vehicle ahead
Apply the brakes as necessary when any of the following types of vehicles are in front of
you.
As the sensor may not be able to correctly detect these types of vehicles, the approach
warning ( →P. 231) will not be activated, and a fatal or serious accident may result.
●Vehicles that cut in suddenly
●Vehicles traveling at low speeds
●Vehicles that are not moving
●Vehicles with small rear ends (trailers with no load on board etc.)
●Motorcycles traveling in the same lane
GX460_OM_OM60F68U_(U).book Page 236 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2374-5. Using the driving support systems
4
Driving
CAUTION
■Conditions under which the vehicle-to-vehicle distance control may not function cor-
rectly
Apply the brakes as necessary in the following conditions as the radar sensor may not
be able to correctly detect vehicles ahead, and a fatal or serious accident may result:
●When water or snow thrown up by the surrounding vehicles hinders the functioning
of the sensor
●When your vehicle is pointing upwards (caused by a heavy load in the luggage com-
partment etc.)
●When the road curves or when the lanes are narrow
●When steering wheel operation or your position in the lane is unstable
●When the vehicle ahead of you decelerates suddenly
■To ensure the sensor functions correctly
Do not do the following to the sensor or grille as doing so may cause the sensor not to
function correctly and could result in an accident:
●Sticking or attaching anything to them
●Leaving them dirty
●Disassembling or subjecting them to strong shocks
●Modifying or painting them
●Replacing them with non-genuine parts
■Handling the radar sensor
Observe the following to ensure the cruise control system can function effectively.
Otherwise, the system may not function correctly and could result in an accident.
●Keep the sensor and grille cover clean at all times.
Clean the sensor and grille cover with a soft cloth so you do not mark or damage
them.
●Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off positi on, the system may malfunction. If the sen-
sor or surrounding area is subject to a strong impact, always have the area inspected
and adjusted by your Lexus dealer.
●Do not disassemble the sensor.
●Do not attach accessories or stickers to th e sensor, grille cover or surrounding area.
●Do not modify or paint the sensor and grille cover.
●If the sensor needs to be replaced, contact your Lexus dealer.
GX460_OM_OM60F68U_(U).book Page 237 Wednesday, June 8, 2016 6:37 PM

238
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
LDA (Lane Departure Alert)∗
While driving on a road that has lane markers, this system recognizes the white
lane markers using a camera as a sensor to alert the driver when the vehicle
deviates from its lane.
If the system judges that the vehicle may deviate from its lane, it alerts the driver
using beeping and indications on the multi-information display.
Camera sensor
Press the “LDA” switch to activate the
system.
“LDA” indicator and the lane lines will
come on.
Press the switch again to turn the LDA
system off.
∗: If equipped
Summary of function
Turning the LDA system on
GX460_OM_OM60F68U_(U).book Page 238 Wednesday, June 8, 2016 6:37 PM

240
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Temporary cancelation of the LDA system
If any of the following occurs, the LDA system
will be temporarily canceled. The functions
will resume after the necessary operating conditions have returned.
●The turn signal lever is operated.
●The brake pedal is depressed.
●The vehicle speed deviates from the operating range of the LDA system.
●The lane lines cannot be recognized while driving.
●The wiper operates continuously.
●When the lane departure warning function is activated.
Once the lane departure warning function is activated, it will be temporarily canceled
and resume a few seconds later.
■The lane departure warning
Depending on the audio system sound level or air conditioning fan noise while the audio
system or air conditioning system is in use, it may be difficult to hear the warning sound.
■After the vehicle has been parked in the sun
The LDA system may not be available and a warning message ( →P. 531) will be dis-
played for a while after driving has started. When the temperature in the cabin decreases
and the temperature around the camera sensor ( →P. 238) becomes suitable for its
operation, the functions will begin to operate.
GX460_OM_OM60F68U_(U).book Page 240 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2414-5. Using the driving support systems
4
Driving
■Conditions in which the function may not operate correctly
In the following conditions, th e camera sensor may be unable to recognize lane markers
causing the lane departure warning function to operate incorrectly. However, this does
not indicate a malfunction.
●When driving through an area with no lane markers, such as a tollbooth, a crossing or
before a ticket checkpoint
●When driving on a sharp curve
●When lane markers are extremely narrow or extremely wide
●When the vehicle leans to one side an unusual amount due to a heavy load or improper
tire inflation pressure
●When the following distance between your vehicle and the vehicle ahead is extremely
short
●When the lane markers are yellow (These ma y be more difficult for the system to rec-
ognize compared to white markers.)
●When the lane markers are broken, “Botts’ dots”, “Raised pavement marker” or stones
●When the lane markers are on a curb etc.
●When lane markers are obscured or partially obscured by sand, dirt, etc.
●When there are shadows on the road running parallel with lane markers, or if a shadow
covers the lane markers
●When driving on a particularly bright road surface, such as concrete
●When driving on a road surface that is bright due to reflected light
●When driving in a location where the light leve l changes rapidly, such as the entrance to
or exit from a tunnel
●When sunlight or the headlight s of oncoming vehicles are shining directly into the cam-
era lens
●When driving on roads that are branching or merging
●When driving on a road surface that is wet du e to rain, previous rainfall, standing water,
etc.
●When the vehicle experiences strong up-and-down motion such as when driving on an
extremely rough road or on a seam in the pavement
●When headlight brightness at nighttime is reduced due to dirt on the lenses, or when
the headlights are misaligned
●When driving on winding roads or roads that are uneven
●When driving on rough or unpaved roads
■When changing the tires
Depending on the tires used, such as snow tire, etc., sufficient performance may not be
maintainable.
■Warning messages and buzzers for LDA system
Warning messages and buzzers are used to indicate a system malfunction or to inform
the driver of the need for caution while driving. ( →P. 5 3 1 , 5 3 2 )
GX460_OM_OM60F68U_(U).book Page 241 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2434-5. Using the driving support systems
4
Driving
NOTICE
■To prevent damage to or incorrect operation of the LDA system
●Do not modify the headlights or attach stickers to the surface of the lights.
●Do not modify the suspension or replace it with non-genuine parts.
●Do not install or place anything on the hood or the grille. Also, do not install a grille
guard (bull bars, kangaroo bar etc.).
●If your windshield needs repairs, contact your Lexus dealer.
■Camera sensor ( →P. 2 3 8 )
Observe the following to ensure that the LDA system functions correctly.
●Keep the windshield clean at all times.
Performance could be affected if the windshie ld is dirty, or if raindrops, condensation
or ice are adhering to the windshield.
●Do not spill liquid onto the camera sensor.
●Do not attach window tinting to the windshield.
●Do not install an antenna in front of the camera lens.
●If the windshield is fogged up, use the windshield defogger to remove fog from the
windshield.
When it is cold, using the he ater with air blowing to the feet may allow the upper part
of the windshield to fog up. This will have a negative effect on the images.
●Do not scratch the camera lens, or let it get dirty.
When cleaning the inside of the windshield, be careful not to get any glass cleaner
etc. on the lens. Also, do not touch the lens.
For lens repair, contact your Lexus dealer.
●Do not change the installation position or di rection of the camera sensor or remove it.
The direction of the camera sensor is precisely adjusted.
●Do not subject the camera sensor to strong impact or force, and do not disassemble
the camera sensor.
●Do not replace windshield with non-genuine windshield.
Contact your Lexus dealer.
●Do not attach a sticker or other items to the
windshield near the camera sensor.
GX460_OM_OM60F68U_(U).book Page 243 Wednesday, June 8, 2016 6:37 PM

244
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
Intuitive parking assist∗
Front center sensors
Front corner sensors
Rear corner sensors
Rear center sensors
∗: If equipped
The distance from your vehicle to nearby obstacles when parallel parking or
maneuvering into a garage is measured
by the sensors and communicated via
the multi-information display, the multimedia screen (if equipped), the naviga-
tion system screen (if e quipped), and a buzzer. Always check the surrounding
area when using this system.
Types of sensors
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 244 Wednesday, June 8, 2016 6:37 PM

246
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
When the sensors detect an obstacle, a graphic is shown on the multi-informa-
tion display, multimedia screen (if equipped) and navigation system screen (if
equipped) depending on the position and distance to the obstacle.
XMulti-information display
Front corner sensor operation
Front center sensor operation
Rear corner sensor operation
Rear center sensor operation
XMultimedia screen or navigation system screen
Intuitive parking assist display
When the rear view monitor sys-
tem
*, Lexus parking assist monitor*
or Multi-terrain Monitor* is not dis-
played.
A graphic is automatically displayed
when an obstacle is detected. The
screen can be set so that the graphic is
not displayed. ( →P. 2 4 9 )
Insert display
When the rear view monitor sys-
tem
*, Lexus parking assist monitor*
or Multi-terrain Monitor* is dis-
played.
A simplified image is displayed on the
upper corner of the screen when an
obstacle is detected.
*: If equipped
Display
1
2
3
4
1
2
GX460_OM_OM60F68U_(U).book Page 246 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2474-5. Using the driving support systems
4
Driving
■Distance display
Sensors that detect an obstacle will illuminate continuously or blink.
Sensor detection display, obstacle distance
Multi-
information displayMultimedia screen or
navigation system screen
Insert
display
Approximate distance to obstacle
Front corner
sensor/front
center sensorRear corner
sensor/rear
center sensor
(continuous)(continuous)(blinking slowly)
Front center
sensor:
3.3 ft. (100 cm) to
2.0 ft. (60 cm)Rear center
sensor:
4.9 ft. (150 cm) to
2.1 ft. (65 cm)
(continuous)(continuous)(blinking)
Front corner
sensor:
1.6 ft. (50 cm) to
1.3 ft. (40 cm)
Front center
sensor:
2.0 ft. (60 cm) to
1.5 ft. (45 cm)Rear corner
sensor:
1.8 ft. (55 cm) to
1.2 ft. (37.5 cm)
Rear center
sensor:
2.1 ft. (65 cm) to
1.6 ft. (50 cm)
(continuous)(continuous)(blinking
rapidly)
Front corner
sensor:
1.3 ft. (40 cm) to
1.0 ft. (30 cm)
Front center
sensor:
1.5 ft. (45 cm) to
1.0 ft. (30 cm)Rear corner
sensor:
1.2 ft. (37.5 cm) to
0.8 f t. (25 cm)
Rear center
sensor:
1.6 ft. (50 cm) to
1.3 ft. (40 cm)
(blinking)(continuous)(continuous)
Less than
1.0 ft. (30 cm)
Rear corner
sensor:
Less than
0.8 f t. (25 cm)
Rear center
sensor:
Less than
1.3 ft. (40 cm)
GX460_OM_OM60F68U_(U).book Page 247 Wednesday, June 8, 2016 6:37 PM
