Lexus GX460 2017 Owner's Manual

289
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
4
Driving
Wide view front & side monitor∗
Pressing the wide view front & side
monitor switch turns the monitor on/off
The simultaneous display screen is dis-
played when the wide view front & side
monitor switch is pressed.
∗: If equipped
The wide view front & side monitor prov
ides support when checking the areas
to the left and right side of the vehicle and the area in front of the vehicle dur-
ing take-off at T-intersections or other intersections with poor visibility. This
system also helps the driver avoid obstacles and when moving the vehicle to
the side of the road.
The wide view front monitor camera displays the areas to the front left and
right sides and the area directly in front of the vehicle on the multimedia
screen (if equipped) or navigation syst em screen (if equipped). The side moni-
tor camera displays the area to the fr ont left of the vehicle on the screen.
This system can display the wide view front monitor and the side monitor sepa-
rately or at the same time.
GX460_OM_OM60F68U_(U).book Page 289 Wednesday, June 8, 2016 6:37 PM

290
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Wide view front & side monitor simultaneous display
Both the wide view front monitor and the side monitor are displayed on one
screen. When switching to the wide view front & side monitors this screen is
displayed first, regardless of the screen mode.
Wide view front monitor
Side monitor
■Wide view front monitor
The image from the front camera is displayed. Use this monitor to help check
the area in front of the vehicle for safe ty, for example in intersections with poor
visibility.
Display
1
2
GX460_OM_OM60F68U_(U).book Page 290 Wednesday, June 8, 2016 6:37 PM

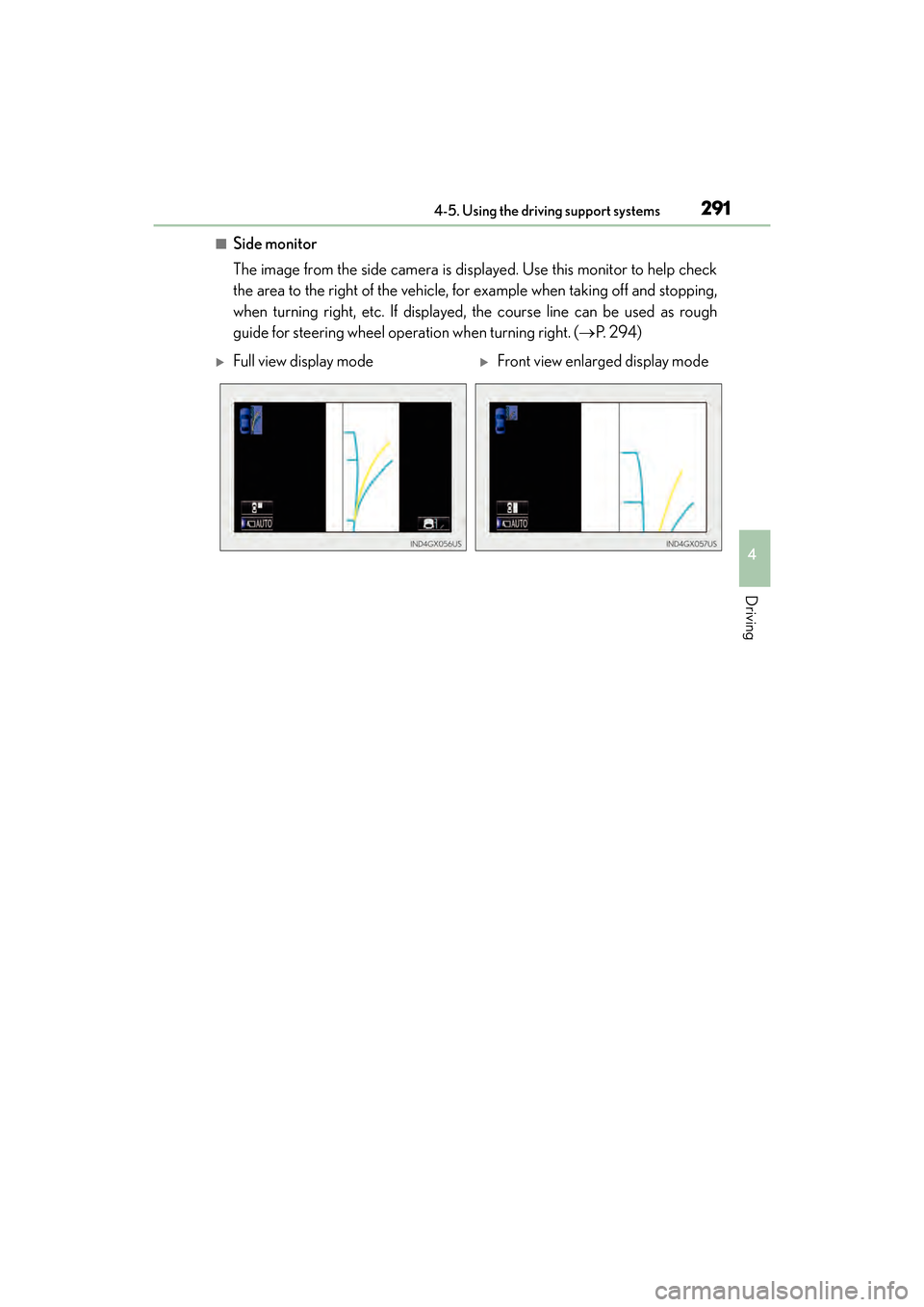

GX 460 _O M_ OM6 0F 6 8U _(U )
2914-5. Using the driving support systems
4
Driving
■Side monitor
The image from the side camera is displayed. Use this monitor to help check
the area to the right of the vehicle, for example when taking off and stopping,
when turning right, etc. If displayed, the course line can be used as rough
guide for steering wheel operation when turning right. (→P. 2 9 4 )
XFull view display modeXFront view enlarged display mode
GX460_OM_OM60F68U_(U).book Page 291 Wednesday, June 8, 2016 6:37 PM

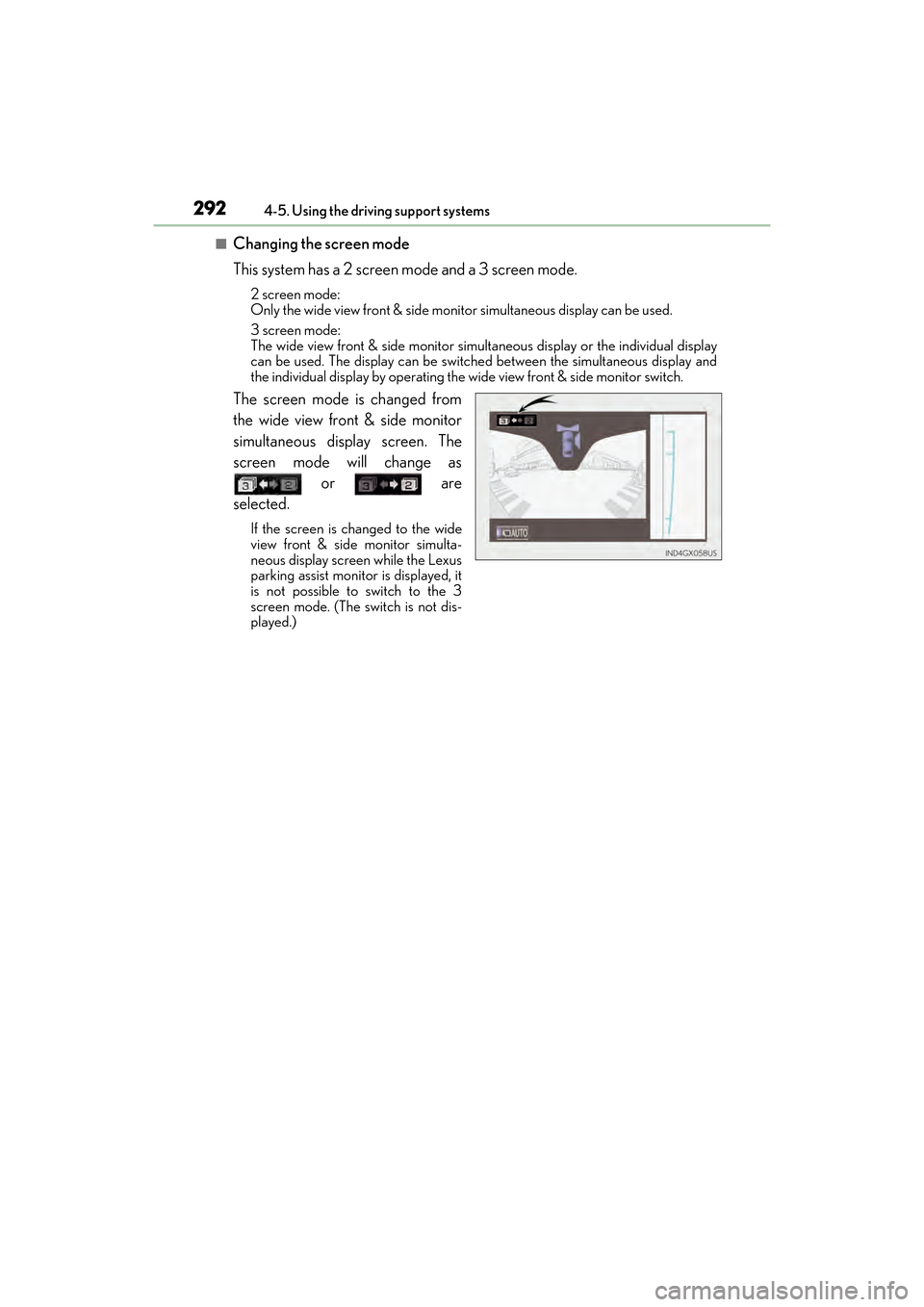

292
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Changing the screen mode
This system has a 2 screen mode and a 3 screen mode.
2 screen mode:
Only the wide view front & side monitor simultaneous display can be used.
3 screen mode:
The wide view front & side monitor simult
aneous display or the individual display
can be used. The display can be switched between the simultaneous display and
the individual display by operating the wide view front & side monitor switch.
The screen mode is changed from
the wide view front & side monitor
simultaneous display screen. The
screen mode will change as
or are
selected.
If the screen is changed to the wide
view front & side monitor simulta-
neous display screen while the Lexus
parking assist monitor is displayed, it
is not possible to switch to the 3
screen mode. (The switch is not dis-
played.)
GX460_OM_OM60F68U_(U).book Page 292 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2934-5. Using the driving support systems
4
Driving
■Changing the display in 3 screen mode
When in 3 screen mode, you can change the display from the simultaneous
display to each individual display.
The screen changes as follows with each press of the wide view front & side
monitor switch.
When the wide view front monitor was displayed the previous time:
When the side monitor was displayed the previous time:
The wide view front monitor and side monitor individual displays are not accessible
when the shift lever is in R.
■Automatic display mode
In this mode, the screen is switched automatically in response to vehicle
speed, in addition to screen switching by operating the wide view front & side
monitor switch.
Select “AUTO” on the front or wide
view front & side monitor screen.
The “AUTO” indicator will come on.
Select “AUTO” again to return to
normal display mode.
“AUTO” will not be displayed when
the shift lever is in R.
Wide view front & side monitor simultaneous displaySide monitor Wide view front monitor
Wide view front & side monitor simultaneous display Wide view front monitor Side monitor
GX460_OM_OM60F68U_(U).book Page 293 Wednesday, June 8, 2016 6:37 PM

294
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
●Simultaneous display
Front wheel contact point
Shows the position of the vehicle’s
front tire.
Vehicle front edge line
Shows the position of the vehicle’s
leading edge.
Vehicle width line (blue)
Indicates the width of the vehicle
including the outside rear view mir-
ror.
Projected course line (yellow)
Displays a rough guide of the vehicle path that moves according to the steering
wheel position. Displayed along with the minimum projected turning circle.
Minimum projected turning circle (blue)
Displays the smallest turning circle projected by the system if the steering wheel is
turned to full lock. Displayed when the steering wheel is turned to the right (further
than 90 ° from straight ahead).
Rear wheel contact point
Shows the position of the vehicle’s rear tire.
Using the side monitor
1
2
3
4
5
6
GX460_OM_OM60F68U_(U).book Page 294 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
2954-5. Using the driving support systems
4
Driving
●Individual display
Front wheel contact point
Shows the position of the vehicle’s front tire.
Vehicle front edge line
Shows the position of the vehicle’s leading edge.
Vehicle width line (blue)
Indicates the width of the vehicle including the outside rear view mirror.
Projected course line (yellow)
Displays a rough guide of the vehicle path that moves according to the steering wheel
position. Displayed along with the minimum projected turning circle.
Minimum projected turning circle (blue)
Displays the smallest turning circle projected by the system if the steering wheel is
turned to full lock. Displayed when the steer ing wheel is turned to the right (further
than 90 ° from straight ahead).
Projected course line switching button
The course line display mode will change as follows each time the switch is selected.
When the shift lever is in R, it will not be displayed.
Rear wheel contact point
Shows the position of the vehicle’s rear tire.
Individual display mode switching button
Switches the full view display mode or Front view enlarged display mode.
XFull view display modeXFront view enlarged display mode
1
2
3
4
5
6
7
8
GX460_OM_OM60F68U_(U).book Page 295 Wednesday, June 8, 2016 6:37 PM

296
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Changing the course line display mode
●No course lines mode
Vehicle width line is displayed.
●Turning course line display mode
The projected course line is
added to the minimum projected
turning circle mode.
●Minimum projected turning circle display mode
The minimum projected turning
circle line is added to the no
course lines mode.
GX460_OM_OM60F68U_(U).book Page 296 Wednesday, June 8, 2016 6:37 PM

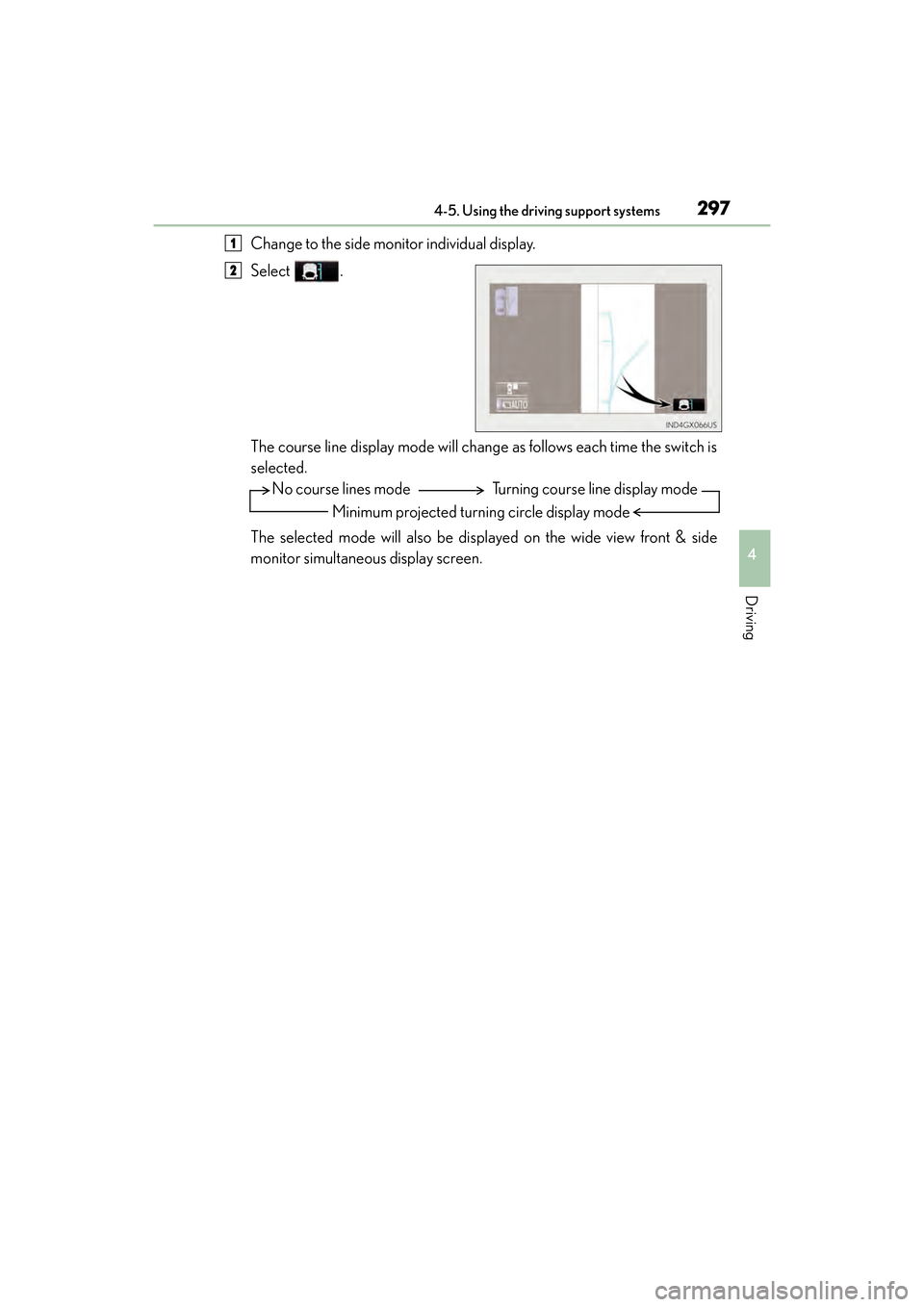

GX 460 _O M_ OM6 0F 6 8U _(U )
2974-5. Using the driving support systems
4
Driving
Change to the side monitor individual display.
Select .
The course line display mode will change as follows each time the switch is
selected.
The selected mode will also be displayed on the wide view front & side
monitor simultaneous display screen.1
2
No course lines modeMinimum projected turning circle display mode Turning course line display mode
GX460_OM_OM60F68U_(U).book Page 297 Wednesday, June 8, 2016 6:37 PM

298
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Using the vehicle width line & course line
●Vehicle width line
Use the vehicle width line to
check the vehicle’s distance from
objects such as curbstones etc.
As shown in the illustration, be
sure that the vehicle width line
does not overlap the object. If you
also move the vehicle so that the
vehicle width line and the object
are parallel, you can park parallel
to the object
